Hackcon 2017
The document discusses Windows security features like Device Guard, Credential Guard, and virtualization-based security. It provides information on how these features help protect systems from malware, zero-days, and advanced persistent threats. It also discusses some challenges with implementing these features and provides links for further reading on deploying and managing Windows security.
More Related Content
Hackcon 2017
- 1. Protecting your criticalsystems from new and unknown malware, 0-days, and APT
- 2. WE DRIVE BUSINESSEVOLUTION FORWARD The ONE solution https://en.wikipedia.org/wiki/Snake_oil
- 3. WE DRIVE BUSINESSEVOLUTION FORWARD Modern Users

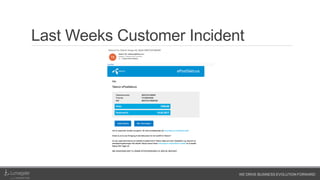

- 4. WE DRIVE BUSINESSEVOLUTION FORWARD Last Weeks Customer Incident

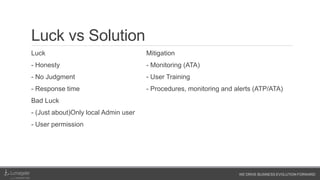

- 5. WE DRIVE BUSINESSEVOLUTION FORWARD Luck vs Solution Luck - Honesty - No Judgment - Response time Bad Luck - (Just about)Only local Admin user - User permission Mitigation - Monitoring (ATA) - User Training - Procedures, monitoring and alerts (ATP/ATA)

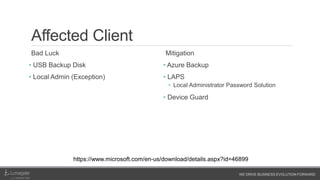

- 6. WE DRIVE BUSINESSEVOLUTION FORWARD Affected Client Bad Luck • USB Backup Disk • Local Admin (Exception) Mitigation • Azure Backup • LAPS • Local Administrator Password Solution • Device Guard https://www.microsoft.com/en-us/download/details.aspx?id=46899

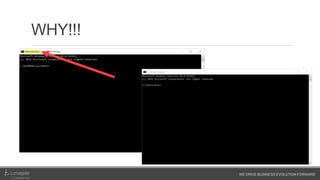

- 7. WE DRIVE BUSINESSEVOLUTION FORWARD WHY!!!
- 8. WE DRIVE BUSINESSEVOLUTION FORWARD Man vs Machine
- 9. WE DRIVE BUSINESSEVOLUTION FORWARD Old School Security o User Education o Traditional best practices o Avoid Exceptions o Etc. Think!!!
- 10. WE DRIVE BUSINESSEVOLUTION FORWARD Windows Security History November 2006August 2004 https://en.wikipedia.org/wiki/Timeline_of_Microsoft_Windows

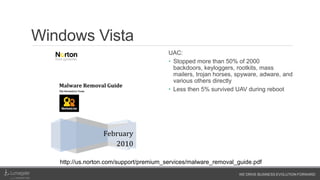

- 11. WE DRIVE BUSINESSEVOLUTION FORWARD Windows Vista UAC: • Stopped more than 50% of 2000 backdoors, keyloggers, rootkits, mass mailers, trojan horses, spyware, adware, and various others directly • Less then 5% survived UAV during reboot http://us.norton.com/support/premium_services/malware_removal_guide.pdf

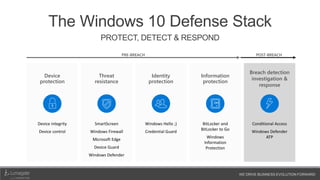

- 12. WE DRIVE BUSINESSEVOLUTION FORWARD The Windows 10 Defense Stack PROTECT, DETECT & RESPOND PRE-BREACH POST-BREACH Windows Defender ATP Breach detection investigation & response Device protection Device Health attestation Device Guard Device Control Security policies Information protection Device protection / Drive encryption Enterprise Data Protection Conditional access Threat resistance SmartScreen AppLocker Device Guard Windows Defender Network/Firewall Built-in 2FA Account lockdown Credential Guard Microsoft Passport Windows Hello ;) Identity protection Breach detection investigation & response Device protection Information protection Threat resistance Conditional Access Windows Defender ATP Device integrity Device control BitLocker and BitLocker to Go Windows Information Protection SmartScreen Windows Firewall Microsoft Edge Device Guard Windows Defender Windows Hello ;) Credential Guard Identity protection

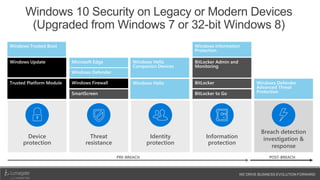

- 13. WE DRIVE BUSINESSEVOLUTION FORWARD POST-BREACHPRE-BREACH Breach detection investigation & response Device protection Identity protection Information protection Threat resistance Windows 10 Security on Legacy or Modern Devices (Upgraded from Windows 7 or 32-bit Windows 8)
- 14. WE DRIVE BUSINESSEVOLUTION FORWARD Dynamic Lock / Goodbye
- 15. WE DRIVE BUSINESSEVOLUTION FORWARD Hello (Word) For business 10 Print «Hello World!» 20 Goto 10 Run

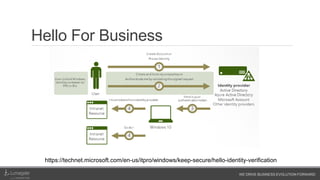

- 16. WE DRIVE BUSINESSEVOLUTION FORWARD Hello For Business https://technet.microsoft.com/en-us/itpro/windows/keep-secure/hello-identity-verification
- 17. WE DRIVE BUSINESSEVOLUTION FORWARD Secure Boot / Bitlocker / BIOS -> UEFI https://msdn.microsoft.com/en-us/windows/hardware/commercialize/manufacture/desktop/secure-boot-overview

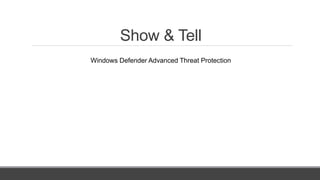

- 18.

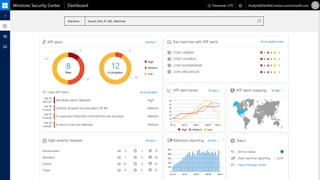

- 19. WE DRIVE BUSINESSEVOLUTION FORWARD
- 26.
- 27. WE DRIVE BUSINESSEVOLUTION FORWARD VIRTUALIZATION BASED SECURITY Kernel Windows Platform Services Apps Kernel SystemContainer Trustlet#1 Trustlet#2 Trustlet#3 Hypervisor Device Hardware Windows Operating System Hyper-VHyper-V

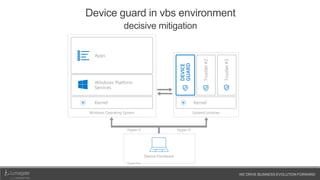

- 28. WE DRIVE BUSINESSEVOLUTION FORWARD Device guard in vbs environment decisive mitigation Kernel Windows Platform Services Apps Kernel SystemContainer DEVICE GUARD Trustlet#2 Trustlet#3 Hypervisor Device Hardware Windows Operating System Hyper-VHyper-V

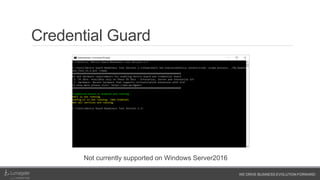

- 29. WE DRIVE BUSINESSEVOLUTION FORWARD Credential Guard Not currently supported on Windows Server2016

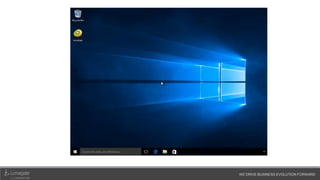

- 30. WE DRIVE BUSINESSEVOLUTION FORWARD

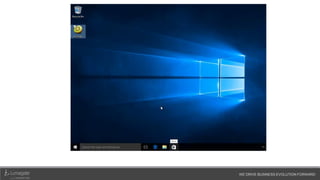

- 31. WE DRIVE BUSINESSEVOLUTION FORWARD

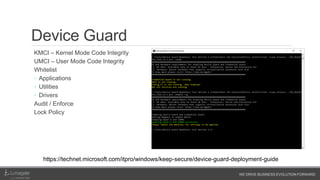

- 32. WE DRIVE BUSINESSEVOLUTION FORWARD Device Guard KMCI – Kernel Mode Code Integrity UMCI – User Mode Code Integrity Whitelist ◦ Applications / Apps ◦ Utilities ◦ Drivers Audit / Enforce Lock Policy https://technet.microsoft.com/itpro/windows/keep-secure/device-guard-deployment-guide

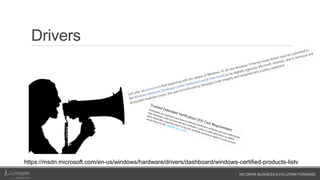

- 33. WE DRIVE BUSINESSEVOLUTION FORWARD Drivers https://msdn.microsoft.com/en-us/windows/hardware/drivers/dashboard/windows-certified-products-listv
- 34. WE DRIVE BUSINESSEVOLUTION FORWARD Certificates and Views 2 314 831 bytes 888 068 bytes

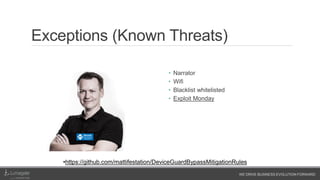

- 35. WE DRIVE BUSINESSEVOLUTION FORWARD Exceptions (Known Threats) • Narrator • Wifi • Blacklist whitelisted • Exploit Monday •https://github.com/mattifestation/DeviceGuardBypassMitigationRules

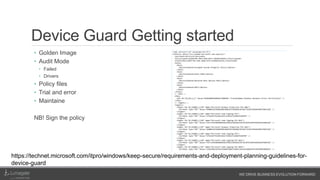

- 36. WE DRIVE BUSINESSEVOLUTION FORWARD Device Guard Getting started • Golden Image • Audit Mode • Failed • Drivers • Policy files • Trial and error • Maintaine NB! Sign the policy https://technet.microsoft.com/itpro/windows/keep-secure/requirements-and-deployment-planning-guidelines-for- device-guard
- 37. WE DRIVE BUSINESSEVOLUTION FORWARD Group Policy
- 38. WE DRIVE BUSINESSEVOLUTION FORWARD Config Manager https://blogs.technet.microsoft.com/enterprisemobility/2015/10/30/managing-windows-10-device-guard-with- configuration-manager/

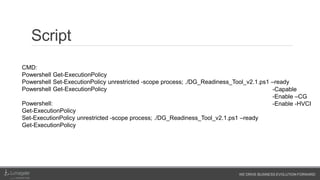

- 39. WE DRIVE BUSINESSEVOLUTION FORWARD CMD: Powershell Get-ExecutionPolicy Powershell Set-ExecutionPolicy unrestricted -scope process; ./DG_Readiness_Tool_v2.1.ps1 –ready Powershell Get-ExecutionPolicy Powershell: Get-ExecutionPolicy Set-ExecutionPolicy unrestricted -scope process; ./DG_Readiness_Tool_v2.1.ps1 –ready Get-ExecutionPolicy Script -Capable -Enable –CG -Enable -HVCI
- 40. WE DRIVE BUSINESSEVOLUTION FORWARD Management • Group Policy • Intune (Comming) • System Center

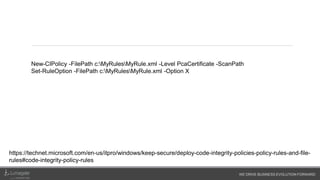

- 41. WE DRIVE BUSINESSEVOLUTION FORWARD New-CIPolicy -FilePath c:MyRulesMyRule.xml -Level PcaCertificate -ScanPath Set-RuleOption -FilePath c:MyRulesMyRule.xml -Option X https://technet.microsoft.com/en-us/itpro/windows/keep-secure/deploy-code-integrity-policies-policy-rules-and-file- rules#code-integrity-policy-rules

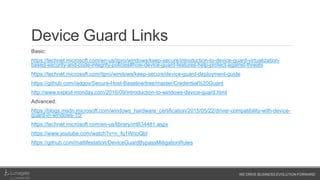

- 42. WE DRIVE BUSINESSEVOLUTION FORWARD Device Guard Links Basic: https://technet.microsoft.com/en-us/itpro/windows/keep-secure/introduction-to-device-guard-virtualization- based-security-and-code-integrity-policies#how-device-guard-features-help-protect-against-threats https://technet.microsoft.com/itpro/windows/keep-secure/device-guard-deployment-guide https://github.com/iadgov/Secure-Host-Baseline/tree/master/Credential%20Guard http://www.exploit-monday.com/2016/09/introduction-to-windows-device-guard.html Advanced: https://blogs.msdn.microsoft.com/windows_hardware_certification/2015/05/22/driver-compatibility-with-device- guard-in-windows-10/ https://technet.microsoft.com/en-us/library/mt634481.aspx https://www.youtube.com/watch?v=n_fq1WnoQbI https://github.com/mattifestation/DeviceGuardBypassMitigationRules
- 43. WE DRIVE BUSINESSEVOLUTION FORWARD Conclusion
- 44. WE DRIVE BUSINESSEVOLUTION FORWARD Machine vs Man
- 45. Olav Tvedt Senior PrincipalArchitect Lumagate A/S Blog: olavtvedt.blogspot.com Twitter: OlavTwitt Epost: Olav.Tvedt@Lumagate.com Cloud and Datacenter Management Windows and Devices for IT 31. Mai – www.mvpdagen.no
