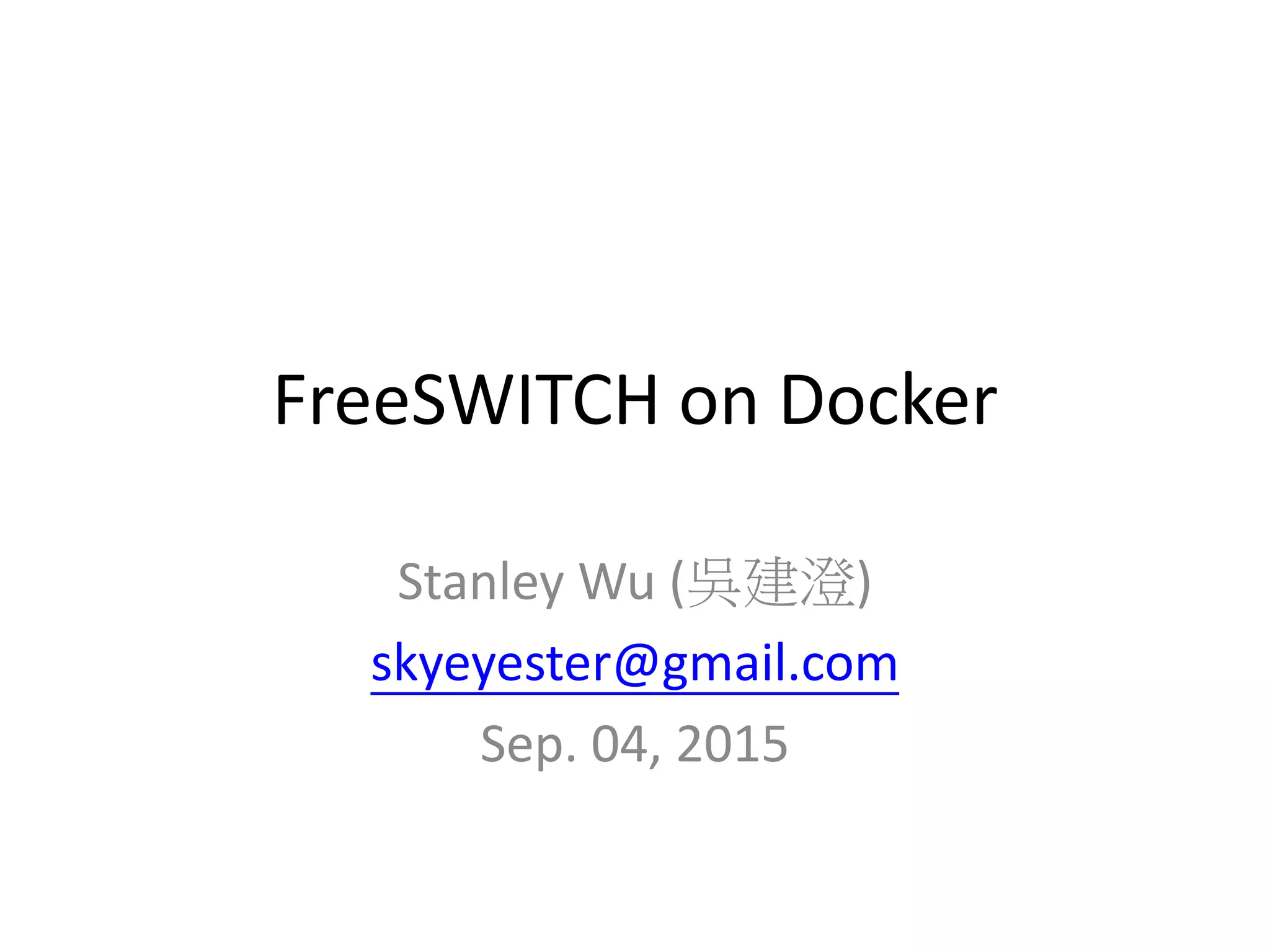

1. FreeSWITCH on Docker
Stanley Wu (吳建澄)
skyeyester@gmail.com
Sep. 04, 2015

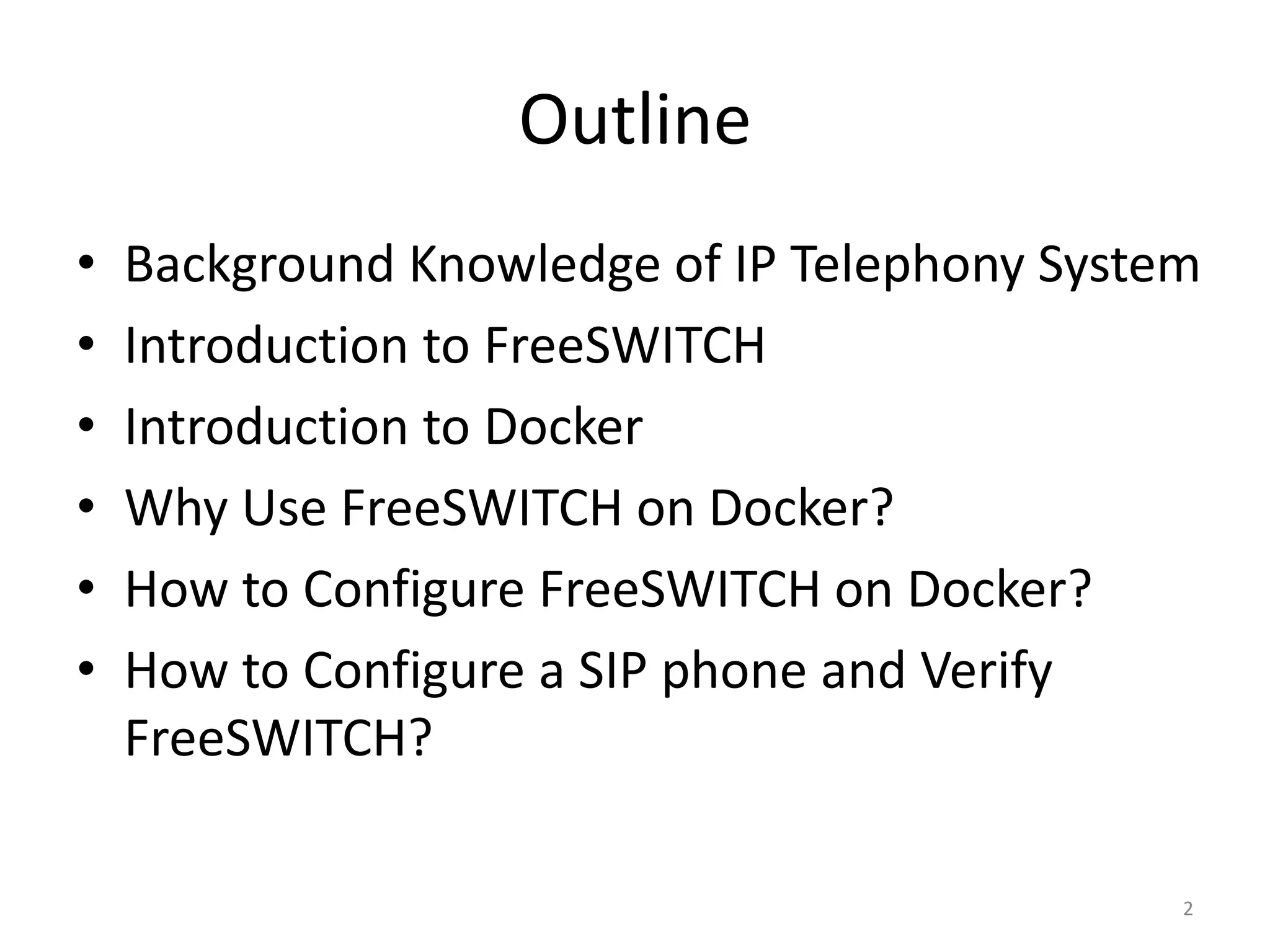

2. Outline
• Background Knowledge of IP Telephony System
• Introduction to FreeSWITCH
• Introduction to Docker
• Why Use FreeSWITCH on Docker?
• How to Configure FreeSWITCH on Docker?
• How to Configure a SIP phone and Verify
FreeSWITCH?
2

3. Background Knowledge of IP
Telephony System (1/3)

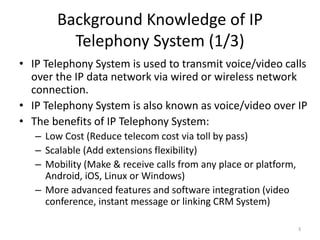

• IP Telephony System is used to transmit voice/video calls
over the IP data network via wired or wireless network
connection.
• IP Telephony System is also known as voice/video over IP
• The benefits of IP Telephony System:
– Low Cost (Reduce telecom cost via toll by pass)
– Scalable (Add extensions flexibility)
– Mobility (Make & receive calls from any place or platform,
Android, iOS, Linux or Windows)
– More advanced features and software integration (video
conference, instant message or linking CRM System)
3

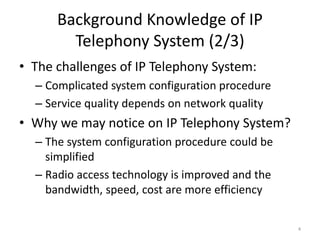

4. Background Knowledge of IP
Telephony System (2/3)
• The challenges of IP Telephony System:
– Complicated system configuration procedure
– Service quality depends on network quality
• Why we may notice on IP Telephony System?
– The system configuration procedure could be
simplified
– Radio access technology is improved and the
bandwidth, speed, cost are more efficiency
4

5. Background Knowledge of IP
Telephony System (3/3)

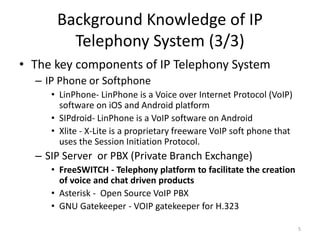

• The key components of IP Telephony System
– IP Phone or Softphone
• LinPhone- LinPhone is a Voice over Internet Protocol (VoIP)
software on iOS and Android platform
• SIPdroid- LinPhone is a VoIP software on Android
• Xlite - X-Lite is a proprietary freeware VoIP soft phone that
uses the Session Initiation Protocol.
– SIP Server or PBX (Private Branch Exchange)
• FreeSWITCH - Telephony platform to facilitate the creation
of voice and chat driven products
• Asterisk - Open Source VoIP PBX
• GNU Gatekeeper - VOIP gatekeeper for H.323
5

6. Introduction to FreeSWITCH (1/2)
• FreeSWITCH is designed to be a telephony platform, a soft
switch to route and interconnect communications
protocols using a wide range of media, all of this while
being able to handle a growing amount of work.
• Features of FreeSWITCH
– Default implementation is for a PBX or Softswitch
– Modular system allows you to extend the system easily
Applications may be written in C, Java, .NET etc.
– Handle thousands of concurrent channels with media on a
standard PC Interoperates with many different products and
protocols
• such as CallWeaver (formerly known as OpenPBX.org),
• Bayonne, Yate, sipXecs or Asterisk
• Supports SIP, H.323, IAX2 etc.
6

7. Introduction to FreeSWITCH(2/2)
• Functions of FreeSWITCH
– Become back-to-back user agent (B2BUA)
– Handle all SIP signaling – route calls, transfer calls,
and can even translate codecs between different
legs of the call.
– Transcode RTP streams
– Offer value-added features such as voicemail, call
transfers, and others.
7

8. Introduction to Docker

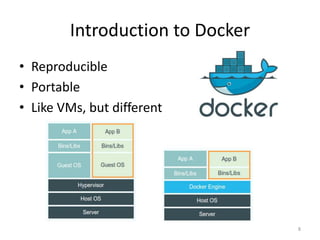

• Reproducible
• Portable
• Like VMs, but different
8

9. Why FreeSWITCH on Docker? (1/2)
• Docker makes FreeSWITCH installation,
deployment and configuration more easier
• There are a lot of concerns on using Virtual
Machines in Telephony world. Especially for the
server’s that handles the Real Time voice packets,
as voice quality is pretty important in Telephony.
• But the lightweight container can just decrease
the performance into tolerable situation
• We can enhance the whole telephony system
performance in the other part (e.g. latency via
SDN, etc)
9

10. Why FreeSWITCH on Docker? (2/2)
• Speed
– Each container shares the same kernel as the host operating system, so there is no
overhead of a hypervisor. Resources are allocated as needed, rather than up front.
Docker containers start in a second or less.
• Repeatability
– The way Docker images work and the fact that we can version them has some nice
qualities. A container can be created from an image on any machine and it will
always be the same. As a result of this, images can be tested locally or in a QA
environment.
• Packaging
– Everything needed to run an application is included in the image. This removes the
problem of conflicting versions of libraries on production machines. Customers can
run your image on any host that has Docker installed. Docker is compatible with
Windows, Linux, and OS X.
• Scalability
– We can run multiple containers at the same time and Docker will handle setting up
networking for us. The great thing about using Docker with SIP-related projects is
that all we have to do for a new container is add an SRV record and we are done. 10

11. How to Configure FreeSWITCH on
Docker? (1/9)

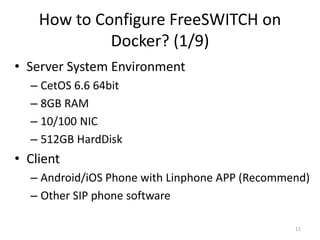

• Server System Environment
– CetOS 6.6 64bit
– 8GB RAM
– 10/100 NIC
– 512GB HardDisk
• Client
– Android/iOS Phone with Linphone APP (Recommend)
– Other SIP phone software
11

12. How to Configure FreeSWITCH on
Docker? (2/9)
• Install Docker
– $ sudo yum install docker-io
– $ sudo service docker start
– $ sudo chkconfig docker on
• Run Docker without root
– $ sudo groupadd docker
– $ sudo gpasswd -a myusername docker
– $ sudo service docker restart
– $ exit (shall re-login)
• Vertify
– $ docker –v
• Please reference the official website to get more detail (https://docs.docker.com/installation/centos/)
12

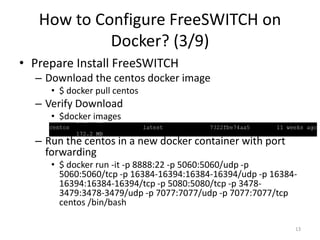

13. How to Configure FreeSWITCH on
Docker? (3/9)
• Prepare Install FreeSWITCH
– Download the centos docker image
• $ docker pull centos
– Verify Download
• $docker images
– Run the centos in a new docker container with port
forwarding
• $ docker run -it -p 8888:22 -p 5060:5060/udp -p
5060:5060/tcp -p 16384-16394:16384-16394/udp -p 16384-
16394:16384-16394/tcp -p 5080:5080/tcp -p 3478-
3479:3478-3479/udp -p 7077:7077/udp -p 7077:7077/tcp
centos /bin/bash
13

14. How to Configure FreeSWITCH on
Docker? (4/9)
• In the new CentOS container, Install FreeSWITCH
– Install the following dependencies:
• # yum install git autoconf automake libtool gcc-c++ libuuid-devel
zlib-devel libjpeg-devel ncurses-devel openssl-devel e2fsprogs-
devel ldns-devel wget python sqlite-devel libcurl-devel pcre-devel
speex-devel ldns-devel libedit-devel
– Download FreeSWITCH Source and Configure installation
• #cd /usr/local/src/
• # git clone https://freeswitch.org/stash/scm/fs/freeswitch.git
• # cd /usr/local/src/freeswitch
• # git checkout v1.5.14
• # ./bootstrap.sh
• #./configure
14

15. How to Configure FreeSWITCH on
Docker? (5/9)
• In the new CentOS container, Install FreeSWITCH
– Verify the “#./configure” result
15

16. How to Configure FreeSWITCH on
Docker? (6/9)
• In the new CentOS container, Install FreeSWITCH
– # make (This may take a few minutes.)
– Verify result
16

17. How to Configure FreeSWITCH on
Docker? (7/9)

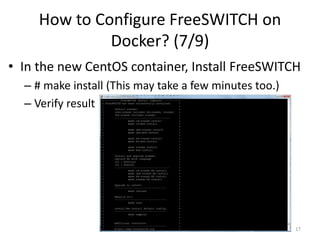

• In the new CentOS container, Install FreeSWITCH
– # make install (This may take a few minutes too.)
– Verify result
17

18. How to Configure FreeSWITCH on
Docker? (8/9)
• In the new CentOS container, Install FreeSWITCH
– Install the voice resource
• make sounds-install
• make moh-install
– Configure the network setting
• $ cd /usr/local/freeswitch/
• Edit conf/autoload_configs/switch.conf.xml
– set rtp-start-port and rtp-end-port to the start (16384) and end (16394) of the
mapped port range.
• Edit conf/vars.xml
– update the external_rtp_ip and external_sip_ip to be the virtual IP
• Edit conf/sip_profiles/internal.xml
– Replace “auto-nat” to external IP
18

19. How to Configure FreeSWITCH on
Docker? (9/9)

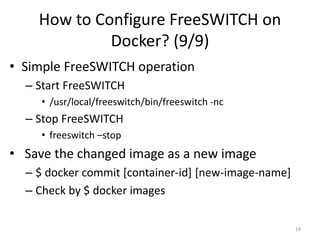

• Simple FreeSWITCH operation
– Start FreeSWITCH
• /usr/local/freeswitch/bin/freeswitch -nc
– Stop FreeSWITCH
• freeswitch –stop
• Save the changed image as a new image
– $ docker commit [container-id] [new-image-name]
– Check by $ docker images
19

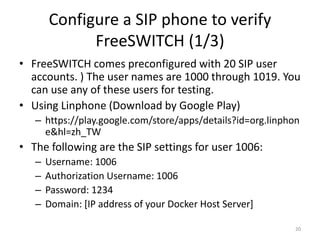

20. Configure a SIP phone to verify
FreeSWITCH (1/3)
• FreeSWITCH comes preconfigured with 20 SIP user
accounts. ) The user names are 1000 through 1019. You
can use any of these users for testing.
• Using Linphone (Download by Google Play)
– https://play.google.com/store/apps/details?id=org.linphon
e&hl=zh_TW
• The following are the SIP settings for user 1006:
– Username: 1006
– Authorization Username: 1006
– Password: 1234
– Domain: [IP address of your Docker Host Server]
20

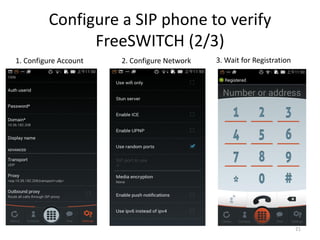

21. Configure a SIP phone to verify
FreeSWITCH (2/3)
21
1. Configure Account 2. Configure Network 3. Wait for Registration

22. Configure a SIP phone to verify
FreeSWITCH (3/3)
22

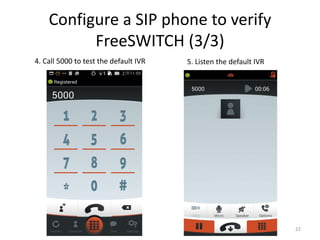

4. Call 5000 to test the default IVR 5. Listen the default IVR
