Learn about the exciting new REST Resource API powered by Python's new asyncio library. In this talk you'll learn about some of the amazing things you can do with Guillotina and how you can leverage it to build your next JavaScript web application.

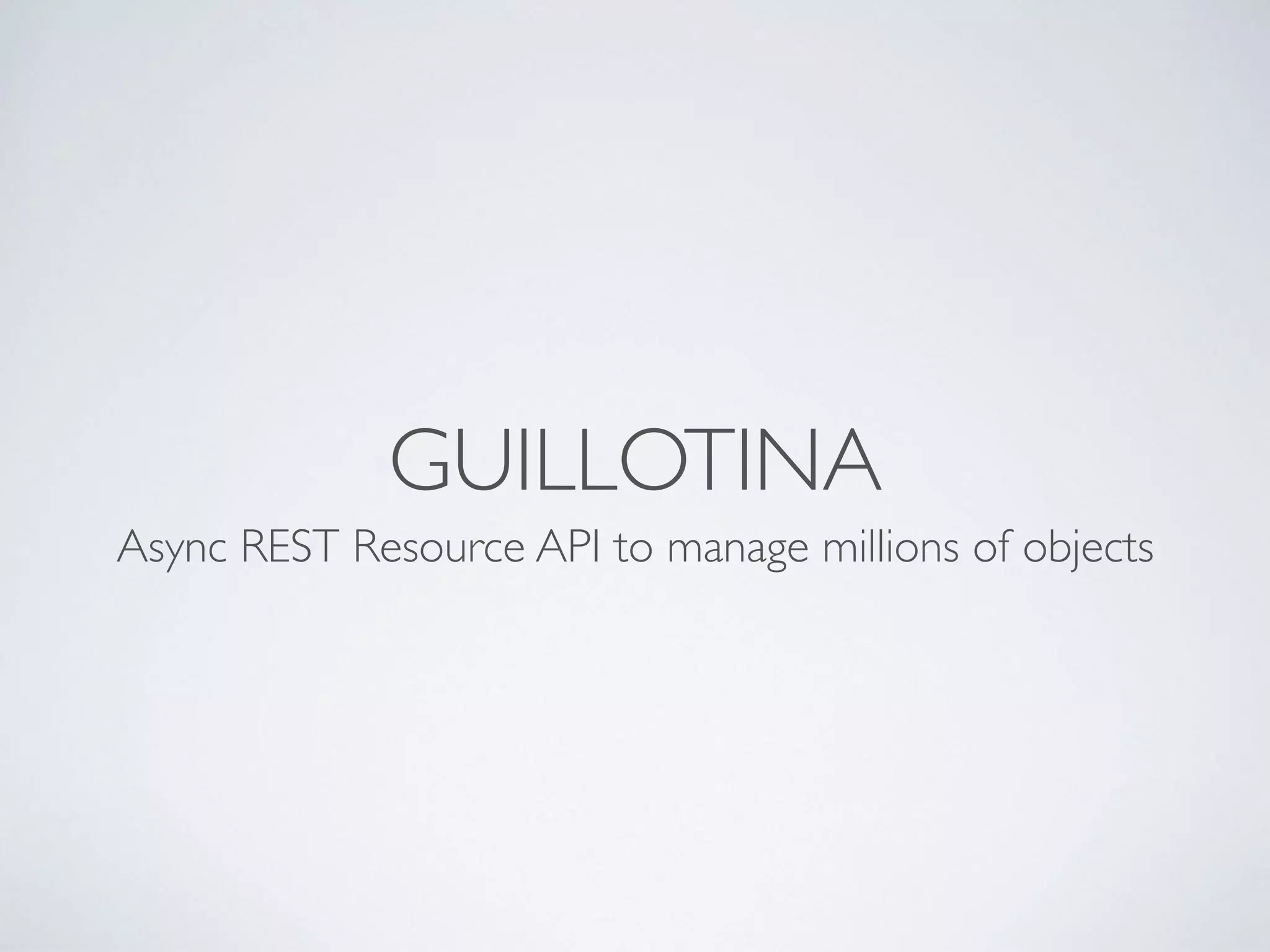

1. GUILLOTINA
Async REST Resource API to manage millions of objects

2. Full Stack Engineer Onna - BCN
Connect and search all knowledge
inside an enterprise with ML

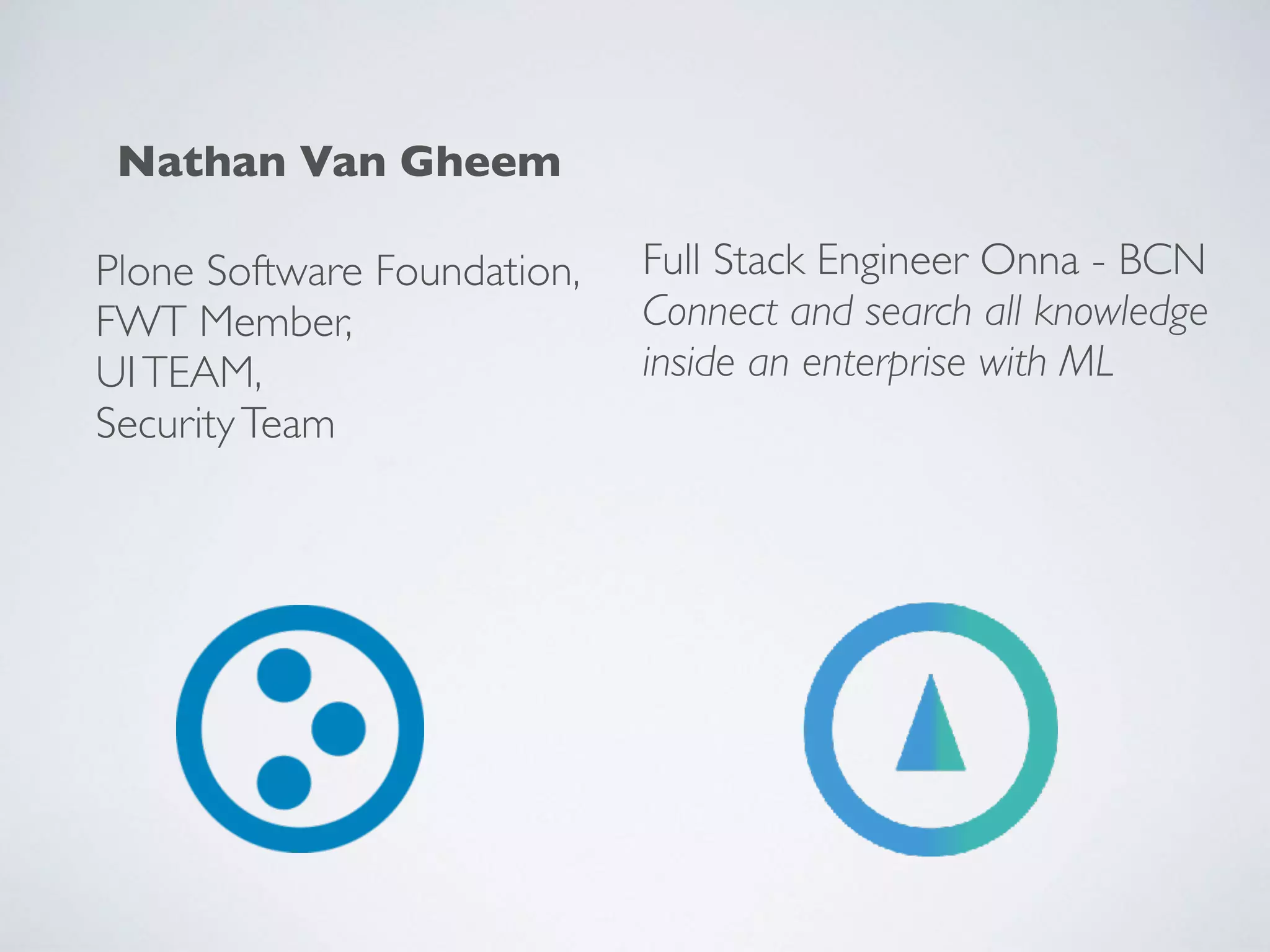

Nathan Van Gheem
Plone Software Foundation,
FWT Member,
UITEAM,
SecurityTeam

3. CoFounder/CTO Onna - SF/BCN
Connect and search all knowledge
inside an enterprise with ML
Ramon Navarro Bosch
Plone Software Foundation & FWT Member

4. BACKGROUND

5. WEB FRAMEWORKS
• Angular/React : Server rendering frameworks are
dying
• Most sources of data comes from the web/api
• Lots of experience on storing, distributing,
managing resources

6. LOVE
We love Plone but wanted to
be able to use it in high
performant situations with
modern web technologies

7. Long time ago … 18 years … Zope and ZODB was created
object oriented DB and web application server
Then 16 years ago … Plone was created
layer on top of Z stack to provide CMS
Then 7 years ago … Pyramid was created
merge pylons + repoze.bfg (zope fork)
Then 2 years ago … Plone REST API was created
Abstraction layer for creating resources on top of Plone 5
300 python packages
Then 1 years ago … plone.server was created
Rewrite from scratch of minimum Plone backend with py 3.6 and asyncio

9. EVOLUTION
The spirit of Plone lives

10. LESSONS
Taking lessons learned from
Plone, simplify and apply to an
AsyncIO context

11. INSPIRATION
Plone/Zope’s hierarchical data model
Pyramid’s decorator-based configuration
Django’s global application settings
ZCA pluggability
Plone/Zope’s security model
JSON Schema

12. FORKS
parts of zodb data model
plone.behavior
zope.security
zope.schema
zope.component/zope.configuration
zope.dublincore
zope.i18n
zope.lifecycleevent
zope.location
zope.event

13. WHAT IT IS
NOT
replacement for Plone
re-implementation of Plone
plone.restapi compatible API
guillotina_cms

14. FEATURES

15. TRANSACTION
All operations are managed to
be durable and confirmed,
conflict resolution policies

16. CONSCIENTIOUS
WRITER
Reduce conflict errors, better
performance

17. RELATIONAL
DATABASES
Use the best database
systems available
PostgreSQL
CockroachDB

18. TREE
Information is
organized in
trees of objects

19. RESOURCES
Objects are resources with
schema attributes, annotations,
OO inheritance and static/
dynamic behaviors.
RESOURCE

20. JSON
SCHEMA/
PYTHON
Serialization of python
interfaces to JSON Schema
and back again

21. SECURITY
Full definition of permissions /
roles / principals with global
and local inheritance of
permissions on the tree.Allow,
Deny, Unset,AllowSingle (no
inheritance)

22. CRUD
DynamicTraversal CRUD
HTTP verbs mapping for each
content type
Custom endpoints for specific
operations
GET
HEAD
POST
PUTPATCH

23. ASYNCIO
All based on asyncio for
network integrations with
external indexers, db, caching,
services
Based on aioHTTP

24. SIMPLE
Easy to install,
Easy to develop
pip install guillotina
docker run guillotina/guillotina

25. CORS
Cors configured globally and
enabled by default

26. WEBSOCKET
Websocket connection to
apply operations through
frames. Mapping of REST API
on aTCP async channel.

27. MICRO-
SERVICES
Perfect for micro services

28. TUS
Binary resumable file upload

29. APPLICATIONS
Easily extendable with python packages
guillotina_swagger
guillotina_elasticsearch
guillotina_rediscache
guillotina_s3storage
guillotina_gcloudstorage
guillotina_dbusers
guillotina_mailer
guillotina_pgcatalog

30. EXTENSIBLE
Uses zope.interface and based
on zope.component
utilities and adapters!Yay!

31. COOKIE
CUTTER
Cookie cutter templates for
configuration and applications

32. QUEUE
Operational queue and after
response tasks

33. EVENT
Async event based system to
trigger operations in code
Async tasks

34. REGISTRY
Configuration registry for
each container

35. STATIC FILES
AND JS APPS
Support for serving JavaScript
applications

36. MULTI DB
Mount multiple DBs
Supports:
POSTGRESQL
COCKROACH

37. FILE CLOUD
Support for S3/GCloud
storage.
Database blob storage
otherwise

38. INDEX
ElasticSearch indexing

39. DIST CACHE
Redis backend

40. SWAGGER
Automatic API documentation
generation

41. CONTAINERS
Docker / K8s / Nomad out
the box

42. EXPLICIT PY
All configuration is defined on
the code using decorators
@configure.service()

43. guillotina(x) = argmin Zope/Plone(x)
* zope.interface still used

44. Traversal
/DB/MAIN_CONTAINER/OBJ1/OBJ2

45. • Only >= Python 3.6
• Designed to host millions of objects
• Memory optimizations
• Apply operations to contained objects in async
• Authentication & authorization extensions
• Reusable UI JS components from Plone
(Widgets/SPA)

46. TRY IT !

47. ---
databases:
- db:
storage: postgresql
transaction_strategy: resolve
dsn:
scheme: postgres
dbname: guillotina
user: postgres
host: localhost
password: ''
port: 5432
pool_size: 40
read_only: false
host: 127.0.0.1
port: 8080
static:
- favicon.ico: static/favicon.ico
root_user:
password: root
cors:
allow_origin:
- "*"
allow_methods:
- GET
- POST
- DELETE
- HEAD
- PATCH
allow_headers:
- "*"
expose_headers:
- "*"
allow_credentials: true
max_age: 3660
utilities: []

48. docker run -p 5432:5432 -d postgres
psql -h localhost -U postgres << EOF
CREATE DATABASE guillotina;
EOF
pip install guillotina
guillotina -c config.json
curl -X GET http://localhost:8080
curl -u root:root http://localhost:8080
curl -X POST -u root:root -H "Content-Type: application/json"
-d '{"@type":"Container","id":"mycontainer","title":"My Lovely Container"}'
http://localhost:8080/db/ | jq .
curl -X POST -u root:root -H "Content-Type: application/json"
-d '{"@type":"Folder","id":"myfolder"}' http://localhost:8080/db/mycontainer | jq .
curl -X POST -u root:root -H "Content-Type: application/json"
-d '{"@type":"Folder"}' http://localhost:8080/db/mycontainer | jq .
curl -X POST -u root:root -H "Content-Type: application/json"
-d '{"@type":"Item","id":"myitem"}' http://localhost:8080/db/mycontainer/myfolder | jq .
curl -X PATCH -u root:root -H "Content-Type: application/json"
-d '{"title": "My new title"}' http://localhost:8080/db/mycontainer/myfolder/myitem | jq .
curl -X GET -u root:root -H "Content-Type: application/json"
-d '{"title": "My new title"}' http://localhost:8080/db/mycontainer/myfolder/myitem | jq .
curl -X DELETE -u root:root -H "Content-Type: application/json"
http://localhost:8080/db/mycontainer | jq .

49. DATA MODEL
Resource &
Container
Interface
Schema fields
Static
Behaviors
Dynamic
Behaviors

50. from guillotina import configure
from guillotina.content import Item
from guillotina.interfaces import IItem
from guillotina import schema
class ICustomType(IItem):
foo = schema.Text()
@configure.contenttype(
type_name="CustomType",
schema=ICustomType,
behaviors=[
"guillotina.behaviors.dublincore.IDublinCore",
"example.behaviors.ICustomBehavior",
])
class CustomType(Item):
pass

51. @configure.subscriber(for_=(ICustomType, IObjectAddedEvent))
async def created_userfolder(obj, evnt):
...
@configure.service(
context=ICustomType, name='@myEndpoint', method='GET',
permission='guillotina.AccessContent')
async def my_service(context, request):
...

52. DATA SCIENCE

53. “Organizing data is where we spend more time and its boring.”
Data Scientist Sysadmin / Engineers

54. Tables / CSV Docs / Unstructured data
NOSQLSQL

55. WIP : DISTRIBUTED HIVE
Execute an operation to all objects in distributed execution
Based on etcd
Dynamic workers that are going to compute a task
No aggregation callback
Batch mass modification of the model
guillotina_hive
(thanks @vangheezy)

56. from guillotina.traversal import traverse
async def my_task(task_info, root, request):
data = task_info.data
path = data['path']
ob, end_path = await traverse(request, root, path.lstrip('/').split('/'))
assert len(end_path) == 0
from guillotina.component import getUtility
from guillotina_hive.interfaces import IHiveUtility
hive = getUtility(IHiveUtility)
task_info = TaskInfo('my_task', {'foo': 'bar'})
await hive.push_task(task_info)

57. Try it, create issues, contribute

58. Go to the “Introduction to AsyncIO” talk!

59. PREGUNTES ?
GRÀCIES !
vangheem@gmail.com
ramon@plone.org
CORE : https://github.com/plone/guillotina
DOCS : http://guillotina.readthedocs.io/en/latest/
DOCKER: https://hub.docker.com/r/guillotina/guillotina/
MODULES : https://github.com/guillotinaweb
ONNA: https://github.com/onna
