- 1. Grundfos – APump Company By Lasse Søgaard Ledet Senior Specialist, Sound & Vibration

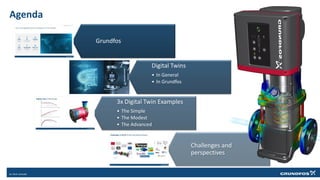

- 2. Agenda Grundfos Digital Twins • InGeneral • In Grundfos 3x Digital Twin Examples • The Simple • The Modest • The Advanced Challenges and perspectives
- 3. 16,000,000 DKK 26.3 1945 whenit all started #1 pump manufacturer in the world 100+ companies worldwide units produced per year 19,000+ employees billion net turnover in 2020 GRUNDFOS CORPORATE PRESENTATION 5 The most global pump company in the world

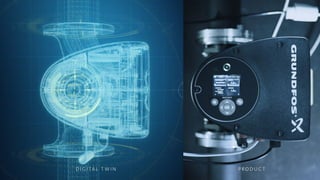

- 4.

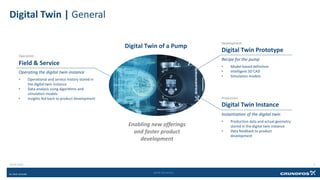

- 5. Digital Twin Prototype Field& Service Digital Twin Instance Operating the digital twin instance • Operational and service history stored in the digital twin instance • Data analysis using algorithms and simulation models • Insights fed back to product development Recipe for the pump • Model-based definition • Intelligent 3D CAD • Simulation models Digital Twin of a Pump Instantiation of the digital twin • Production data and actual geometry stored in the digital twin instance • Data feedback to product development Digital Twin | General Development Production Operation Enabling new offerings and faster product development 20-05-2021 5 Jakob Vernersen
- 6. Simulation models Platform Configurator ROMs Digital Twins| Grundfos Digital Twin Simulation models Intelligent CAD

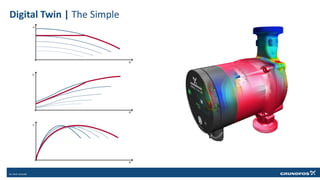

- 7. Digital Twin |The Simple

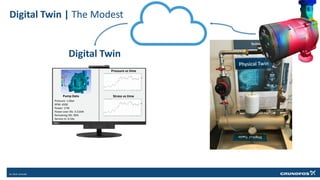

- 8. Digital Twin |The Modest Pressure vs time Stress vs time Pump Data Pressure: 1.6bar RPM: 4500 Power: 17W Power over life: 3.51kW Remaining life: 96% Service in: 0.54y Digital Twin

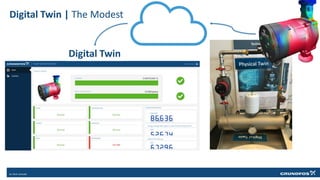

- 9. Digital Twin |The Modest Digital Twin

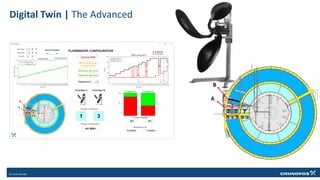

- 10. Digital Twin |The Advanced

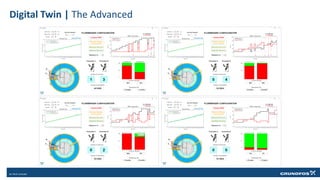

- 11. Digital Twin |The Advanced

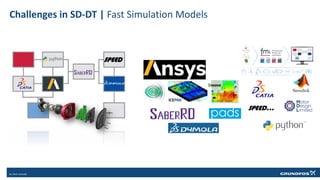

- 12. SPEED Challenges in SD-DT| Fast Simulation Models

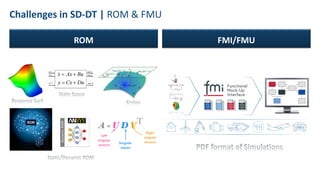

- 13. Challenges in SD-DT| ROM & FMU ROM FMI/FMU
