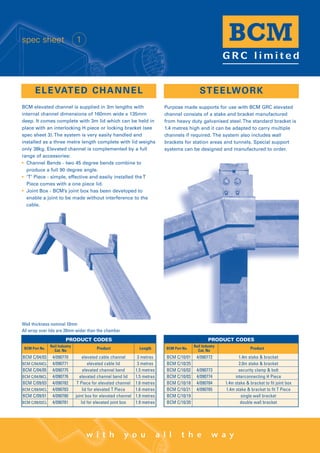

1. BCM elevated channel is supplied in 3m lengths with
internal channel dimensions of 160mm wide x 135mm
deep. It comes complete with 3m lid which can be held in
place with an interlocking H piece or locking bracket (see
spec sheet 3).The system is very easily handled and
installed as a three metre length complete with lid weighs
only 38kg. Elevated channel is complemented by a full
range of accessories:
• Channel Bends - two 45 degree bends combine to
produce a full 90 degree angle.
• ‘T’ Piece - simple, effective and easily installed theT
Piece comes with a one piece lid.
• Joint Box - BCM’s joint box has been developed to
enable a joint to be made without interference to the
cable.
ELEVATED CHANNEL
w i t h y o u a l l t h e w a y
BCM C/04/03 4/090770 elevated cable channel 3 metres
BCM C/04/04CL 4/090771 elevated cable lid 3 metres
BCM C/04/05 4/090775 elevated channel bend 1.5 metres
BCM C/04/06CL 4/090776 elevated channel bend lid 1.5 metres
BCM C/09/03 4/090782 T Piece for elevated channel 1.6 metres
BCM C/09/04CL 4/090783 lid for elevated T Piece 1.6 metres
BCM C/09/01 4/090780 joint box for elevated channel 1.9 metres
BCM C/09/02CL 4/090781 lid for elevated joint box 1.9 metres
STEELWORK
Purpose made supports for use with BCM GRC elevated
channel consists of a stake and bracket manufactured
from heavy duty galvanised steel.The standard bracket is
1.4 metres high and it can be adapted to carry multiple
channels if required. The system also includes wall
brackets for station areas and tunnels. Special support
systems can be designed and manufactured to order.
BCM Part No.
Rail Industry
Cat. No
Product Length
PRODUCT CODES
BCM C/10/01 4/090772 1.4m stake & bracket
BCM C/10/25 2.0m stake & bracket
BCM C/10/02 4/090773 security clamp & bolt
BCM C/10/03 4/090774 interconnecting H Piece
BCM C/10/18 4/090784 1.4m stake & bracket to fit joint box
BCM C/10/21 4/090785 1.4m stake & bracket to fit T Piece
BCM C/10/19 single wall bracket
BCM C/10/20 double wall bracket
BCM Part No.
Rail Industry
Cat. No
Product
PRODUCT CODES
Wall thickness nominal 10mm
All wrap over lids are 20mm wider than the chamber
spec sheet 1
