This document describes how to build a GraphQL API in Clojure using Duct, Pedestal, and Lacinia. It discusses project structure using Duct, implementing the API server with Pedestal, and using Lacinia for the GraphQL implementation. It provides an example GraphQL API for a fictional anime club database, showing the GraphQL schema, sample queries and responses, and how the resolvers interface with the database boundary.

1. GraphQL API in ClojureGraphQL API in Clojure

2. lagénorhynquelagénorhynque
(defprofile lagénorhynque
:aliases [ ]
:languages [Clojure Common-Lisp Scheme Haskell
English français]
:interests [programming Love-Live!
language-learning/linguistics law mathematics]
:committing [github.com/lagenorhynque/duct.module.pedestal]
:contributing [github.com/japan-clojurians/clojure-site-ja])

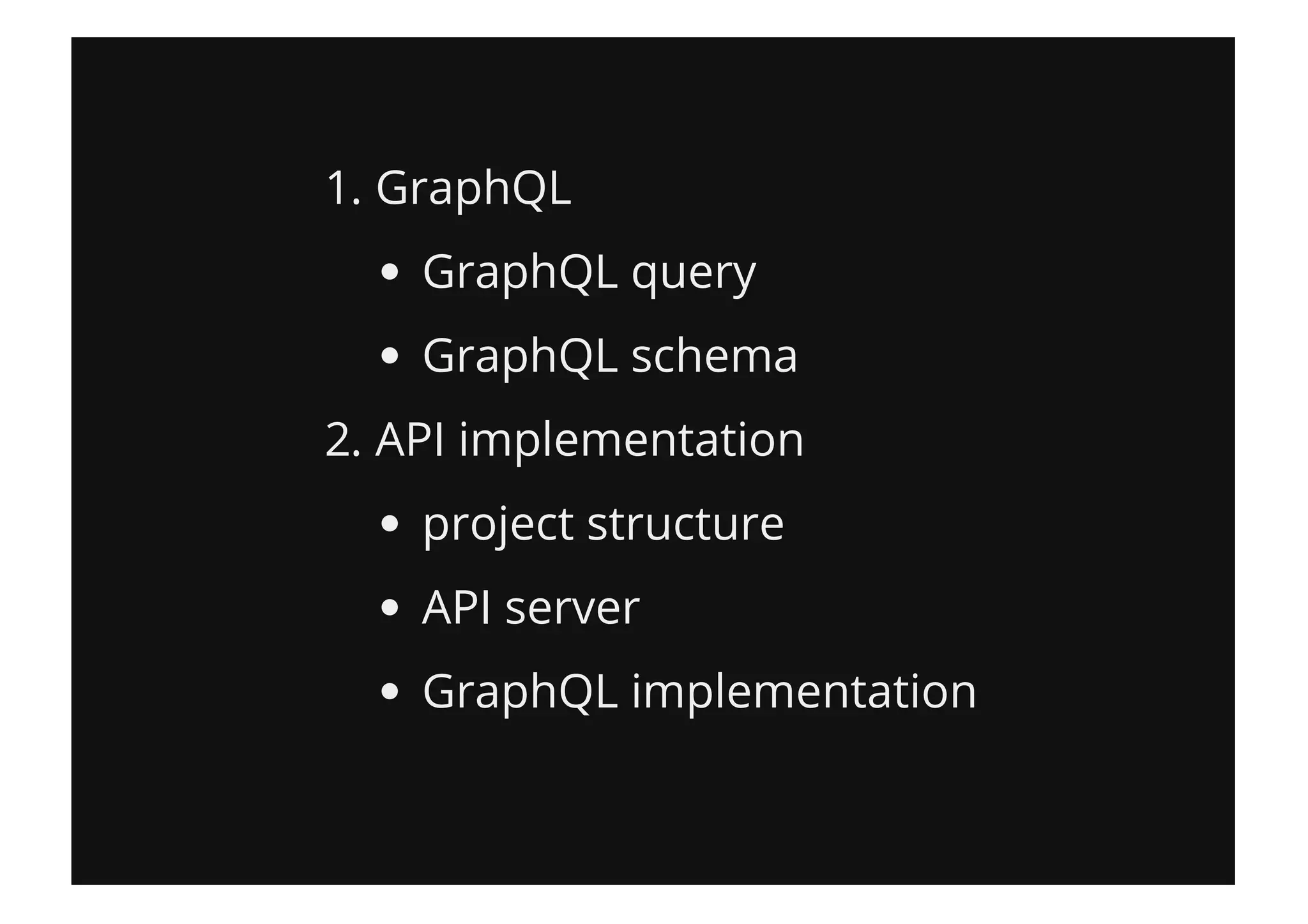

3. 1. GraphQL
GraphQL query
GraphQL schema
2. API implementation
project structure
API server
GraphQL implementation

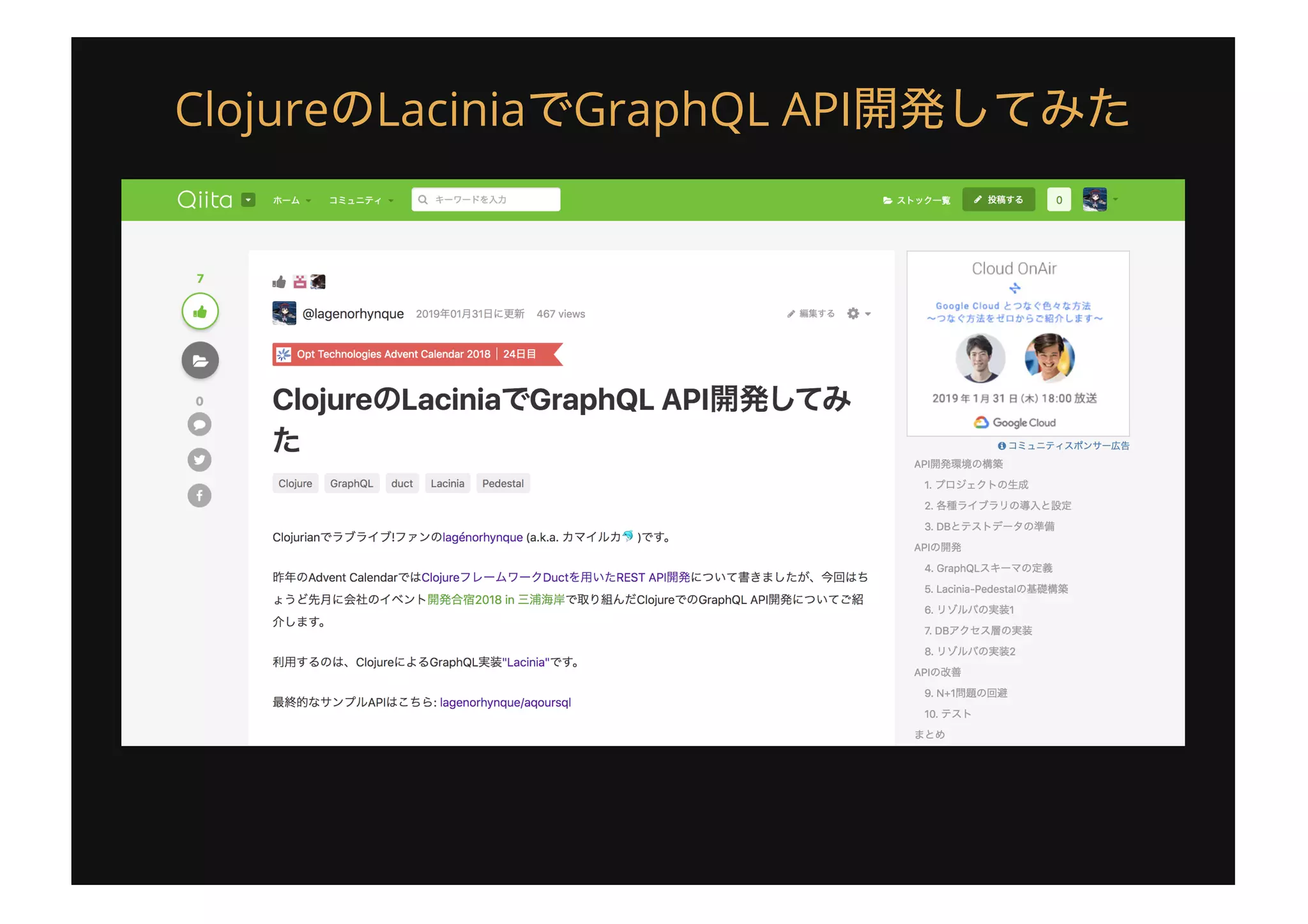

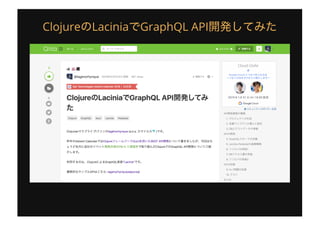

4. Clojure Lacinia GraphQL API

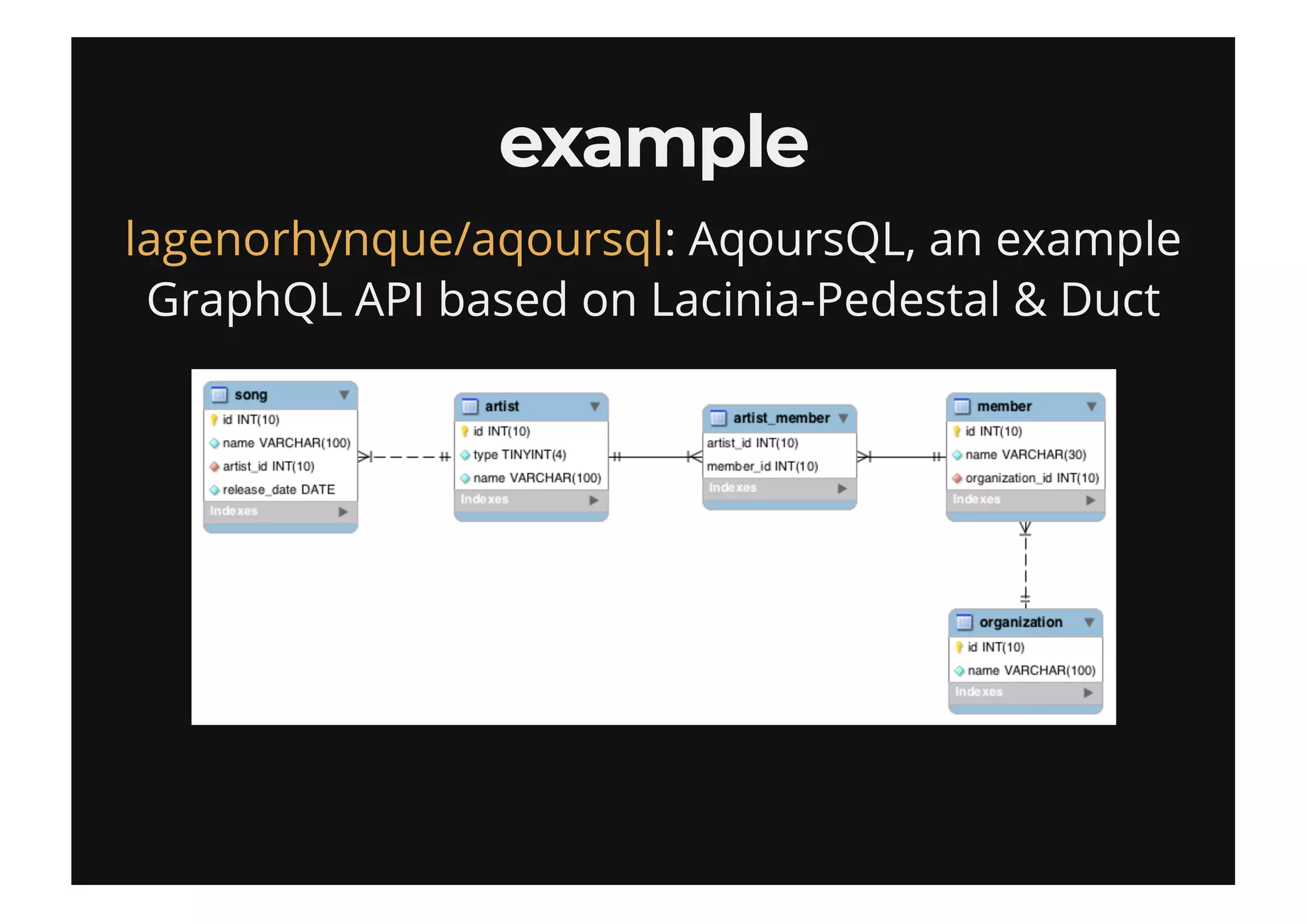

5. exampleexample
: AqoursQL, an example
GraphQL API based on Lacinia-Pedestal & Duct
lagenorhynque/aqoursql

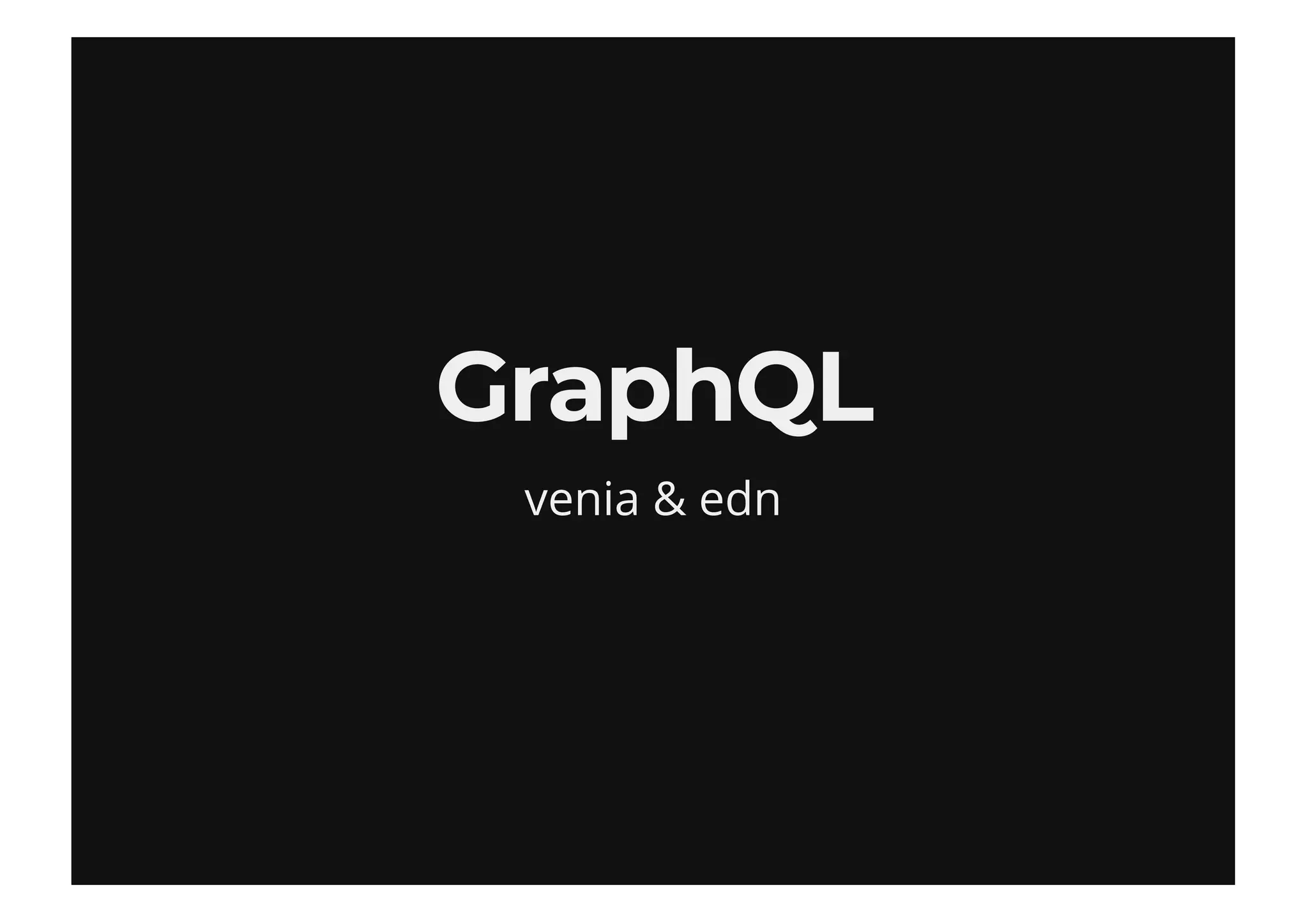

6. GraphQLGraphQL
venia & edn

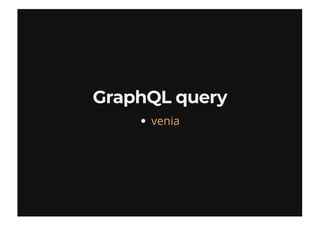

7. GraphQL queryGraphQL query
venia

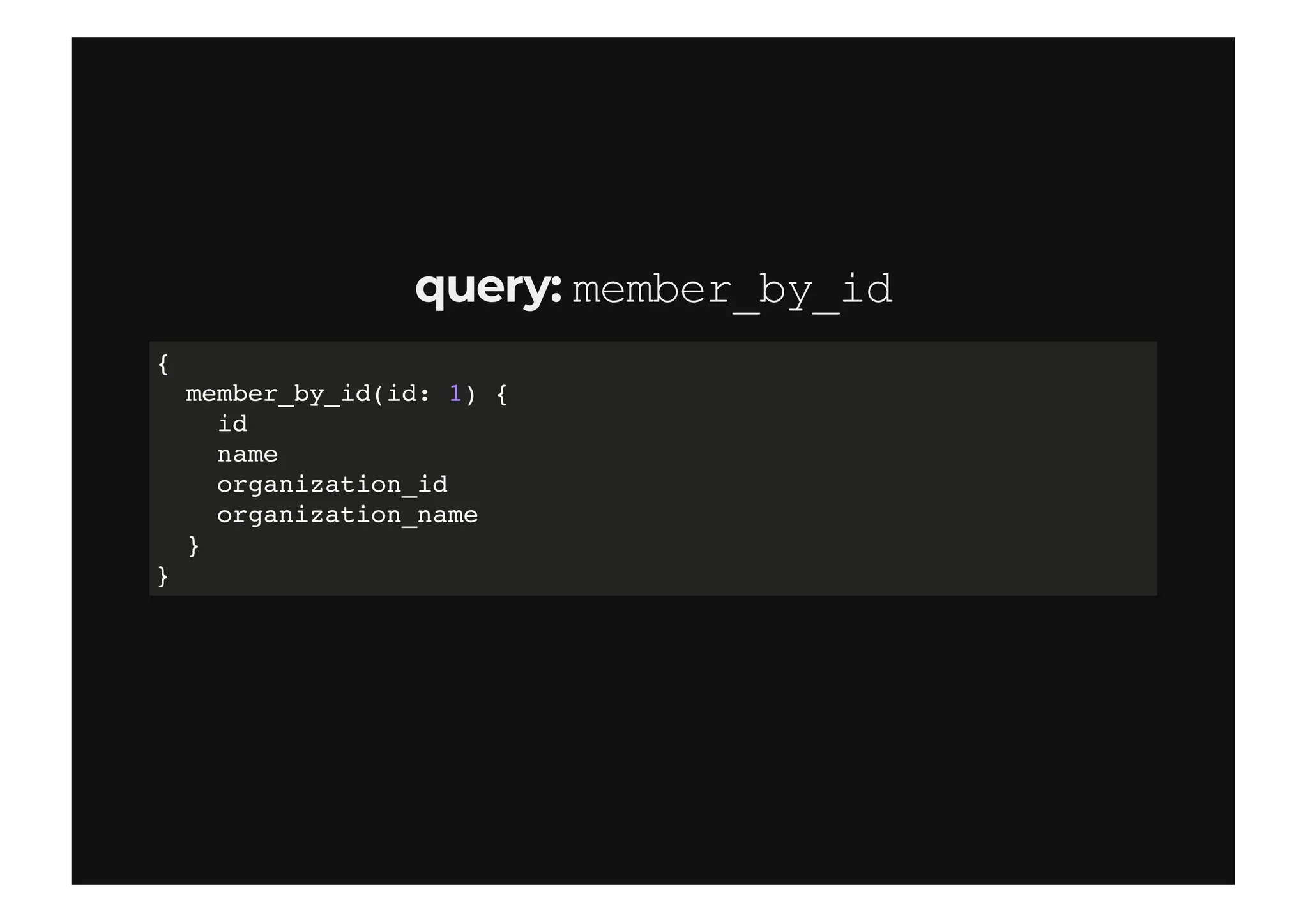

8. query:query: member_by_idmember_by_id
{
member_by_id(id: 1) {
id
name
organization_id
organization_name
}
}

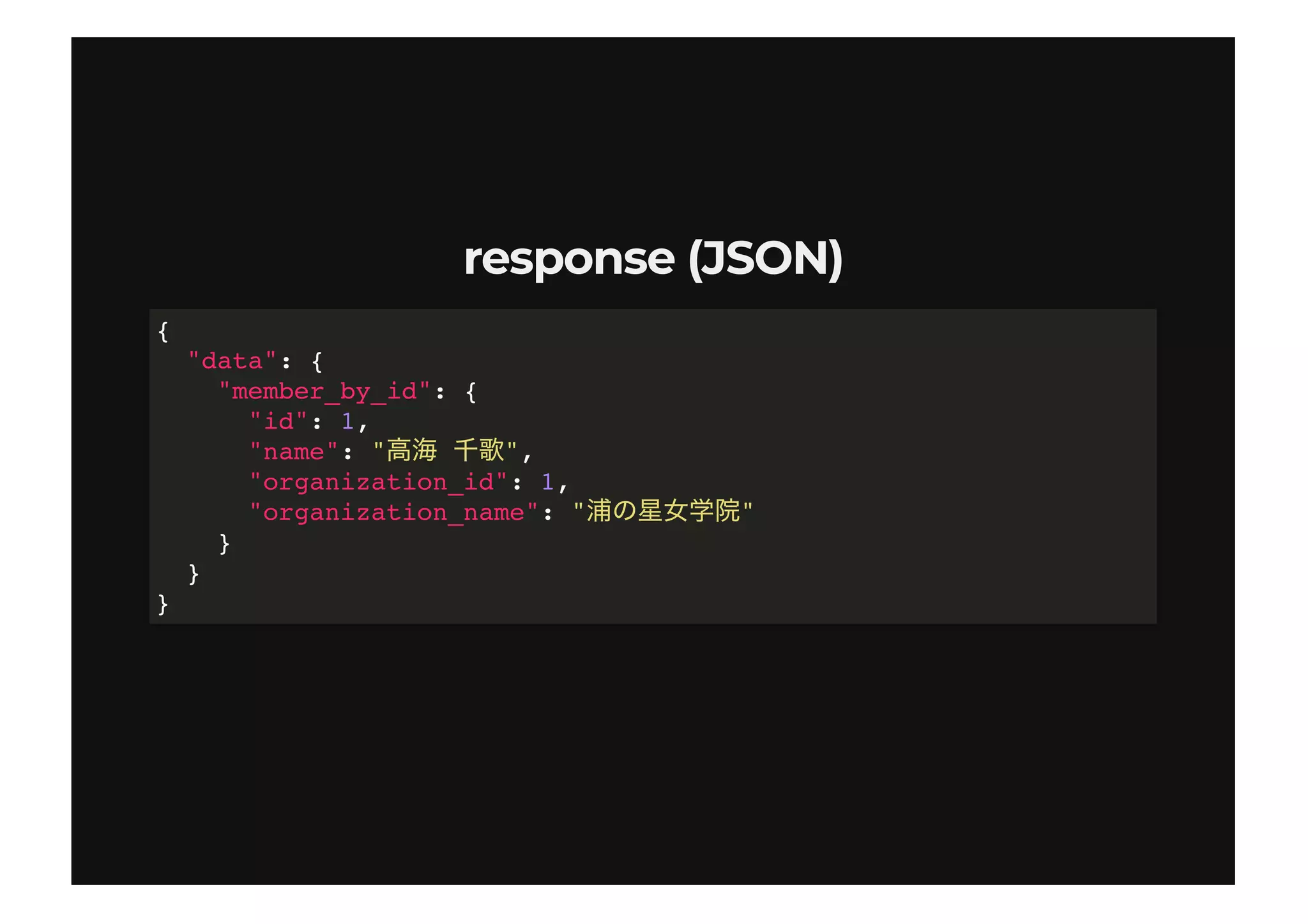

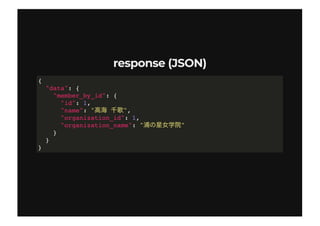

9. response (JSON)response (JSON)
{
"data": {
"member_by_id": {
"id": 1,
"name": " ",
"organization_id": 1,
"organization_name": " "
}
}
}

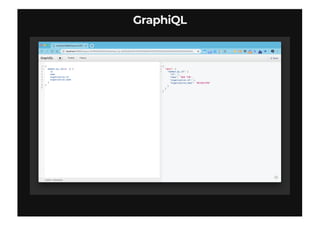

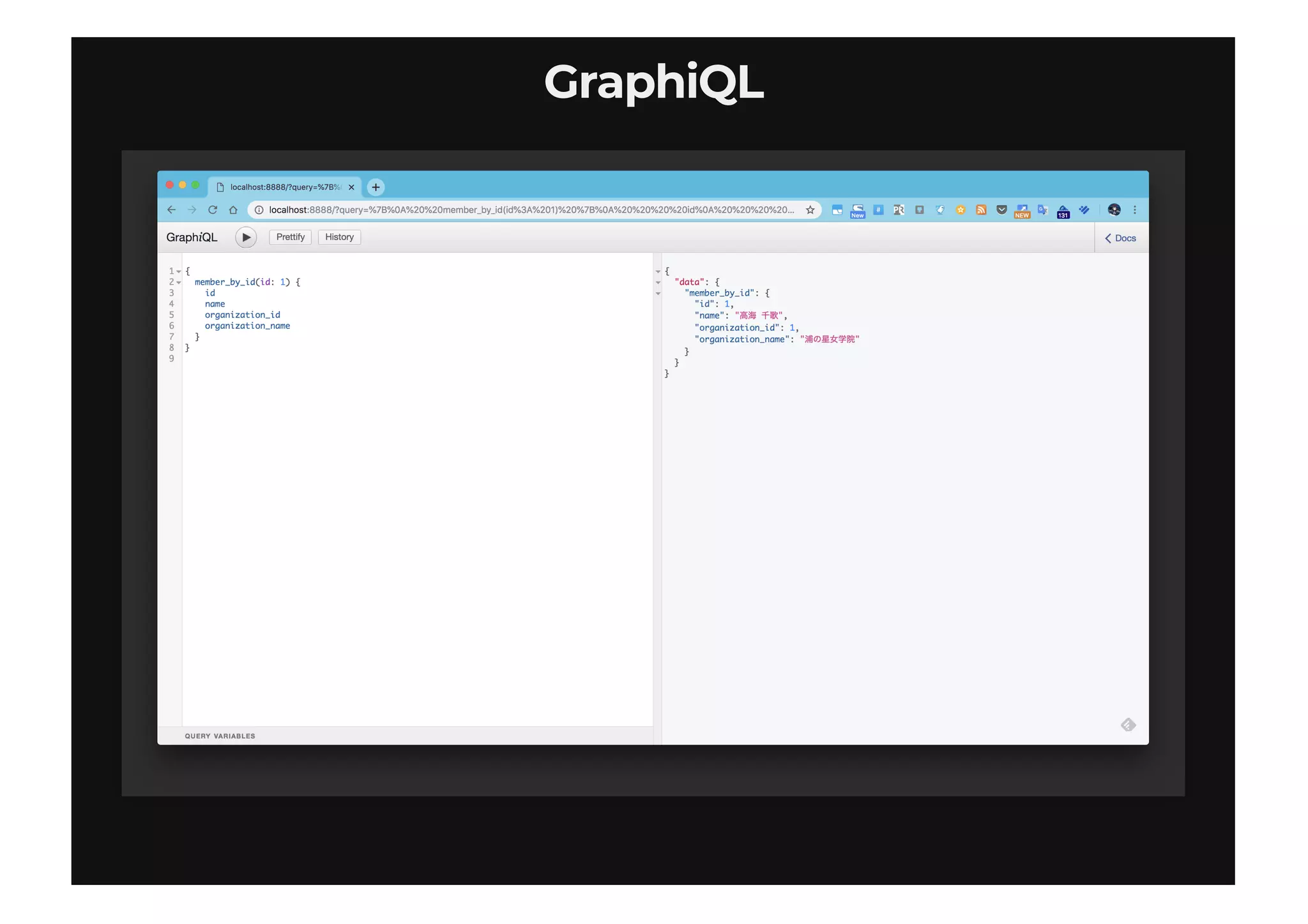

10. GraphiQLGraphiQL

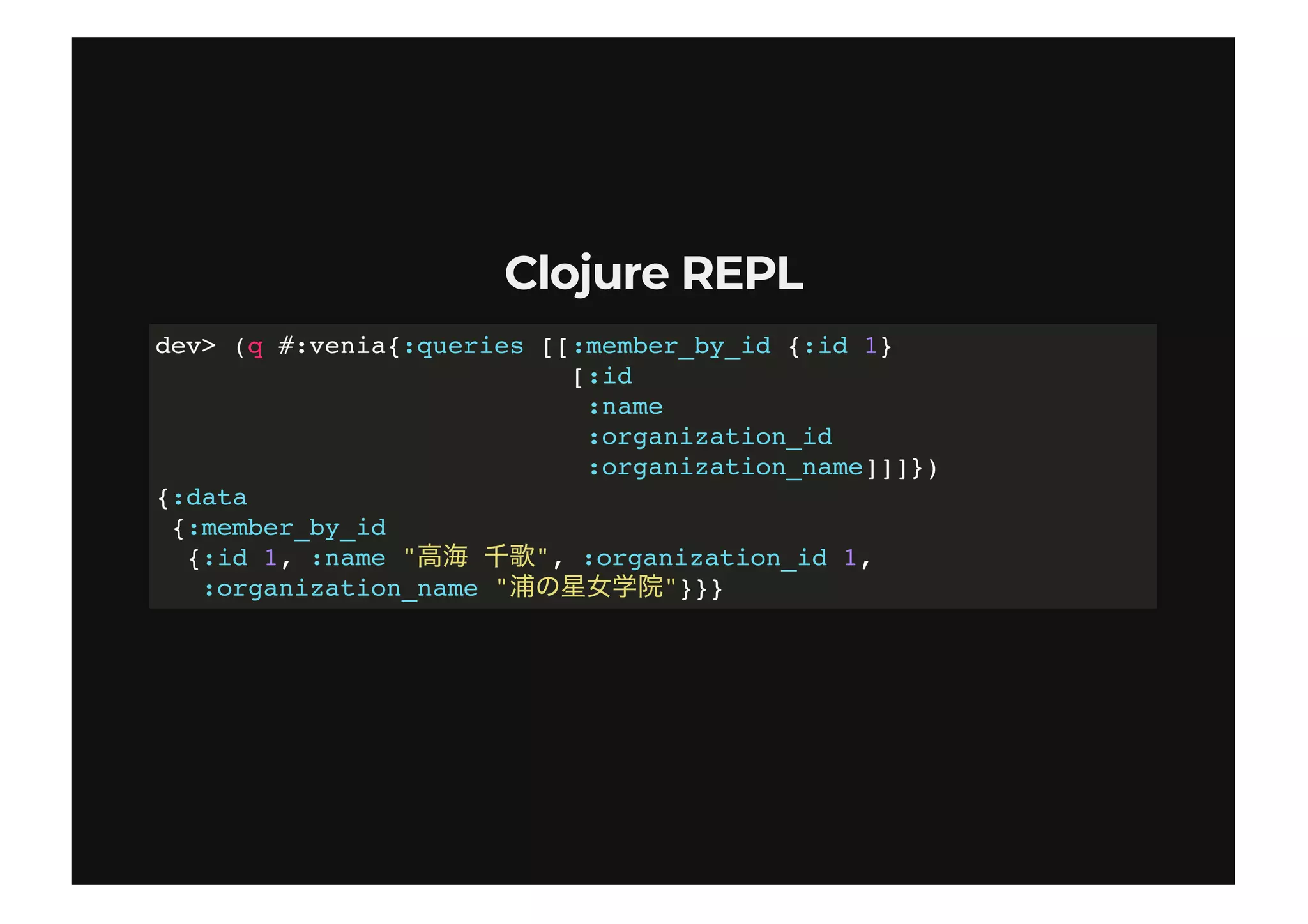

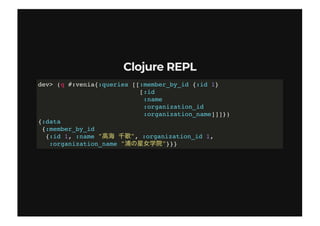

11. Clojure REPLClojure REPL
dev> (q #:venia{:queries [[:member_by_id {:id 1}
[:id
:name
:organization_id
:organization_name]]]})
{:data
{:member_by_id
{:id 1, :name " ", :organization_id 1,
:organization_name " "}}}

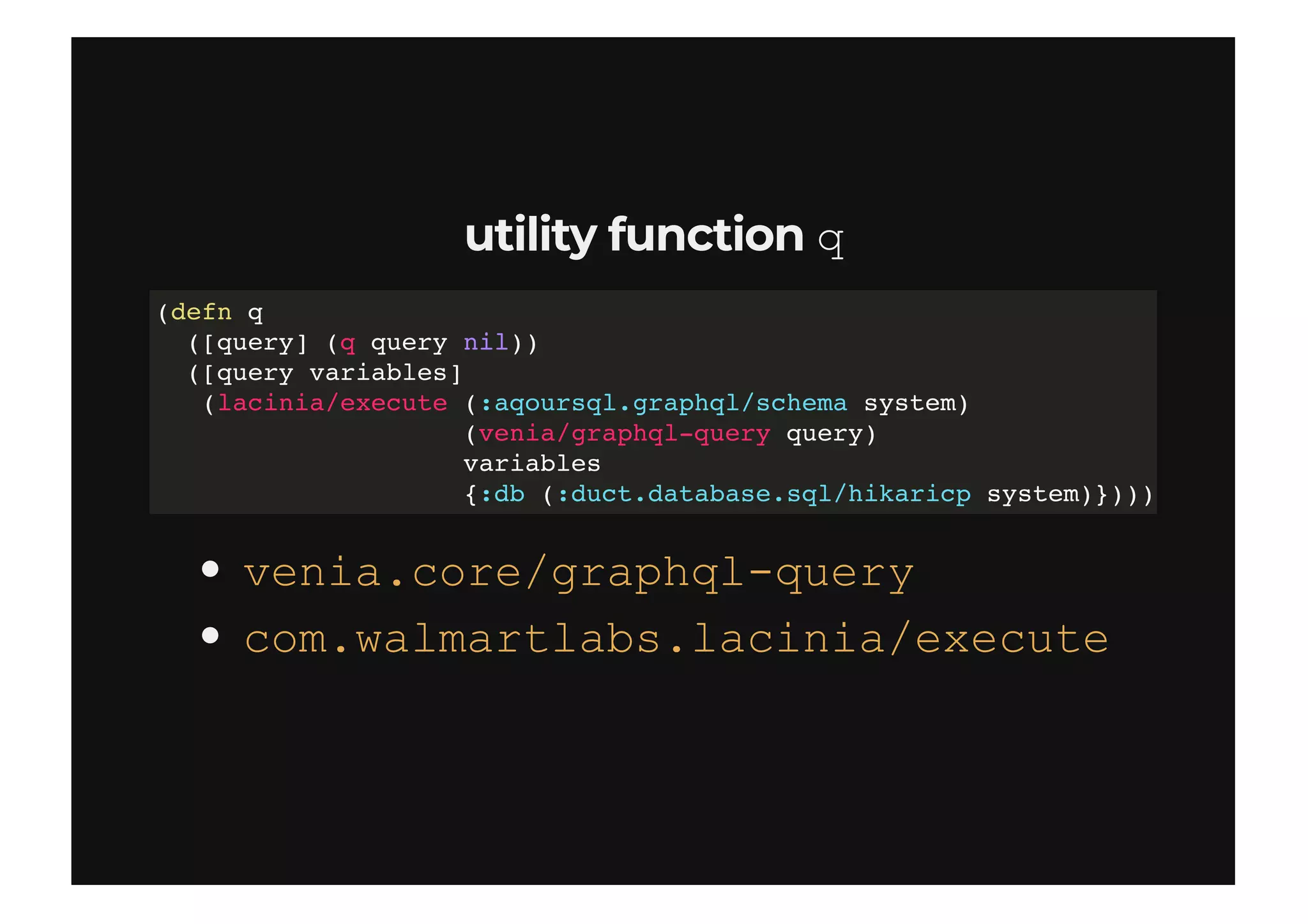

12. utility functionutility function qq
(defn q
([query] (q query nil))
([query variables]
(lacinia/execute (:aqoursql.graphql/schema system)
(venia/graphql-query query)
variables
{:db (:duct.database.sql/hikaricp system)})))
venia.core/graphql­query
com.walmartlabs.lacinia/execute

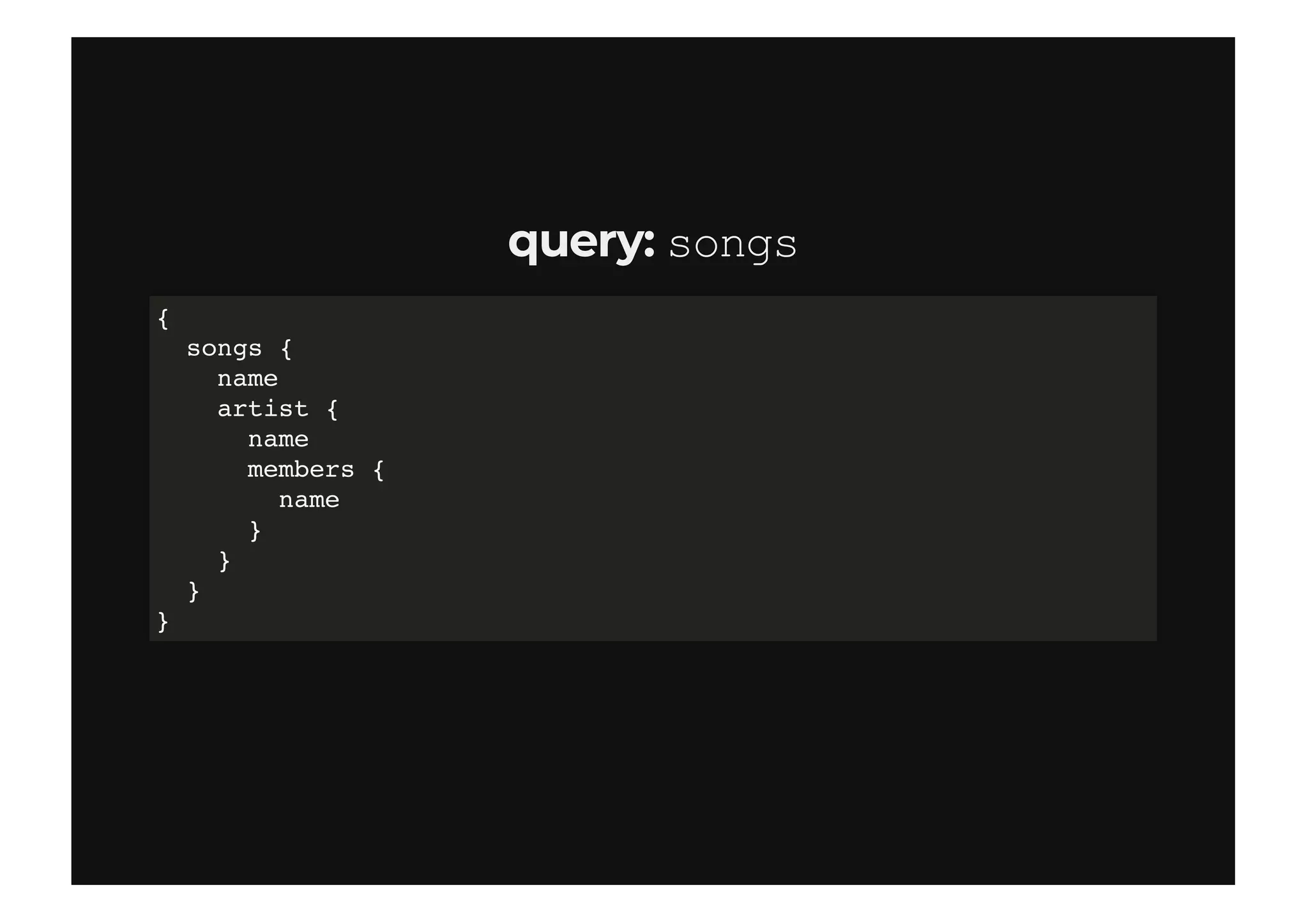

13. query:query: songssongs
{
songs {
name
artist {
name
members {
name
}
}
}
}

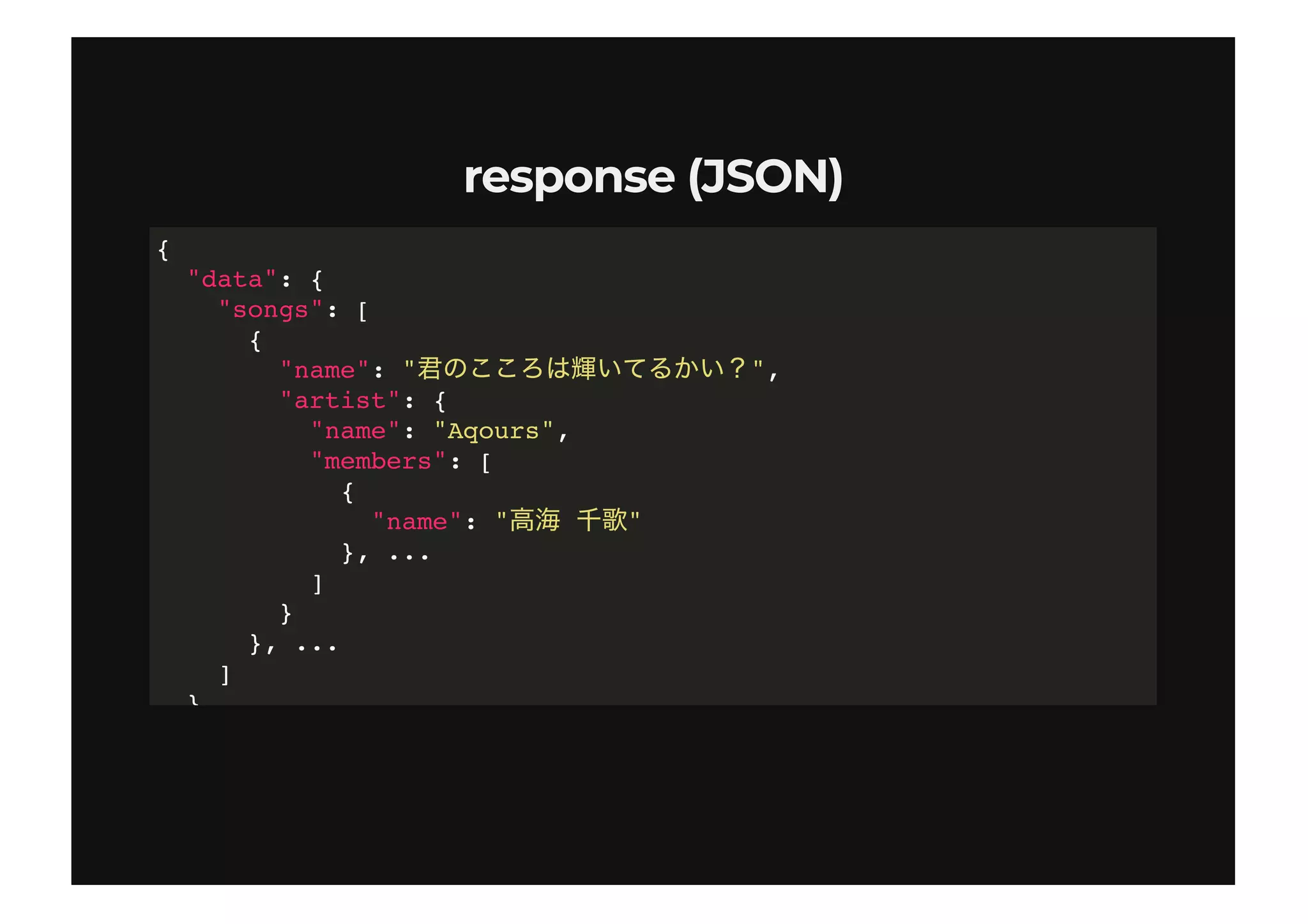

14. response (JSON)response (JSON)
{
"data": {
"songs": [
{
"name": " ",
"artist": {
"name": "Aqours",
"members": [
{
"name": " "
}, ...
]
}
}, ...
]
}

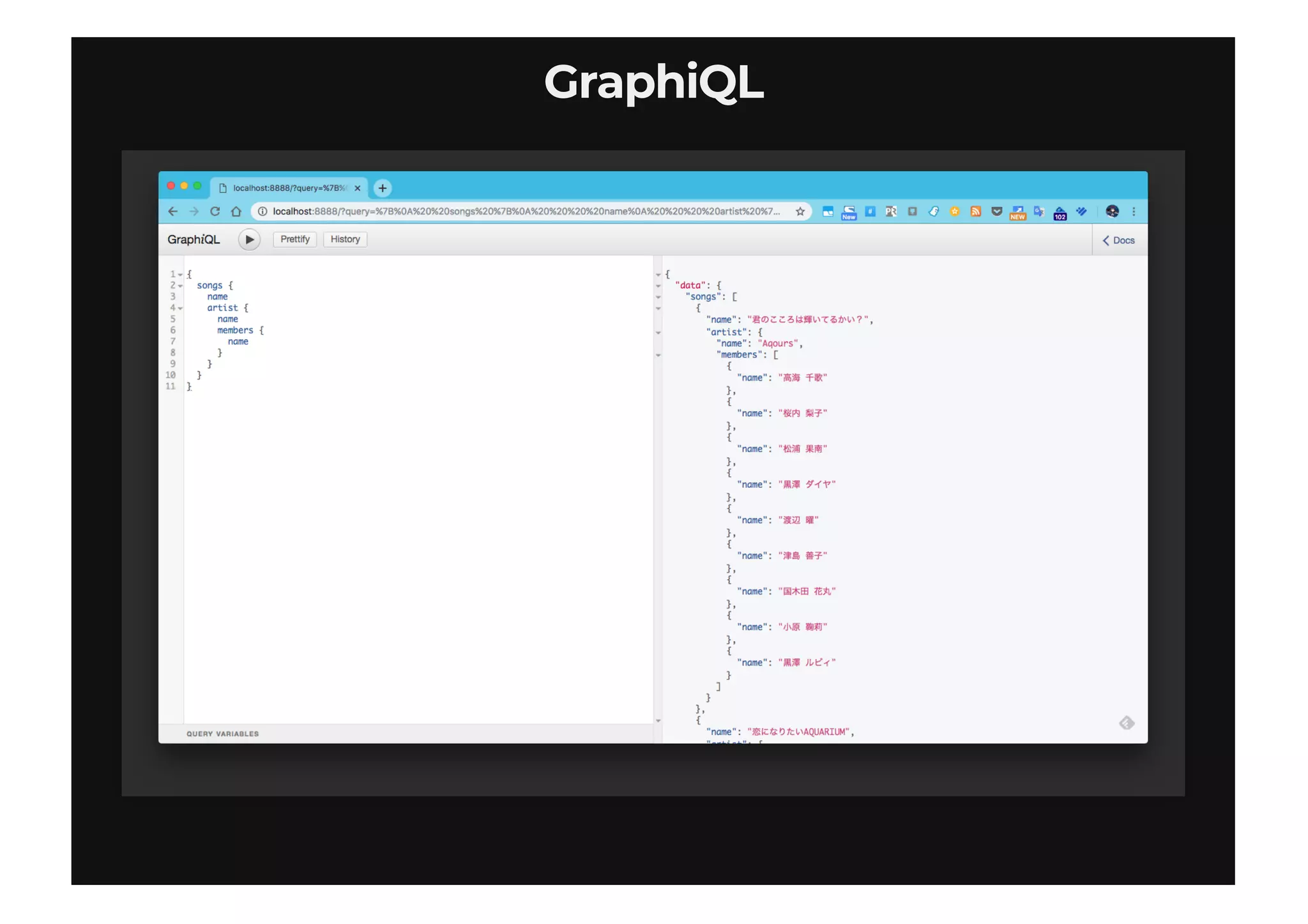

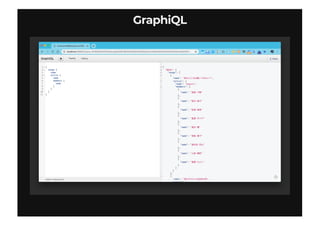

15. GraphiQLGraphiQL

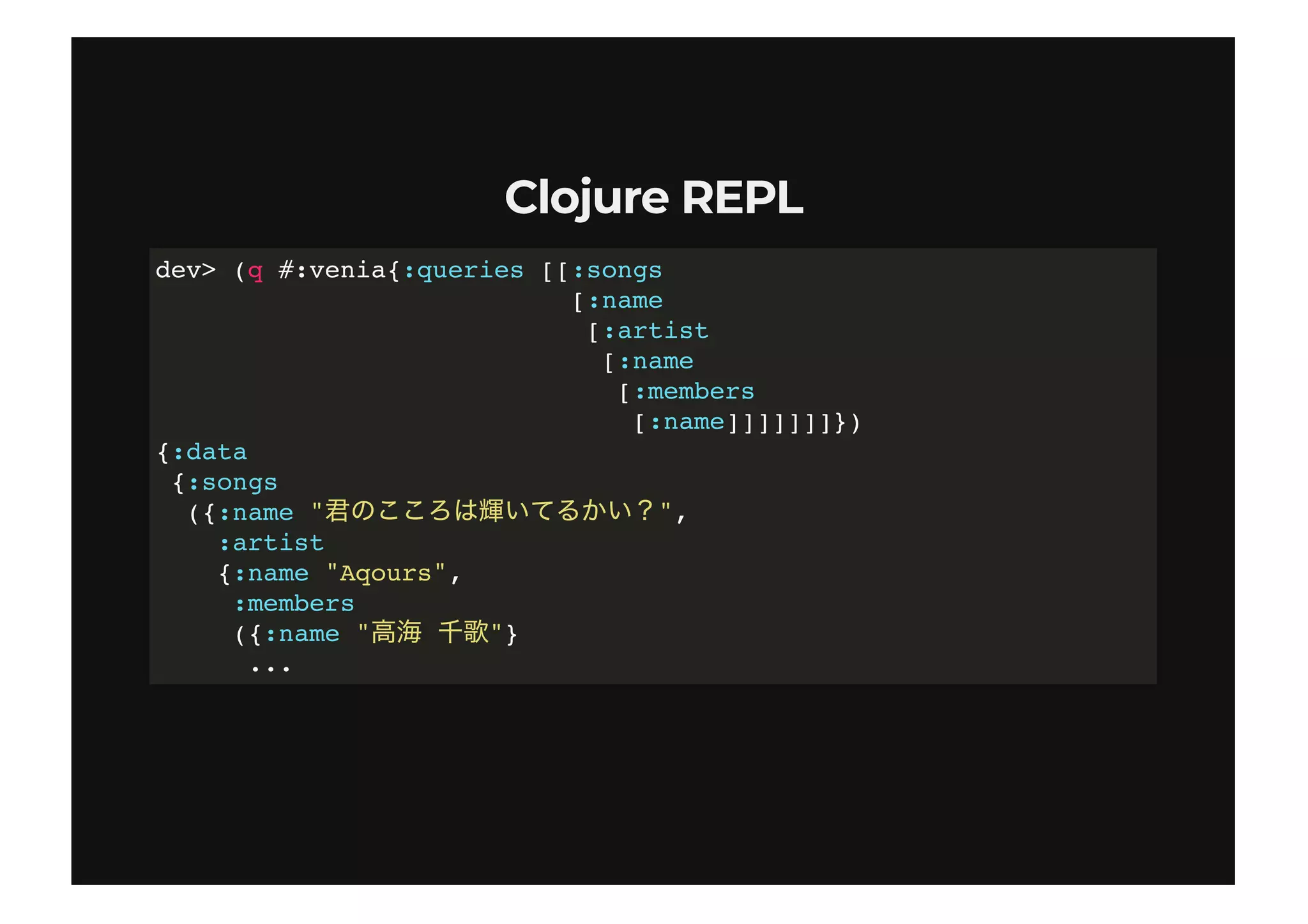

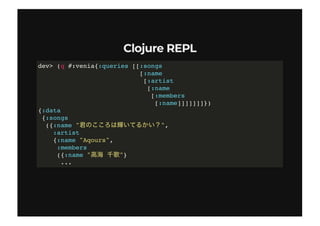

16. Clojure REPLClojure REPL
dev> (q #:venia{:queries [[:songs
[:name
[:artist
[:name
[:members
[:name]]]]]]]})
{:data
{:songs
({:name " ",
:artist
{:name "Aqours",
:members
({:name " "}
...

17. GraphQL schemaGraphQL schema
edn

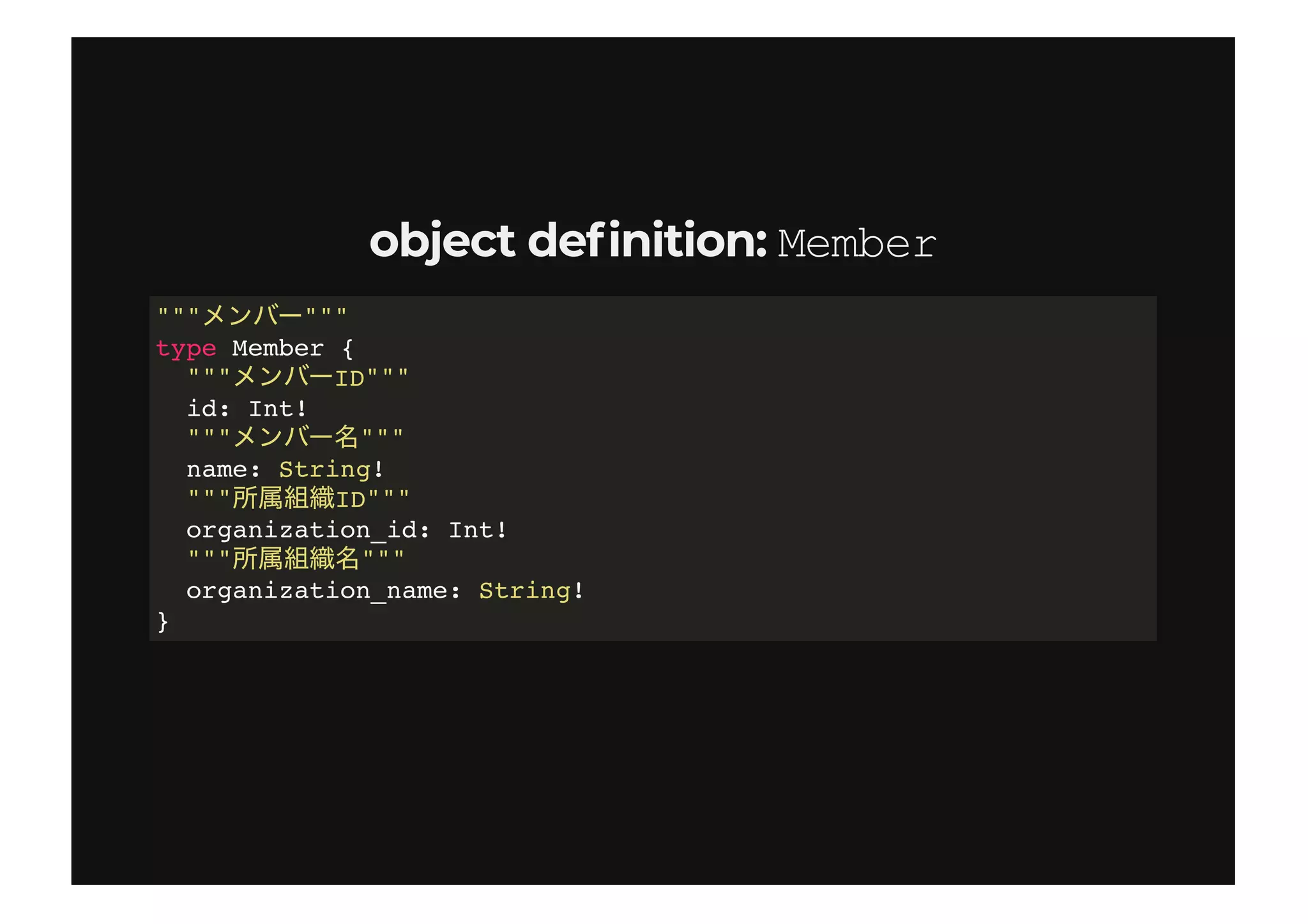

18. object de nition:object de nition: MemberMember
""" """
type Member {
""" ID"""
id: Int!
""" """
name: String!
""" ID"""
organization_id: Int!
""" """
organization_name: String!
}

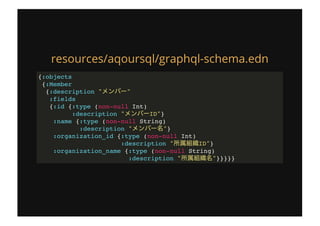

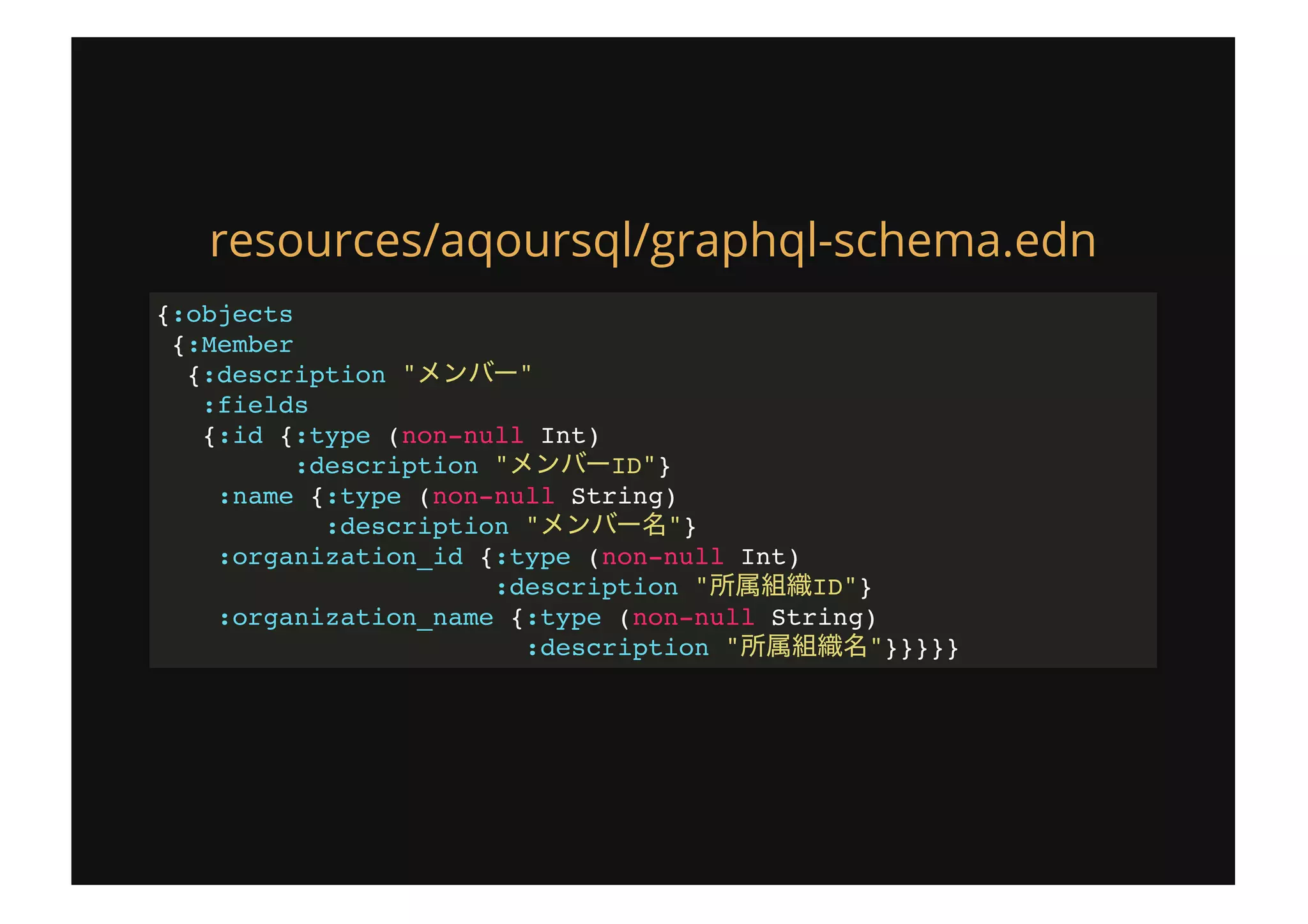

19. resources/aqoursql/graphql-schema.edn
{:objects
{:Member
{:description " "
:fields
{:id {:type (non-null Int)
:description " ID"}
:name {:type (non-null String)
:description " "}
:organization_id {:type (non-null Int)
:description " ID"}
:organization_name {:type (non-null String)
:description " "}}}}}

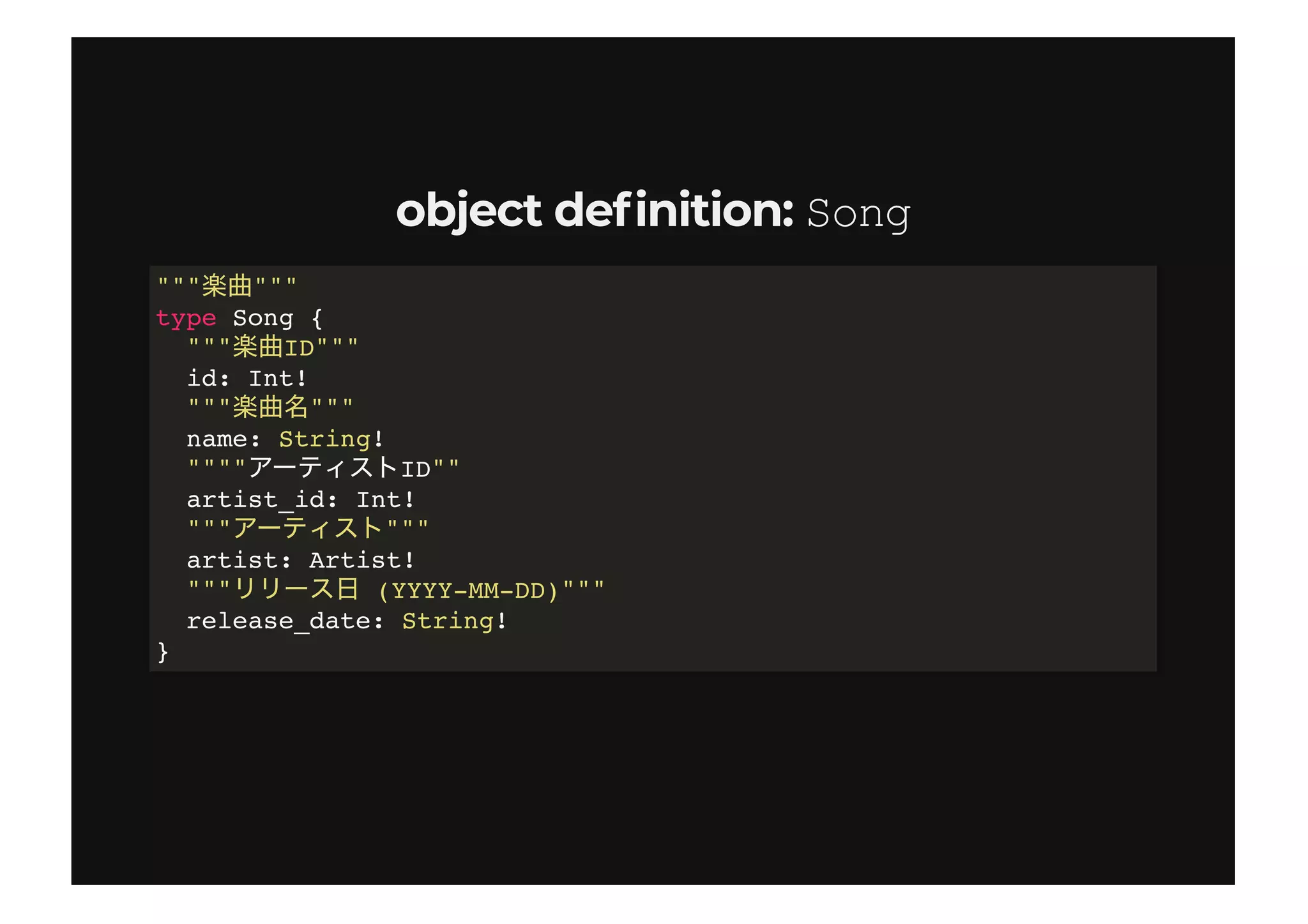

20. object de nition:object de nition: SongSong
""" """
type Song {
""" ID"""
id: Int!
""" """
name: String!
"""" ID""
artist_id: Int!
""" """
artist: Artist!
""" (YYYY-MM-DD)"""
release_date: String!
}

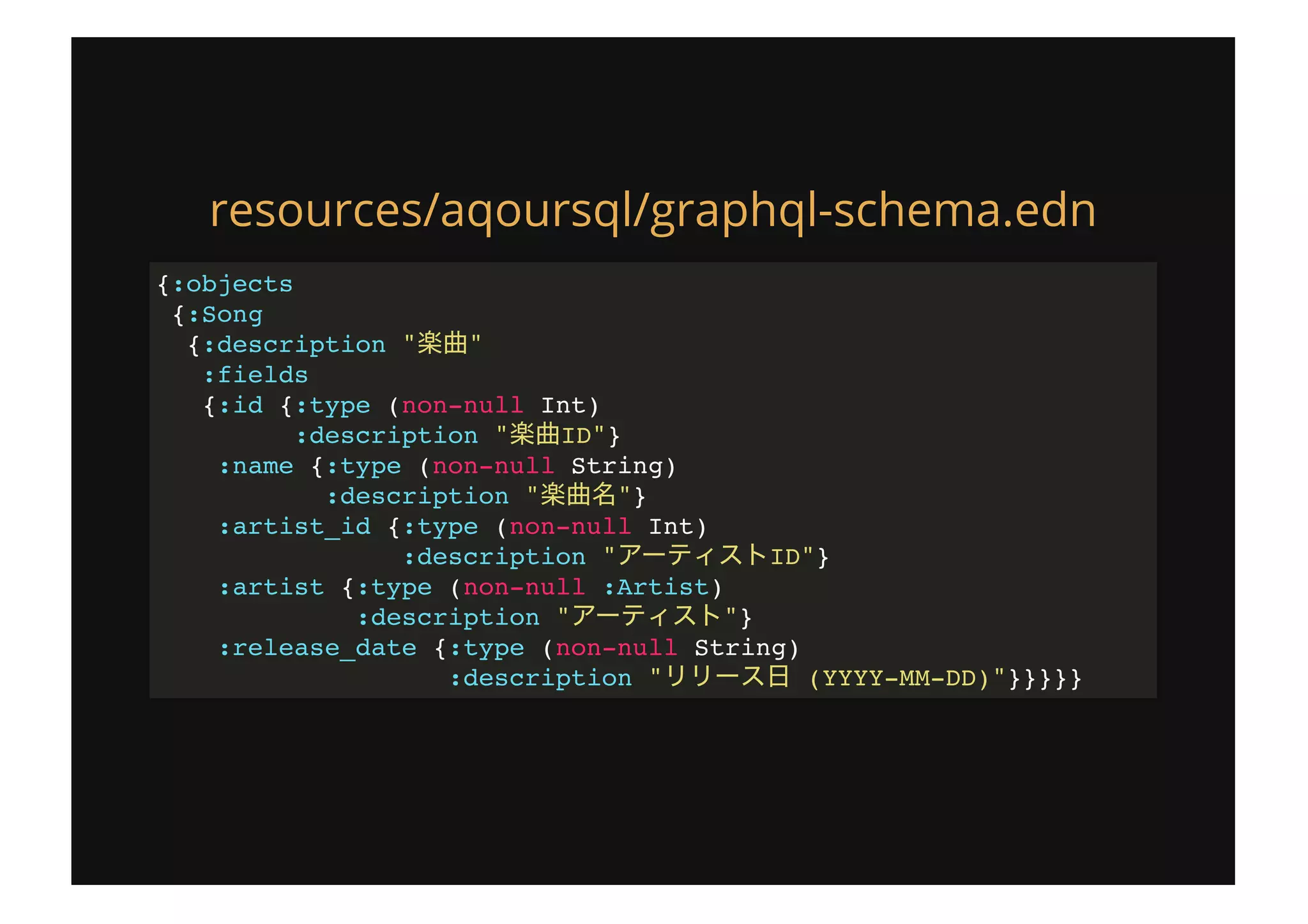

21. resources/aqoursql/graphql-schema.edn
{:objects
{:Song
{:description " "
:fields
{:id {:type (non-null Int)
:description " ID"}
:name {:type (non-null String)
:description " "}
:artist_id {:type (non-null Int)
:description " ID"}
:artist {:type (non-null :Artist)
:description " "}
:release_date {:type (non-null String)
:description " (YYYY-MM-DD)"}}}}}

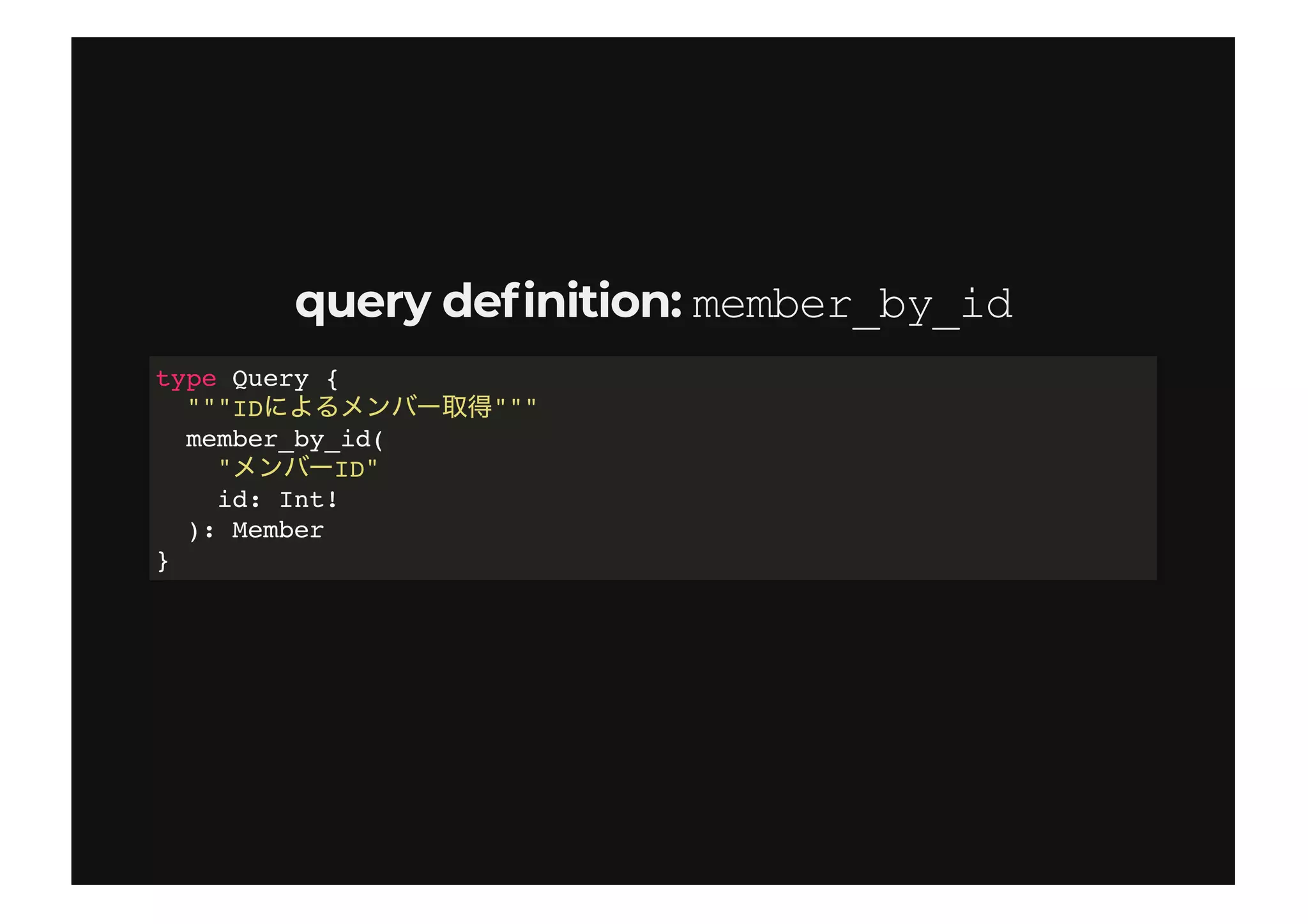

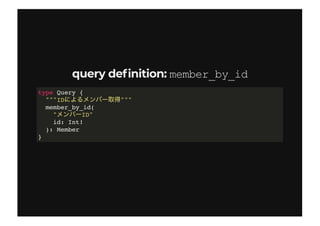

22. query de nition:query de nition: member_by_idmember_by_id
type Query {
"""ID """
member_by_id(
" ID"
id: Int!
): Member
}

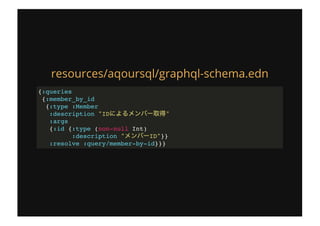

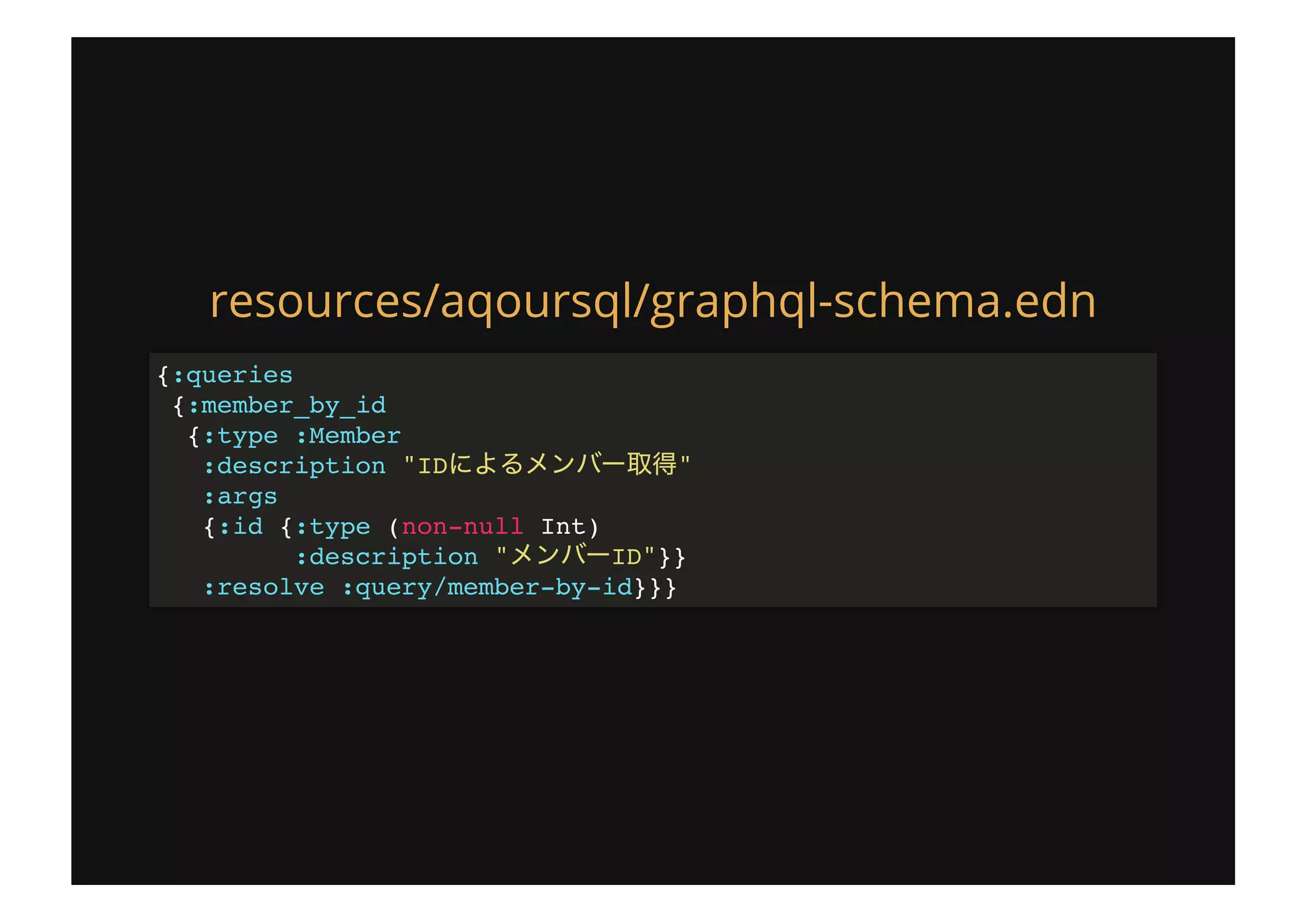

23. resources/aqoursql/graphql-schema.edn
{:queries
{:member_by_id
{:type :Member
:description "ID "
:args
{:id {:type (non-null Int)
:description " ID"}}
:resolve :query/member-by-id}}}

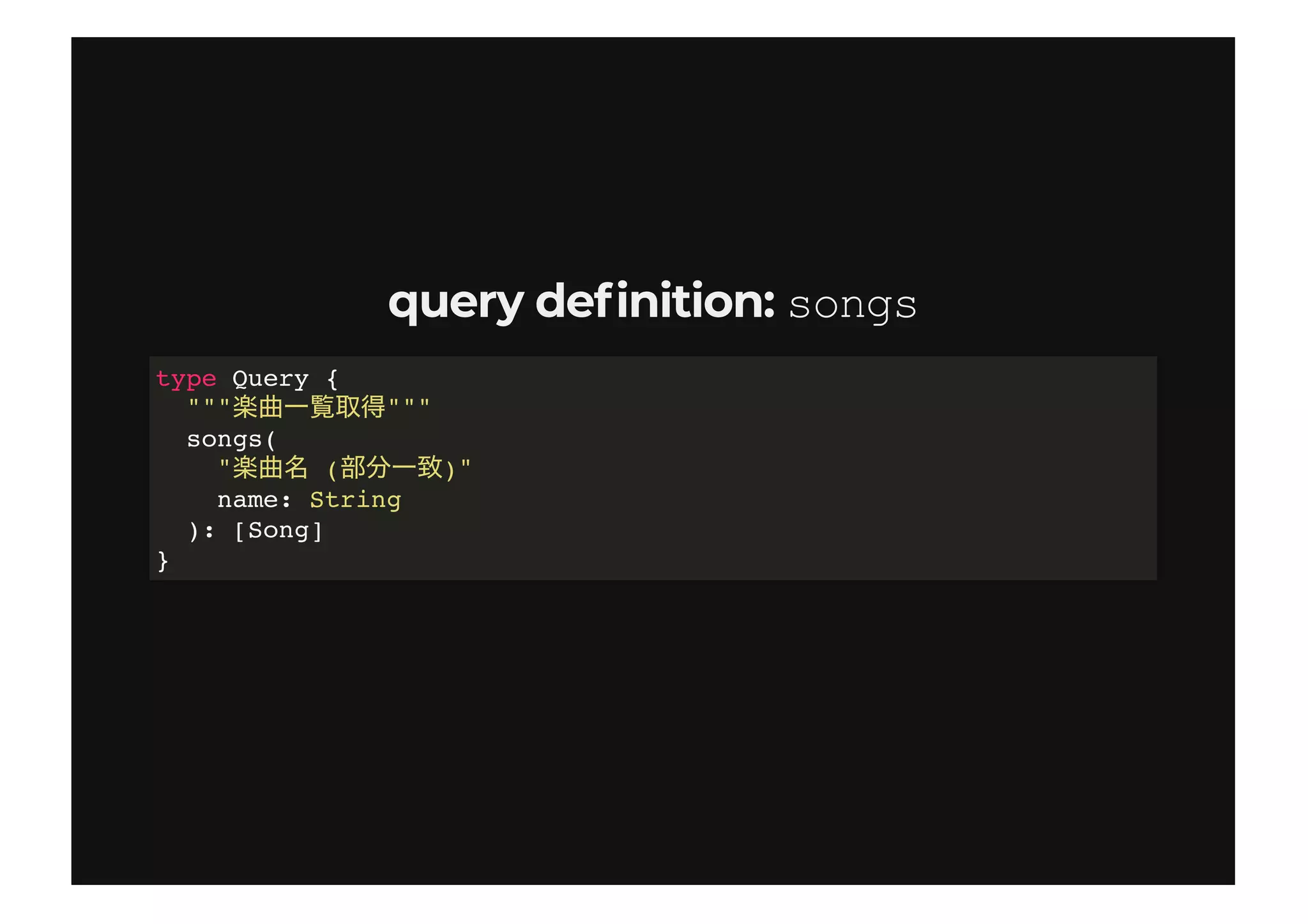

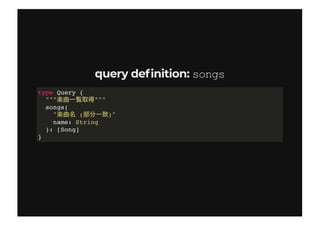

24. query de nition:query de nition: songssongs
type Query {
""" """
songs(
" ( )"
name: String
): [Song]
}

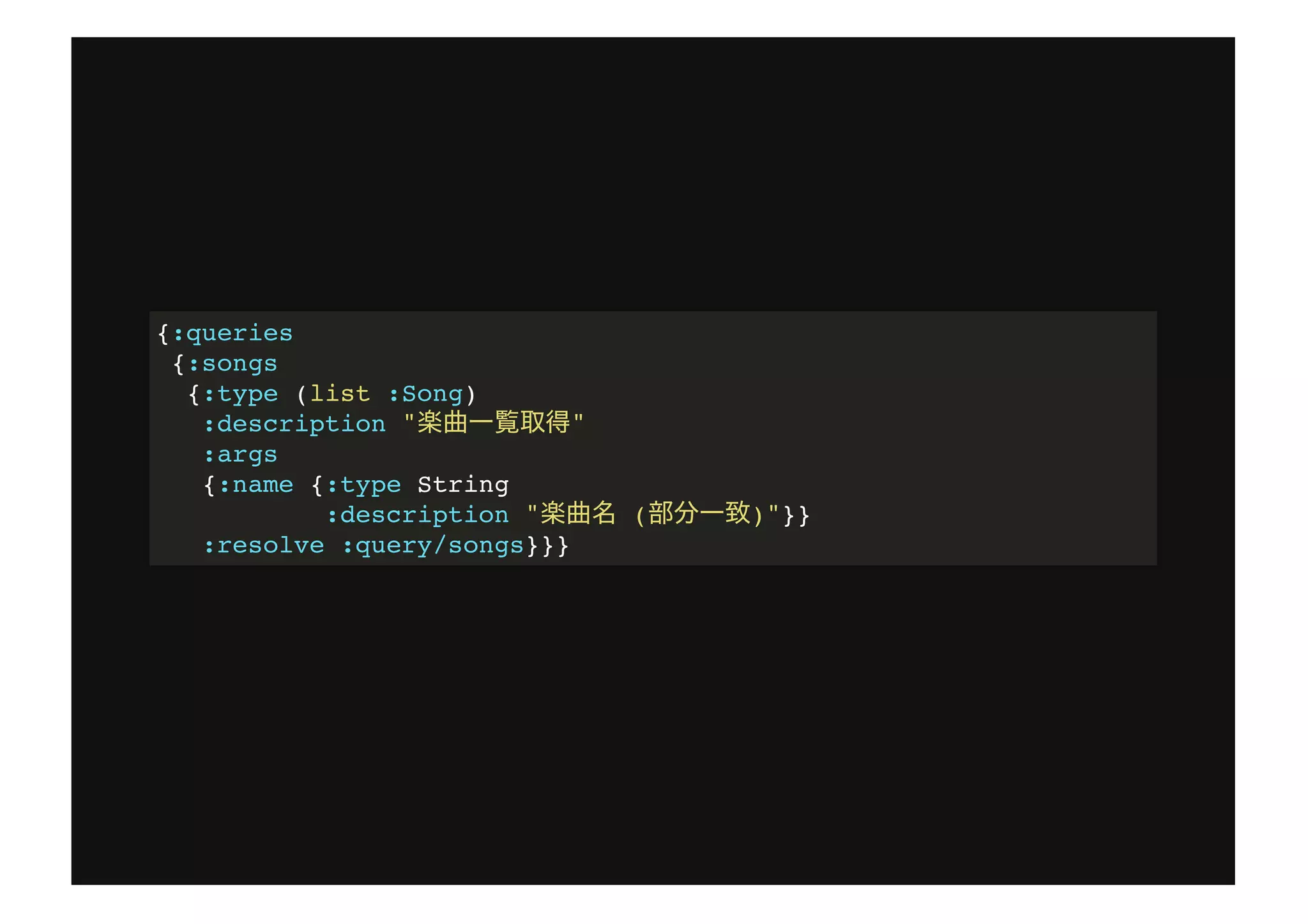

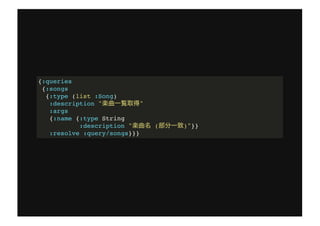

25. {:queries
{:songs
{:type (list :Song)
:description " "
:args
{:name {:type String
:description " ( )"}}
:resolve :query/songs}}}

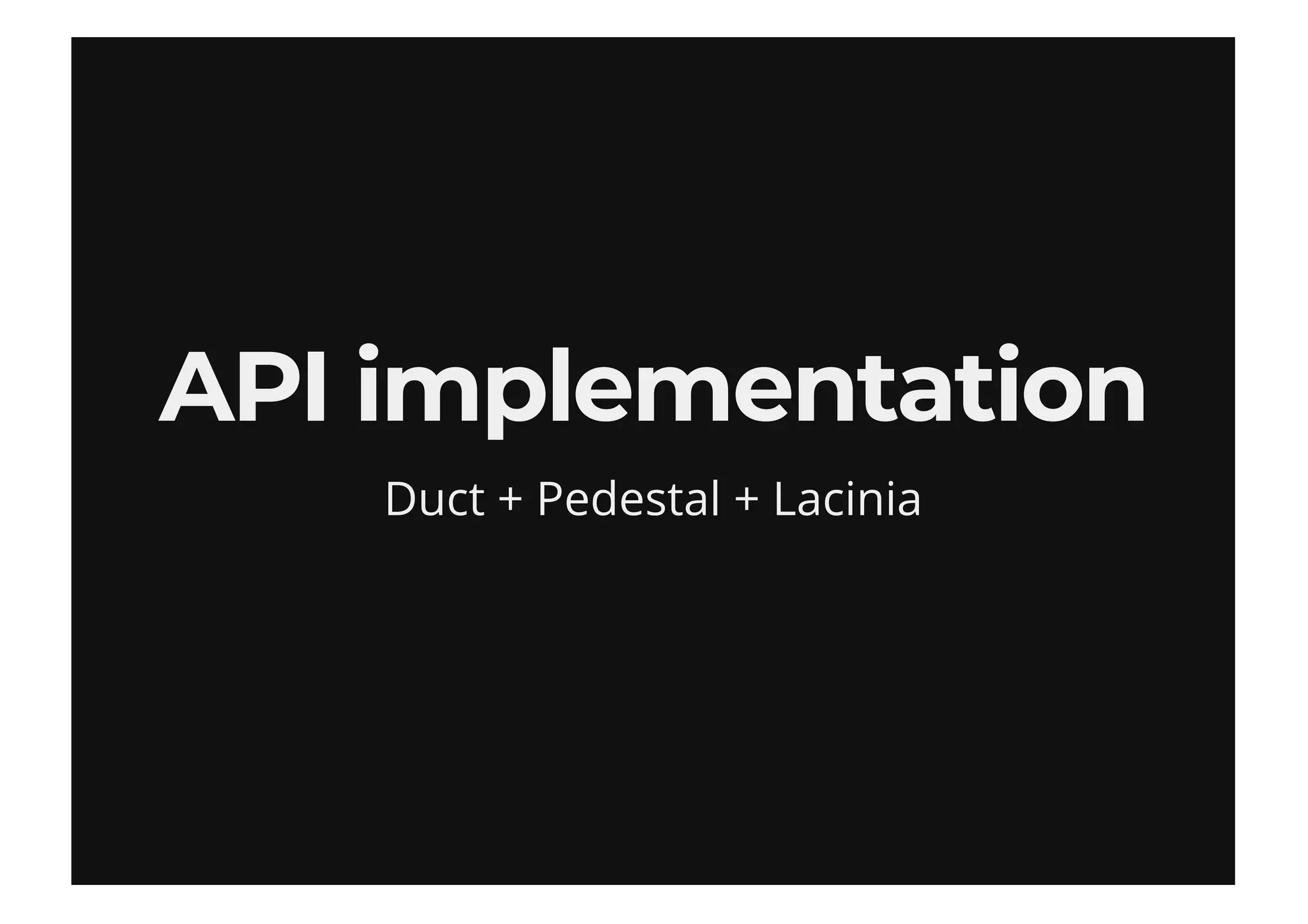

26. API implementationAPI implementation
Duct + Pedestal + Lacinia

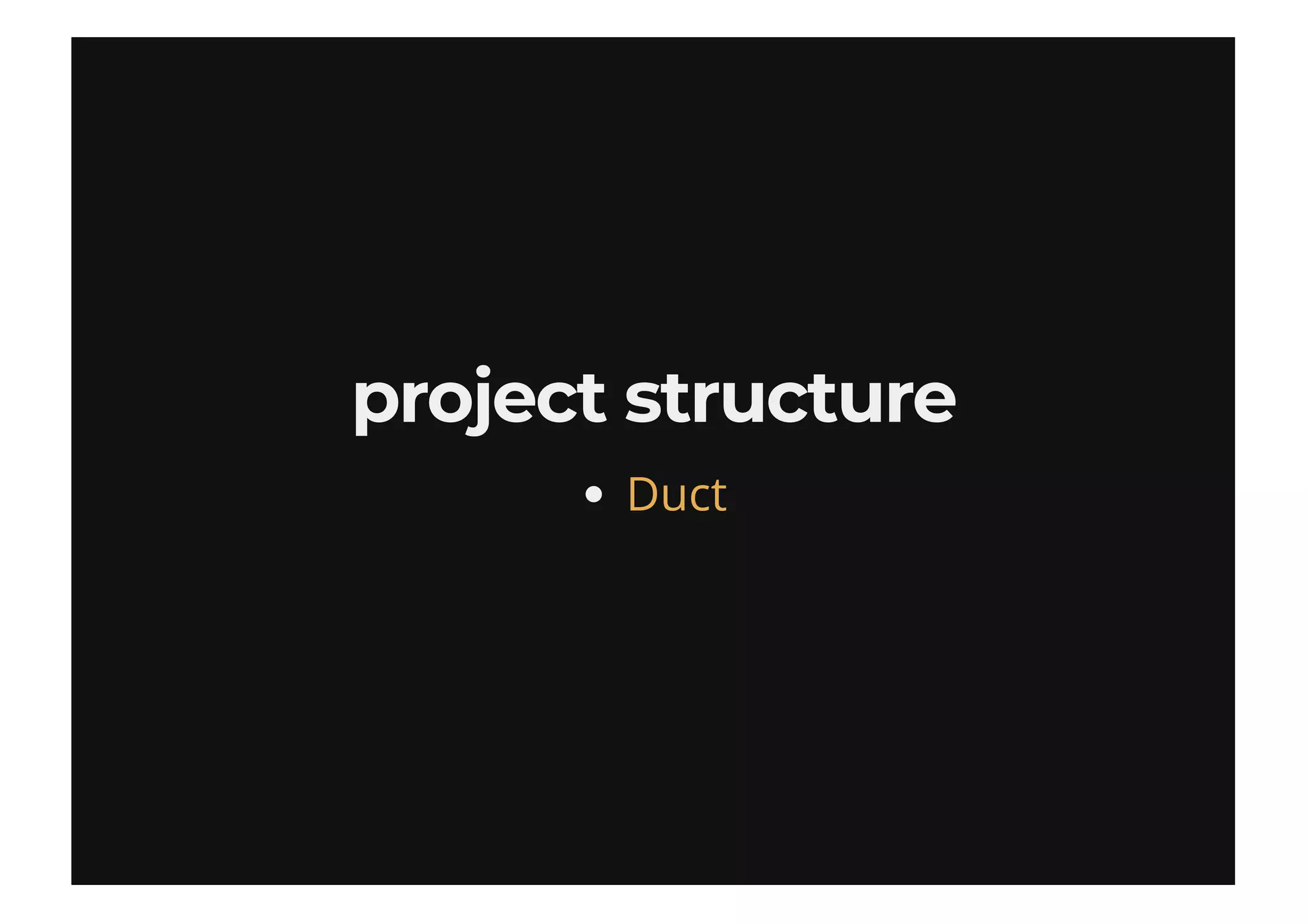

27. project structureproject structure
Duct

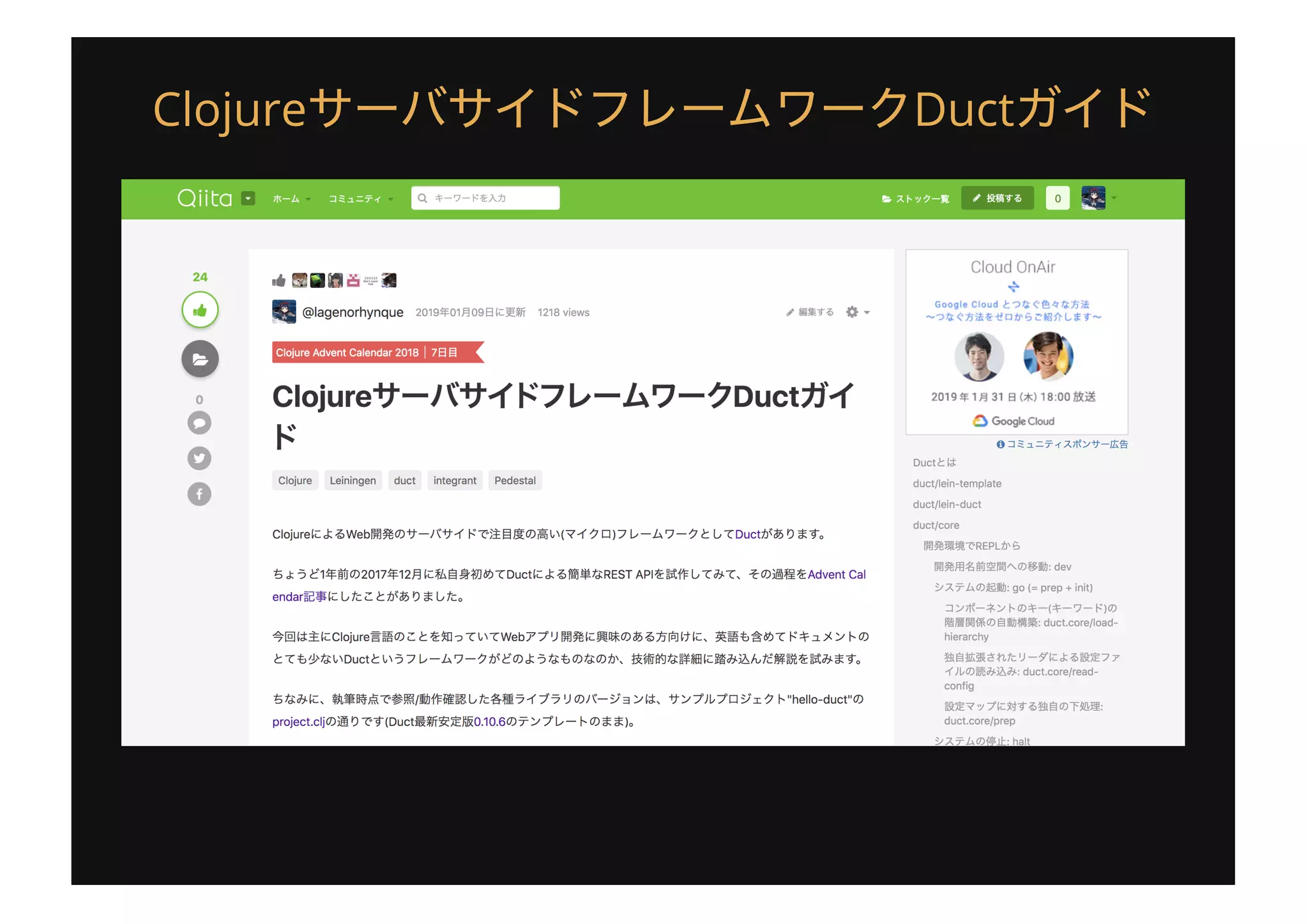

28. Clojure Duct

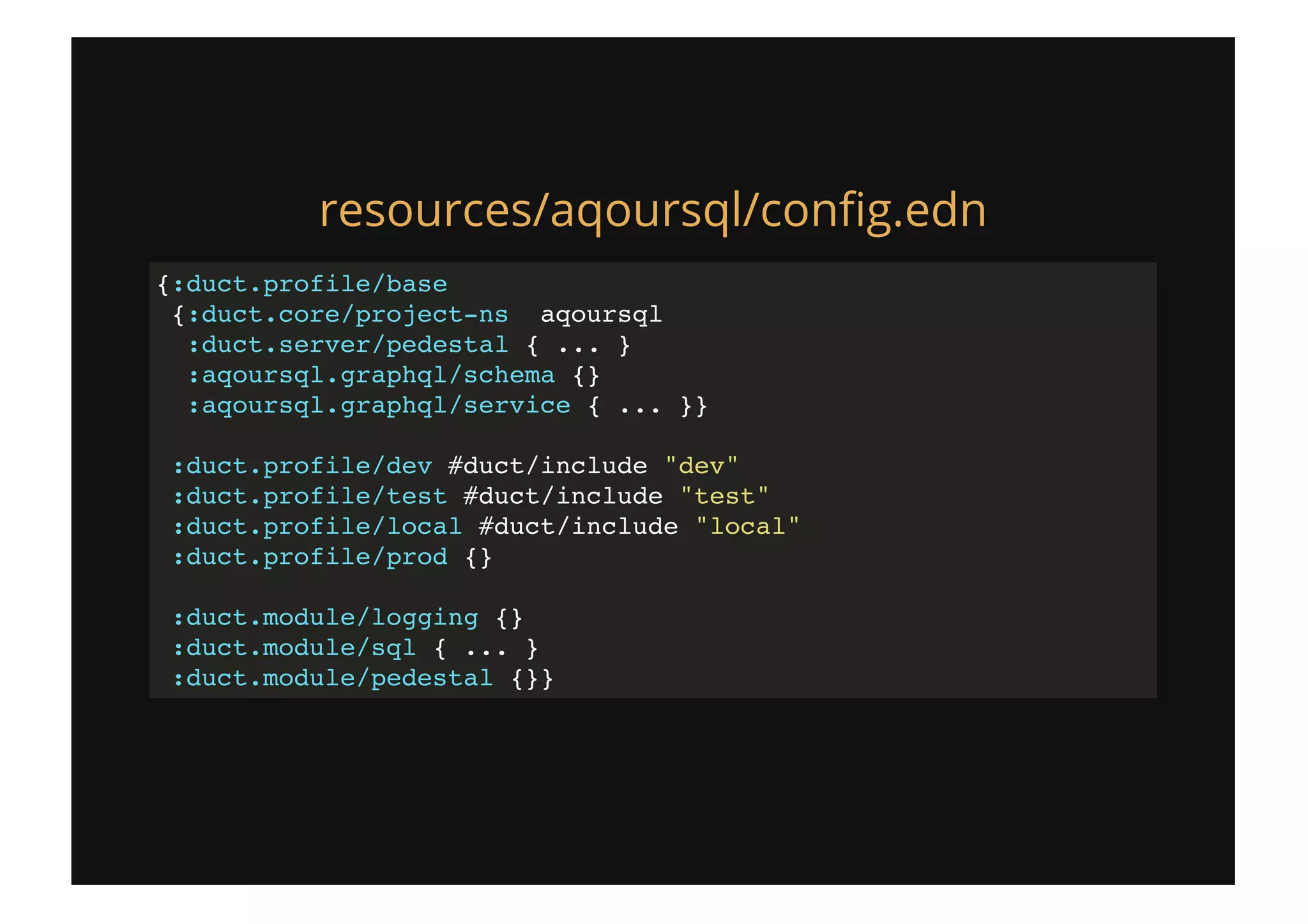

29. resources/aqoursql/con g.edn
{:duct.profile/base
{:duct.core/project-ns aqoursql
:duct.server/pedestal { ... }
:aqoursql.graphql/schema {}
:aqoursql.graphql/service { ... }}
:duct.profile/dev #duct/include "dev"
:duct.profile/test #duct/include "test"
:duct.profile/local #duct/include "local"
:duct.profile/prod {}
:duct.module/logging {}
:duct.module/sql { ... }
:duct.module/pedestal {}}

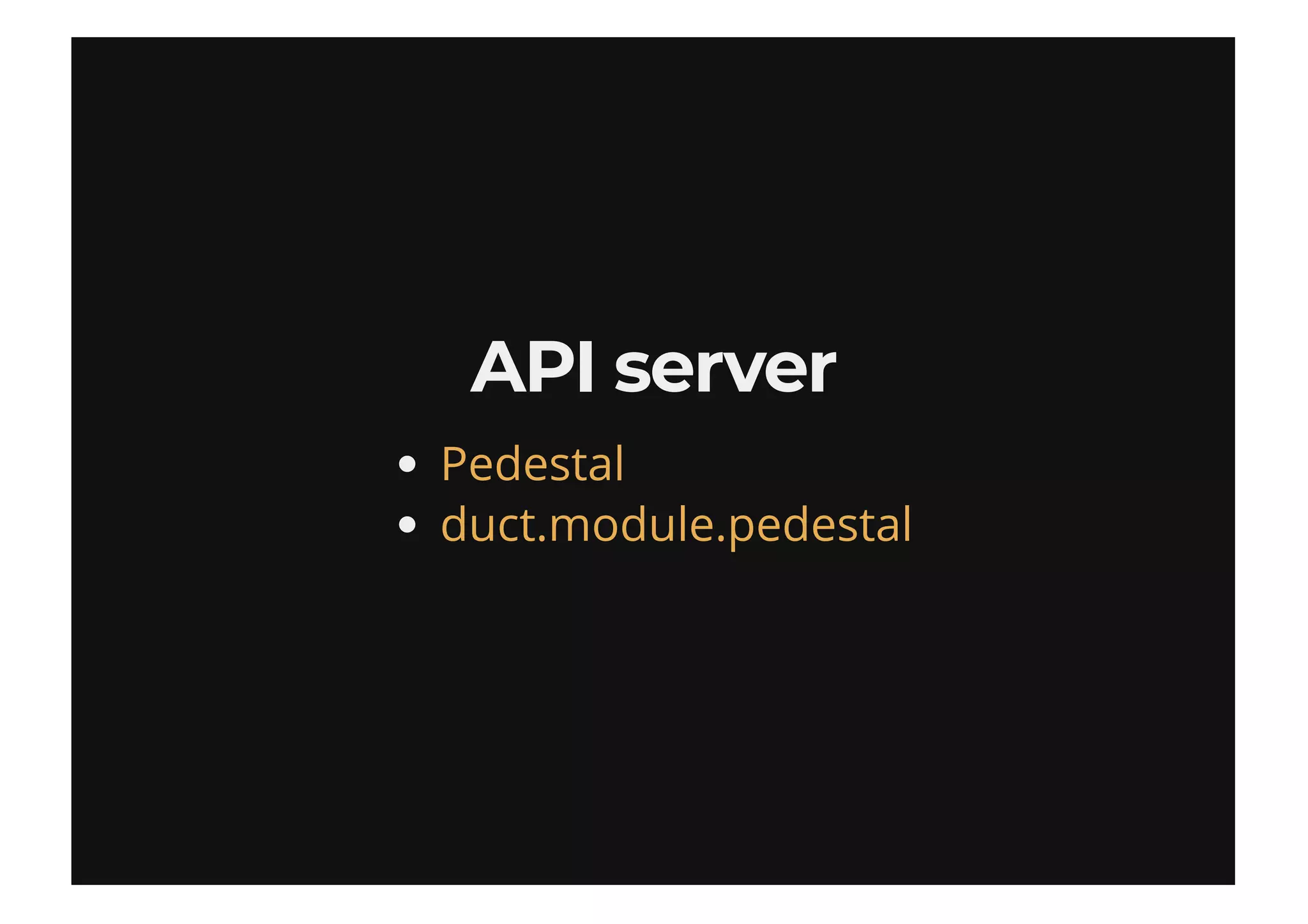

30. API serverAPI server
Pedestal
duct.module.pedestal

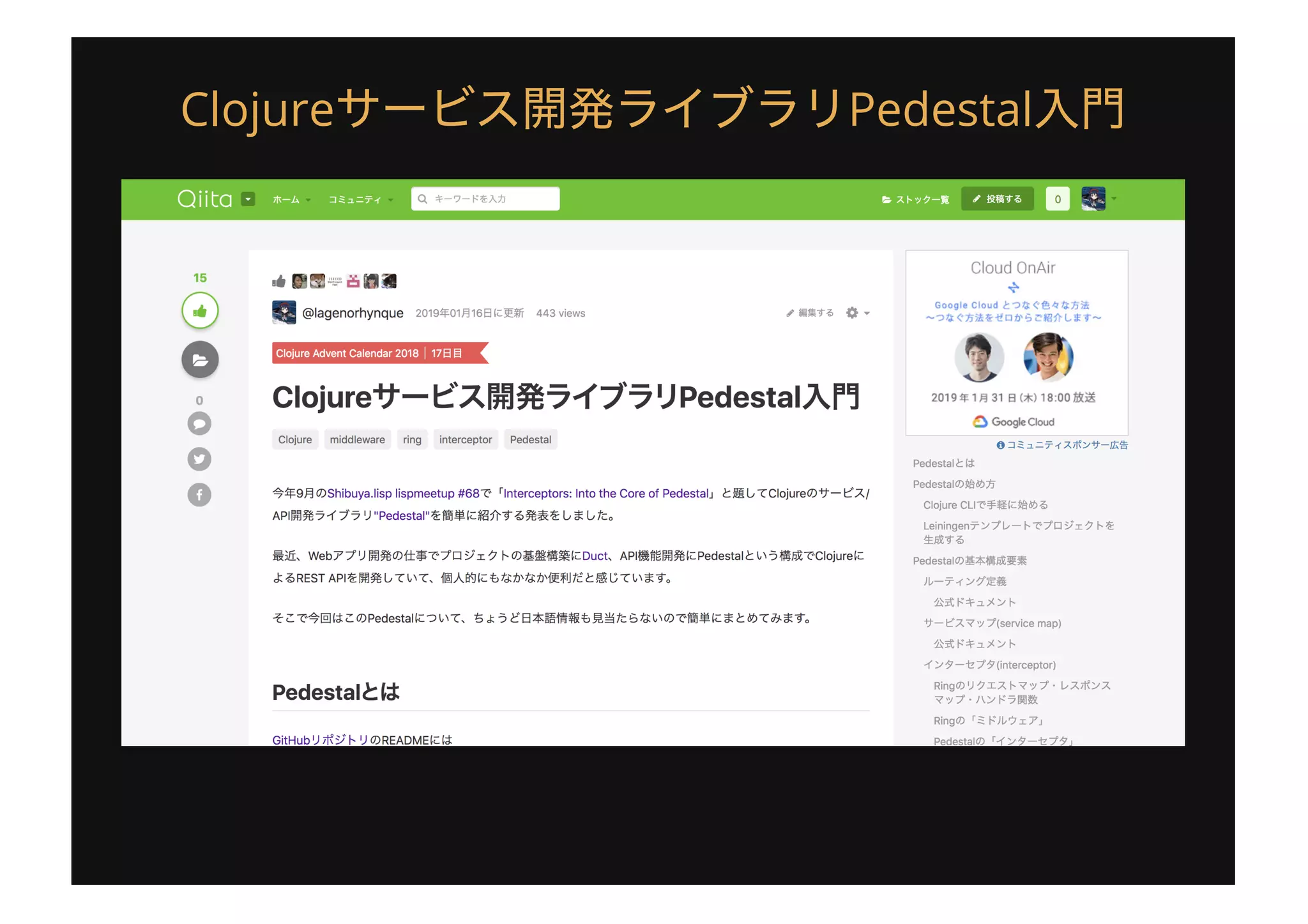

31. Clojure Pedestal

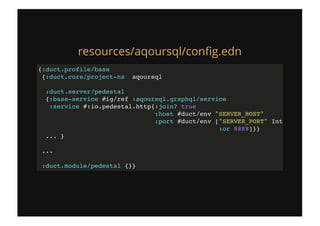

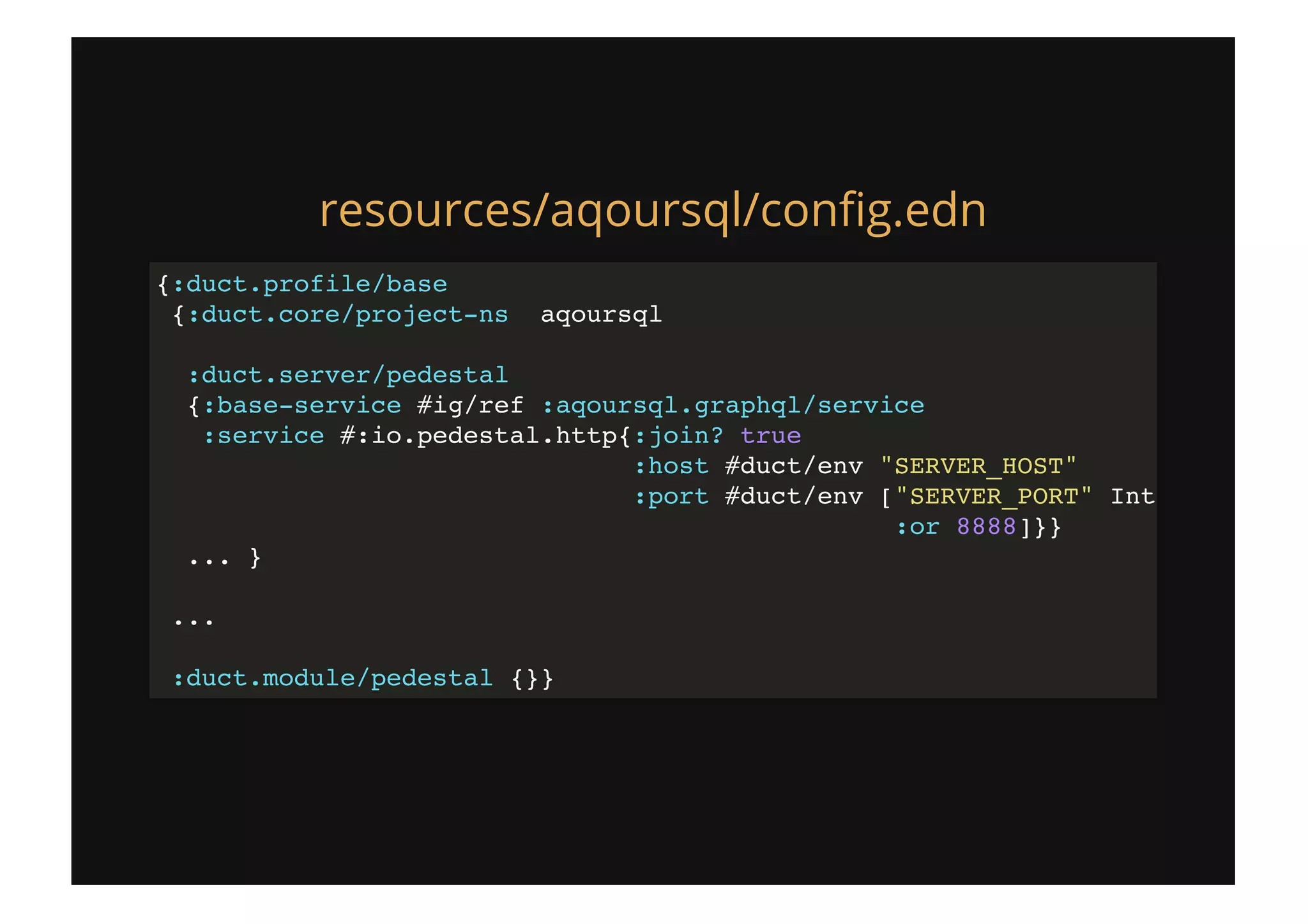

32. resources/aqoursql/con g.edn
{:duct.profile/base
{:duct.core/project-ns aqoursql
:duct.server/pedestal
{:base-service #ig/ref :aqoursql.graphql/service
:service #:io.pedestal.http{:join? true
:host #duct/env "SERVER_HOST"
:port #duct/env ["SERVER_PORT" Int
:or 8888]}}
... }
...
:duct.module/pedestal {}}

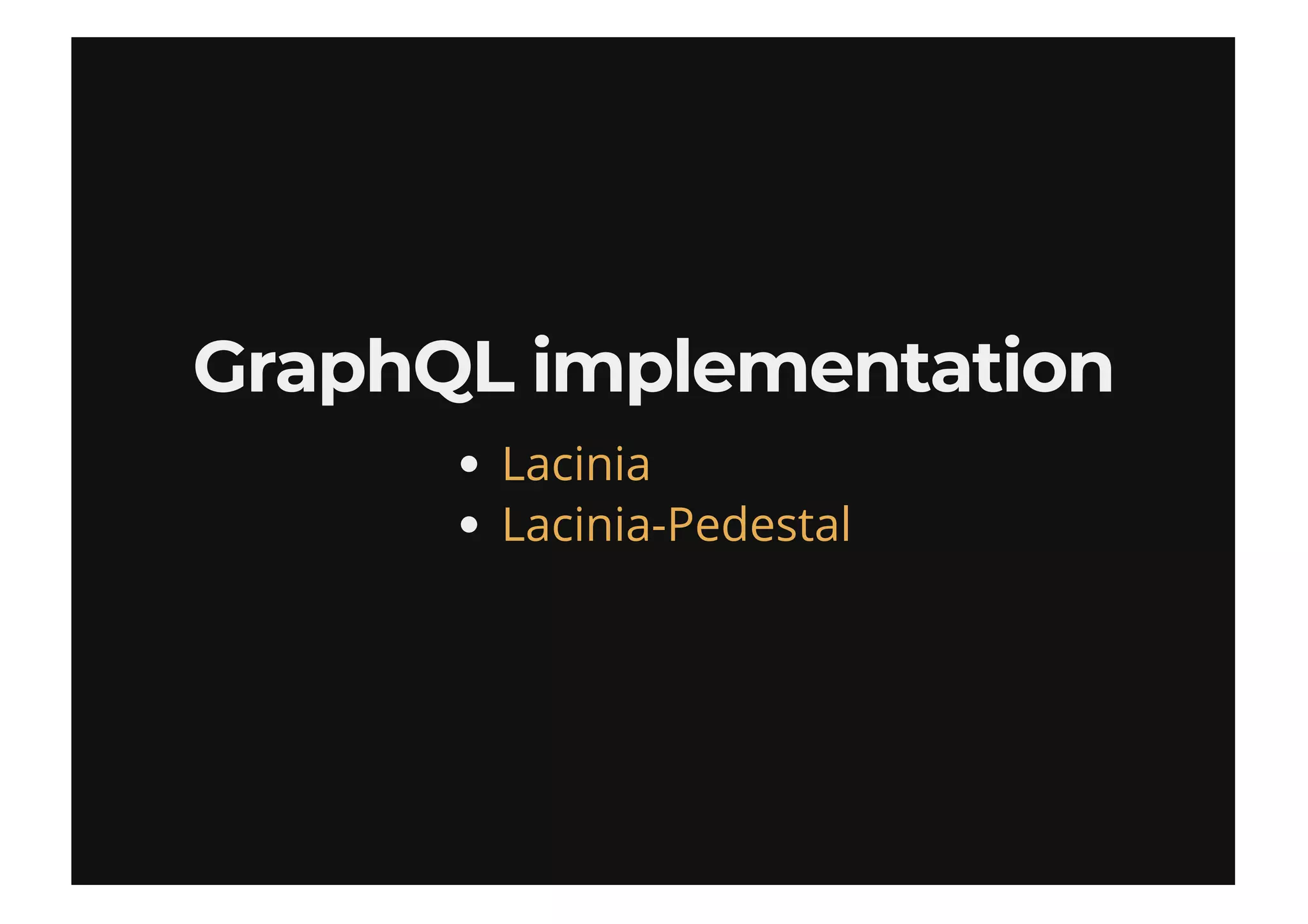

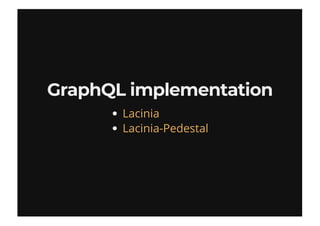

33. GraphQL implementationGraphQL implementation
Lacinia
Lacinia-Pedestal

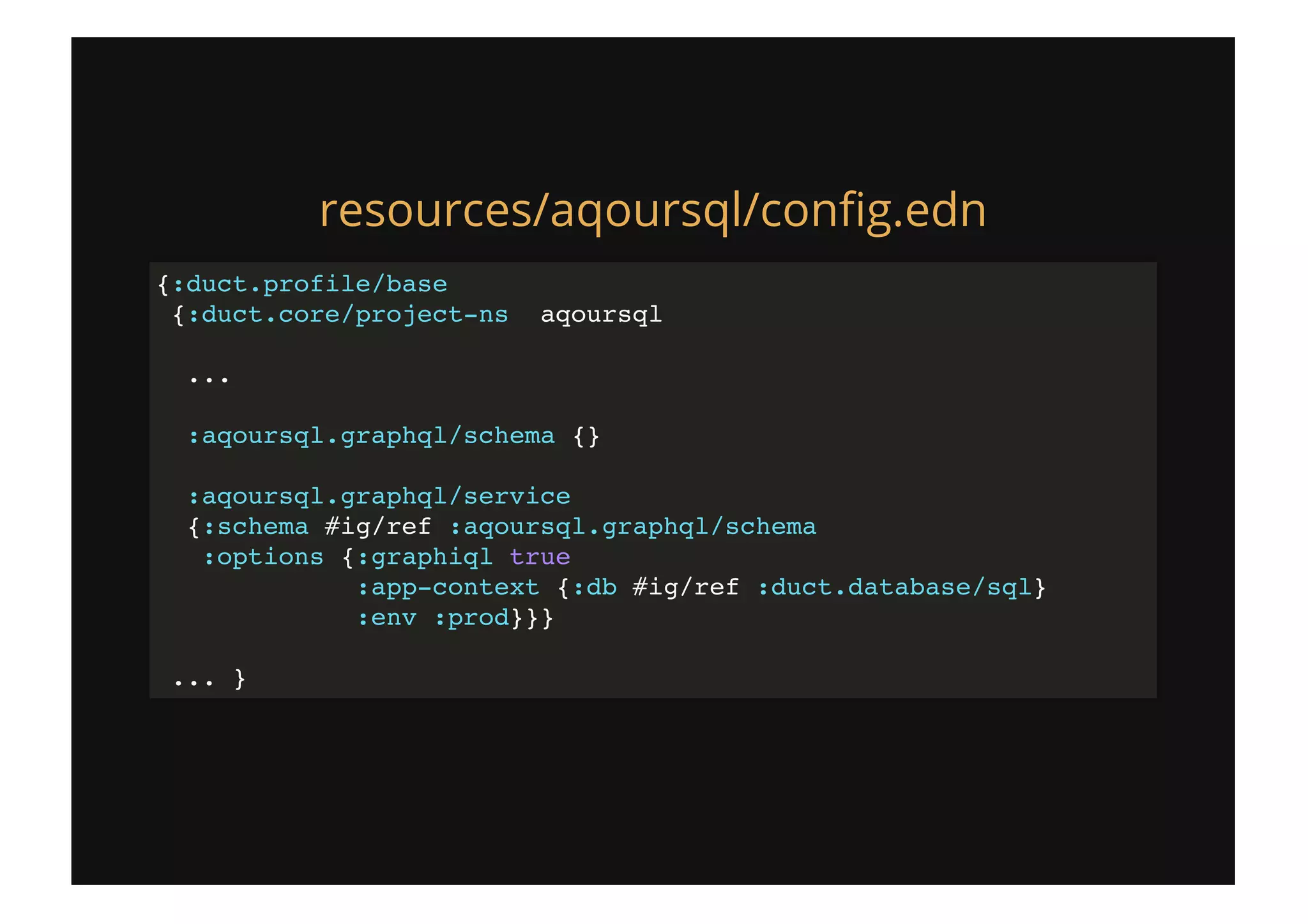

34. resources/aqoursql/con g.edn
{:duct.profile/base
{:duct.core/project-ns aqoursql
...
:aqoursql.graphql/schema {}
:aqoursql.graphql/service
{:schema #ig/ref :aqoursql.graphql/schema
:options {:graphiql true
:app-context {:db #ig/ref :duct.database/sql}
:env :prod}}}
... }

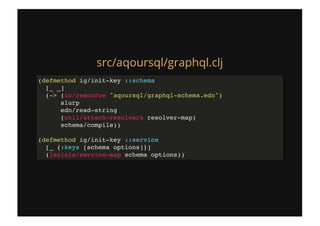

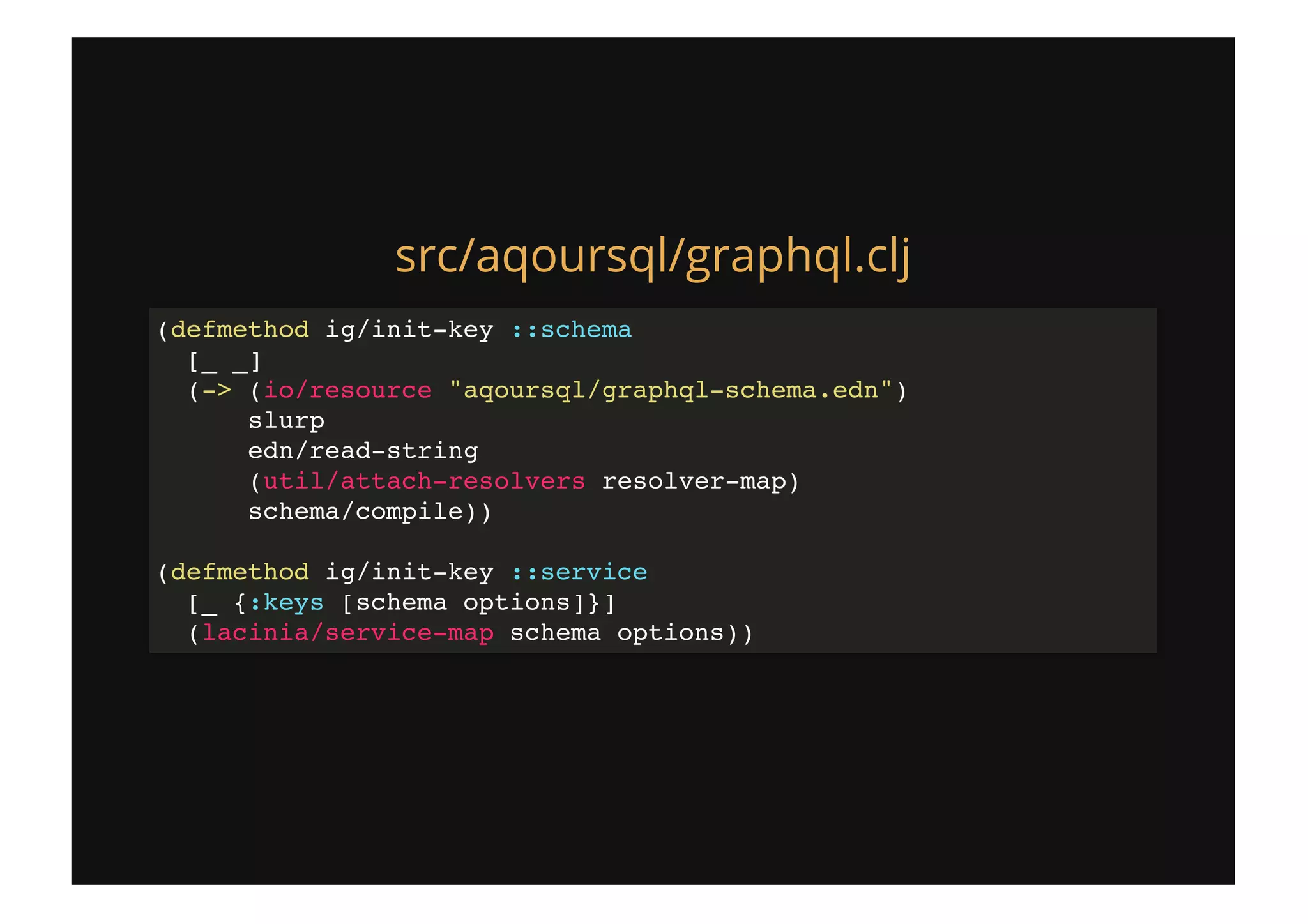

35. src/aqoursql/graphql.clj
(defmethod ig/init-key ::schema
[_ _]
(-> (io/resource "aqoursql/graphql-schema.edn")
slurp
edn/read-string
(util/attach-resolvers resolver-map)
schema/compile))
(defmethod ig/init-key ::service
[_ {:keys [schema options]}]
(lacinia/service-map schema options))

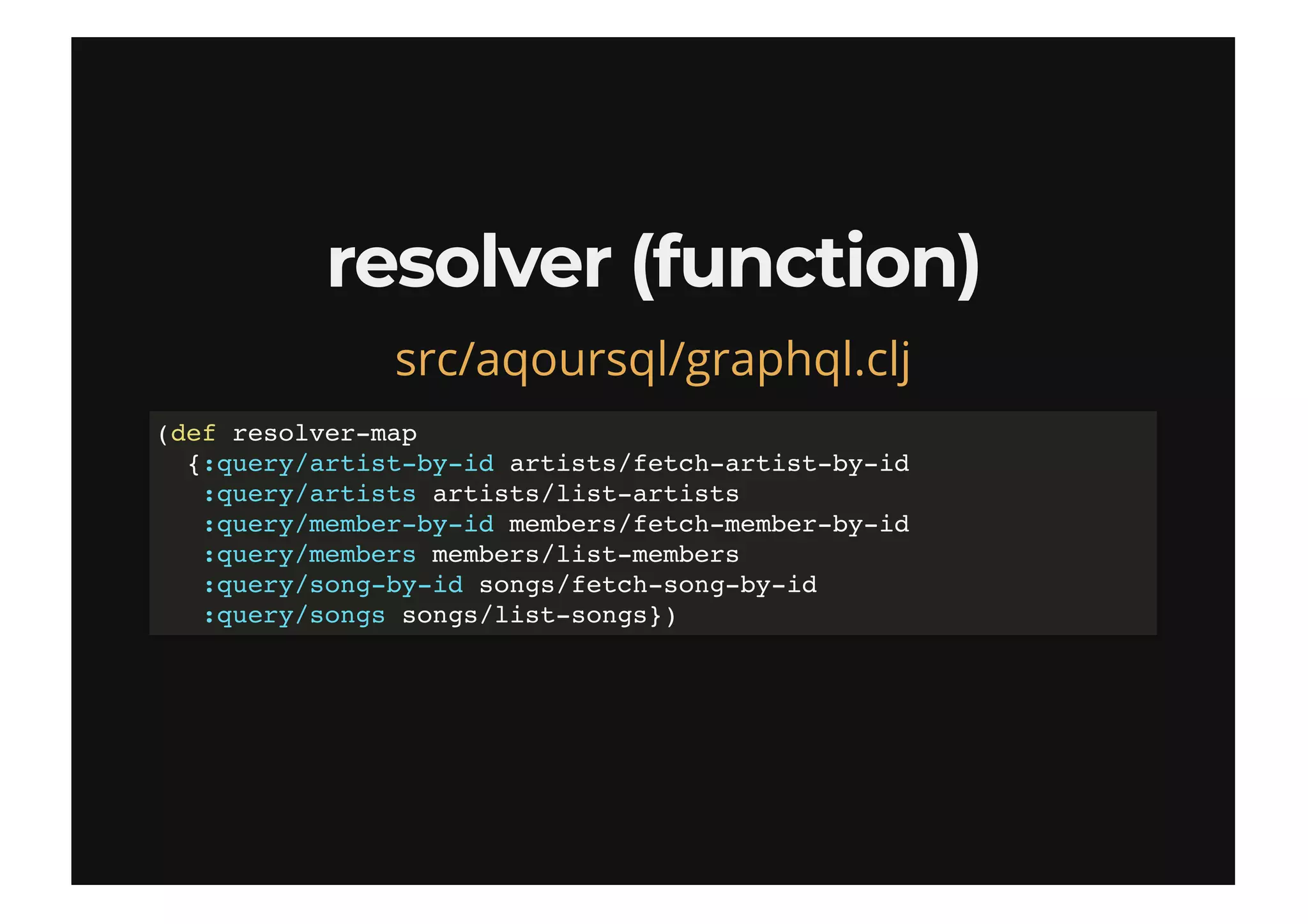

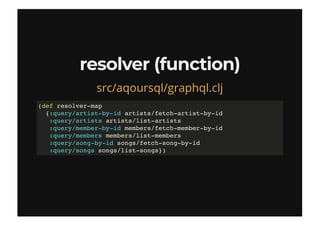

36. resolver (function)resolver (function)
src/aqoursql/graphql.clj
(def resolver-map
{:query/artist-by-id artists/fetch-artist-by-id
:query/artists artists/list-artists
:query/member-by-id members/fetch-member-by-id
:query/members members/list-members
:query/song-by-id songs/fetch-song-by-id
:query/songs songs/list-songs})

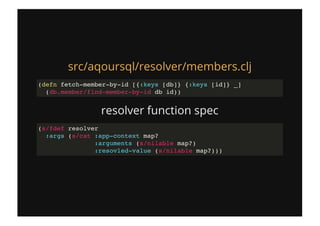

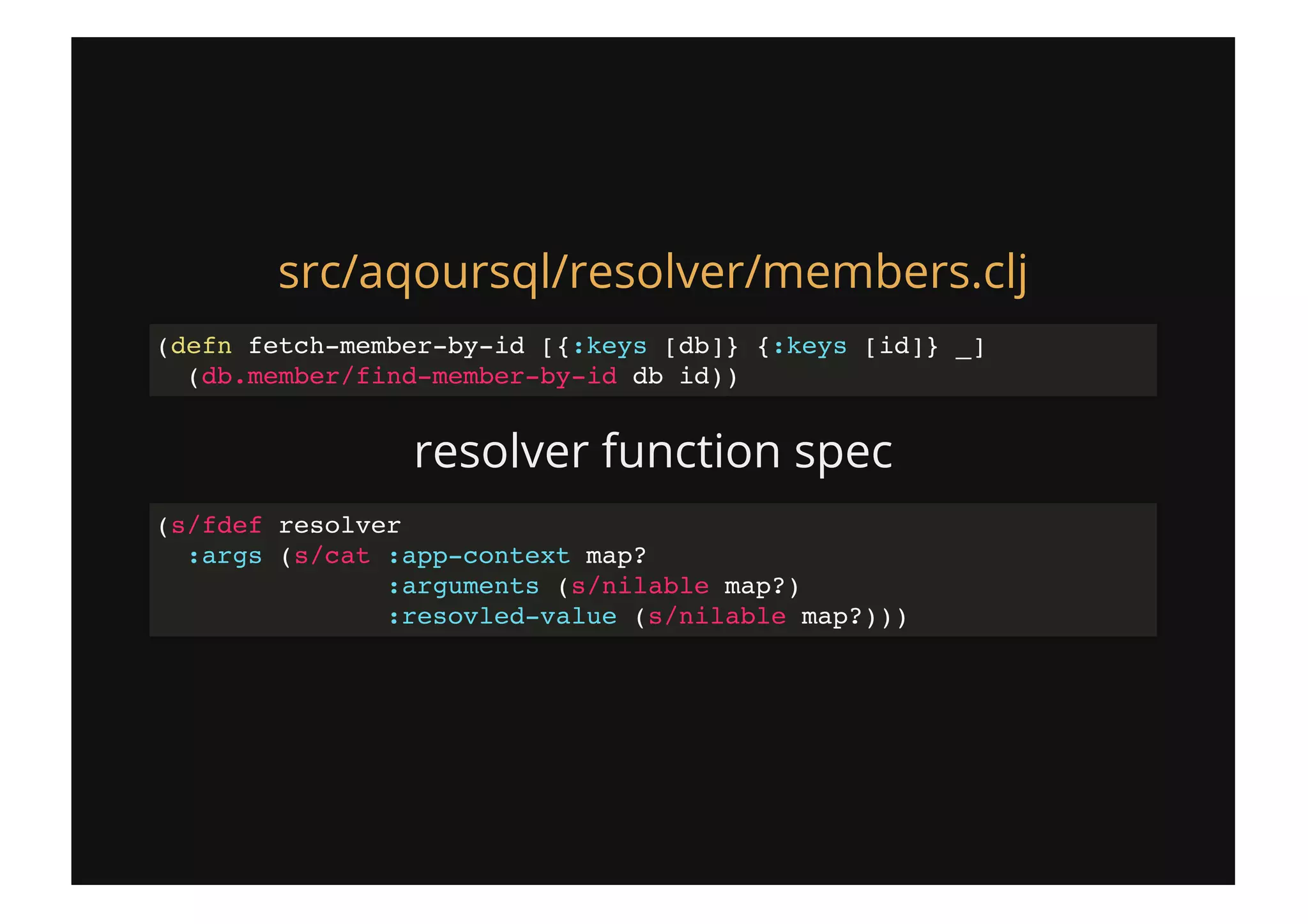

37. resolver function spec
src/aqoursql/resolver/members.clj
(defn fetch-member-by-id [{:keys [db]} {:keys [id]} _]
(db.member/find-member-by-id db id))
(s/fdef resolver
:args (s/cat :app-context map?
:arguments (s/nilable map?)
:resovled-value (s/nilable map?)))

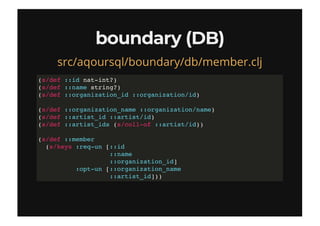

38. boundary (DB)boundary (DB)
src/aqoursql/boundary/db/member.clj
(s/def ::id nat-int?)
(s/def ::name string?)
(s/def ::organization_id ::organization/id)
(s/def ::organization_name ::organization/name)
(s/def ::artist_id ::artist/id)
(s/def ::artist_ids (s/coll-of ::artist/id))
(s/def ::member
(s/keys :req-un [::id
::name
::organization_id]
:opt-un [::organization_name
::artist_id]))

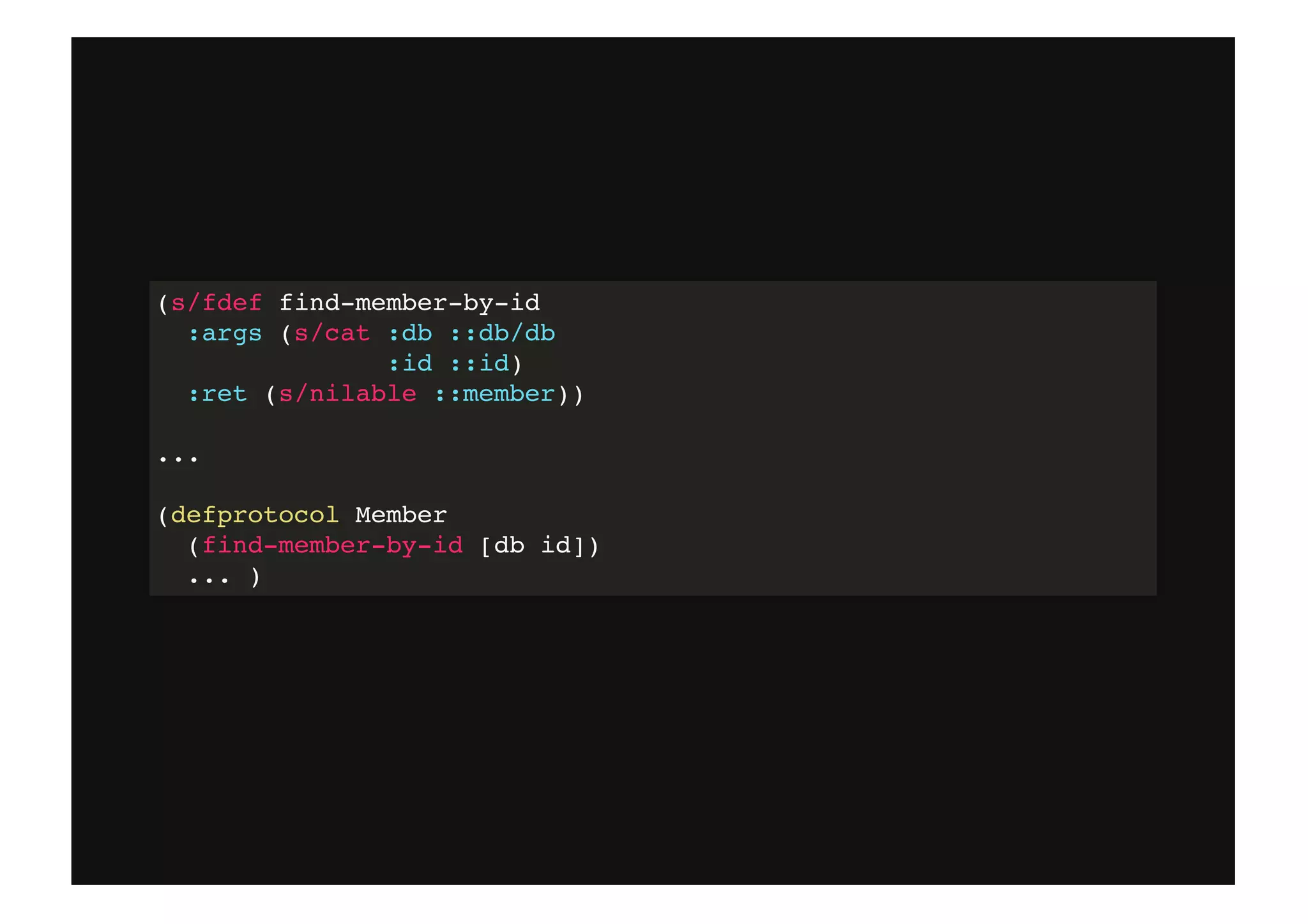

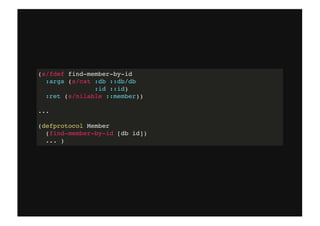

39. (s/fdef find-member-by-id
:args (s/cat :db ::db/db
:id ::id)
:ret (s/nilable ::member))
...
(defprotocol Member
(find-member-by-id [db id])
... )

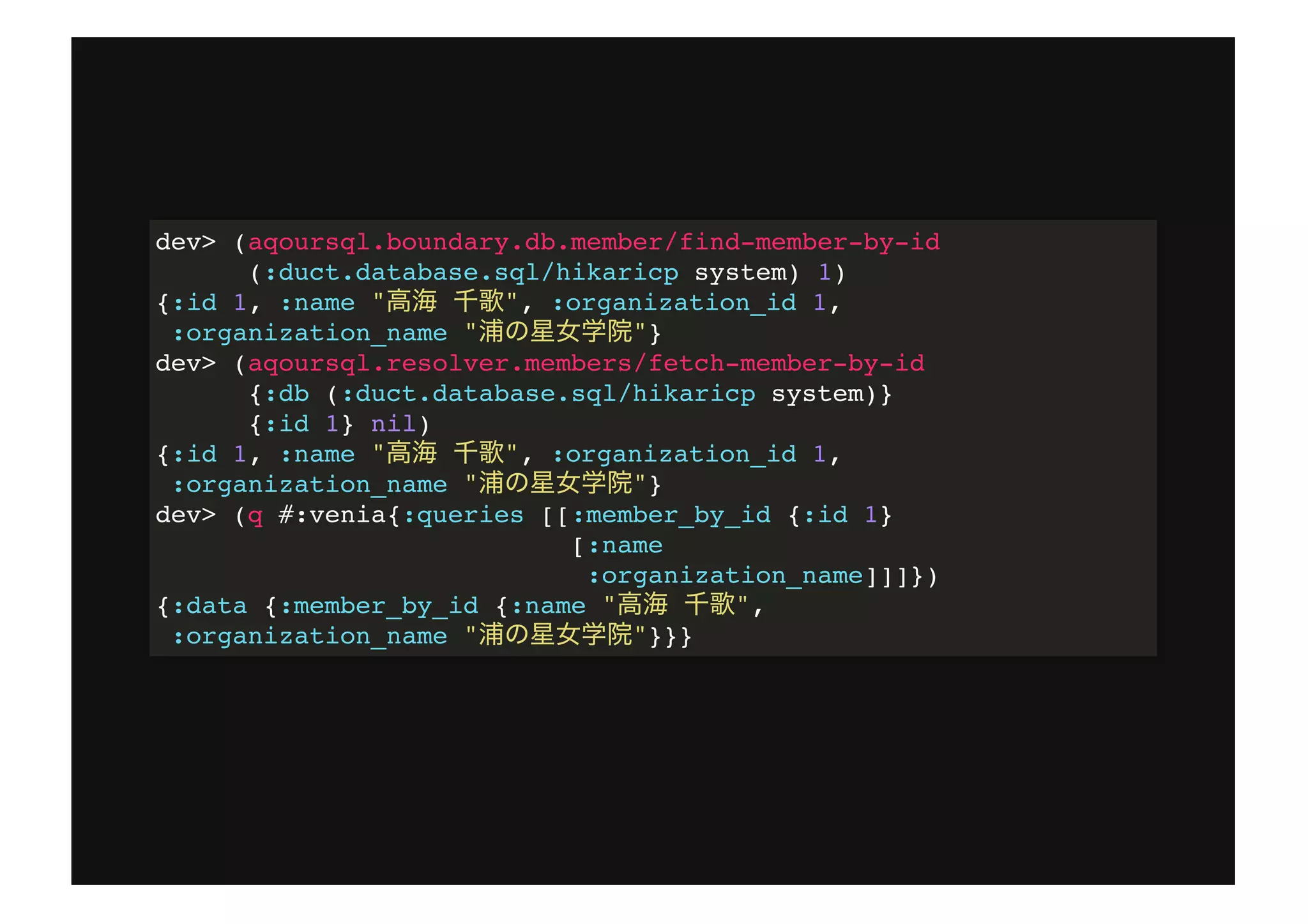

40. dev> (aqoursql.boundary.db.member/find-member-by-id
(:duct.database.sql/hikaricp system) 1)
{:id 1, :name " ", :organization_id 1,
:organization_name " "}
dev> (aqoursql.resolver.members/fetch-member-by-id
{:db (:duct.database.sql/hikaricp system)}
{:id 1} nil)
{:id 1, :name " ", :organization_id 1,
:organization_name " "}
dev> (q #:venia{:queries [[:member_by_id {:id 1}
[:name
:organization_name]]]})
{:data {:member_by_id {:name " ",
:organization_name " "}}}

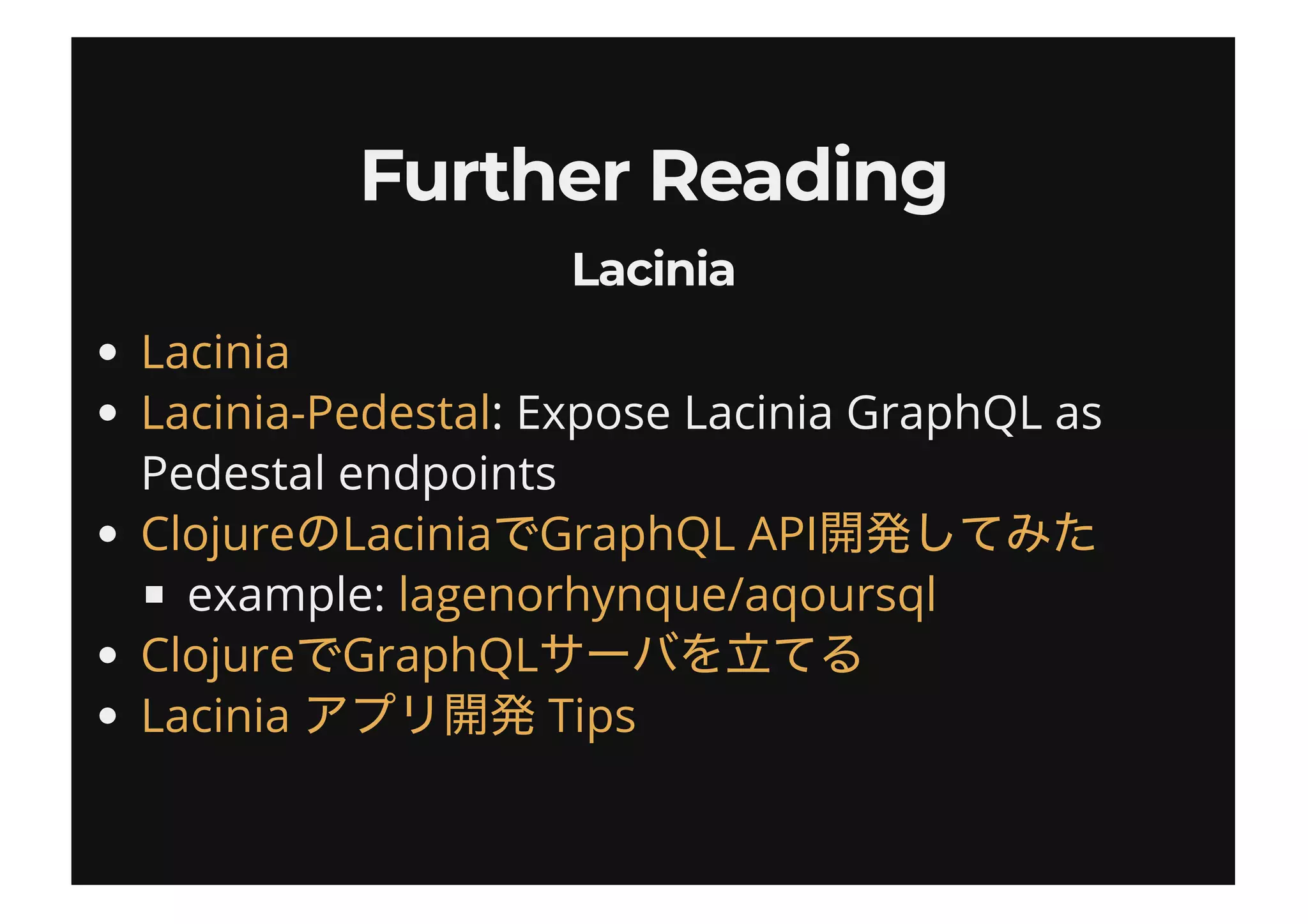

41. Further ReadingFurther Reading
LaciniaLacinia
: Expose Lacinia GraphQL as
Pedestal endpoints
example:
Lacinia
Lacinia-Pedestal
Clojure Lacinia GraphQL API
lagenorhynque/aqoursql
Clojure GraphQL
Lacinia Tips

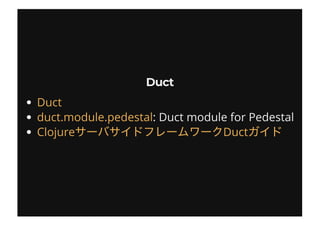

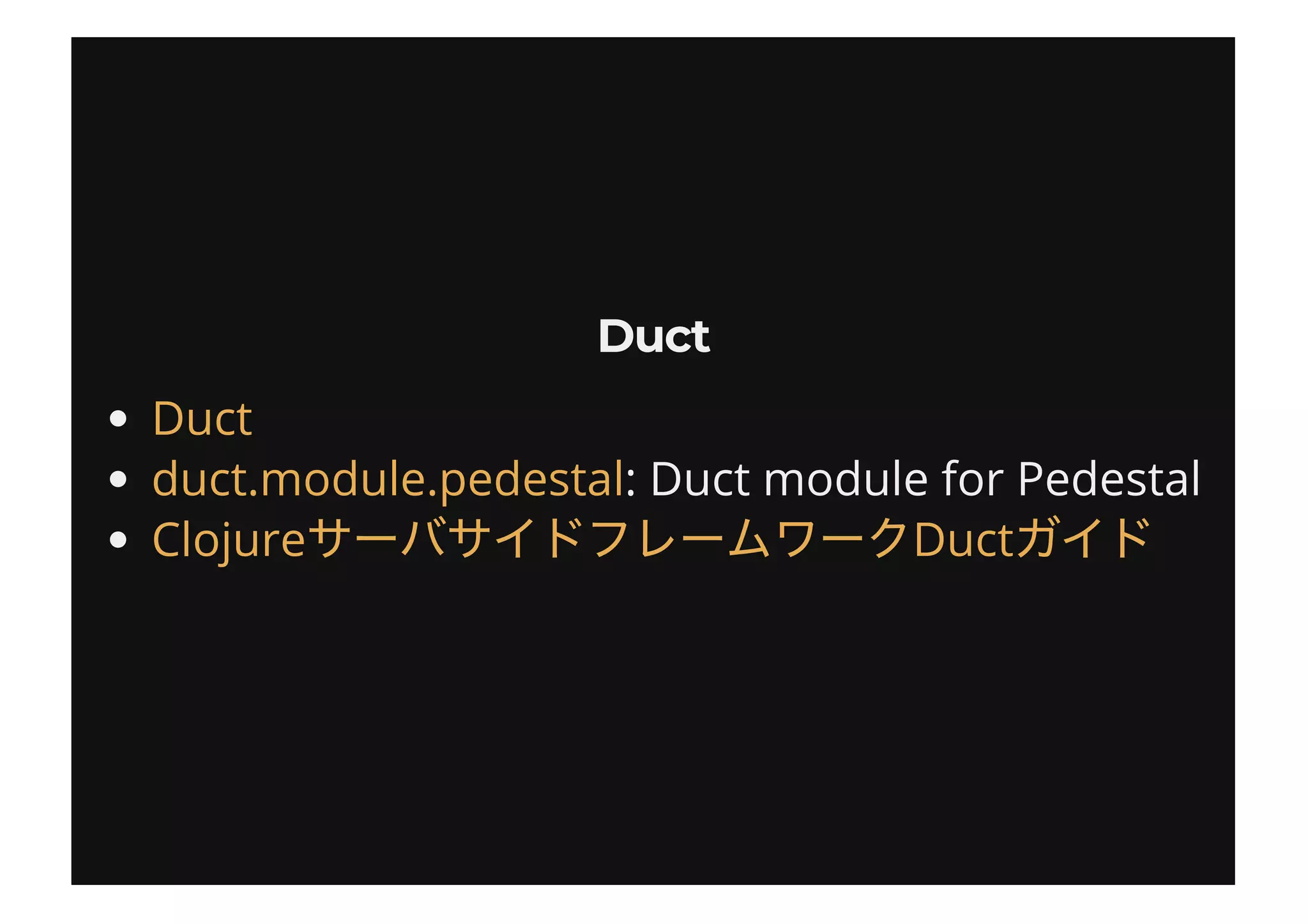

42. DuctDuct
: Duct module for Pedestal
Duct
duct.module.pedestal
Clojure Duct

43. PedestalPedestal
Pedestal
Clojure Pedestal

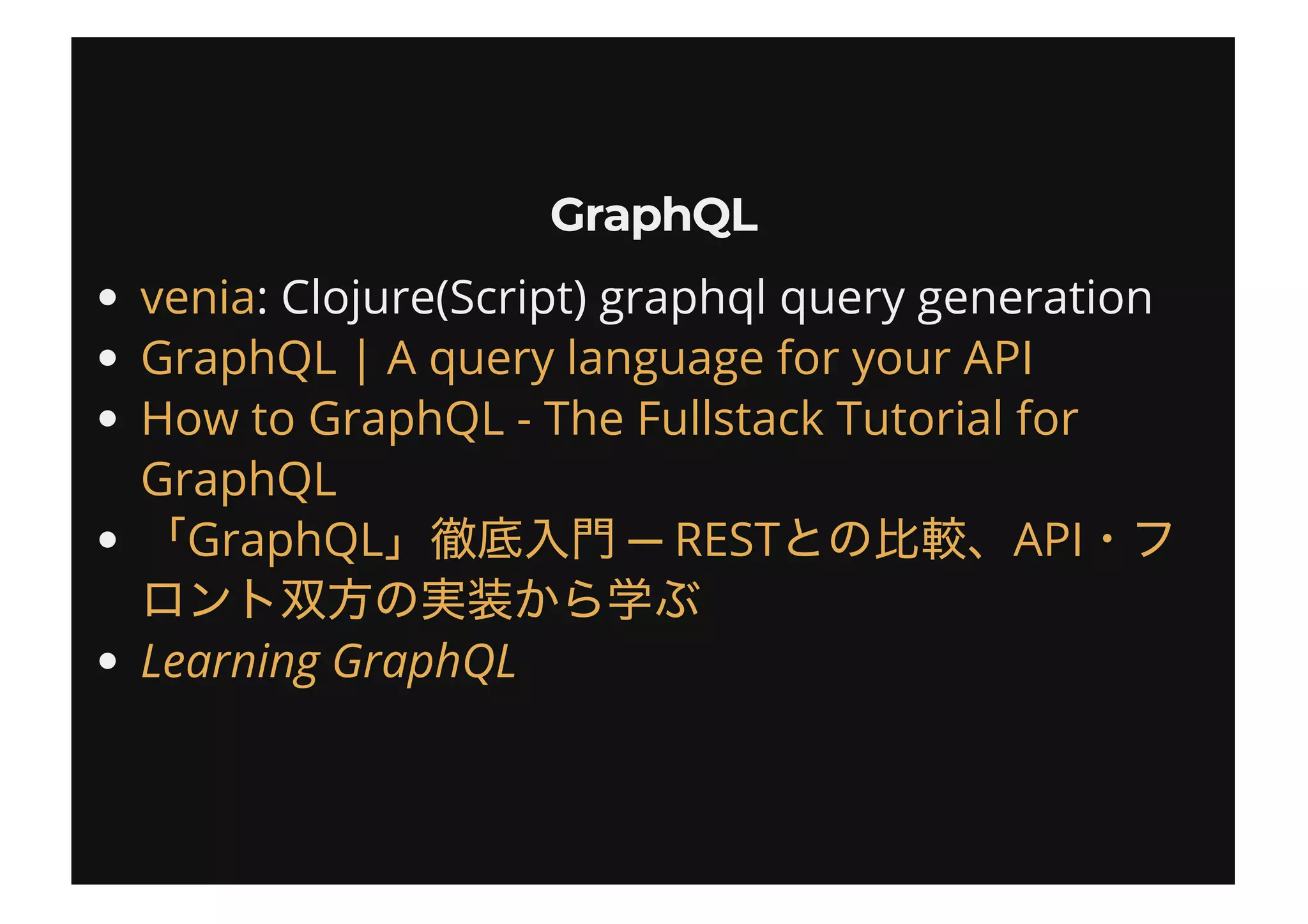

44. GraphQLGraphQL
: Clojure(Script) graphql query generationvenia
GraphQL | A query language for your API
How to GraphQL - The Fullstack Tutorial for
GraphQL
GraphQL ─ REST API
Learning GraphQL
