1. Gnome on Wayland
At a Glance
Seong-ho Cho
Gnome Korea

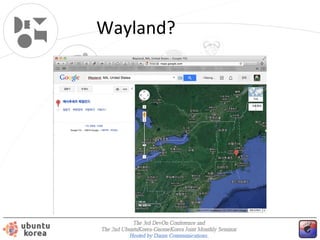

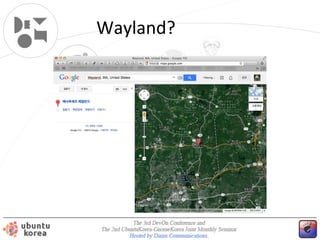

2. Wayland?

3. Wayland?

4. Wayland?
•
•
•
•
•
New-generation window server replacement for X window server
New display ground for Enlightenment, GNOME and KDE
Compositor protocol to talk to a client
Supports more powerful display method
Doesn’t have rendering API
•
“every frame is perfect, by which I mean that applications will be able to
control the rendering enough that we'll never see tearing, lag, redrawing
or flicker.” - by Kristian Høgsberg

5. History of Wayland
• Started at 2008 as a spare-time independent project by
Kristian Høgsberg from RedHat
• Became a freedesktop.org project in October 2010
• It was tried as a GSoC project in 2011, but wasn’t
successful
• Quite recently, Nvidia releases graphic driver which
supports EGL API.
– Nvidia graphic card can fully support wayland

6. Current Status
• Almost fully adopted in Enlightenment E18
• Experimentally (and partially) adopted in
GNOME 3.10
• Still pre-alpha release in KDE
• Included in Qt 5
– has some bug such as “Fail to compile” … :S

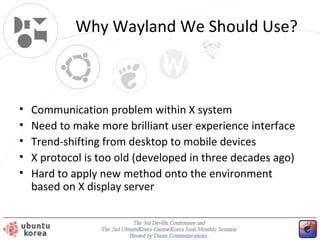

7. Why Wayland We Should Use?
•
•
•
•
•
Communication problem within X system
Need to make more brilliant user experience interface
Trend-shifting from desktop to mobile devices
X protocol is too old (developed in three decades ago)
Hard to apply new method onto the environment
based on X display server

8. Would You Remember?

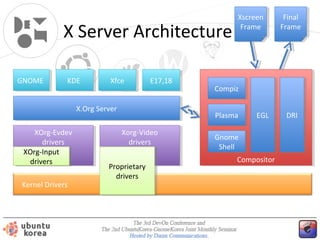

9. X Server Architecture
GNOME
GNOME
KDE
KDE
Xfce
Xfce
E17,18
E17,18
X.Org Server
X.Org Server
XOrg-Evdev
XOrg-Evdev
drivers
drivers
XOrg-Input
XOrg-Input
drivers
drivers
Kernel Drivers
Xscreen
Xscreen
Frame
Frame
Compiz
Compiz
Plasma
Plasma
Xorg-Video
Xorg-Video
drivers
drivers
Proprietary
Proprietary
drivers
drivers
Final
Final
Frame
Frame
EGL
EGL
Gnome
Gnome
Shell
Shell
Compositor
Compositor
DRI
DRI

10. X Server Architecture (Simp.)

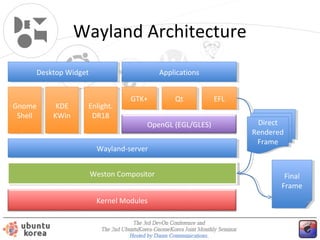

11. Wayland Architecture
Desktop Widget
Desktop Widget
Gnome
Gnome
Shell
Shell
KDE
KDE
KWin
KWin
Applications
Applications
Enlight.
Enlight.
DR18
DR18
GTK+
GTK+
Qt
Qt
OpenGL (EGL/GLES)
Wayland-server
Wayland-server
Weston Compositor
Weston Compositor
Kernel Modules
EFL
EFL
Direct
Direct
Rendered
Rendered
Frame
Frame
Final
Final
Frame
Frame

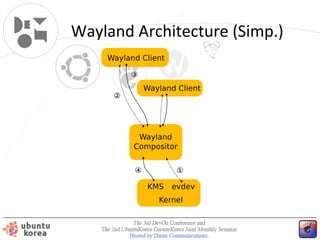

12. Wayland Architecture (Simp.)

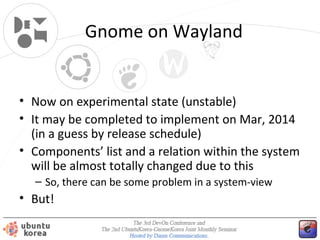

13. Gnome on Wayland
• Now on experimental state (unstable)
• It may be completed to implement on Mar, 2014
(in a guess by release schedule)
• Components’ list and a relation within the system
will be almost totally changed due to this
– So, there can be some problem in a system-view
• But!

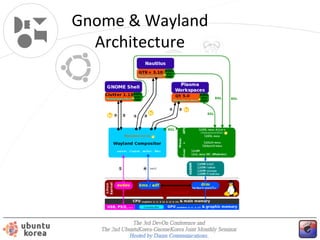

14. Gnome & Wayland
Architecture

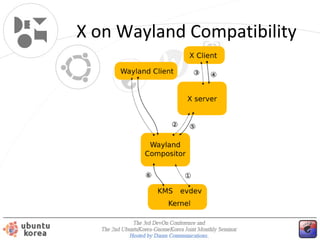

15. X on Wayland Compatibility

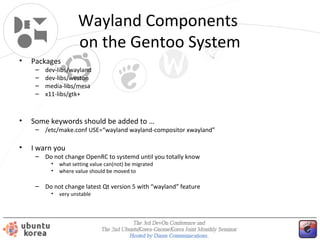

16. Wayland Components
on the Gentoo System
•
Packages
–
–
–
–
•
dev-libs/wayland
dev-libs/weston
media-libs/mesa
x11-libs/gtk+
Some keywords should be added to …
– /etc/make.conf USE=“wayland wayland-compositor xwayland”
•
I warn you
– Do not change OpenRC to systemd until you totally know
•
•
what setting value can(not) be migrated
where value should be moved to
– Do not change latest Qt version 5 with “wayland” feature
•
very unstable

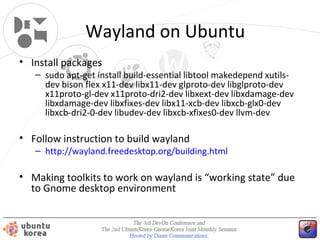

17. Wayland on Ubuntu
• Install packages
– sudo apt-get install build-essential libtool makedepend xutilsdev bison flex x11-dev libx11-dev glproto-dev libglproto-dev
x11proto-gl-dev x11proto-dri2-dev libxext-dev libxdamage-dev
libxdamage-dev libxfixes-dev libx11-xcb-dev libxcb-glx0-dev
libxcb-dri2-0-dev libudev-dev libxcb-xfixes0-dev llvm-dev
• Follow instruction to build wayland
– http://wayland.freedesktop.org/building.html
• Making toolkits to work on wayland is “working state” due
to Gnome desktop environment

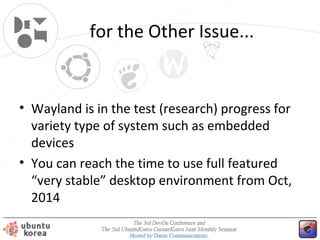

18. for the Other Issues...
• Wayland is in the test (research) progress for
variety type of system such as embedded
devices
• You can reach the time to use full featured
“very stable” desktop environment from Oct,
2014 (maybe?)

19. Conclusion
• Wayland is the brand new display server can replace X
server
• Wayland brings benefit for a performance to us by
combining both wayland-server and waylandcomposite part into the wayland server and by
supporting two or more frame buffer
• We don’t have to worry about disappearing X
– developers will sustain X environment for a more years for
a compatibility with legacy system

20. Making Wayland Contribution
• Git repo: http://cgit.freedesktop.org/wayland
• Mailing list:
http://lists.freedesktop.org/mailman/listinfo/wayl
• IRC: #wayland on freenode
• Bugzilla:
https://bugs.freedesktop.org/enter_bug.cgi?produ

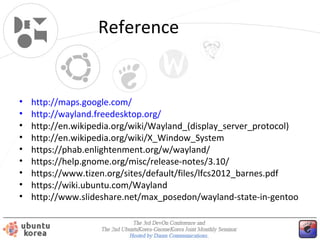

21. Reference
•
•
•
•
•
•
•
•
•
http://maps.google.com/
http://wayland.freedesktop.org/
http://en.wikipedia.org/wiki/Wayland_(display_server_protocol)
http://en.wikipedia.org/wiki/X_Window_System
https://phab.enlightenment.org/w/wayland/
https://help.gnome.org/misc/release-notes/3.10/
https://www.tizen.org/sites/default/files/lfcs2012_barnes.pdf
https://wiki.ubuntu.com/Wayland
http://www.slideshare.net/max_posedon/wayland-state-in-gentoo

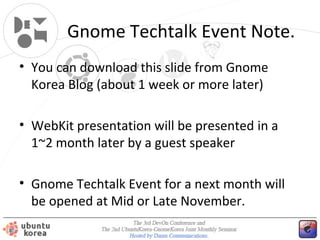

22. Gnome Techtalk Event Note.
• You can download this slide from Gnome
Korea Blog (about 1 week or more later)
• WebKit presentation will be presented in a
1~2 month later by a guest speaker
• Gnome Techtalk Event for a next month will
be opened at Mid or Late November.

23. Thank you
