Gi-Fi (gigabit wireless) technology enables wireless data transfer at 5 Gbps over a range of 10 meters, significantly exceeding the rates of Bluetooth and Wi-Fi while consuming less power. Using a millimeter wave antenna operating at 60GHz, Gi-Fi is designed for applications such as wireless PAN networks, inter-vehicle communication, and office appliances. The technology's cost-effectiveness and small size are expected to make it the dominant wireless networking solution in the near future.

1. A
Project Presentation
On
GI-FI (GigaFit)
1
Presented By:-
Sonu Mangal
4th yr. (ECE) Sec. B
Project coordinators:-
Mr.
DEPARTMENT OF ELECTRONICS & COMMUNICATION ENGINEERING
3/14/2020

2. 2
 Introduction
 Network Evaluation
 Why Gi-Fi?
 Bluetooth v/s Gifi
 Working
 Block Diagram
 TDD
 Features
 Access Device
 Application
 Video
 Technology Consideration
 Conclusion
 References
Contents
3/14/2020

3. 3
Introduction
 Gi-Fi or Gigabit Wireless is the world's first
transceiver integrated on a single chip that operates at
60GHz on the CMOS process.
 Gi-Fi allows wireless transfer of audio and video data up
to 5 gigabits per second.
 Gi-Fi is ten times the current maximum wireless transfer rate
usually within a range of 10 meters.
 It supports standard of IEEE802.15.3c
3/14/2020

4. 4
Chip

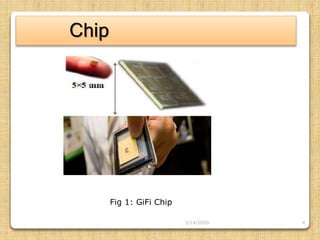

Fig 1: GiFi Chip
3/14/2020

5. 5

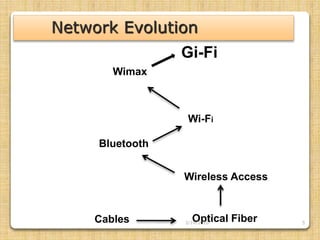

Network Evolution
Cables Optical Fiber
Wireless Access
Bluetooth
Wi-Fi
Wimax
Gi-Fi
3/14/2020

6. 6

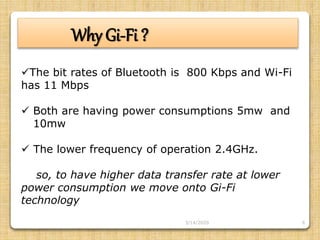

Why Gi-Fi ?
The bit rates of Bluetooth is 800 Kbps and Wi-Fi
has 11 Mbps
 Both are having power consumptions 5mw and
10mw
 The lower frequency of operation 2.4GHz.
so, to have higher data transfer rate at lower
power consumption we move onto Gi-Fi
technology
3/14/2020

7. 7

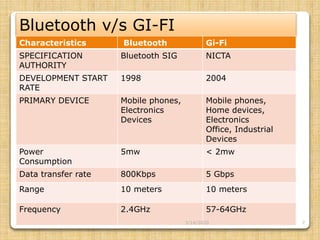

Bluetooth v/s GI-FI
Characteristics Bluetooth Gi-Fi
SPECIFICATION
AUTHORITY
Bluetooth SIG NICTA
DEVELOPMENT START
RATE
1998 2004
PRIMARY DEVICE Mobile phones,
Electronics
Devices
Mobile phones,
Home devices,
Electronics
Office, Industrial
Devices
Power
Consumption
5mw < 2mw
Data transfer rate 800Kbps 5 Gbps
Range 10 meters 10 meters
Frequency 2.4GHz 57-64GHz
3/14/2020

8. 8
Working Of Gi-Fi
• Use Time Division Duplex (TDD) for both
transmission and receiving.
• Data are up converted from IF range to RF
60Ghz range by using 2 mixers and we will fed
this to an power amplifier, which feeds
millimeter wave antenna.
• incoming RF signal is first down converted to an
IF signal centered at 5 GHz and then to normal
data ranges
3/14/2020

9. 9

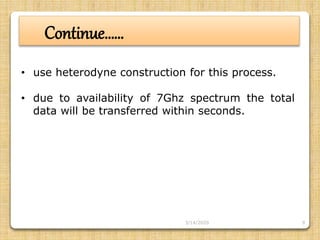

Continue……
• use heterodyne construction for this process.
• due to availability of 7Ghz spectrum the total
data will be transferred within seconds.
3/14/2020

10. 10

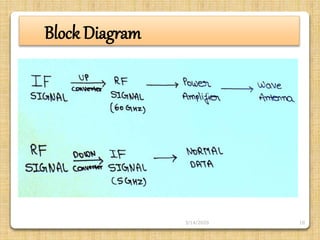

Block Diagram
3/14/2020

11. 11
Time Division Duplexing (TDD)
• Transmit signal is separate from receiver by the
allocation of different time slot.
• Single frequency channel is assign to both the
transmitter and receiver .
• In this, there are allocated time slot for both transmitter
and receiver.
3/14/2020

12. 12
Time Division Duplexing (TDD)
3/14/2020

13. 13

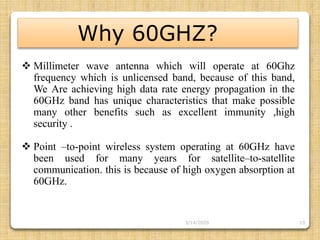

Why 60GHZ?
 Millimeter wave antenna which will operate at 60Ghz
frequency which is unlicensed band, because of this band,
We Are achieving high data rate energy propagation in the
60GHz band has unique characteristics that make possible
many other benefits such as excellent immunity ,high
security .
 Point –to-point wireless system operating at 60GHz have
been used for many years for satellite–to-satellite
communication. this is because of high oxygen absorption at
60GHz.
3/14/2020

14. 14
FEATURES OF GI-FI
 Small in size.
 Portable.
 High speed of data transfer.
 Low power consumption.
 Cost-effective.
3/14/2020

15. 15

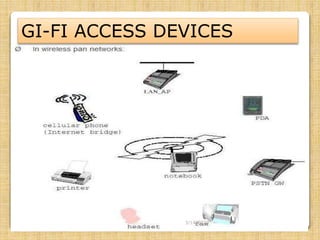

GI-FI ACCESS DEVICES
3/14/2020

16. 16

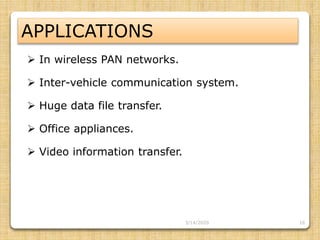

APPLICATIONS
 In wireless PAN networks.
 Inter-vehicle communication system.
 Huge data file transfer.
 Office appliances.
 Video information transfer.
3/14/2020

17. 17
A Video on…….
NICTA Gigabit Wireless Chip - YouTube.mp4
3/14/2020

18. 18

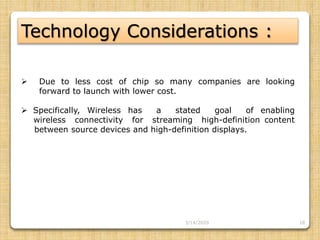

Technology Considerations :
 Due to less cost of chip so many companies are looking
forward to launch with lower cost.
 Specifically, Wireless has a stated goal of enabling
…..wireless connectivity for streaming high-definition content
……between source devices and high-definition displays.
3/14/2020

19. 19
Conclusion
Within a years, we expect Gi-Fi to be the
dominant technology for wireless networking.
 Gi-Fi can bring wireless broadband to
the enterprise in an entirely new way.
3/14/2020

20. 20
References
 http://electronics.howstuffworks.com/gifi.htm
 http://lcp.elis.ugent.be/tutorials/tut_gifi
 http://www.slideshare.net/tapeshchalisgaonkar1/gi-fi-technology-
finl-ppt
3/14/2020
