Getting Started with Wonder

Getting Started with Wonder
Kieran Kelleher WOWODC 2010 Montreal
Green Island Consulting LLC
SmartleadsUSA LLC
SmartMix Technologies LLC

Friday, September 3, 2010

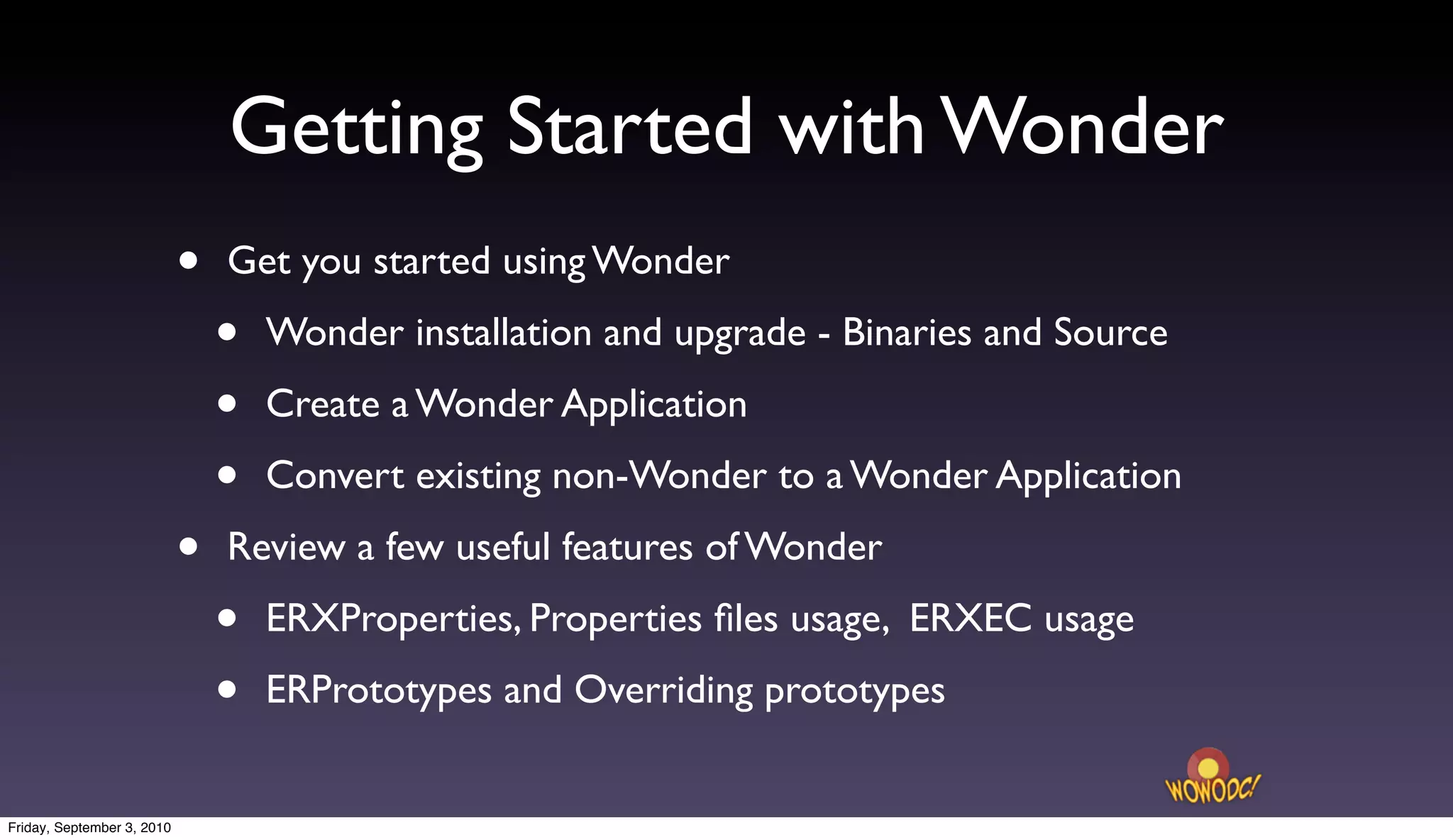

Getting Started with Wonder
• Get you started using Wonder

• Wonder installation and upgrade - Binaries and Source

• Create a Wonder Application

• Convert existing non-Wonder to a Wonder Application

• Review a few useful features of Wonder

• ERXProperties, Properties ﬁles usage, ERXEC usage

• ERPrototypes and Overriding prototypes

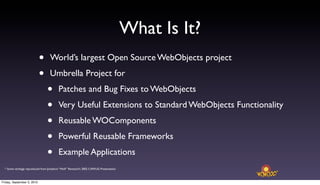

What Is It?
• World’s largest Open Source WebObjects project

• Umbrella Project for

• Patches and Bug Fixes to WebObjects

• Very Useful Extensions to Standard WebObjects Functionality

• Reusable WOComponents

• Powerful Reusable Frameworks

• Example Applications
* Some verbiage reproduced from Jonathon “Wolf” Rentzsch’s 2002 CAWUG Presentation

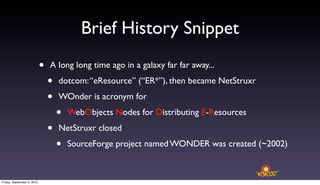

Brief History Snippet
• A long long time ago in a galaxy far far away...

• dotcom: “eResource” (“ER*”), then became NetStruxr

• WOnder is acronym for

• WebObjects Nodes for Distributing E-Resources

• NetStruxr closed

• SourceForge project named WONDER was created (~2002)

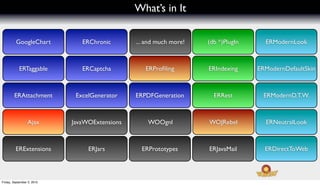

What’s in It

GoogleChart ERChronic ... and much more! (db *)PlugIn ERModernLook

ERTaggable ERCaptcha ERProﬁling ERIndexing ERModernDefaultSkin

ERAttachment ExcelGenerator ERPDFGeneration ERRest ERModernD.T.W.

Ajax JavaWOExtensions WOOgnl WOJRebel ERNeutralLook

ERExtensions ERJars ERPrototypes ERJavaMail ERDirectToWeb


Why Should You Use It?
• Bug ﬁxes to standard WebObjects frameworks

• Even Apple uses Wonder (Branch 2_0_0?)

• Improved and Replaced Functionality

• Extended and Additional Functionality

• The source code has an educational beneﬁt

• Why reinvent and debug the wheel?


How Do You Get It?

“Semi-Pro” Way* “Pro” Way*

Binaries Source

* Terms coined by David Holt on wonder-disc mailing list on May 12, 2010

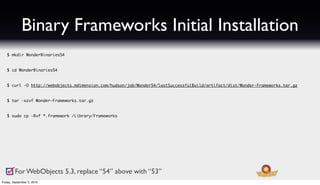

Binary Frameworks Initial Installation
$ mkdir WonderBinaries54

$ cd WonderBinaries54

$ curl -O http://webobjects.mdimension.com/hudson/job/Wonder54/lastSuccessfulBuild/artifact/dist/Wonder-Frameworks.tar.gz

$ tar -xzvf Wonder-Frameworks.tar.gz

$ sudo cp -Rvf *.framework /Library/Frameworks

For WebObjects 5.3, replace “54” above with “53”

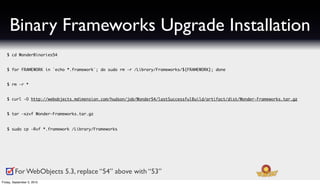

Binary Frameworks Upgrade Installation
$ cd WonderBinaries54

$ for FRAMEWORK in `echo *.framework`; do sudo rm -r /Library/Frameworks/${FRAMEWORK}; done

$ rm -r *

$ curl -O http://webobjects.mdimension.com/hudson/job/Wonder54/lastSuccessfulBuild/artifact/dist/Wonder-Frameworks.tar.gz

$ tar -xzvf Wonder-Frameworks.tar.gz

$ sudo cp -Rvf *.framework /Library/Frameworks

For WebObjects 5.3, replace “54” above with “53”

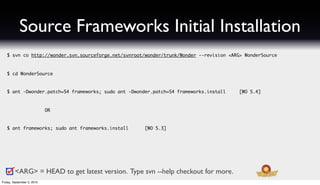

Source Frameworks Initial Installation
$ svn co http://wonder.svn.sourceforge.net/svnroot/wonder/trunk/Wonder --revision <ARG> WonderSource

$ cd WonderSource

$ ant -Dwonder.patch=54 frameworks; sudo ant -Dwonder.patch=54 frameworks.install [WO 5.4]

OR

$ ant frameworks; sudo ant frameworks.install [WO 5.3]

<ARG> = HEAD to get latest version. Type svn --help checkout for more.

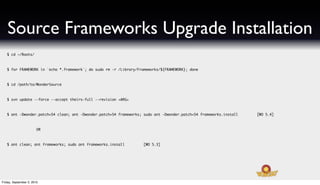

Source Frameworks Upgrade Installation
$ cd ~/Roots/

$ for FRAMEWORK in `echo *.framework`; do sudo rm -r /Library/Frameworks/${FRAMEWORK}; done

$ cd /path/to/WonderSource

$ svn update --force --accept theirs-full --revision <ARG>

$ ant -Dwonder.patch=54 clean; ant -Dwonder.patch=54 frameworks; sudo ant -Dwonder.patch=54 frameworks.install [WO 5.4]

OR

$ ant clean; ant frameworks; sudo ant frameworks.install [WO 5.3]


Working with Wonder Source

• Some Advantages of working with Source over Binaries:

• Learn much about WebObjects and EOF (and java dev styles?)

• Easily browse and search the source

• Work with a speciﬁc svn version (teams, quality control)

• Discover the Hidden Treasures (Don’t miss Chuck Hill later)

• Note ERXExtensions classpath ﬁle contents for 5.3 vs 5.4 .....

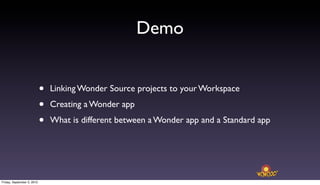

Demo

• Linking Wonder Source projects to your Workspace

• Creating a Wonder app

• What is different between a Wonder app and a Standard app

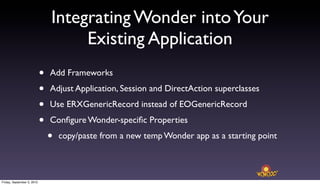

Integrating Wonder into Your
Existing Application
• Add Frameworks

• Adjust Application, Session and DirectAction superclasses

• Use ERXGenericRecord instead of EOGenericRecord

• Conﬁgure Wonder-speciﬁc Properties

• copy/paste from a new temp Wonder app as a starting point

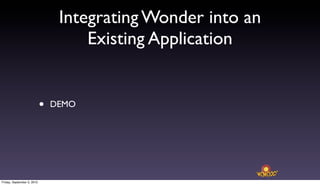

Integrating Wonder into an
Existing Application

• DEMO

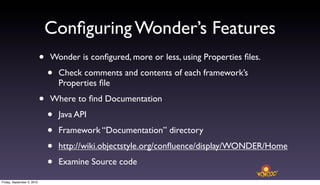

Configuring Wonder’s Features
• Wonder is configured, more or less, using Properties files.

• Check comments and contents of each framework’s
Properties file

• Where to find Documentation

• Java API

• Framework “Documentation” directory

• http://wiki.objectstyle.org/confluence/display/WONDER/Home

• Examine Source code

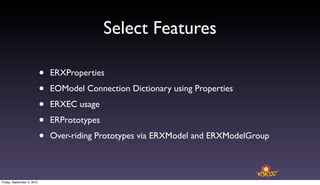

Select Features

• ERXProperties

• EOModel Connection Dictionary using Properties

• ERXEC usage

• ERPrototypes

• Over-riding Prototypes via ERXModel and ERXModelGroup


ERXProperties

• A variety of ways to organize Properties

• ERXProperties replaces and extends deprecated NSProperties

• many convenient utility methods including property coercion

• log4j conﬁgured via Properties

• Understanding how ERXProperties works can facilitate better
team organization, app administration and general happiness :-)


The Standard WebObjects Way

Override

Properties Framework Resources
Properties
Properties

Properties Application Resources

WebObjects.properties [user.home] dir

-DpropertyName=propertyValue Command Line arguments
-DpropertyName=”property Value”

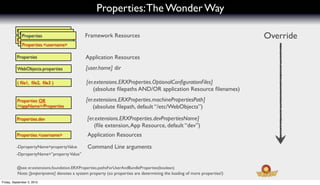

Properties: The Wonder Way
Properties
Properties
Properties
Properties.<username>
Framework Resources Override

Properties Application Resources
WebObjects.properties [user.home] dir

( file1, file2, file3 ) [er.extensions.ERXProperties.OptionalConfigurationFiles]
(absolute filepaths AND/OR application Resource filenames)
Properties OR [er.extensions.ERXProperties.machinePropertiesPath]
/<appName>/Properties (absolute filepath, default “/etc/WebObjects”)

Properties.dev [er.extensions.ERXProperties.devPropertiesName]
(file extension, App Resource, default “dev”)
Properties.<username> Application Resources
-DpropertyName=propertyValue Command Line arguments
-DpropertyName=”property Value”

@see er.extensions.foundation.ERXProperties.pathsForUserAndBundleProperties(boolean)
Note: [propertyname] denotes a system property (so properties are determining the loading of more properties!)

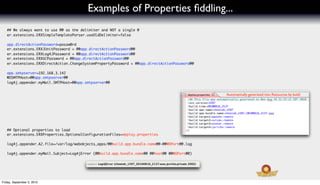

Examples of Properties ﬁddling...
## We always want to use @@ as the delimiter and NOT a single @
er.extensions.ERXSimpleTemplateParser.useOldDelimiter=false

app.directActionPassword=passw0rd
er.extensions.ERXJUnitPassword = @@app.directActionPassword@@
er.extensions.ERXLog4JPassword = @@app.directActionPassword@@
er.extensions.ERXGCPassword = @@app.directActionPassword@@
er.extensions.ERXDirectAction.ChangeSystemPropertyPassword = @@app.directActionPassword@@

app.smtpserver=192.168.3.142
WOSMTPHost=@@app.smtpserver@@
log4j.appender.myMail.SMTPHost=@@app.smtpserver@@

Automatically generated into Resources by build

## Optional properties to load
er.extensions.ERXProperties.OptionalConfigurationFiles=deploy.properties

log4j.appender.A2.file=/var/log/webobjects_apps/@@build.app.bundle.name@@-@@WOPort@@.log

log4j.appender.myMail.Subject=Log4jError (@@build.app.bundle.name@@ @@host@@ @@WOPort@@)

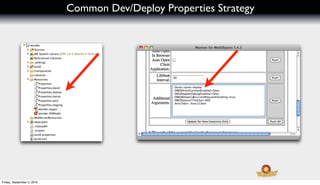

Common Dev/Deploy Properties Strategy


EOModel Connection Dictionary
WebObjects Way

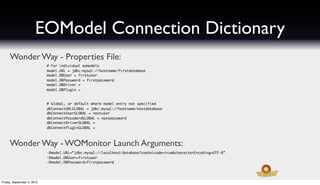

EOModel Connection Dictionary
Wonder Way - Properties File:
# For individual eomodels
model.URL = jdbc:mysql://hostname/firstdatabase
model.DBUser = firstuser
model.DBPassword = firstpassword
model.DBDriver =
model.DBPlugin =

# Global, or default where model entry not specified
dbConnectURLGLOBAL = jdbc:mysql://hostname/nextdatabase
dbConnectUserGLOBAL = nextuser
dbConnectPasswordGLOBAL = nextpassword
dbConnectDriverGLOBAL =
dbConnectPluginGLOBAL =

Wonder Way - WOMonitor Launch Arguments:
-Dmodel.URL=”jdbc:mysql://localhost/database?useUnicode=true&characterEncoding=UTF-8”
-Dmodel.DBUser=firstuser
-Dmodel.DBPassword=firstpassword


ERXEC
• EOEditingContext subclass
• EOEditingContext ec = ERXEC.newEditingContext();

• supports automatic lock/unlock in R-R cycle
• er.extensions.ERXEC.safeLocking=true

• enabled by default for new Wonder projects

• Calls ERXEnterpriseObject state transition will*/did* methods

• Implemented by ERXGenericRecord

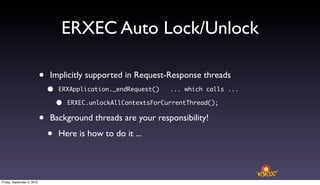

ERXEC Auto Lock/Unlock

• Implicitly supported in Request-Response threads
• ERXApplication._endRequest() ... which calls ...

• ERXEC.unlockAllContextsForCurrentThread();

• Background threads are your responsibility!

• Here is how to do it ...


Runnable lock handling
public class MyTask implements Runnable {

public void run() {
ERXApplication._startRequest();
try {
performTask();
} finally {
ERXApplication._endRequest();
}
}

private void performTask() {
EOEditingContext ec = ERXEC.newEditingContext();

ec.lock();
try {

// Do some EOF stuff with the ec.

} catch (Exception e) {
// handle exception
} finally {
ec.unlock();
}
}
}

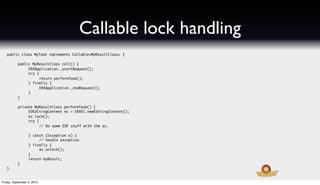

Callable lock handling
public class MyTask implements Callable<MyResultClass> {

public MyResultClass call() {
ERXApplication._startRequest();
try {
return performTask();
} finally {
ERXApplication._endRequest();
}
}

private MyResultClass performTask() {
ec.lock();
try {
// Do some EOF stuff with the ec.

// handle exception
} finally {
ec.unlock();
}
return myResult;
}
}

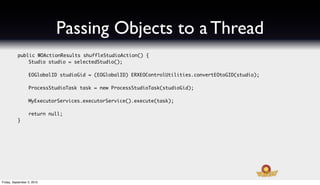

Passing Objects to a Thread
public WOActionResults shuffleStudioAction() {
Studio studio = selectedStudio();

EOGlobalID studioGid = (EOGlobalID) ERXEOControlUtilities.convertEOtoGID(studio);

ProcessStudioTask task = new ProcessStudioTask(studioGid);

MyExecutorServices.executorService().execute(task);

return null;
}

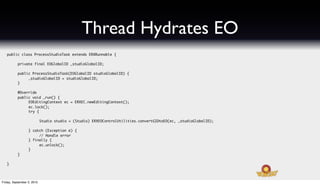

Thread Hydrates EO
public class ProcessStudioTask extends ERXRunnable {

private final EOGlobalID _studioGlobalID;

public ProcessStudioTask(EOGlobalID studioGlobalID) {
_studioGlobalID = studioGlobalID;
}

@Override
public void _run() {
ec.lock();
try {

Studio studio = (Studio) ERXEOControlUtilities.convertGIDtoEO(ec, _studioGlobalID);

// Handle error
} finally {
ec.unlock();
}
}

}


ERPrototypes

• DEMO

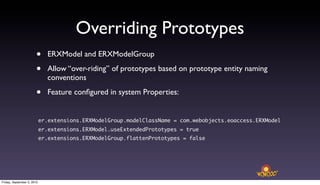

Overriding Prototypes
• ERXModel and ERXModelGroup

• Allow “over-riding” of prototypes based on prototype entity naming
conventions

• Feature conﬁgured in system Properties:

er.extensions.ERXModelGroup.modelClassName = com.webobjects.eoaccess.ERXModel
er.extensions.ERXModel.useExtendedPrototypes = true
er.extensions.ERXModelGroup.flattenPrototypes = false


Prototypes Over-ride Order
• From lowest to highest priority:

• EOPrototypes

• EO<adaptorName>Prototypes (Wonder has ‘Memory’ and ‘REST’ adaptor protypes)

• EOJDBC<pluginName>Prototypes (Wonder database prototype names)

• EOCustomPrototypes

• EO<adaptorName>CustomPrototypes

• EOJDBC<pluginName>CustomPrototypes

• EO<modelName>Prototypes

• EO<adaptorName><modelName>Prototypes

• EOJDBC<pluginName><modelName>Prototypes

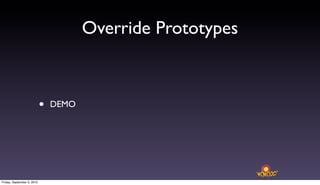

Override Prototypes

• DEMO

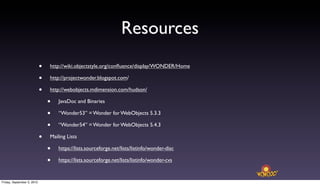

Resources
• http://wiki.objectstyle.org/conﬂuence/display/WONDER/Home

• http://projectwonder.blogspot.com/

• http://webobjects.mdimension.com/hudson/

• JavaDoc and Binaries

• “Wonder53” = Wonder for WebObjects 5.3.3

• “Wonder54” = Wonder for WebObjects 5.4.3

• Mailing Lists

• https://lists.sourceforge.net/lists/listinfo/wonder-disc

• https://lists.sourceforge.net/lists/listinfo/wonder-cvs


Q&A
