This document provides an overview of how Hortonworks Data Platform (HDP) can help with data governance, security, and compliance requirements. It discusses key challenges around data mapping, consent management, and the right to be forgotten. The document then demonstrates how various HDP components like Apache Atlas, Apache Ranger, Ranger KMS, and Data Steward Studio address these challenges. Specifically, it shows how Atlas can help identify and classify personal data, Ranger provides centralized authorization and auditing, and Ranger KMS supports data encryption. Finally, the document describes a demo scenario and setup to illustrate dynamic row filtering, column masking, and tag-based security policies in HDP.

1. Data Governance, Security & Compliance
Crash Course
Srikanth Venkat – Senior Director, PM
Eyad Garelnabi – Senior Solutions Engineer

2. 2 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Agenda
Regulatory Compliance
How can HDP help with Compliance requirements?
Overview of applicable HDP components
- Authentication & Data Protection: Kerberos, Ranger KMS
- Authorization/Audit/Admin: Apache Ranger
- Data Governance: Apache Atlas
- Data Stewardship: Data Steward Studio
Demo & Optional Lab

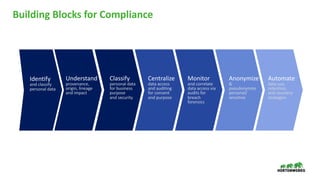

3. Building Blocks for Compliance
Identify
and classify
personal data
Understand
provenance,
origin, lineage
and impact
Classify
personal data
for business
purpose
and security
Centralize
data access
and auditing
for consent
and purpose
Monitor
and correlate
data access via
audits for
breach
forensics
Anonymize
&
pseudonymize
personal/
sensitive
Automate
data use,
retention,
and recovery
strategies

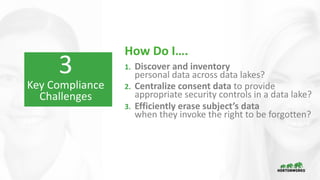

4. How Do I….
1. Discover and inventory
personal data across data lakes?
2. Centralize consent data to provide
appropriate security controls in a data lake?
3. Efficiently erase subject’s data
when they invoke the right to be forgotten?
3
Key Compliance
Challenges

5. Title

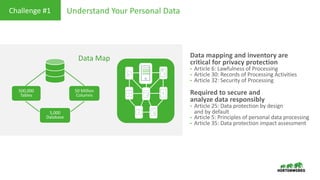

Data mapping and inventory are
critical for privacy protection
• Article 6: Lawfulness of Processing
• Article 30: Records of Processing Activities
• Article 32: Security of Processing
Required to secure and
analyze data responsibly
• Article 25: Data protection by design
and by default
• Article 5: Principles of personal data processing
• Article 35: Data protection impact assessment
Understand Your Personal DataChallenge #1
Data Map
500,000
Tables
50 Million
Columns
5,000
Database

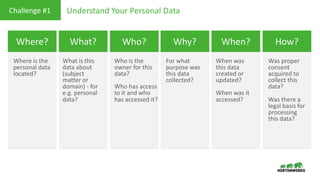

6. Where?
Where is the
personal data
located?
What?
What is this
data about
(subject
matter or
domain) - for
e.g. personal
data?
Who?
Who is the
owner for this
data?
Who has access
to it and who
has accessed it?
Why?
For what
purpose was
this data
collected?
When?
When was
this data
created or
updated?
When was it
accessed?
How?
Was proper
consent
acquired to
collect this
data?
Was there a
legal basis for
processing
this data?
Understand Your Personal DataChallenge #1

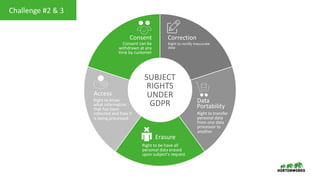

7. Challenge #2 & 3
SUBJECT
RIGHTS
UNDER
GDPR Data
Portability
Erasure
Consent
Consent can be
withdrawn at any
time by customer
Right to transfer
personal data
from one data
processor to
another
Right to be have all
personal data erased
upon subject's request
Correction
Right to rectify inaccurate
data
Access
Right to know
what information
that has been
collected and how it
is being processed

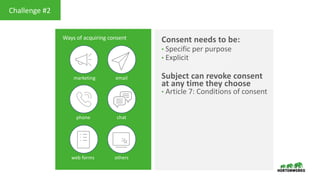

8. Consent needs to be:
• Specific per purpose
• Explicit
Subject can revoke consent
at any time they choose
• Article 7: Conditions of consent
Challenge #2
marketing email
phone chat
web forms others
Ways of acquiring consent

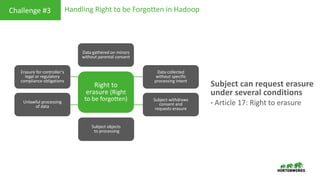

9. Subject can request erasure
under several conditions
• Article 17: Right to erasure
Data gathered on minors
without parental consent
Subject objects
to processing
Data collected
without specific
processing intent
Erasure for controller's
legal or regulatory
compliance obligations
Subject withdraws
consent and
requests erasure
Unlawful processing
of data
Right to
erasure (Right
to be forgotten)
Handling Right to be Forgotten in HadoopChallenge #3

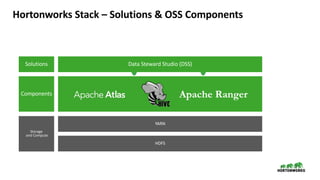

10. Hortonworks Stack – Solutions & OSS Components
YARN
HDFS
Storage
and Compute
Components
Data Steward Studio (DSS)Solutions

11. 12 © Hortonworks Inc. 2011–2018. All rights reserved.
How can HDP help with GDPR Compliance?
Identify and Classify Sensitive Personal Data (Apache Atlas – tagging)1
Classify personal data for business purpose and security (Apache Atlas – tagging,
Apache Ranger – tag based policies)
Centralized data access and auditing for consent and purpose (Apache Ranger
dynamic row filtering, Hive ACID)
Anonymization/pseudonymization (Apache Ranger dynamic masking)
2
3
4
5
6
Automate data use, retention, and recovery strategies (Apache Atlas - tagging +
Apache Ranger – tag based policies + other data movement tools/scripts)
Monitor and correlate data access via audits for breach forensics (Apache Ranger
audits)
Understand provenance, origin, lineage and impact (Apache Atlas – lineage)
7

12. 23 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Authentication & Data Protection

13. 24 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

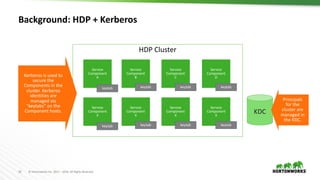

Background: HDP + Kerberos
Service
Component
A
Service
Component
B
HDP Cluster
KDC
keytabkeytab
Service
Component
C
keytab
Service
Component
D
keytab
Service
Component
X
Service
Component
X
keytabkeytab
Service
Component
X
keytab
Service
Component
X
keytab
Kerberos is used to
secure the
Components in the
cluster. Kerberos
identities are
managed via
“keytabs” on the
Component hosts.
Principals
for the
cluster are
managed in
the KDC.

14. 25 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

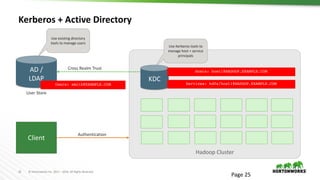

Kerberos + Active Directory
Page 25
Cross Realm Trust
Client
Hadoop Cluster
AD /
LDAP KDC
Users: smith@EXAMPLE.COM
Hosts: host1@HADOOP.EXAMPLE.COM
Services: hdfs/host1@HADOOP.EXAMPLE.COM
User Store
Use existing directory
tools to manage users
Use Kerberos tools to
manage host + service
principals
Authentication

15. 26 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Data Protection in Hadoop
can be applied at three different layers
in HDP
Storage: encrypt data while it is at rest
Transparent Data Encryption in HDFS, Ranger KMS + HSM, Partner Products
(HPE Voltage, Protegrity, Dataguise)
Transmission: encrypt data over the wire when it
leaves the cluster
SASL (RPC) and TLS (HTTP)
Avoid for intracluster communication
Upon Access: apply restrictions when accessed
Ranger (Dynamic Column Masking + Row Filtering), Partner Masking +
Encryption
Data Protection

16. 28 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Ranger KMS
Transparent Data Encryption in HDFS
NN
A B
C D
HDFS Client
A B
C D
A B
C D
DN DN DN
Benefits
v Selective encryption of relevant files/folders
v Prevent rogue admin access to sensitive data
v Fine grained access controls
v Transparent to end application w/o changes
v Ranger KMS integrated to external HSM
(Safenet Luna) adding to reliability/security of
KMS
SafeNet-
Luna HSM

17. 29 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Authorization, Audit, Administration

18. 30 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Apache Ranger
• Central audit location for all
access requests
• Support multiple destination
sources (HDFS, Solr, etc.)
• Real-time visual query interface
AuditingAuthorization
• Store and manage encryption
keys
• Support HDFS Transparent Data
Encryption
• Integration with HSM
• Safenet LUNA
Ranger KMS
• Centralized platform to define, administer
and manage security policies consistently
across Hadoop components
• HDFS, Hive, HBase, YARN, Kafka, Solr,
Storm, Knox, NiFi, Atlas
• Extensible Architecture
• Custom policy conditions, user context
enrichers
• Easy to add new component types for
authorization

19. 31 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

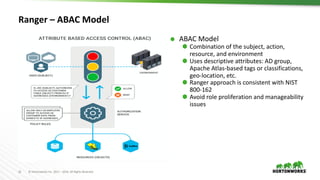

Ranger – ABAC Model
⬢ ABAC Model
⬢ Combination of the subject, action,
resource, and environment
⬢ Uses descriptive attributes: AD group,
Apache Atlas-based tags or classifications,
geo-location, etc.
⬢ Ranger approach is consistent with NIST
800-162
⬢ Avoid role proliferation and manageability
issues

20. 35 © Hortonworks Inc. 2011 – 2017. All Rights Reserved

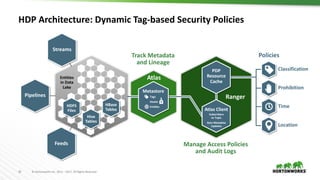

HDP Architecture: Dynamic Tag-based Security Policies
Classification
Prohibition
Time
Location
Policies
PDP
Resource
Cache
Ranger
Manage Access Policies
and Audit Logs
Track Metadata
and Lineage
Atlas Client
Subscribers
to Topic
Gets Metadata
Updates
Atlas
Metastore
Tags
Assets
Entitles
Streams
Pipelines
Feeds
Hive
Tables
HDFS
Files
HBase
Tables
Entities
in Data
Lake

21. 41 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Dynamic Row Filtering & Column Masking: Apache Ranger with Apache Hive
User 2: Ivanna
Location : EU
Group: HRUser 1: Joe
Location : US
Group: Analyst
Original Query:
SELECT country, nationalid,
ccnumber, mrn, name FROM
ww_customers
Country National
ID
CC No DOB MRN Name Policy ID
US 232323233 4539067047629850 9/12/1969 8233054331 John Doe nj23j424
US 333287465 5391304868205600 8/13/1979 3736885376 Jane Doe cadsd984
Germany T22000129 4532786256545550 3/5/1963 876452830A Ernie Schwarz KK-2345909
Country National ID CC No MRN Name
US xxxxx3233 4539 xxxx xxxx xxxx null John Doe
US xxxxx7465 5391 xxxx xxxx xxxx null Jane Doe
Ranger Policy Enforcement
Query Rewritten based on Dynamic Ranger
Policies: Filter rows by region & apply
relevant column masking
Users from US Analyst group see data
for US persons with CC and National ID
(SSN) as masked values and MRN is
nullified
Country National ID Name MRN
Germany T22000129 Ernie Schwarz 876452830A
EU HR Policy Admins can see
unmasked but are restricted
by row filtering policies to see
data for EU persons only
Original Query:
SELECT country, nationalid,
name, mrn FROM
ww_customers
Analysts
HR Marketing

22. 45 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Data Governance

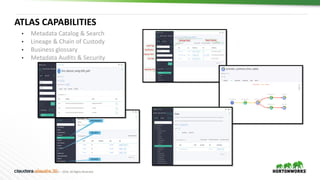

23. 47 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
GOVERNANCE
SECURITY
BUSINESS
• Metadata Catalog & Search
• Lineage & Chain of Custody
• Business glossary
• Metadata Audits & Security
ATLAS CAPABILITIES

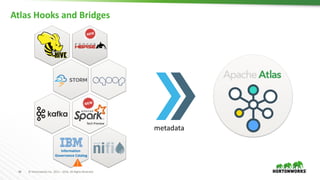

24. 48 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Atlas Hooks and Bridges
metadata
Information
Governance Catalog
Tech Preview

25. 58 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Data Stewardship

26. 59 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

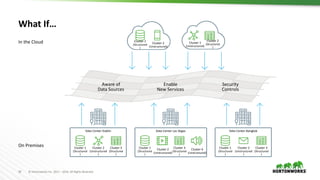

What If…
In the Cloud
On Premises
Aware of
Data Sources
Enable
New Services
Security
Controls
Cluster 2
(Unstructured)
Cluster 1
(Structured
)
Cluster 2
(Unstructured
)
Cluster 1
(Structured
)
Cluster 3
(Structured
)
Data Center Dublin
Cluster 2
(Unstructured)
Cluster 1
(Structured
)
Cluster 3
(Structured
)
Cluster 4
(Unstructured)
Data Center Las Vegas
Cluster 2
(Unstructured
)
Cluster 1
(Structured
)
Cluster 3
(Structured
)
Data Center Bangkok
Cluster 1
(Unstructured)
Cluster 2
(Structured
)

27. 60 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
HORTONWORKS
DATAPLANE SERVICE
Manage, Secure, Govern
Hortonworks DataPlane Service
a common set of services that
⬢ Supports enterprise deployment strategy and
move to the cloud
⬢ Addresses compliance and regulatory
requirements for enterprise
⬢ Eliminates policy silos and ensures security &
governance moves w/ data
⬢ Simplifies data asset management and provides
access to analysts and data scientists
⬢ Extensible to new services: Services enablement
layer to bring new offerings to market rapidly
What is Hortonworks DataPlane Service?
DATA IN MOTION
Hortonworks DataFlow
DATA AT REST
Hortonworks Data Platform
MULTIPLE CLUSTERS & SOURCES
CLOUD
ON PREM
H Y B R I D
IOT

28. 61 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

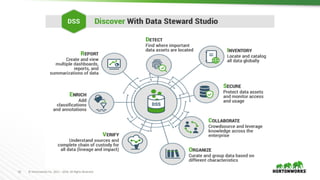

Goals

29. 62 © Hortonworks Inc. 2011 – 2016. All Rights Reserved
Demo & Optional Lab

30. 63 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

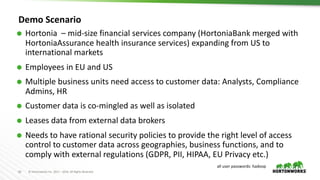

Demo Scenario
à Hortonia – mid-size financial services company (HortoniaBank merged with
HortoniaAssurance health insurance services) expanding from US to
international markets
à Employees in EU and US
à Multiple business units need access to customer data: Analysts, Compliance
Admins, HR
à Customer data is co-mingled as well as isolated
à Leases data from external data brokers
à Needs to have rational security policies to provide the right level of access
control to customer data across geographies, business functions, and to
comply with external regulations (GDPR, PII, HIPAA, EU Privacy etc.)
all user passwords: hadoop

31. 64 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

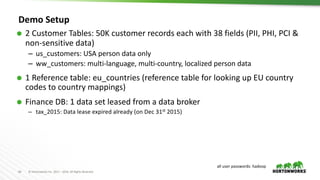

Demo Setup
à 2 Customer Tables: 50K customer records each with 38 fields (PII, PHI, PCI &
non-sensitive data)
– us_customers: USA person data only
– ww_customers: multi-language, multi-country, localized person data
à 1 Reference table: eu_countries (reference table for looking up EU country
codes to country mappings)
à Finance DB: 1 data set leased from a data broker
– tax_2015: Data lease expired already (on Dec 31st 2015)
all user passwords: hadoop

32. 65 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

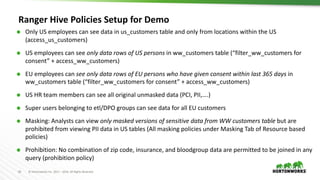

Ranger Hive Policies Setup for Demo
à Only US employees can see data in us_customers table and only from locations within the US
(access_us_customers)
à US employees can see only data rows of US persons in ww_customers table (“filter_ww_customers for
consent” + access_ww_customers)
à EU employees can see only data rows of EU persons who have given consent within last 365 days in
ww_customers table (“filter_ww_customers for consent” + access_ww_customers)
à US HR team members can see all original unmasked data (PCI, PII,….)
à Super users belonging to etl/DPO groups can see data for all EU customers
à Masking: Analysts can view only masked versions of sensitive data from WW customers table but are
prohibited from viewing PII data in US tables (All masking policies under Masking Tab of Resource based
policies)
à Prohibition: No combination of zip code, insurance, and bloodgroup data are permitted to be joined in any
query (prohibition policy)

33. 67 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

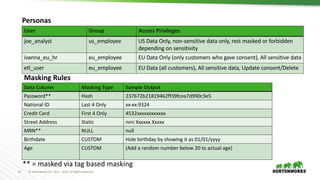

Personas
Data Column Masking Type Sample Output
Password** Hash 237672b21819462ff39fcea7d990c3e5
National ID Last 4 Only xx-xx-9324
Credit Card First 4 Only 4532xxxxxxxxxxxx
Street Address Static nnn Xxxxxx Xxxxx
MRN** NULL null
Birthdate CUSTOM Hide birthday by showing it as 01/01/yyyy
Age CUSTOM (Add a random number below 20 to actual age)
User Group Access Privileges
joe_analyst us_employee US Data Only, non-sensitive data only, rest masked or forbidden
depending on sensitivity
ivanna_eu_hr eu_employee EU Data Only (only customers who gave consent), All sensitive data
etl_user eu_employee EU Data (all customers), All sensitive data, Update consent/Delete
Masking Rules
** = masked via tag based masking

34. 68 © Hortonworks Inc. 2011 – 2016. All Rights Reserved

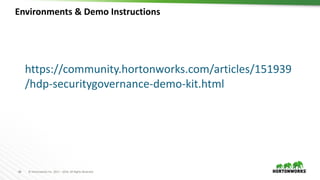

Environments & Demo Instructions
https://community.hortonworks.com/articles/151939
/hdp-securitygovernance-demo-kit.html
