This document provides instructions for simulating a gas processing facility on HYSYS. The simulation includes a separator, heat exchanger, cooler, second separator, mixer, distillation column, and final balance and adjustment steps. The overall objective is to model the key units used in a real-world gas processing facility using the HYSYS process simulation software.

1. PP-036-B.E ( HYSYS LAB WORKBOOK)
N.E.DUniversityof engineering&Technology
GAS PROCESSING FACILITY

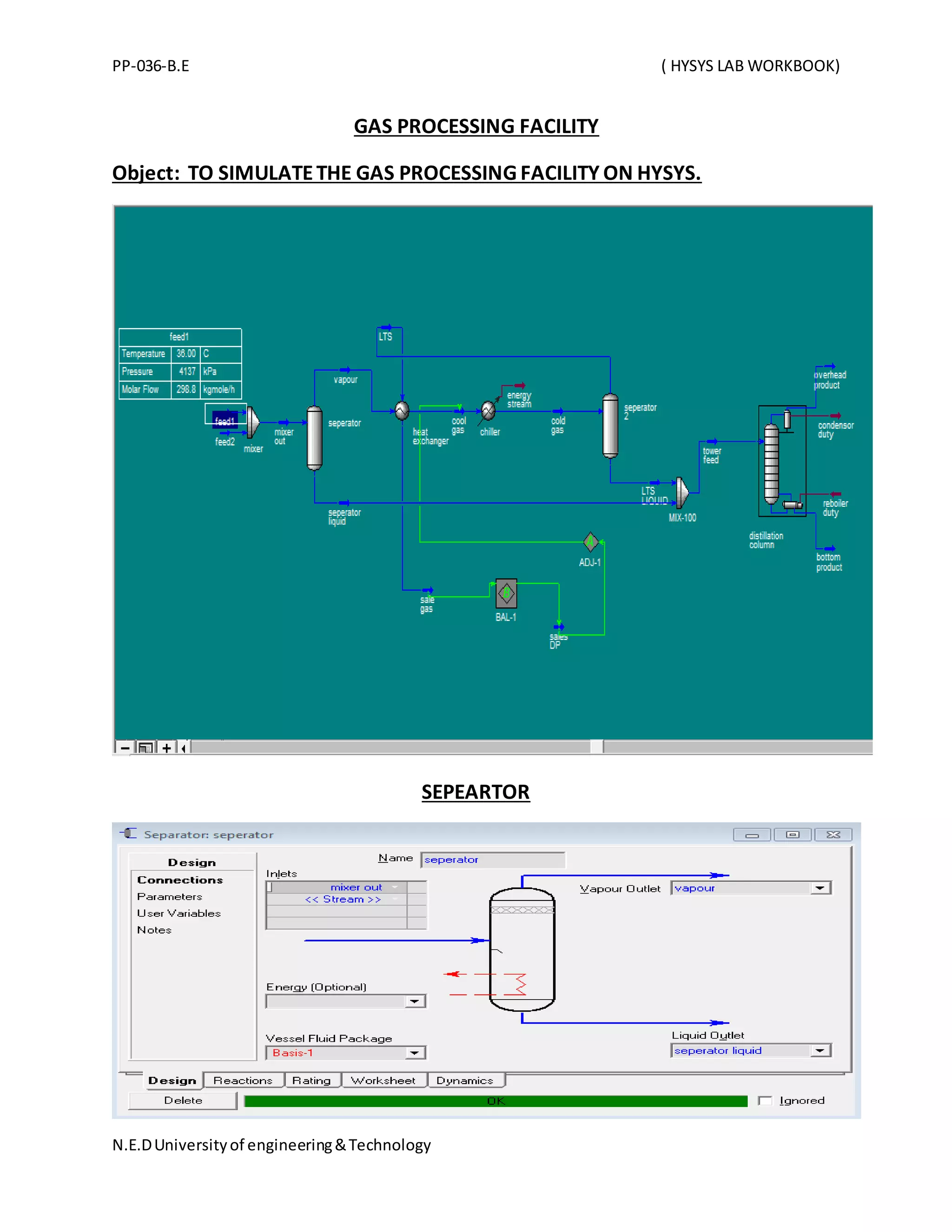

Object: TO SIMULATETHE GAS PROCESSING FACILITY ON HYSYS.
SEPEARTOR

2. PP-036-B.E ( HYSYS LAB WORKBOOK)
N.E.DUniversityof engineering&Technology

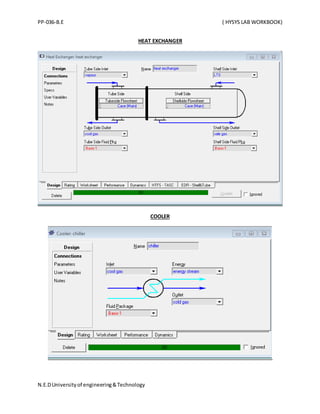

HEAT EXCHANGER
COOLER

3. PP-036-B.E ( HYSYS LAB WORKBOOK)
N.E.DUniversityof engineering&Technology
SEPERATOR 2
MIXER

4. PP-036-B.E ( HYSYS LAB WORKBOOK)
N.E.DUniversityof engineering&Technology
DISTILLATION COLUMN

5. PP-036-B.E ( HYSYS LAB WORKBOOK)
N.E.DUniversityof engineering&Technology
BALANCE
ADJUST
