Managed VMs allow users to run Docker containers on Google App Engine. This extends App Engine's capabilities by enabling the use of custom containers beyond the standard runtimes. With Managed VMs, users can build Docker images containing their applications and dependencies, deploy them to App Engine, and manage them similarly to how standard App Engine apps are deployed and managed. Traffic can be routed to apps running in both standard and custom Docker containers on Managed VMs modules through the use of a dispatch file.

1. Introduction
Managed VMs
Cage Chung / GCPUG.TW

2. https://www.facebook.com/groups/GCPUG.TW/
https://plus.google.com/u/0/communities/116100913832589966421
[您知道”GCPUG”要怎麼唸嗎？為什麼會有一隻狗在 Logo裡面呢？]
Google Cloud Platform User Group的縮寫是GCPUG
GCPUG直接唸成G.C.P.U.G？當然可以！
但它也可以分開來，唸成 G.C. PUG喔～
Pug，指的是巴哥犬，所以 GCPUG的Logo中間才會有一隻可愛的巴哥犬喲。
下次聽到別人說G.C. PUG 的時候，您就可以大聲 說：「我也是G.C. PUG社團成員！」

3. Google App Engine
overview

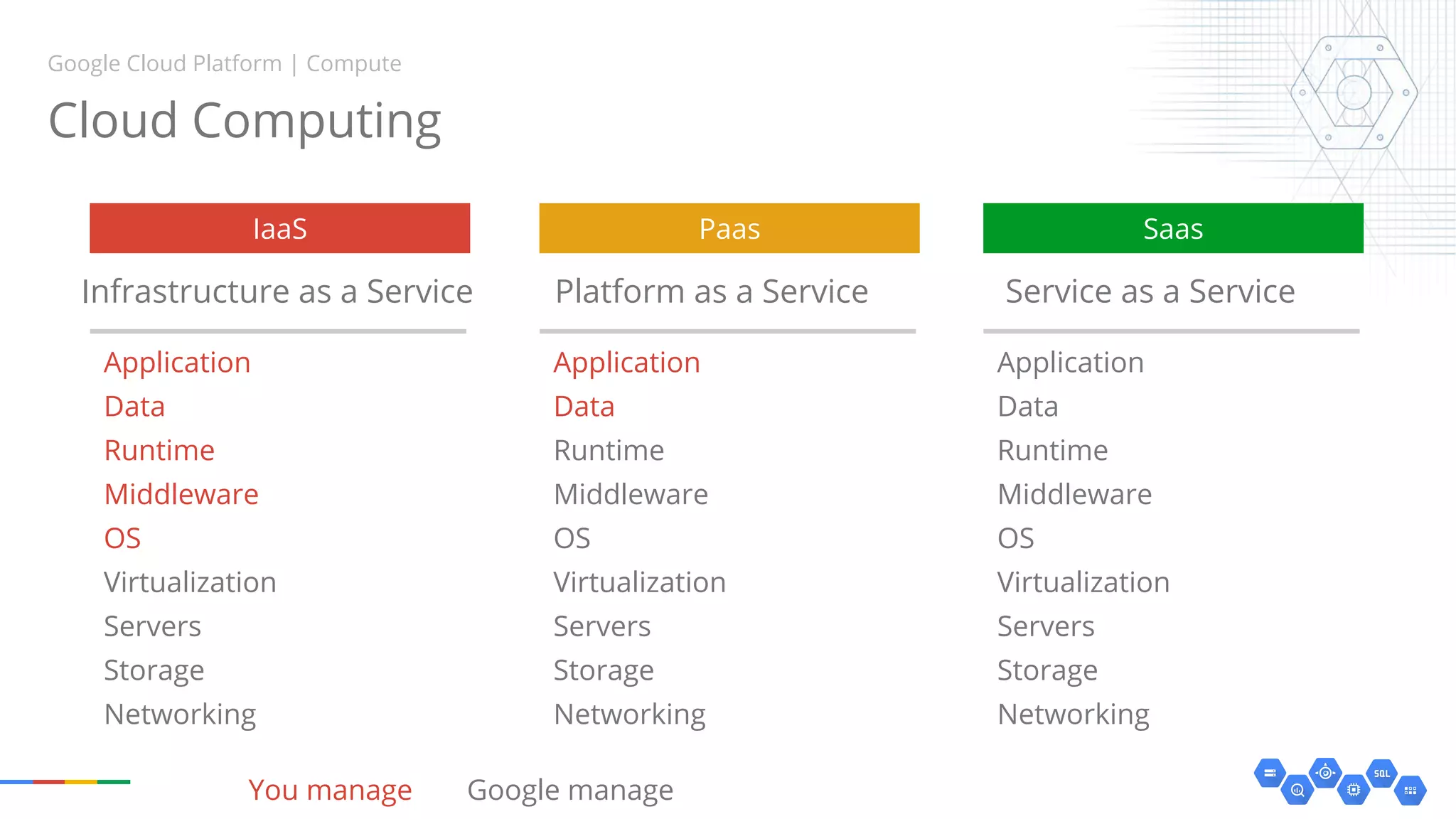

4. Cloud Computing
Google Cloud Platform | Compute
PaasIaaS
Application
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
Application
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
Saas
Application
Data
Runtime
Middleware
OS
Virtualization
Servers
Storage
Networking
Infrastructure as a Service Platform as a Service Service as a Service
You manage Google manage

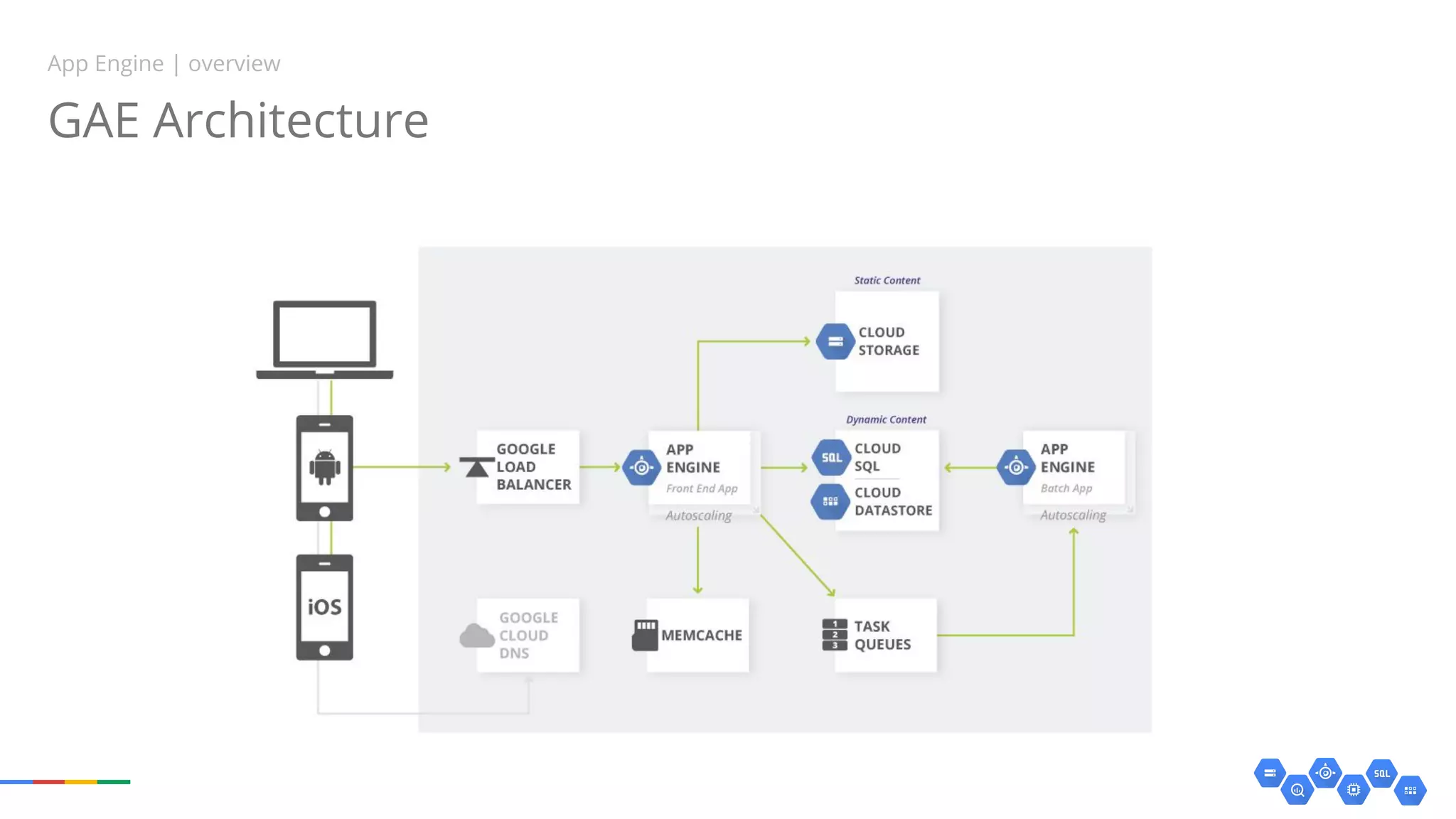

5. GAE Architecture
App Engine | overview

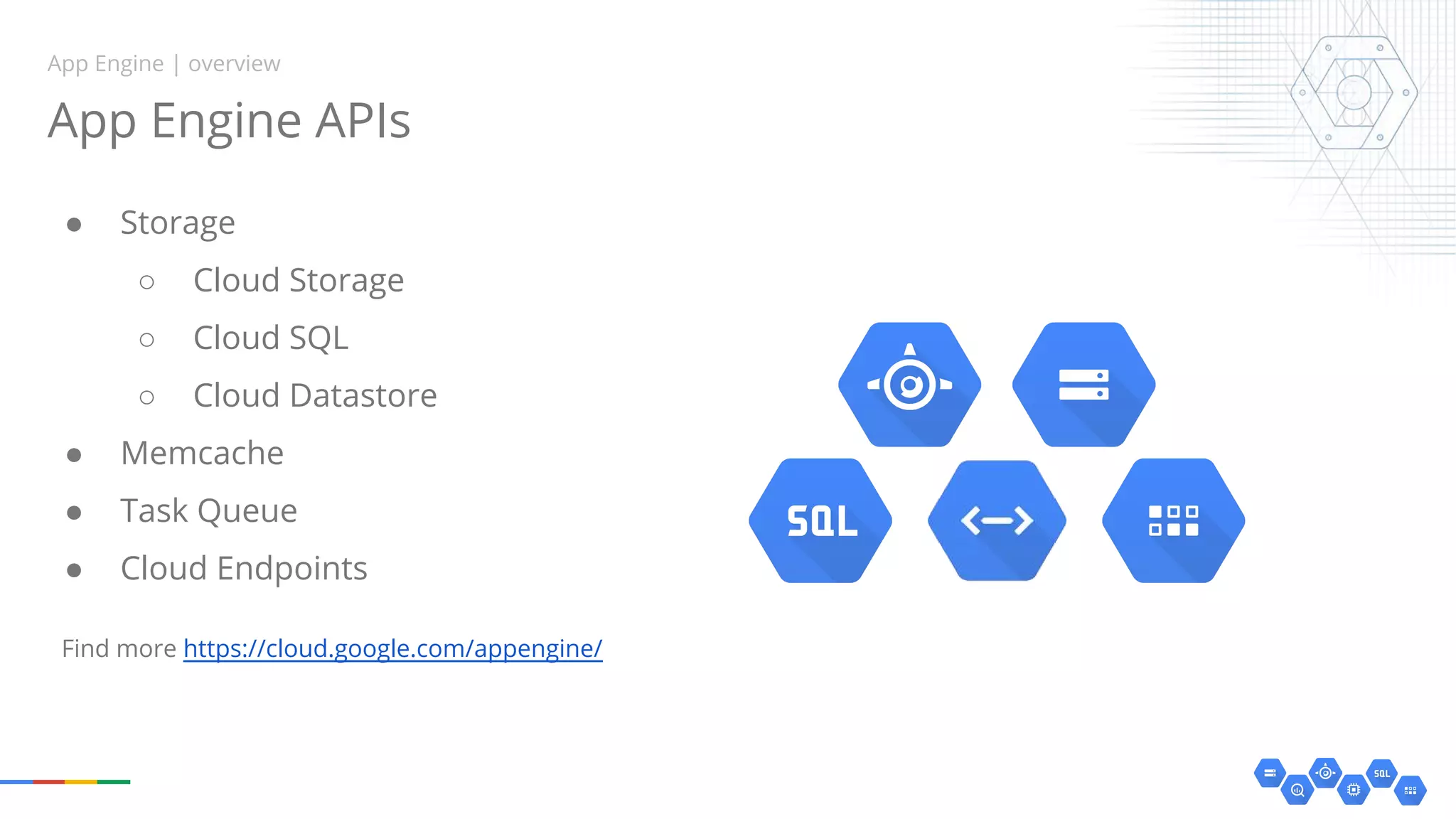

6. ● Storage
○ Cloud Storage
○ Cloud SQL
○ Cloud Datastore
● Memcache
● Task Queue
● Cloud Endpoints
App Engine APIs
App Engine | overview
Find more https://cloud.google.com/appengine/

7. Google App Engine: Platform as a Service
App Engine | Standard runtime
Python Java Php Go

8. Docker
overview

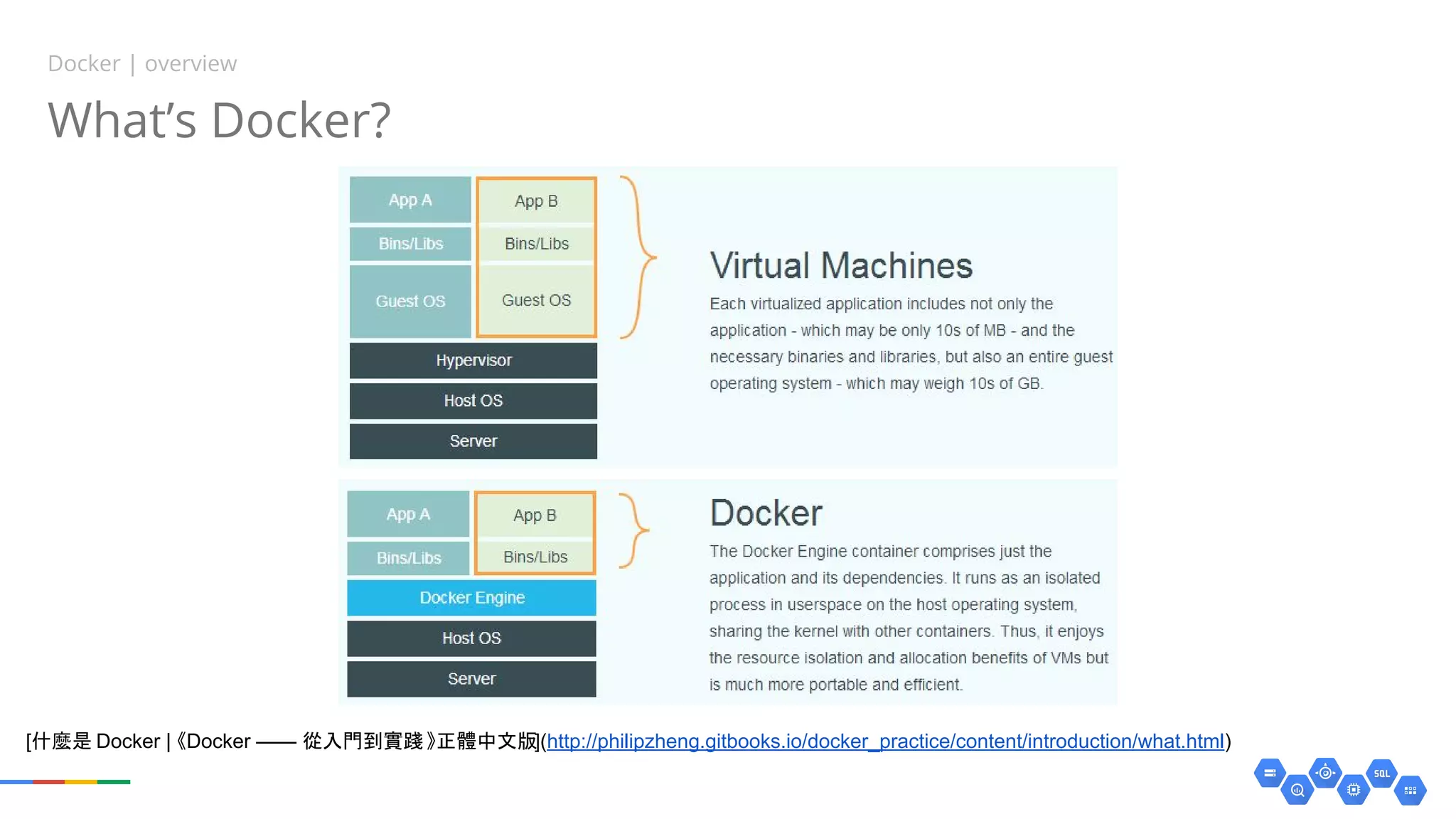

9. What’s Docker?
Docker | overview
[什麼是 Docker | 《Docker —— 從入門到實踐》正體中文版](http://philipzheng.gitbooks.io/docker_practice/content/introduction/what.html)

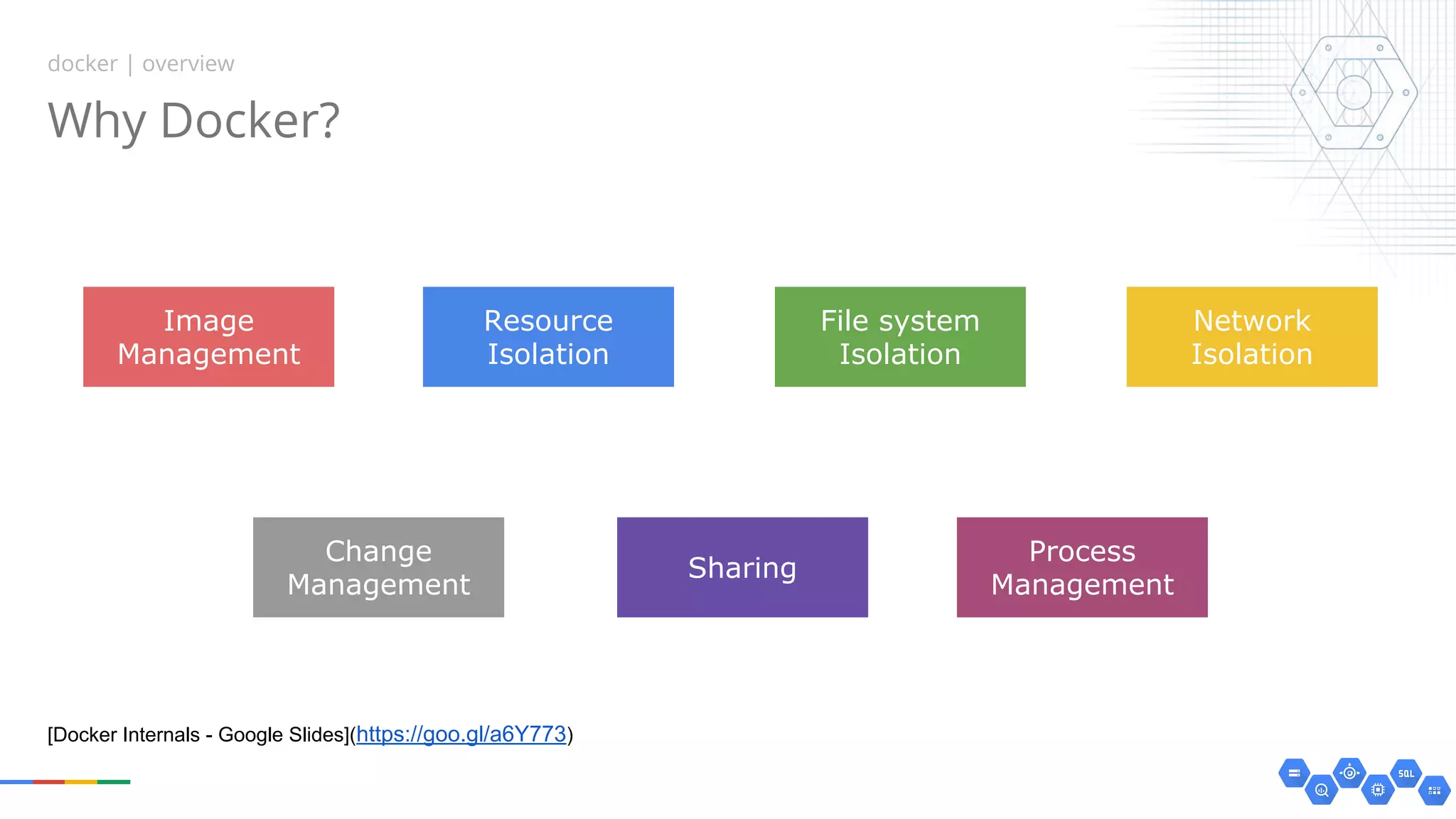

10. Why Docker?
docker | overview
Change
Management
Resource
Isolation
File system
Isolation
Network
Isolation
Management
Sharing
Process
Management
[Docker Internals - Google Slides](https://goo.gl/a6Y773)

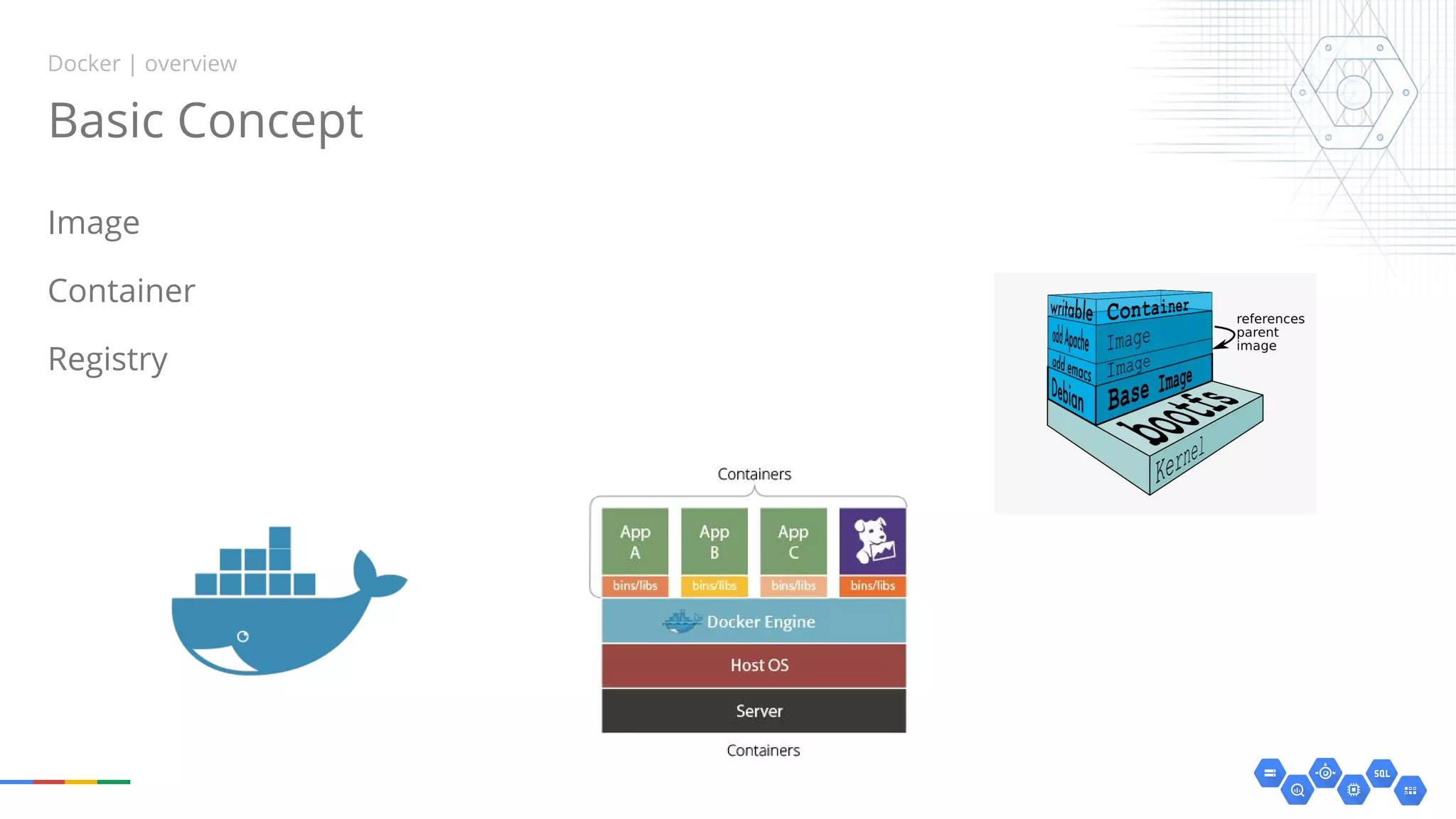

11. Image
Container
Registry
Basic Concept
Docker | overview

12. Managed VMs
Introduction

13. Managed VMs
App Engine
Beta

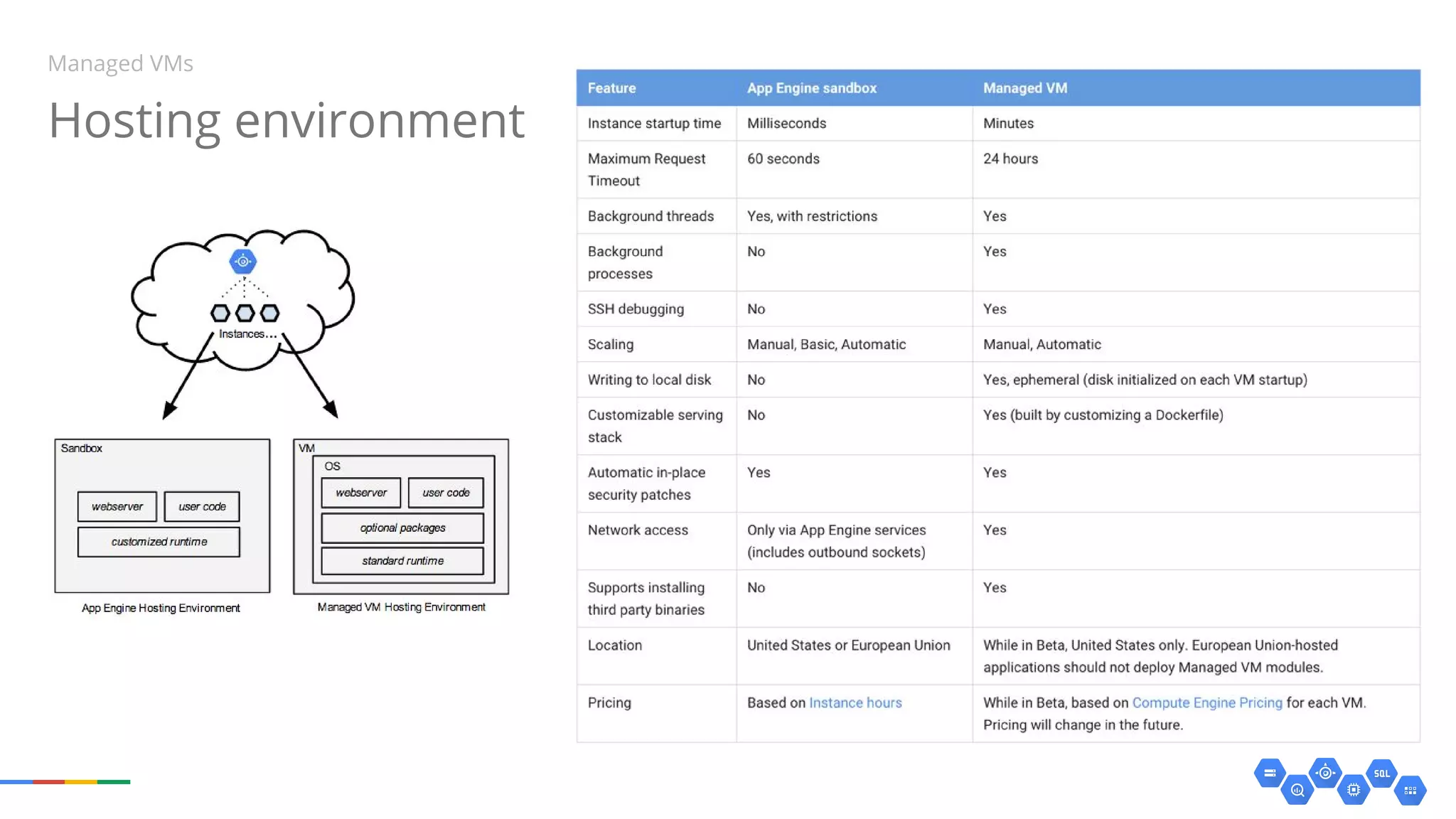

14. Hosting environment
Managed VMs

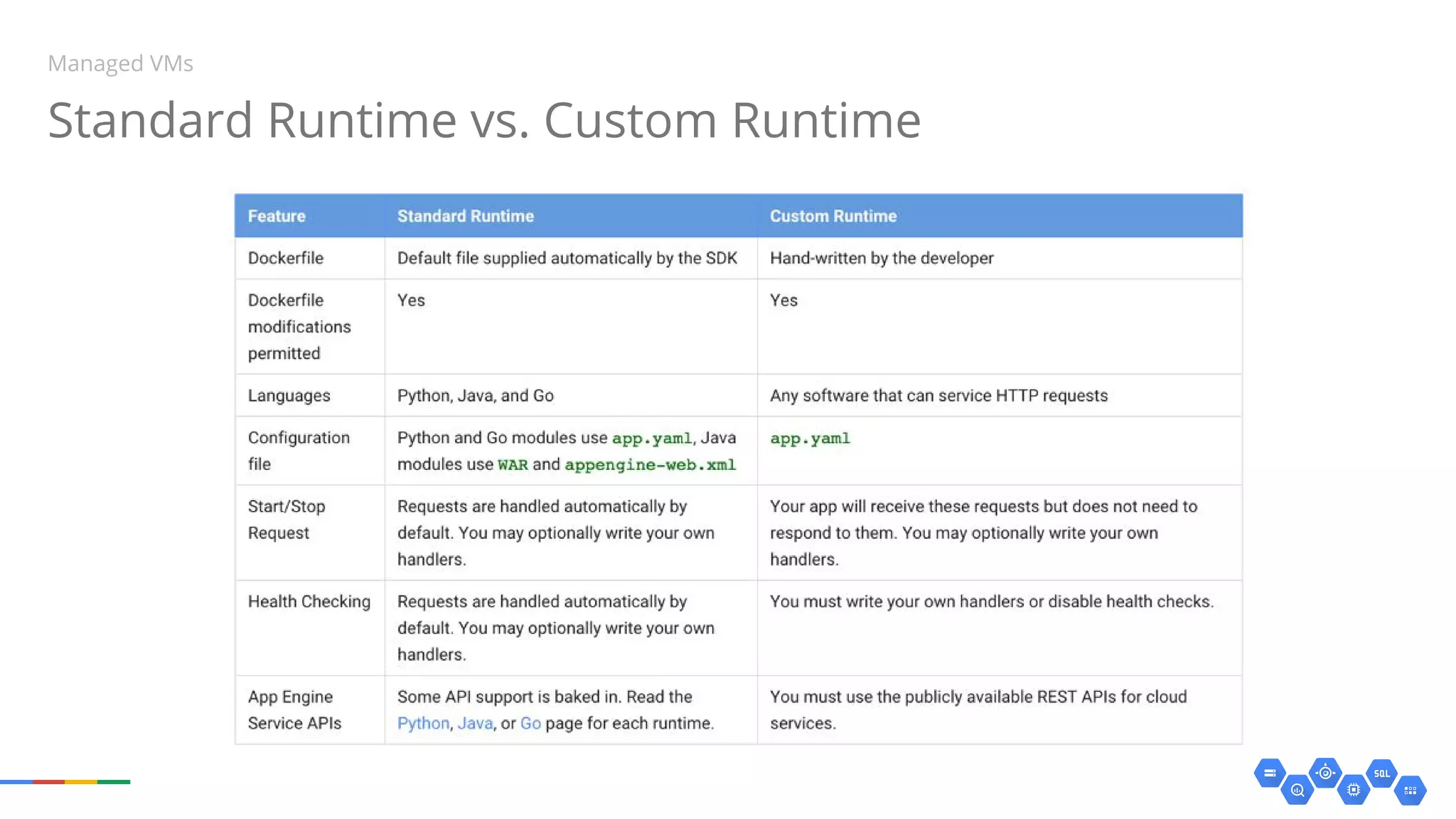

15. Standard Runtime vs. Custom Runtime
Managed VMs

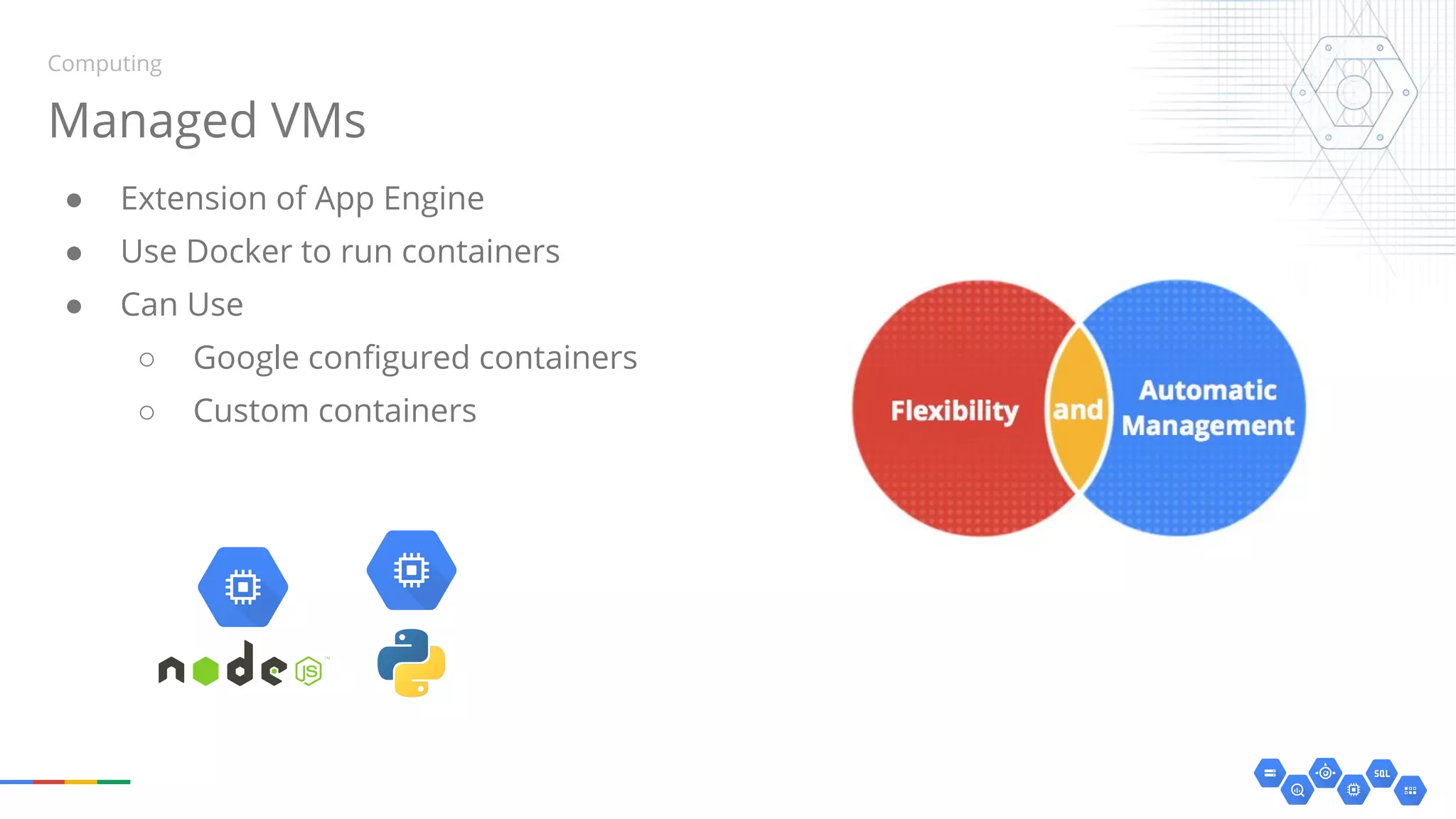

16. Managed VMs
Computing
● Extension of App Engine
● Use Docker to run containers
● Can Use
○ Google configured containers
○ Custom containers

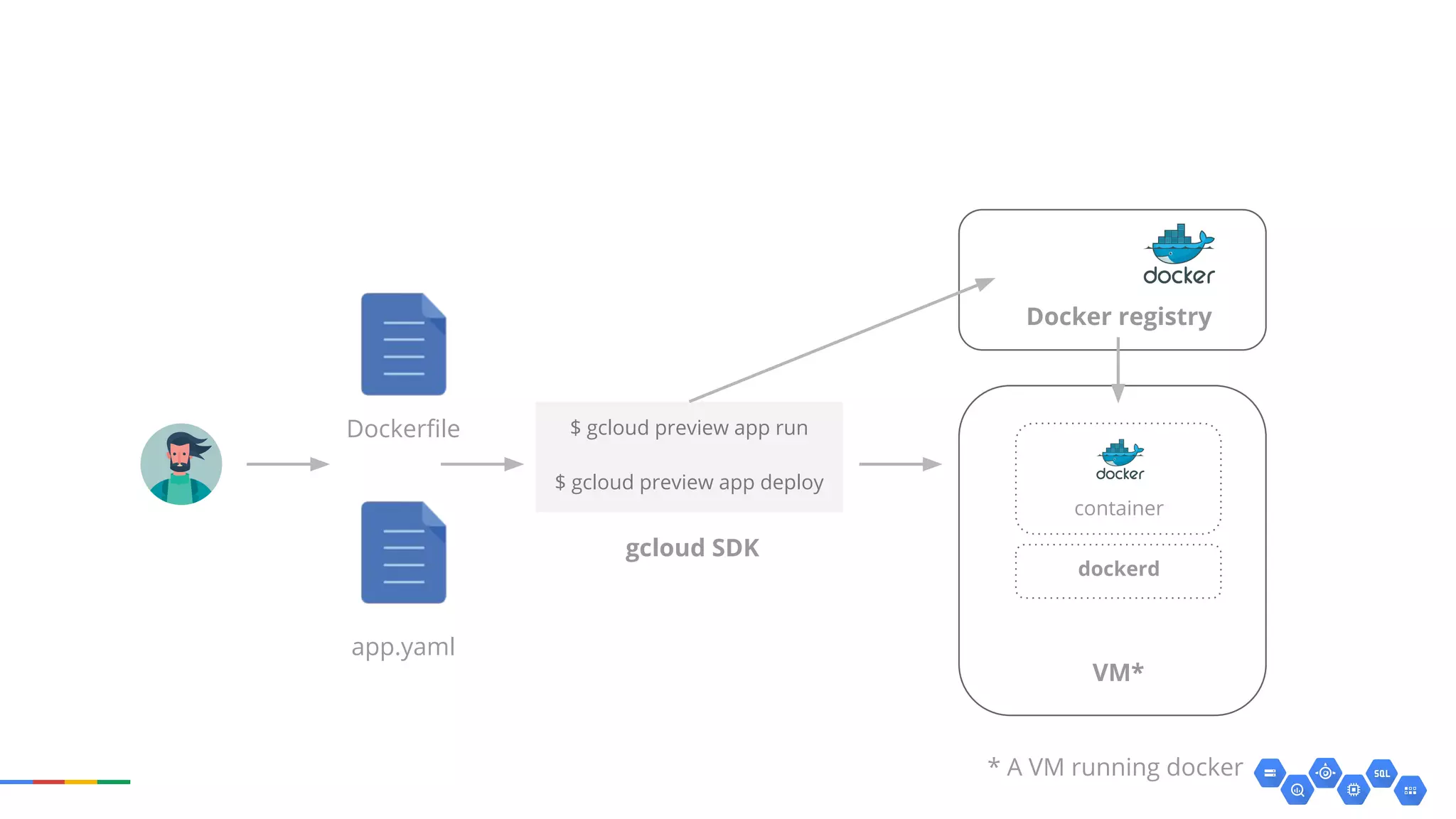

17. Dockerfile
app.yaml
$ gcloud preview app run
$ gcloud preview app deploy
gcloud SDK
Docker registry
container
dockerd
VM*
* A VM running docker

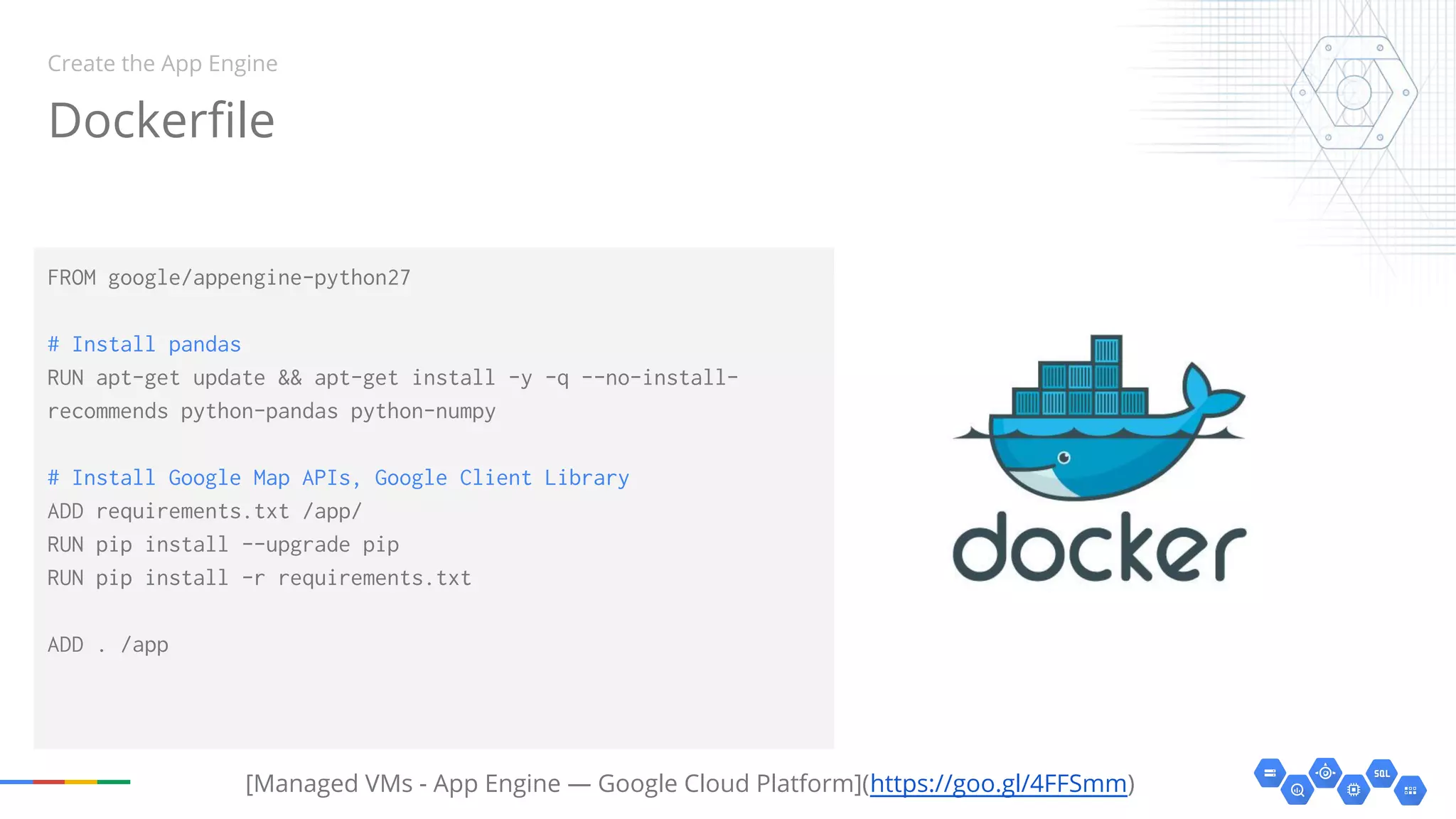

18. Dockerfile
FROM google/appengine-python27
# Install pandas
RUN apt-get update && apt-get install -y -q --no-install-
recommends python-pandas python-numpy
# Install Google Map APIs, Google Client Library
ADD requirements.txt /app/
RUN pip install --upgrade pip
RUN pip install -r requirements.txt
ADD . /app
Create the App Engine
[Managed VMs - App Engine — Google Cloud Platform](https://goo.gl/4FFSmm)

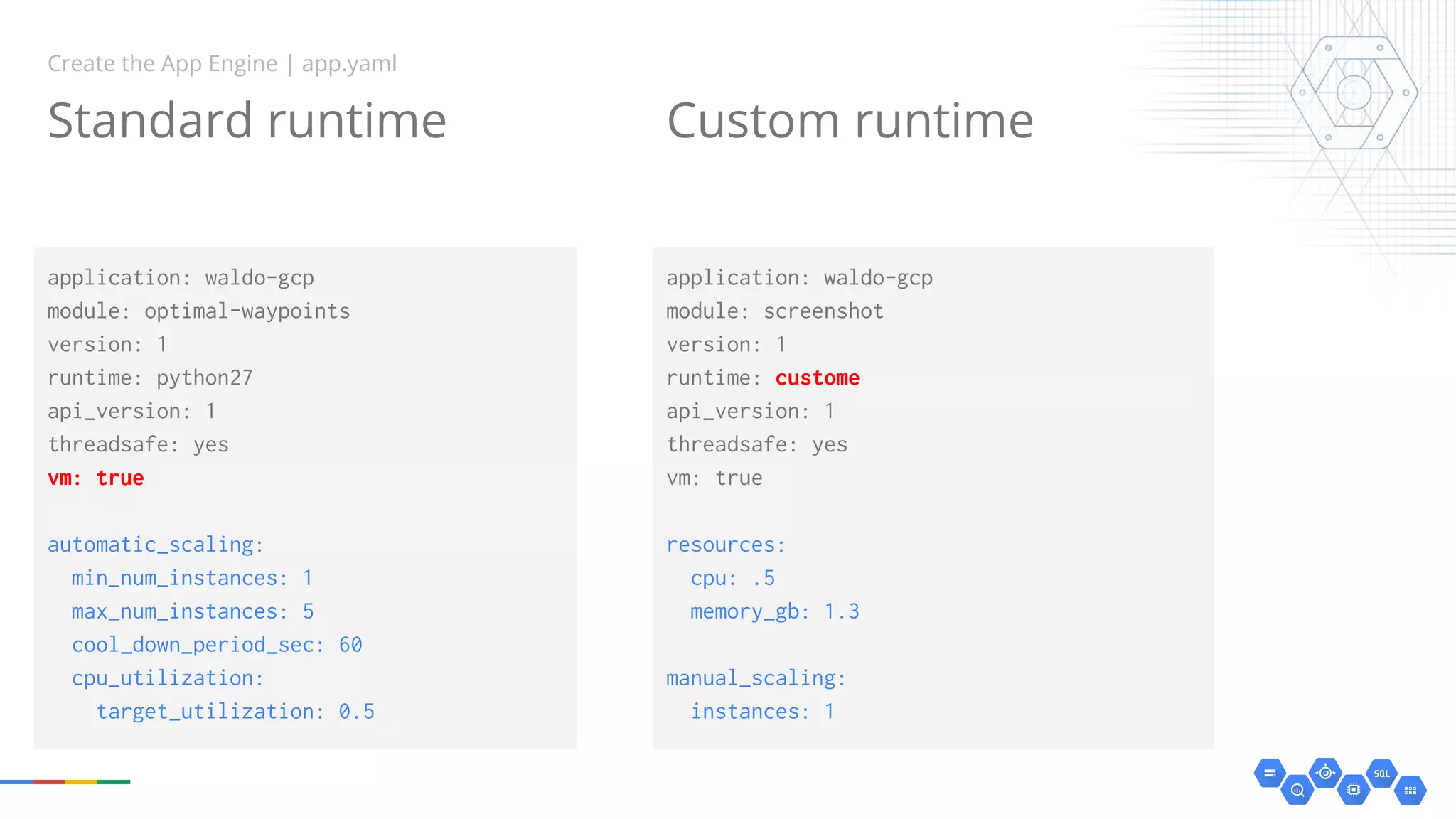

19. application: waldo-gcp
module: optimal-waypoints
version: 1
runtime: python27
api_version: 1
threadsafe: yes
vm: true
automatic_scaling:
min_num_instances: 1
max_num_instances: 5
cool_down_period_sec: 60
cpu_utilization:
target_utilization: 0.5
Create the App Engine | app.yaml
application: waldo-gcp
module: screenshot
version: 1
runtime: custome
api_version: 1
threadsafe: yes
vm: true
resources:
cpu: .5
memory_gb: 1.3
manual_scaling:
instances: 1
Standard runtime Custom runtime

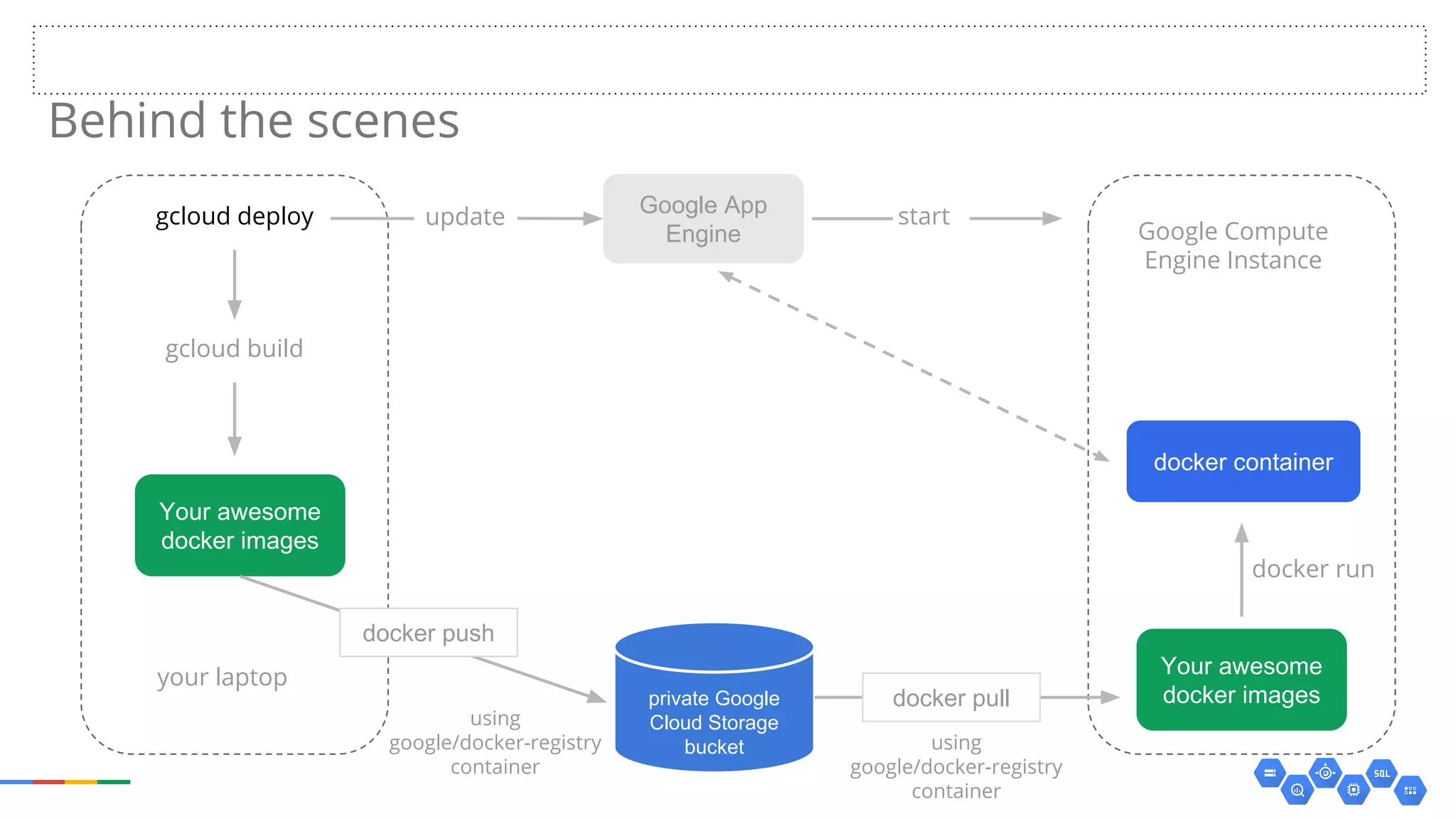

20. Behind the scenes
gcloud deploy
gcloud build
Your awesome
docker images
your laptop
Google App
Engine
Your awesome
docker images
docker container
private Google
Cloud Storage
bucket
update start
Google Compute
Engine Instance
using
google/docker-registry
container
docker run
using
google/docker-registry
container
docker push
docker pull

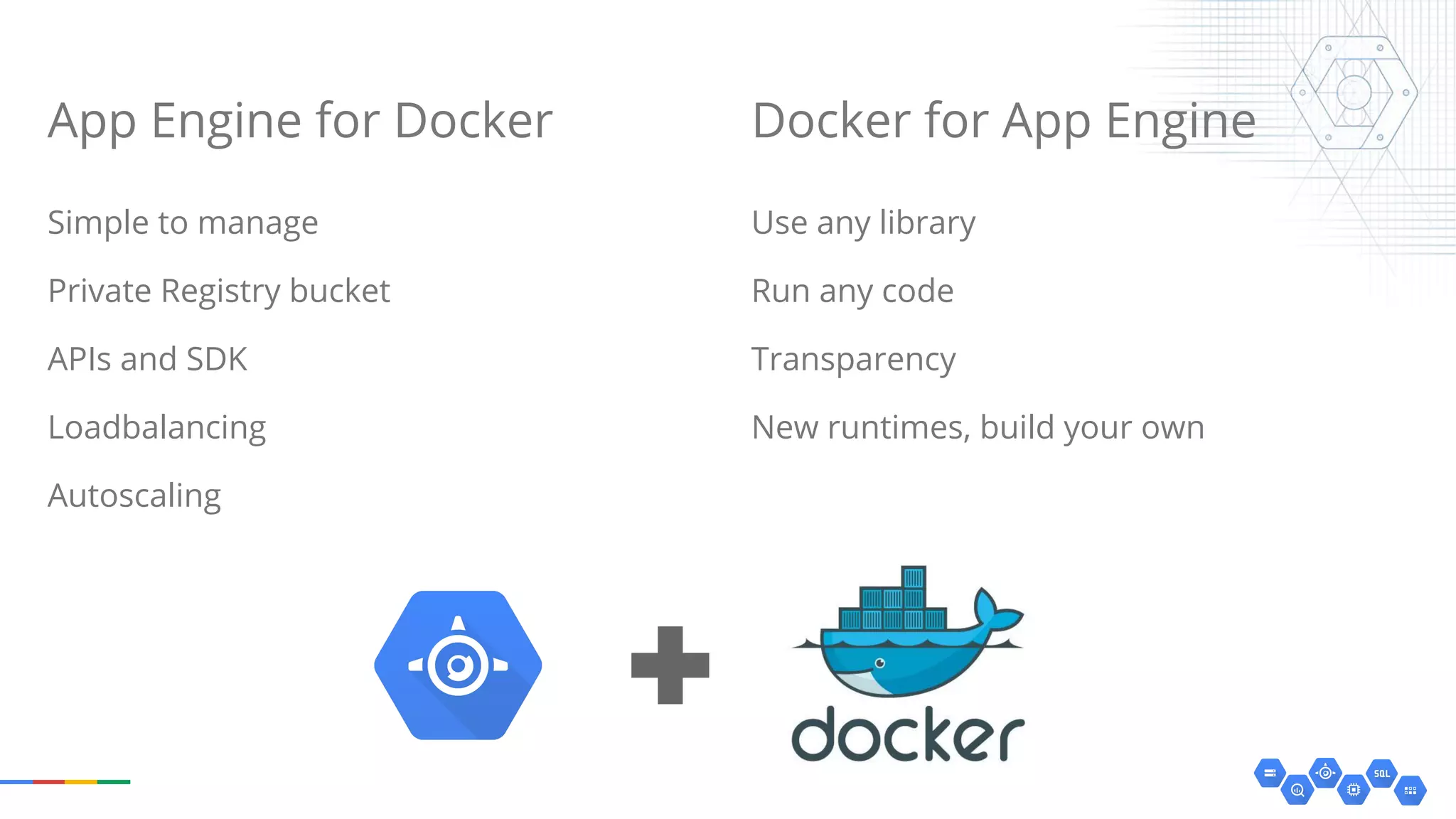

21. App Engine for Docker
Simple to manage
Private Registry bucket
APIs and SDK
Loadbalancing
Autoscaling
Use any library
Run any code
Transparency
New runtimes, build your own
Docker for App Engine

22. Demo
https://github.com/cage1016/managed-vms-lab

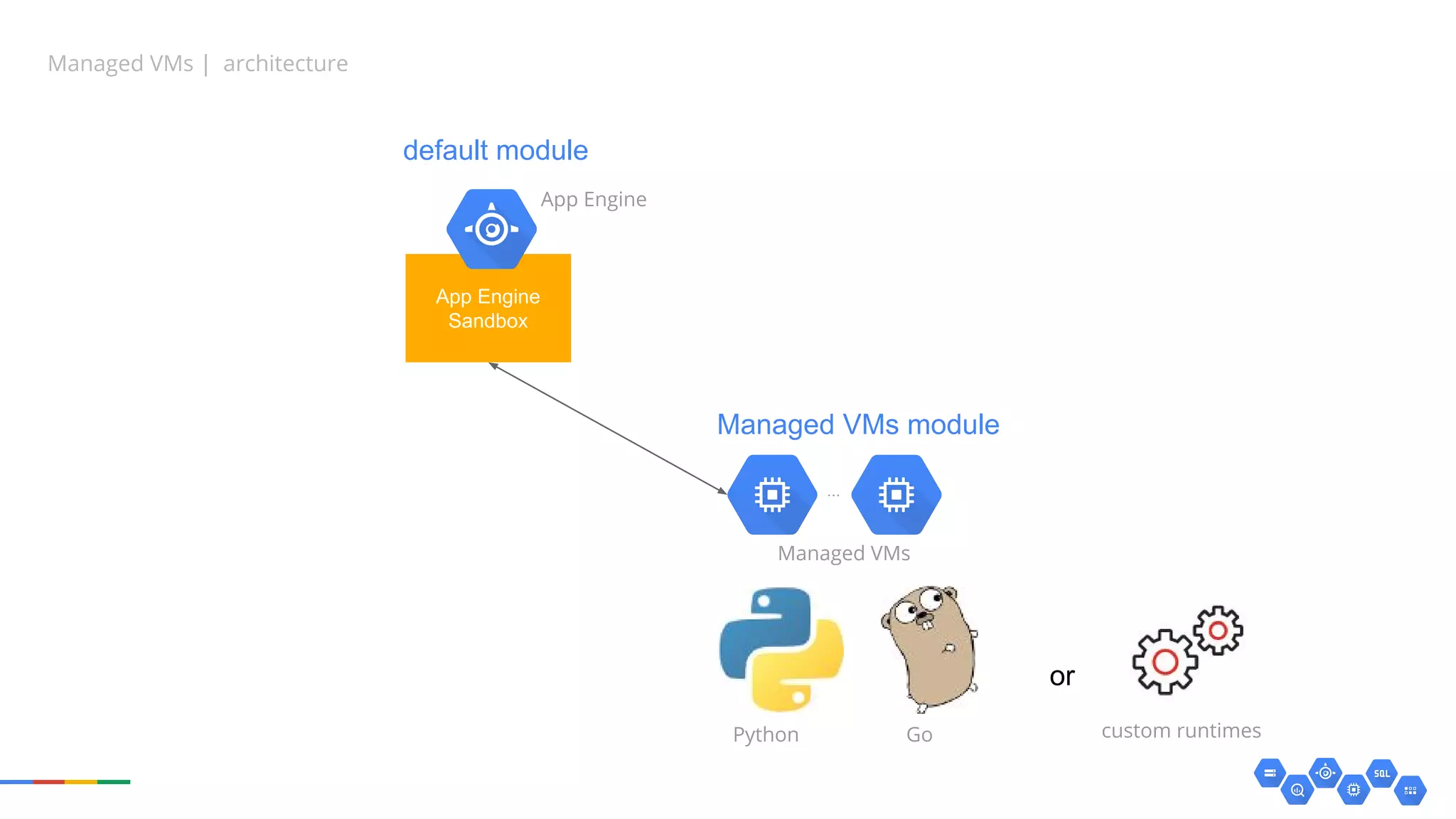

23. Managed VMs | architecture
App Engine
Sandbox
App Engine
Managed VMs
...
Python Go
default module
Managed VMs module
or
custom runtimes

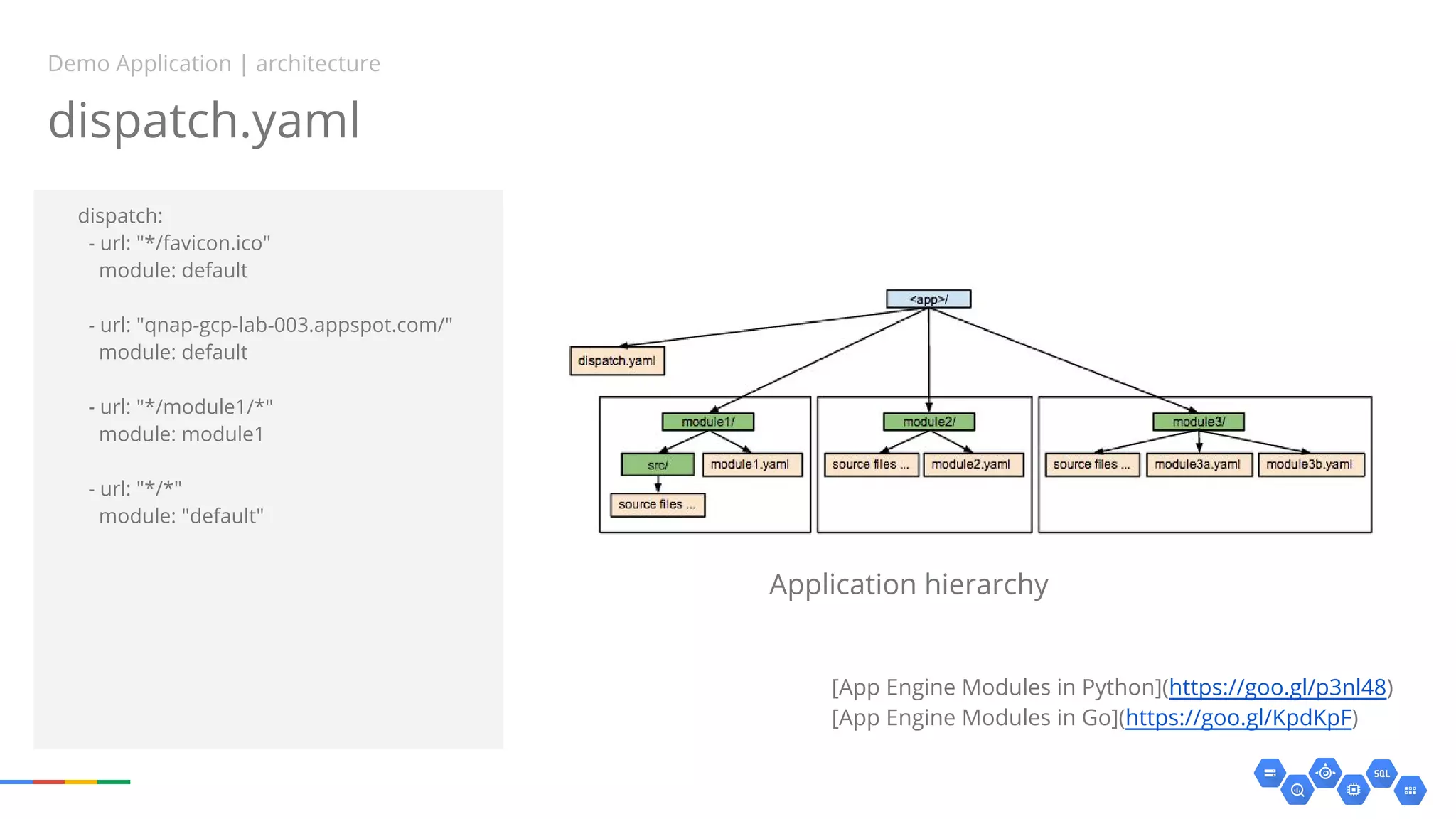

24. dispatch.yaml
dispatch:
- url: "*/favicon.ico"
module: default
- url: "qnap-gcp-lab-003.appspot.com/"
module: default
- url: "*/module1/*"
module: module1
- url: "*/*"
module: "default"
Demo Application | architecture
Application hierarchy
[App Engine Modules in Python](https://goo.gl/p3nl48)
[App Engine Modules in Go](https://goo.gl/KpdKpF)

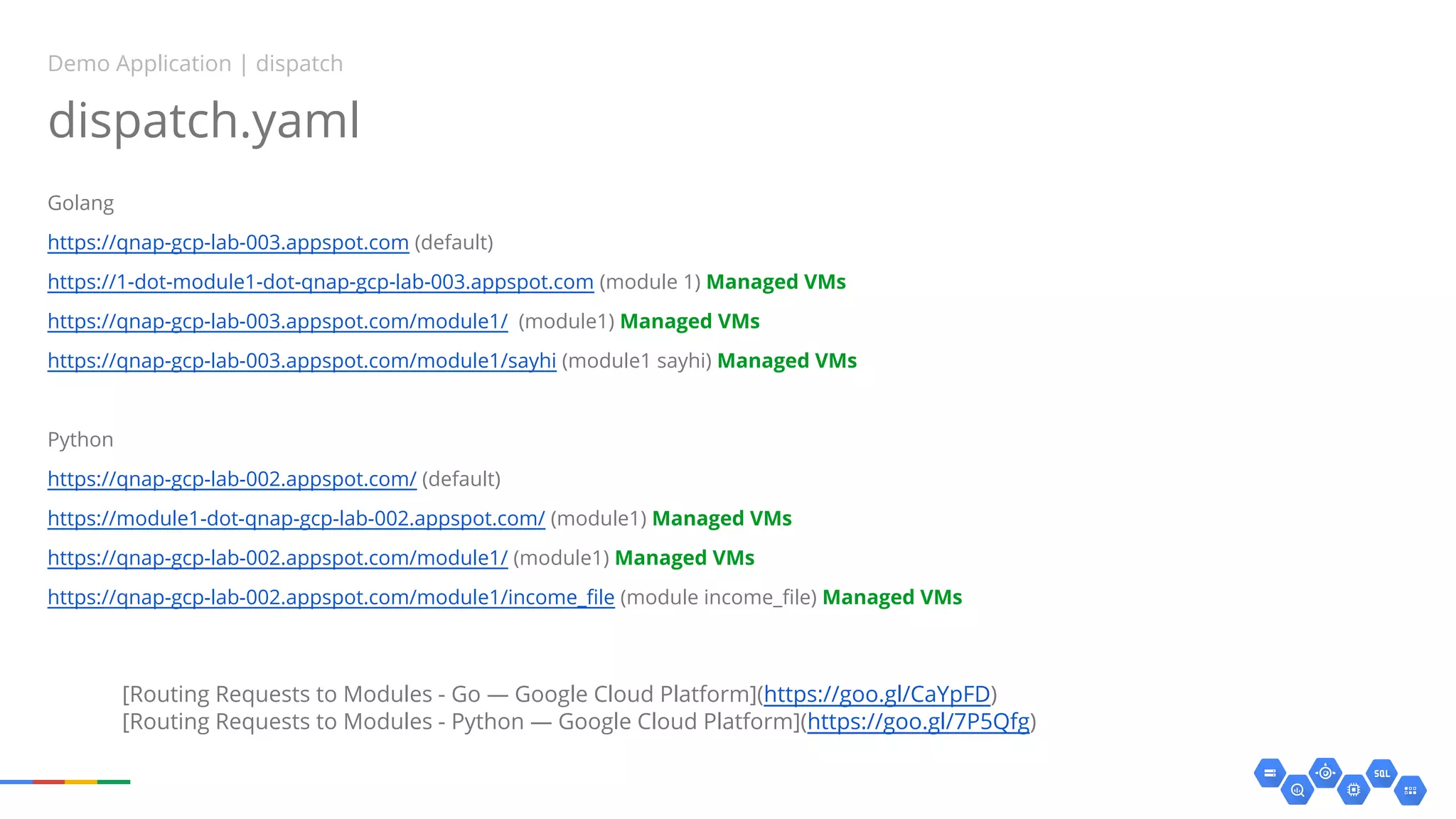

25. dispatch.yaml
Golang
https://qnap-gcp-lab-003.appspot.com (default)
https://1-dot-module1-dot-qnap-gcp-lab-003.appspot.com (module 1) Managed VMs
https://qnap-gcp-lab-003.appspot.com/module1/ (module1) Managed VMs
https://qnap-gcp-lab-003.appspot.com/module1/sayhi (module1 sayhi) Managed VMs
Python
https://qnap-gcp-lab-002.appspot.com/ (default)
https://module1-dot-qnap-gcp-lab-002.appspot.com/ (module1) Managed VMs
https://qnap-gcp-lab-002.appspot.com/module1/ (module1) Managed VMs
https://qnap-gcp-lab-002.appspot.com/module1/income_file (module income_file) Managed VMs
Demo Application | dispatch
[Routing Requests to Modules - Go — Google Cloud Platform](https://goo.gl/CaYpFD)
[Routing Requests to Modules - Python — Google Cloud Platform](https://goo.gl/7P5Qfg)

26. Google App Engine
overview
Thanks
http://gcpug.tw
Q&A
