Fyp presentations-format raqeeb

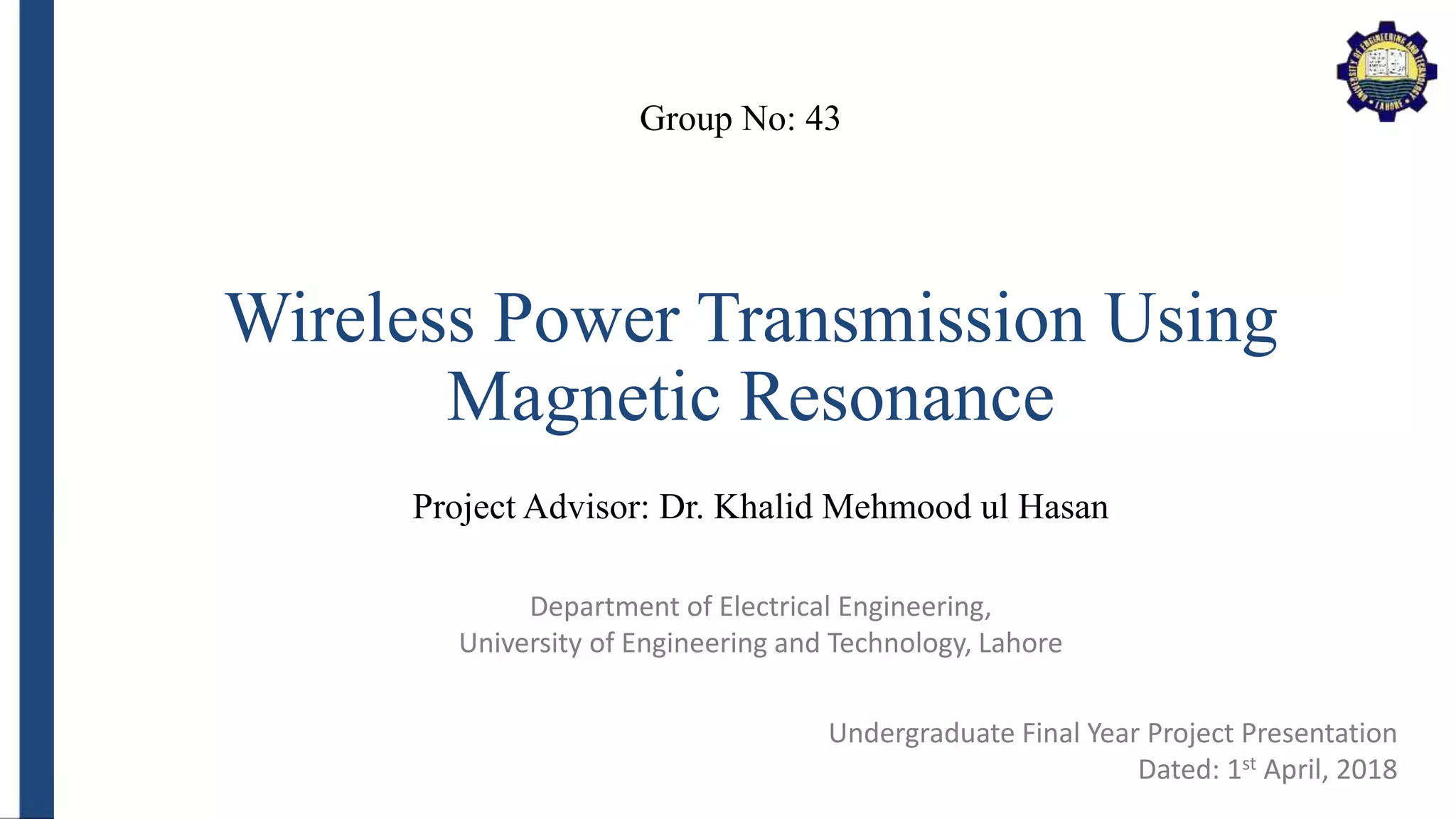

1. Department of Electrical Engineering,
University of Engineering and Technology, Lahore
Wireless Power Transmission Using
Magnetic Resonance
Group No: 43
Project Advisor: Dr. Khalid Mehmood ul Hasan
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
2. Team Introduction
Hammad Zaidi (Team Leader)
2014-EE-125
Specialization: Power
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
Abdul Raqeeb
2014-EE-037
Specialization: Telecom. and Electronics
Utkarsh Jha
2014-EE-146
Specialization: Power
3. Problem Statement
• People use gadgets to improve their daily work
• More gadgets mean more sockets, more wires
• Imagine a world without wires
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
4. Proposed Solution
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
• Wireless Power Transmission
• Among different ways of power transmission,
transmission using magnetic resonance is the most
efficient one.
• Efficient in terms of health, amount of power
transmitted, resources used, etc.
5. Continued…
• A sole transmitter can power multiple appliances
• Efficiency increases with number of appliances
• “Power transfer” and the “distance of transmission” has been
focused.
• Ways to minimize the losses have been carried out through
the project and have been focused.
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
10. Applications
• Wireless Energy Transmission
• High Frequency Metal Welding
• X-Rays Production
• Electro Therapy
• Electrical Lightening Exp.
i. Dielectric and Insulation testing
ii. Surge arrester testing
iii. Study of Corona and air breakdown mechanisms
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
11. Audience
• People who are looking forward to get rid of wires
• Researchers working on WPT.
• Educational demonstration
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
12. What we have done so far?:
• Air breakdown voltage achieved
NST along with capacitor bank
• Rotatory spark gap
When does spark gap fires?
i. Every time capacitor reaches a certain voltage
ii. Discharge takes place through the rotating electrode
iii. Distance b/w the spark gaps must be carefully chosen
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
13. Continued…
• Protection circuit
Terry Filter
i. A low pass filter (stops RFI from getting into transf.)
ii. Protects transformer from high voltage surges
• Capacitor bank
JAVA TC
LTR sync. Capacitors
Primary LC circuit
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
14. Continued…
• Transmitter
Primary winding
i. High current capability
ii. Skin effect
iii. Adjustable inductance
iv. Loose coupled
v. Primary LC circuit
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
15. Continued…
• Transmitter
Secondary winding
i. High frequency
ii. Low current
Turn Ratio=0.014
Secondary LC circuit
i. Secondary capacitor (Top Load)
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
16. Hardware Developed
• Terry Filter
• Rotatory Spark Gaps
• Capacitor Bank
• Tesla coil prototype is ready
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
17. Tests performed
• Test 1
Failed, Problem in grounding, no sparks produced, hissing sound did
exist
• Test2
Failed, Stand with spark gaps in HV conducted providing a short
circuiting,
• Test3
Failed, Arching was produced between primary coils because of the
stand which was conducting and was directly placed on the ground.
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
18. Continued…
• Test4
Failed, Firing happened between terminals of the terry filter and
the grounding rod. Uneven firing was seen between the grounding
bobs.
• Test5
Failed, Firing happened between the terminals of the terry filter.
• Test6
Firing did not happen between the spark gap
• Test7
Succeeded!
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
20. Gantt Chart
2017 2018
Today
Sep Oct Nov Dec 2018 Feb Mar Apr May
Design of Primary
11/24/2017
Design of Secondary
12/2/2017
Design of Capacitors
12/7/2017
Design of Spark Gaps
12/22/2017
Light a Bulb
2/22/2018
Milestone #1
11/12/2017
Milestone #2
12/24/2017
Checkpoint A
3/11/2018
Checkpoint B
4/22/2018
Kick Off
9/4/2017
Sign Off
5/21/2018
9/11/2017 - 9/17/2017Analyse Research Paper
10/2/2017 - 10/8/2017Testing of NST
10/9/2017 - 10/22/2017Designing of Terry Filter
11/6/2017 - 11/12/2017Testing of Terry Filter
11/20/2017 - 12/24/2017Design of Tesla Coil
1/8/2018 - 3/11/2018Testing Phase of Transmitter
3/26/2018 - 4/15/2018Design of Receiver
4/16/2018 - 4/22/2018Testing of Receiver
4/23/2018 - 5/3/2018Final Testing
5/7/2018 - 5/18/2018Delivery Phase
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
21. References
• Research Papers
[1] Pusparini Dewi Abd Aziz and Ahmad Lukhfhy Abd
Razak, “A Study on wireless power transmission using
Tesla Coil”, ICSEEA, 2016
[2] Final Year Project-2010, ”Tesla Coil”, Department of
Electrical Engineering UET-Lahore
Undergraduate Final Year Project Presentation
Dated: 1st April, 2018
