The Fujitsu FP-1000 is a compact, high-speed thermal printer designed for point-of-sale, kitchen, and kiosk applications, featuring a small footprint and built-in power supply options. It offers high throughput with print speeds of up to 180 mm/sec, supports various paper sizes, and includes cost-saving features like paper save modes. With an expected printer life of 60 million lines and various durability specs, it positions itself competitively in the low-price range market.

1. Fujitsu Thermal Printer
FP1000 Introduction
March 2012
Copyright 2011 FUJITSU ISOTEC LIMITED

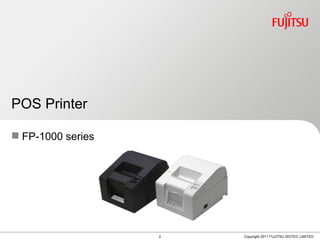

2. POS Printer
 FP-1000 series
2 Copyright 2011 FUJITSU ISOTEC LIMITED

3. Positioning
Target : Low price range for PC-POS & other usage
Web Price
350 USD
STAR TSP700Ⅱ EPSON TM-T88Ⅴ
CITIZEN CT-S801
300 USD FUJITSU FP-510
TPG A799
the low price range
FUJITSU FP-460
BIXOLON SRP350
250 USD TPG A798 CITIZEN CT-S601
STAR TSP100 EPSON TM-T20
STAR TSP650
200 USD CITIZEN CT-S310 FU
JIT
SU
(18 FP-
0m 100
150 USD m/ 0
s)
Speed
100mm/s 150mm/s 200mm/s 250mm/s 300mm/s
Copyright 2011 FUJITSU ISOTEC LIMITED

4. FP-1000 series
 Entry class printer for POS / Kitchen / KIOSK
High speed, high throughput
Small footprint
Easy operation
Horizontal/Vertical Use
Resident buzzer
High reliability
4 Copyright 2011 FUJITSU ISOTEC LIMITED

5. FP-1000 series
Compact thermal printer
Small footprint
abc
W144mm x D184mm x H120mm abc
abc
Vertical standing without optional stand abc
abc
Page rotation receipt printing
Built-in Power Supply Model
is also available
5 Copyright 2011 FUJITSU ISOTEC LIMITED

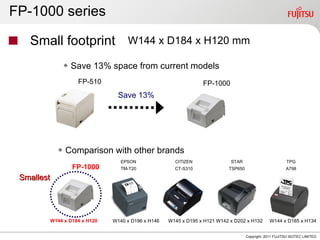

6. FP-1000 series
Small footprint W144 x D184 x H120 mm
◆ Save 13% space from current models
FP-510 FP-1000
Save 13%
◆ Comparison with other brands
EPSON CITIZEN STAR TPG
FP-1000 TM-T20 CT-S310 TSP650 A798
Smallest
W144 x D184 x H120 W140 x D196 x H146 W145 x D195 x H121 W142 x D202 x H132 W144 x D185 x H134
Copyright 2011 FUJITSU ISOTEC LIMITED

7. FP-1000 series
Power supply built-in model is available
External Power supply Built-in Power supply
model model
Copyright 2011 FUJITSU ISOTEC LIMITED

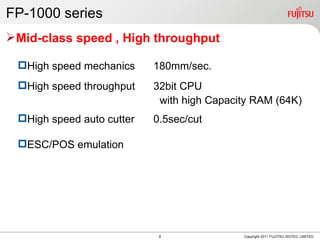

8. FP-1000 series
Mid-class speed , High throughput
High speed mechanics 180mm/sec.
High speed throughput 32bit CPU
with high Capacity RAM (64K)
High speed auto cutter 0.5sec/cut
ESC/POS emulation
8 Copyright 2011 FUJITSU ISOTEC LIMITED

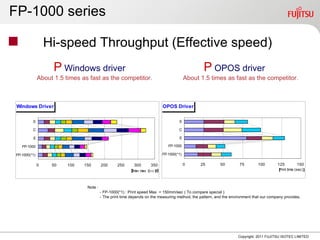

9. FP-1000 series
Hi-speed Throughput (Effective speed)
P Windows driver P OPOS driver
About 1.5 times as fast as the competitor. About 1.5 times as fast as the competitor.
Windows Driver OPOS Driver
S S
C C
E E
FP-1000 FP-1000
FP-1000(*1) FP-1000(*1)
0 50 100 150 200 250 300 350 0 25 50 75 100 125 150
【 t t ime (s e c )]】
Prin 【Print time (sec) 】
Note :
- FP-1000(*1) : Print speed Max = 150mm/sec ( To compare special )
- The print time depends on the measuring method, the pattern, and the environment that our company provides.
Copyright 2011 FUJITSU ISOTEC LIMITED

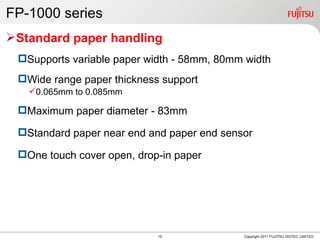

10. FP-1000 series
Standard paper handling
Supports variable paper width - 58mm, 80mm width
Wide range paper thickness support
0.065mm to 0.085mm
Maximum paper diameter - 83mm
Standard paper near end and paper end sensor
One touch cover open, drop-in paper
10 Copyright 2011 FUJITSU ISOTEC LIMITED

11. FP-1000 series
Flexible print format
Industry standard print head (203DPI)
203DPI (Print head width 80mm)
Adjustable print size to match 180DPI format
Setting by software command
Setting by OPOS OCX utility screen
Font rotation for coupon printing
90 / 180 / 270 degree rotation
11 Copyright 2011 FUJITSU ISOTEC LIMITED

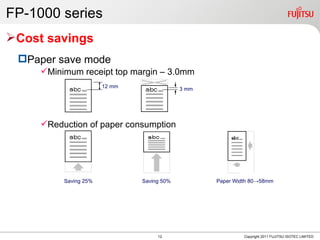

12. FP-1000 series
Cost savings
Paper save mode
Minimum receipt top margin – 3.0mm
12 mm 3 mm
Reduction of paper consumption
Saving 25% Saving 50% Paper Width 80→58mm
12 Copyright 2011 FUJITSU ISOTEC LIMITED

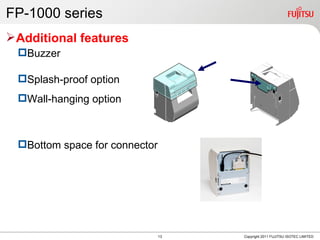

13. FP-1000 series
Additional features
Buzzer
Splash-proof option
Wall-hanging option
Bottom space for connector
13 Copyright 2011 FUJITSU ISOTEC LIMITED

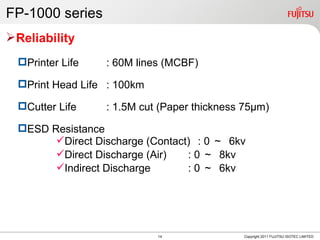

14. FP-1000 series
Reliability
Printer Life : 60M lines (MCBF)
Print Head Life : 100km
Cutter Life : 1.5M cut (Paper thickness 75μm)
ESD Resistance
Direct Discharge (Contact) : 0 ～ 6kv
Direct Discharge (Air) : 0 ～ 8kv
Indirect Discharge : 0 ～ 6kv
14 Copyright 2011 FUJITSU ISOTEC LIMITED

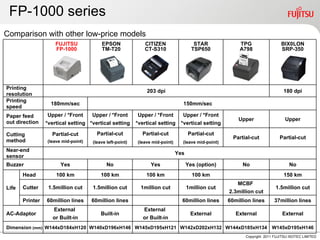

15. FP-1000 series
Comparison with other low-price models
FUJITSU EPSON CITIZEN STAR TPG BIX0LON
FP-1000 TM-T20 CT-S310 TSP650 A798 SRP-350
Printing
203 dpi 180 dpi
resolution
Printing
180mm/sec 150mm/sec
speed
Paper feed Upper / *Front Upper / *Front Upper / *Front Upper / *Front
Upper Upper
out direction *vertical setting *vertical setting *vertical setting *vertical setting
Cutting Partial-cut Partial-cut Partial-cut Partial-cut
Partial-cut Partial-cut
method (leave mid-point) (leave left-point) (leave mid-point) (leave mid-point)
Near-end
Yes
sensor
Buzzer Yes No Yes Yes (option) No No
Head 100 km 100 km 100 km 100 km 150 km
MCBF
Life Cutter 1.5million cut 1.5million cut 1million cut 1million cut 1.5million cut
2.3million cut
Printer 60million lines 60million lines 60million lines 60million lines 37million lines
External External
AC-Adaptor Built-in External External External
or Built-in or Built-in
Dimension (mm) W144xD184xH120 W140xD196xH146 W145xD195xH121 W142xD202xH132 W144xD185xH134 W145xD195xH146
Copyright 2011 FUJITSU ISOTEC LIMITED
