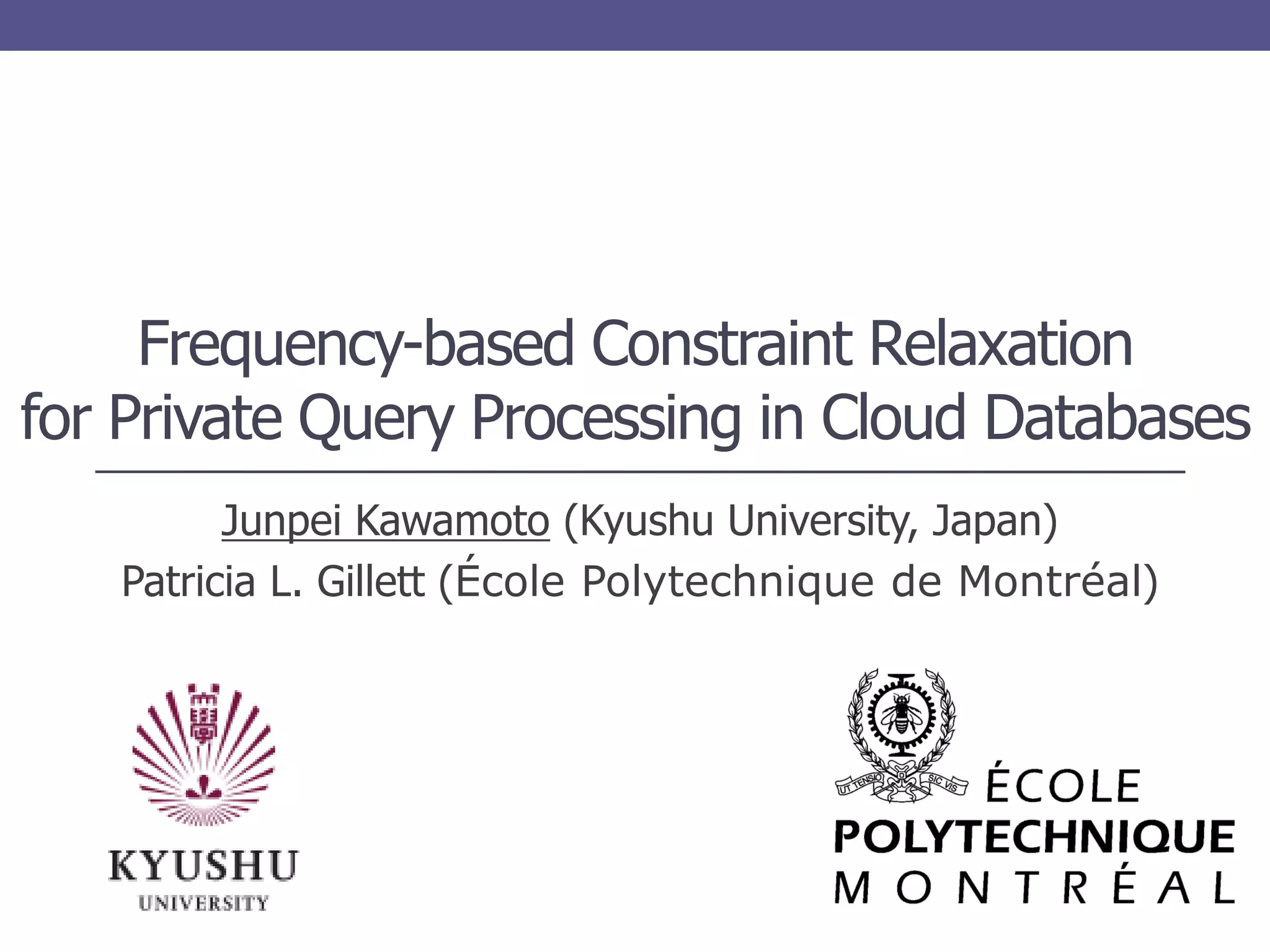

1. Frequency-based Constraint Relaxation
for Private Query Processing in Cloud Databases
Junpei Kawamoto (Kyushu University, Japan)
Patricia L. Gillett (École Polytechnique de Montréal)

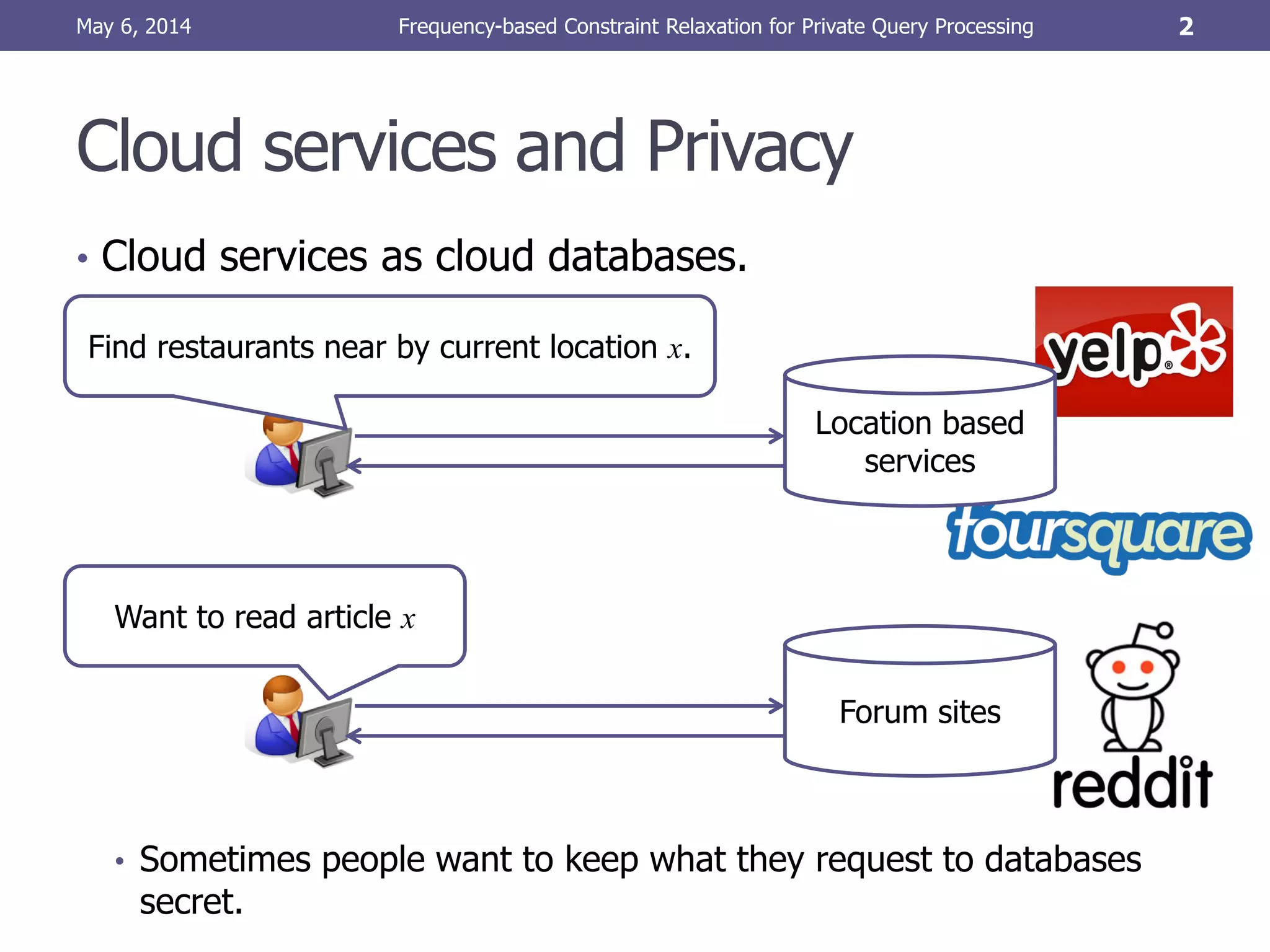

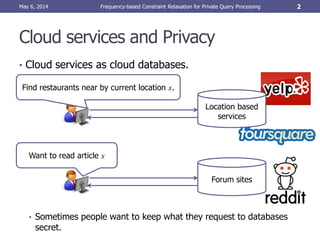

2. Cloud services and Privacy
• Cloud services as cloud databases.
• Sometimes people want to keep what they request to databases
secret.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 2
Find restaurants near by current location x.
Location based
services
Want to read article x
Forum sites

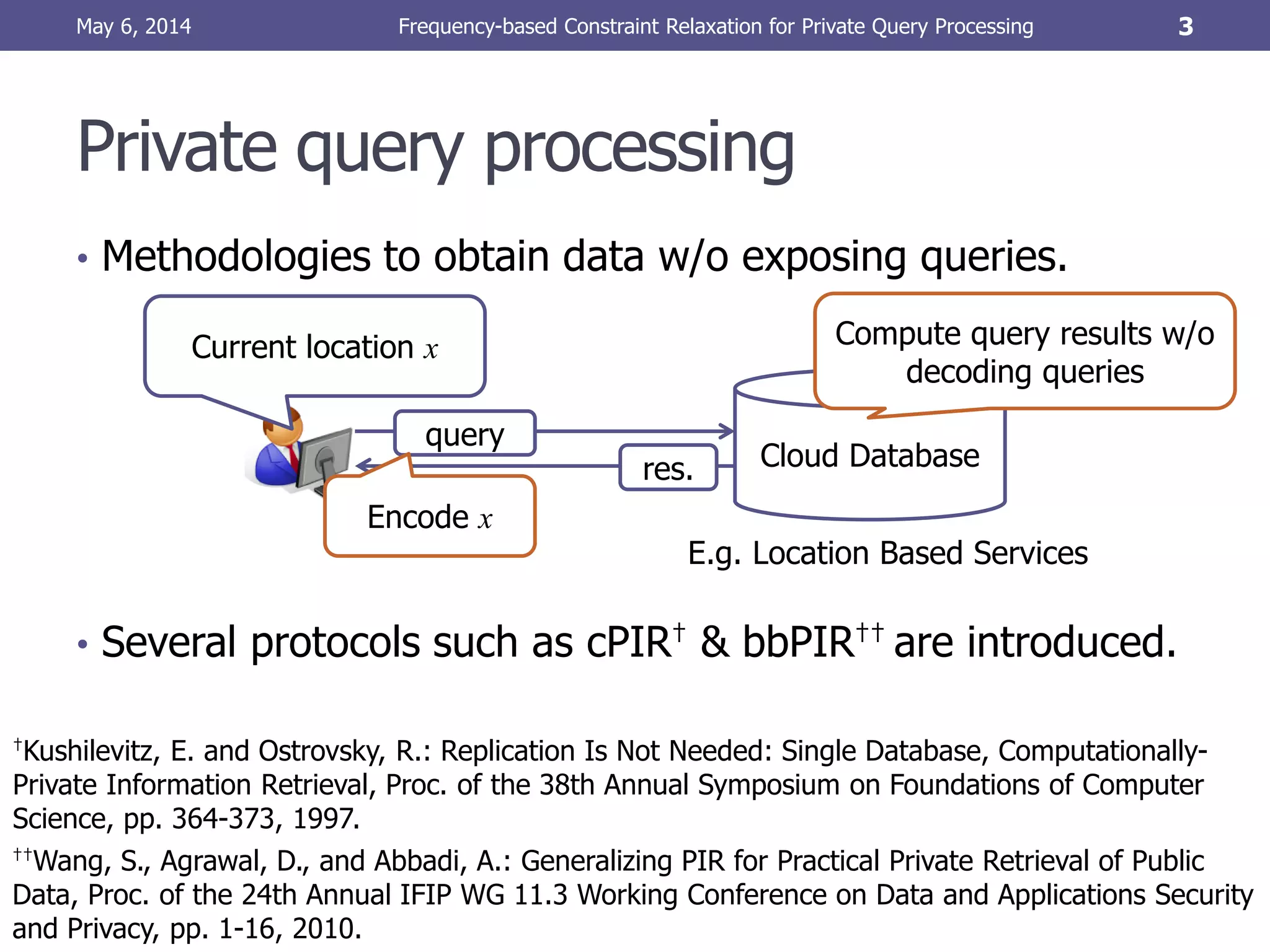

3. Private query processing
• Methodologies to obtain data w/o exposing queries.
• Several protocols such as cPIR† & bbPIR†† are introduced.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 3
Cloud Database
Current location x
query
res.
Encode x
Compute query results w/o
decoding queries
†Kushilevitz, E. and Ostrovsky, R.: Replication Is Not Needed: Single Database, Computationally-
Private Information Retrieval, Proc. of the 38th Annual Symposium on Foundations of Computer
Science, pp. 364-373, 1997.
E.g. Location Based Services
††Wang, S., Agrawal, D., and Abbadi, A.: Generalizing PIR for Practical Private Retrieval of Public
Data, Proc. of the 24th Annual IFIP WG 11.3 Working Conference on Data and Applications Security
and Privacy, pp. 1-16, 2010.

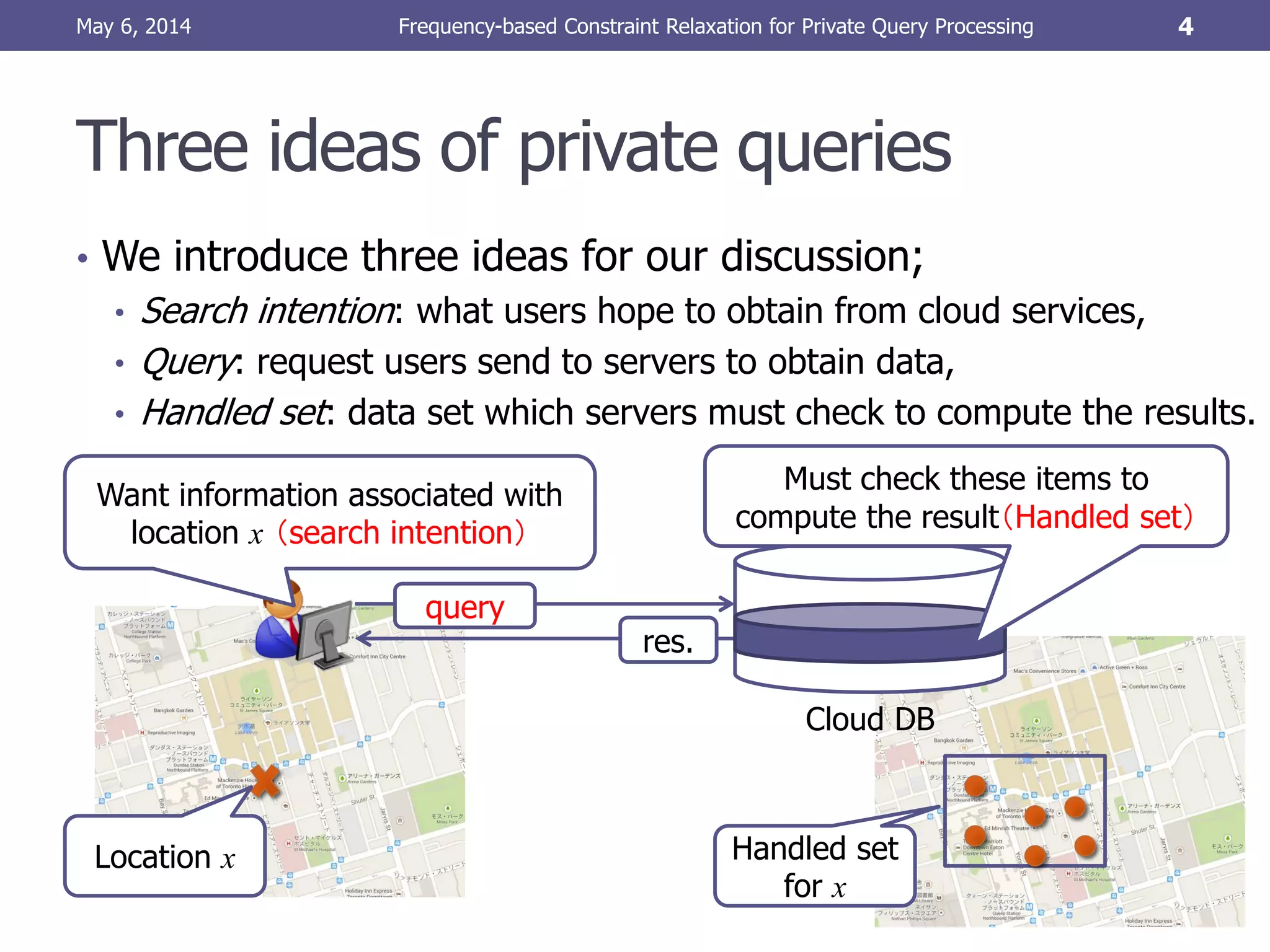

4. Three ideas of private queries
• We introduce three ideas for our discussion;
• Search intention: what users hope to obtain from cloud services,
• Query: request users send to servers to obtain data,
• Handled set: data set which servers must check to compute the results.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 4
Location x
Want information associated with
location x （search intention）
query
res.
Cloud DB
Must check these items to
compute the result（Handled set）
Handled set
for x

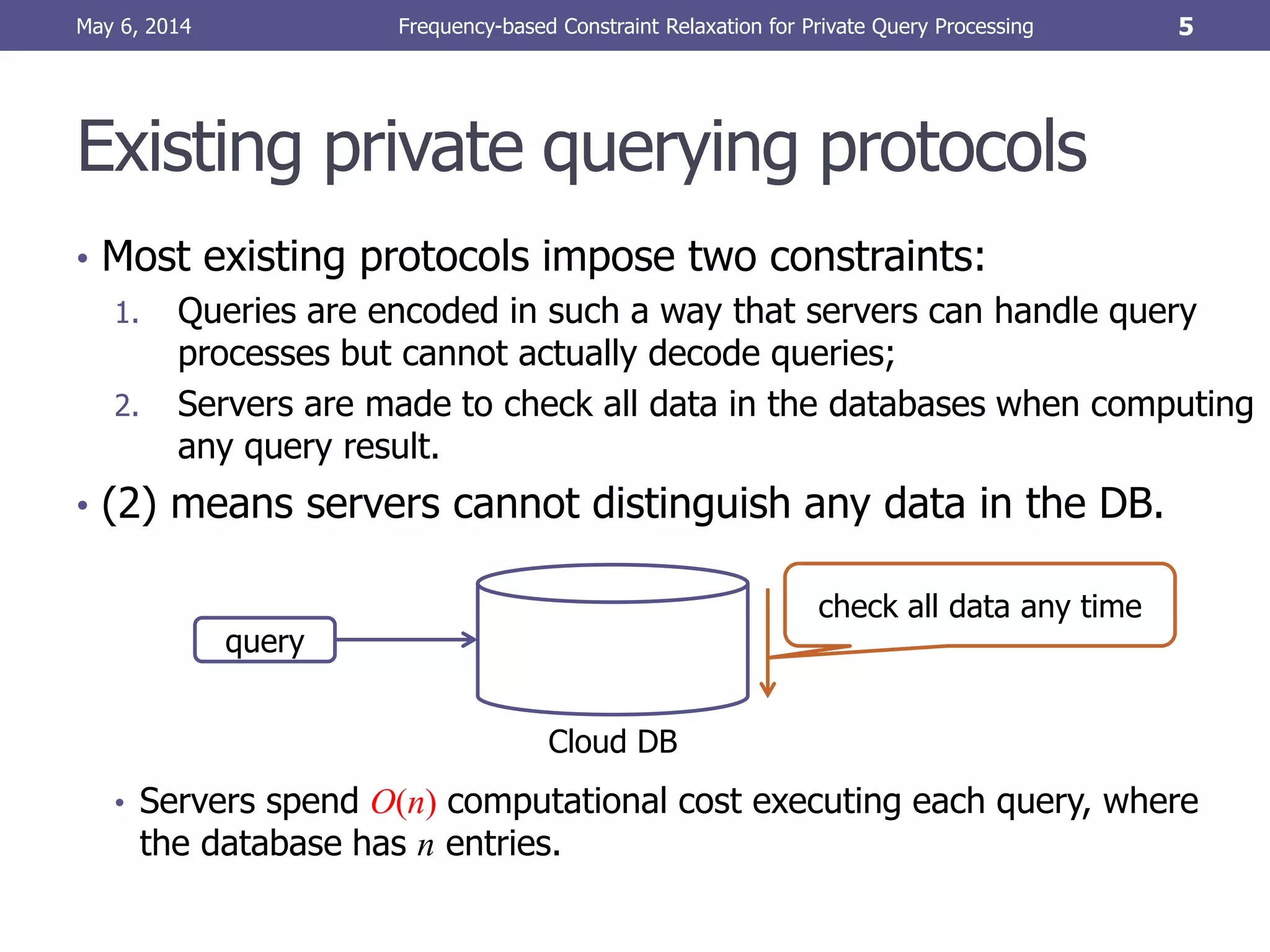

5. Existing private querying protocols
• Most existing protocols impose two constraints:
1. Queries are encoded in such a way that servers can handle query
processes but cannot actually decode queries;
2. Servers are made to check all data in the databases when computing
any query result.
• (2) means servers cannot distinguish any data in the DB.
• Servers spend O(n) computational cost executing each query, where
the database has n entries.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 5
Cloud DB
check all data any time
query

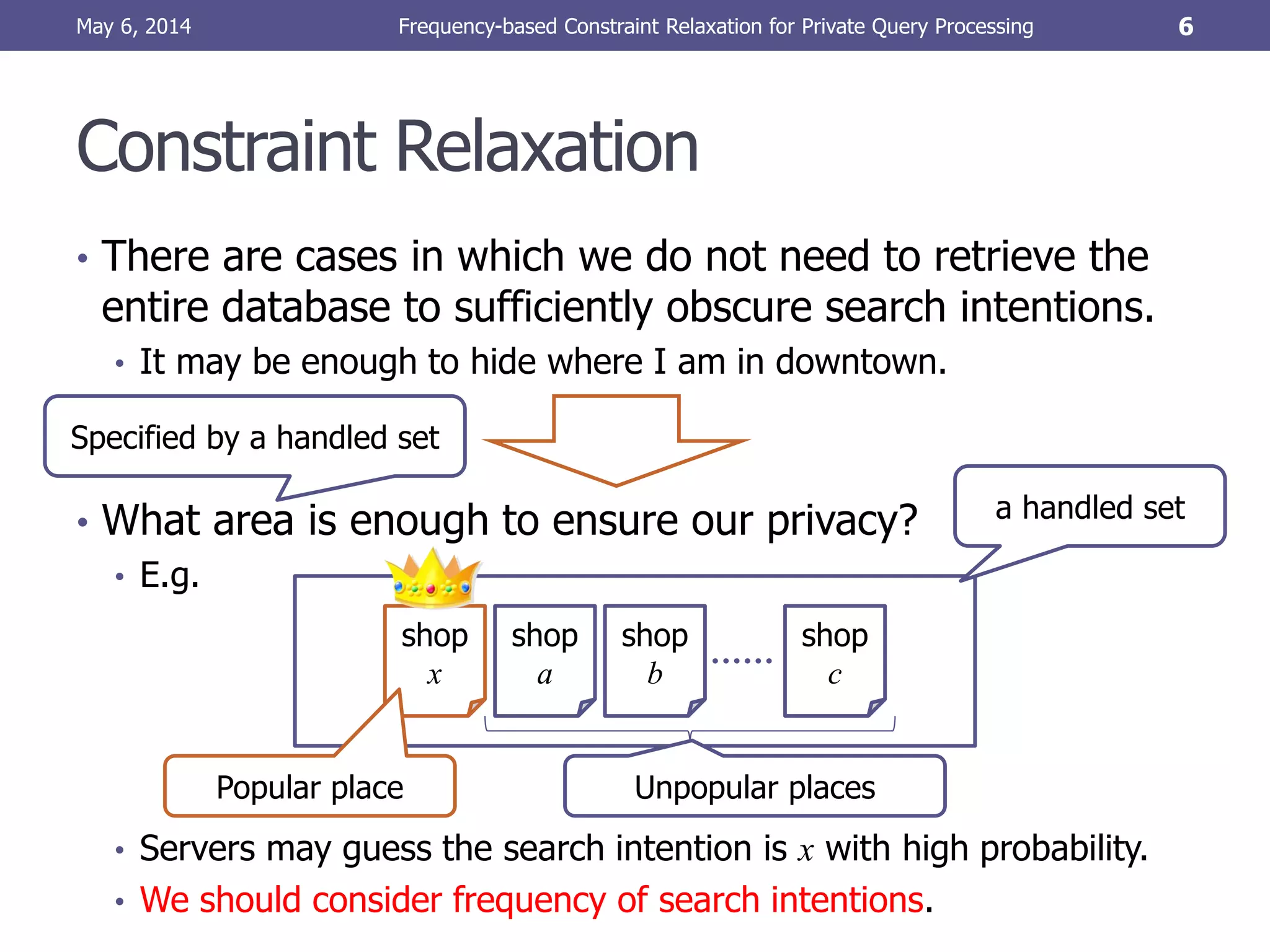

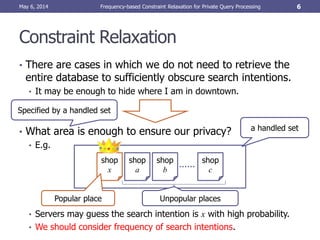

6. • There are cases in which we do not need to retrieve the
entire database to sufficiently obscure search intentions.
• It may be enough to hide where I am in downtown.
• What area is enough to ensure our privacy?
• E.g.
• Servers may guess the search intention is x with high probability.
• We should consider frequency of search intentions.
Constraint Relaxation
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 6
shop
x
shop
a
shop
b
shop
c
Popular place Unpopular places
Specified by a handled set
a handled set

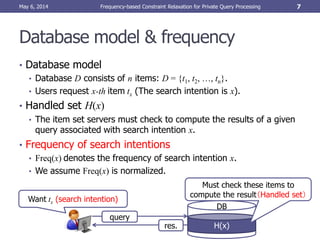

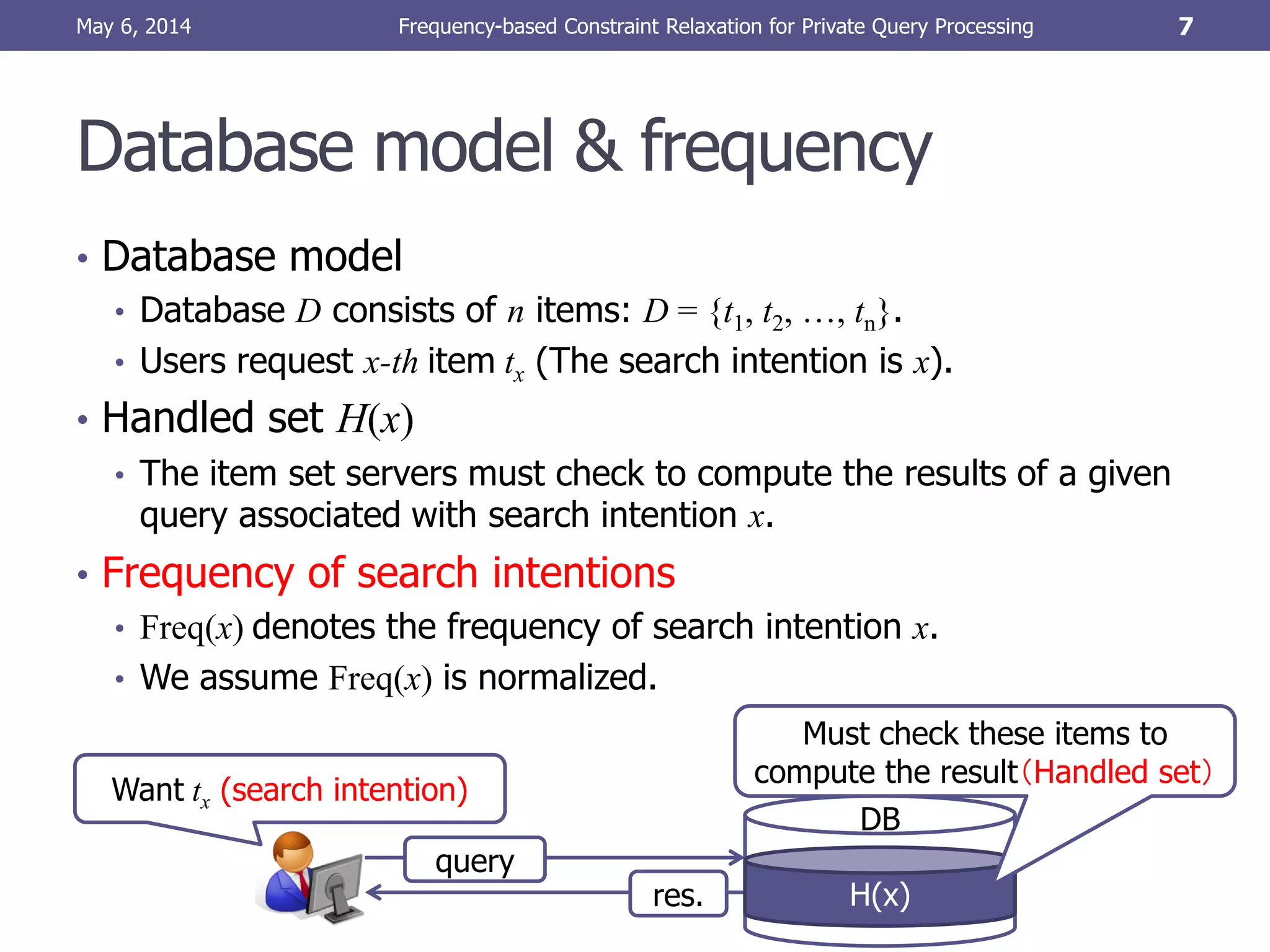

7. Database model & frequency
• Database model
• Database D consists of n items: D = {t1, t2, …, tn}.
• Users request x-th item tx (The search intention is x).
• Handled set H(x)
• The item set servers must check to compute the results of a given
query associated with search intention x.
• Frequency of search intentions
• Freq(x) denotes the frequency of search intention x.
• We assume Freq(x) is normalized.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 7
Want tx (search intention)
query
res.
DB
H(x)
Must check these items to
compute the result（Handled set）

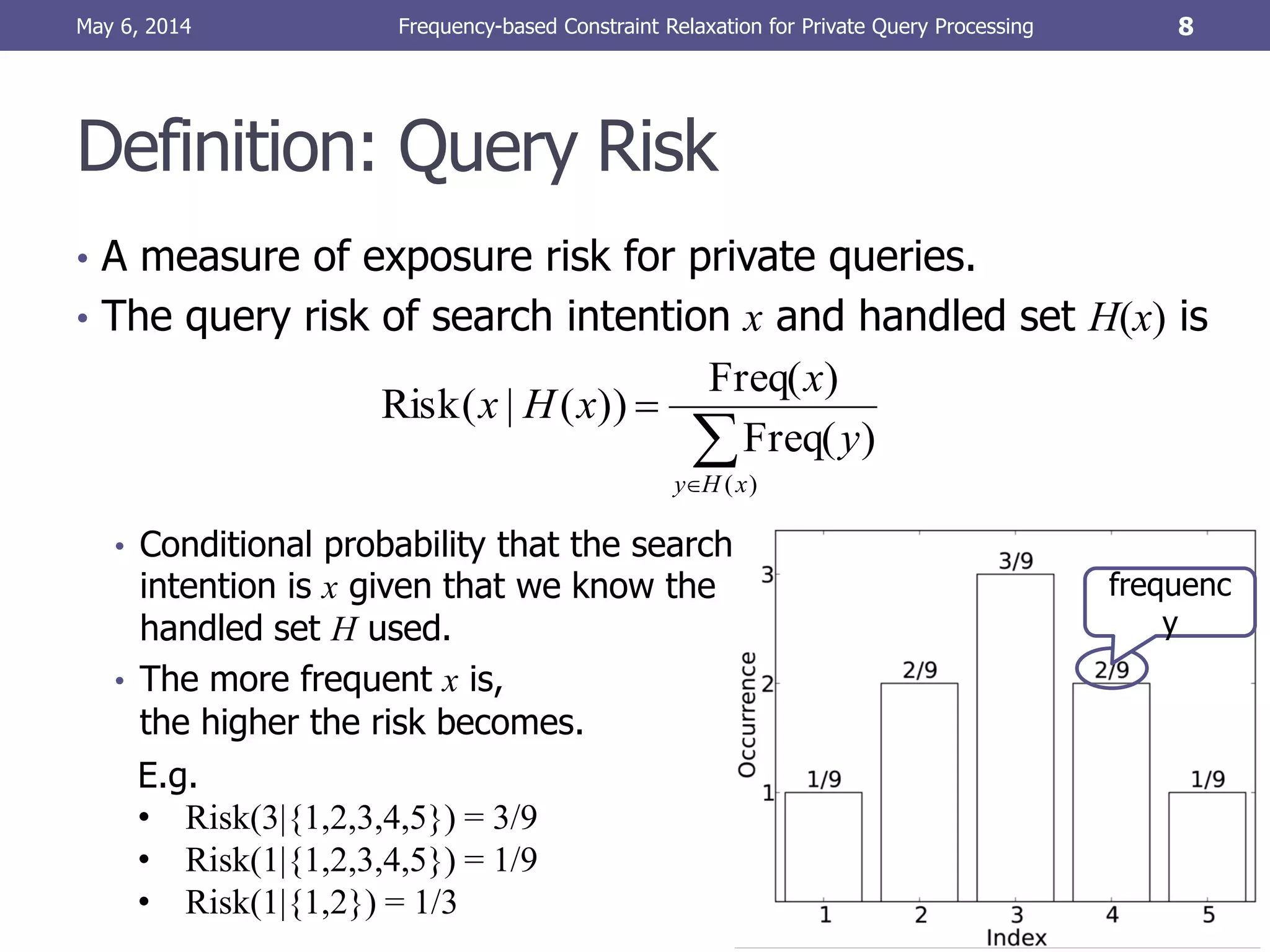

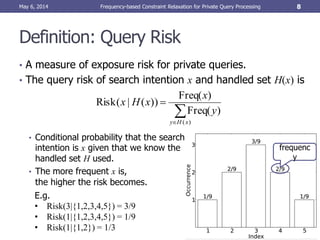

8. Definition: Query Risk
• A measure of exposure risk for private queries.
• The query risk of search intention x and handled set H(x) is
• Conditional probability that the search
intention is x given that we know the
handled set H used.
• The more frequent x is,
the higher the risk becomes.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 8


)(
)(Freq
)(Freq
))(|(Risk
xHy
y
x
xHx
frequenc
y
E.g.
• Risk(3|{1,2,3,4,5}) = 3/9
• Risk(1|{1,2,3,4,5}) = 1/9
• Risk(1|{1,2}) = 1/3

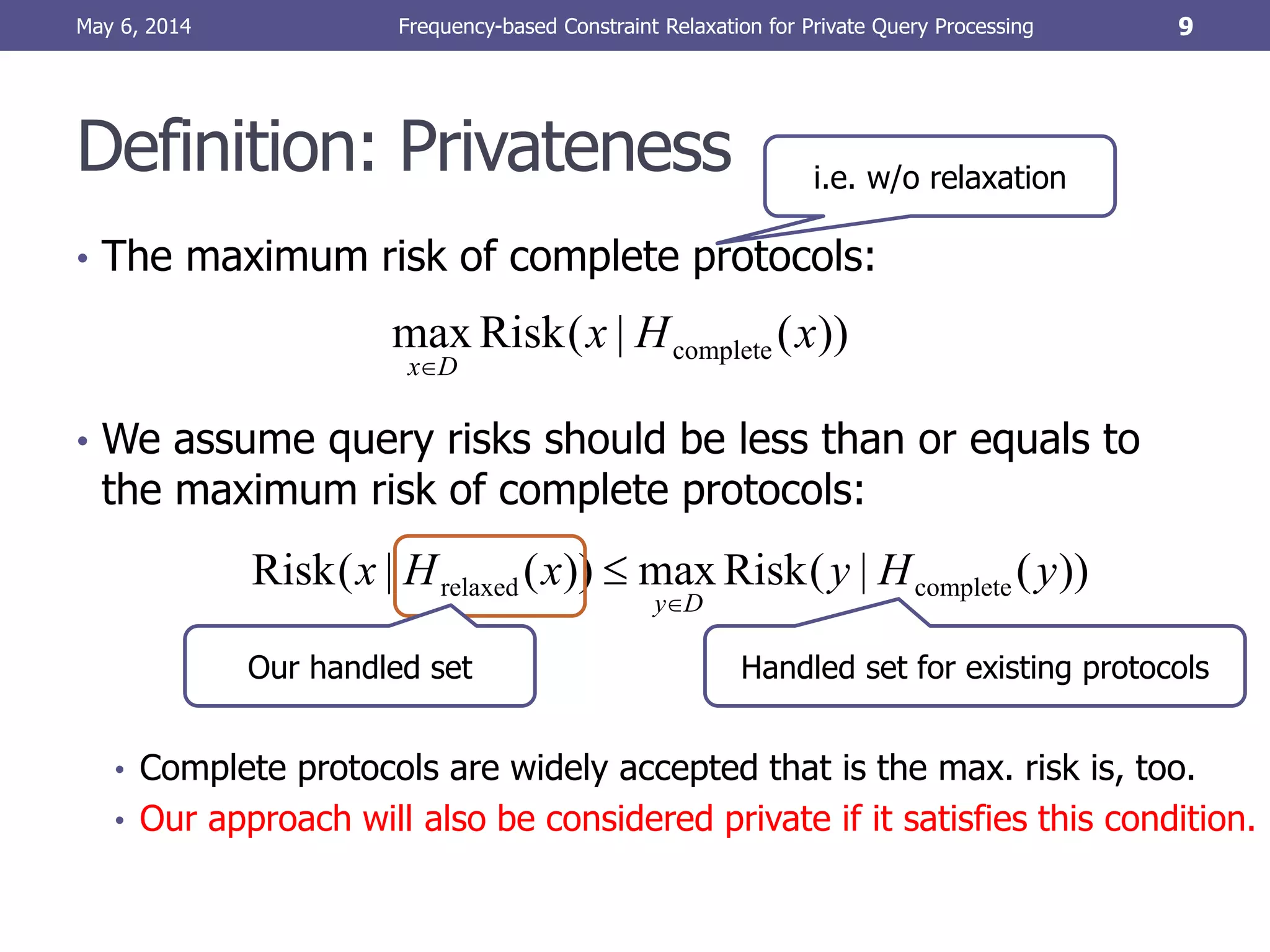

9. Definition: Privateness
• The maximum risk of complete protocols:
• We assume query risks should be less than or equals to
the maximum risk of complete protocols:
• Complete protocols are widely accepted that is the max. risk is, too.
• Our approach will also be considered private if it satisfies this condition.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 9
))(|(Riskmax))(|(Risk completerelaxed yHyxHx
Dy

))(|(Riskmax complete xHx
Dx
i.e. w/o relaxation
Our handled set Handled set for existing protocols

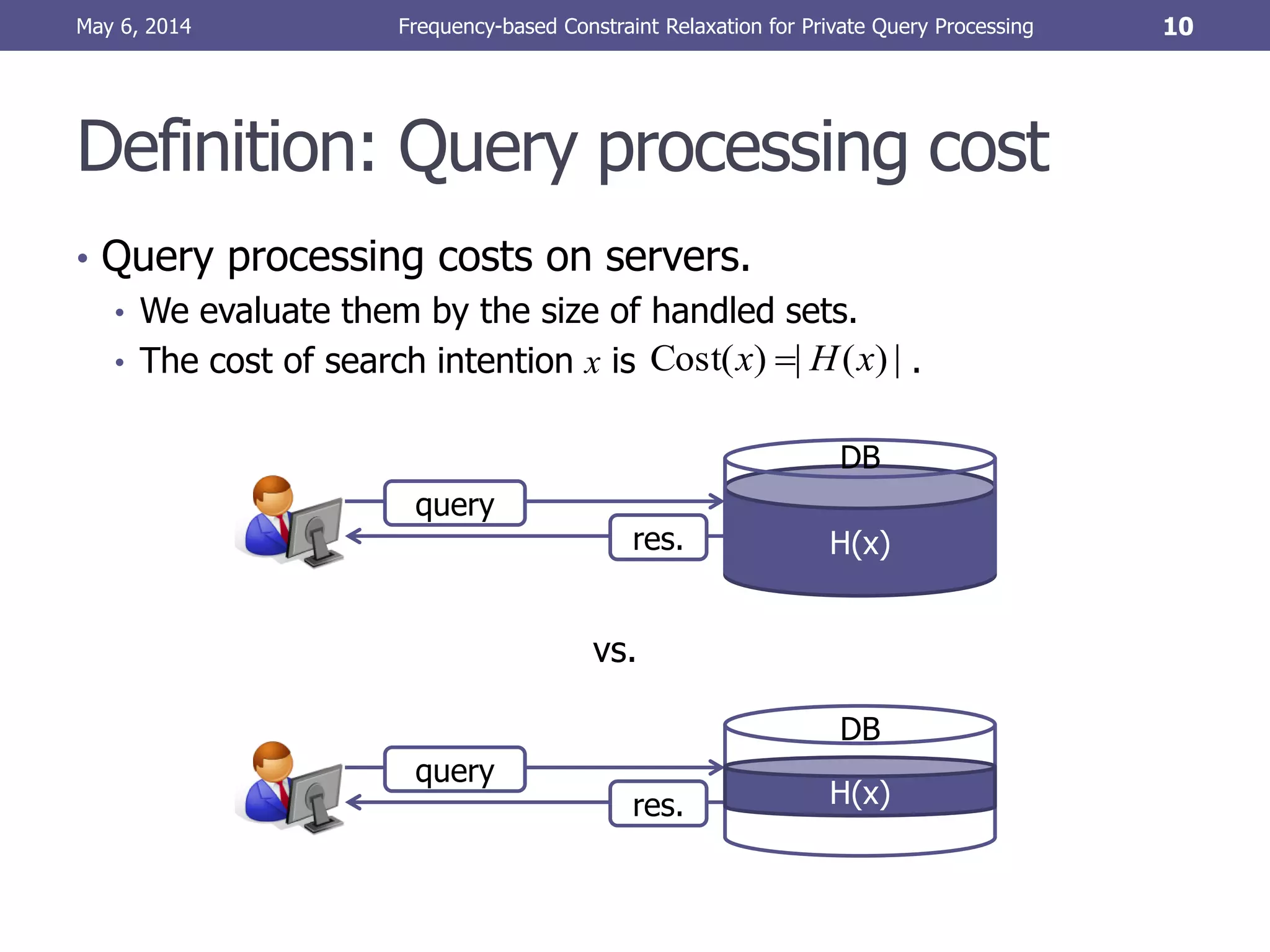

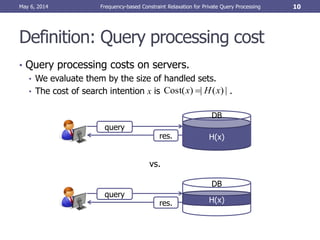

10. Definition: Query processing cost
• Query processing costs on servers.
• We evaluate them by the size of handled sets.
• The cost of search intention x is .
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 10
|)(|)(Cost xHx 
query
res.
DB
H(x)
H(x)
query
res.
DB
vs.

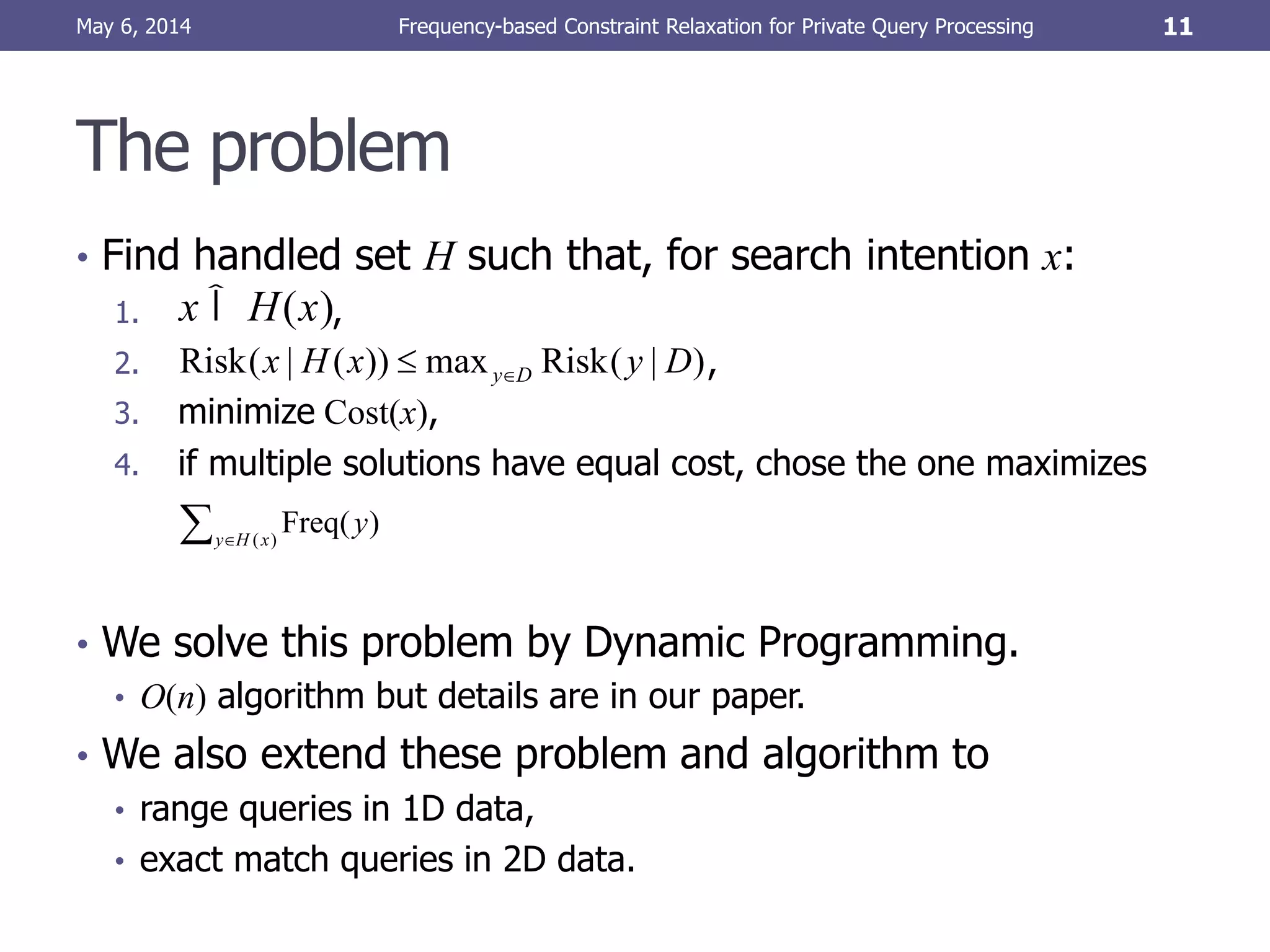

11. The problem
• Find handled set H such that, for search intention x:
1. ,
2. ,
3. minimize Cost(x),
4. if multiple solutions have equal cost, chose the one maximizes
• We solve this problem by Dynamic Programming.
• O(n) algorithm but details are in our paper.
• We also extend these problem and algorithm to
• range queries in 1D data,
• exact match queries in 2D data.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 11
x Î H(x)
)|(Riskmax))(|(Risk DyxHx Dy
  )(
)(FreqxHy
y

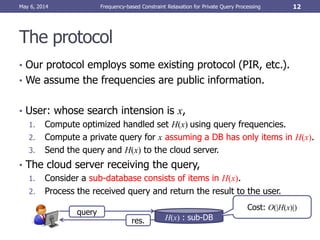

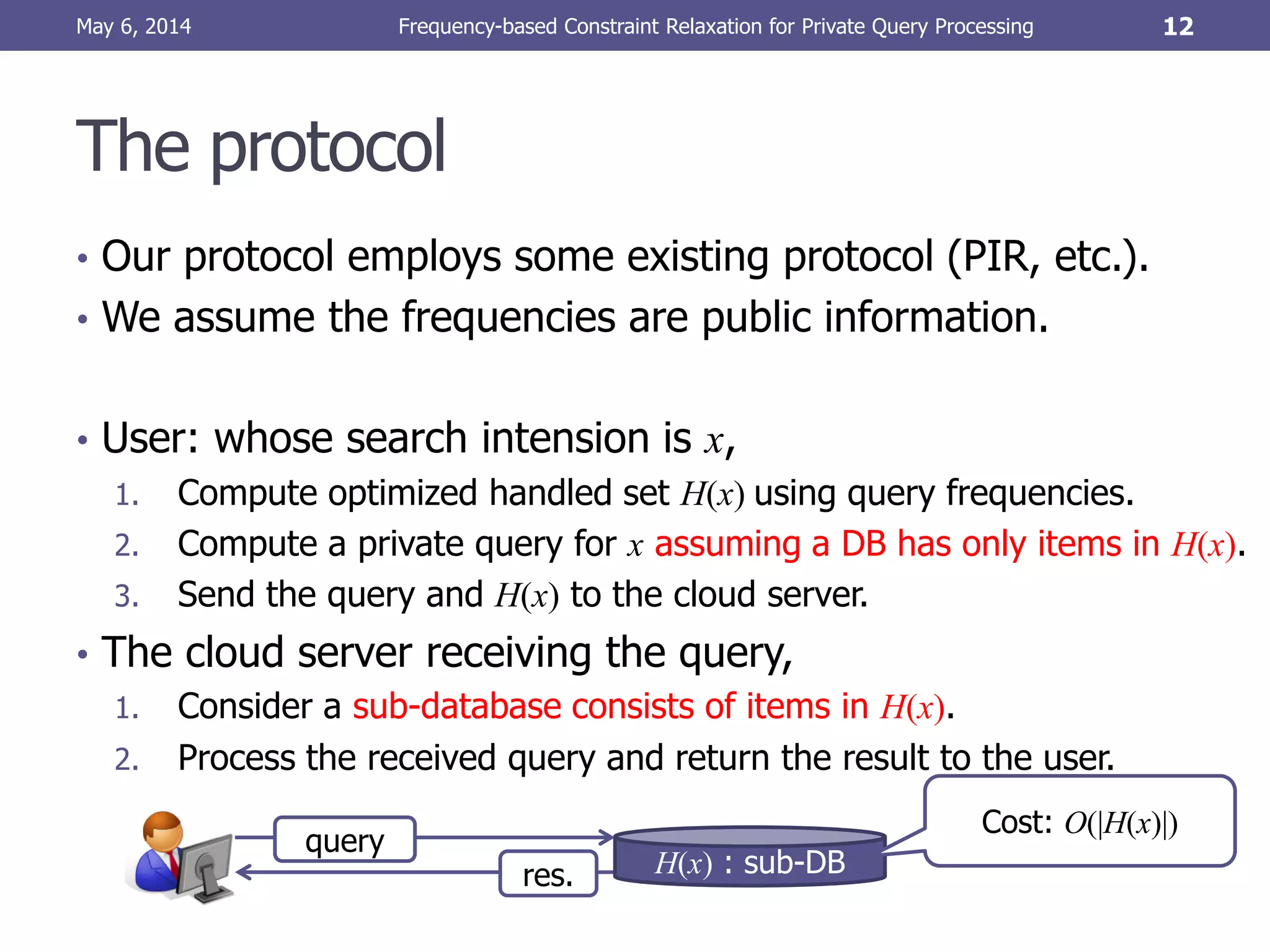

12. The protocol
• Our protocol employs some existing protocol (PIR, etc.).
• We assume the frequencies are public information.
• User: whose search intension is x,
1. Compute optimized handled set H(x) using query frequencies.
2. Compute a private query for x assuming a DB has only items in H(x).
3. Send the query and H(x) to the cloud server.
• The cloud server receiving the query,
1. Consider a sub-database consists of items in H(x).
2. Process the received query and return the result to the user.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 12
query
res. H(x) : sub-DB
Cost: O(|H(x)|)

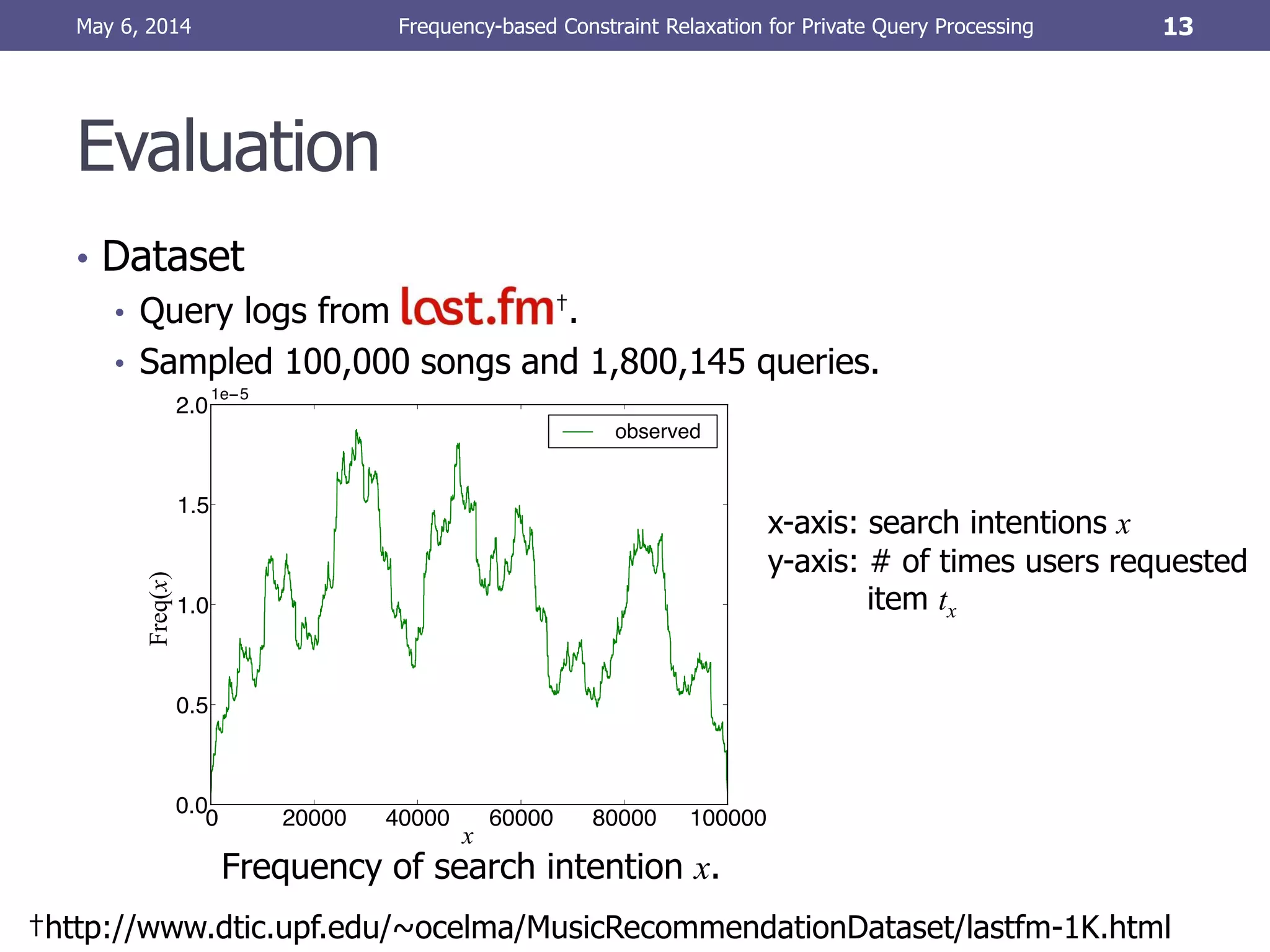

13. • Dataset
• Query logs from †.
• Sampled 100,000 songs and 1,800,145 queries.
Evaluation
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 13
†http://www.dtic.upf.edu/~ocelma/MusicRecommendationDataset/lastfm-1K.html
Frequency of search intention x.
x-axis: search intentions x
y-axis: # of times users requested
item tx

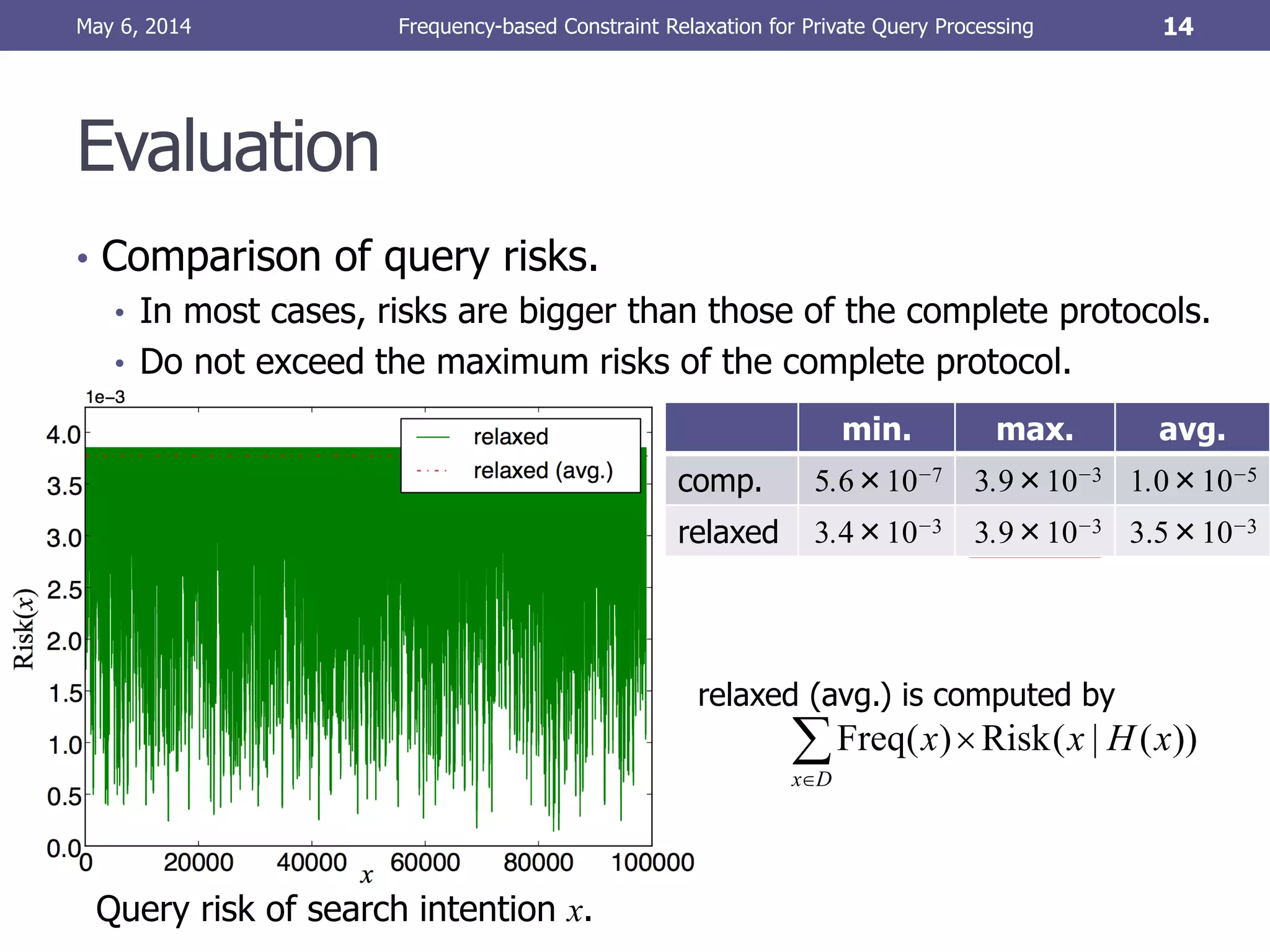

14. Evaluation
• Comparison of query risks.
• In most cases, risks are bigger than those of the complete protocols.
• Do not exceed the maximum risks of the complete protocol.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 14
relaxed (avg.) is computed by


Dx
xHxx ))(|(Risk)(Freq
min. max. avg.
comp. 5.6×10−7 3.9×10−3 1.0×10−5
relaxed 3.4×10−3 3.9×10−3 3.5×10−3
Query risk of search intention x.

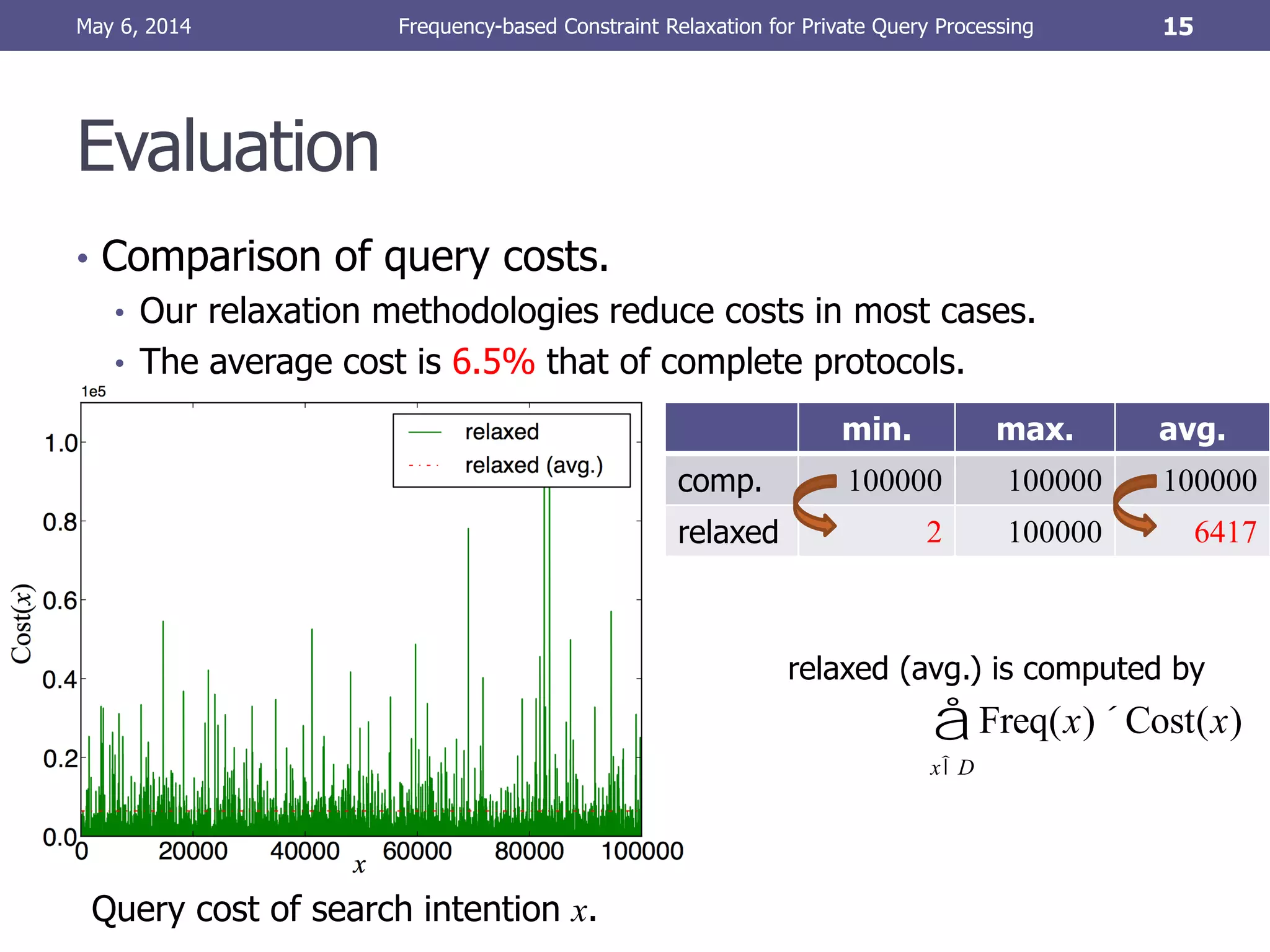

15. Evaluation
• Comparison of query costs.
• Our relaxation methodologies reduce costs in most cases.
• The average cost is 6.5% that of complete protocols.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 15
relaxed (avg.) is computed by
Freq(x)´Cost(x)
xÎD
å
min. max. avg.
comp. 100000 100000 100000
relaxed 2 100000 6417
Query cost of search intention x.

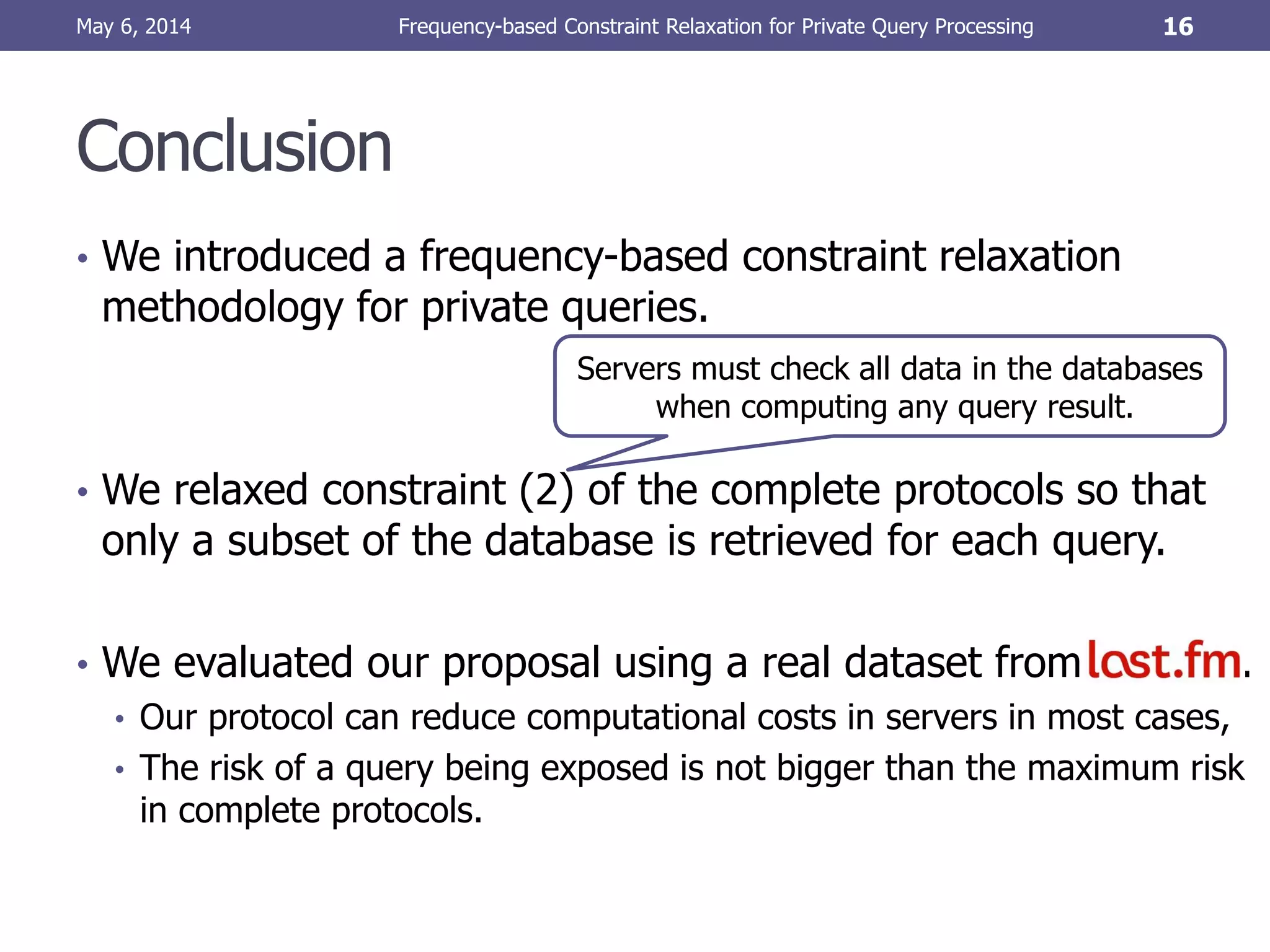

16. Conclusion
• We introduced a frequency-based constraint relaxation
methodology for private queries.
• We relaxed constraint (2) of the complete protocols so that
only a subset of the database is retrieved for each query.
• We evaluated our proposal using a real dataset from .
• Our protocol can reduce computational costs in servers in most cases,
• The risk of a query being exposed is not bigger than the maximum risk
in complete protocols.
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 16
Servers must check all data in the databases
when computing any query result.

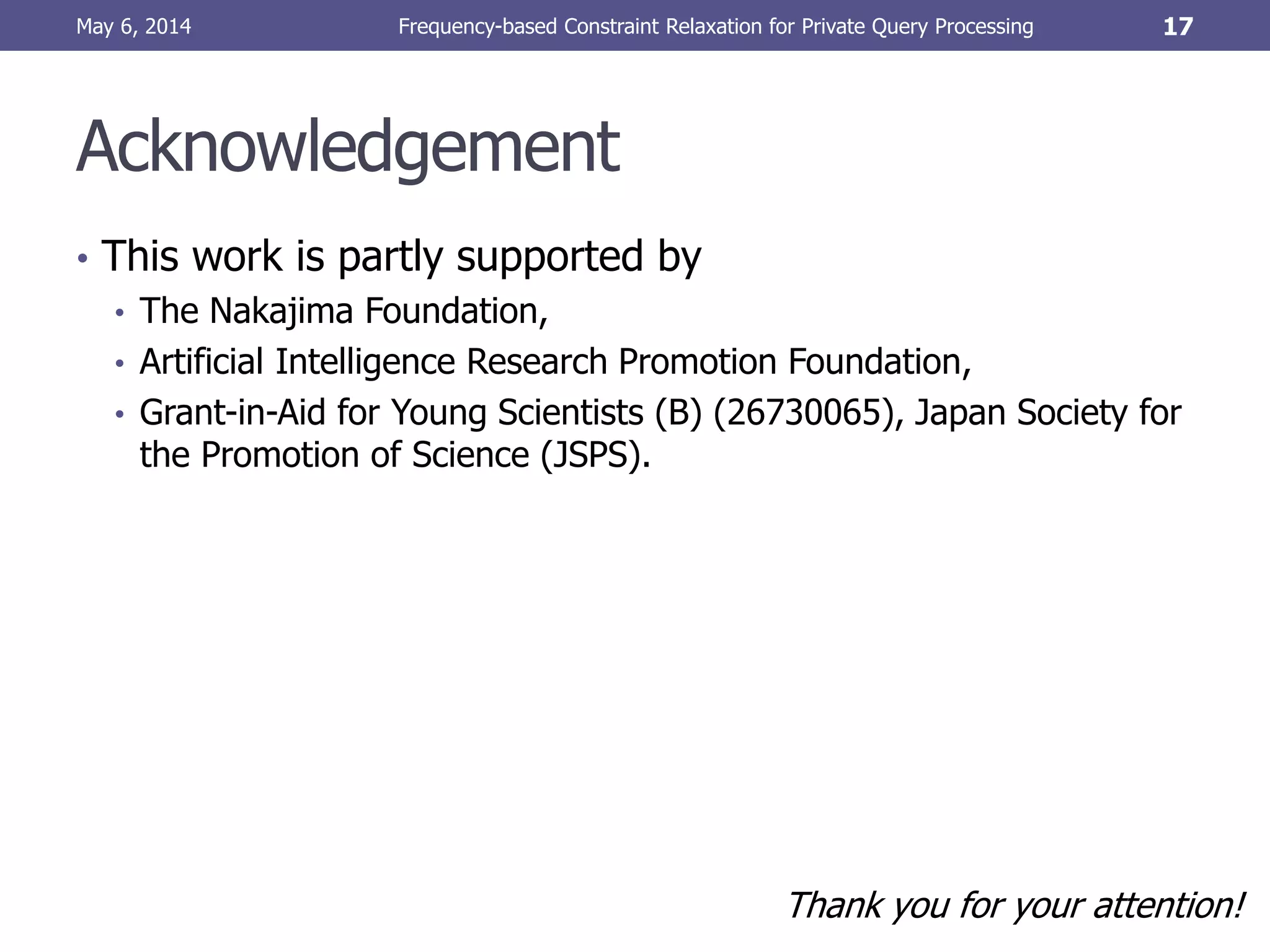

17. Acknowledgement
• This work is partly supported by
• The Nakajima Foundation,
• Artificial Intelligence Research Promotion Foundation,
• Grant-in-Aid for Young Scientists (B) (26730065), Japan Society for
the Promotion of Science (JSPS).
May 6, 2014 Frequency-based Constraint Relaxation for Private Query Processing 17
Thank you for your attention!
