1. Frame Measurements
And Markings
-Manthan Mishra
S.Y. B.Optom
Roll No 10

2. Introduction
• Two system is use most
1.The Datum System
2.The Boxing System
The Datum System is previously used
system(base system).
The Boxing System is now commonly used
system.

3. The Datum System
Mid-Datum Depth
Datum Center
Datum Line

4. The Boxing System
. “A”
“B”
“C”
DBL
ED
GC
Datum Line
GCD
Seg Drop
Seg Height
Seg raise
Seg Depth

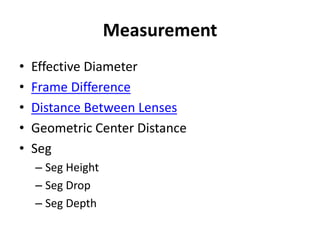

5. Measurement
• Effective Diameter
• Frame Difference
• Distance Between Lenses
• Geometric Center Distance
• Seg
– Seg Height
– Seg Drop
– Seg Depth

6. Temple Length
• Overall Temple Length
-Length to Bend(LTB)
-Front to Bend(FTB)

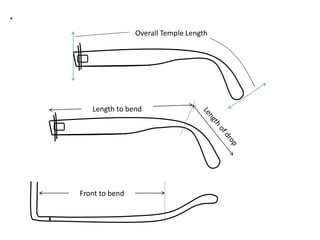

7. .
Overall Temple Length
Length to bend
Front to bend

8. Frame Markings
• Eye Size and DBL
• Location of Markings
• Frame Manufacture Name,Color, and Country
of Origin
• Safety Frame Markings

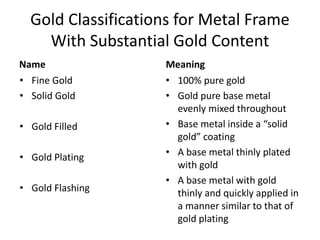

9. Gold Classifications for Metal Frame
With Substantial Gold Content
Name
• Fine Gold
• Solid Gold
• Gold Filled
• Gold Plating
• Gold Flashing
Meaning
• 100% pure gold
• Gold pure base metal
evenly mixed throughout
• Base metal inside a “solid
gold” coating
• A base metal thinly plated
with gold
• A base metal with gold
thinly and quickly applied in
a manner similar to that of
gold plating

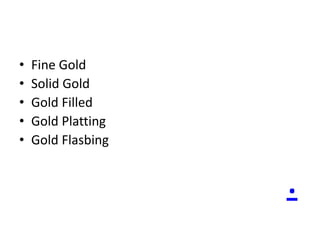

10. • Fine Gold
• Solid Gold
• Gold Filled
• Gold Platting
• Gold Flasbing
.

12. .

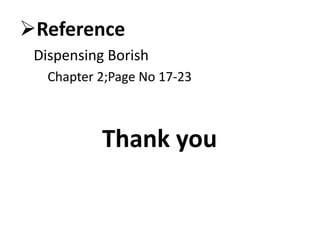

15. Reference
Dispensing Borish
Chapter 2;Page No 17-23
Thank you
