Fire Plast Italia was founded in 1970 by Pier Luigi Merlo and focuses on injection moulding and mould manufacturing. In the early 1990s, Merlo's children Mauro and Nadia joined the company as Managing Director and Administration Director respectively under the new name Fire Plast Italia. Fire Plast has since become a leader in moulding for the automotive industry with facilities in Santena and Canelli, Italy. The company provides design, manufacturing, and production services for plastic injection moulding.

1. Fire Plast Italia S.r.l.

2. Fire Plast Italia
Aesthetical Moulds

3. 40 YEARS OF EXPERIENCE …
In 1970, the young enterpreneur Pier Luigi Merlo founds Meca Stamp.
Merlo is only 30 years old and he already has matured excellent know – how in injection moulds and
focus to achieve excellence of service at industrial level. the Automotive field,
In the early Nineties, the two sons of Mr. Merlo, Mauro and Nadia, join the company, respectively as
Managing Director and Administration Director. The newly founded company is called Fire Plast Italia
and immediately consilidates trustworthy supplier relationships with the largest european car makers
In the year 2000,Fire Plast takes partecipates in the ZHONQA (Brilliance) turnkey project, one of the
first chinese cars to be developed with EU technology and tools and surely is considered as one of the
main achievements of the company
In the following years Fireplast remains focused on the manufacturing of very large tools and develops
a proprietary know how and technology for injection- compression moulding
In 2007 Fireplast opens a new plant in Canelli dedicated to injection moulding extending customer
service to in house production of small and large series.

4. Design and manufacturing of injection moulds
Quality System and process applied to all projects in order to reach
the Time to Market;
from Simultaneous Engineering
to finished product!

5. With more than 40 years activity…
… Fire Plast
has become
a banchmark
in planning injection moulding, for plastic materials
and production in small and big series

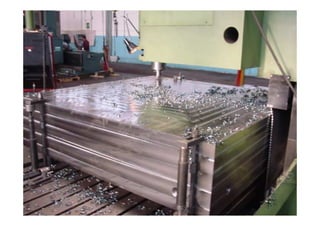

6. Santena Plant for mould manufacturing…
… and also moulds maintenance and prototype realizing
Milling Machines
4000x2000x1700
2200x700 x700
2800x2800x1000
1000x800x400
4000x1600x1000
1200x600x400
4000x1400x2000+revolving table 1800x1800
6000x2700x1500 power rough head & hig speed head

10. Technical department:
the place where moulds
start to take life.
TEBIS Version 3.1
TAGLIO Version 14.15
CAMELOT- CAMPEADOR Version 3
CATIA Version 4.2.4
TEBIS Version 3.1
AUTOCAD Version 2000
VISICAD Version 14
COMPUTER VISION Version 9.2

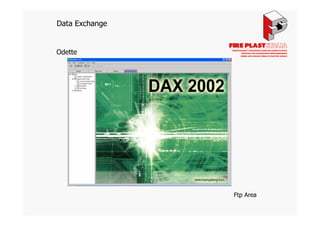

11. Data Exchange
Odette
Ftp Area

12. Thanks to qualified research and development staff …
10 designers working on the most used CAD systems of the main Automotive Producers, with
Automotive
experience and professionality.
14 programmers applying their knowledge in CAM System to optimise the efficiency of our
optimise
machines.
35 Technicians that, with their professionality, realize moulds respecting the quality requirements,
using the most modern equipment.
20 experts able to finish the mould in order to guarantee the static and dynamic functionality,
static
being certain that the product respects the quality level required
required

13. Canelli Plant for moulding…
Injection Machines
NPM 1400 ton to Press Engel 4000 ton
Ultrasonic welding System
ENGEL 4000 ton principal features
Injection-compression module
Tecnology Rapid tool change
Traditional Injection Platen size
Injection with compression Screw size
Injection with expansion Etc …
Structural parts with hybrid tecnologies aid
2K Bi-injection moulding
Overmoulding with fabric and fac-leather

14. … working for the most prestigious motor companies all over the world

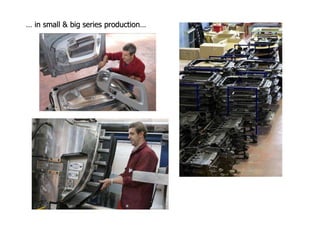

15. … in small & big series production…

17. Fire Plast introduces new technologies
to enhance
fine process to top surface. This can
effectively satisfy people ’s high
aesthetic requiement.

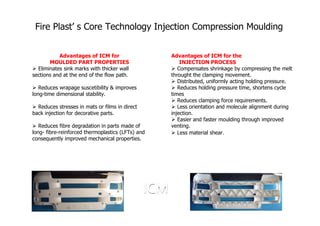

18. Fire Plast’ s Core Technology Injection Compression Moulding
Advantages of ICM for Advantages of ICM for the
MOULDED PART PROPERTIES INJECTION PROCESS
Eliminates sink marks with thicker wall Compensates shrinkage by compressing the melt
sections and at the end of the flow path. throught the clamping movement.
Distributed, uniformly acting holding pressure.
Reduces wrapage suscetibility & improves Reduces holding pressure time, shortens cycle
long-time dimensional stability. times
Reduces clamping force requirements.
Reduces stresses in mats or films in direct Less orientation and molecule alignment during
back injection for decorative parts. injection.
Easier and faster moulding through improved
Reduces fibre degradation in parts made of venting.
long- fibre-reinforced thermoplastics (LFTs) and Less material shear.
consequently improved mechanical properties.

20. Proud to be Official Suppliers …

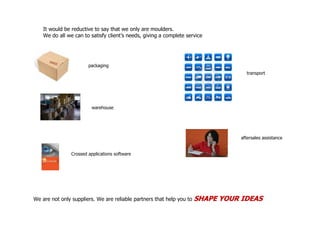

21. It would be reductive to say that we only are moulders.
We do all we can to satisfy client’s needs, giving a complete service
packaging
transport
warehouse
aftersales assistance
Crossed applications software
We are not only suppliers. We are reliable partners that help you to SHAPE YOUR IDEAS

22. We are Quality System Certificated

23. “Listening and understanding our Client’s demands,
Client’
to give them shape and life, according to the most rigorous and qualitative standards:
this is the goal of Fire Plast Italia”
Italia”
Pier Luigi Merlo The Founder
Thank you for your attention

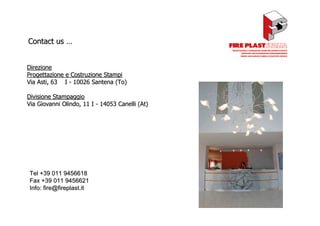

24. Contact us …
Direzione
Progettazione e Costruzione Stampi
Via Asti, 63 I - 10026 Santena (To)
Divisione Stampaggio
Via Giovanni Olindo, 11 I - 14053 Canelli (At)
Tel +39 011 9456618
Fax +39 011 9456621
Info: fire@fireplast.it
