This document summarizes a presentation about proposed and potential future enhancements to foreign data wrappers in PostgreSQL. Some key points discussed include: inheritance support for foreign tables was committed for version 9.5; join push-down and update push-down were proposed but returned for further work; and future ideas proposed aggregate push-down, more aggressive join push-down, sort push-down, and 2PC support. Many technical challenges around semantics, implementation, and optimization were also discussed.

1. FOREIGN DATA
WRAPPER
ENHANCEMENTS
June 17, 2015
PostgreSQL Developers Unconference
Clustering Track
Shigeru HANADA, Etsuro Fujita

2. Who are we
• Shigeru HANADA
• From Tokyo, Japan
• Working on FDW since 2010
• Implemented initial FDW API and postgres_fdw
• Etsuro Fujita
• From Tokyo, Japan
• Working on Postgres for 10 years
• Interested in FDW enhancements

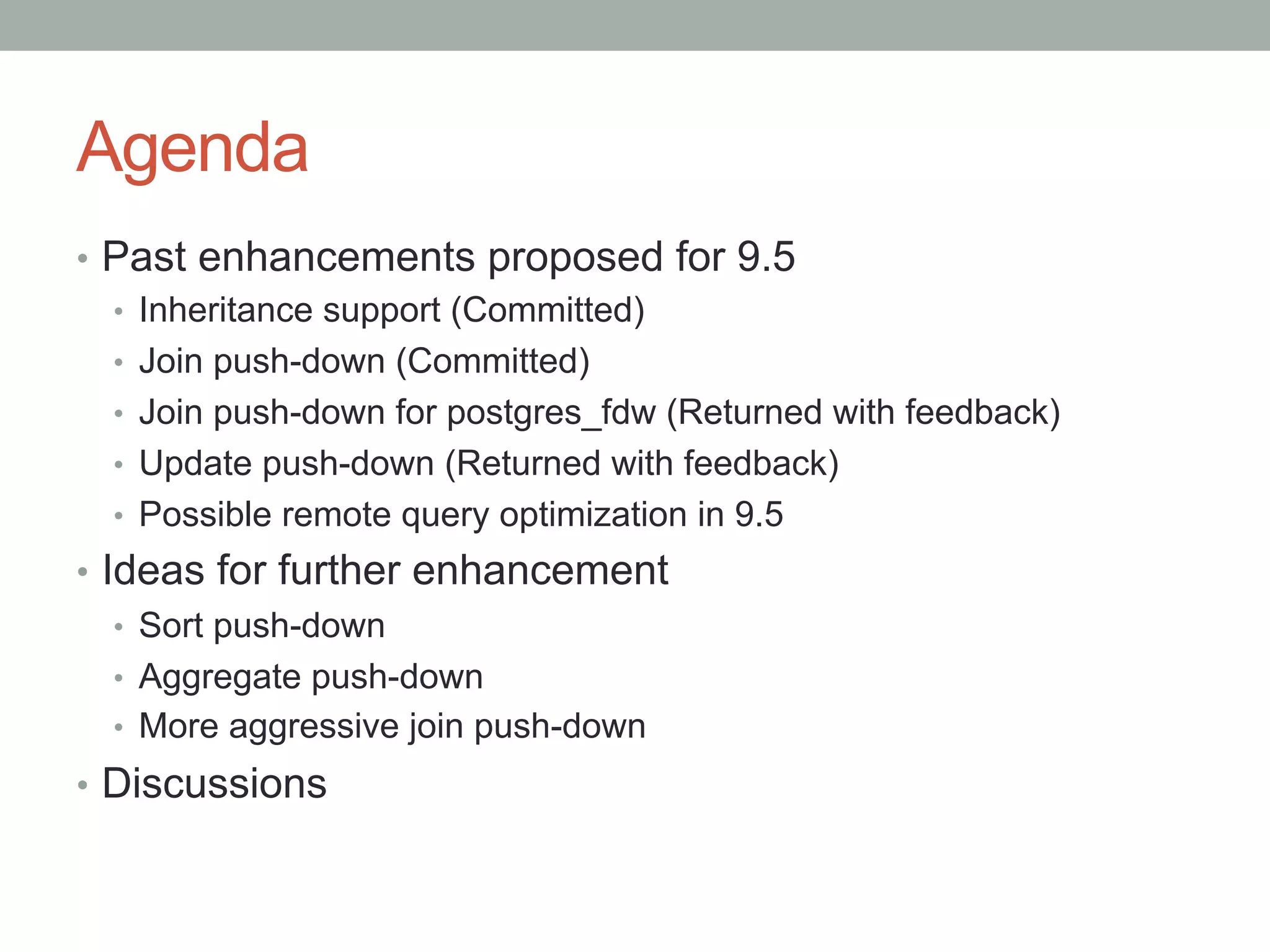

3. Agenda
• Past enhancements proposed for 9.5
• Inheritance support (Committed)
• Join push-down (Committed)
• Join push-down for postgres_fdw (Returned with feedback)
• Update push-down (Returned with feedback)
• Possible remote query optimization in 9.5
• Ideas for further enhancement
• Sort push-down
• Aggregate push-down
• More aggressive join push-down
• Discussions

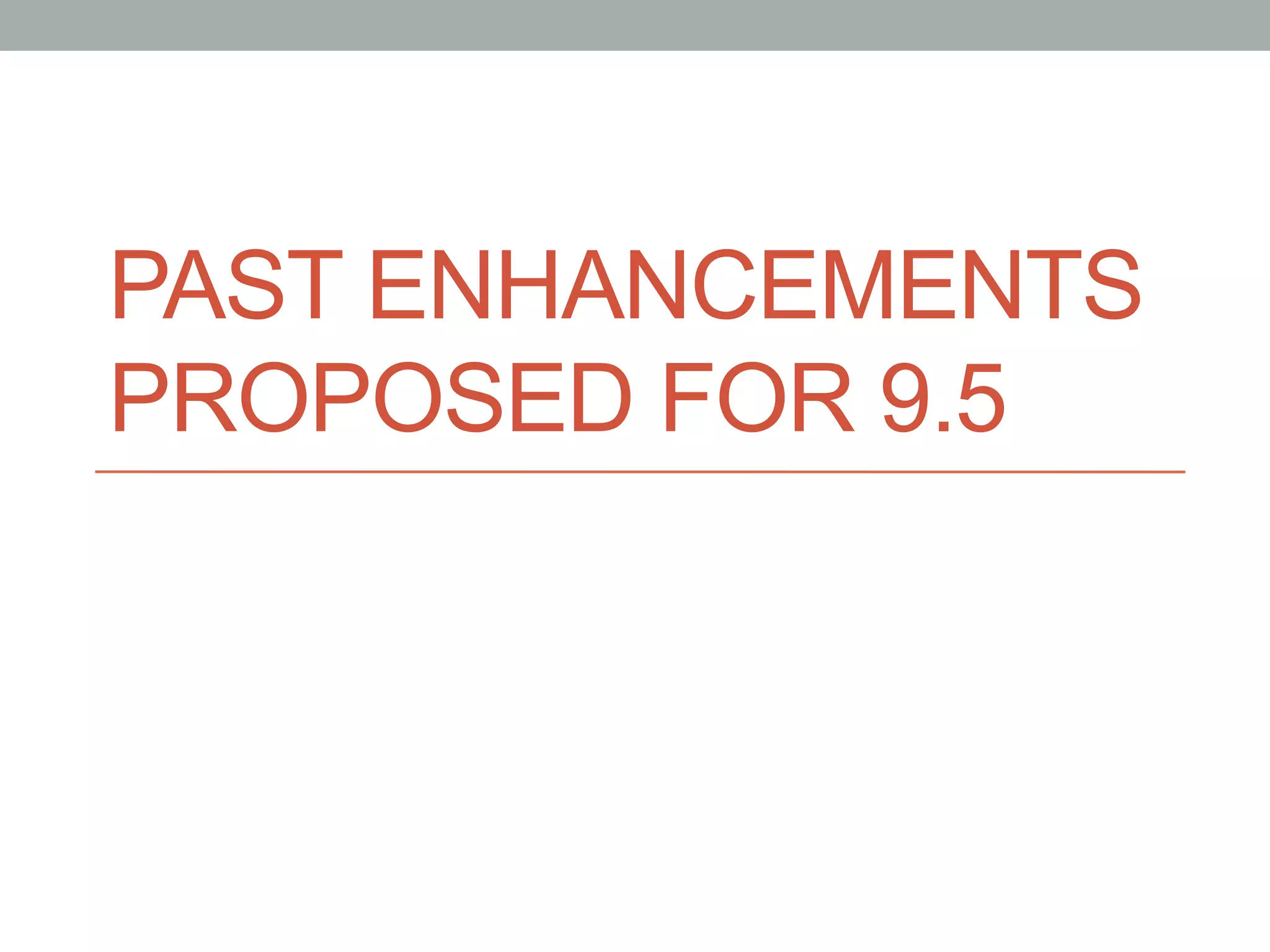

4. PAST ENHANCEMENTS
PROPOSED FOR 9.5

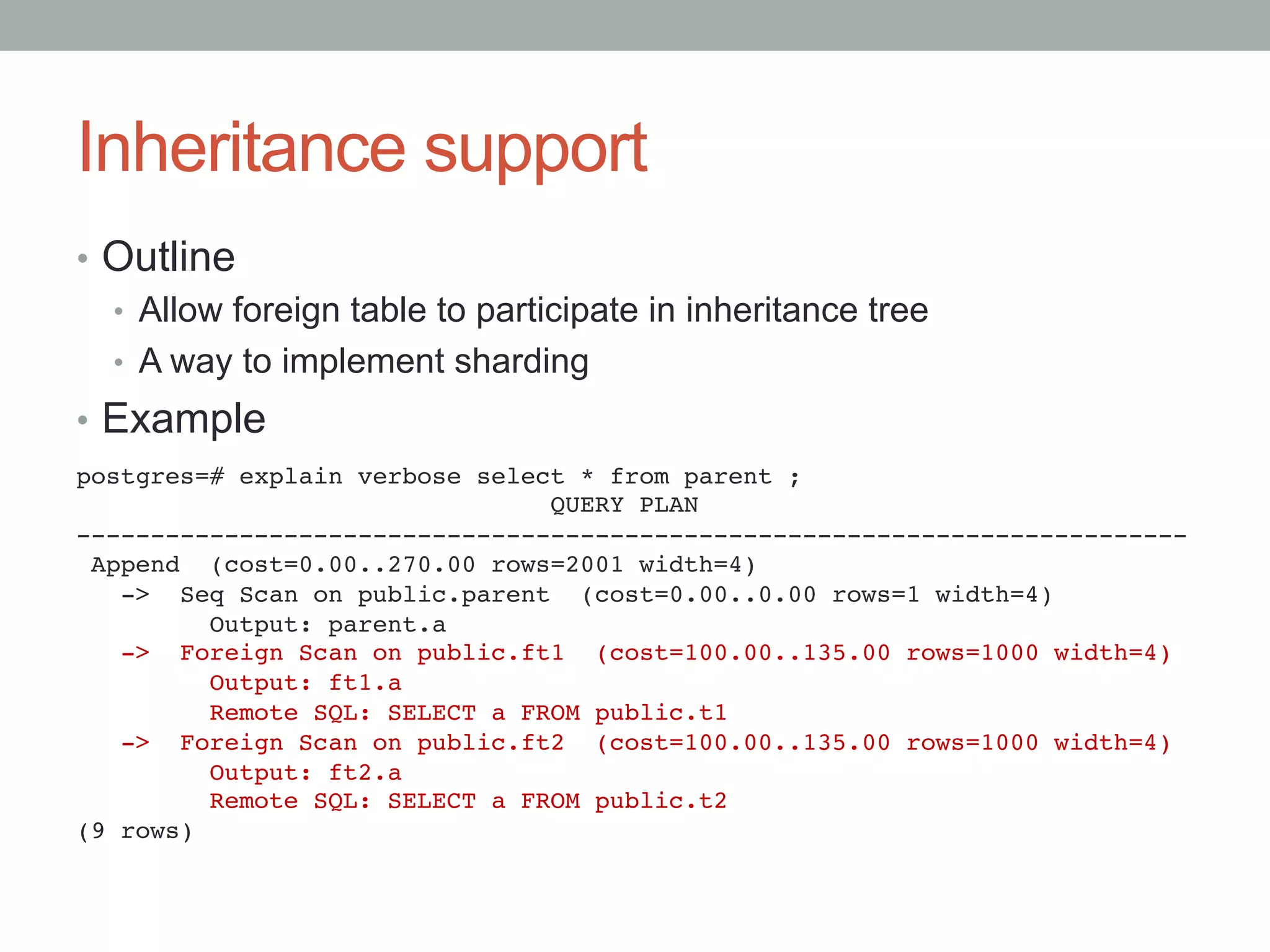

5. Inheritance support
• Outline
• Allow foreign table to participate in inheritance tree
• A way to implement sharding
• Example
postgres=# explain verbose select * from parent ;!
QUERY PLAN!
---------------------------------------------------------------------------!
Append (cost=0.00..270.00 rows=2001 width=4)!
-> Seq Scan on public.parent (cost=0.00..0.00 rows=1 width=4)!
Output: parent.a!
-> Foreign Scan on public.ft1 (cost=100.00..135.00 rows=1000 width=4)!
Output: ft1.a!
Remote SQL: SELECT a FROM public.t1!
-> Foreign Scan on public.ft2 (cost=100.00..135.00 rows=1000 width=4)!
Output: ft2.a!
Remote SQL: SELECT a FROM public.t2!
(9 rows)

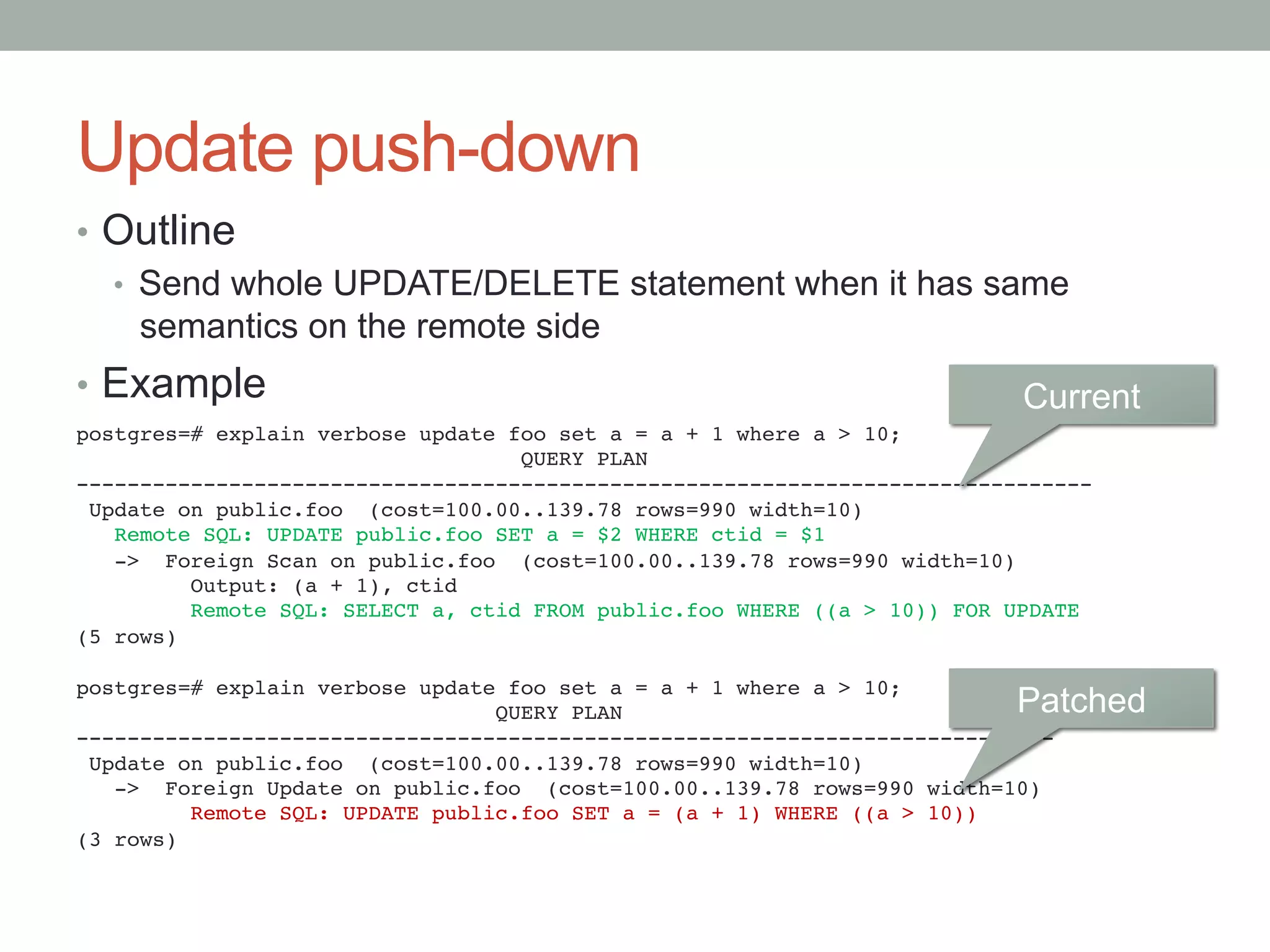

6. Update push-down
• Outline
• Send whole UPDATE/DELETE statement when it has same
semantics on the remote side
• Example
postgres=# explain verbose update foo set a = a + 1 where a > 10;!
QUERY PLAN!
--------------------------------------------------------------------------------!
Update on public.foo (cost=100.00..139.78 rows=990 width=10)!
Remote SQL: UPDATE public.foo SET a = $2 WHERE ctid = $1!
-> Foreign Scan on public.foo (cost=100.00..139.78 rows=990 width=10)!
Output: (a + 1), ctid!
Remote SQL: SELECT a, ctid FROM public.foo WHERE ((a > 10)) FOR UPDATE!
(5 rows)!
!
postgres=# explain verbose update foo set a = a + 1 where a > 10;!
QUERY PLAN!
-----------------------------------------------------------------------------!
Update on public.foo (cost=100.00..139.78 rows=990 width=10)!
-> Foreign Update on public.foo (cost=100.00..139.78 rows=990 width=10)!
Remote SQL: UPDATE public.foo SET a = (a + 1) WHERE ((a > 10))!
(3 rows)
Current
Patched

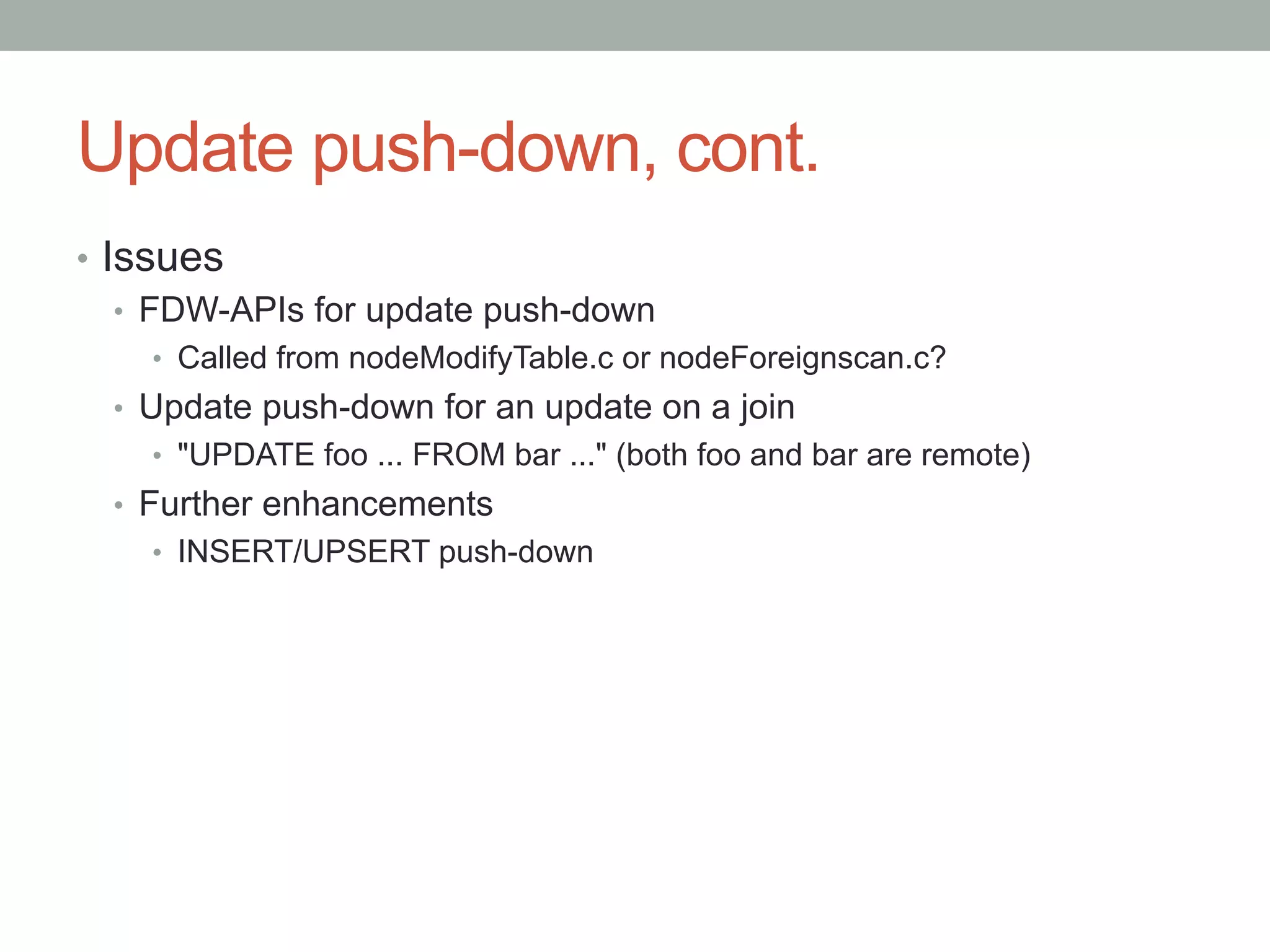

7. Update push-down, cont.
• Issues
• FDW-APIs for update push-down
• Called from nodeModifyTable.c or nodeForeignscan.c?
• Update push-down for an update on a join
• "UPDATE foo ... FROM bar ..." (both foo and bar are remote)
• Further enhancements
• INSERT/UPSERT push-down

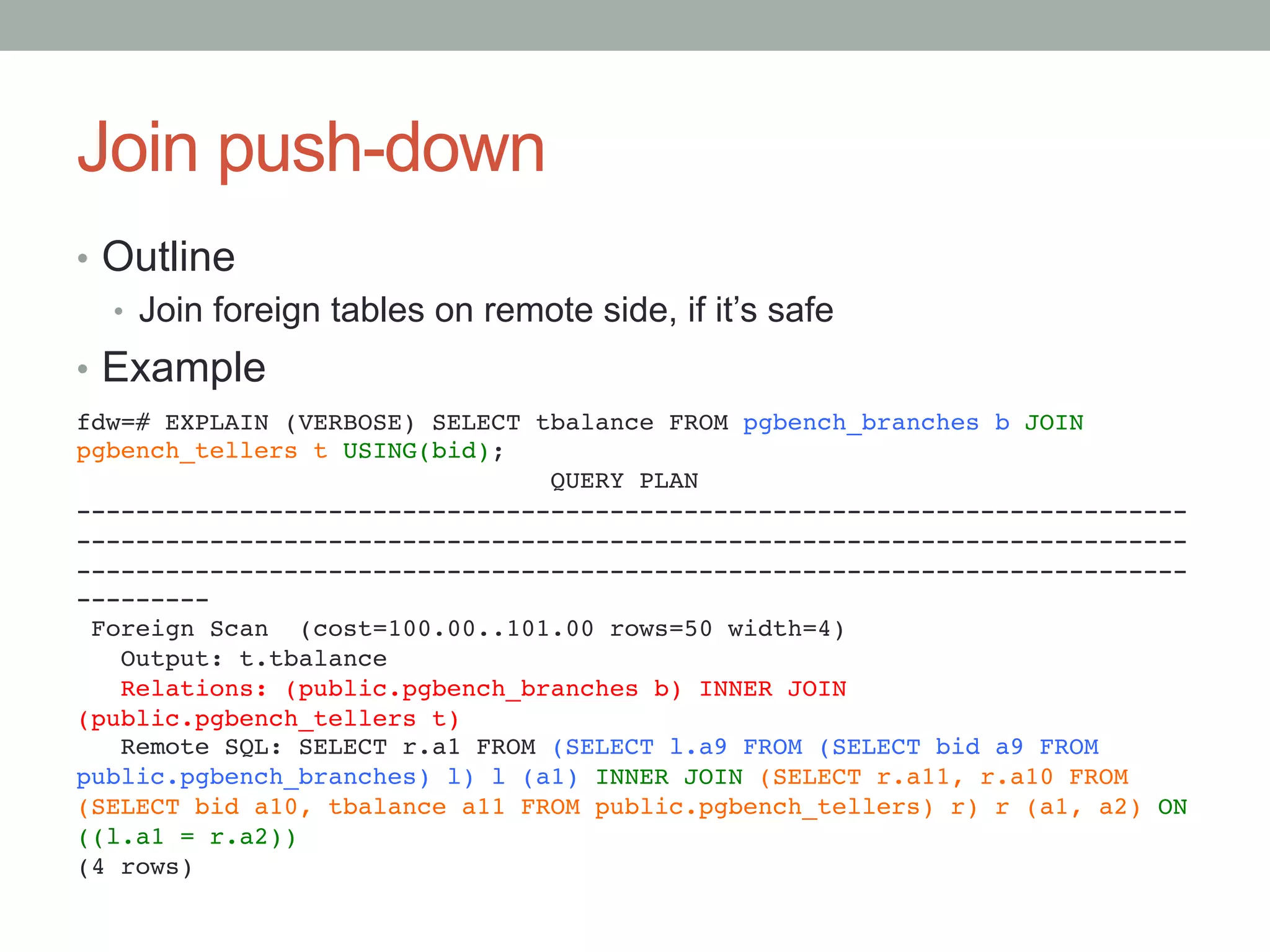

8. Join push-down
• Outline
• Join foreign tables on remote side, if it’s safe
• Example
fdw=# EXPLAIN (VERBOSE) SELECT tbalance FROM pgbench_branches b JOIN
pgbench_tellers t USING(bid);!
QUERY PLAN!
---------------------------------------------------------------------------
---------------------------------------------------------------------------
---------------------------------------------------------------------------
---------!
Foreign Scan (cost=100.00..101.00 rows=50 width=4)!
Output: t.tbalance!
Relations: (public.pgbench_branches b) INNER JOIN
(public.pgbench_tellers t)!
Remote SQL: SELECT r.a1 FROM (SELECT l.a9 FROM (SELECT bid a9 FROM
public.pgbench_branches) l) l (a1) INNER JOIN (SELECT r.a11, r.a10 FROM
(SELECT bid a10, tbalance a11 FROM public.pgbench_tellers) r) r (a1, a2) ON
((l.a1 = r.a2))!
(4 rows)

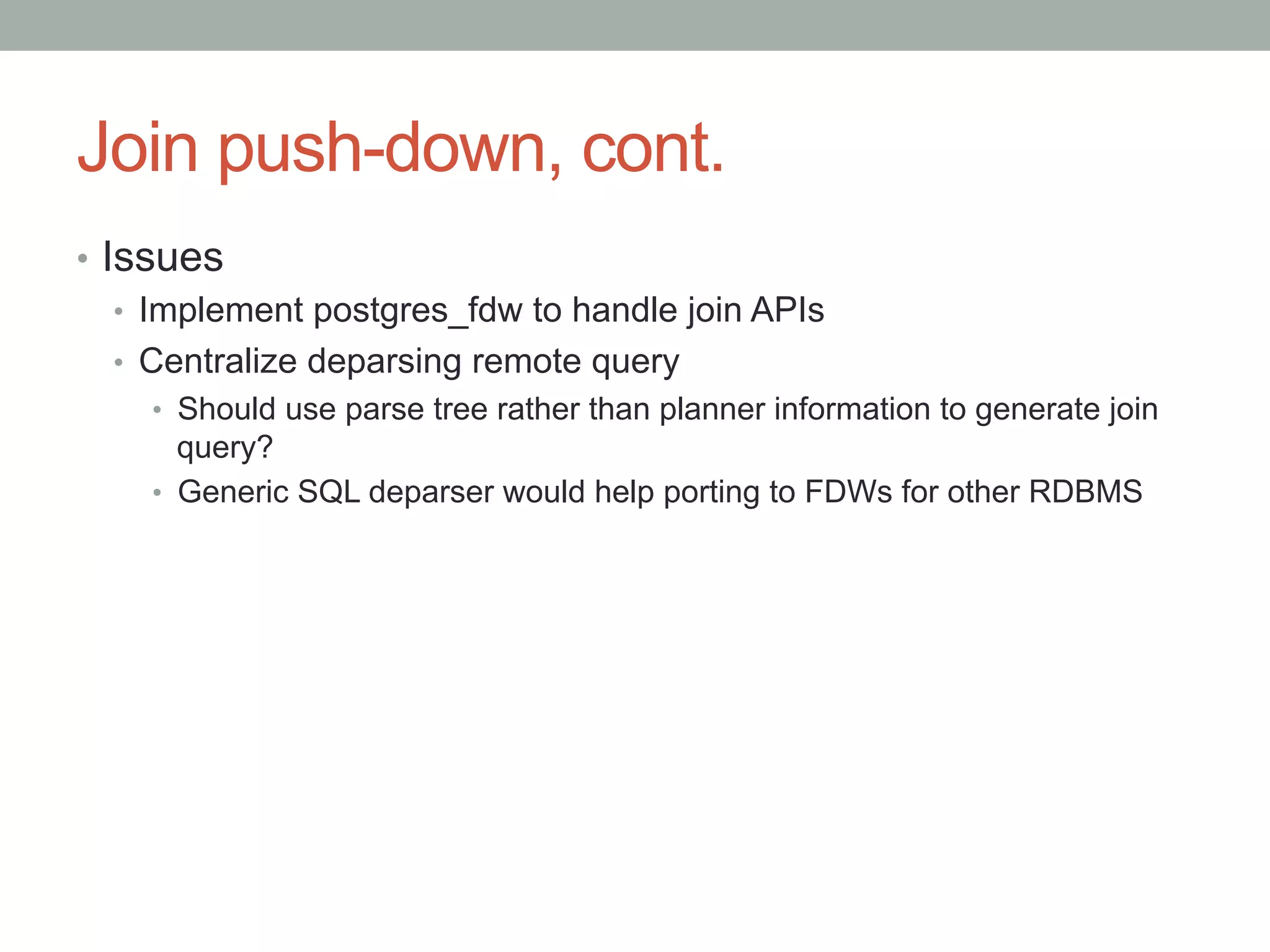

9. Join push-down, cont.
• Issues
• Implement postgres_fdw to handle join APIs
• Centralize deparsing remote query
• Should use parse tree rather than planner information to generate join
query?
• Generic SQL deparser would help porting to FDWs for other RDBMS

10. Possible remote query optimization in 9.5
• When we run a following query:
SELECT c.grade, max(s.score) max_score!
FROM scores s LEFT JOIN classes c!
ON c.class_id = s.class_id!
WHERE c.subject = ‘Math’!
GROUP BY c.grade!
HAVING max(s.score) > 50!
ORDER BY c.grade DESC;
“scores” and
“classes” are
foreign tables

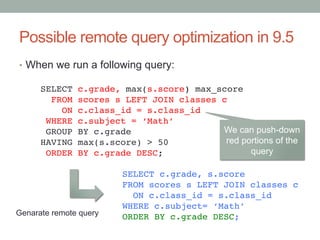

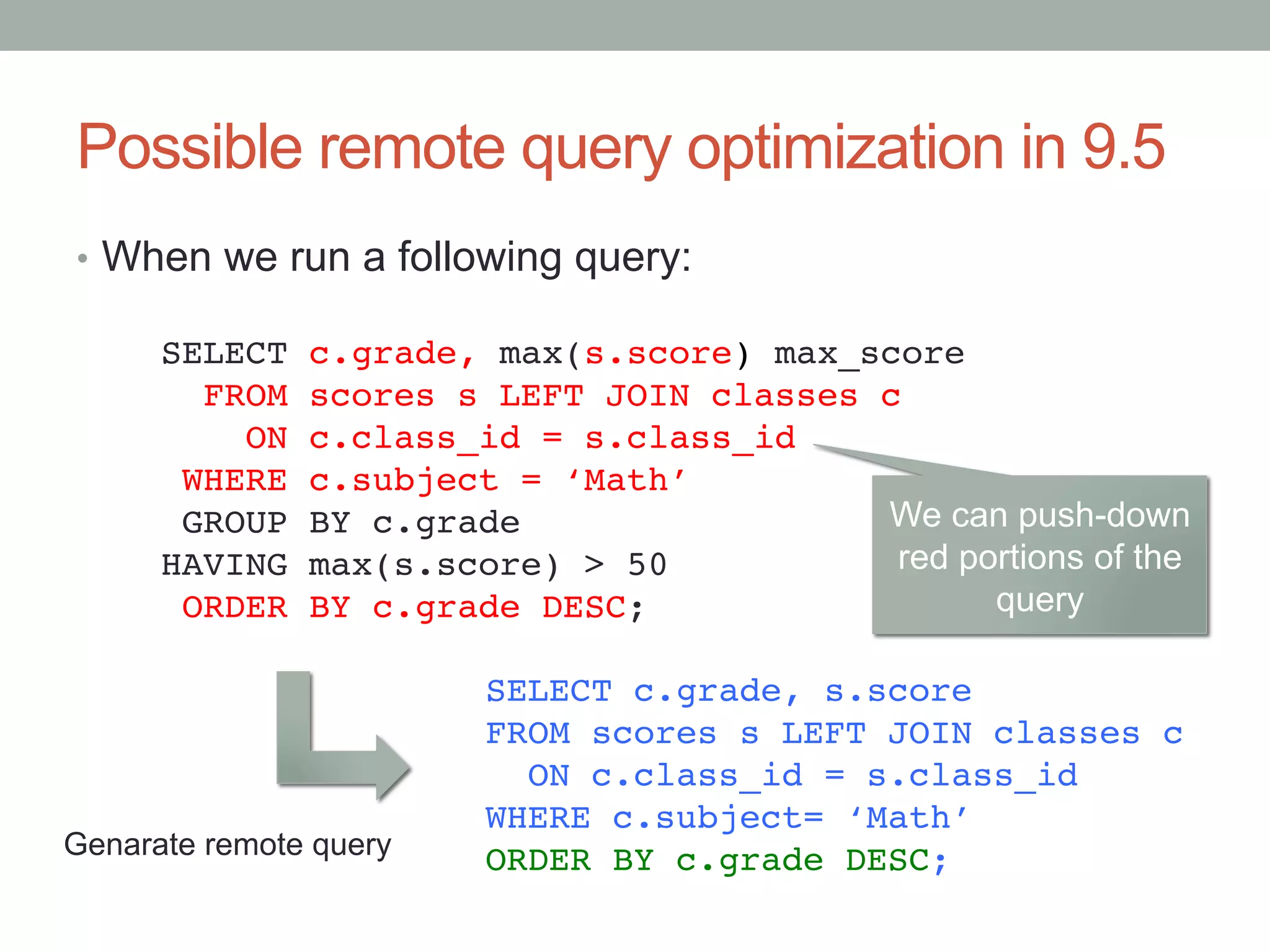

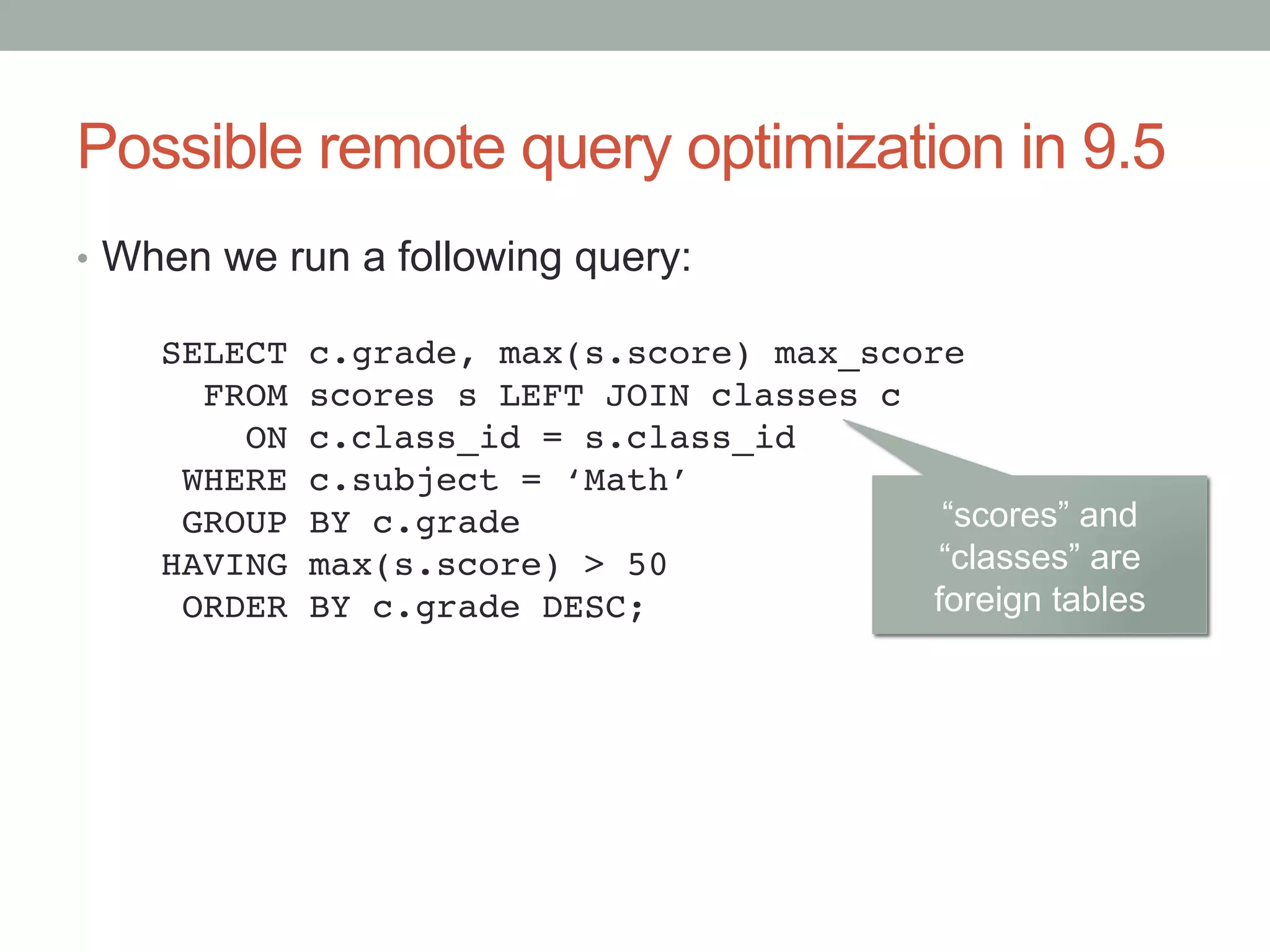

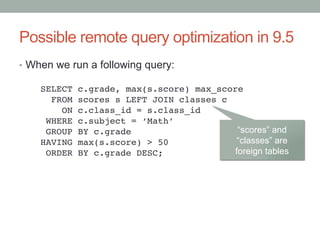

11. Possible remote query optimization in 9.5
• When we run a following query:
SELECT c.grade, max(s.score) max_score!
FROM scores s LEFT JOIN classes c!
ON c.class_id = s.class_id!
WHERE c.subject = ‘Math’!
GROUP BY c.grade!
HAVING max(s.score) > 50!
ORDER BY c.grade DESC;
SELECT c.grade, s.score!
FROM scores s LEFT JOIN classes c!
ON c.class_id = s.class_id!
WHERE c.subject= ‘Math’!
ORDER BY c.grade DESC;
Genarate remote query
We can push-down
red portions of the
query

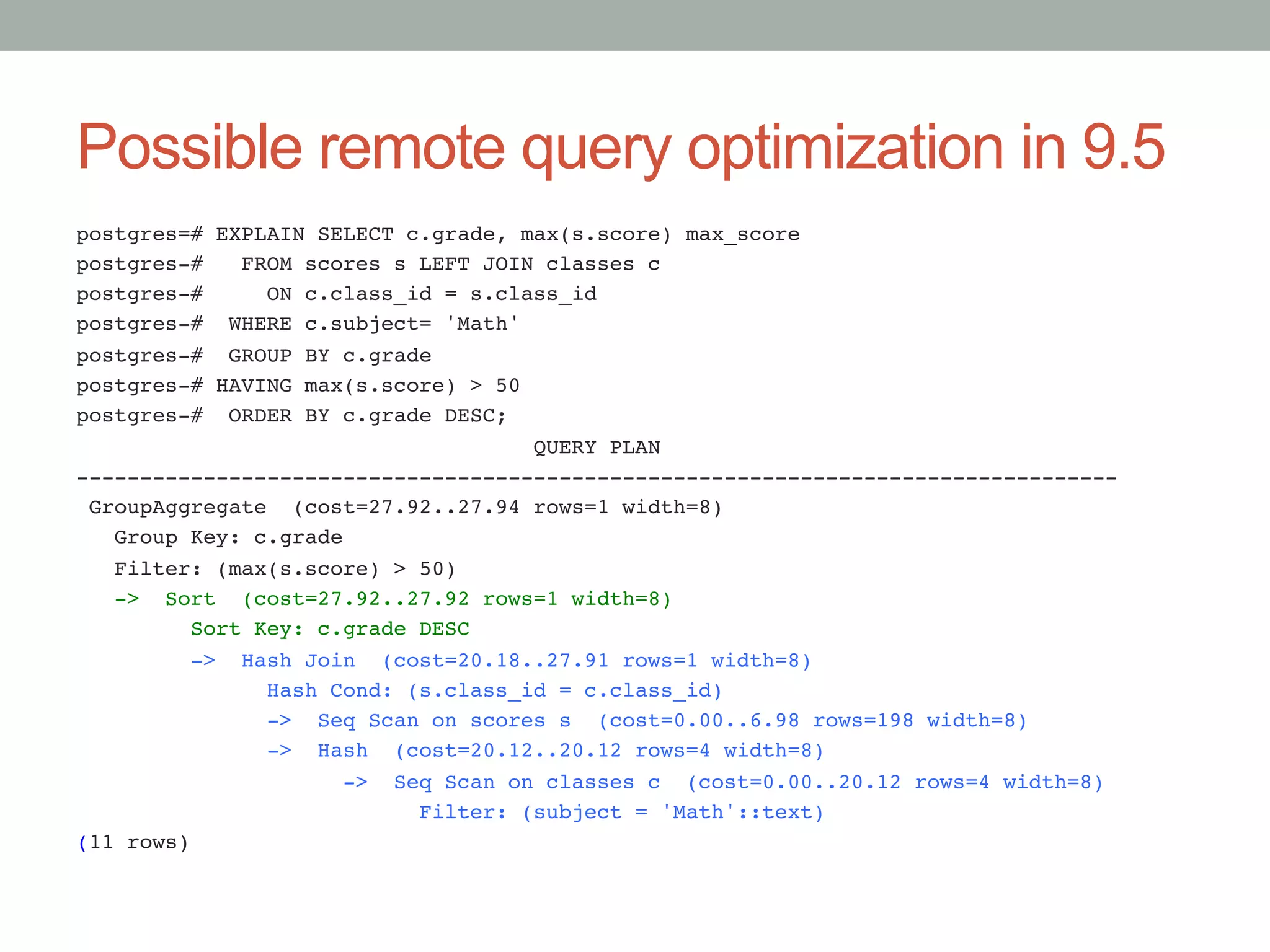

12. Possible remote query optimization in 9.5
postgres=# EXPLAIN SELECT c.grade, max(s.score) max_score!
postgres-# FROM scores s LEFT JOIN classes c!
postgres-# ON c.class_id = s.class_id!
postgres-# WHERE c.subject= 'Math'!
postgres-# GROUP BY c.grade!
postgres-# HAVING max(s.score) > 50!
postgres-# ORDER BY c.grade DESC;!
QUERY PLAN!
----------------------------------------------------------------------------------!
GroupAggregate (cost=27.92..27.94 rows=1 width=8)!
Group Key: c.grade!
Filter: (max(s.score) > 50)!
-> Sort (cost=27.92..27.92 rows=1 width=8)!
Sort Key: c.grade DESC!
-> Hash Join (cost=20.18..27.91 rows=1 width=8)!
Hash Cond: (s.class_id = c.class_id)!
-> Seq Scan on scores s (cost=0.00..6.98 rows=198 width=8)!
-> Hash (cost=20.12..20.12 rows=4 width=8)!
-> Seq Scan on classes c (cost=0.00..20.12 rows=4 width=8)!
Filter: (subject = 'Math'::text)!
(11 rows)

13. IDEAS FOR FURTHER
ENHANCEMENT

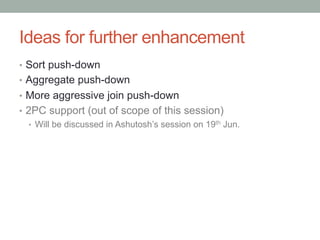

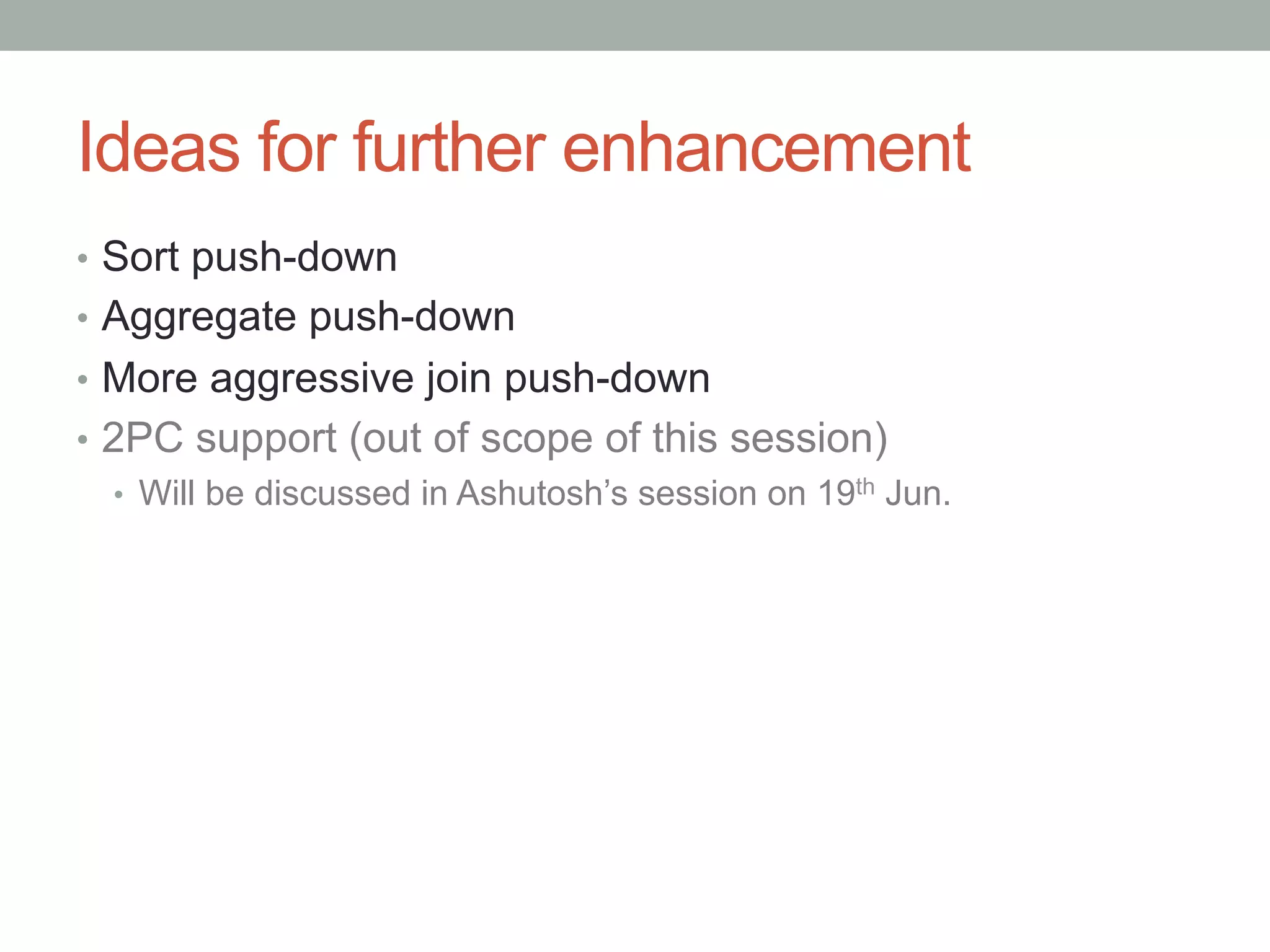

14. Ideas for further enhancement
• Sort push-down
• Aggregate push-down
• More aggressive join push-down
• 2PC support (out of scope of this session)
• Will be discussed in Ashutosh’s session on 19th Jun.

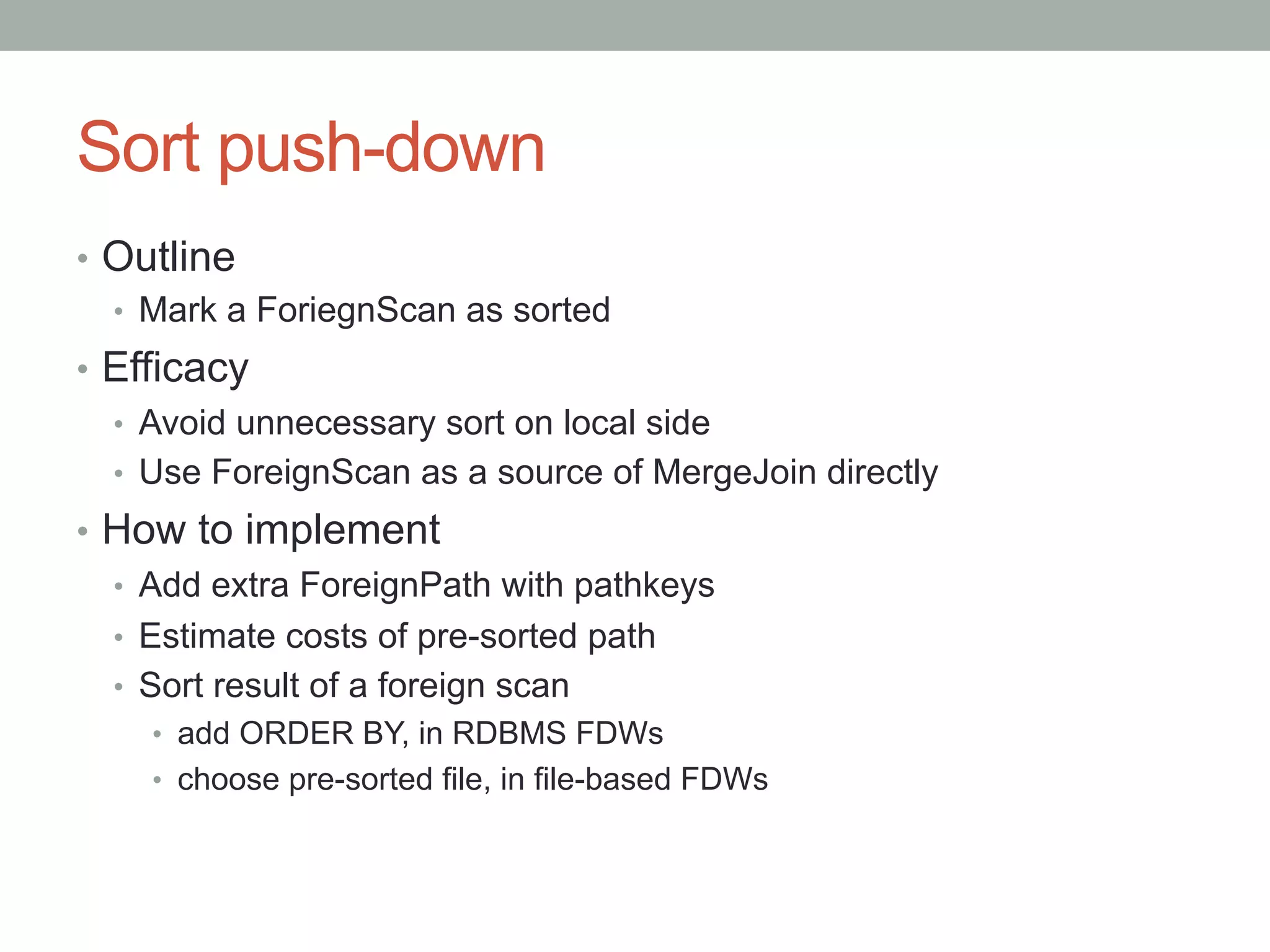

15. Sort push-down
• Outline
• Mark a ForiegnScan as sorted
• Efficacy
• Avoid unnecessary sort on local side
• Use ForeignScan as a source of MergeJoin directly
• How to implement
• Add extra ForeignPath with pathkeys
• Estimate costs of pre-sorted path
• Sort result of a foreign scan
• add ORDER BY, in RDBMS FDWs
• choose pre-sorted file, in file-based FDWs

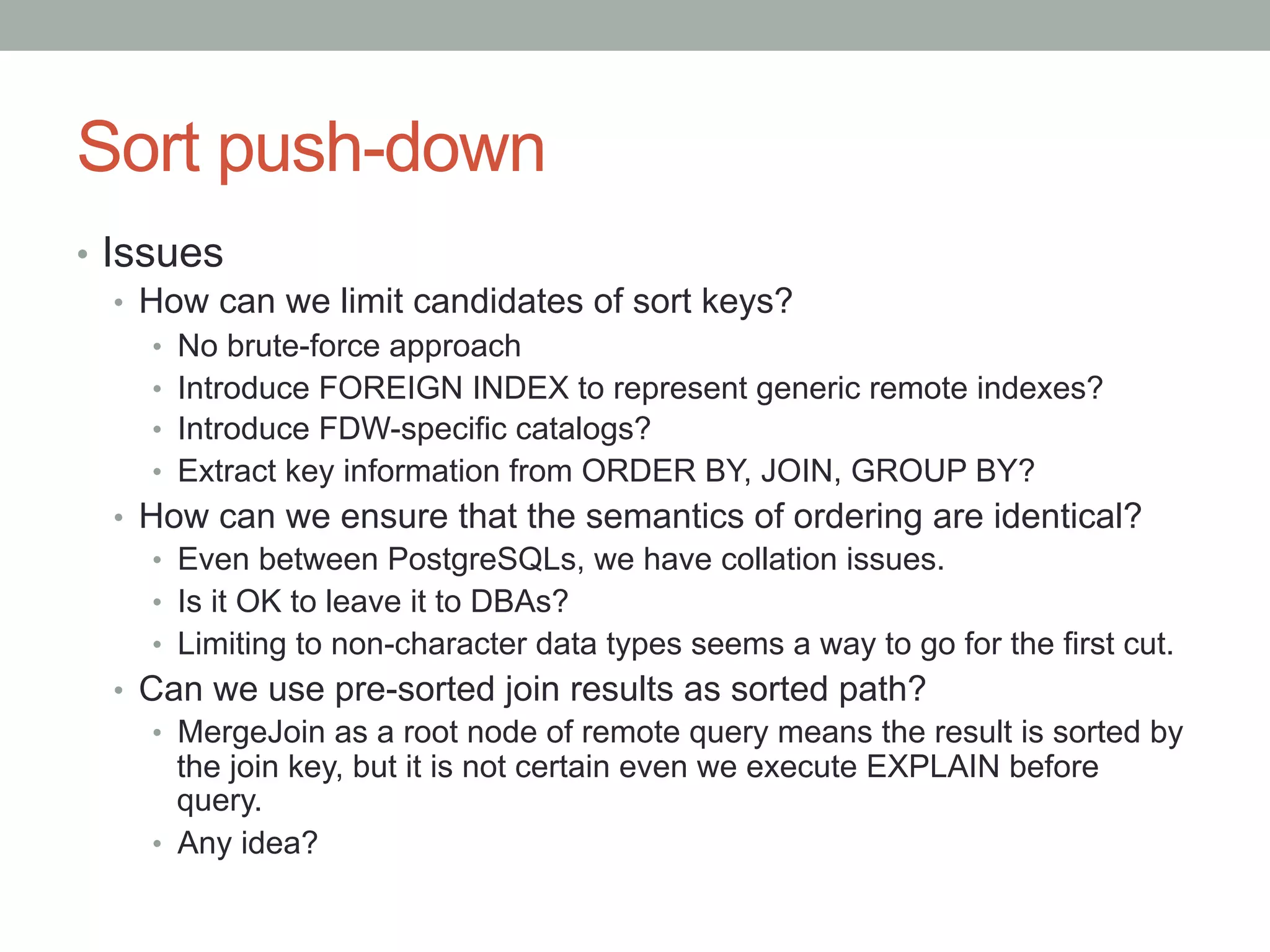

16. Sort push-down
• Issues
• How can we limit candidates of sort keys?
• No brute-force approach
• Introduce FOREIGN INDEX to represent generic remote indexes?
• Introduce FDW-specific catalogs?
• Extract key information from ORDER BY, JOIN, GROUP BY?
• How can we ensure that the semantics of ordering are identical?
• Even between PostgreSQLs, we have collation issues.
• Is it OK to leave it to DBAs?
• Limiting to non-character data types seems a way to go for the first cut.
• Can we use pre-sorted join results as sorted path?
• MergeJoin as a root node of remote query means the result is sorted by
the join key, but it is not certain even we execute EXPLAIN before
query.
• Any idea?

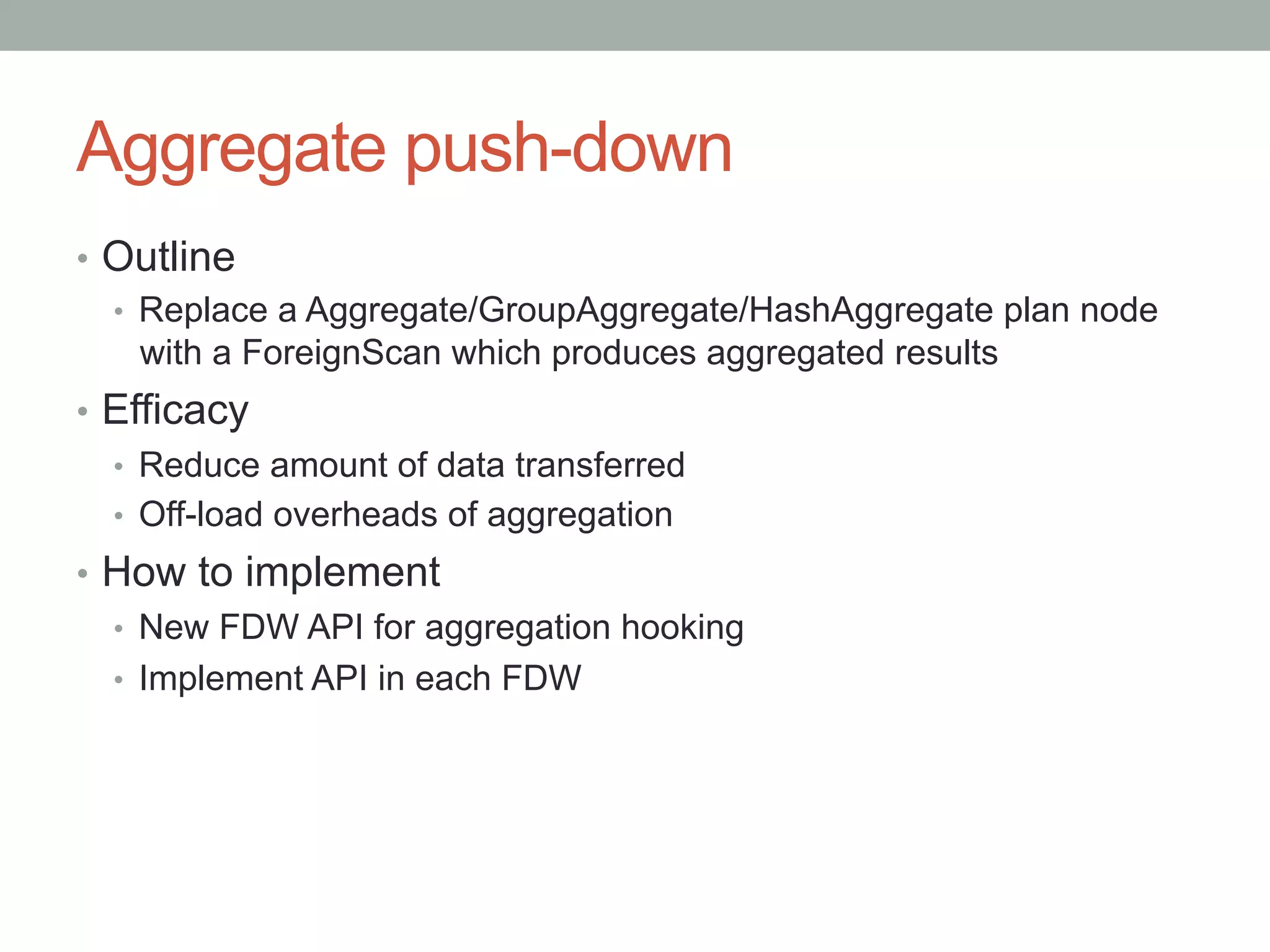

17. Aggregate push-down
• Outline
• Replace a Aggregate/GroupAggregate/HashAggregate plan node
with a ForeignScan which produces aggregated results
• Efficacy
• Reduce amount of data transferred
• Off-load overheads of aggregation
• How to implement
• New FDW API for aggregation hooking
• Implement API in each FDW

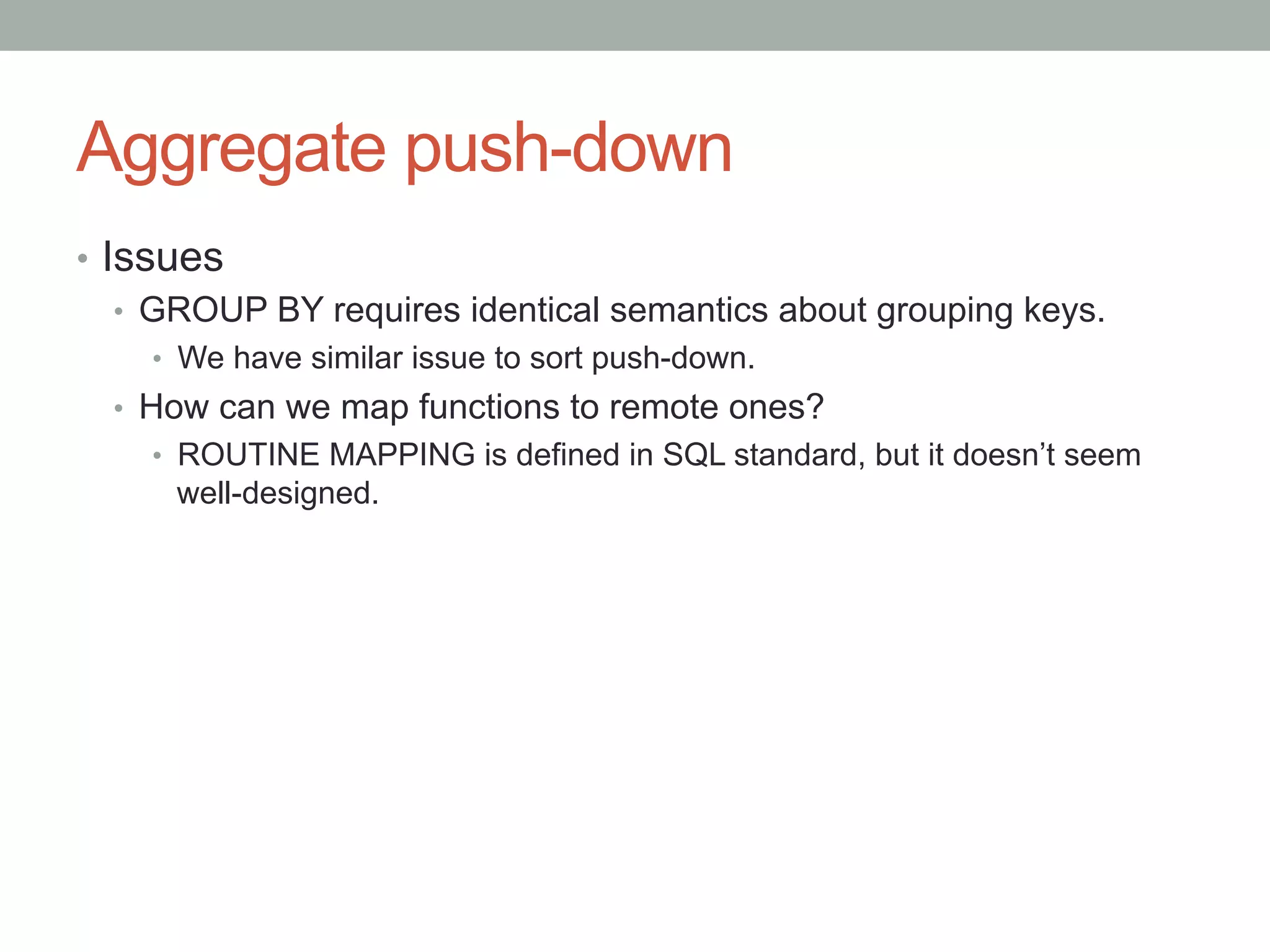

18. Aggregate push-down
• Issues
• GROUP BY requires identical semantics about grouping keys.
• We have similar issue to sort push-down.
• How can we map functions to remote ones?
• ROUTINE MAPPING is defined in SQL standard, but it doesn’t seem
well-designed.

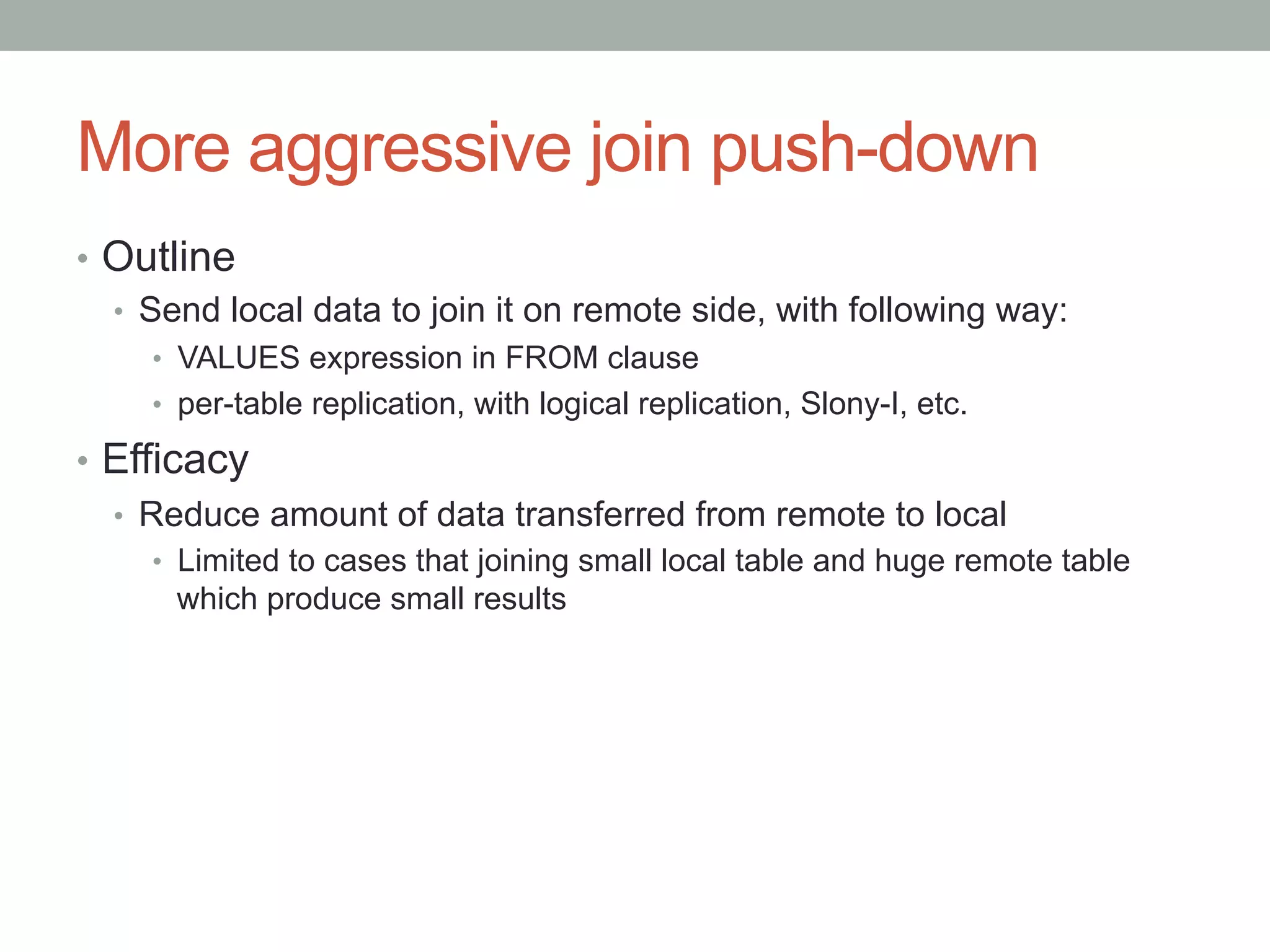

19. More aggressive join push-down
• Outline
• Send local data to join it on remote side, with following way:
• VALUES expression in FROM clause
• per-table replication, with logical replication, Slony-I, etc.
• Efficacy
• Reduce amount of data transferred from remote to local
• Limited to cases that joining small local table and huge remote table
which produce small results

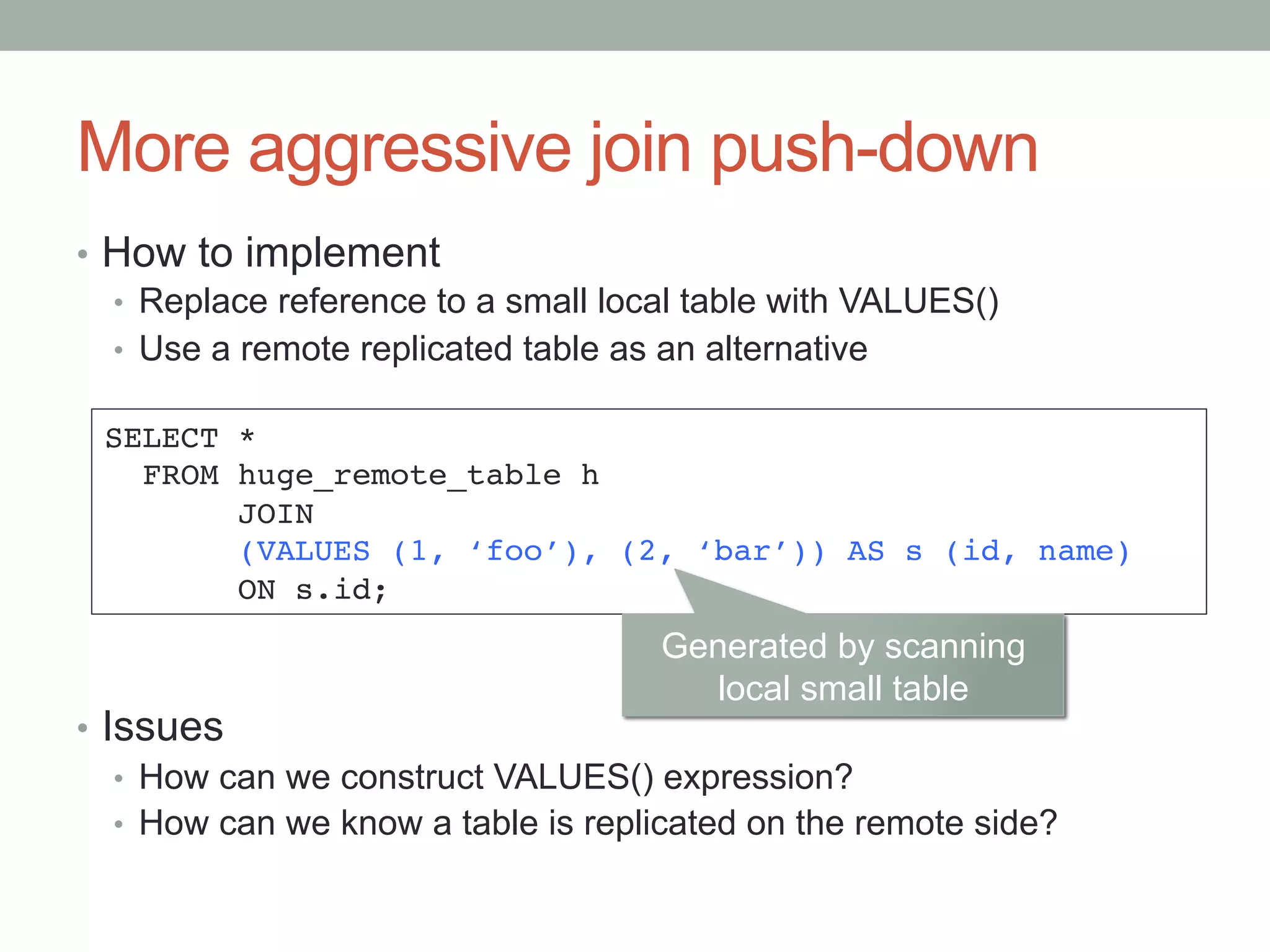

20. More aggressive join push-down
• How to implement
• Replace reference to a small local table with VALUES()
• Use a remote replicated table as an alternative
• Issues
• How can we construct VALUES() expression?
• How can we know a table is replicated on the remote side?
SELECT *!
FROM huge_remote_table h!
JOIN!
(VALUES (1, ‘foo’), (2, ‘bar’)) AS s (id, name)!
ON s.id;
Generated by scanning
local small table

21. DISCUSSIONS
