![fog
require "fog"
require "ostruct"
!
user = OpenStruct.new({
:access_key=>{
:access_key_id => "<MY_HP_KEYID>"
:secret_key => "<MY_HP_SECRET_KEY>"
}, :tenant_id => "<MY_HP_TENANT_ID>"
})
!
@connection ||= Fog::Compute.new(
:provider => 'HP',
:hp_access_key => user.access_key[:access_key_id],
:hp_secret_key => user.access_key[:secret_key],
:version => "v2",
:hp_auth_uri => "https://region-a.geo-1.identity.hpcloudsvc.com:35357/v2.0/tokens",
:hp_tenant_id => user.tenant_id,
:hp_avl_zone => "region-b.geo-1"
)](https://image.slidesharecdn.com/fogos-140611104627-phpapp01/85/Using-OpenStack-With-Fog-21-320.jpg)
![fog
flavors = @connection.list_flavors
images = @connection.list_images
server_response = @connection.create_server("my server",
flavors.body["flavors"].first["id"],
images.body["images"].first["id"])
server_id = server_response.body["server"]["id"]
while(true){
response = @connection.list_servers(:status => "ACTIVE")
active_ids = response.body["servers"].map { |s| s["id"] }
unless active_ids.select { |item| item == server_id }.empty?
break
end
sleep(2)
}
!
#do stuff now](https://image.slidesharecdn.com/fogos-140611104627-phpapp01/85/Using-OpenStack-With-Fog-22-320.jpg)
![fog collections
module Fog
module Compute
class HPV2
class VolumeAttachments < Fog::Collection
!
model Fog::Compute::HPV2::VolumeAttachment
!
attr_accessor :server
!
def all
requires :server
data = service.list_server_volumes(server.id).body['volumeAttachments']
load(data)
end
!
def get(volume_id)
requires :server
if data = service.get_server_volume_details(server.id, volume_id).body['volumeAttachment']
new(data)
end
rescue Fog::Compute::HPV2::NotFound
nil
end
end
end
end
end](https://image.slidesharecdn.com/fogos-140611104627-phpapp01/85/Using-OpenStack-With-Fog-23-320.jpg)
![fog models
module Fog
module Compute
class HPV2
!
class AvailabilityZone < Fog::Model
!
identity :name, :aliases => 'zoneName'
!
attribute :zoneState
attribute :hosts
!
def available?
zoneState['available']
end
!
end
!
end
end
end](https://image.slidesharecdn.com/fogos-140611104627-phpapp01/85/Using-OpenStack-With-Fog-24-320.jpg)
![fog requests
• actual business logic for request
def list_flavors(options = {})
request(
:expects => [200, 203],
:method => 'GET',
:path => 'flavors',
:query => options
)
end](https://image.slidesharecdn.com/fogos-140611104627-phpapp01/85/Using-OpenStack-With-Fog-25-320.jpg)
Uploaded byMike Hagedorn
Using OpenStack With Fog
The document outlines OpenStack, an open-source cloud infrastructure that runs on non-proprietary hardware and is governed by the OpenStack Foundation. It includes a brief history of its inception, prominent projects like Nova and Swift, and the use of the Fog library for Ruby to interact with OpenStack services. Additionally, it addresses concerns over global compute workload distribution and invites participation in OpenStack development.
Using OpenStack With Fog
- 1.

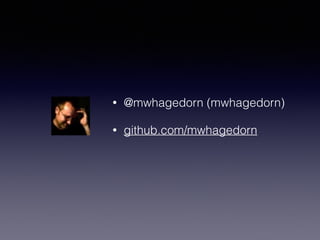

- 2. • @mwhagedorn (mwhagedorn) •github.com/mwhagedorn
- 3.

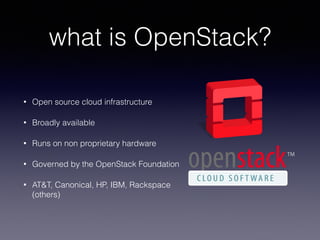

- 4. what is OpenStack? •Open source cloud infrastructure • Broadly available • Runs on non proprietary hardware • Governed by the OpenStack Foundation • AT&T, Canonical, HP, IBM, Rackspace (others)

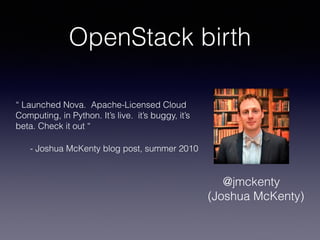

- 5. OpenStack birth “ LaunchedNova. Apache-Licensed Cloud Computing, in Python. It’s live. it’s buggy, it’s beta. Check it out “ - Joshua McKenty blog post, summer 2010 @jmckenty (Joshua McKenty)

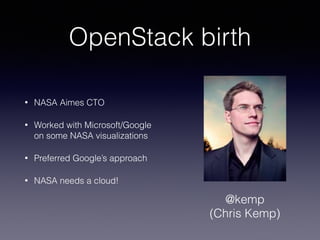

- 6. OpenStack birth • NASAAimes CTO • Worked with Microsoft/Google on some NASA visualizations • Preferred Google’s approach • NASA needs a cloud! @kemp (Chris Kemp)

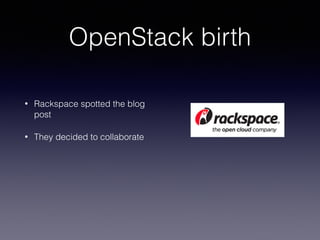

- 7. OpenStack birth • Rackspacespotted the blog post • They decided to collaborate
- 8.

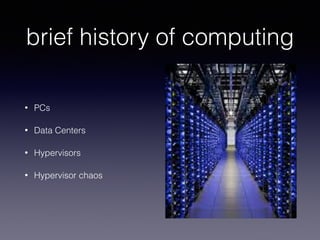

- 9. brief history ofcomputing • PCs • Data Centers • Hypervisors • Hypervisor chaos
- 10.

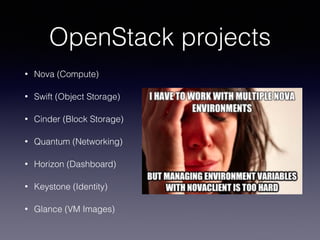

- 11. OpenStack projects • Nova(Compute) • Swift (Object Storage) • Cinder (Block Storage) • Quantum (Networking) • Horizon (Dashboard) • Keystone (Identity) • Glance (VM Images)
- 12. devstack.org • git clonehttps://github.com/ openstack-dev/devstack.git • cd devstack && ./stack.sh

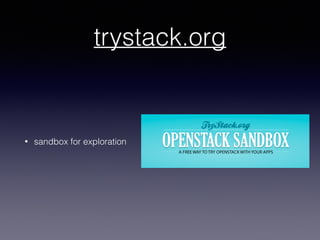

- 13. trystack.org • sandbox forexploration
- 14.
- 15. ok, why shouldI care? • Less than 2% of global compute workloads run on AWS • Large companies have public data concerns • Countries have security concerns

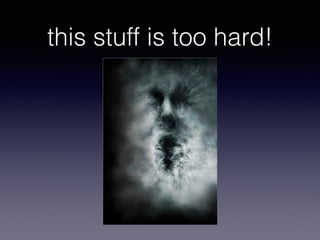

- 16. this stuff istoo hard!
- 17. fog • ruby cloudservices • fog.io • github.com/fog/fog • @fog • @geemus (Wesley Beary) • “gem install fog”

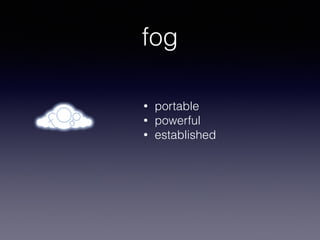

- 18. fog • portable • powerful •established

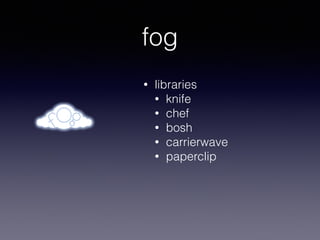

- 19. fog • libraries • knife •chef • bosh • carrierwave • paperclip

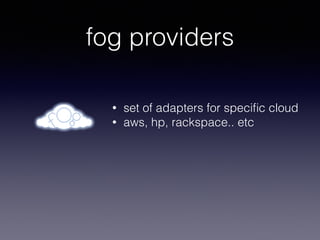

- 20. fog providers • setof adapters for specific cloud • aws, hp, rackspace.. etc

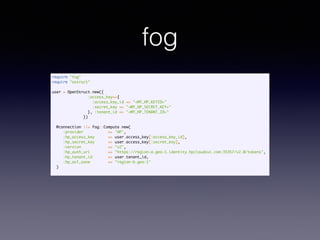

- 21. fog require "fog" require "ostruct" ! user= OpenStruct.new({ :access_key=>{ :access_key_id => "<MY_HP_KEYID>" :secret_key => "<MY_HP_SECRET_KEY>" }, :tenant_id => "<MY_HP_TENANT_ID>" }) ! @connection ||= Fog::Compute.new( :provider => 'HP', :hp_access_key => user.access_key[:access_key_id], :hp_secret_key => user.access_key[:secret_key], :version => "v2", :hp_auth_uri => "https://region-a.geo-1.identity.hpcloudsvc.com:35357/v2.0/tokens", :hp_tenant_id => user.tenant_id, :hp_avl_zone => "region-b.geo-1" )

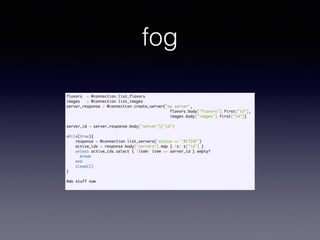

- 22. fog flavors = @connection.list_flavors images= @connection.list_images server_response = @connection.create_server("my server", flavors.body["flavors"].first["id"], images.body["images"].first["id"]) server_id = server_response.body["server"]["id"] while(true){ response = @connection.list_servers(:status => "ACTIVE") active_ids = response.body["servers"].map { |s| s["id"] } unless active_ids.select { |item| item == server_id }.empty? break end sleep(2) } ! #do stuff now

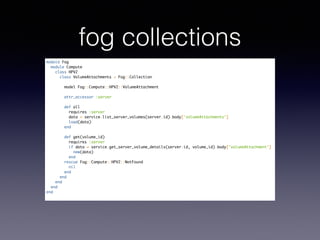

- 23. fog collections module Fog moduleCompute class HPV2 class VolumeAttachments < Fog::Collection ! model Fog::Compute::HPV2::VolumeAttachment ! attr_accessor :server ! def all requires :server data = service.list_server_volumes(server.id).body['volumeAttachments'] load(data) end ! def get(volume_id) requires :server if data = service.get_server_volume_details(server.id, volume_id).body['volumeAttachment'] new(data) end rescue Fog::Compute::HPV2::NotFound nil end end end end end

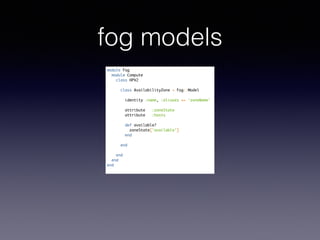

- 24. fog models module Fog moduleCompute class HPV2 ! class AvailabilityZone < Fog::Model ! identity :name, :aliases => 'zoneName' ! attribute :zoneState attribute :hosts ! def available? zoneState['available'] end ! end ! end end end

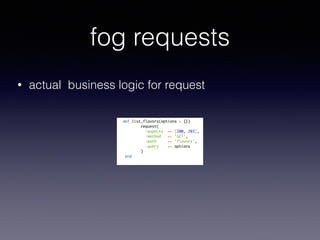

- 25. fog requests • actualbusiness logic for request def list_flavors(options = {}) request( :expects => [200, 203], :method => 'GET', :path => 'flavors', :query => options ) end
- 26. fog mocks • testdata to return example API responses • requires no network connection

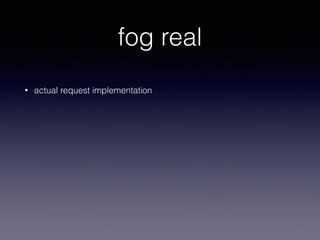

- 27. fog real • actualrequest implementation

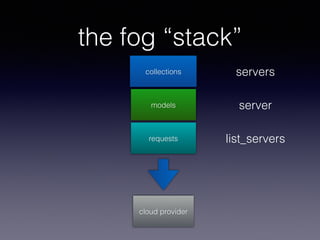

- 28. the fog “stack” collections models requests cloudprovider servers server list_servers

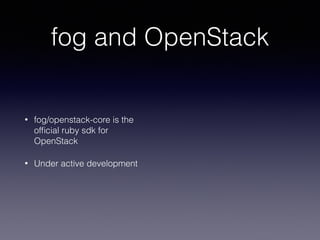

- 29. fog and OpenStack •fog/openstack-core is the official ruby sdk for OpenStack • Under active development

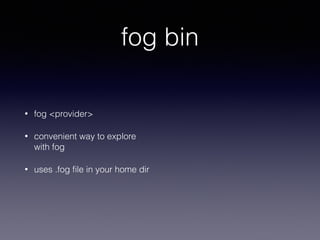

- 30. fog bin • fog<provider> • convenient way to explore with fog • uses .fog file in your home dir

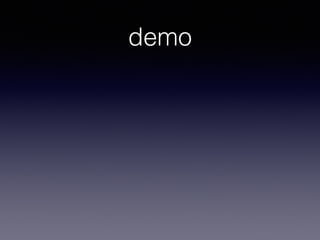

- 31.

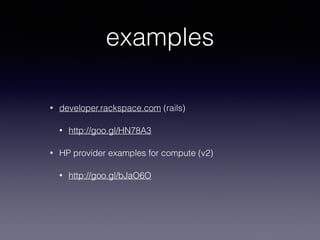

- 32. examples • developer.rackspace.com (rails) •http://goo.gl/HN78A3 • HP provider examples for compute (v2) • http://goo.gl/bJaO6O

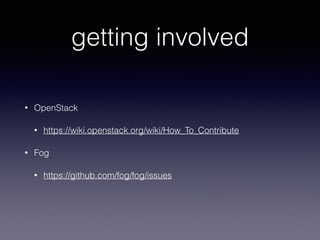

- 33. getting involved • OpenStack •https://wiki.openstack.org/wiki/How_To_Contribute • Fog • https://github.com/fog/fog/issues

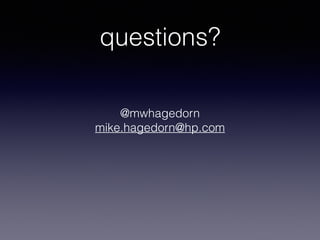

- 34.
