2. Standard
Dewatering Bag
The flow rate for the standard
dewatering bag is 95 gal/min/ft2
versus 192 gal/min/ft2 for the
Pump-It Tube.

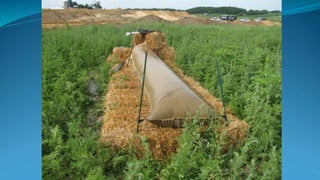

Pump-It Tube enables solutions
at higher flow rates. Increasing
productivity .
The standard dewatering bags
ranging from 3x3, 6x6, 10x15, to
15x15.

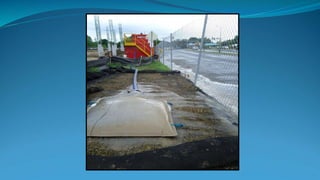

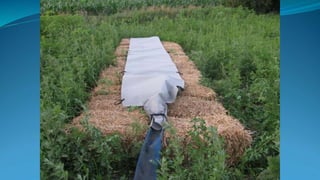

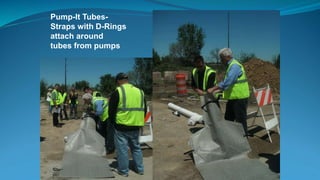

Pump-It Tube vs. Standard Bag
A 15ft x 15ft dewatering bag is
replaced by a 40 inch x 20 ft
Pump-It Tube.
12. Curb Inlet Protection (Clip Guard)
The Clip Guard is ideal for protecting concrete storm drains from silt and debris.
• Installs easily, just clip into place
• High Flow Grey Material allows 192 gal/ft2/min
• Reusable-After use; clean by spraying out sediment
• Also available in custom sizes
• Hydrocarbon model- incorporate polymor which solidifies hydrocarbons.
• Reusable

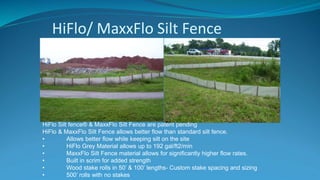

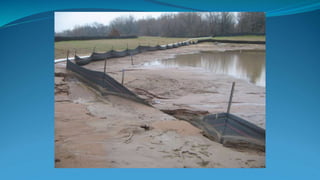

17. HiFlo/ MaxxFlo Silt Fence
HiFlo Silt fence® & MaxxFlo Silt Fence are patent pending
HiFlo & MaxxFlo Silt Fence allows better flow than standard silt fence.
• Allows better flow while keeping silt on the site
• HiFlo Grey Material allows up to 192 gal/ft2/min
• MaxxFlo Silt Fence material allows for significantly higher flow rates.
• Built in scrim for added strength
• Wood stake rolls in 50’ & 100’ lengths- Custom stake spacing and sizing
• 500’ rolls with no stakes

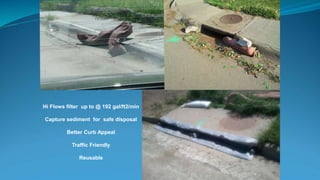

18. Hi Flows filter up to @ 192 gal/ft2/min
Capture sediment for safe disposal
Better Curb Appeal
Traffic Friendly
Reusable

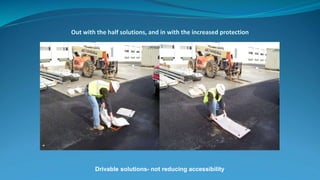

19. Out with the half solutions, and in with the increased protection
Drivable solutions- not reducing accessibility

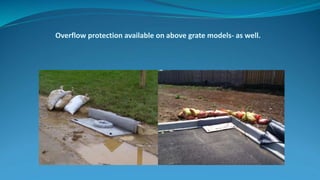

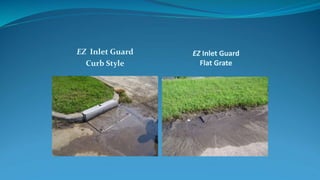

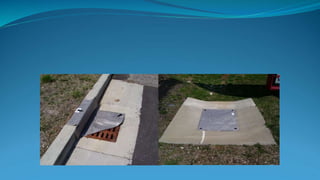

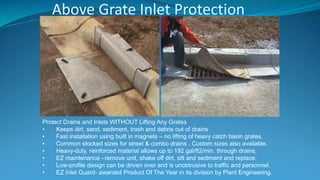

20. Above Grate Inlet Protection
Protect Drains and Inlets WITHOUT Lifting Any Grates
• Keeps dirt, sand, sediment, trash and debris out of drains
• Fast installation using built in magnets – no lifting of heavy catch basin grates.
• Common stocked sizes for street & combo drains . Custom sizes also available.
• Heavy-duty, reinforced material allows up to 192 gal/ft2/min. through drains.
• EZ maintenance –remove unit, shake off dirt, silt and sediment and replace.
• Low-profile design can be driven over and is unobtrusive to traffic and personnel.
• EZ Inlet Guard- awarded Product Of The Year in its division by Plant Engineering.

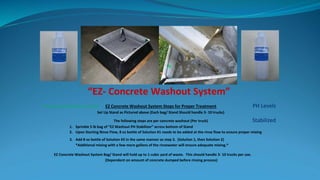

24. “EZ- Concrete Washout System”
Treat Slurry & Release on Site EZ Concrete Washout System Steps for Proper Treatment PH Levels
Set Up Stand as Pictured above (Each bag/ Stand Should handle 3- 10 trucks)
The following steps are per concrete washout (Per truck) Stabilized
1. Sprinkle 5 lb bag of “EZ Washout PH Stabilizer” across bottom of Stand
2. Upon Starting Rinse Flow, 8 oz bottle of Solution #1 needs to be added at the rinse flow to ensure proper mixing
3. Add 8 oz bottle of Solution #2 in the same manner as step 3. (Solution 1, then Solution 2)
*Additional mixing with a few more gallons of the rinsewater will ensure adequate mixing.*
EZ Concrete Washout System Bag/ Stand will hold up to 1 cubic yard of waste. This should handle 3- 10 trucks per use.
(Dependent on amount of concrete dumped before rinsing process)
