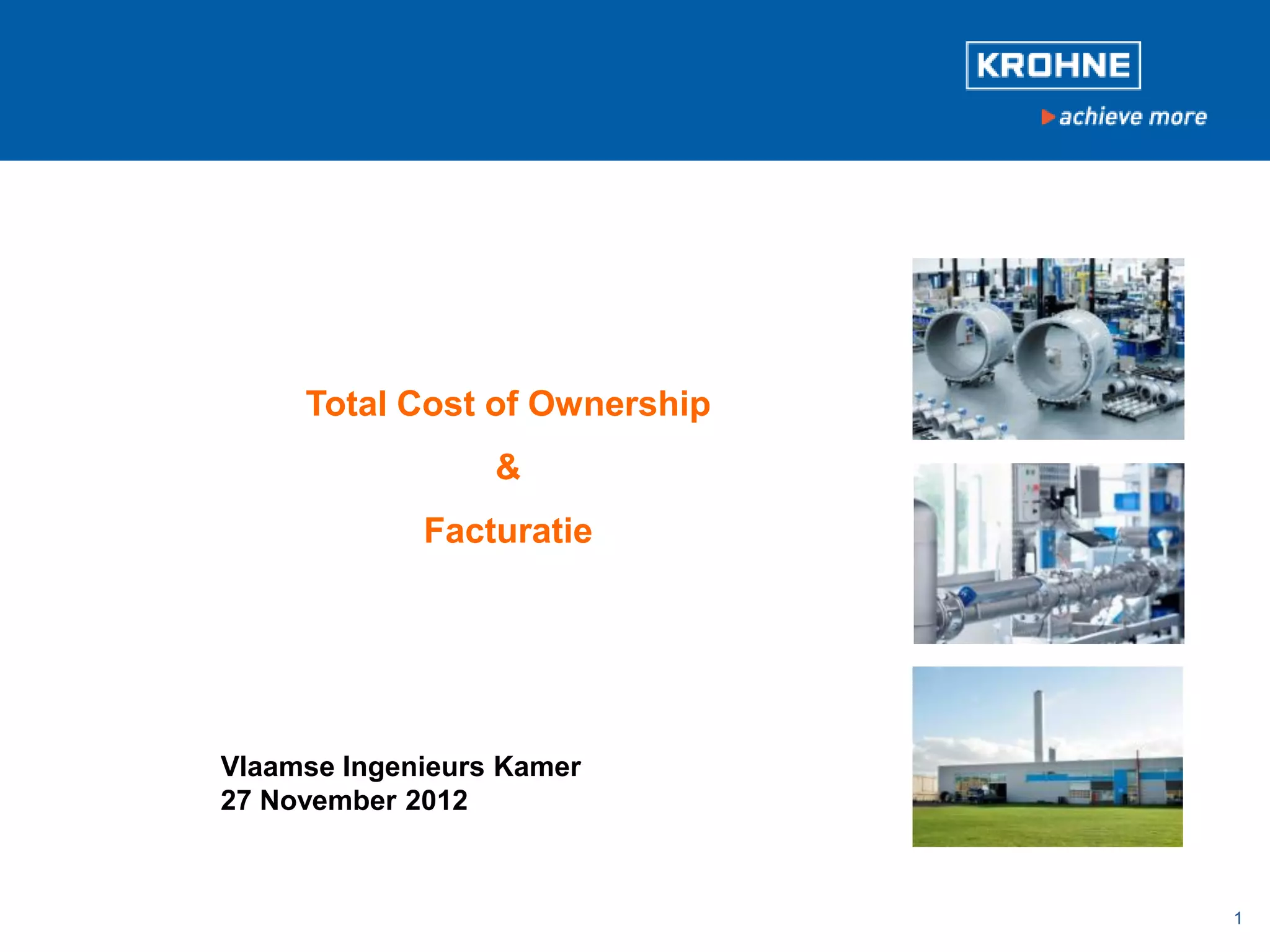

2. Inhoud
2
Total Cost of Ownership
CAPEX (Aanschaffingskosten)
Installatie kosten
Operationele kosten
Energiekosten
Onderhoud
TCO voor procesmetingen
Praktijkvoorbeeld
Overzicht voor flowmeetprincipes
TCO voor ijkwaardige (CT) metingen
Invloed van normen (MID) op TCO
Meetonzekerheid
3. Cost of Ownership
Wat zijn de kosten van een flowmeter?
Hoe kan een goedkope flowmeter toch duurder blijken te zijn?
Aanschaf
Het is aan te bevelen om
bij de aanschaf van een
instrument niet alleen met
de initiële kosten rekening
te houden maar ook met
de Life Cycle Cost of Cost
of Ownership
Cost of ownership
Alle kosten van aanschaf, engineering,
onderhoud, gebruik en uiteindelijk verwijdering
Kostensoorten:
• Initiële kosten
Engineering
Acquisitie
Installatie
• Gebruiks- & Onderhoudskosten
Drukverlies
Onderhoud & Reparatie
Verloop in meetnauwkeurigheid
In-situ calibratie
3
4. Capex
Wat zijn de (aanschaf) kosten van installatie werkelijk
Engineering kosten
Breed inzet gebied
Veel rekenen, engineering tools
Bekend met applicatie (kopie)
Totale installatie kosten
Meetschijf, niet de schijf alleen ook de tubing block & bleed valves en de dP meetcel zelf
Turbine of PD meter, niet alleen maar ook filters, strainers
Voor grotere instrumenten denk ook aan mechanische supports
Welke uitgangssignalen
4 draads – 2 draads
Draadloos
Analoog 4-20 mA (/digitaal met HART)
Digitaal FF- Profibus
4
5. Cost of Ownership totale installatiekosten
Fliter, strainers
Filters worden vaak gebruikt om PD-meters,
turbines en andere flowmeters te beschermen
tegen vervuiling door (vaste) deeltjes.
Filters kunnen een gunstig effect hebben op de
levensduur en hercalibratie interval van
flowmeters.
Filters zijn vaak een verplichte keuze omdat
bijvoorbeeld PD-meters zelfs de flow kunnen
blokkeren door opeenhoping van vaste deeltjes.
5
6. 6
1 filter (strainer) per meter run
Additionele instrumentatie:
- Uitneembare filter mand
- Verschil druk transmitter
- Luchtafscheider
- Kleppen
Filter costs in Euro
Diameter # Strainer Install.
4” 150 2.000 1.000
600 6.500 3.000
8” 150 6.000 3.000
600 13.500 6.500
12” 150 12.000 6.000
600 27.000 13.500
16” 150 18.500 9.000
600 37.000 18.000
20” 150 27.500 13.500
600 48.500 22.500
Installation Filters / Strainers
Cost of Ownership totale installatiekosten
7. Costs of made-to-measure manholes
Engineering • Planning, Drawings, Soil report
Construction • Site set-up
• Excavation & disposal
• Dewatering
Investments • (Prefabricated) Shaft
• Isolation valve + bypass
(for maintenance & replacement)
Underground installation
Simple underground installation
of meter replaces building of
manholes
Cost of Ownership totale installatiekosten
7
8. Mechanical meters MID (Waterflux 3070)
Lay-out
Sizes
Woltmann
Compound
Single jet
DN50- DN300 2"- 12”
DN50 - DN200 2" - 8“
DN15 - DN100 1/2" - 4“
DN25 – DN300 1" - 12“
Inlet 10D to 20D 0D (for DN 25-300)
Outlet 3D to 5D 0D (for DN 25-300)
Ancillary
equipment
Filter: strongly recommended
Straightener: if insufficient inlet
Isolation valve, bypass: for routine
maintenance & replacement
No
Cost of Ownership totale installatiekosten
8
10. Cost of Ownership operationele kosten
Mechanisch versus niet mechanisch
10
PD-meter
MID
11. 11
Gebruiks- en onderhoudskosten :
• Filter inspectie
• Reiniging
• Vervanging en raparatie
• Vloeistofvrij maken van de
buissectie
Extra
• Drukverlies
Cost of Ownership operationele kosten
Gebruik en onderhoud van filters
12. 12
De hoeveelheid drukverlies wordt bepaald
door:
Type flowmeter
(Verplicht) gebruik van filters
Flowmeter doorlaat
Medium eigenschappen, viscositeit
Lager drukverlies betekent:
Kleinere pompen
Besparing op energiekosten
Verhoging van pompefficientie
Drukverliescurve van een PD
meter
Cost of Ownership operationele kosten
Drukverlies
Drukverliescurve van een
Woltmann turbine meter
13. 13
Note: Calculation based on technical data sheets from PD & turbine
manufacturers. Delta pressure is excluding filter pressure drop.
2.000 m3/hr 5.000 m3/hr
1.2 m/s 3.1 m/s
12” Turbine & straightener
pressure loss (psi) 9,1 9,3
cost per year (€) 25.000 65.000
12” PD & straightener
pressure loss (psi) 9,6 10,8
cost per year (€) 27.000 77.000
Cost of Ownership operationele kosten
Pipeline operation
14. TCO en Onderhoudstrategie
14
Corrective
maintenance
Preventive
Maintenance
Condition
based
Maintenance
Proactive
Maintenance /
Expert system
Key Attribute Responsiveness Service level Improve meter performance and
reliability
Improve overall performance and
reliability
Relationship Vendor Preferred supplier Selected supplier Partner
Decision
Criteria
Local Presence & quality Quality Diagnostics Knowledge
Performance
Measures Efficiency Effectiveness Effectiveness Innovation
Goal Repair product Increase availability Optimize costs and availability Optimize overall costs and
availability
Traditional Service Value-Added Service Professional Service
Present Best Cost
Producer
Corrective 55% 10%
Preventive 31% 25-35%
Condition
based
12% 45-55%
Proactive 2% 5-15%Analysis from the Reliability Magazine (2002)
Present Best Cost Producer
15. Priority Application related fault or fault
condition
1 Gas bubbles in the liquid
2 Corrosion of electrodes
2 Electrical conductivity too low
3 Liner deformation
3 Electrode fouling
4 External magnetic fields
4 Electrode short circuit (by metal particles)
4 Partial filling
VDE/VDI 2650
Richtlijn voor magnetisch inductieve flowmeters
16. TCO, onderhoud en meetonzekerheid
Ancillary equipment
Filters / Strainers
Especially up to DN 50
To protect rotor from debris (eg
rocks) that could stop / break
measuring element or to protect from
getting clogged
Isolation valves and bypasses
for maintenance & replacement
Rate of wear & deterioration related to:
Quality of medium (e.g. sediment)
How often meter is used
For compound meter: regular operation
of change-over valve strongly
recommended,
to protect it from clogging and scaling
Error at Qn
up to 8%
16
17. 17
Stoomtransport
Getransporteerd vermogen:
110 MW
0.7 Miljoen ton per jaar
Stoomprijs: ± 10 Euro per ton
Totale waarde: 7 miljoen Euro
per jaar
Een meetonzekerheid van 0,5 %
betekent 25 k€ per maand
TCO, onderhoud en meetonzekerheid
18. 18
Aardolie meting in Brazilië
180 000 Barrel per dag (à 70 USD per Barrel)
betekent 12.6 mio. USD per dag
Onzekerheid 0,15 % betekent 18 900 USD per
dag (!)
FPSO P- 50,
Petrobras, Brazil
Invloed onzekerheid bij
Aardolie meting
19. 19
Re-calibration because of:
Change of meters conditions
- Wear & tear
- Internal damage on flow meter
Change of process conditions
Commercial agreements
Cost of Proving Operation &
Maintenance
Cost of Ownership
22. 22
Oktober 30-2006
KROHNE first to receive MID
Certification for their OPTIFLUX
flowmeters for Water
applications
MID; European Certification
MID Certification
23. MID (Measurements Instruments Directive)
Instrument Annex Modules
Water meters MI-001 B+F, B+D, H1
Gas meters MI-002 B+F, B+D, H1
kWh meters MI-003 B+F, B+D, H1
Heat meters MI-004 B+F, B+D, H1
Liquid meters Mi-005 B+F, B+D, H1, G
Automatic weighing Mi-006 B+F, B+D, H1, G
(B+E, D1, F1)
Taxi meters MI-007 B+F, B+D, H1
Material measures Mi-008 A1, F1, D1, E1, B+E,
B+D, H
Dimensional MI-009 B+F, B+D, H1, G
(F1, D1, E1, B+E, H)
Exhaust gas Mi-009 B+F, B+D, H1
Module Description
B Type examination by NB
F Product verification by NB
23
27. OIML R 117-1
Wat zijn de Hoofdthema´s van de R 117 (49,…)
1. Werkgebied, toepassing en terminologie
2. Metrologische eisen;
3. Technische eisen;
4. Methoden en instrumenten voor het testen en verifieren van de conformiteit
5. Opmaak van het Test Rapport.
27
28. 28
OIML R-49
is for cold water (up to 30ºC)
- flowmeter is installed in pipeline without true flow control
- flowmeter is certified to measure over large flow range (Q3 to Q1)
OIML R-117
is for (conductive) products other than water
- flowmeter is installed in loading/unloading system with flow control system
(pump/valve etc.)
- flowmeter is certified over certain flowrate (Qmin to Qmax) and minimum batch
size (MMQ) is mentioned in certificate
Introduction
OIML R-49 and R-117
31. OIML R117 onzekerheidsklassen en hun toepassingen
Accuracy
class
Application description
0.3 •Measuring systems on pipelines
0.5 All measuring systems unless other defined:
•fuel dispensers (not for liquefied gasses)
•Measuring systems on road tankers for viscosities < 20cSt
•Measuring systems for (un)loading ships, rail and road tankers
•Measuring systems for milk
•Measuring systems for refueling aircrafts
31
32. Accuracy
class
Application description
1.0 •Measuring systems for liquefied gasses under pressure measured at
a temperature equal to or above –10oC
•Measuring system normally in class 0.3 or 0.5 but used for liquids
•Whose temperature is less then –10oC or greater then 50oC
•Whose dynamic viscosity is higher then 1000 mPa.s (cSt)
•Whose maximum flow rate is , 20 l/hr
1.5 •Measuring systems for liquefied carbon dioxide
•Measuring systems for liquefied gasses under pressure
•Measuring systems at a temperature <-10oC (not cryogenic)
2.5 Measuring systems for cryogenic liquids, temperature <-153oC
OIML R117 onzekerheidsklassen en hun toepassingen
32
33. OIML R-117 inbedrijfname
6.1.2.5 Accuracy tests
Errors of meter shall be determined at a min of 6 flow rates distributed over
measuring range at regular intervals
At each flow rate the errors shall be determined at least 3 times, independently.
Each error shall not be greater than max. permissible error (in absolute value).
Not indicated in OIML R-117:
Re-calibration
Proving methods
Proving and performance requirements
33
34. Voor de eerste ingebruikname
Een Notified Body bevestigt dat de gehele installatie geschikt is voor
ijkwaardige metingen door:
• Beoordeling van het ontwerp van de installatie
• Witness and verificatie van de calibratie van de wezenlijke
componenten (flowmeters)
• Beoordelen van de type keuringsdocumenten (module B) van de alle
in de installatie aanwezige ijkwaardige instrumenten
• Het uitvoeren van de eerste verificatie (module F)
• Het uitgeven van een CE MID keuringscertificaat
34
