Flash Widgets
                Hussain Fakhruddin
                http://hussulinux.blogspot.com
                hussulinux@gmail.com

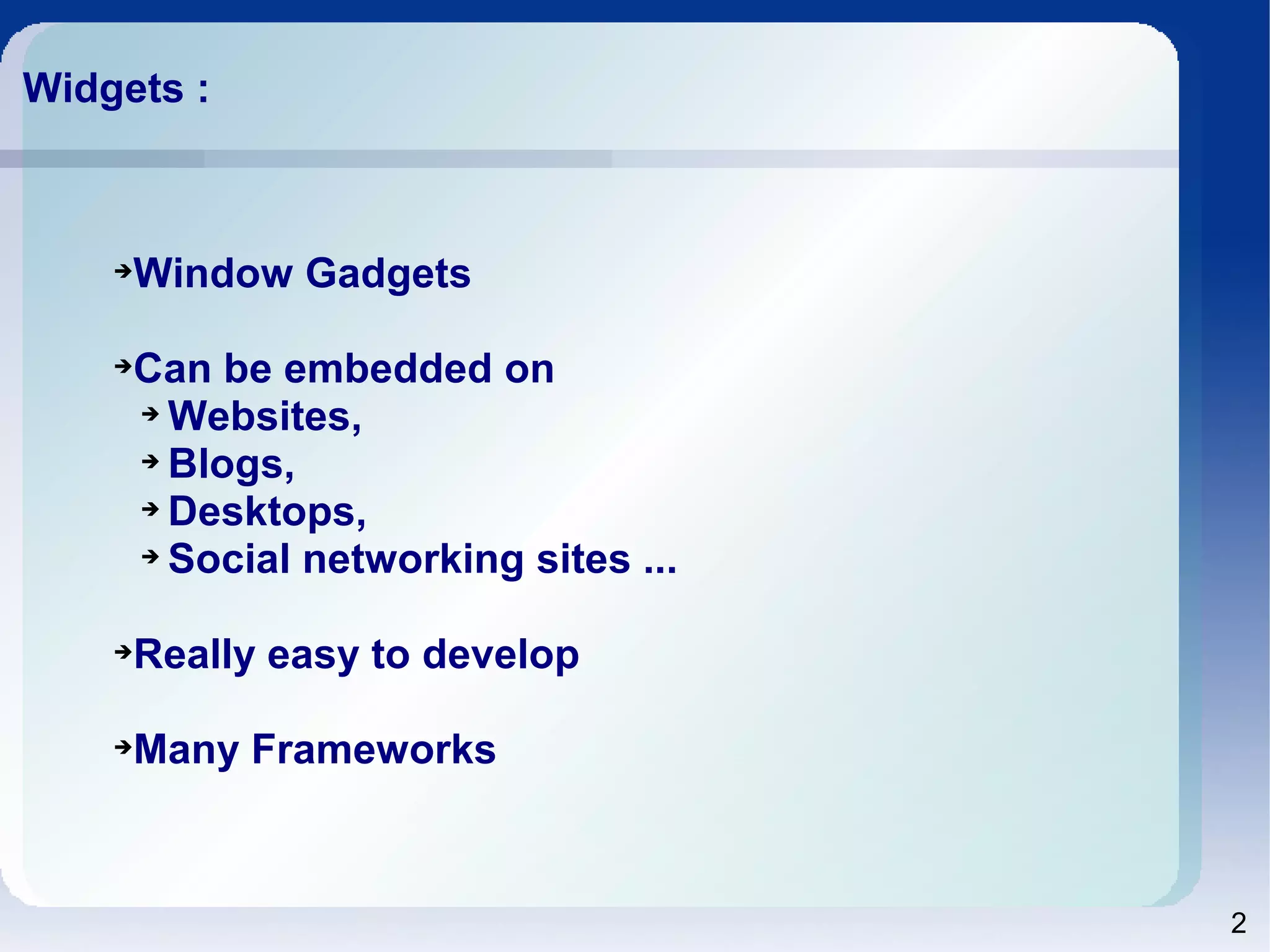

Widgets :



     Window Gadgets
    ➔




     Can be embedded on
    ➔


       Websites,
     ➔


       Blogs,
     ➔


       Desktops,
     ➔


       Social networking sites ...
     ➔




     Really easy to develop
    ➔




     Many Frameworks
    ➔




                                     2

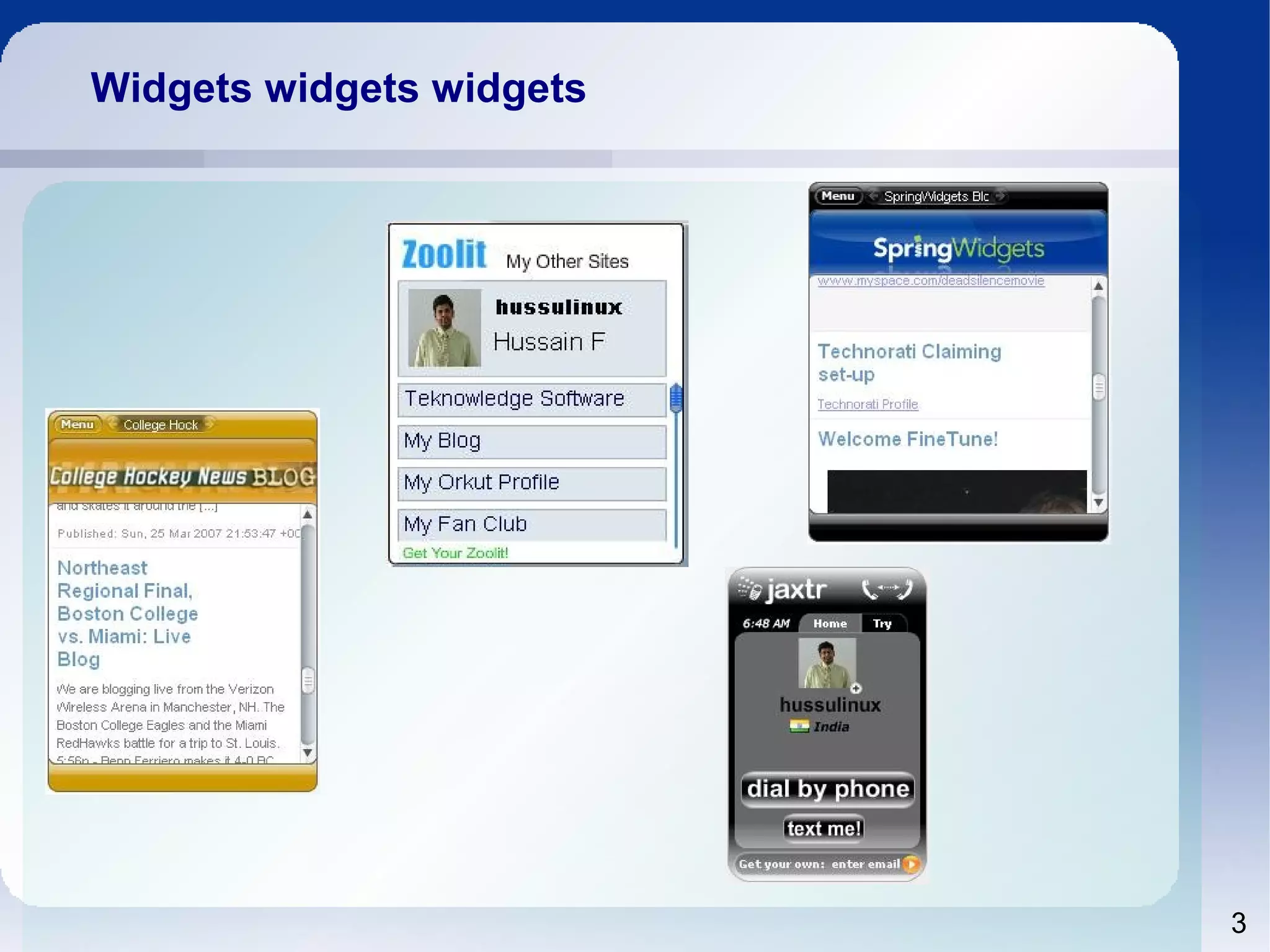

Widgets widgets widgets




                          3

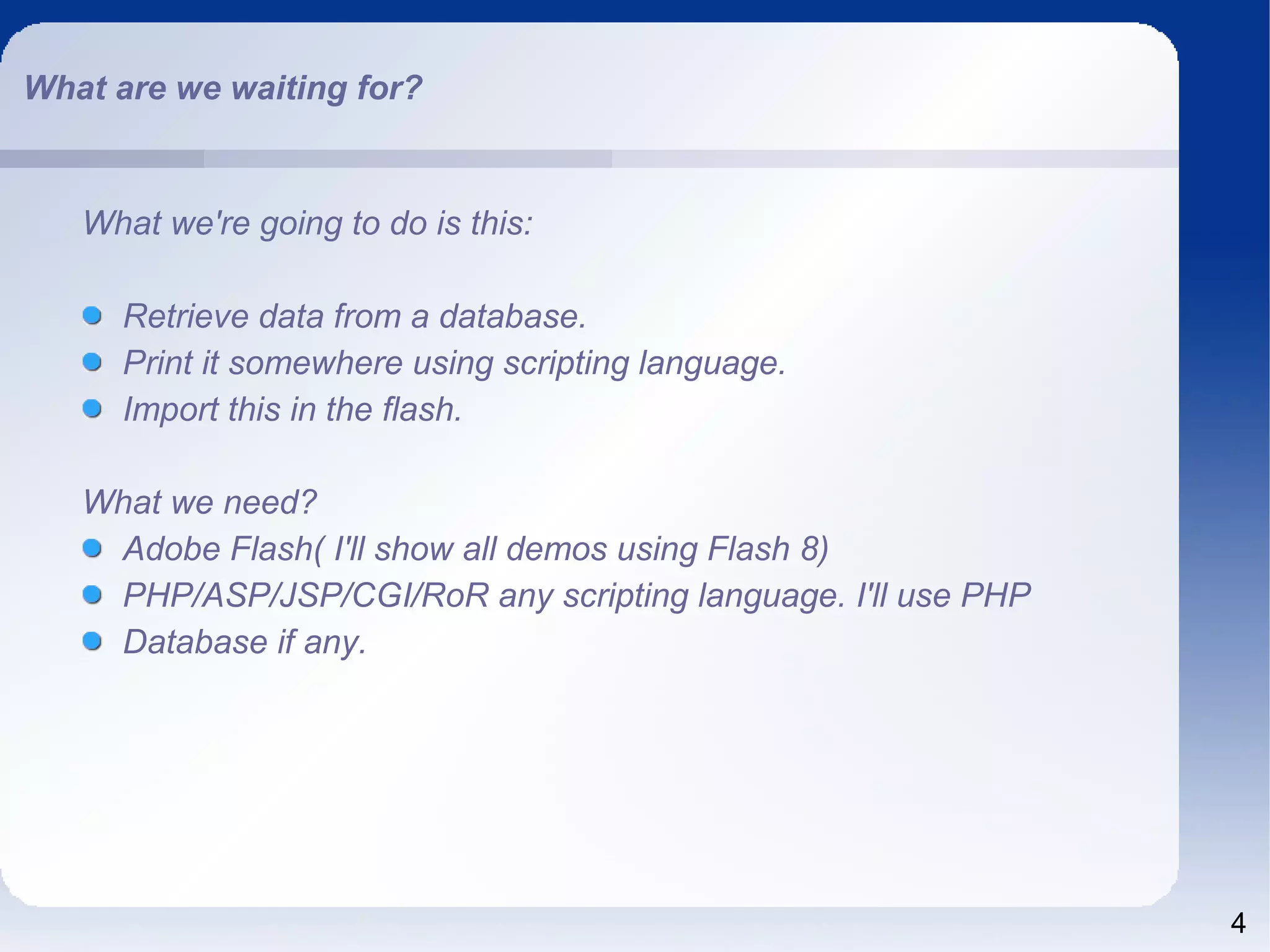

What are we waiting for?


   What we're going to do is this:

     Retrieve data from a database.
     Print it somewhere using scripting language.
     Import this in the flash.

   What we need?
    Adobe Flash( I'll show all demos using Flash 8)
    PHP/ASP/JSP/CGI/RoR any scripting language. I'll use PHP
    Database if any.




                                                               4

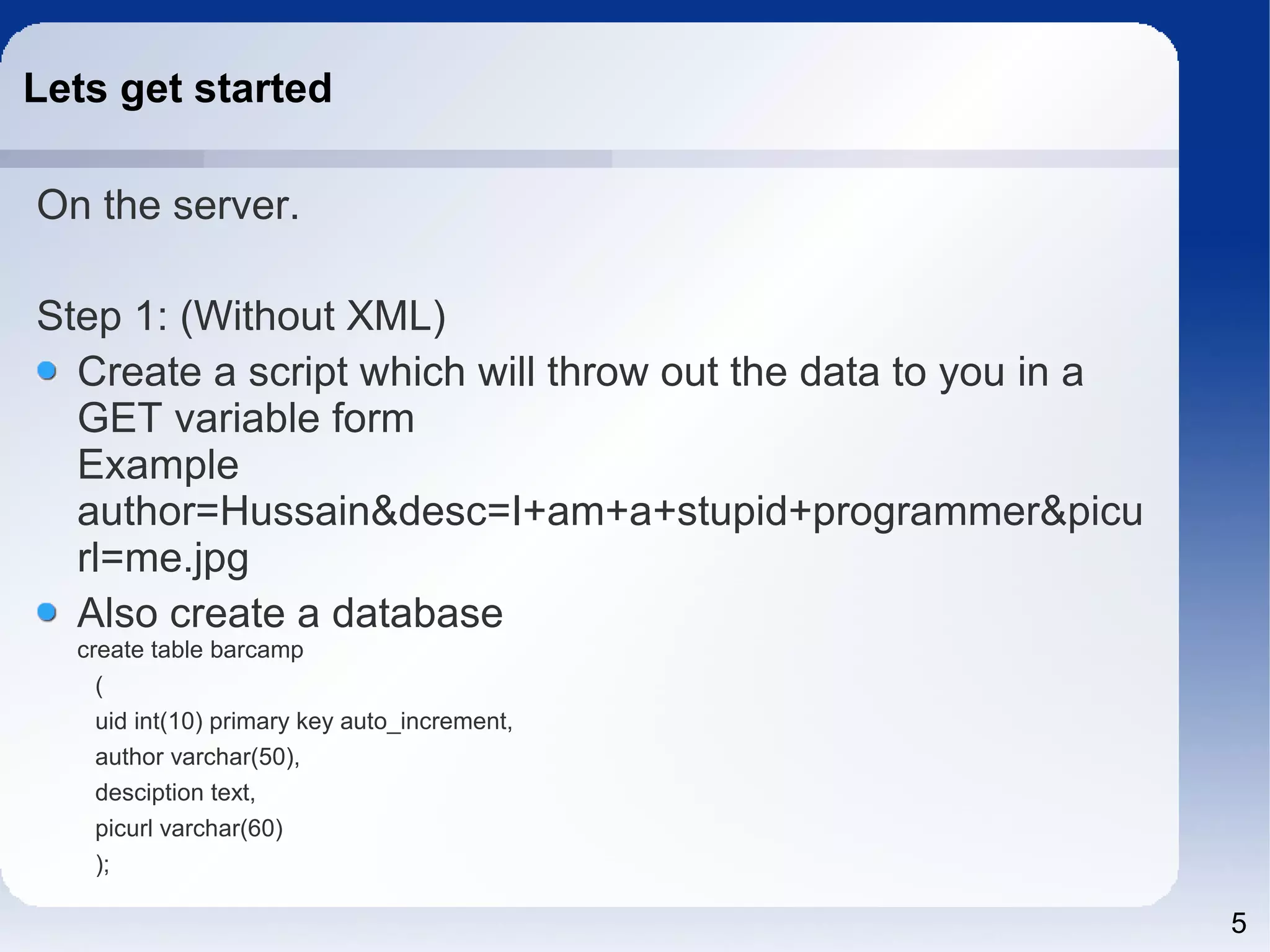

Lets get started

On the server.

Step 1: (Without XML)
  Create a script which will throw out the data to you in a
  GET variable form
  Example
  author=Hussain&desc=I+am+a+stupid+programmer&picu
  Also create a database
  create table barcamp
    (
    uid int(10) primary key auto_increment,
    author varchar(50),
    desciption text,
    picurl varchar(60)
    );

                                                              5

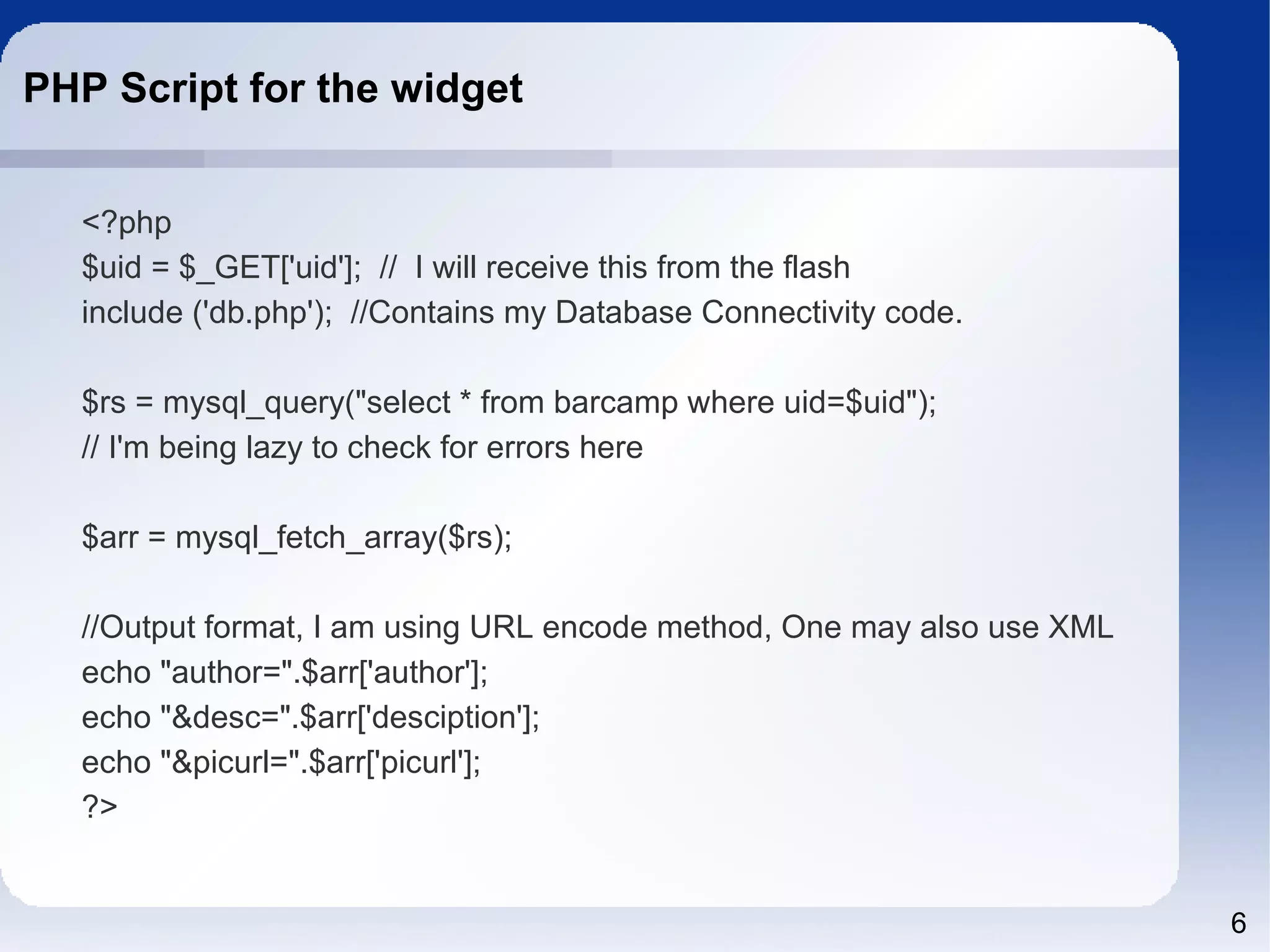

PHP Script for the widget


  <?php
  $uid = $_GET['uid']; // I will receive this from the flash
  include ('db.php'); //Contains my Database Connectivity code.

  $rs = mysql_query(quot;select * from barcamp where uid=$uidquot;);
  // I'm being lazy to check for errors here

  $arr = mysql_fetch_array($rs);

  //Output format, I am using URL encode method, One may also use XML
  echo quot;author=quot;.$arr['author'];
  echo quot;&desc=quot;.$arr['desciption'];
  echo quot;&picurl=quot;.$arr['picurl'];
  ?>


                                                                        6

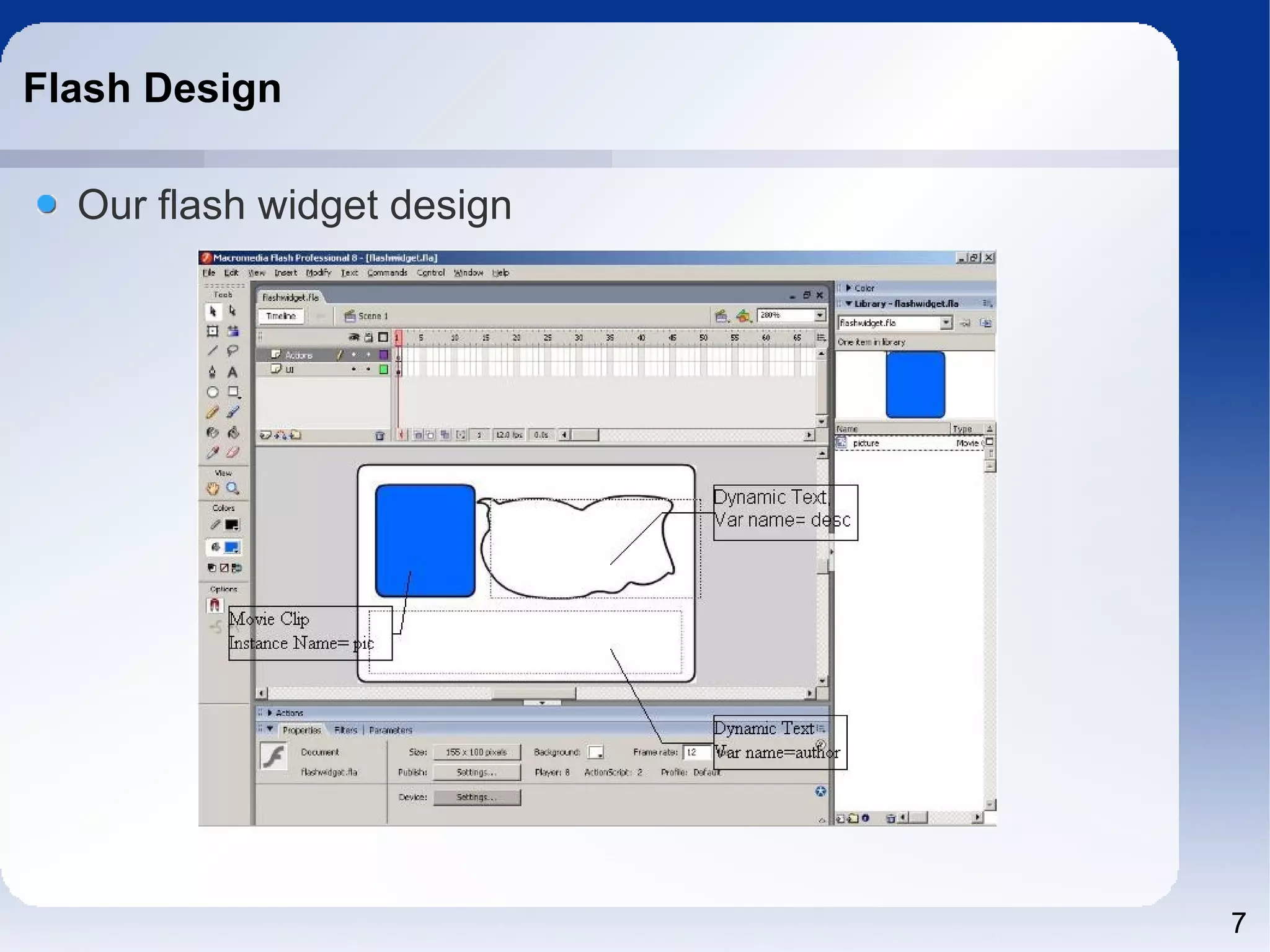

Flash Design

  Our flash widget design




                            7

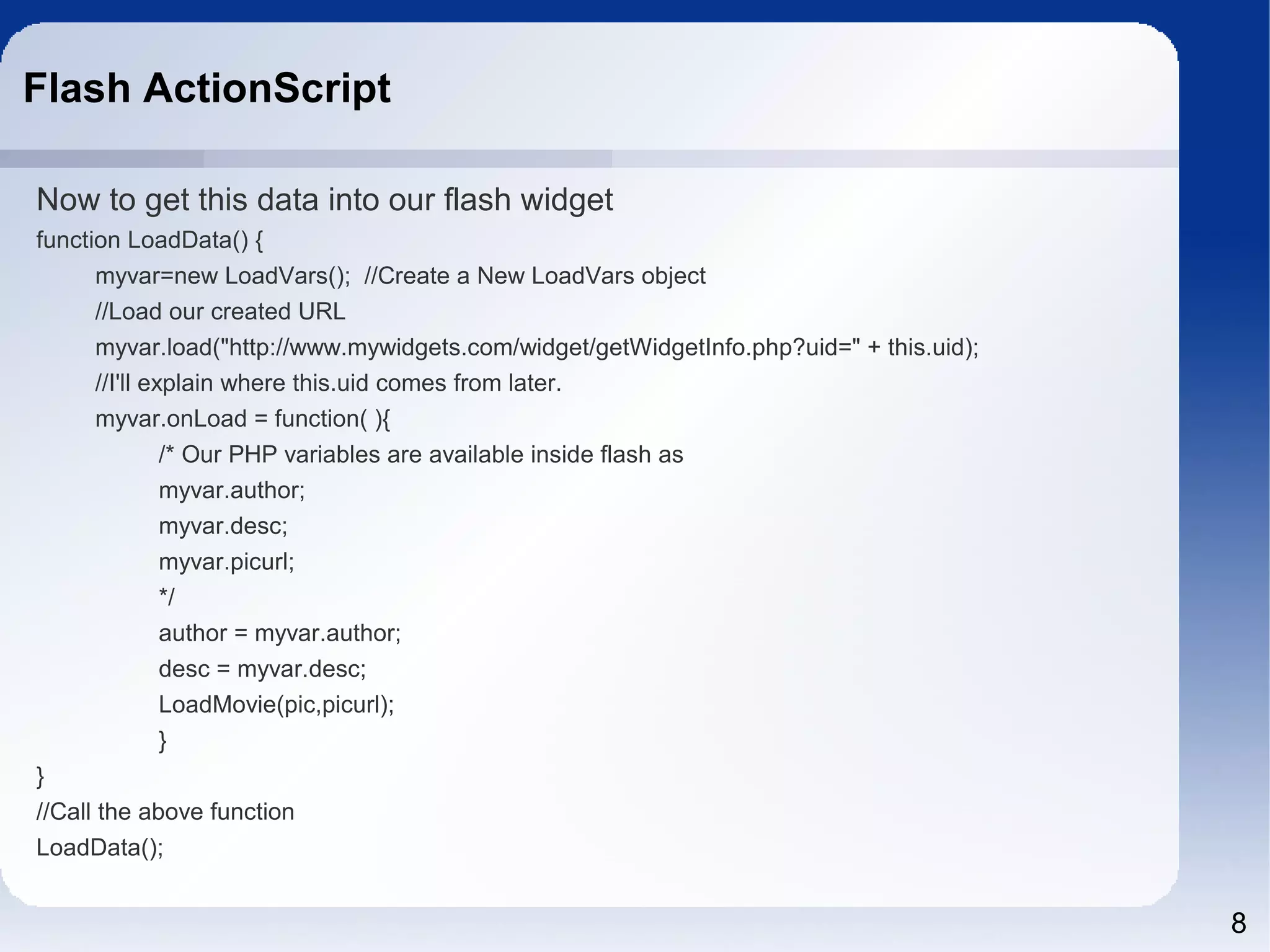

Flash ActionScript

Now to get this data into our flash widget
function LoadData() {
       myvar=new LoadVars(); //Create a New LoadVars object
       //Load our created URL
       myvar.load(quot;http://www.mywidgets.com/widget/getWidgetInfo.php?uid=quot; + this.uid);
       //I'll explain where this.uid comes from later.
       myvar.onLoad = function( ){
                /* Our PHP variables are available inside flash as
                myvar.author;
                myvar.desc;
                myvar.picurl;
                */
                author = myvar.author;
                desc = myvar.desc;
                LoadMovie(pic,picurl);
                }
}
//Call the above function
LoadData();


                                                                                          8

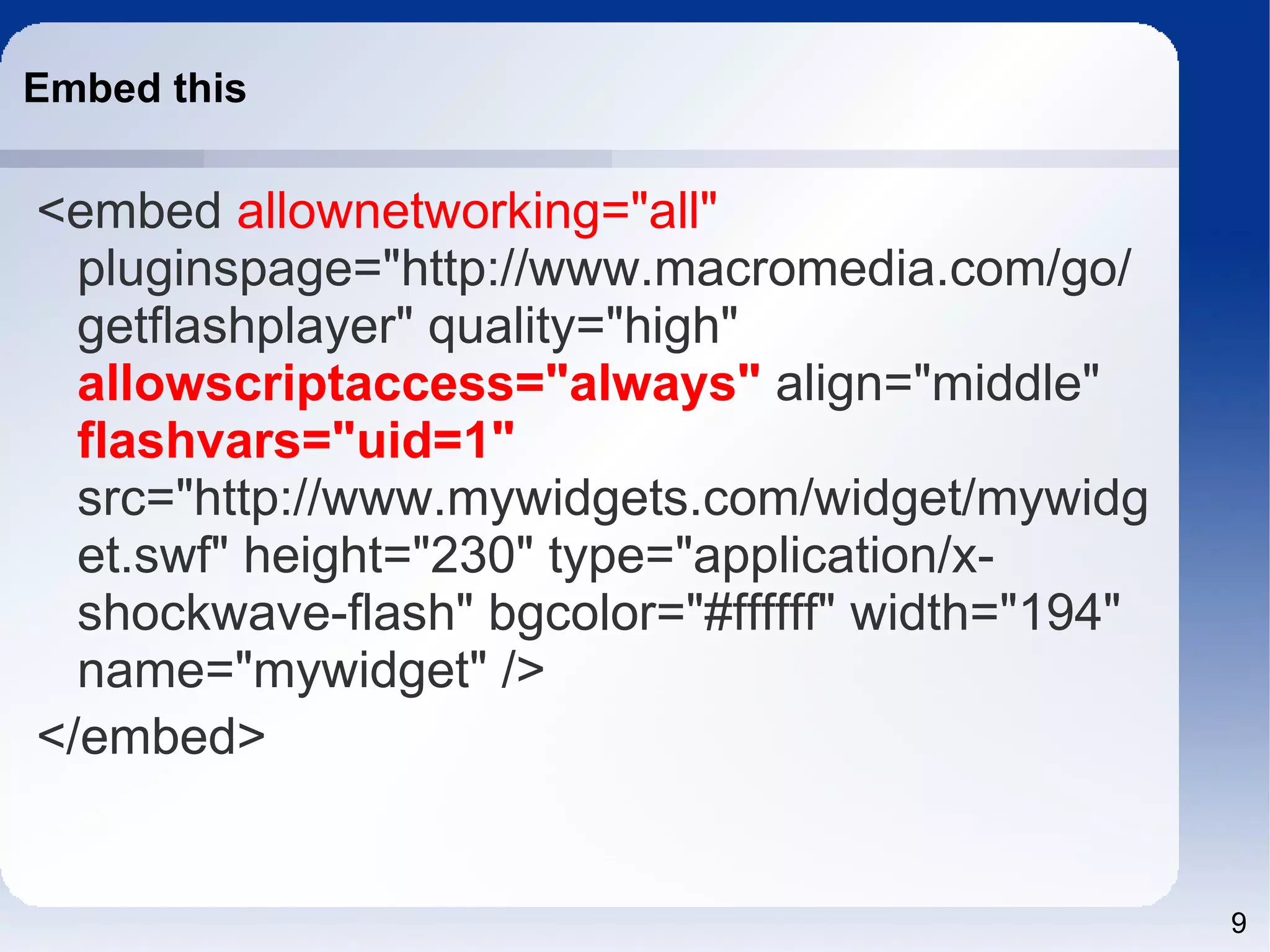

Embed this


<embed allownetworking=quot;allquot;
  pluginspage=quot;http://www.macromedia.com/go/
  getflashplayerquot; quality=quot;highquot;
  allowscriptaccess=quot;alwaysquot; align=quot;middlequot;
  flashvars=quot;uid=1quot;
  src=quot;http://www.mywidgets.com/widget/mywidg
  et.swfquot; height=quot;230quot; type=quot;application/x-
  shockwave-flashquot; bgcolor=quot;#ffffffquot; width=quot;194quot;
  name=quot;mywidgetquot; />
</embed>


                                                   9
