Azure Integration in Production with
Logic Apps and more
Alex Murov & Kelvin van Geene
http://www.twitter.com/AlexMurov
https://nl.linkedin.com/in/oleksandr-murov-a4a31012 https://nl.linkedin.com/in/kelvinvangeene

2. Azure Integration Solution
Logic apps and more in Production

3. Who are we?

4. Who are we?

5. Avanade

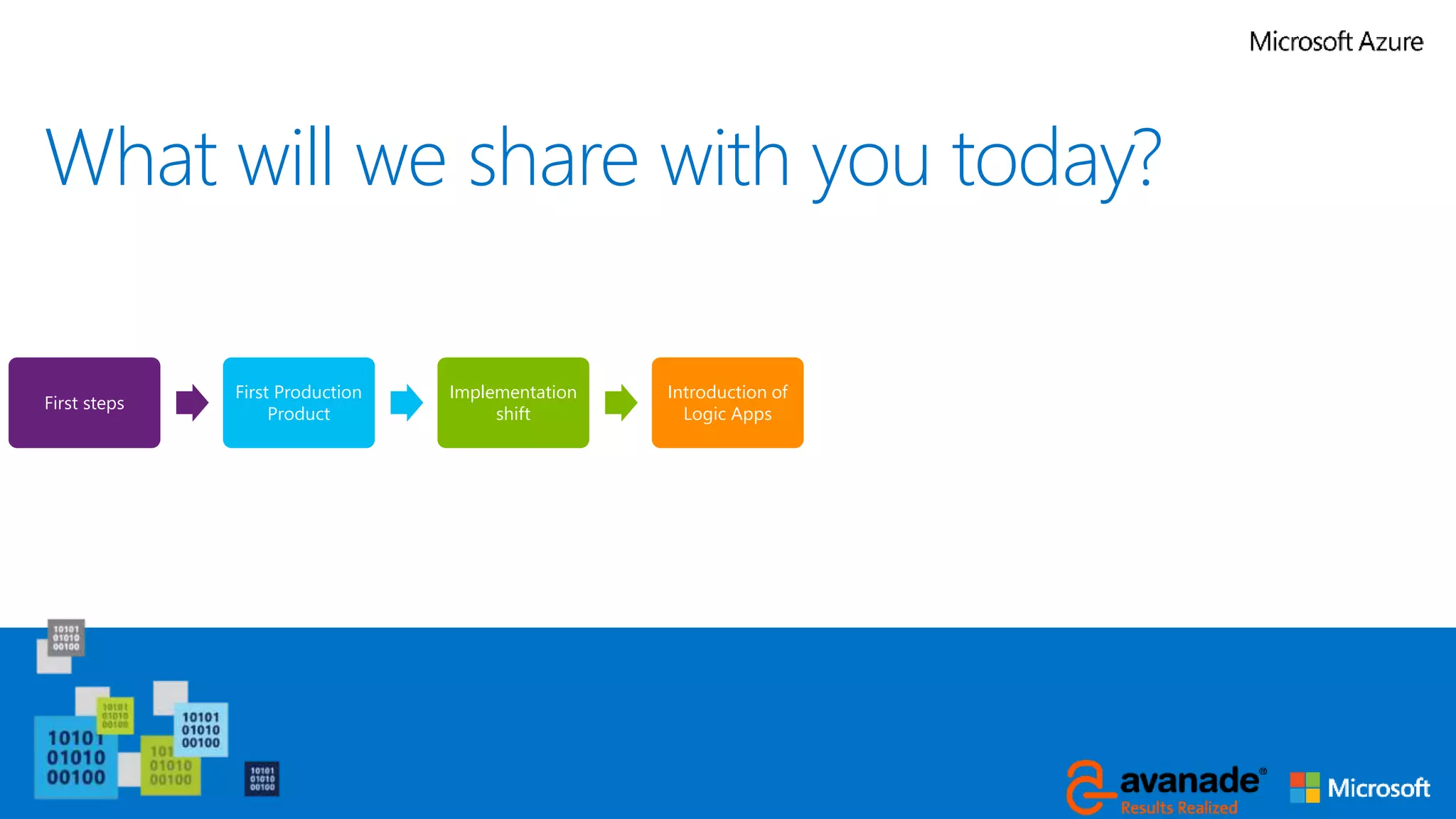

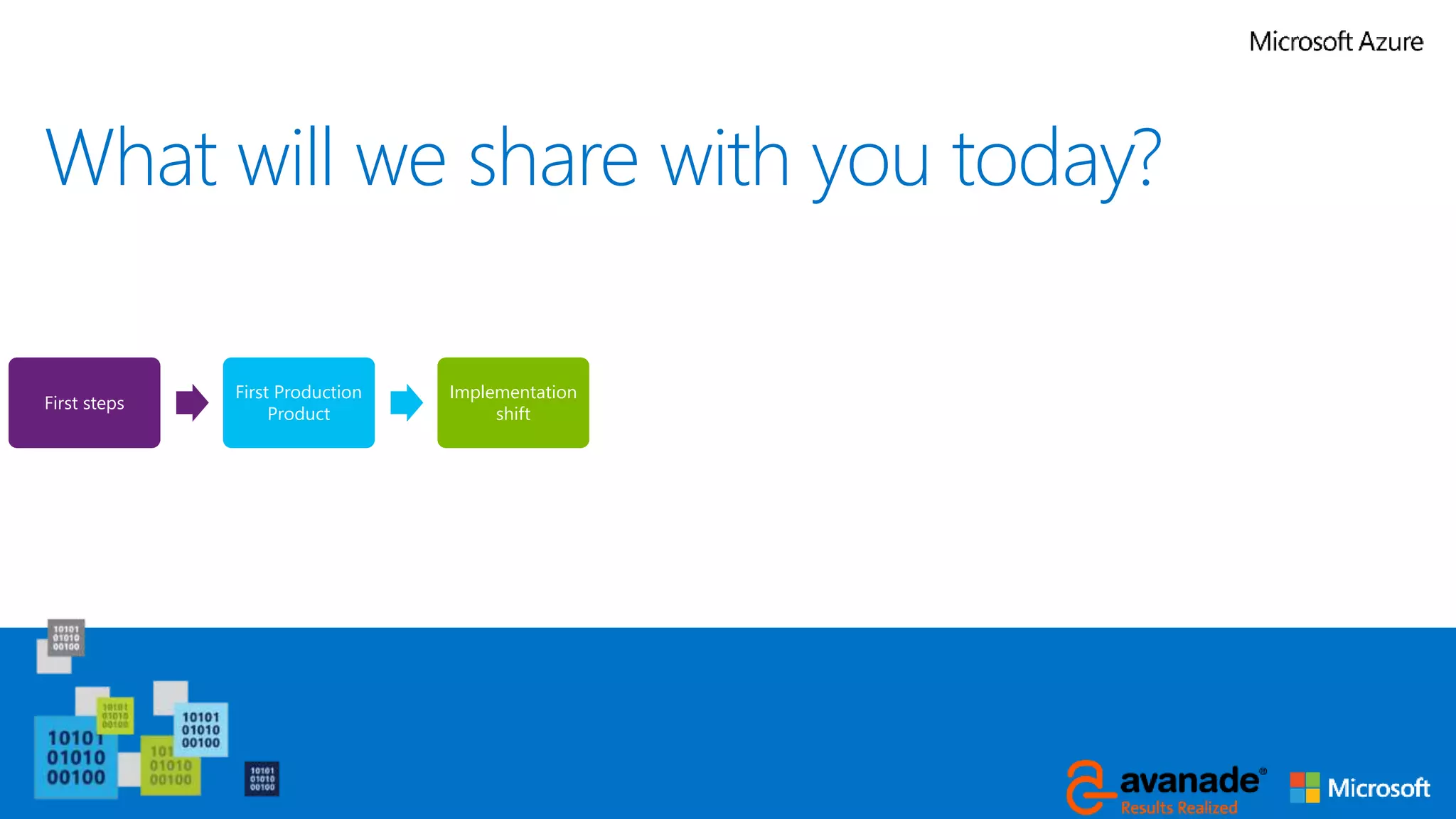

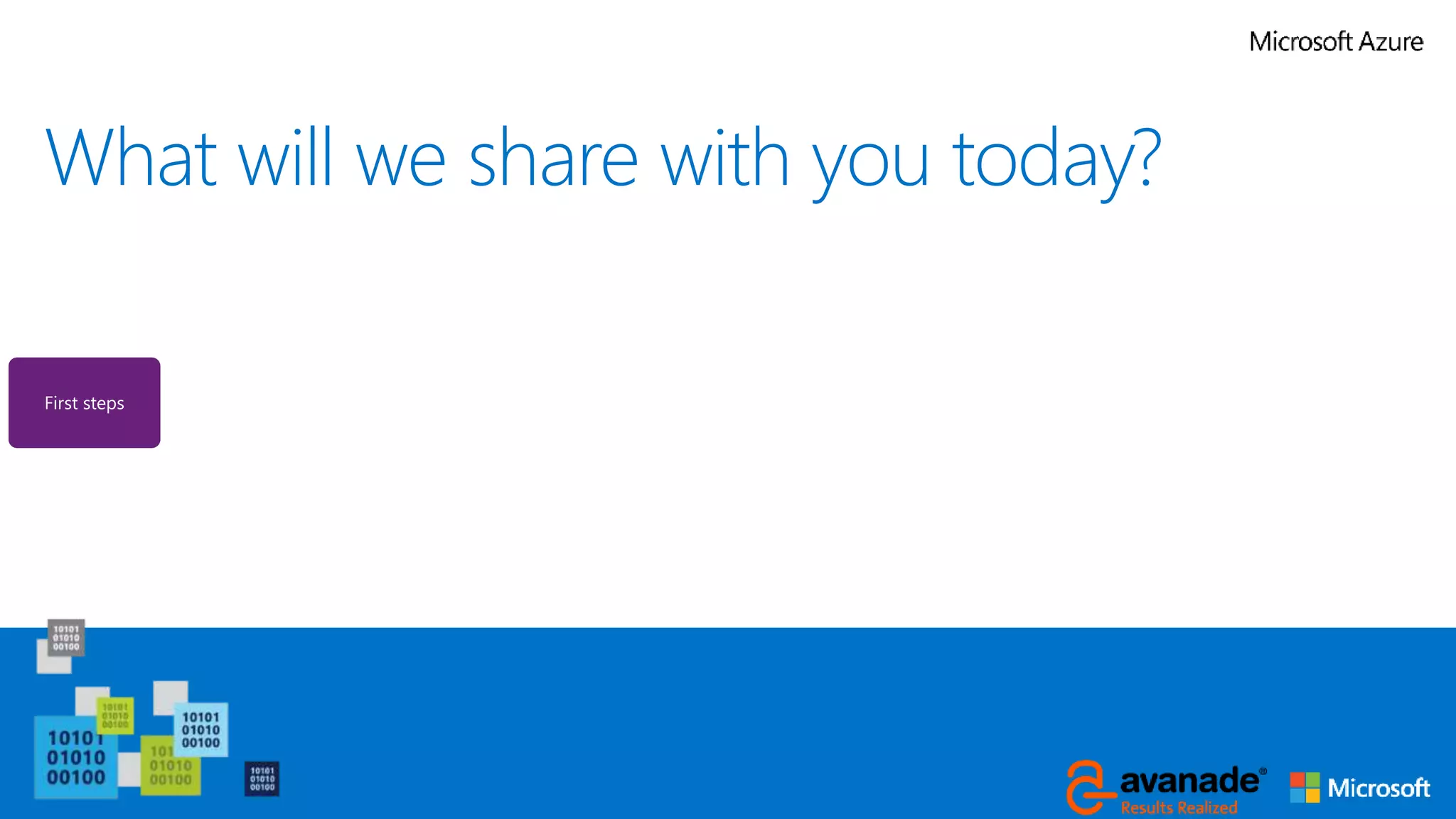

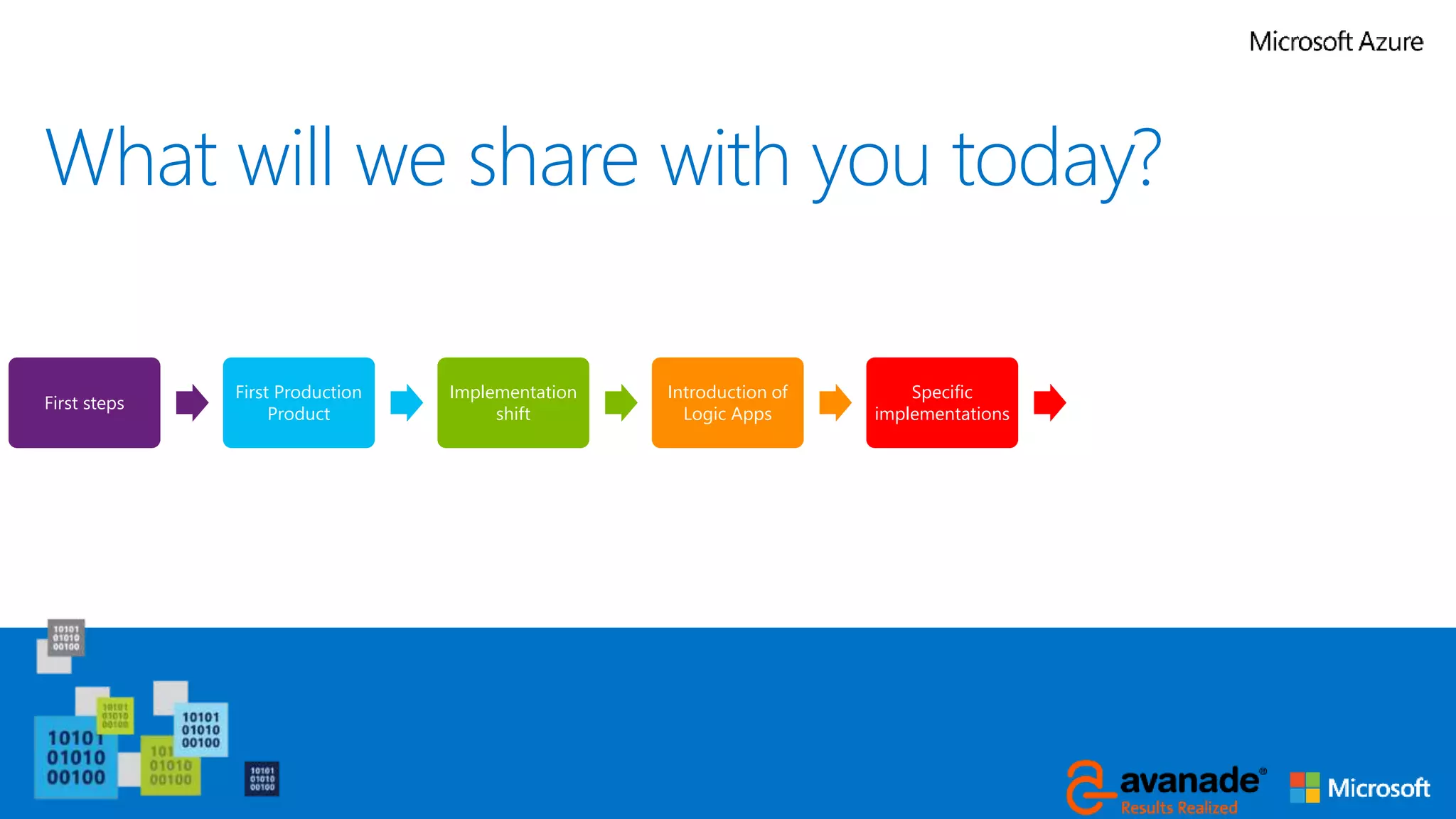

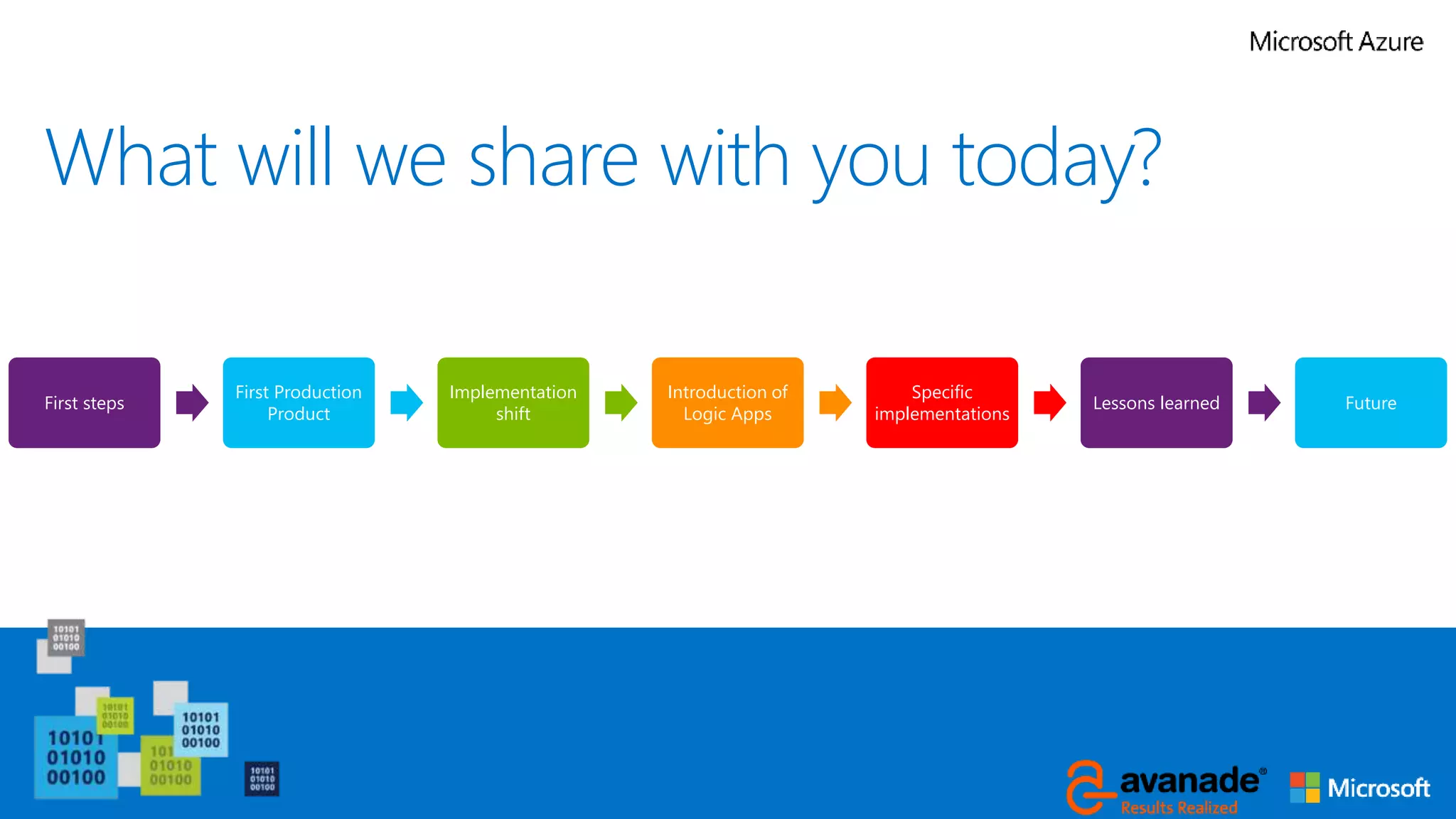

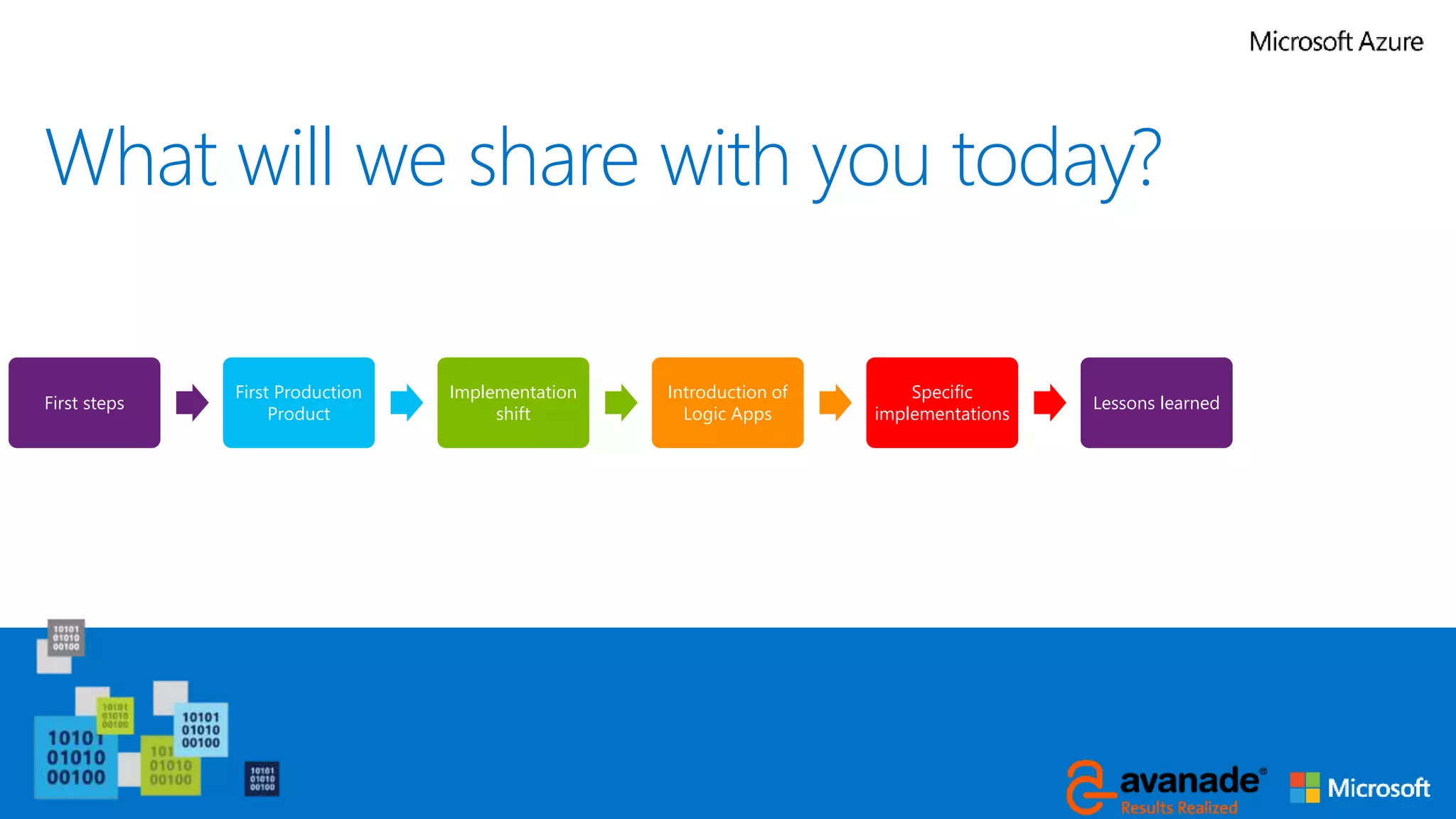

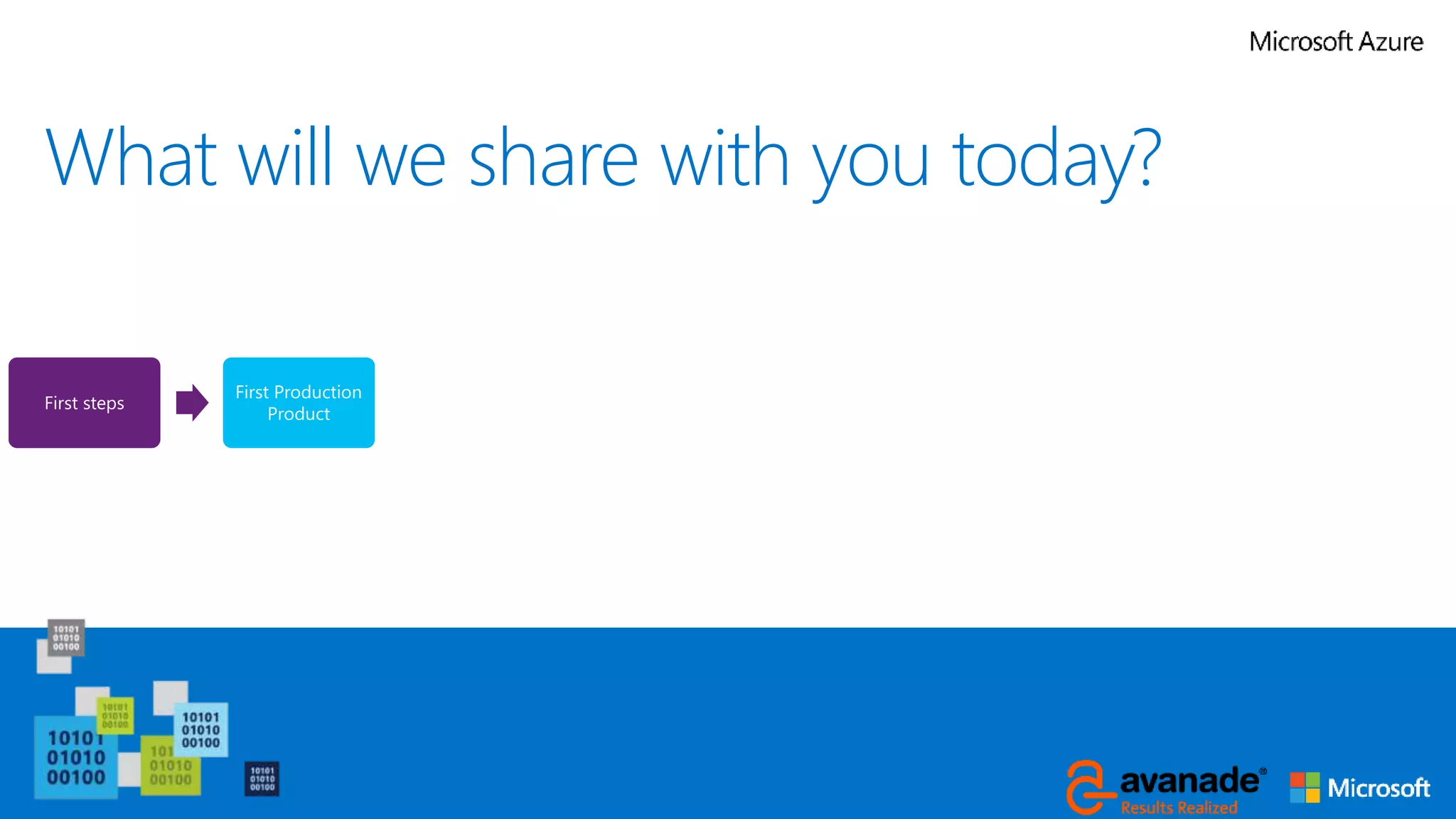

6. What will we share with you today?

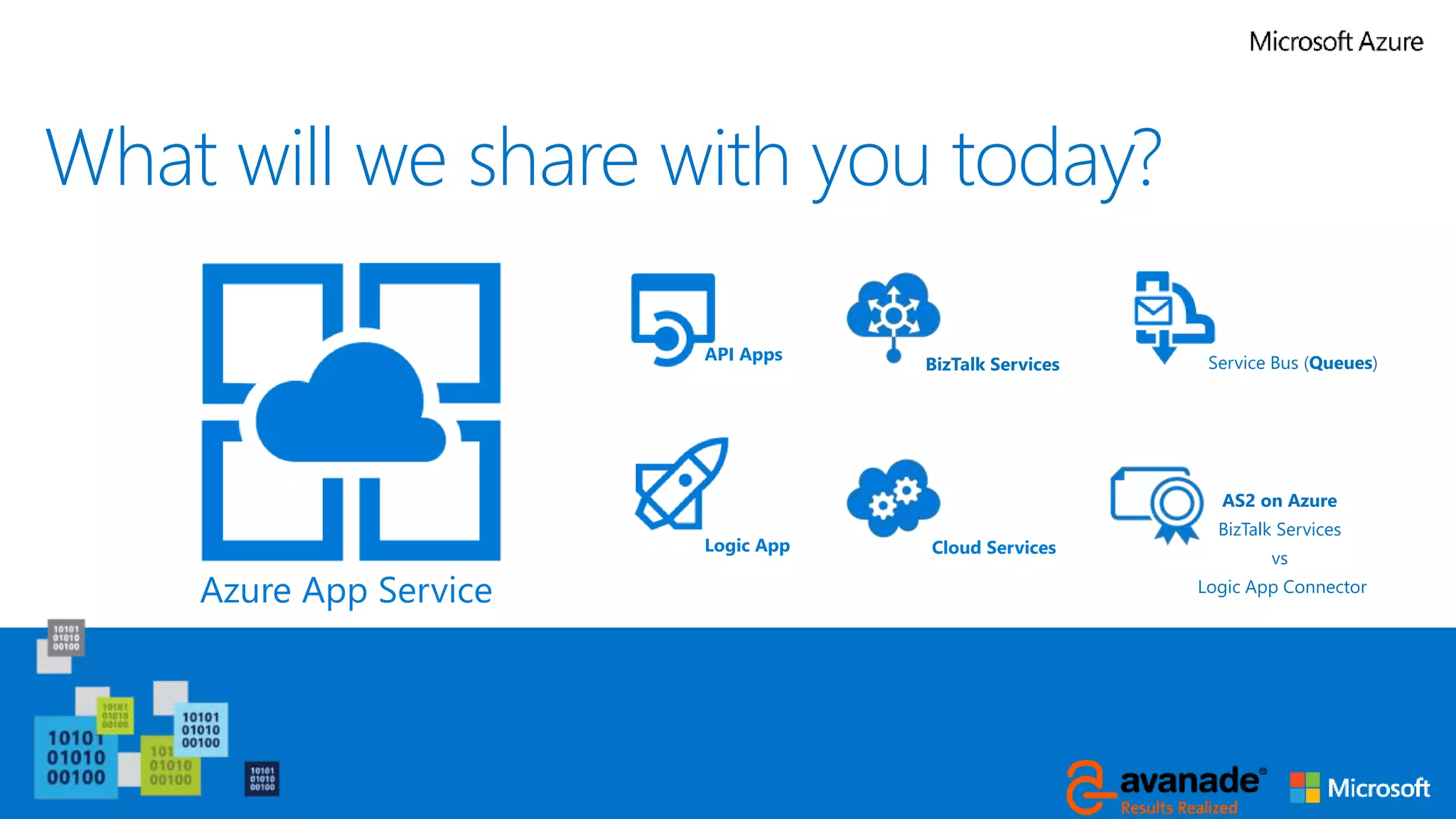

Azure App Service
API Apps
Logic App
BizTalk Services
Cloud Services
Service Bus (Queues)
AS2 on Azure
BizTalk Services
vs
Logic App Connector

7. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

8. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

9. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

10. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

11. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

12. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

13. What will we share with you today?
First steps
First Production
Product
Implementation
shift
Introduction of
Logic Apps
Specific
implementations
Lessons learned Future

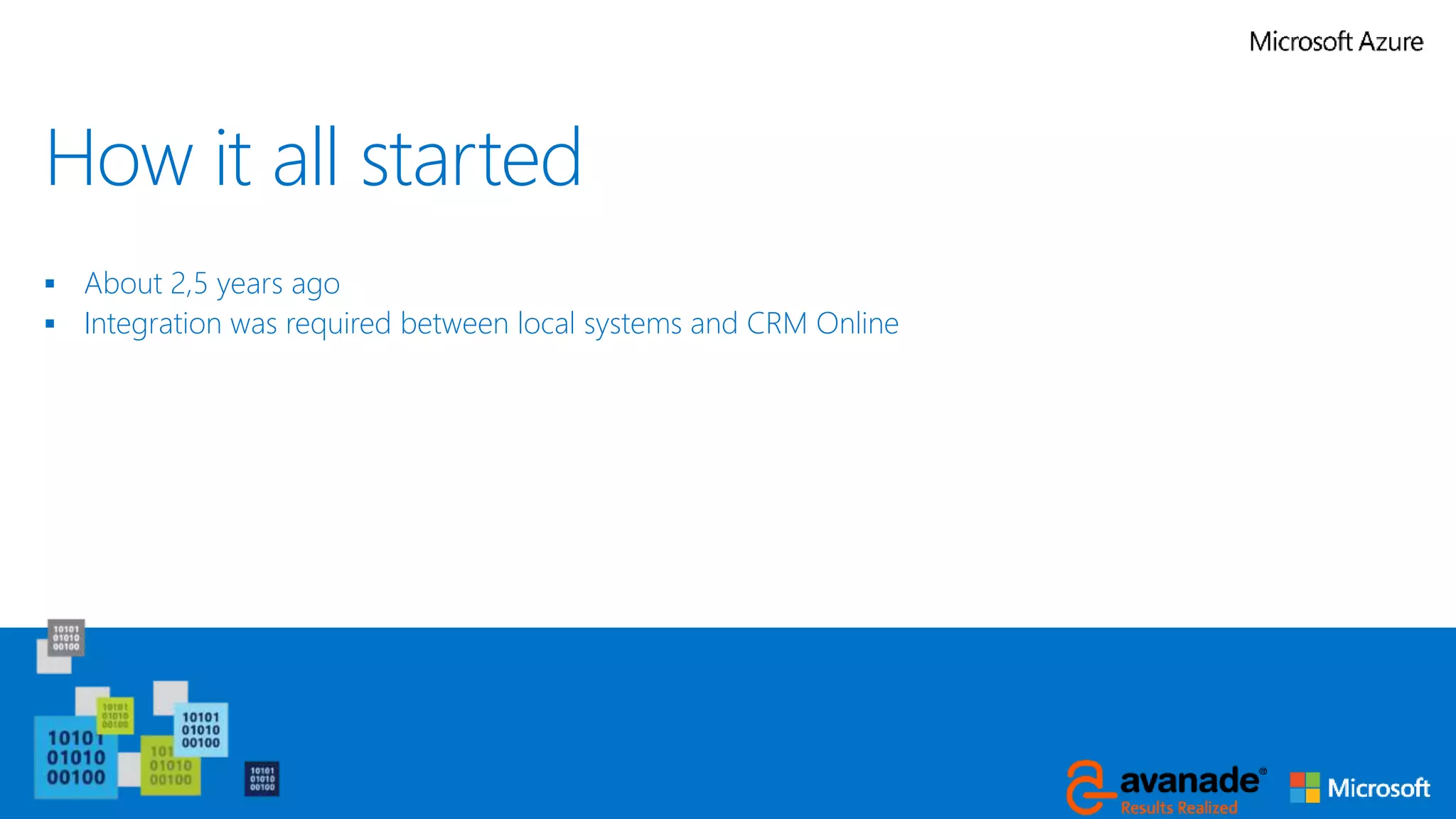

14. How it all started
 About 2,5 years ago

15. How it all started
 About 2,5 years ago
 Integration was required between local systems and CRM Online

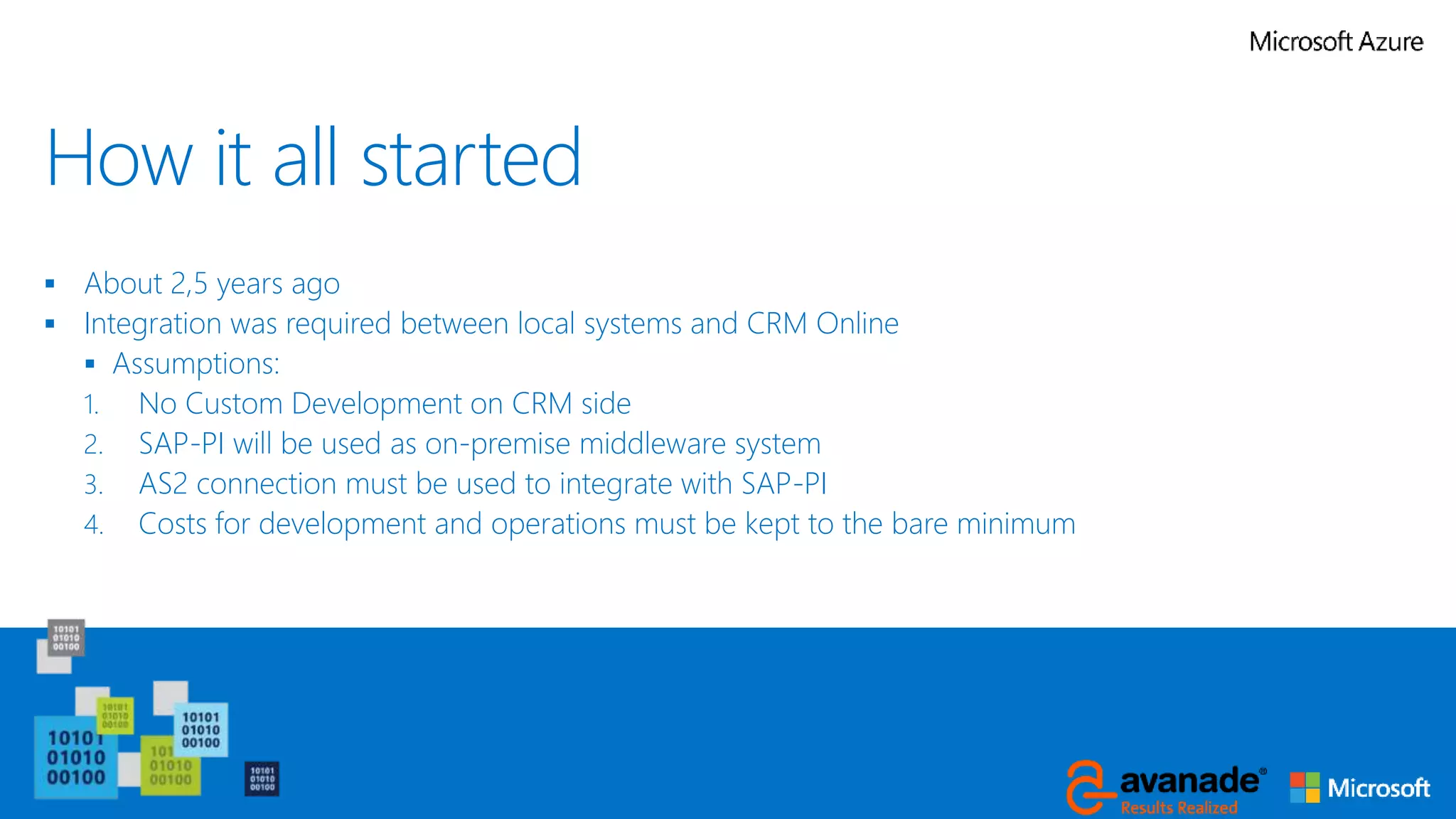

16. How it all started
 About 2,5 years ago
 Integration was required between local systems and CRM Online
 Assumptions:
1. No Custom Development on CRM side
2. SAP-PI will be used as on-premise middleware system
3. AS2 connection must be used to integrate with SAP-PI
4. Costs for development and operations must be kept to the bare minimum

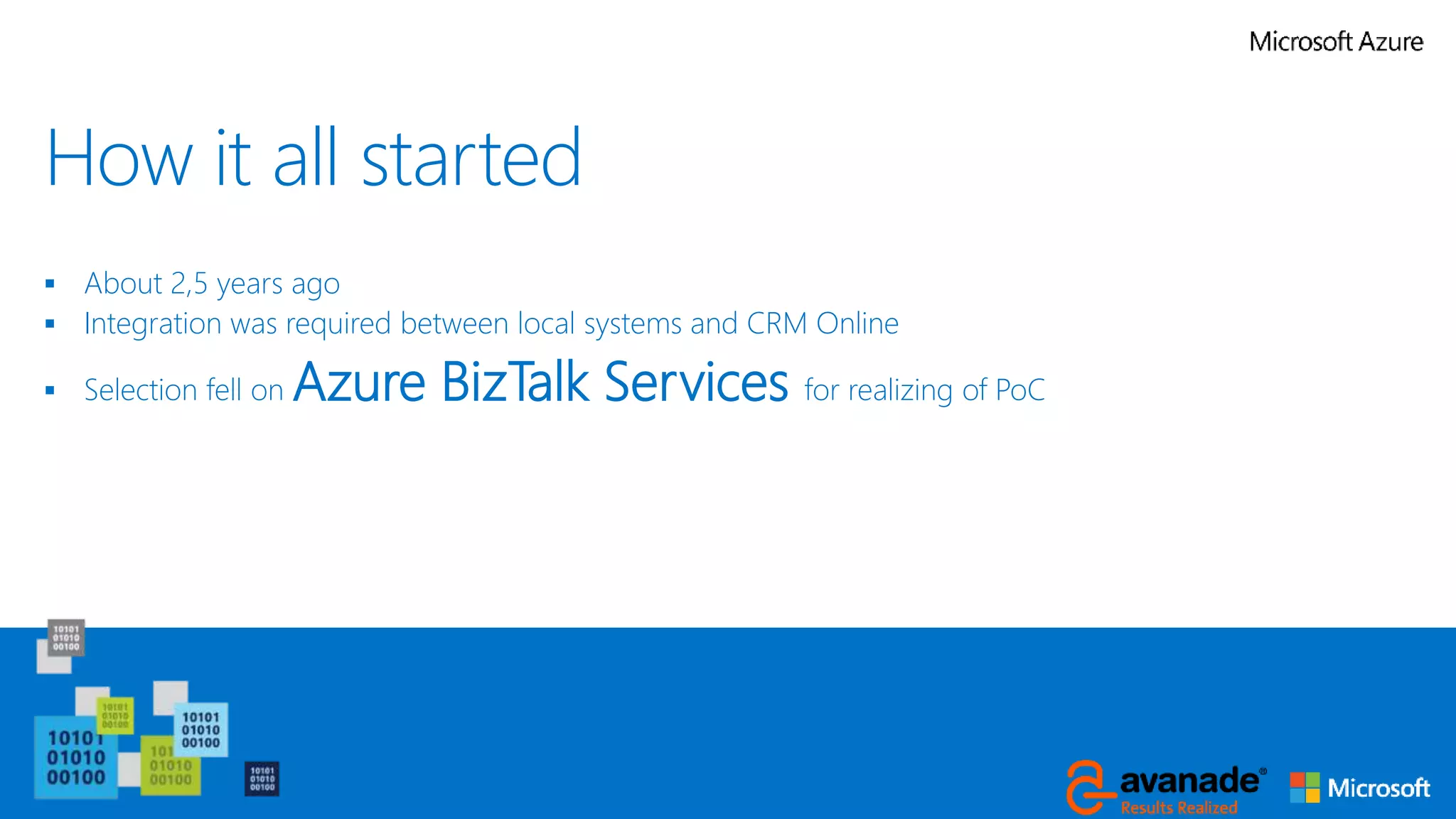

17. How it all started
 About 2,5 years ago
 Integration was required between local systems and CRM Online
 Selection fell on Azure BizTalk Services for realizing of PoC

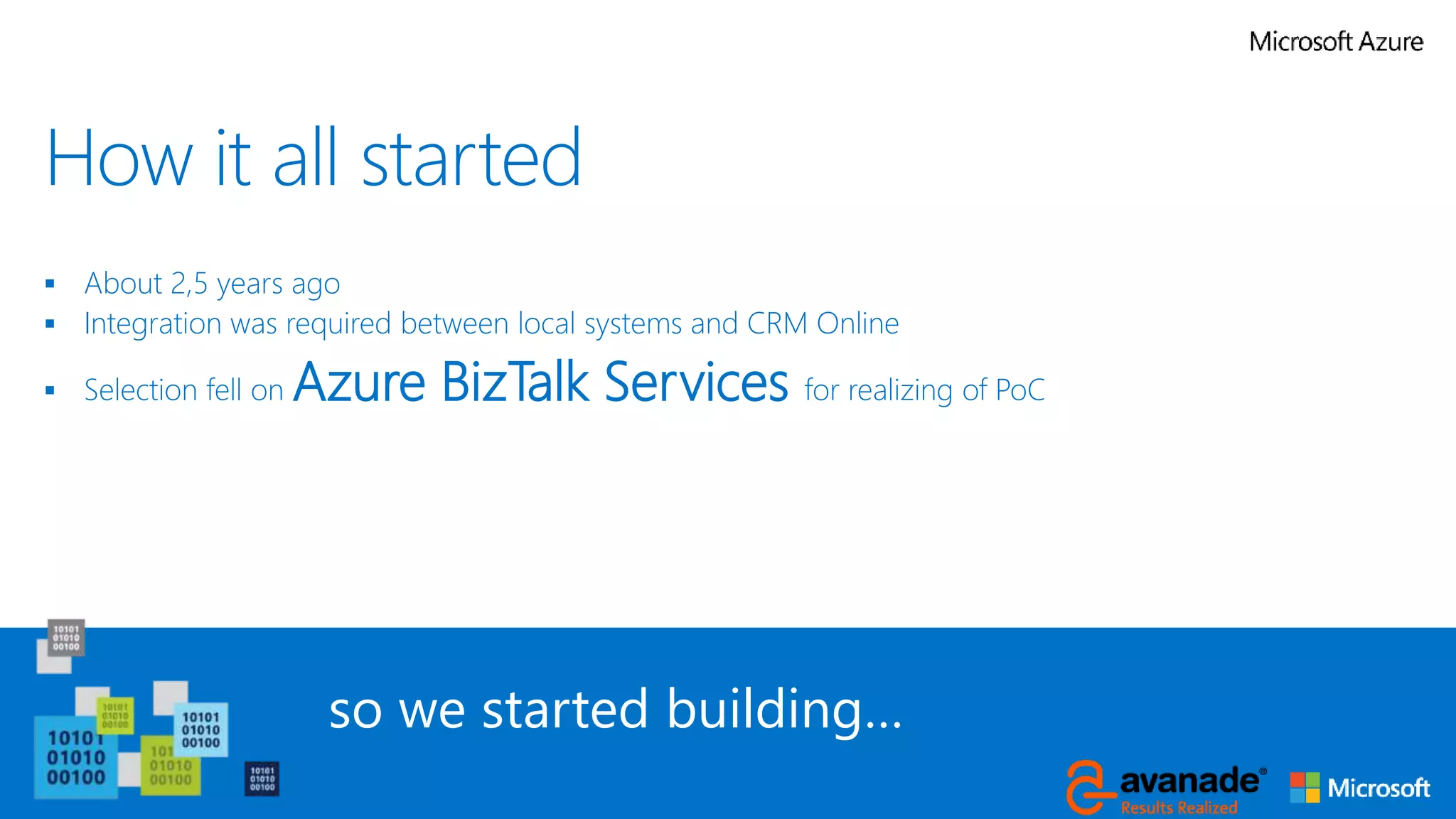

18. How it all started
 About 2,5 years ago
 Integration was required between local systems and CRM Online
 Selection fell on Azure BizTalk Services for realizing of PoC
so we started building…

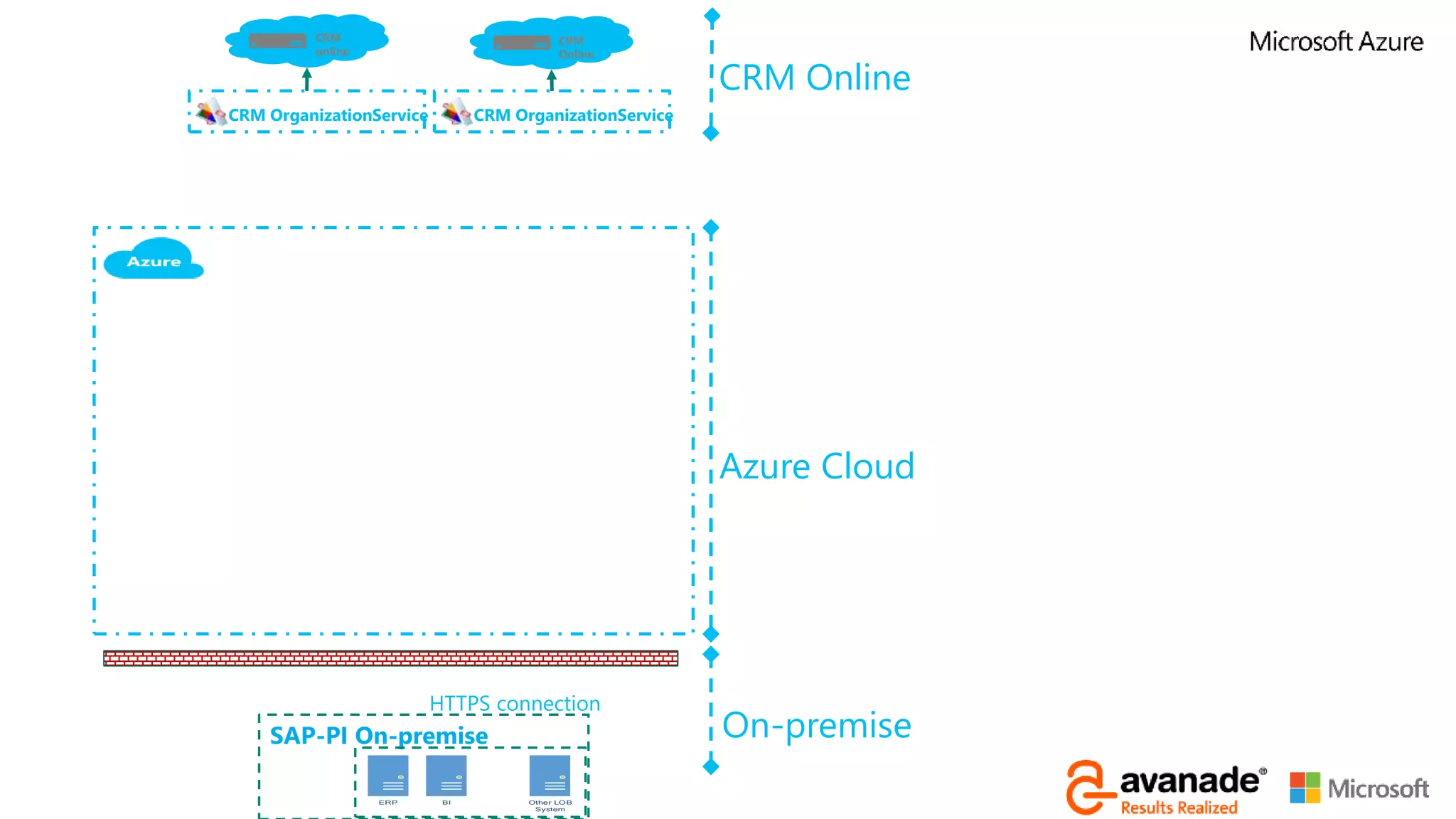

19. SAP-PI On-premise
ERP BI Other LOB
System
CRM
online
CRM
Online
HTTPS connection
CRM OrganizationServiceCRM OrganizationService
Azure Cloud
On-premise
CRM Online

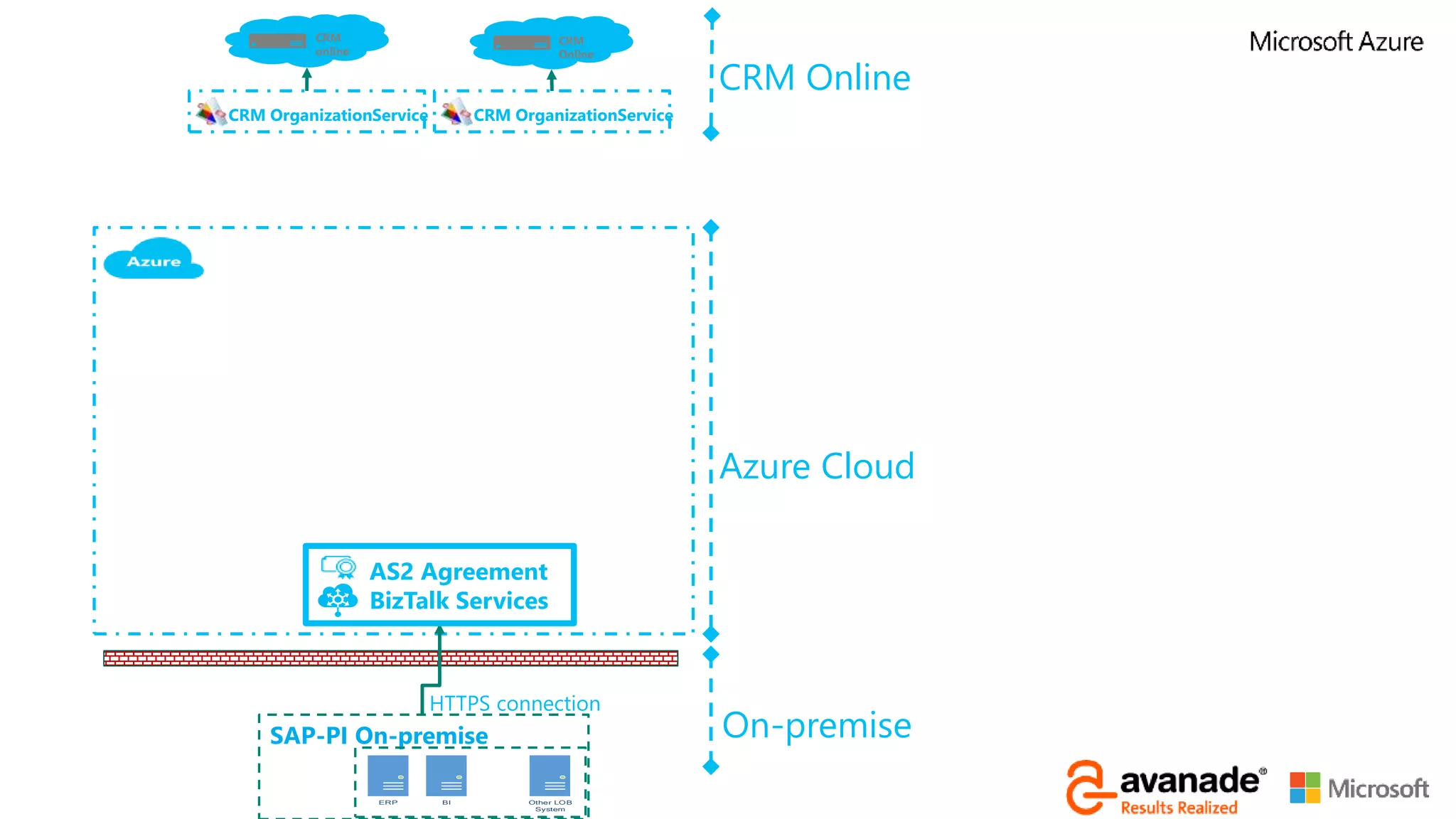

20. SAP-PI On-premise
ERP BI Other LOB
System
CRM
online
CRM
Online
HTTPS connection
CRM OrganizationServiceCRM OrganizationService
Azure Cloud
On-premise
CRM Online

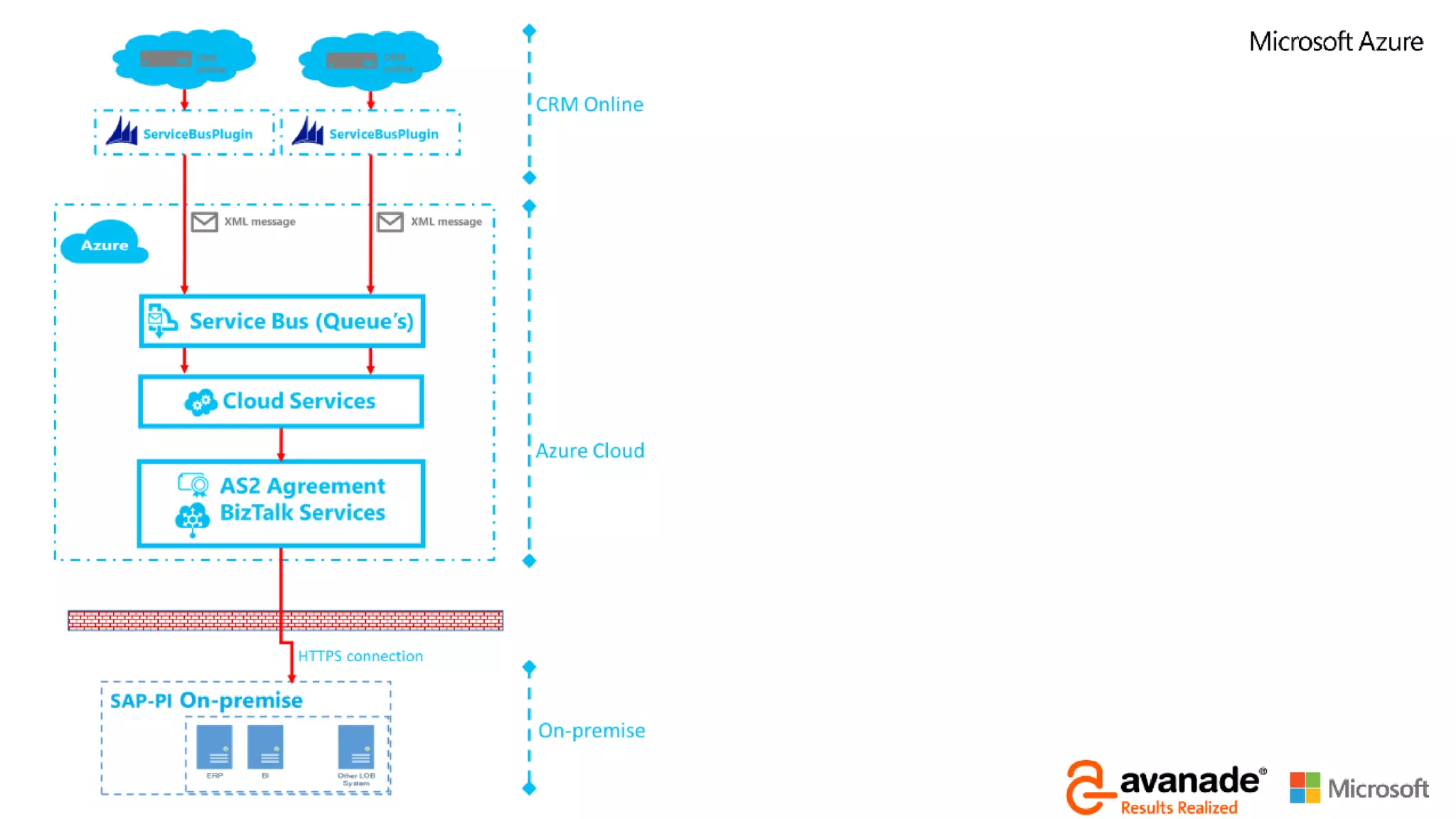

AS2 Agreement
BizTalk Services

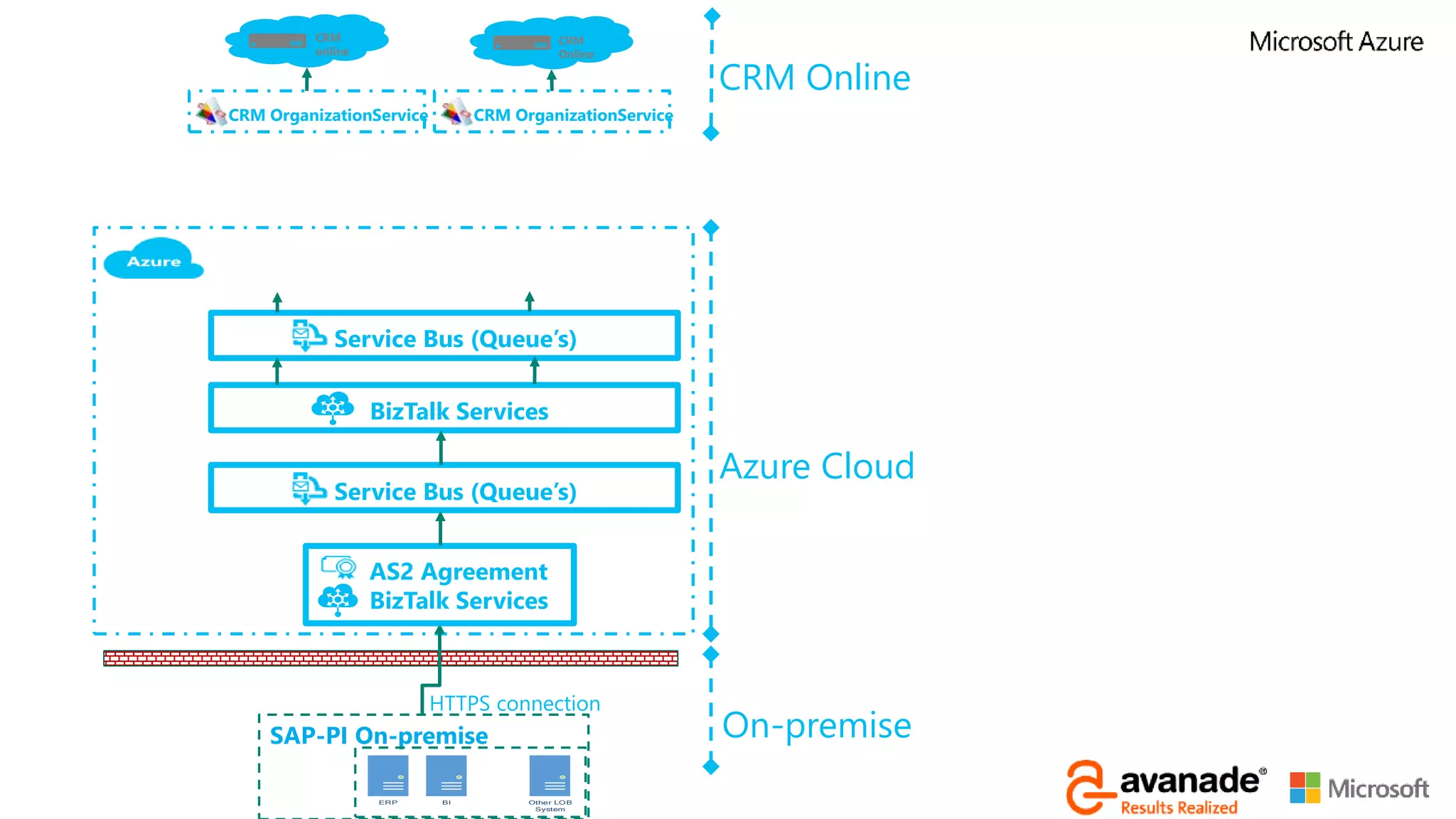

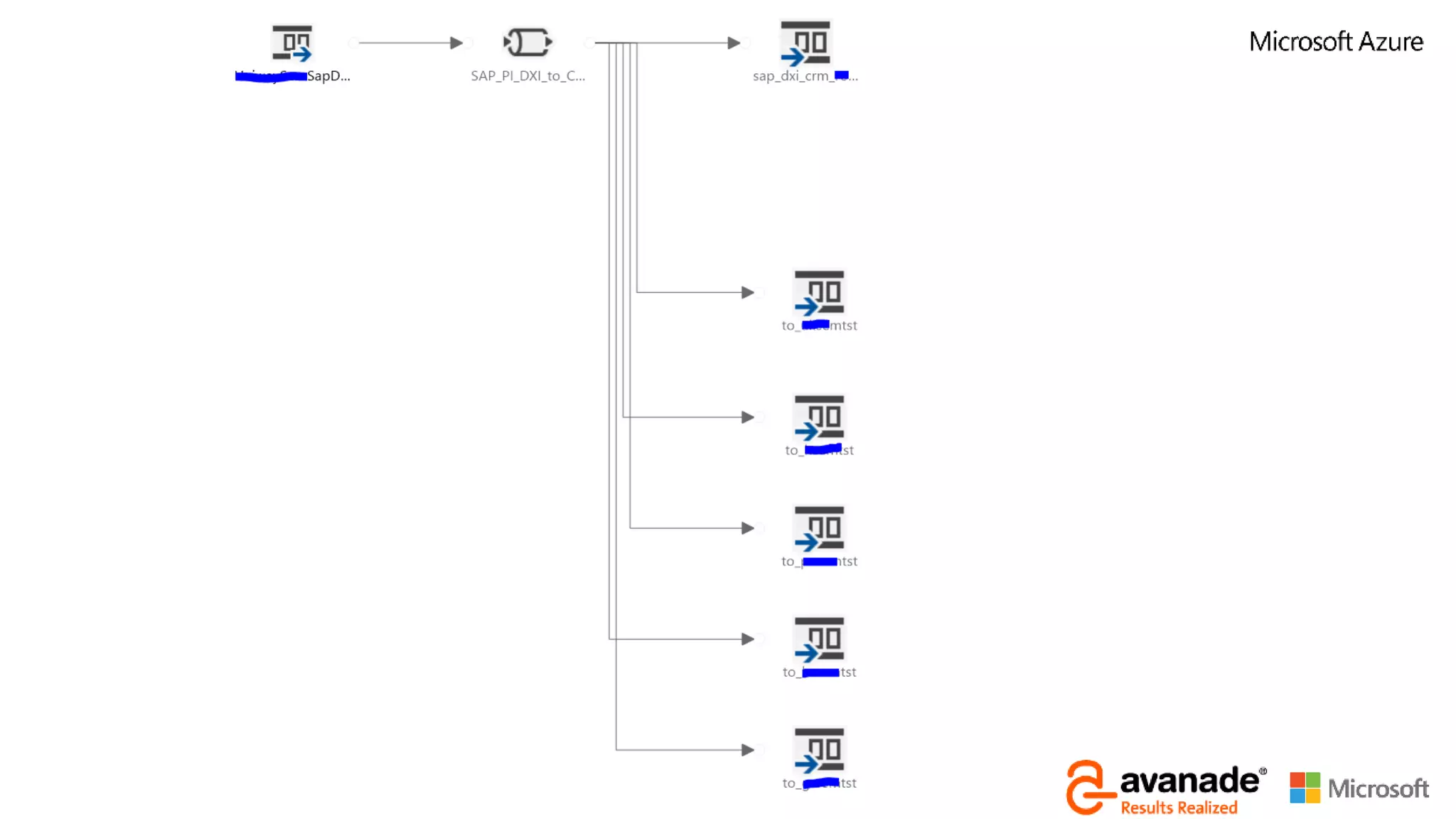

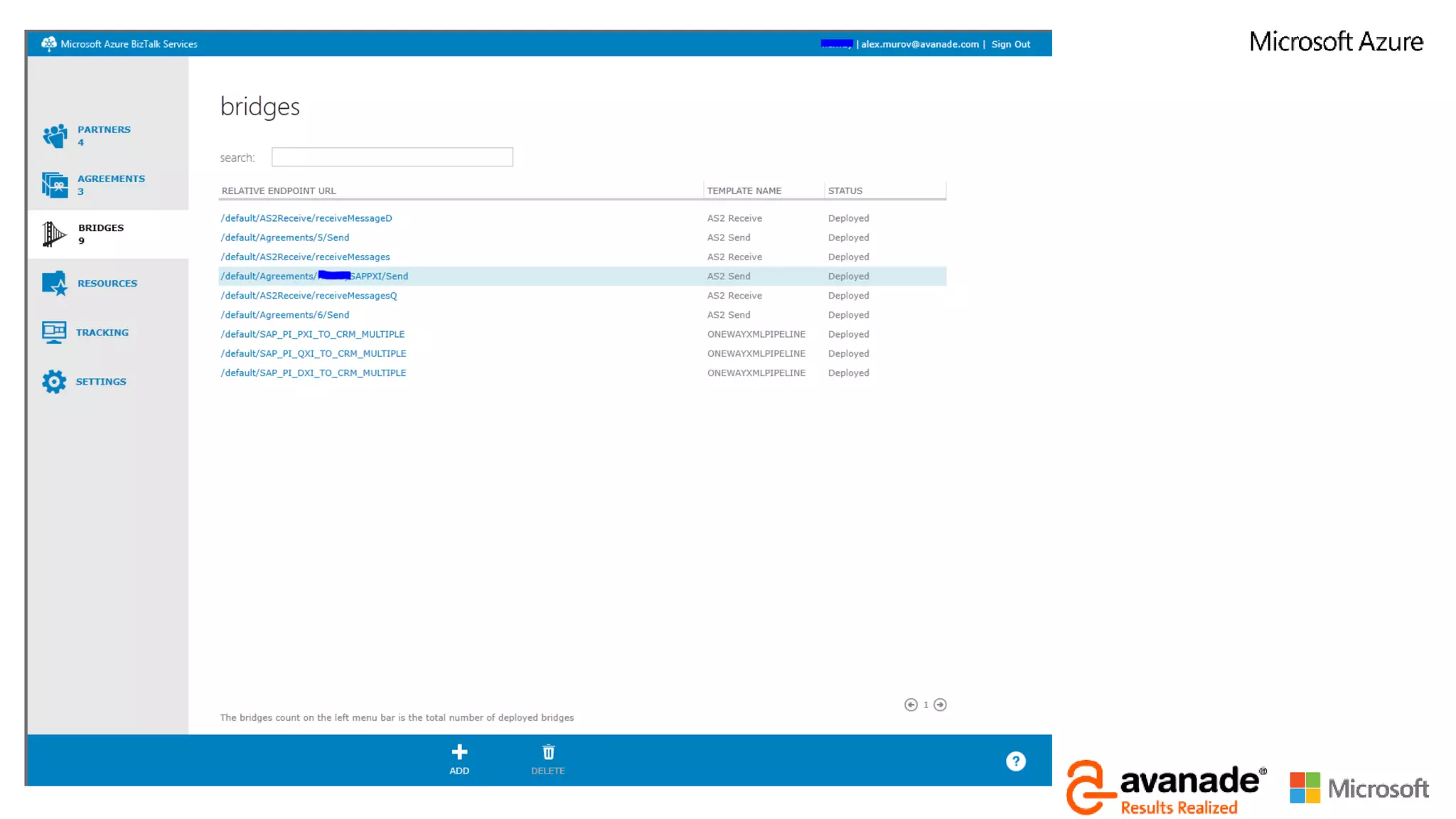

22. BizTalk Services
SAP-PI On-premise
ERP BI Other LOB
System
CRM
online
XML
message
CRM
Online
HTTPS connection
CRM OrganizationServiceCRM OrganizationService
Azure Cloud
On-premise
CRM Online
Service Bus (Queue’s)
AS2 Agreement
BizTalk Services
Service Bus (Queue’s)

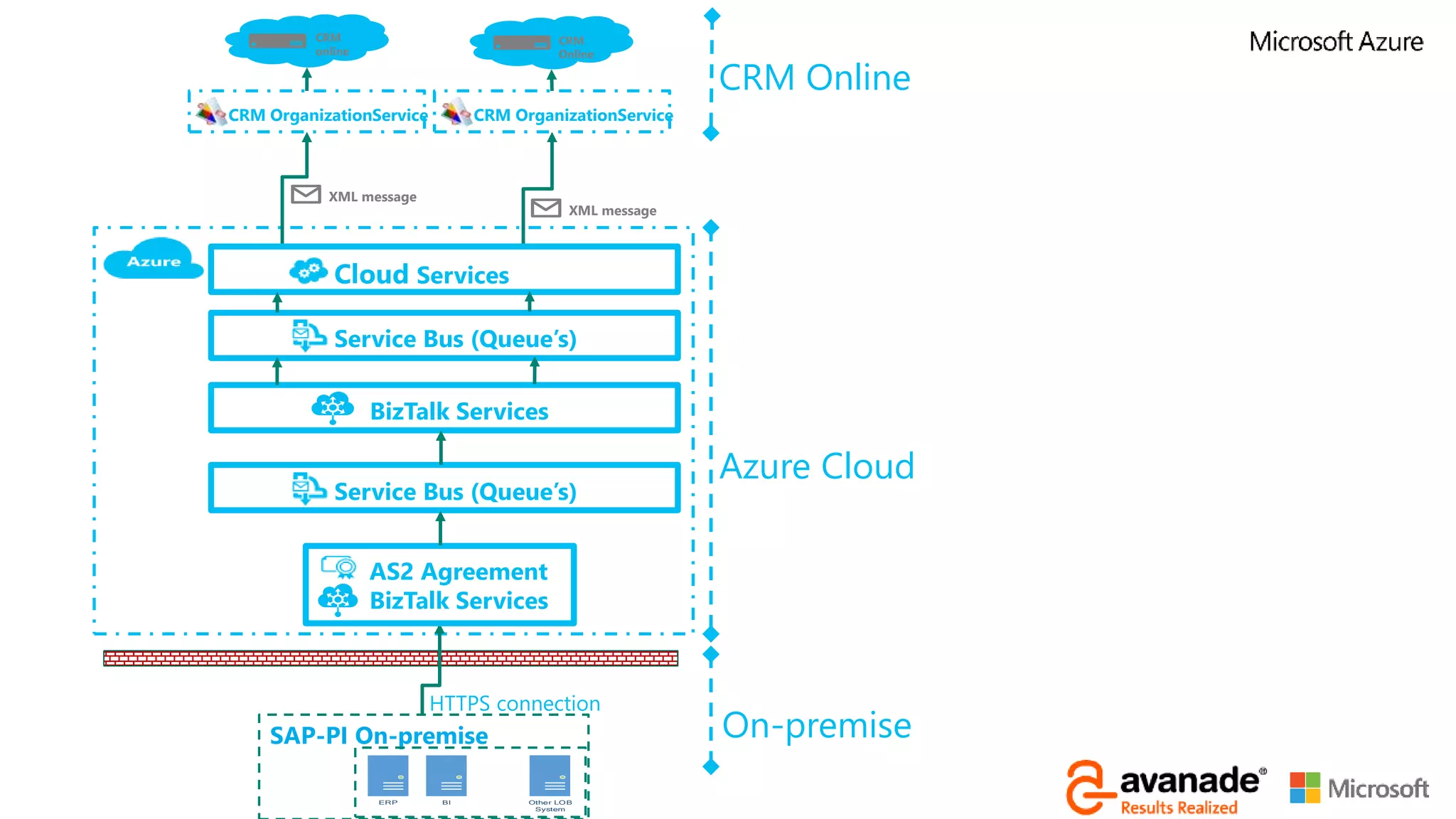

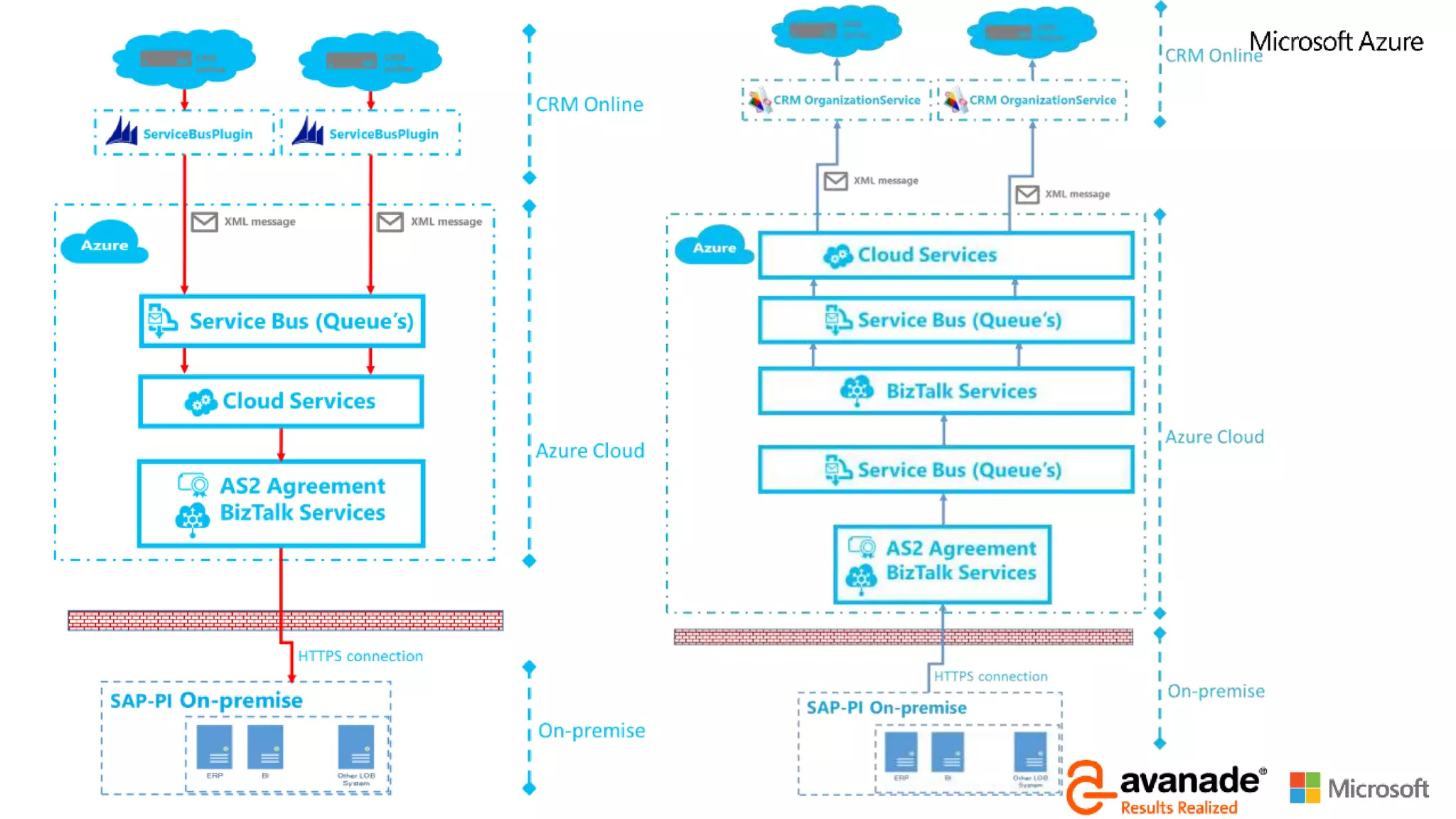

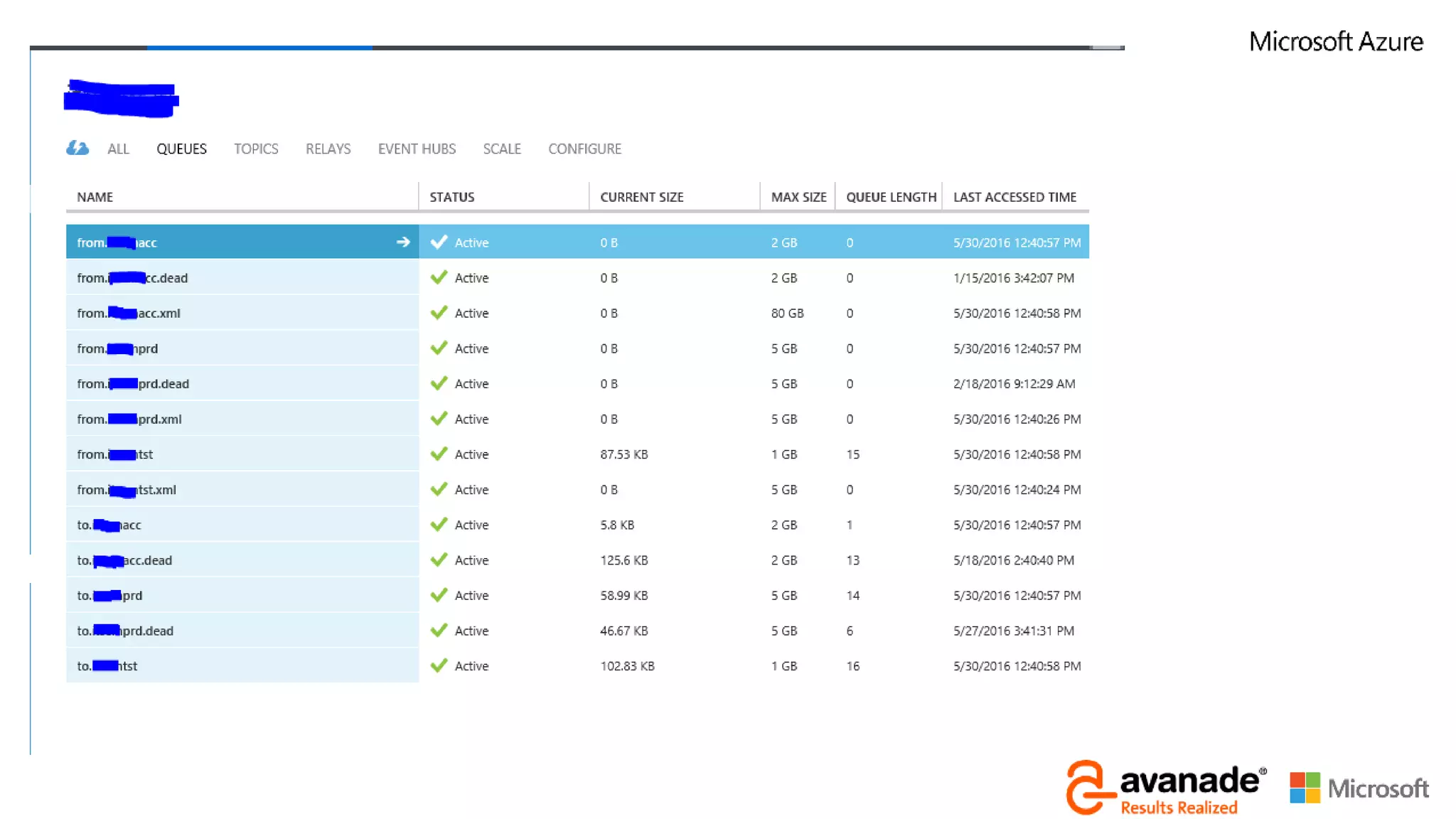

26. BizTalk Services
SAP-PI On-premise
ERP BI Other LOB
System
XML message
CRM
online
XML
message
CRM
Online
HTTPS connection
CRM OrganizationServiceCRM OrganizationService
Azure Cloud
On-premise
CRM Online
Service Bus (Queue’s)
XML message
AS2 Agreement
BizTalk Services
Cloud Services
Service Bus (Queue’s)

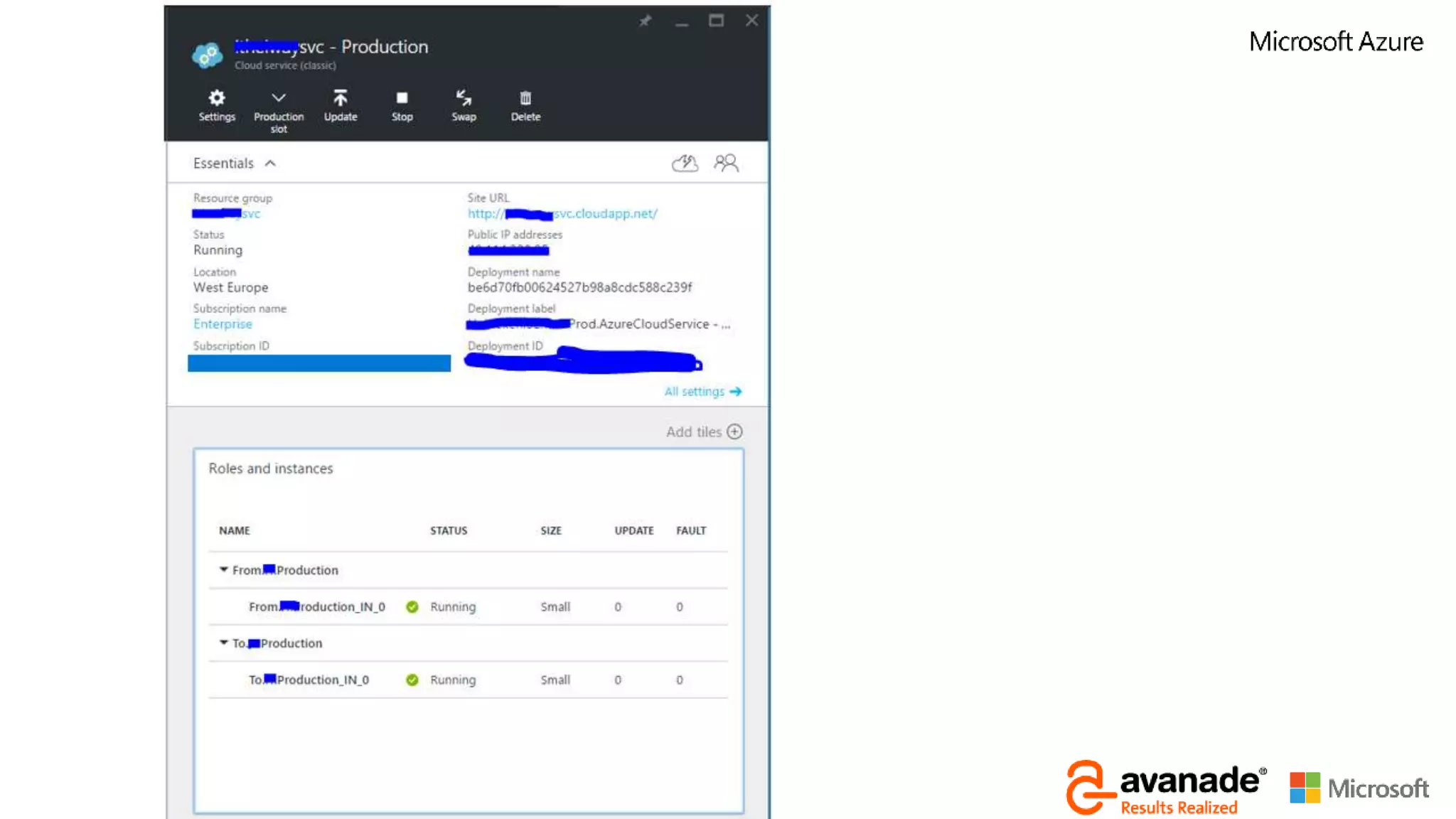

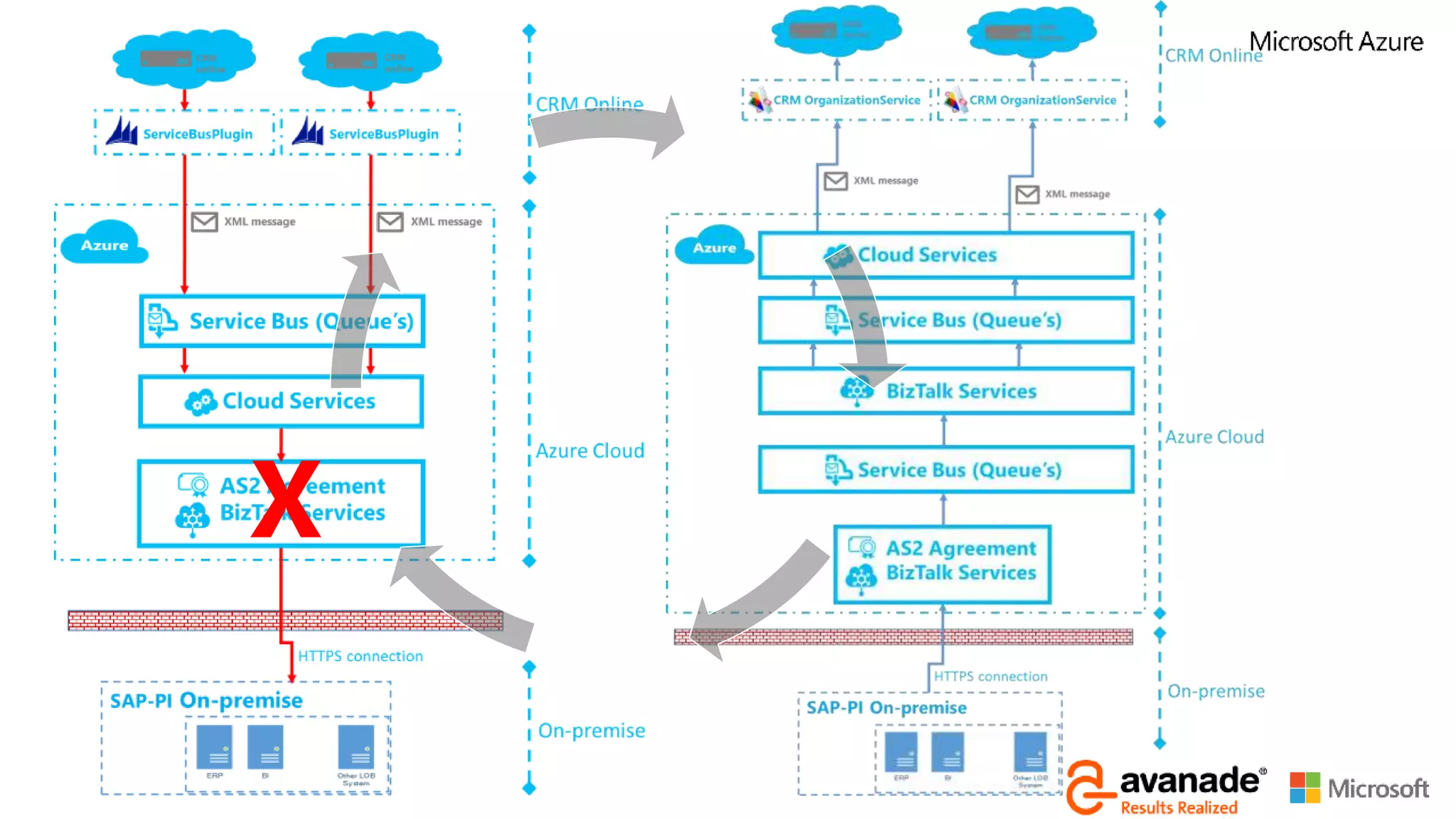

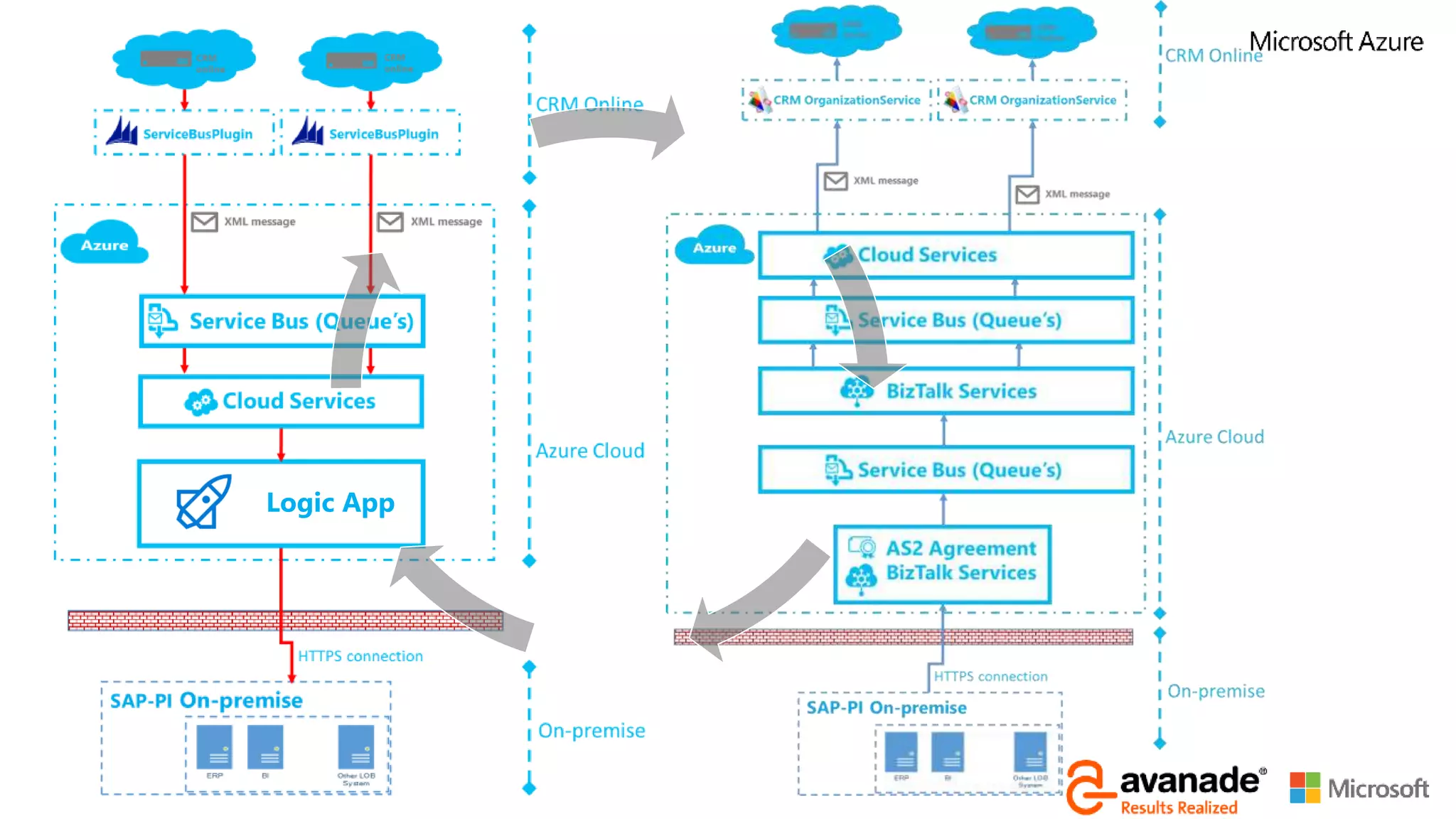

31. X

32. Logic App

33. Logic Apps

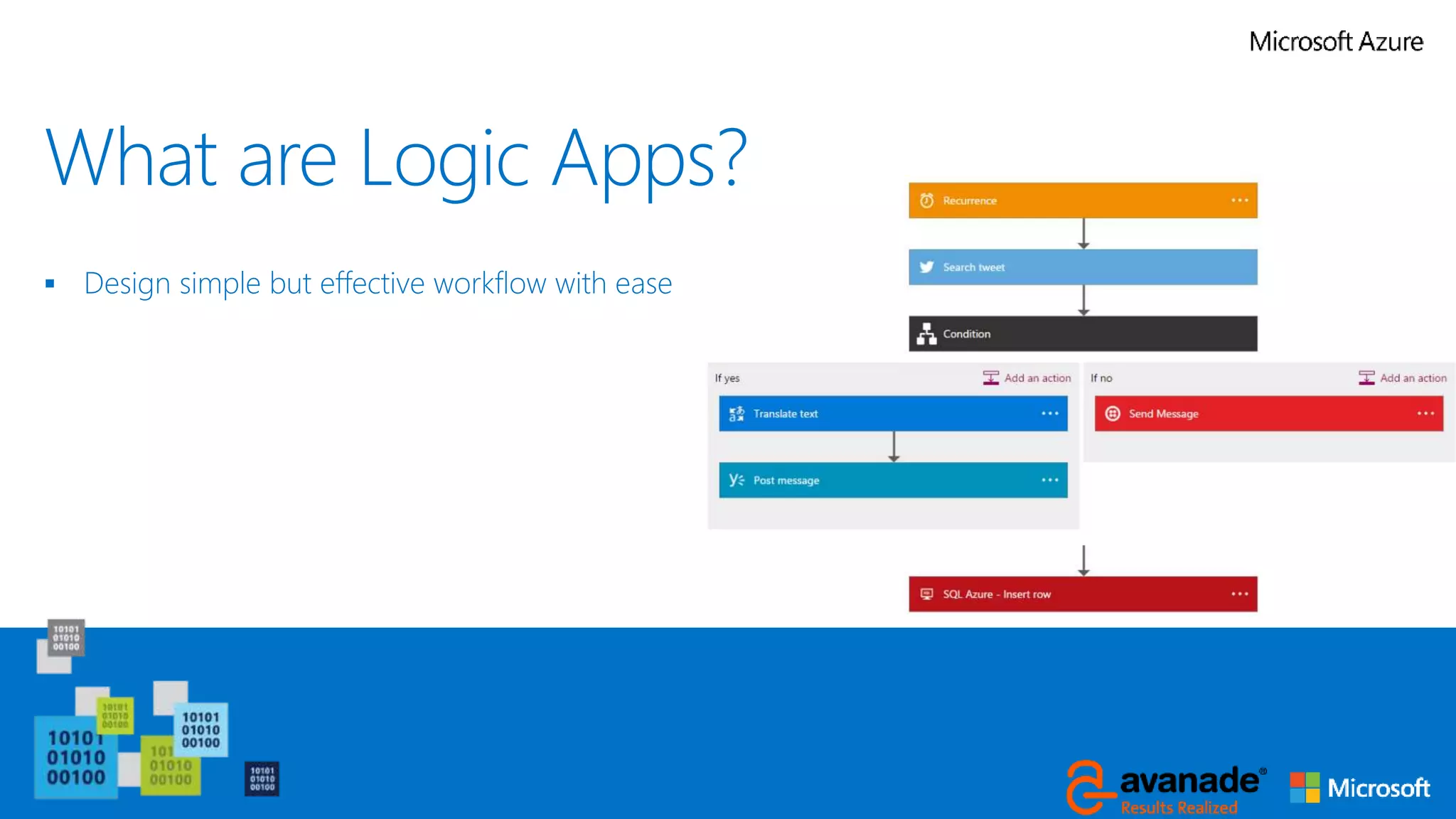

34.  Design simple but effective workflow with ease

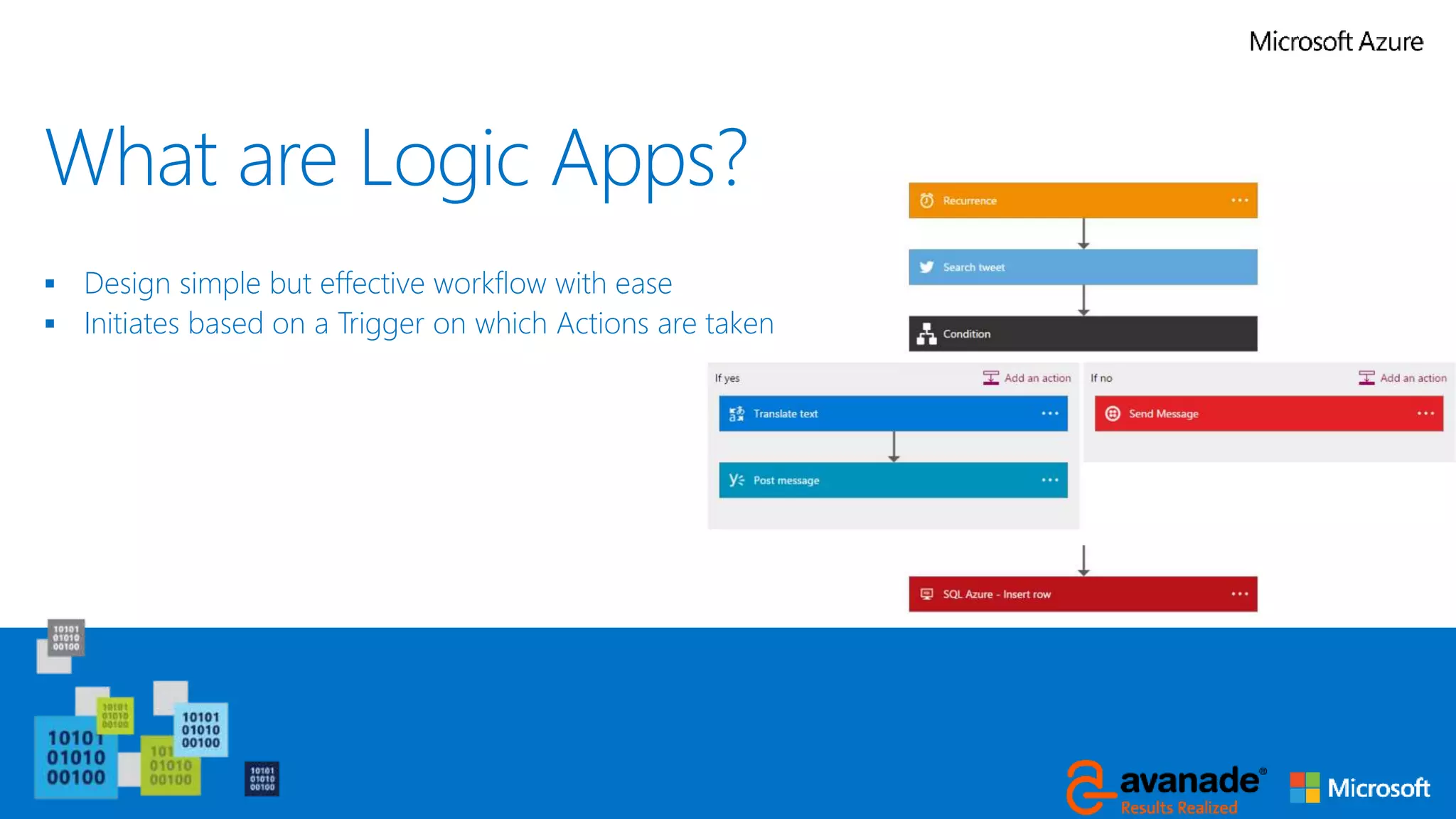

What are Logic Apps?

35.  Design simple but effective workflow with ease
 Initiates based on a Trigger on which Actions are taken
What are Logic Apps?

36.  Design simple but effective workflow with ease
 Initiates based on a Trigger on which Actions are taken
 Extensible with Custom API Apps
What are Logic Apps?

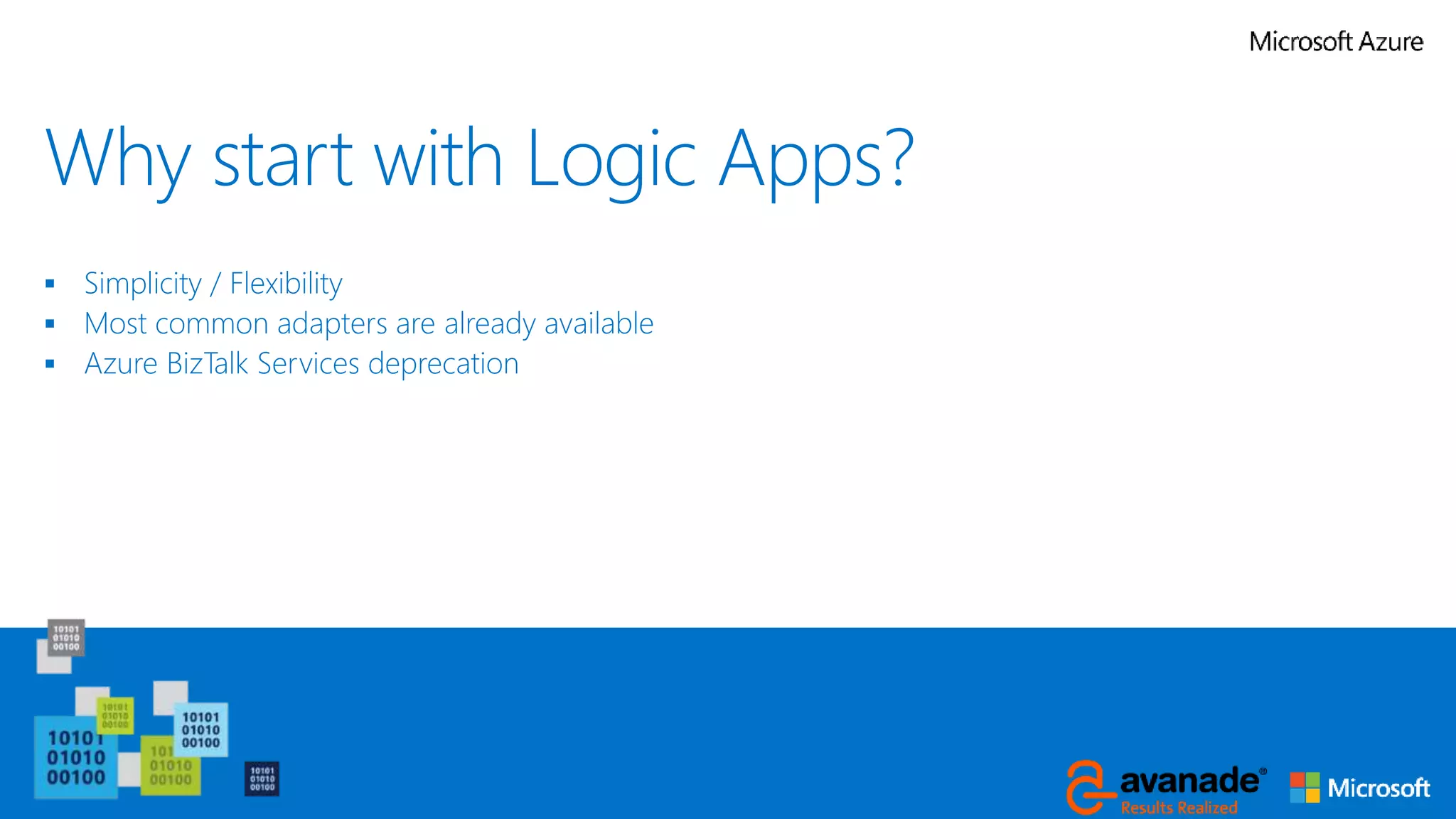

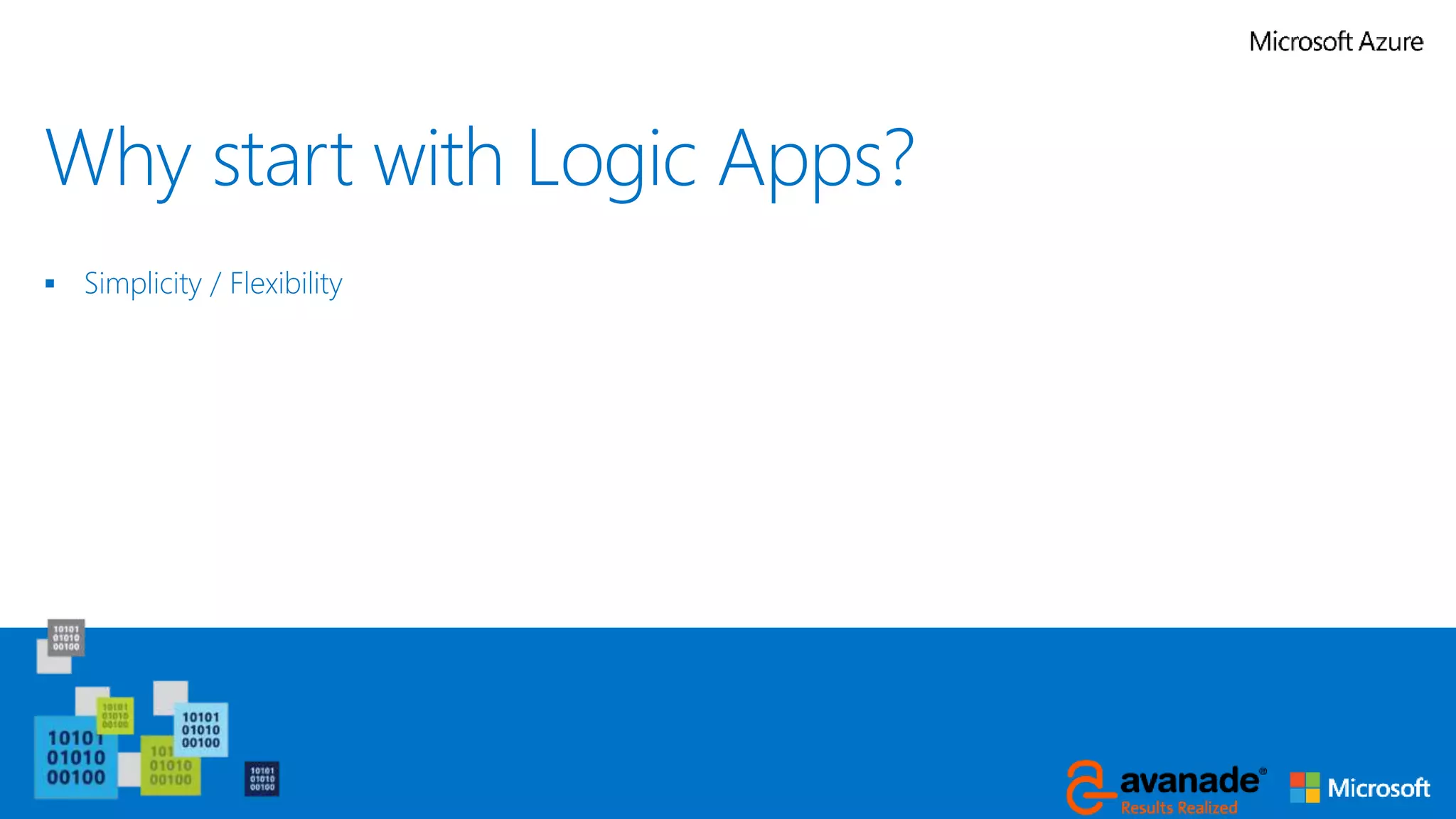

37. Why start with Logic Apps?
 Simplicity / Flexibility

38. Why start with Logic Apps?
 Simplicity / Flexibility
 Most common adapters are already available

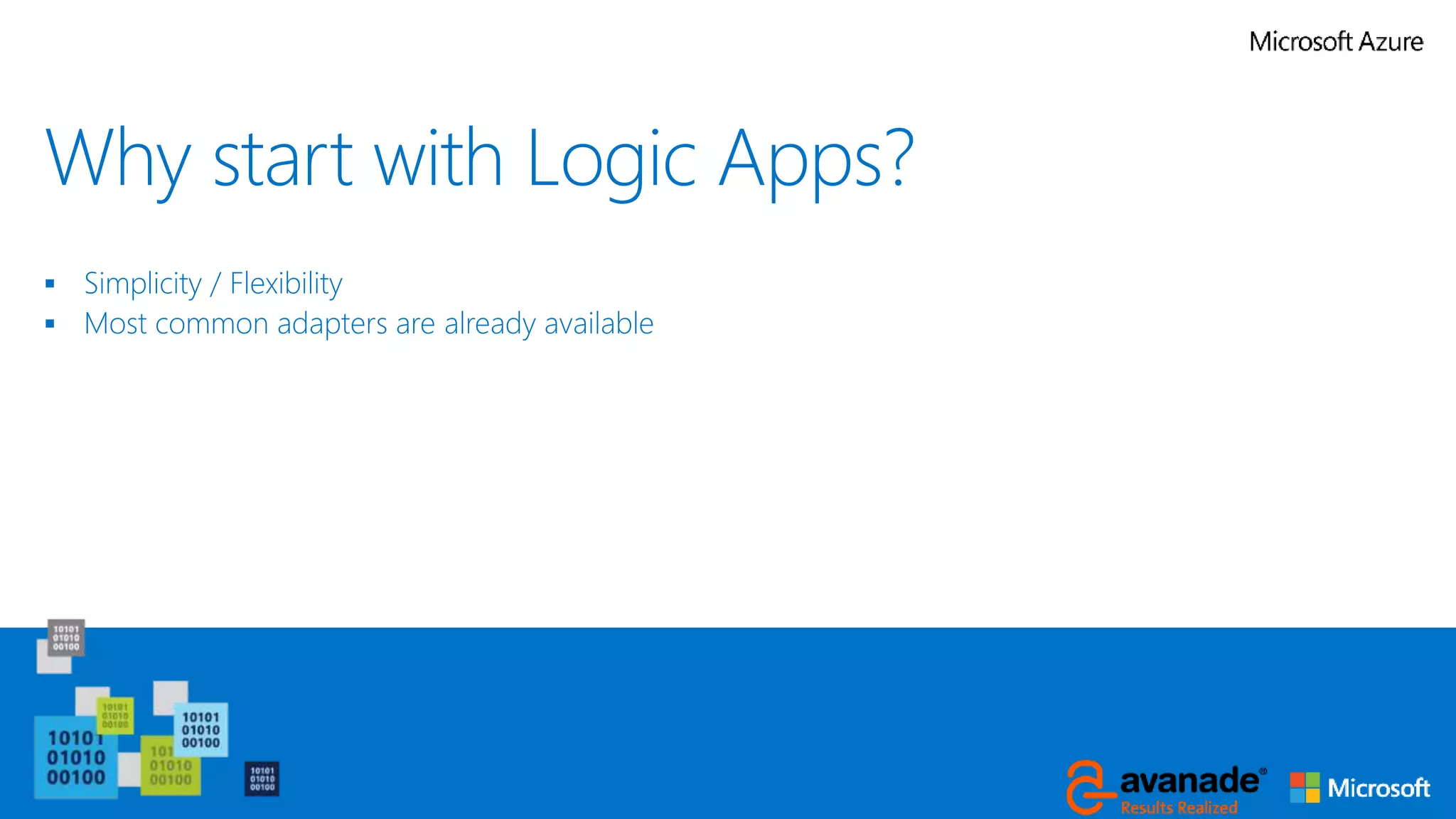

39. Why start with Logic Apps?
 Simplicity / Flexibility
 Most common adapters are already available
 Azure BizTalk Services deprecation

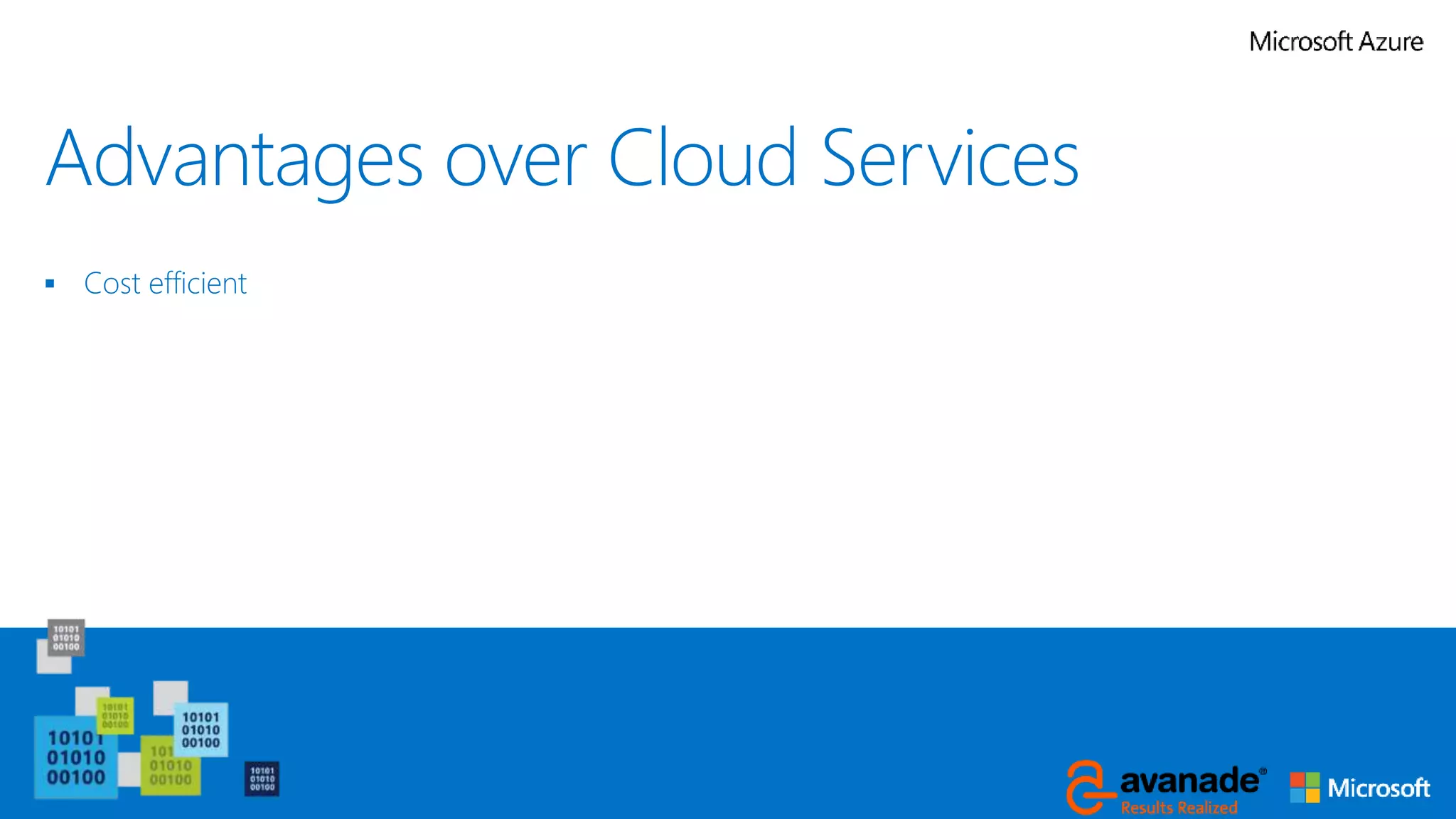

40. Advantages over Cloud Services
 Cost efficient

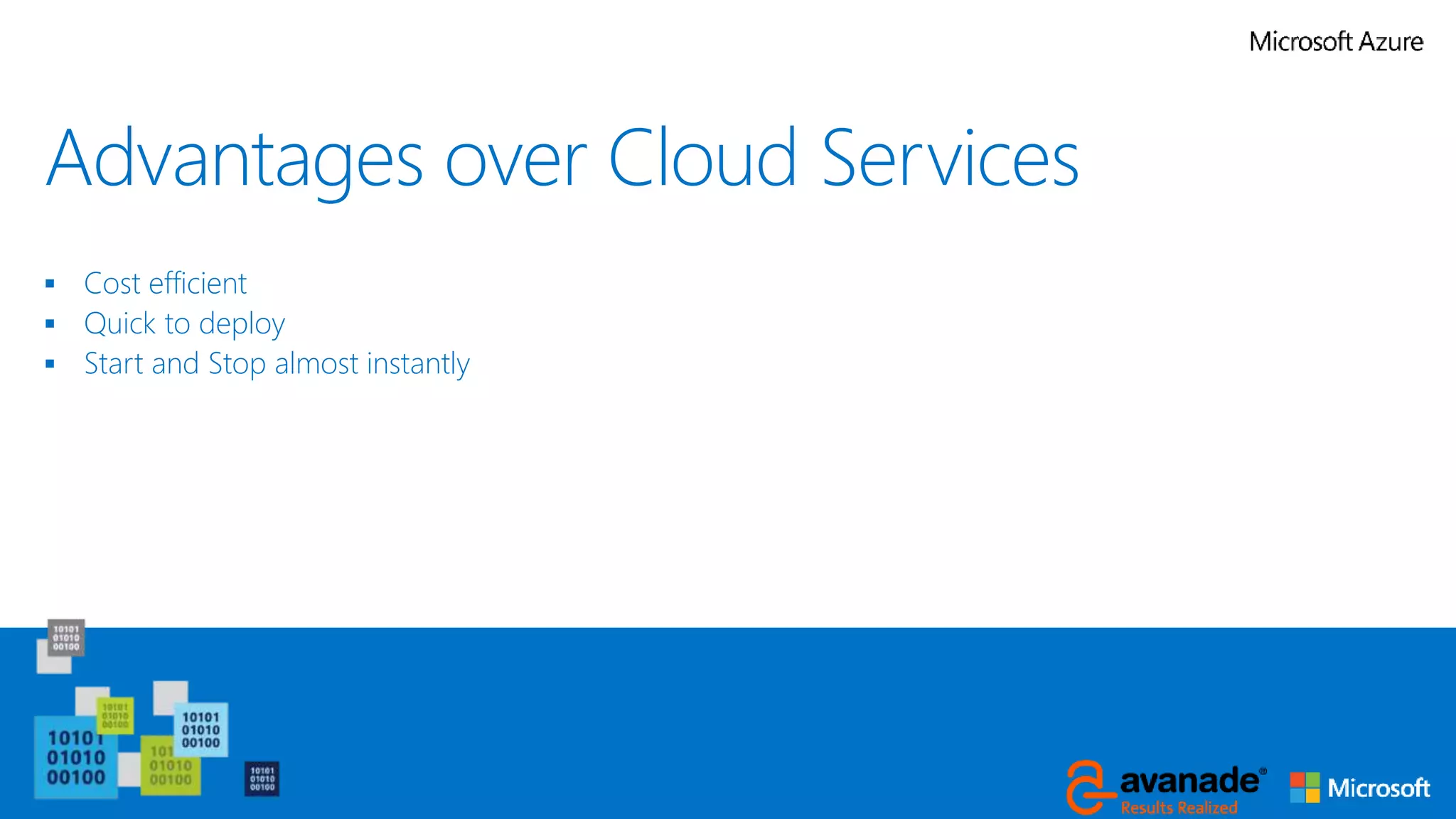

41. Advantages over Cloud Services
 Cost efficient
 Quick to deploy
 Start and Stop almost instantly

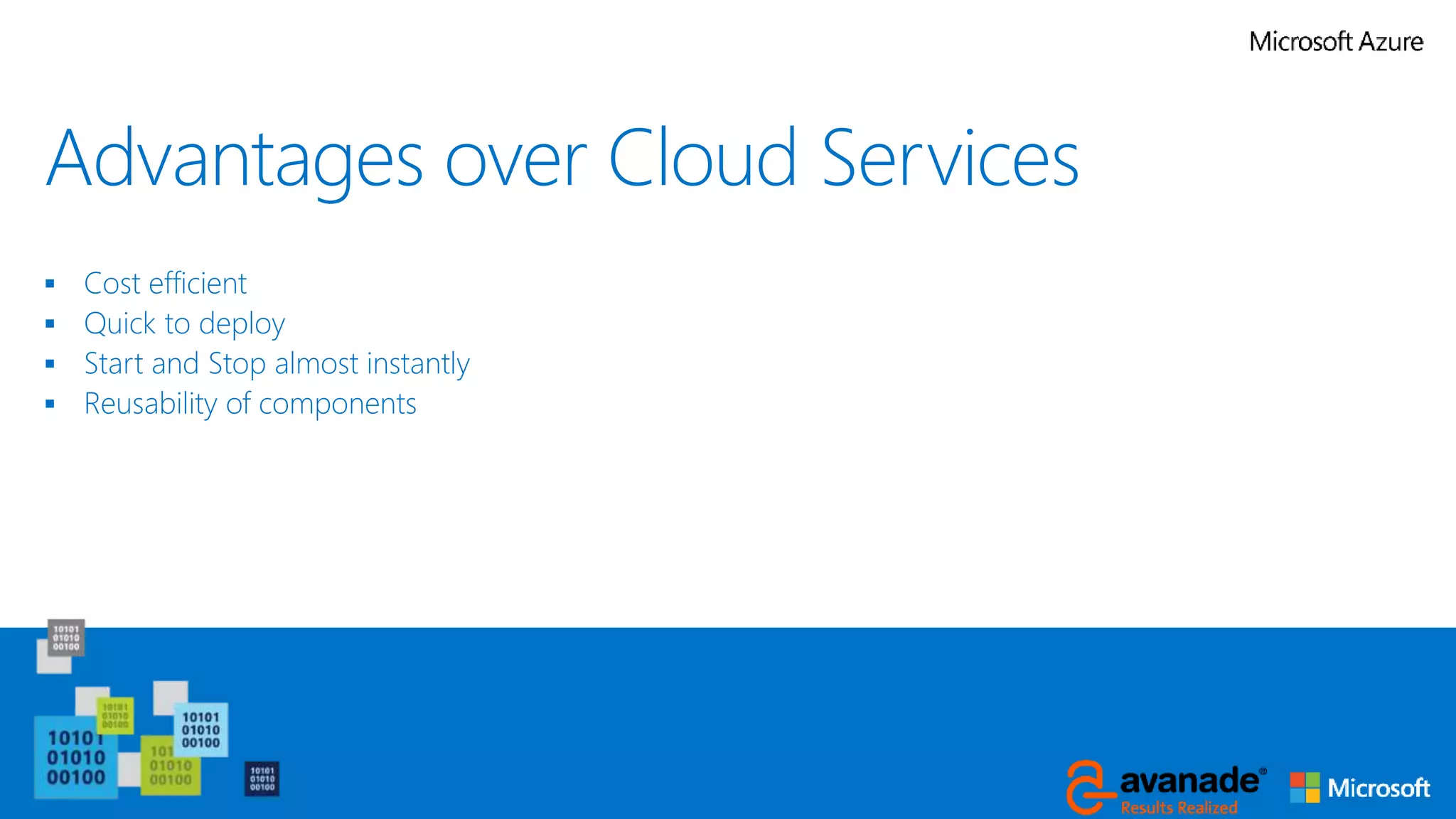

42. Advantages over Cloud Services
 Cost efficient
 Quick to deploy
 Start and Stop almost instantly
 Reusability of components

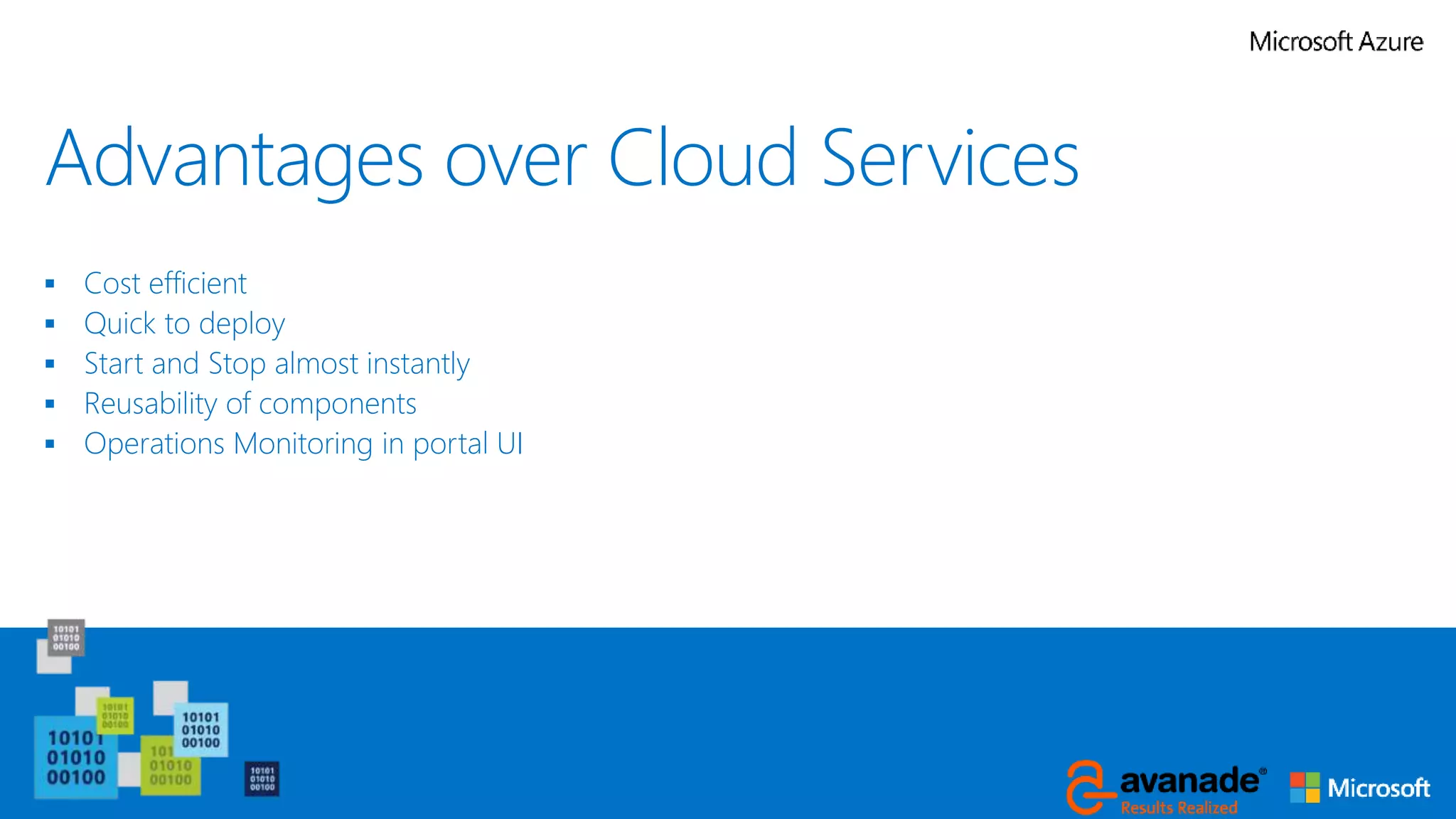

43. Advantages over Cloud Services
 Cost efficient
 Quick to deploy
 Start and Stop almost instantly
 Reusability of components
 Operations Monitoring in portal UI

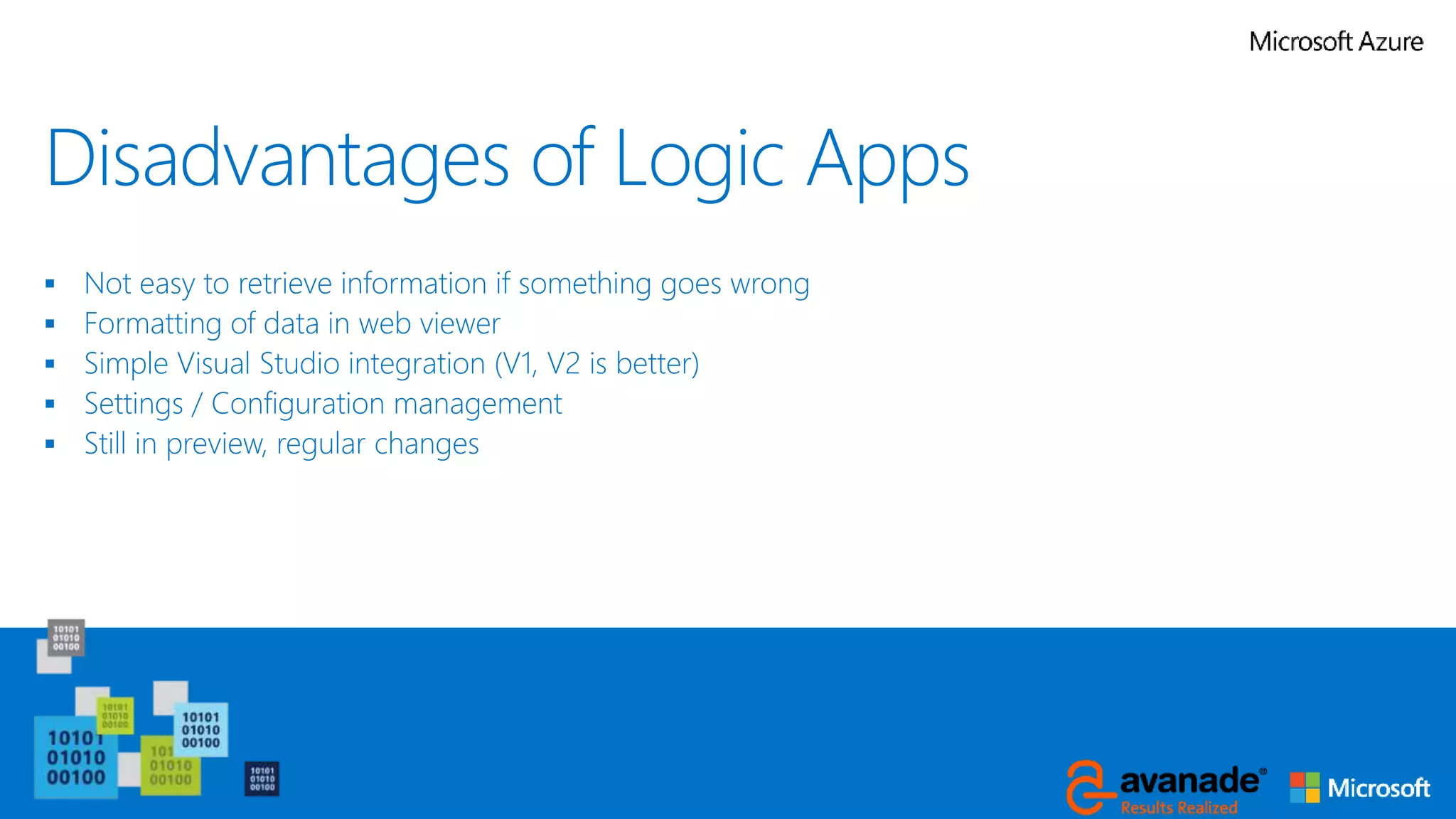

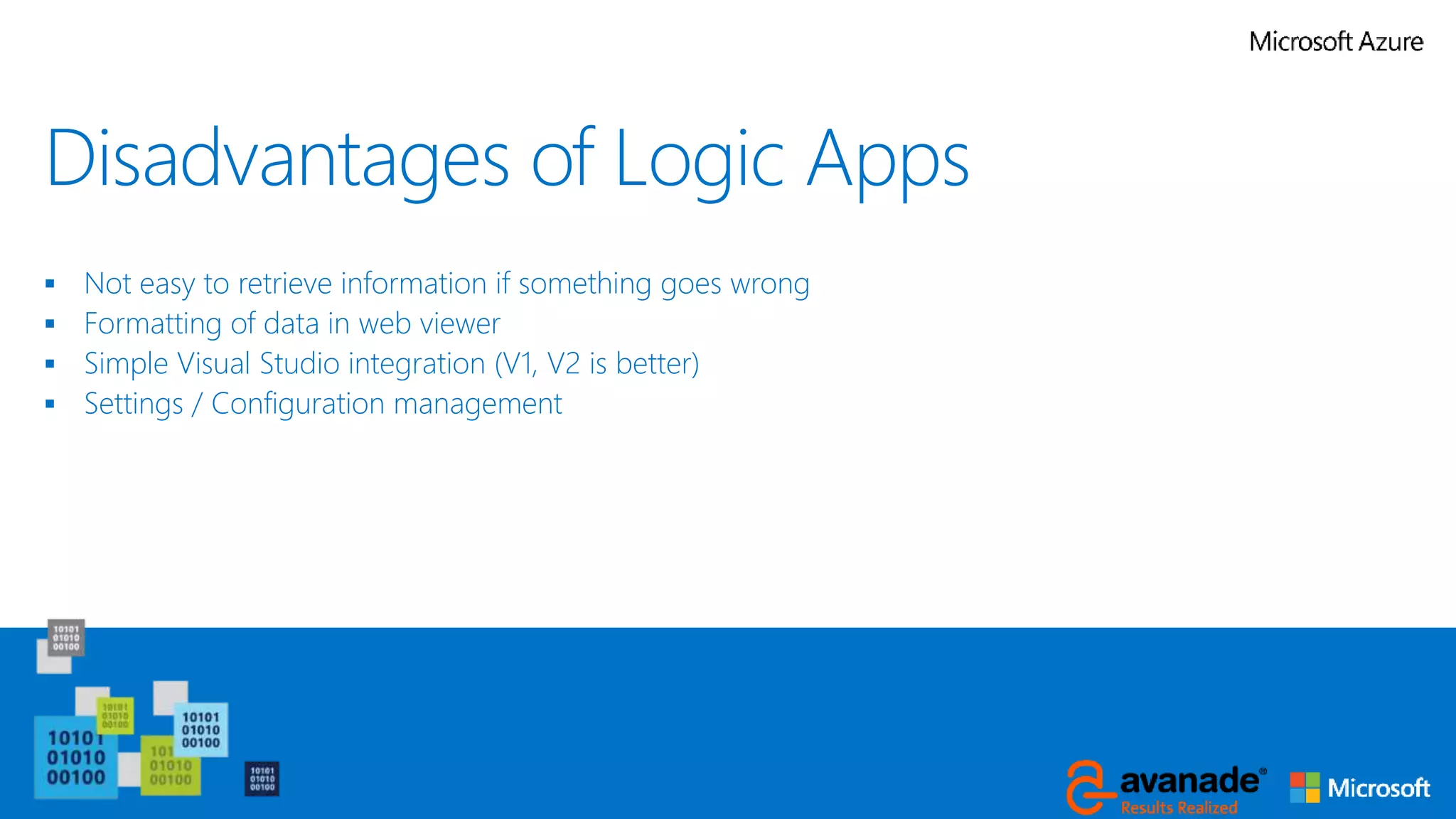

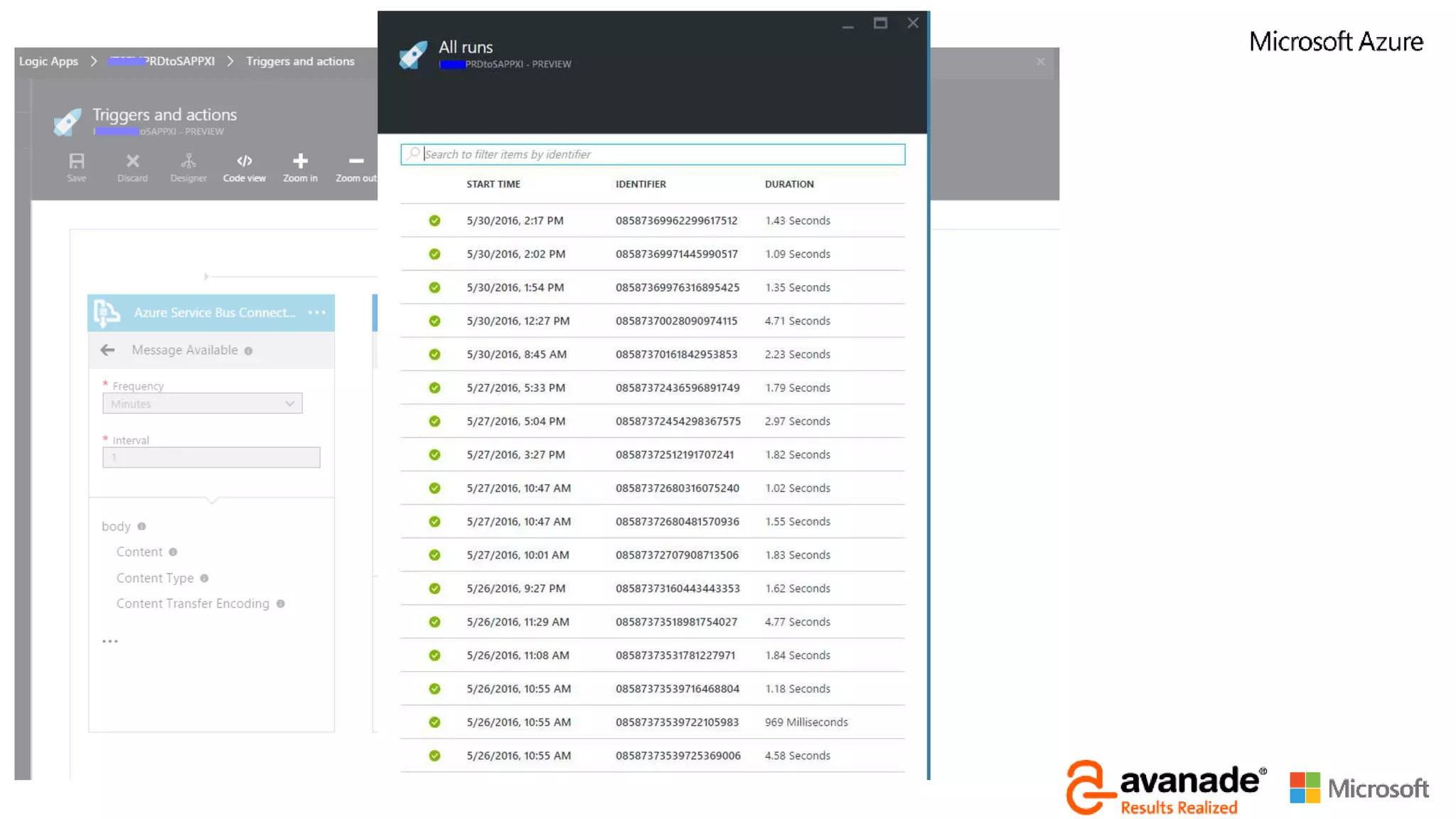

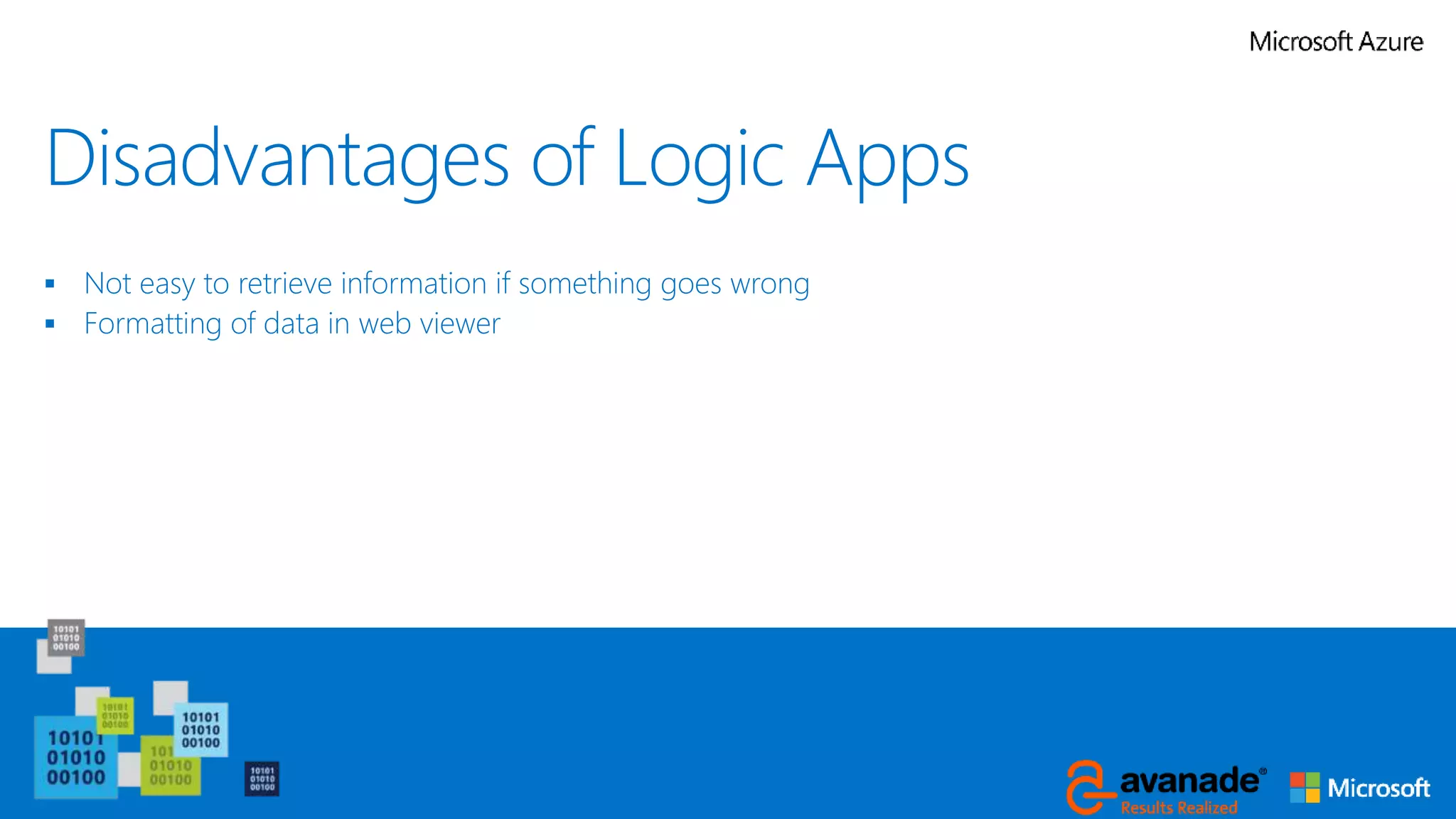

44. Disadvantages of Logic Apps
 Not easy to retrieve information if something goes wrong
 Formatting of data in web viewer

45. Disadvantages of Logic Apps
 Not easy to retrieve information if something goes wrong
 Formatting of data in web viewer
 Simple Visual Studio integration (V1, V2 is better)
 Settings / Configuration management

46. Disadvantages of Logic Apps
 Not easy to retrieve information if something goes wrong
 Formatting of data in web viewer
 Simple Visual Studio integration (V1, V2 is better)
 Settings / Configuration management
 Still in preview, regular changes

47. Specific implementations

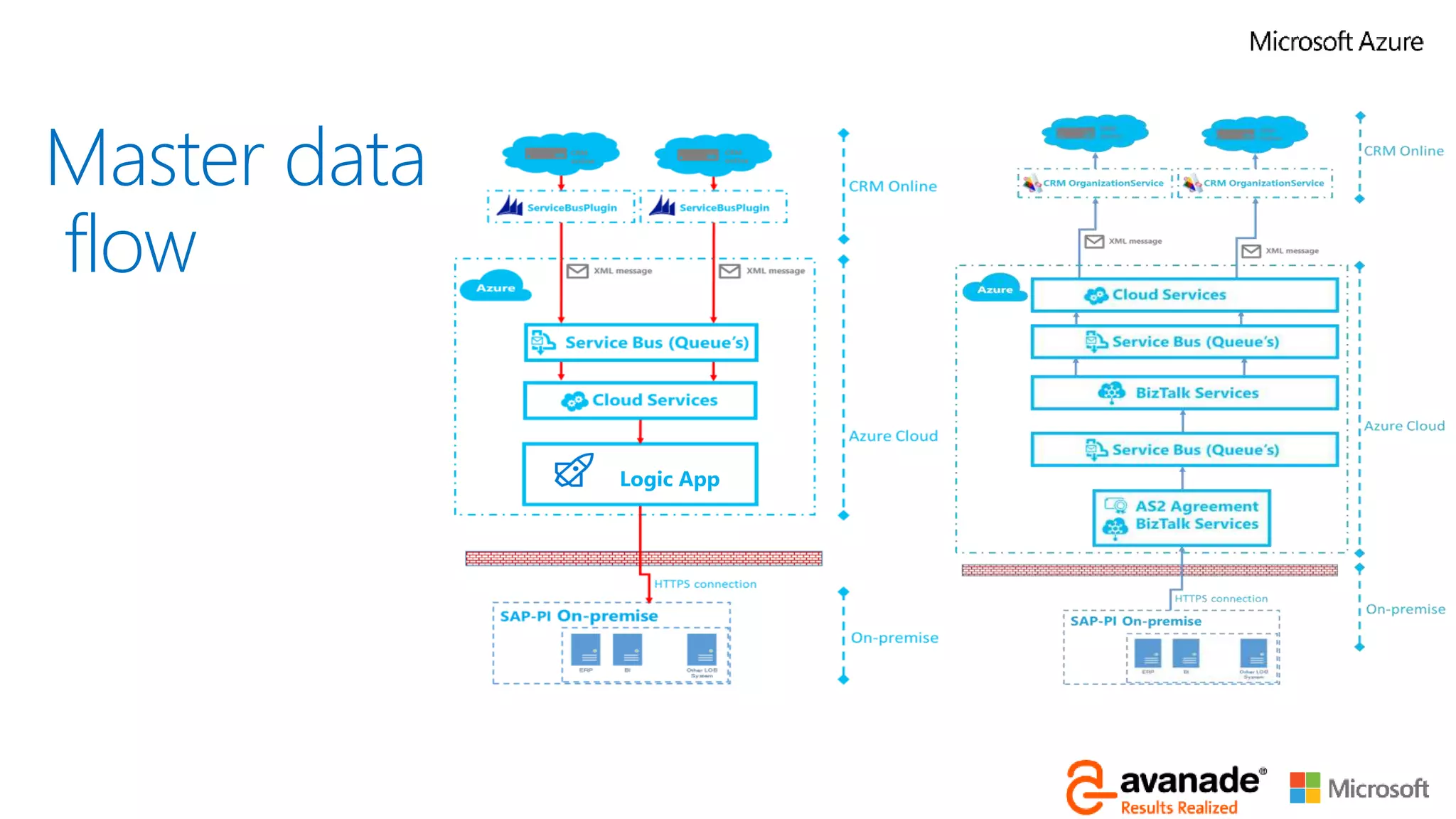

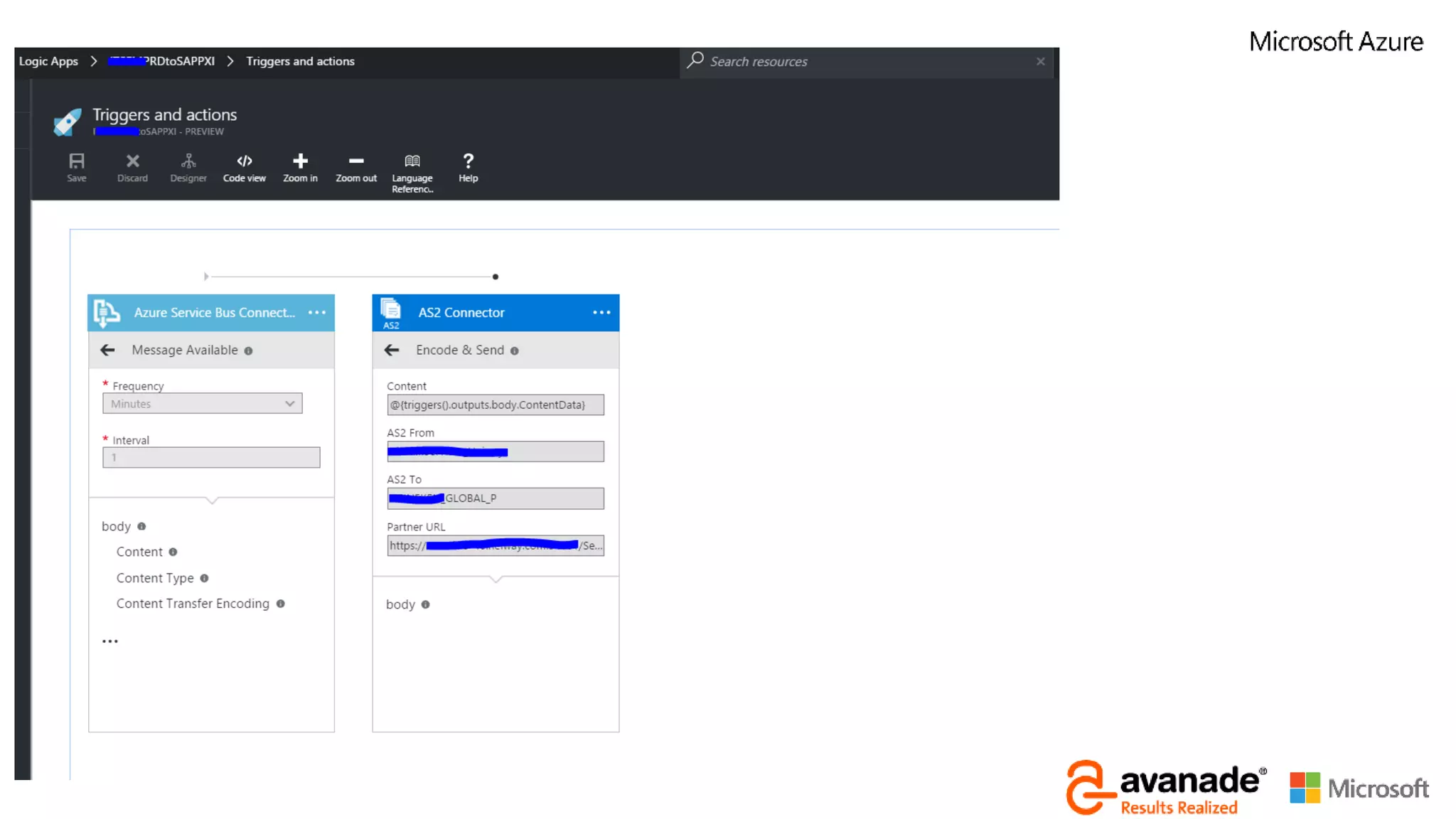

48. Master data flowMaster data
flow
Logic App

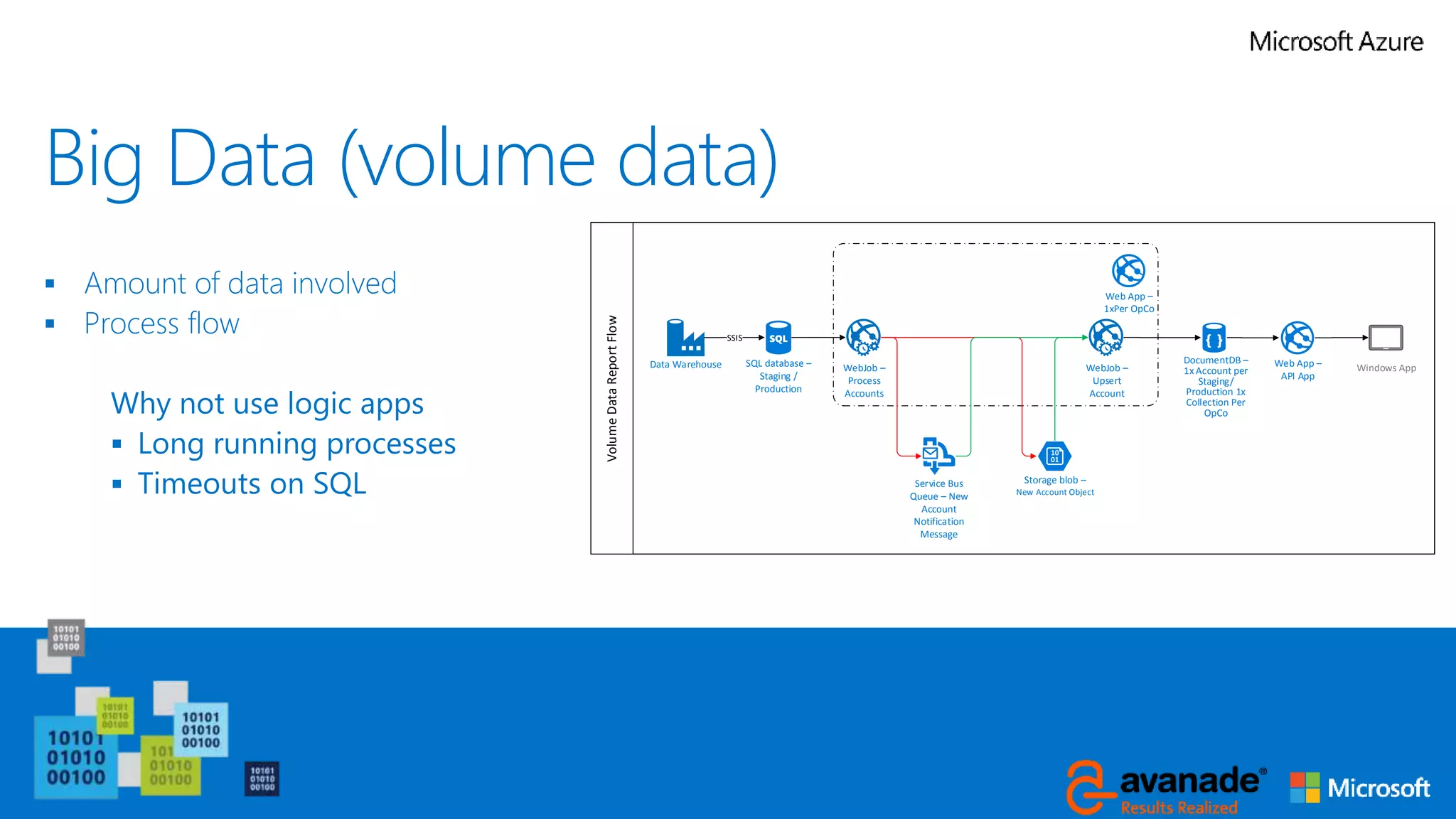

51. Big Data (volume data)
 Amount of data involved
 Process flow
Why not use logic apps
 Long running processes
 Timeouts on SQL
VolumeDataReportFlow
Data Warehouse
Web App –
1xPer OpCo
WebJob –
Process
Accounts
WebJob –
Upsert
Account
Service Bus
Queue – New
Account
Notification
Message
Storage blob –
New Account Object
DocumentDB –
1x Account per
Staging/
Production 1x
Collection Per
OpCo
SQL database –
Staging /
Production
SSIS
Web App –
API App
Windows App

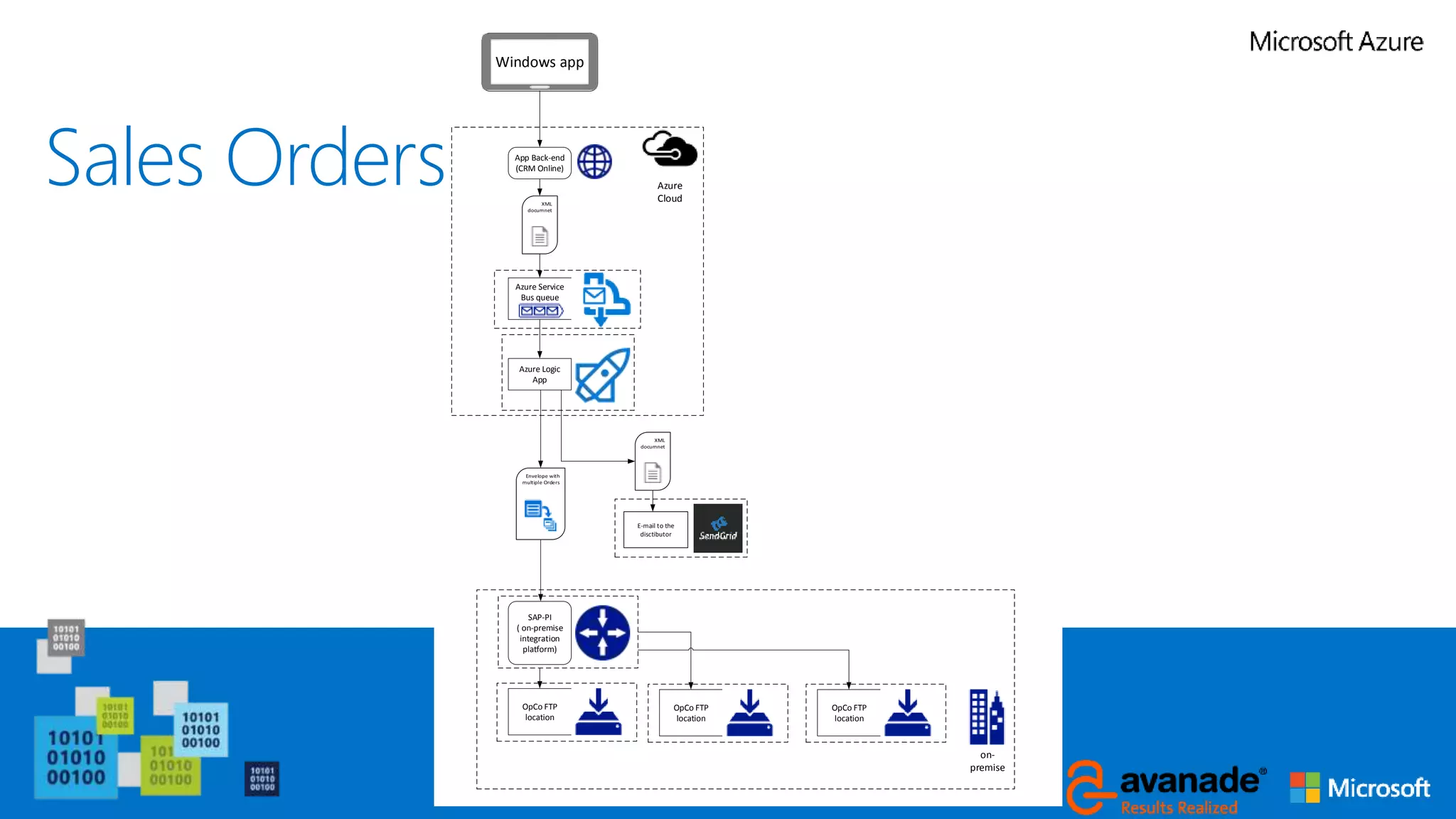

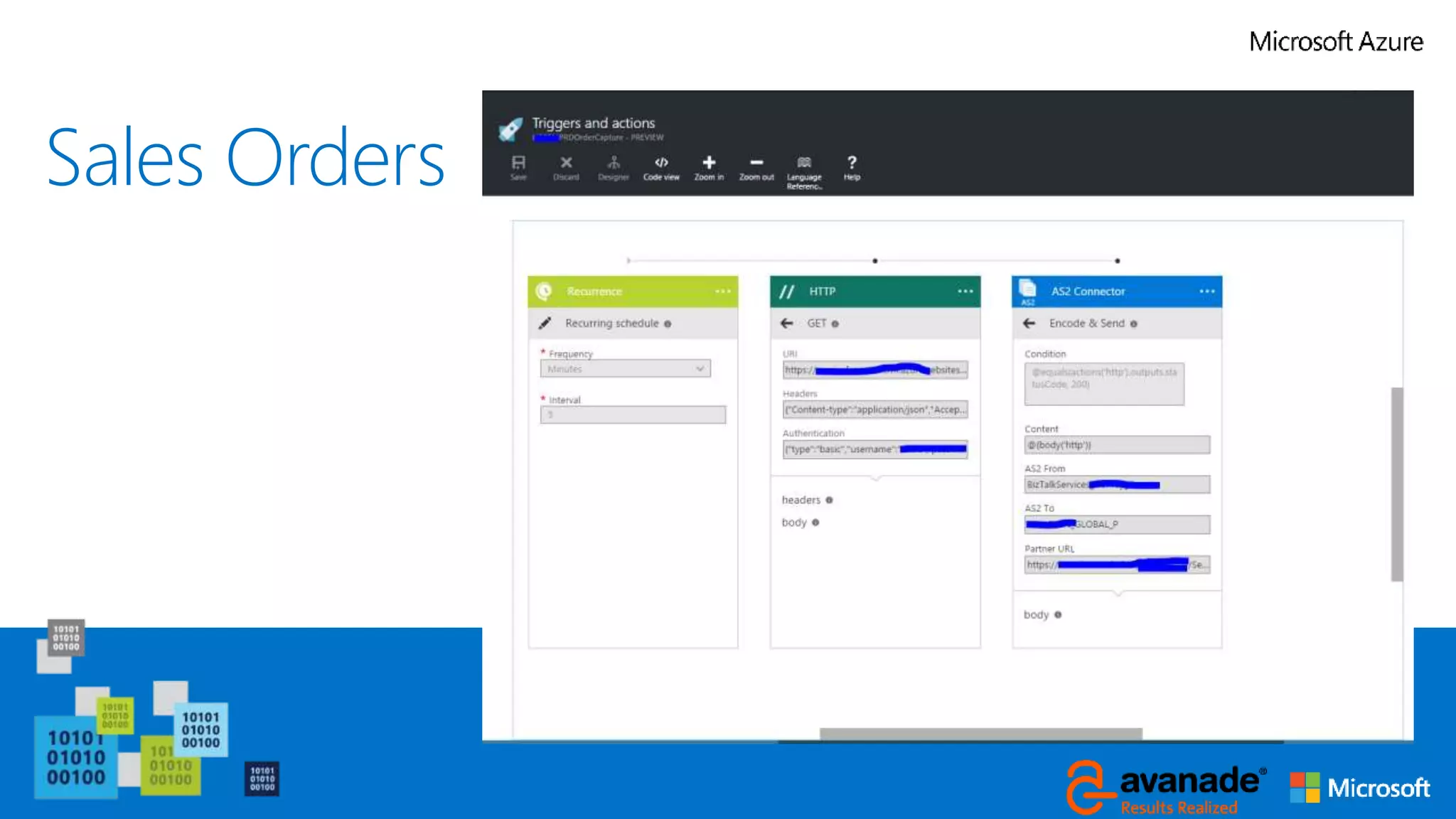

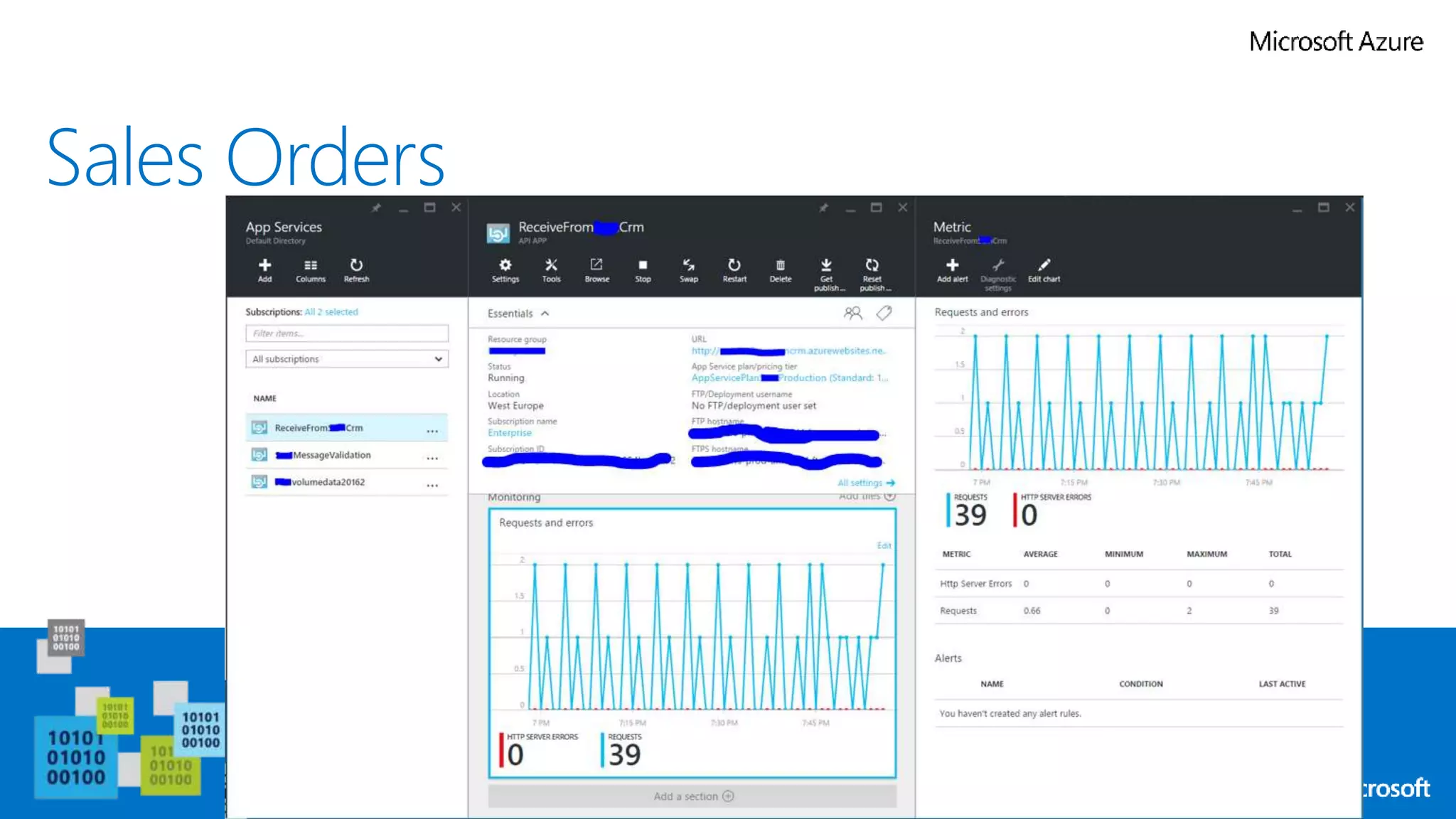

52. Sales Orders

53. Sales Orders

54. Sales Orders
Windows app
App Back-end
(CRM Online)
Azure Service
Bus queue
Azure Logic
App
SAP-PI
( on-premise
integration
platform)
OpCo FTP
location
Azure
Cloud
on-
premise
E-mail to the
disctibutor
OpCo FTP
location
OpCo FTP
location

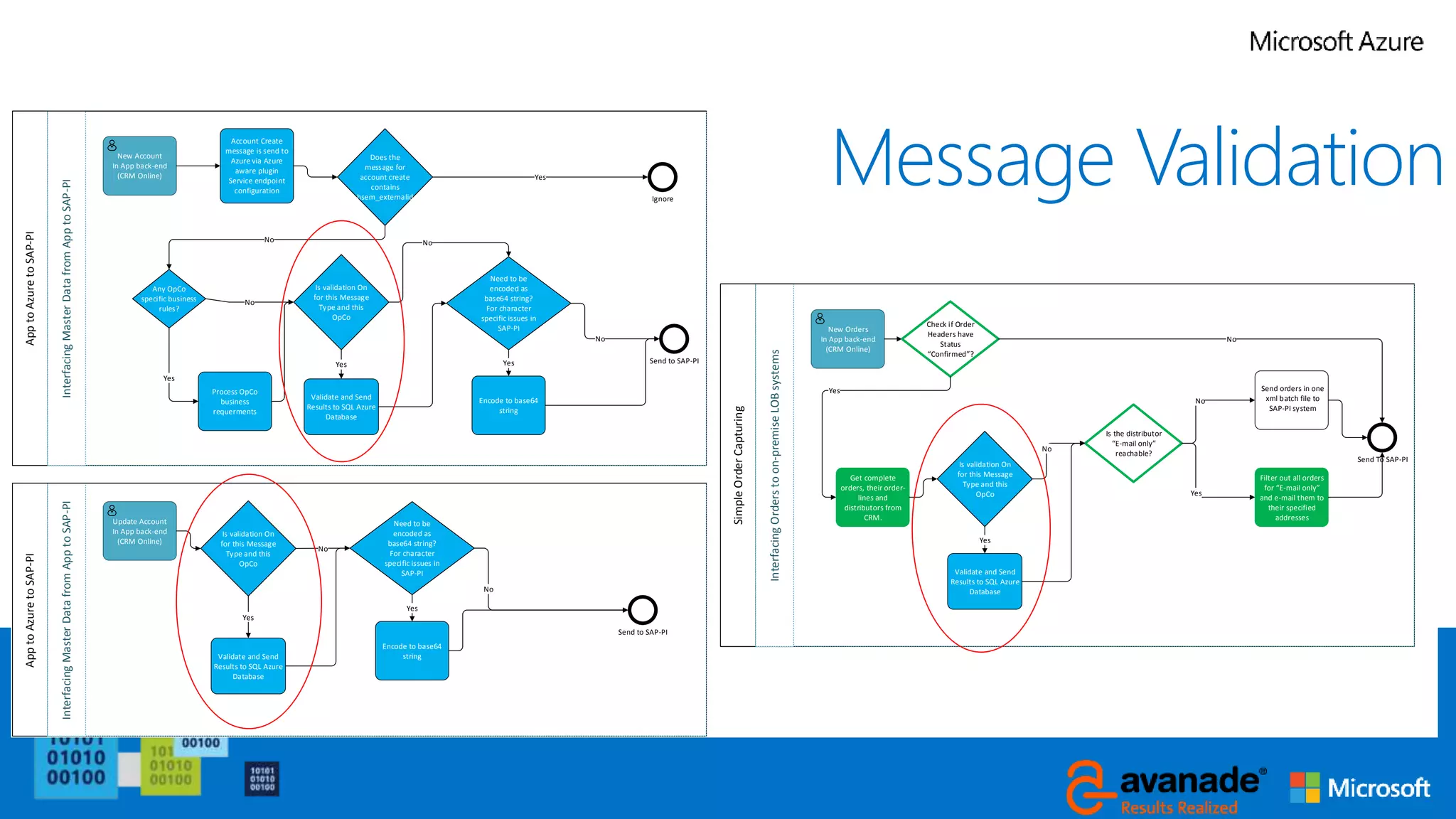

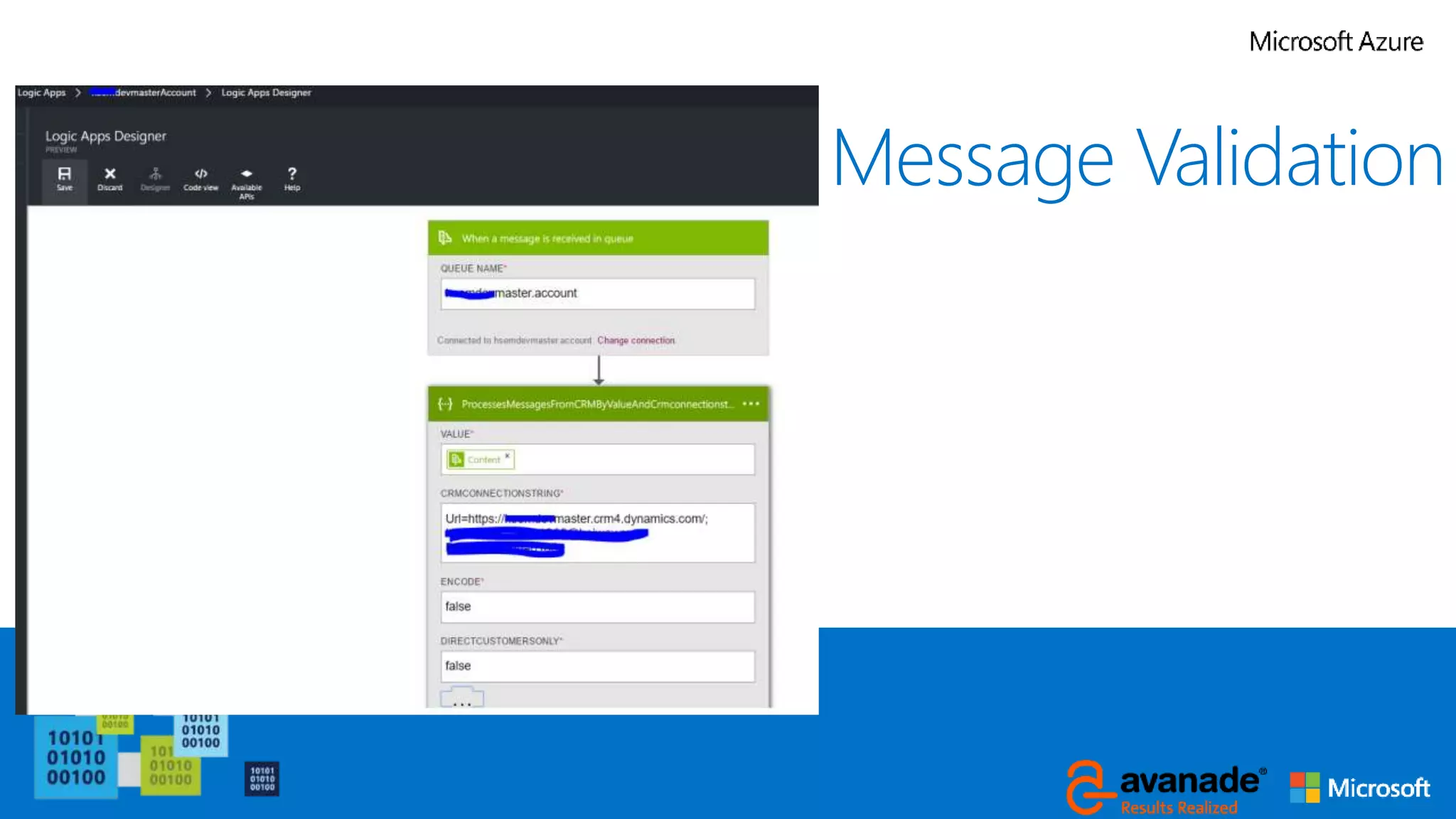

55. Message Validation

56. Message Validation
ApptoAzuretoSAP-PIApptoAzuretoSAP-PI
SimpleOrderCapturing
InterfacingMasterDatafromApptoSAP-PIInterfacingMasterDatafromApptoSAP-PI
InterfacingOrderstoon-premiseLOBsystems
New Account
In App back-end
(CRM Online)
Send to SAP-PI
Update Account
In App back-end
(CRM Online)
Send to SAP-PI
Account Create
message is send to
Azure via Azure
aware plugin
Service endpoint
configuration
Does the
message for
account create
contains
hsem_externalid
Yes
Ignore
No
Any OpCo
specific business
rules?
Yes
Process OpCo
business
requerments
No
Need to be
encoded as
base64 string?
For character
specific issues in
SAP-PI
No
Yes
Encode to base64
string
Need to be
encoded as
base64 string?
For character
specific issues in
SAP-PI
Encode to base64
string
Yes
No
Is validation On
for this Message
Type and this
OpCo
No
Yes
Validate and Send
Results to SQL Azure
Database
Is validation On
for this Message
Type and this
OpCo
Validate and Send
Results to SQL Azure
Database
Yes
No
New Orders
In App back-end
(CRM Online)
Send To SAP-PI
Check if Order
Headers have
Status
Confirmed
Yes
No
Get complete
orders, their order-
lines and
distributors from
CRM.
Send orders in one
xml batch file to
SAP-PI system
Is the distributor
E-mail only
reachable?
Filter out all orders
for E-mail only
and e-mail them to
their specified
addresses
Yes
No
Is validation On
for this Message
Type and this
OpCo
Validate and Send
Results to SQL Azure
Database
No
Yes

57. Future

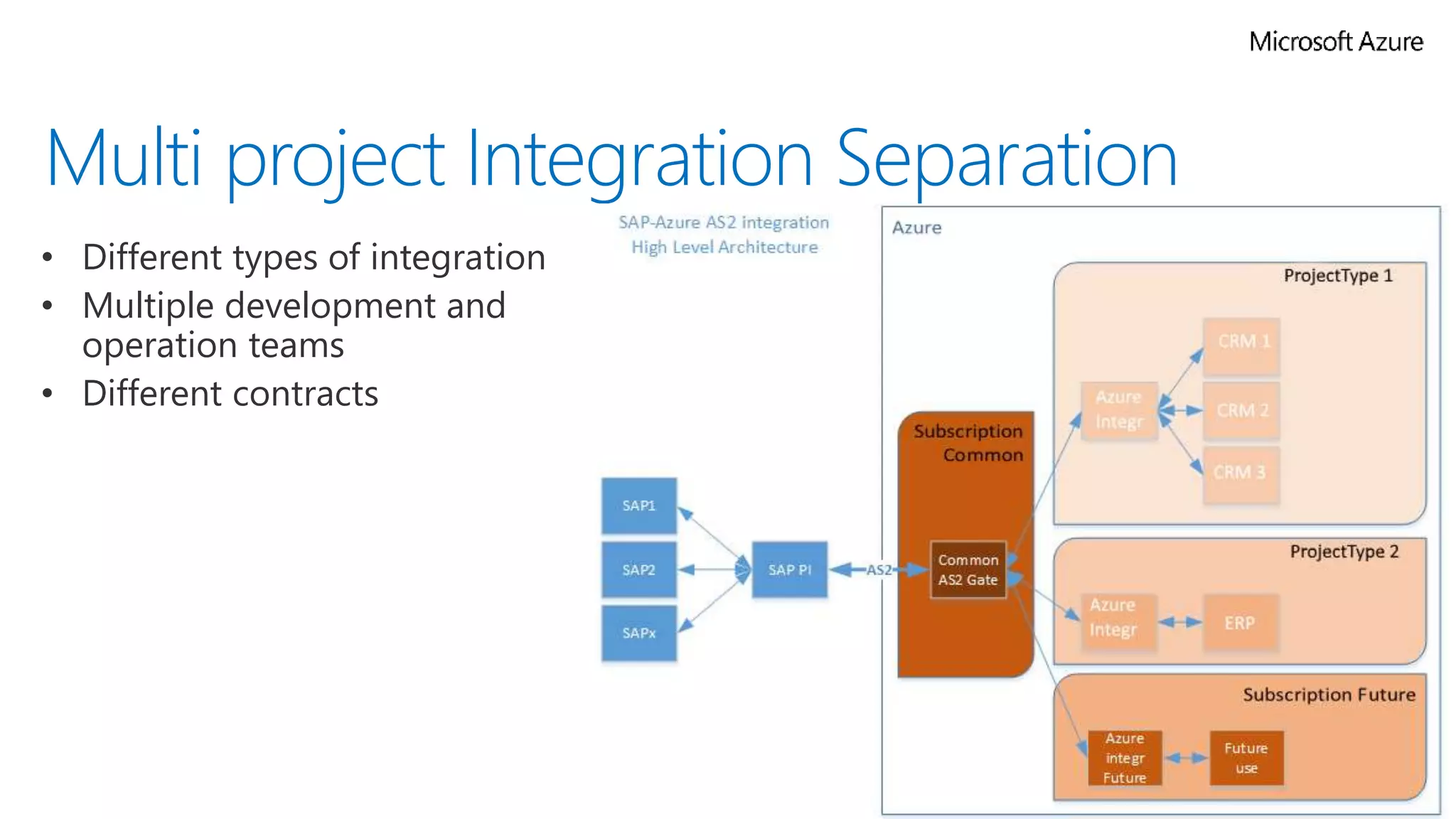

58. Multi project Integration SeparationMulti project Integration Separation

59. Multi project Integration SeparationMulti project Integration Separation

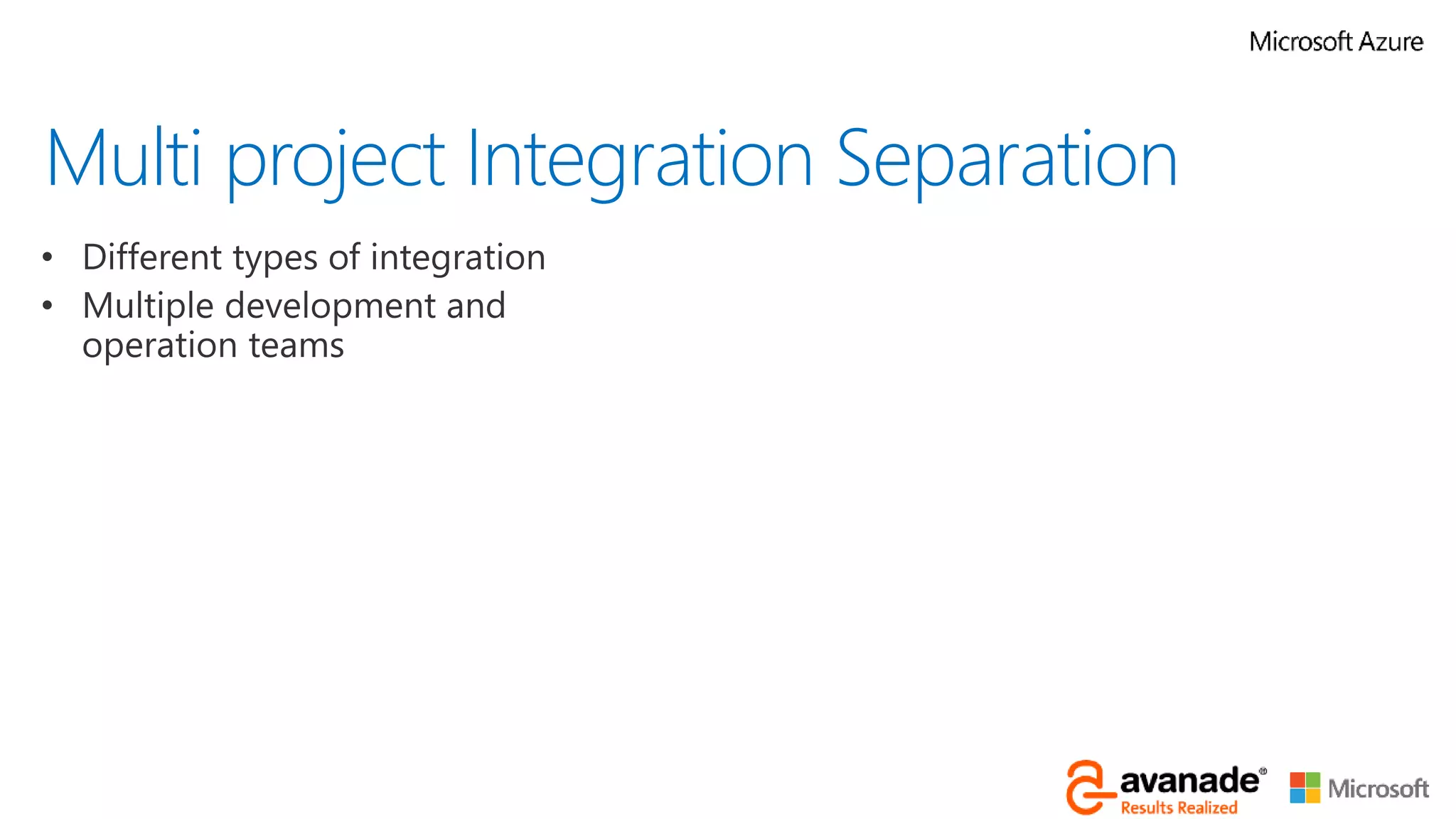

60. Multi project Integration SeparationMulti project Integration Separation

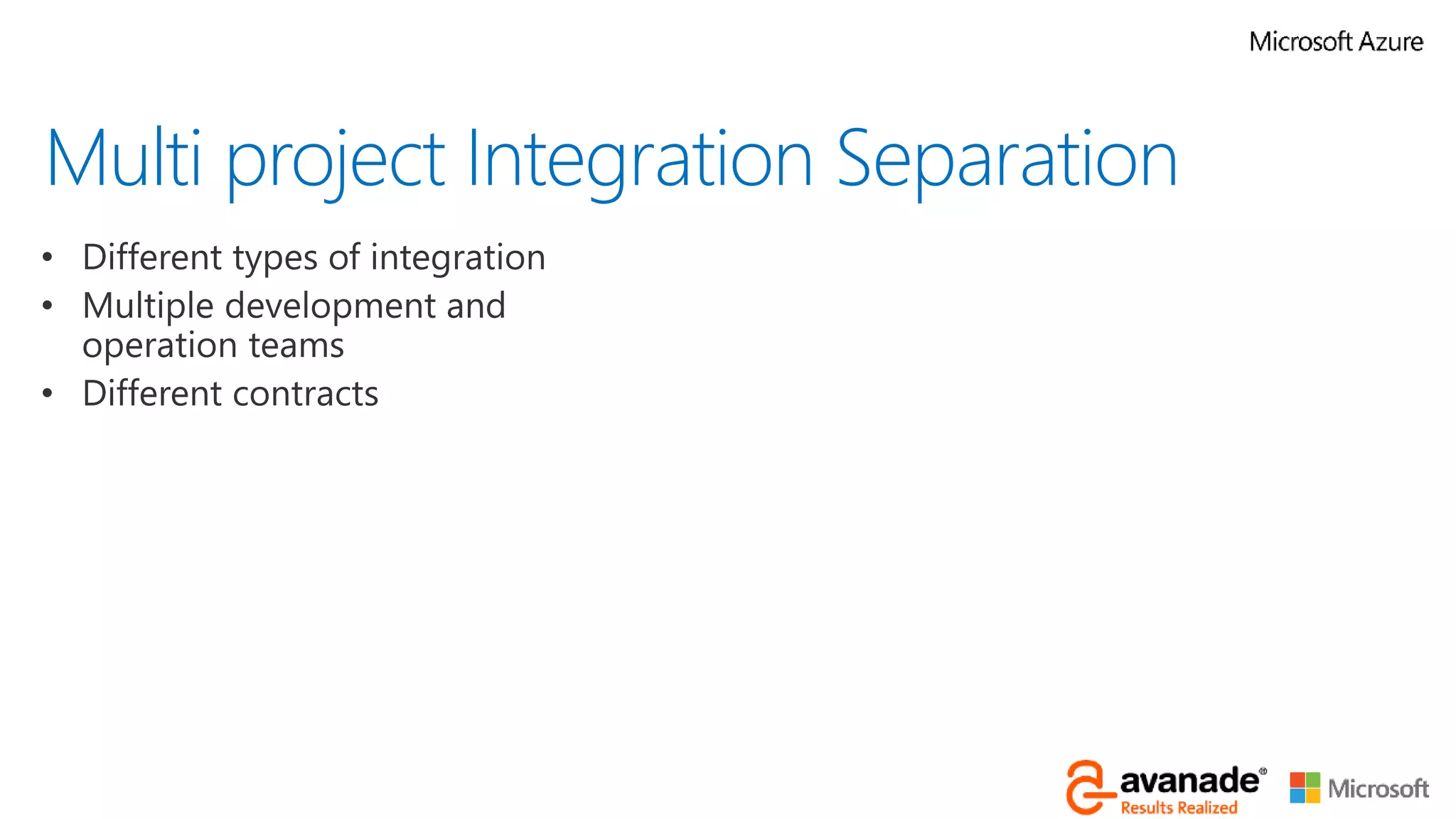

61. Multi project Integration SeparationMulti project Integration Separation
• Different types of integration
• Multiple development and
operation teams
• Different contracts

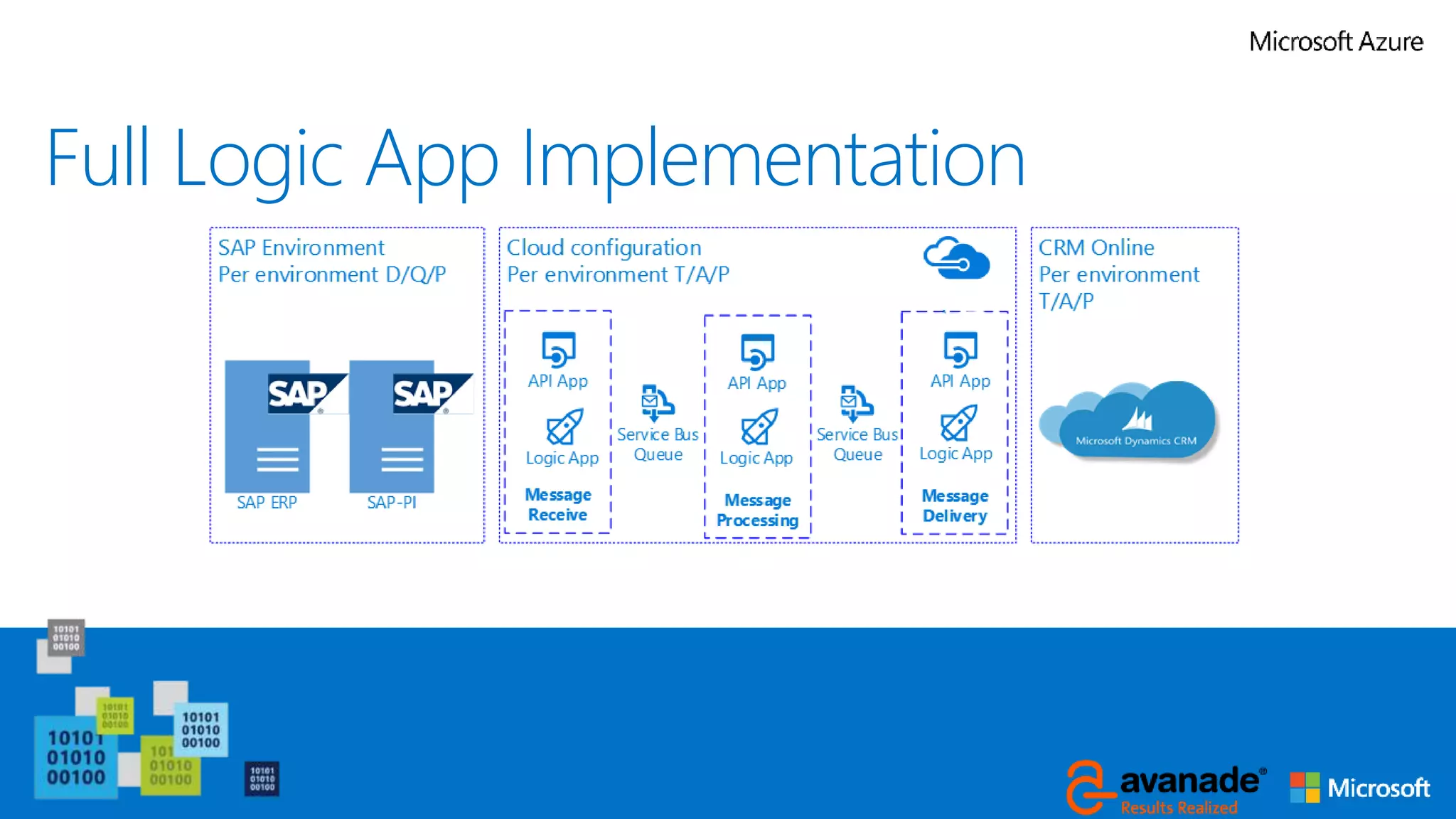

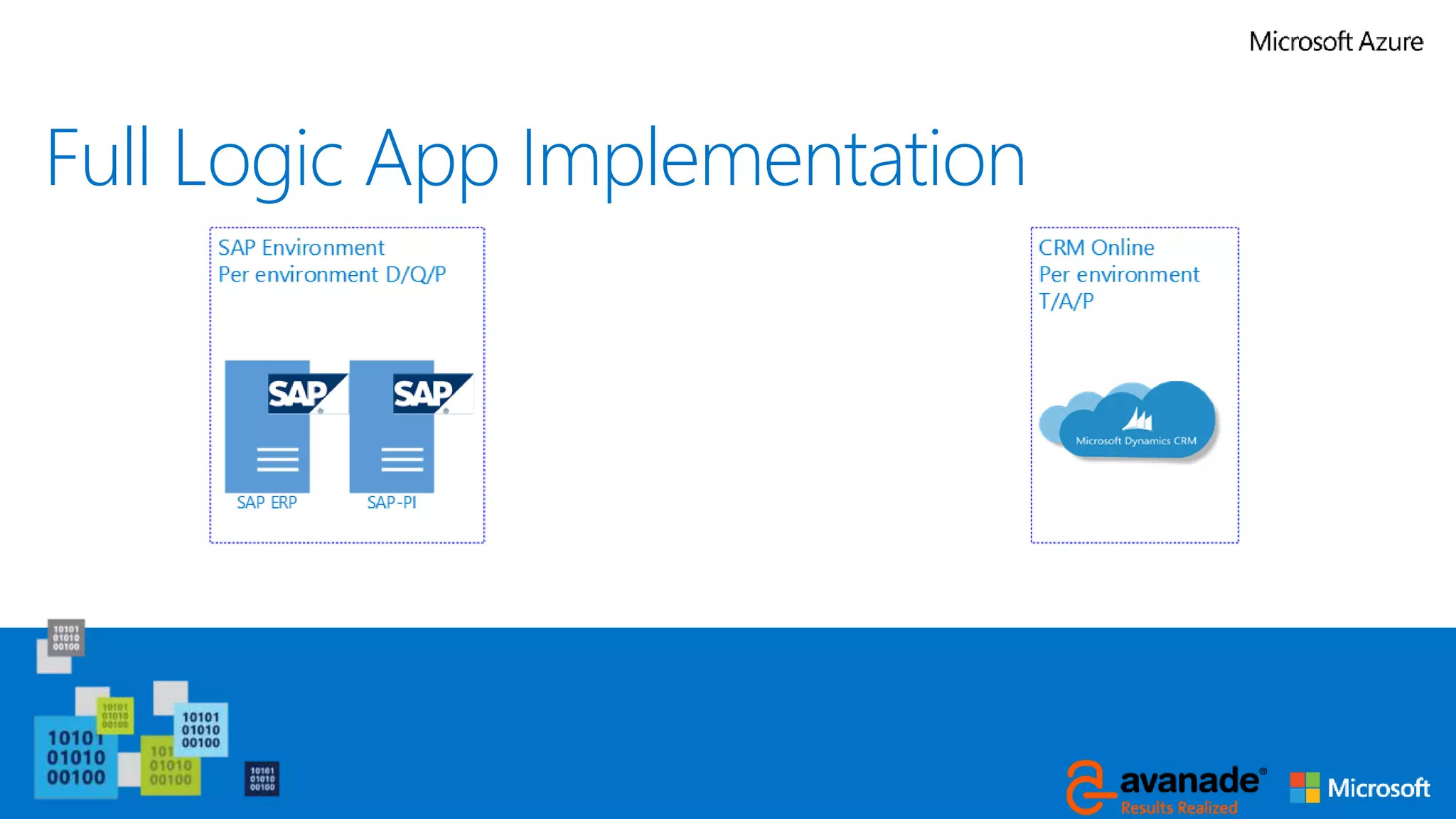

62. Full Logic App Implementation
