This document contains information about several autoclave and sterilization equipment models: 1. The SR-Series are swing-hinged autoclaves that can sterilize hollow instruments and have programmable cycles. 2. The Saturn TAT-202B autoclave has optional vacuum and drying functions, uses high quality components, and has a residual vapor percentage of less than 0.2%. 3. The SV-Series are large volume, vertical-sliding autoclaves that can flash sterilize open instruments in 3 minutes and wrapped items in 10 minutes.

1. Swing-hinged SR-Series
Distributed By
MODIEZHAM
Autoclave
Swing-hinged SR-Series

2. 1

3. 2

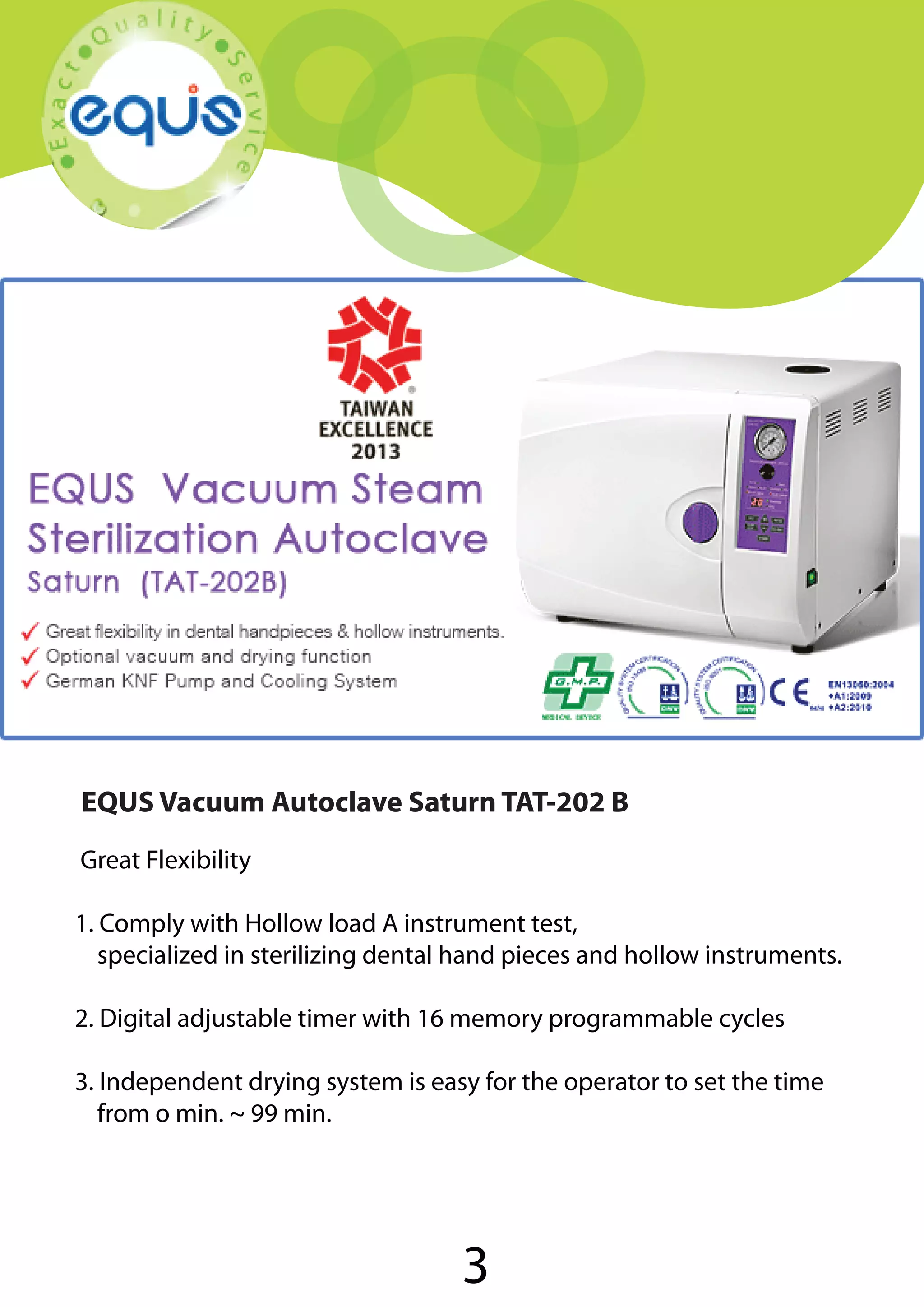

4. EQUS Vacuum Autoclave Saturn TAT-202 B
Great Flexibility
1. Comply with Hollow load A instrument test,
specialized in sterilizing dental hand pieces and hollow instruments.
2. Digital adjustable timer with 16 memory programmable cycles
3. Independent drying system is easy for the operator to set the time
from o min. ~ 99 min.
3

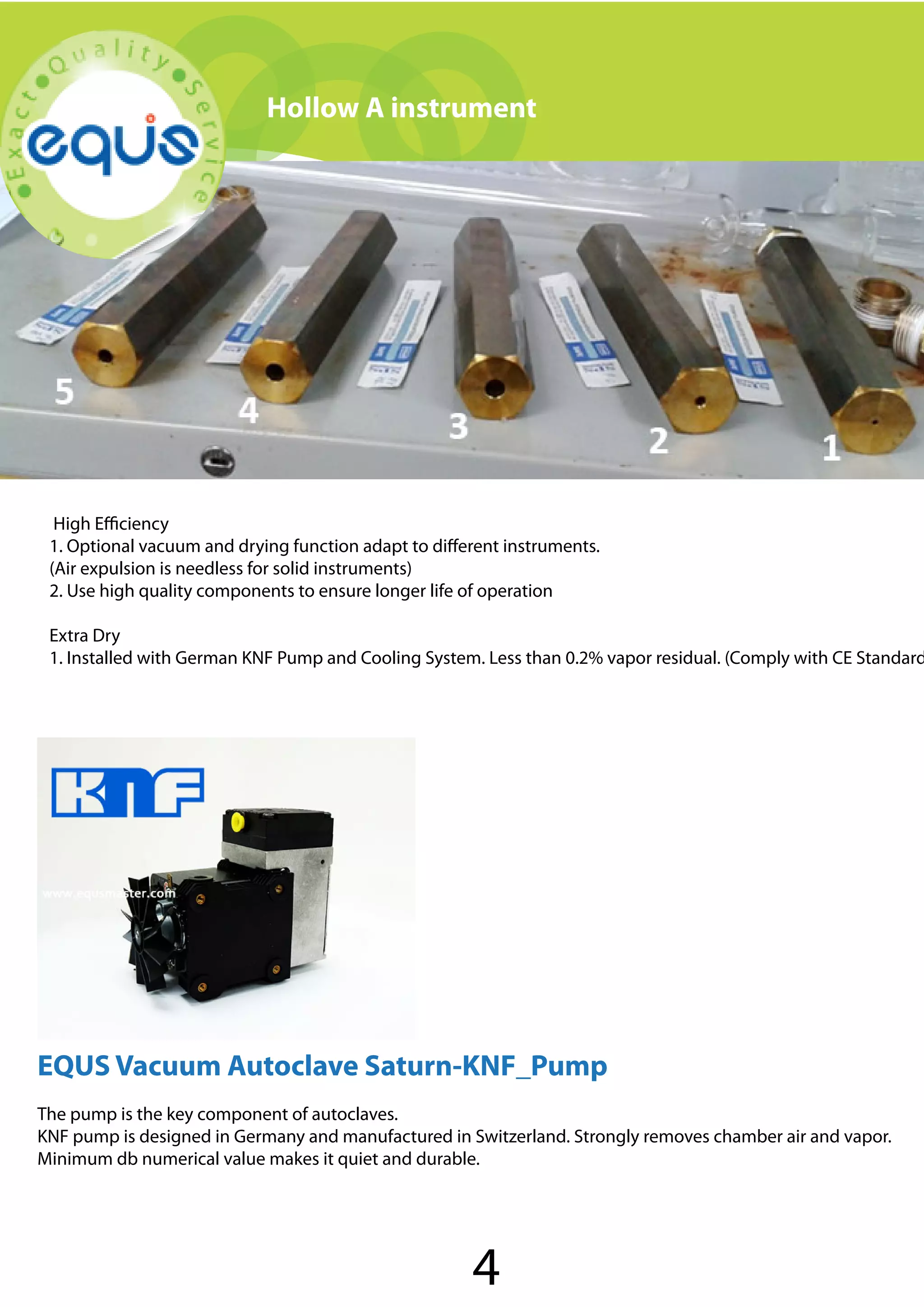

5. Hollow A instrument
High Efficiency
1. Optional vacuum and drying function adapt to different instruments.
(Air expulsion is needless for solid instruments)
2. Use high quality components to ensure longer life of operation
Extra Dry
1. Installed with German KNF Pump and Cooling System. Less than 0.2% vapor residual. (Comply with CE Standard
EQUS Vacuum Autoclave Saturn-KNF_Pump
The pump is the key component of autoclaves.
KNF pump is designed in Germany and manufactured in Switzerland. Strongly removes chamber air and vapor.
Minimum db numerical value makes it quiet and durable.
4

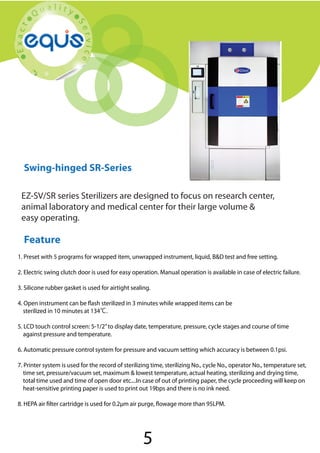

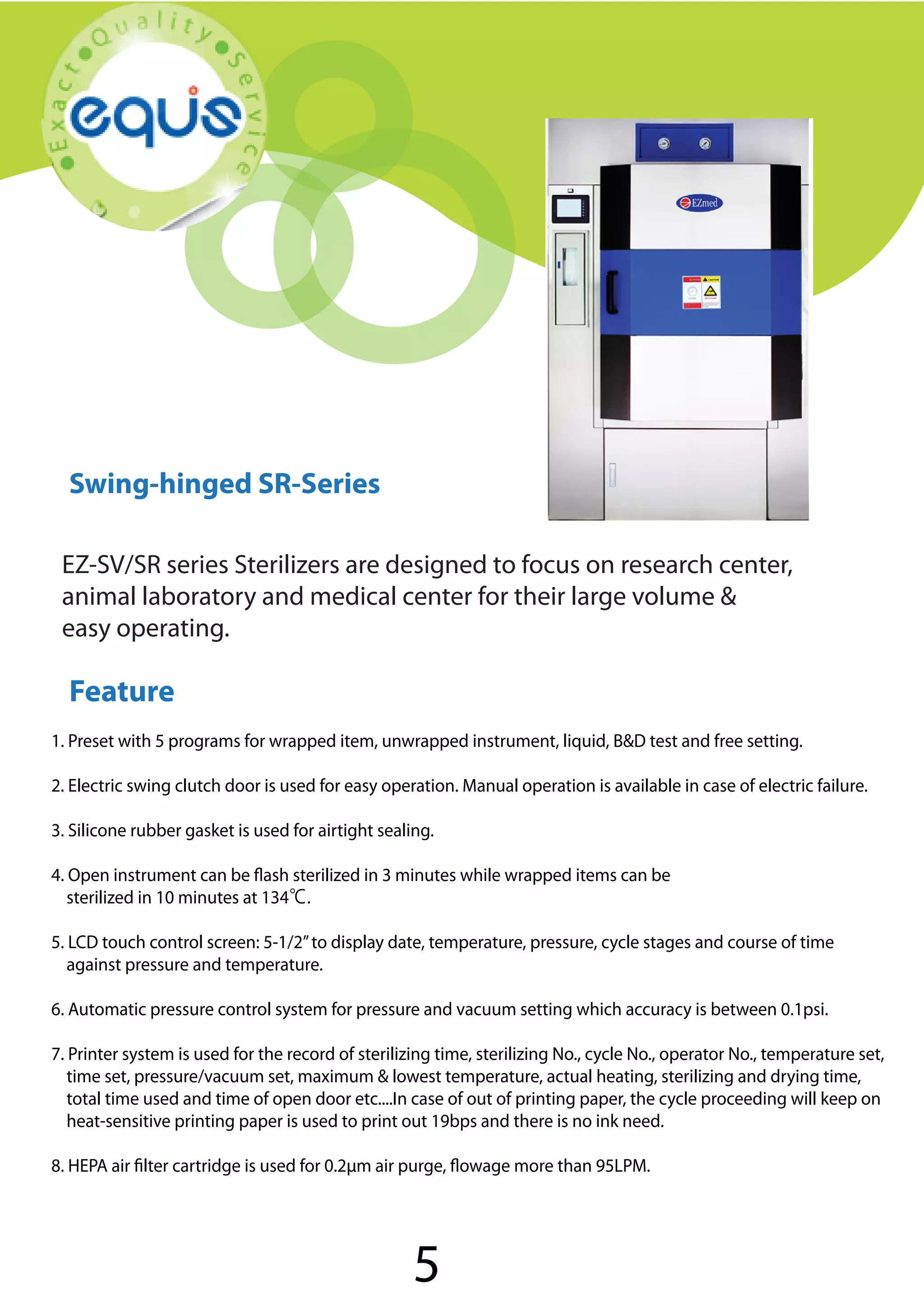

6. Swing-hinged SR-Series
Swing-hinged SR-Series
EZ-SV/SR series Sterilizers are designed to focus on research center,
animal laboratory and medical center for their large volume &
easy operating.
Feature
1. Preset with 5 programs for wrapped item, unwrapped instrument, liquid, B&D test and free setting.
2. Electric swing clutch door is used for easy operation. Manual operation is available in case of electric failure.
3. Silicone rubber gasket is used for airtight sealing.
4. Open instrument can be flash sterilized in 3 minutes while wrapped items can be
sterilized in 10 minutes at 134℃.
5. LCD touch control screen: 5-1/2” to display date, temperature, pressure, cycle stages and course of time
against pressure and temperature.
6. Automatic pressure control system for pressure and vacuum setting which accuracy is between 0.1psi.
7. Printer system is used for the record of sterilizing time, sterilizing No., cycle No., operator No., temperature set,
time set, pressure/vacuum set, maximum & lowest temperature, actual heating, sterilizing and drying time,
total time used and time of open door etc....In case of out of printing paper, the cycle proceeding will keep on
heat-sensitive printing paper is used to print out 19bps and there is no ink need.
8. HEPA air filter cartridge is used for 0.2μm air purge, flowage more than 95LPM.
5

7. Autoclave

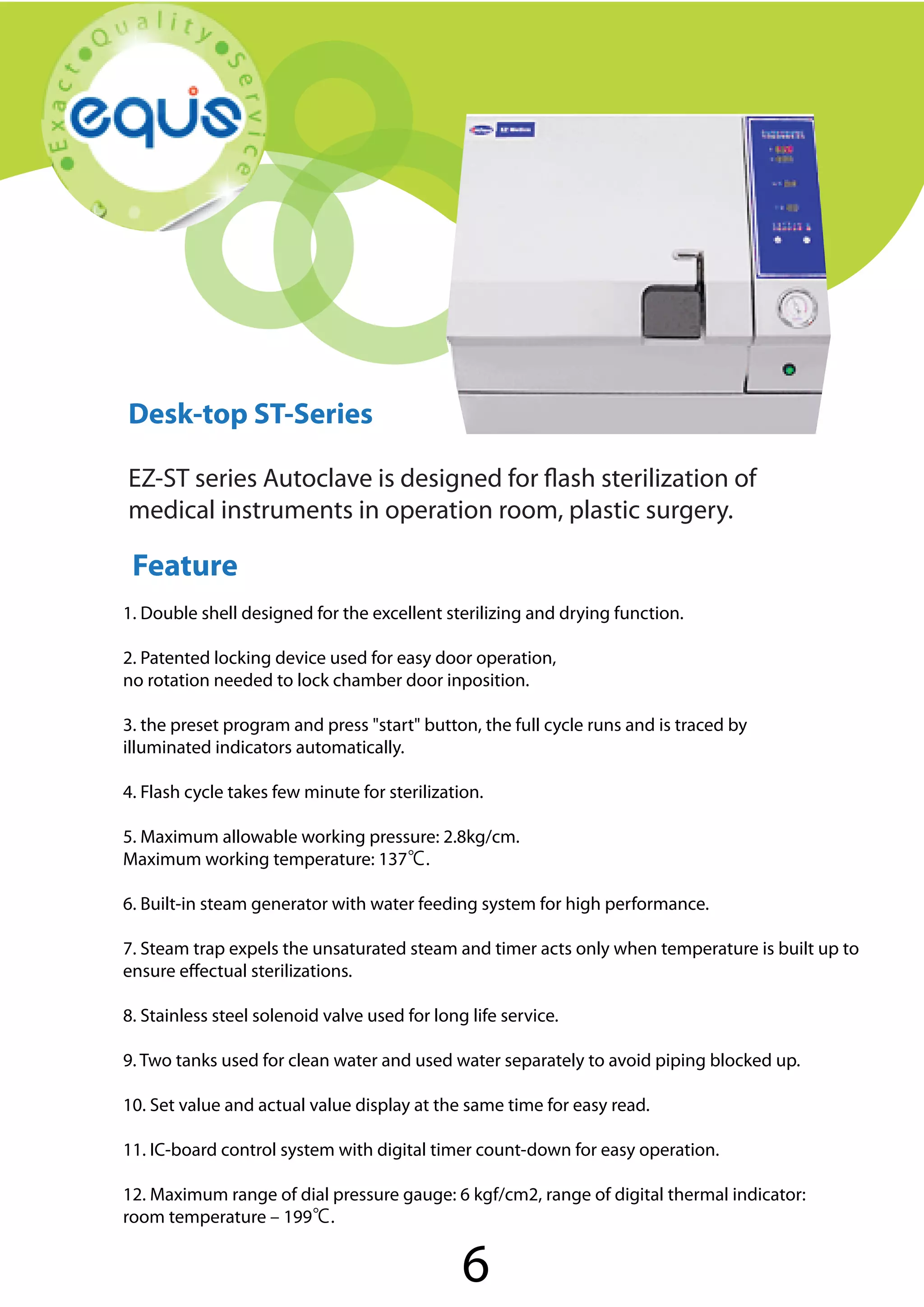

Desk-top ST-Series
EZ-ST series Autoclave is designed for flash sterilization of
medical instruments in operation room, plastic surgery.
Feature
1. Double shell designed for the excellent sterilizing and drying function.
2. Patented locking device used for easy door operation,
no rotation needed to lock chamber door inposition.
3. the preset program and press "start" button, the full cycle runs and is traced by
illuminated indicators automatically.
4. Flash cycle takes few minute for sterilization.
5. Maximum allowable working pressure: 2.8kg/cm.
Maximum working temperature: 137℃.
6. Built-in steam generator with water feeding system for high performance.
7. Steam trap expels the unsaturated steam and timer acts only when temperature is built up to
ensure effectual sterilizations.
8. Stainless steel solenoid valve used for long life service.
9. Two tanks used for clean water and used water separately to avoid piping blocked up.
10. Set value and actual value display at the same time for easy read.
11. IC-board control system with digital timer count-down for easy operation.
12. Maximum range of dial pressure gauge: 6 kgf/cm2, range of digital thermal indicator:
room temperature – 199℃.
6

8. Autoclave

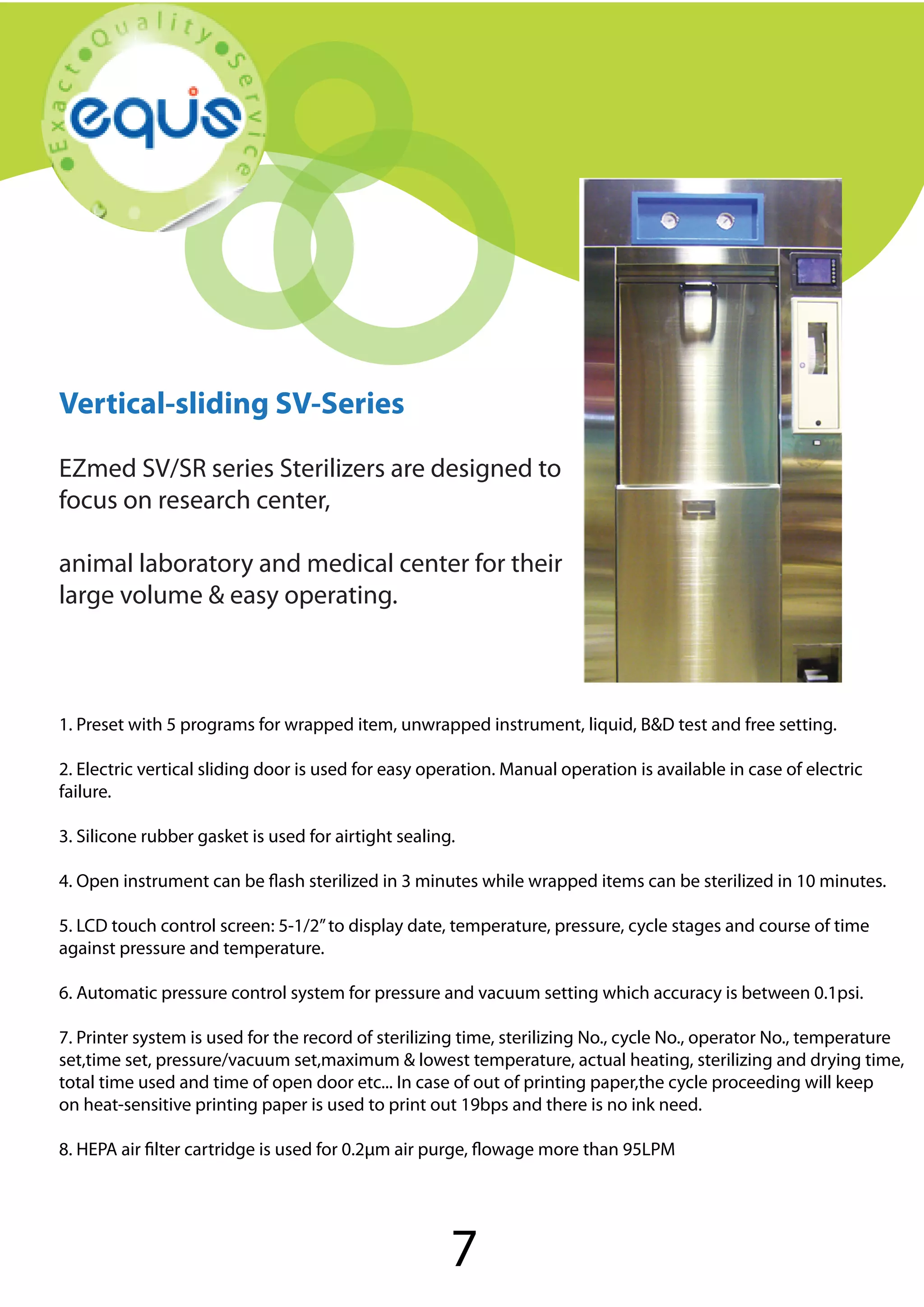

Vertical-sliding SV-Series
EZmed SV/SR series Sterilizers are designed to
focus on research center,
animal laboratory and medical center for their
large volume & easy operating.
1. Preset with 5 programs for wrapped item, unwrapped instrument, liquid, B&D test and free setting.
2. Electric vertical sliding door is used for easy operation. Manual operation is available in case of electric
failure.
3. Silicone rubber gasket is used for airtight sealing.
4. Open instrument can be flash sterilized in 3 minutes while wrapped items can be sterilized in 10 minutes.
5. LCD touch control screen: 5-1/2” to display date, temperature, pressure, cycle stages and course of time
against pressure and temperature.
6. Automatic pressure control system for pressure and vacuum setting which accuracy is between 0.1psi.
7. Printer system is used for the record of sterilizing time, sterilizing No., cycle No., operator No., temperature
set,time set, pressure/vacuum set,maximum & lowest temperature, actual heating, sterilizing and drying time,
total time used and time of open door etc... In case of out of printing paper,the cycle proceeding will keep
on heat-sensitive printing paper is used to print out 19bps and there is no ink need.
8. HEPA air filter cartridge is used for 0.2μm air purge, flowage more than 95LPM
7

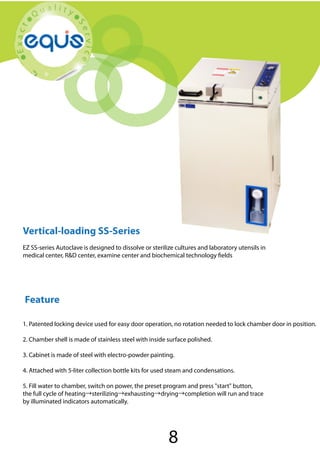

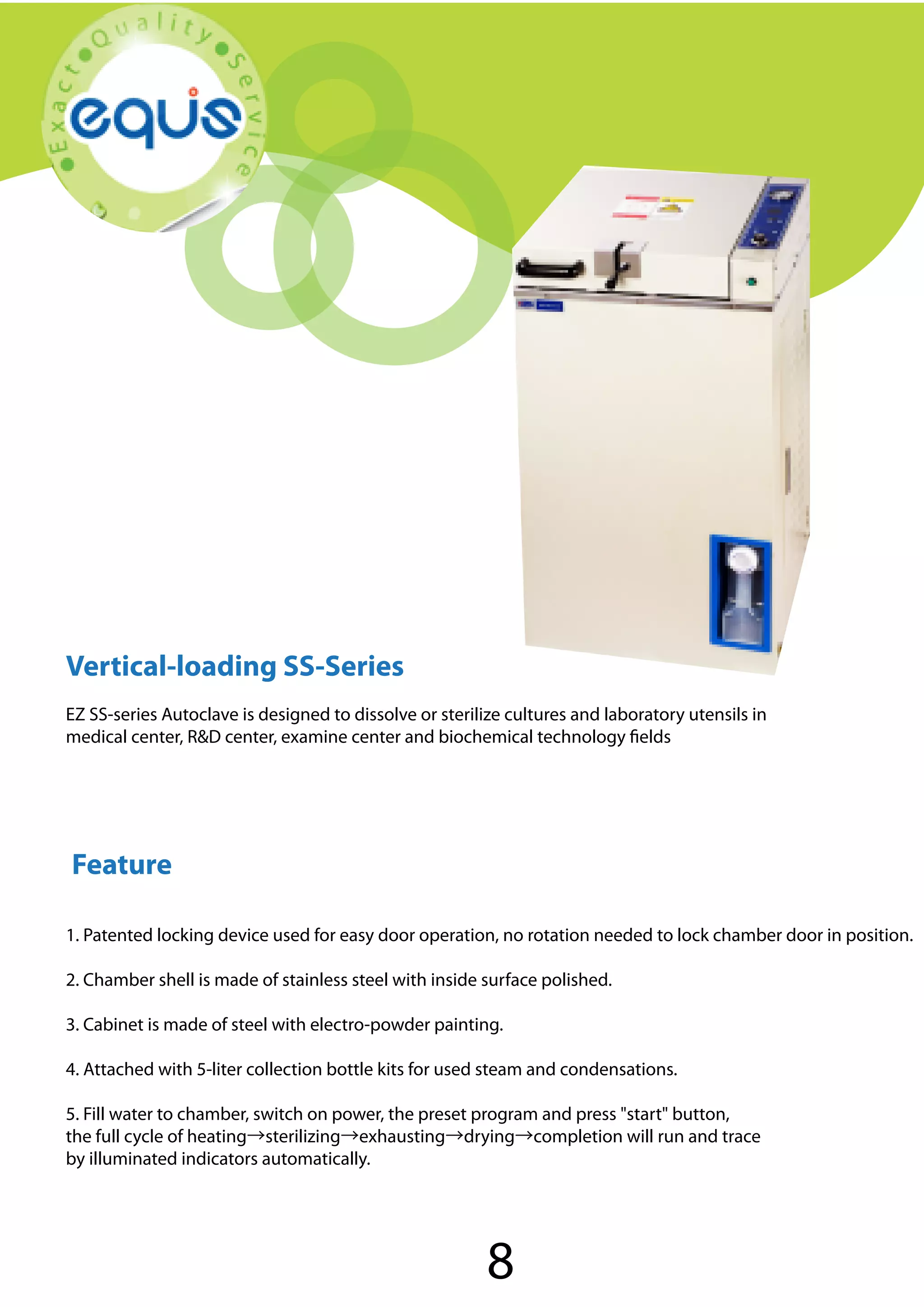

9. Vertical-loading SS-Series
Vertical-loading SS-Series
EZ SS-series Autoclave is designed to dissolve or sterilize cultures and laboratory utensils in
medical center, R&D center, examine center and biochemical technology fields
Feature
1. Patented locking device used for easy door operation, no rotation needed to lock chamber door in position.
2. Chamber shell is made of stainless steel with inside surface polished.
3. Cabinet is made of steel with electro-powder painting.
4. Attached with 5-liter collection bottle kits for used steam and condensations.
5. Fill water to chamber, switch on power, the preset program and press "start" button,
the full cycle of heating→sterilizing→exhausting→drying→completion will run and trace
by illuminated indicators automatically.
8

10. 9

11. 10

12. 11

13. 12

14. 13

15. 14

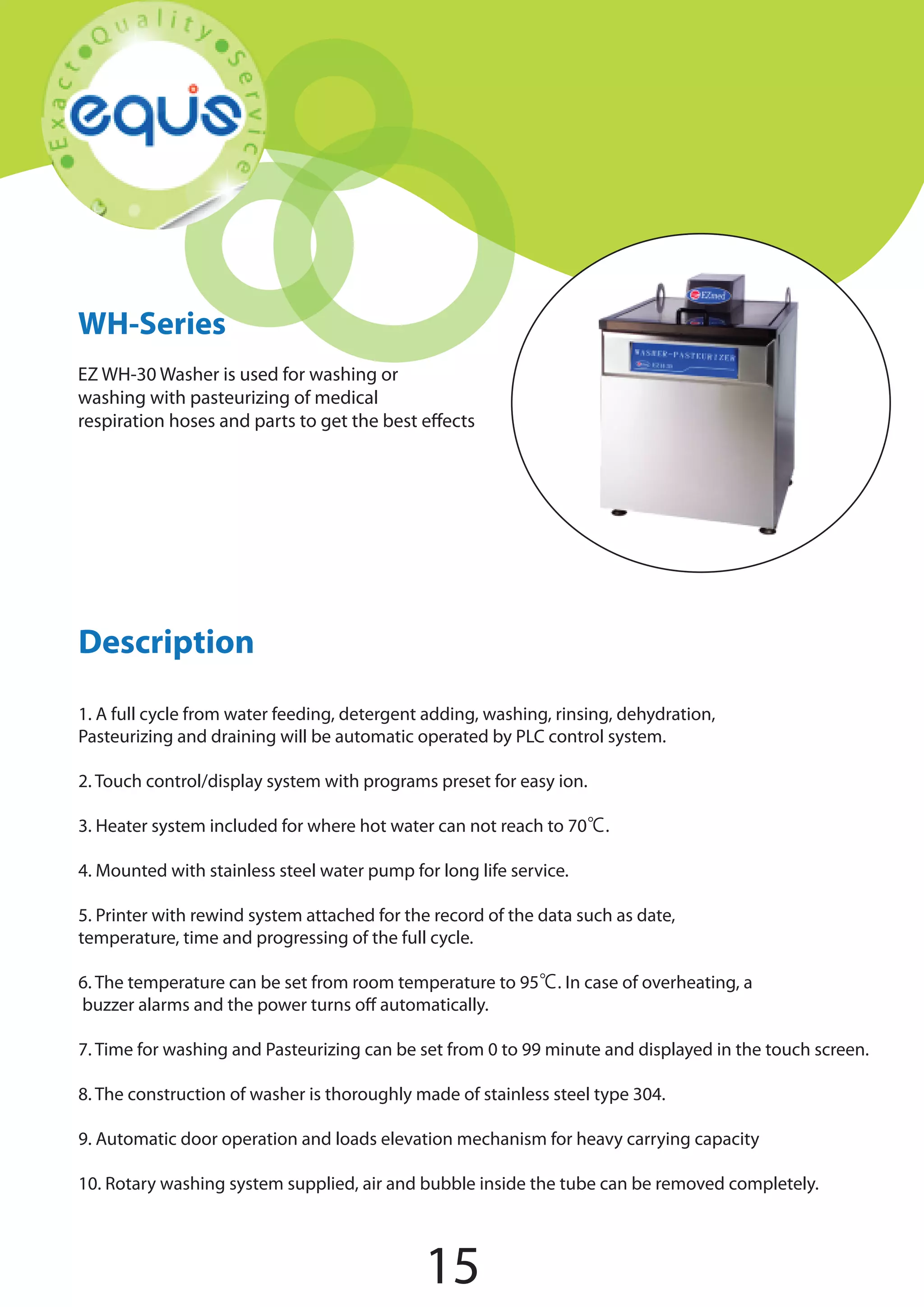

16. WH-Series
EZ WH-30 Washer is used for washing or
washing with pasteurizing of medical
respiration hoses and parts to get the best effects
Description
1. A full cycle from water feeding, detergent adding, washing, rinsing, dehydration,
Pasteurizing and draining will be automatic operated by PLC control system.
2. Touch control/display system with programs preset for easy ion.
3. Heater system included for where hot water can not reach to 70℃.
4. Mounted with stainless steel water pump for long life service.
5. Printer with rewind system attached for the record of the data such as date,
temperature, time and progressing of the full cycle.
6. The temperature can be set from room temperature to 95℃. In case of overheating, a
buzzer alarms and the power turns off automatically.
7. Time for washing and Pasteurizing can be set from 0 to 99 minute and displayed in the touch screen.
8. The construction of washer is thoroughly made of stainless steel type 304.
9. Automatic door operation and loads elevation mechanism for heavy carrying capacity
10. Rotary washing system supplied, air and bubble inside the tube can be removed completely.
15
