Salisbury supply a full line of arc flash protection face shields and face shield/hard hat units, replacement lenses, brackets, protection hoods (balaclavas), eyewear, kits, and cooling units.
Salisbury Face, Head & Neck Protection Kits
Salisbury Face, Head, & Neck Protection Range
Salisbury AS1000 - AS2000 Series Face Shields
Salisbury HRC2 Face, Head & Neck Protection Kits
Salisbury 40 cal/cm² Lift Front Hood
The Salisbury 40 cal/cm2 lt arc flash material makes working more comfortable then ever. Salisbury has made it even easier to do your job safely and comfortably. Salisbury offers an even lighter 40 cal/cm2 option with our LT line. The 40 cal/cm2 LT option is 10% lighter than the standard 40 cal/cm2 material making your job even more comfortable.
ll Salisbury PRO-WEAR® Arc FLash Protection Clothing has received the coveted CE certification. This Salisbury advantage is one more reason why Salisbury provides the best personal protective equipment available today. All Salisbury PRO-HOOD® Arc Flash Protection Hoods have also been CE certified. Look for the CE marking to see exactly which garments have been CE 0120 certified.
CE Marking is a mandatory conformity marking and refers to Product Safety. CE Marking on a product:
lIndicates that the product complies with the essential health and safety requirements of all applicable EU directives.
lA declaration by the manufacturer, or its representative, or the importer that those requirements have been met in full.
lA declaration that all conformity procedures have been completed. The product is allowed in the European market.
Salisbury leather protector gloves should always be worn over insulating rubber gloves to provide mechanical protection against cuts, abrasions and punctures. The Salisbury ILP series of leather protectors are made from top grain cowhide or goatskin.
Cowhide cuffs are tough leather on the palm side of the protector glove and orange vinyl on the back. The goatskin cuffs are green leather on the palm of the glove and orange vinyl on the back. Salisbury ILP10 leather protector gloves do not have a cuff.
Salisbury leather protector gloves are available in dual sizes and the Salisbury Class 0 and Class 00 gloves are also available with a non-metallic buckle and pull strap or elastic wrist.
Salisbury Leather Protector Gloves For Rubber Insulating Gloves
NOTE: Do not use leather protector gloves alone for protection against electric shock. ALWAYS use proper insuating rubber gloves. Remember to inspect the leather protectors when inspecting the rubber insulating gloves.
Many workers working on energised equipment are injured and/or killed each year. Several of these casualties are a result of arc flash.
Arc Flash is considered as one of the most destructive and dangerous instances when dealing with electrical wirings. A single occurrence can destroy metals and it has the ability to kill a person if not protected by Arc Flash Clothing. An arc flash can create an arc blast that can shatter anything because it is as hot as the as surface of the sun. This kind of heat can destroy metals instantly and completely burn a body beyond recognition.
Arc Flash ProtectionSerious injuries are caused by the arc flash:
Burns
Respiratory system damage
Hearing damage
Skin penetration from flying debris
Eye and face injuries
An arc flash may happen instantly and if the worker does not have the correct protection, they will already be dead when the arc flash hits them.
The use of Arc Flash Protective Equipment will lessen the damages caused by an arc flash because all of these equipments are solely made to withstand the heat.
Typical Arc Flash Clothing Applications
Working on electrical systems and switchrooms at 500 volts, live testing and proving dead on electrical systems, fitting and removal of LV-HV earths on electrical systems, working on panels/control circuits with exposed energised conductors, removal of bolted covers from energised electrical equipment, racking in/out of switchgear, racking in/out of starters and control gear, live testing and proving dead on electrical systems 11-33kV - T&D UK stock a broad range of Arc Flash Clothing and PPE.
Arc flash incidents can be costly in terms of personnel injury and equipment repair/replacement. This presentation provides an overview of the NFPA 70E 2012 Standard for Electrical Safety in the Workplace and the requirements of the standards, which are intended to better protect electrical workers from injury when they work on energized electrical equipment. This includes all aspects of facility and employer responsibilities for compliance to the NFPA 70E standards, as well as the current status of OSHA enforcement of these standards. Copyright AIST Reprinted with Permission.
An arc blast or flash can occur when workers service electrical power, transmission, and distribution systems using high voltage. It is important to understand the OSHA, NFPA, IEEE and NEC requirements as well as the hierarchy of controls to reduce the risk. Understanding how to calculate a flash analysis to determine the protection boundaries, train workers on the hazards of high voltage electricity and use of personal protective equipment and clothing, and using the right tools for the job are all important steps. Learn more about arc blast/flash in this presentation. If you need advice or help with electrical safety, contact our staff of CSPs at The Windsor Consulting Group, Inc. We have past performance working with contractors near powerlines and underground utilities.
The Salisbury 40 cal/cm2 lt arc flash material makes working more comfortable then ever. Salisbury has made it even easier to do your job safely and comfortably. Salisbury offers an even lighter 40 cal/cm2 option with our LT line. The 40 cal/cm2 LT option is 10% lighter than the standard 40 cal/cm2 material making your job even more comfortable.
ll Salisbury PRO-WEAR® Arc FLash Protection Clothing has received the coveted CE certification. This Salisbury advantage is one more reason why Salisbury provides the best personal protective equipment available today. All Salisbury PRO-HOOD® Arc Flash Protection Hoods have also been CE certified. Look for the CE marking to see exactly which garments have been CE 0120 certified.
CE Marking is a mandatory conformity marking and refers to Product Safety. CE Marking on a product:
lIndicates that the product complies with the essential health and safety requirements of all applicable EU directives.
lA declaration by the manufacturer, or its representative, or the importer that those requirements have been met in full.
lA declaration that all conformity procedures have been completed. The product is allowed in the European market.
Salisbury leather protector gloves should always be worn over insulating rubber gloves to provide mechanical protection against cuts, abrasions and punctures. The Salisbury ILP series of leather protectors are made from top grain cowhide or goatskin.
Cowhide cuffs are tough leather on the palm side of the protector glove and orange vinyl on the back. The goatskin cuffs are green leather on the palm of the glove and orange vinyl on the back. Salisbury ILP10 leather protector gloves do not have a cuff.
Salisbury leather protector gloves are available in dual sizes and the Salisbury Class 0 and Class 00 gloves are also available with a non-metallic buckle and pull strap or elastic wrist.
Salisbury Leather Protector Gloves For Rubber Insulating Gloves
NOTE: Do not use leather protector gloves alone for protection against electric shock. ALWAYS use proper insuating rubber gloves. Remember to inspect the leather protectors when inspecting the rubber insulating gloves.
Many workers working on energised equipment are injured and/or killed each year. Several of these casualties are a result of arc flash.
Arc Flash is considered as one of the most destructive and dangerous instances when dealing with electrical wirings. A single occurrence can destroy metals and it has the ability to kill a person if not protected by Arc Flash Clothing. An arc flash can create an arc blast that can shatter anything because it is as hot as the as surface of the sun. This kind of heat can destroy metals instantly and completely burn a body beyond recognition.
Arc Flash ProtectionSerious injuries are caused by the arc flash:
Burns
Respiratory system damage
Hearing damage
Skin penetration from flying debris
Eye and face injuries
An arc flash may happen instantly and if the worker does not have the correct protection, they will already be dead when the arc flash hits them.
The use of Arc Flash Protective Equipment will lessen the damages caused by an arc flash because all of these equipments are solely made to withstand the heat.
Typical Arc Flash Clothing Applications
Working on electrical systems and switchrooms at 500 volts, live testing and proving dead on electrical systems, fitting and removal of LV-HV earths on electrical systems, working on panels/control circuits with exposed energised conductors, removal of bolted covers from energised electrical equipment, racking in/out of switchgear, racking in/out of starters and control gear, live testing and proving dead on electrical systems 11-33kV - T&D UK stock a broad range of Arc Flash Clothing and PPE.
Arc flash incidents can be costly in terms of personnel injury and equipment repair/replacement. This presentation provides an overview of the NFPA 70E 2012 Standard for Electrical Safety in the Workplace and the requirements of the standards, which are intended to better protect electrical workers from injury when they work on energized electrical equipment. This includes all aspects of facility and employer responsibilities for compliance to the NFPA 70E standards, as well as the current status of OSHA enforcement of these standards. Copyright AIST Reprinted with Permission.
An arc blast or flash can occur when workers service electrical power, transmission, and distribution systems using high voltage. It is important to understand the OSHA, NFPA, IEEE and NEC requirements as well as the hierarchy of controls to reduce the risk. Understanding how to calculate a flash analysis to determine the protection boundaries, train workers on the hazards of high voltage electricity and use of personal protective equipment and clothing, and using the right tools for the job are all important steps. Learn more about arc blast/flash in this presentation. If you need advice or help with electrical safety, contact our staff of CSPs at The Windsor Consulting Group, Inc. We have past performance working with contractors near powerlines and underground utilities.
Personal protection in the work environment, Types of PPEs, Personal protective equipmentrespiratory and non-respiratory equipment. Standards related to PPEs. Monitoring Safety
Performance: Frequency rate, severity rate, incidence rate, activity rate. Housekeeping:
Responsibility of management and employees. Advantages of good housekeeping. 5 s of
housekeeping. Work permit system- objectives, hot work and cold work permits. Typical
industrial models and methodology. Entry into confined spaces.
Insulation Job is done every industry But no one know about Actual Insulation job hazards and precautions . This slides explain the insulation job Hazards & precautions , type of insulation etc ..
Comparision Lightning Protection Systems s per IEC 62305-3 and NFC 17-102(2011)/UNE21-1186 India NBC2016 / Project Building and Infra Projects /MEP ,Architect ,Electrical Consultants
H2S
list engineering company owner epc supplier
list engineering company owner epc supplier oil gas power mining infrastructure industry safety vacancy event news training course project
http://www.listengineeringcompany.com
This training presentation covers the basic on arc flash and other electrical hazards, including the effects of an arc flash incident and how to determine shock and flash protection boundaries for a safe workplace
There are 2 main types of insulating gloves i) Latex Gloves provide high dielectric performance and must be used with leather overgloves for mechanical protection, ii) Composite Gloves provide superior mechanical protection against punctures and tears eliminating the need for overgloves. Wearing suitable PPE to protect electrical engineers, cable jointers and linesmen against dangers posed by exposure to electric cables and circuits is essential. Insulating gloves must be flexible and durable with high dielectric strength compliant with IEC 60903. Insulating rubber gloves conform to IEC 60903 standard. IEC 60903 standard insulating rubber gloves are subject to dielectrical, mechanical resistance and ageing tests - composite and rubber insulating gloves are available to prevent against electric shock hazards. Insulating gloves are used by LV-HV cable jointers, electrical engineers and overhead linesmen and are approved by UK utilities including EDF Energy. Typical applications include : low voltage and live-working up to 1kV (Class 0 Insulating Gloves), live line working on overhead lines (Class 1, 2, 3, 4 Insulating Gloves), electrical switching and also when operating underground moling machines.
CATU are world-market leaders in Electrical Safety Equipment for LV-HV Substation, Switchgear and Overhead Line projects and maintenance. T&D are CATU's largest UK distributor of Electrical Safety Equipment.
Catu insulating gloves provide high dielectric performance for LV-HV cable jointing, live-line, substation, overhead and underground cable installations - insulating gloves protect against electrical shock.
Catu Arc Flash Clothing & Protection Kits for working on LV-HV switchgear, cables and "racking-in and racking-out" of circuit breakers.
Catu Life Saving & Accident Intervention Kits are designed to make all necessary electrical safety equipment on-hand for rapid intervention and rescue up to 33kV.
Catu Kits include rescue stick, voltage detector, insulated cable cutting tool, insulating platform, rescue hook, insulating gloves and boots - mobile and wall-mounted substation kits.
Catu Short Circuiting & Earthing Kits suit overhead transmission and distribution lines, substation busbars, rail electrification, transformer and switchgear applications.
Short Circuiting and Portable Earthing Kits are available with a choice of earth clamps for both live and earth end in accordance with UK DNO, Network Rail and National Grid specifications - customised earthing kits to order.
Catu voltage detectors and phase comparators for voltage detection and integrity testing on LV-HV electricity transmission, distribution and overhead lines and cables.
Personal protection in the work environment, Types of PPEs, Personal protective equipmentrespiratory and non-respiratory equipment. Standards related to PPEs. Monitoring Safety
Performance: Frequency rate, severity rate, incidence rate, activity rate. Housekeeping:
Responsibility of management and employees. Advantages of good housekeeping. 5 s of
housekeeping. Work permit system- objectives, hot work and cold work permits. Typical
industrial models and methodology. Entry into confined spaces.
Insulation Job is done every industry But no one know about Actual Insulation job hazards and precautions . This slides explain the insulation job Hazards & precautions , type of insulation etc ..
Comparision Lightning Protection Systems s per IEC 62305-3 and NFC 17-102(2011)/UNE21-1186 India NBC2016 / Project Building and Infra Projects /MEP ,Architect ,Electrical Consultants
H2S
list engineering company owner epc supplier
list engineering company owner epc supplier oil gas power mining infrastructure industry safety vacancy event news training course project
http://www.listengineeringcompany.com
This training presentation covers the basic on arc flash and other electrical hazards, including the effects of an arc flash incident and how to determine shock and flash protection boundaries for a safe workplace
There are 2 main types of insulating gloves i) Latex Gloves provide high dielectric performance and must be used with leather overgloves for mechanical protection, ii) Composite Gloves provide superior mechanical protection against punctures and tears eliminating the need for overgloves. Wearing suitable PPE to protect electrical engineers, cable jointers and linesmen against dangers posed by exposure to electric cables and circuits is essential. Insulating gloves must be flexible and durable with high dielectric strength compliant with IEC 60903. Insulating rubber gloves conform to IEC 60903 standard. IEC 60903 standard insulating rubber gloves are subject to dielectrical, mechanical resistance and ageing tests - composite and rubber insulating gloves are available to prevent against electric shock hazards. Insulating gloves are used by LV-HV cable jointers, electrical engineers and overhead linesmen and are approved by UK utilities including EDF Energy. Typical applications include : low voltage and live-working up to 1kV (Class 0 Insulating Gloves), live line working on overhead lines (Class 1, 2, 3, 4 Insulating Gloves), electrical switching and also when operating underground moling machines.
CATU are world-market leaders in Electrical Safety Equipment for LV-HV Substation, Switchgear and Overhead Line projects and maintenance. T&D are CATU's largest UK distributor of Electrical Safety Equipment.
Catu insulating gloves provide high dielectric performance for LV-HV cable jointing, live-line, substation, overhead and underground cable installations - insulating gloves protect against electrical shock.
Catu Arc Flash Clothing & Protection Kits for working on LV-HV switchgear, cables and "racking-in and racking-out" of circuit breakers.
Catu Life Saving & Accident Intervention Kits are designed to make all necessary electrical safety equipment on-hand for rapid intervention and rescue up to 33kV.
Catu Kits include rescue stick, voltage detector, insulated cable cutting tool, insulating platform, rescue hook, insulating gloves and boots - mobile and wall-mounted substation kits.
Catu Short Circuiting & Earthing Kits suit overhead transmission and distribution lines, substation busbars, rail electrification, transformer and switchgear applications.
Short Circuiting and Portable Earthing Kits are available with a choice of earth clamps for both live and earth end in accordance with UK DNO, Network Rail and National Grid specifications - customised earthing kits to order.
Catu voltage detectors and phase comparators for voltage detection and integrity testing on LV-HV electricity transmission, distribution and overhead lines and cables.
Boddingtons Electrical
Thorne & Derrick UK distribute a broad range of Boddington cable jointing and cable preparation tools for 11kV 33kV cables. Boddington tools are a very popular choice by LV and HV jointers for working upon and preparing cables prior to jointing or terminating.
Boddingtons Cable Preparation Tools
Boddingtons Electrical is a leading manufacturer and supplier of insulated tools and electrical safety products including:
Cable Knives (Hacking & Coring)
Cable Sheath & Insulation Removal Tools
Cable Sheath Cutters
Cable Sheath Cutting Pliers
Cable Sheath Stripping Pliers
Consac Sheath Cutting Tools
Stripping Tool for Bonded Semi-Con Screens
Stripping Tool for Peelable Semi-Con Screens
XLPE Insulation Removal Tools for High Voltage Cables
XLPE Insulation Stripping Tools for HV Triplex Cables
Cable fault location has often been seen as a dark art, as the causes of faults are different and varied. Successfully locating faults locations depends on an experienced operator. The challenge to Megger’s engineering team was to remove the mysteries from fault locating, and to make the whole process more logical. This methodical approach was used to define a feature set that would satisfy fault location needs in the varied conditions where the tester would be used around the world.
Megger cable fault location solutions include : low voltage TDR underground cable fault locators, surge generator fault locators, cable fault pinpointing, high voltage DC test sets and high voltage (11kV-33kV-66kV-132kV) underground cable fault locators.
Cembre Cable Cutters & Cutting Tools - UK Distributor
Manual, Ratchet, Hydraulic, Battery Cable Cutting Tools
Cembre cable cutters are ideal for cutting low and high voltage power, control and instrumentation cablesincluding steel wire armoured (SWA) cables.
Cembre hydraulic cable cutters also include ranges for overhead line conductor cutting applications - ABC (Aerial Bundled Conductor), AAAC (All Aluminium Alloy Conductor), ASCR (Aluminium Conductor Steel Reinforced) and copper overhead lines.
Cable cutters suit up to 4 core 400sqmm XLPE/SWA BS5467 cables, lead covered sheathed cables and all high voltage power cables including Triplex.
Cembre Hydraulic Cable Cutters
Cembre Hydraulic Cable Cutters and Cable Cutting Tools - Features :
Hand operated Cembre hydraulic cutter tools designed to cut copper, aluminium and telecommunications cables, up to 85mm diameters
Double speed Cembre cable cutting action : a fast advancing speed for rapid approach of the blades to the cable and a slower more powerful speed for cable cutting
Cembre cable cutting blades are made from high strength special steel, heat trated to ensure a long service life
Cembre hydraulic cable cutting tool heads can be easily opened to allow the cutting of running cables
Cembe hydraulic cable cutting tools can be rotated through 90, 180 and 320 degrees to allow the cable jointer or electrical engineer to cut cables in the most accessible position
Megger designs and manufactures portable electric test equipment. Megger products help install, improve efficiency, reduce cost and extend the life of electrical assets. The Megger brand is so well known these days that some maintenance professionals incorrectly use it as a verb when they refer to doing an insulation test.
Megger designs and manufactures portable electric test equipment. Megger products help install, improve efficiency, reduce cost and extend the life of electrical assets. The Megger brand is so well known these days that some maintenance professionals incorrectly use it as a verb when they refer to doing an insulation test.
Megger manufactures hand-held test equipment as well as larger insulation testers, oil test equipment and low resistance ohmmeters.
Megger DETEX Voltage Detectors are available in seven models that cover a range from distribution class to transmission line voltages up to 550kV.
Megger cable fault location solutions include : low voltage TDR underground cable fault locators, surge generator fault locators, cable fault pinpointing, high voltage DC test sets and high voltage (11kV-33kV-66kV-132kV) underground cable fault locators.
Surge generator cable fault locators ("thumpers") provide pre-location and pinpoint cable fault location. Cable fault prelocation using ICE (Impulse Current Method) is preferred for extensive underground cable fault location and pinpointing cable faults in water damaged cable joints. Precise location of cable faults through surge generator fault locators (cable thumping) is very quick and limits expensive excavation by pinpoint accuracy.
rectangular and round sealing frames for cables and pipes ensuringsafety, efficiency and long-term operational reliability - Roxtec cable seals and pipe transit seals and protects against fire, gas, water, dusts, pests, blast load and electromagnetic interference.
T&D UK can provide nationwide site surveys to assess your on-site requirement for Roxtec cable and pipe sealing transit frames. Roxtec sealing solutions for cables and pipes ensure safety, efficiency and long term operational reliability.
Roxtec Cable Transit & Pipe Transit Sealing System Features
*Multidiameter - the Roxtec cable transit solution is based on rubber modules with removable layers allowing for a perfect seal regardless of the cable or pipe outside diameter. Roxtec transit modules simplify design, speeds up cable transit installation with built-in spare capacity for future cable or pipe project upgrades.
*Protection - the Roxtec cable transit solution protects against risks caused by fire, gas, water, dust, pests, blast load and electromagnetic interference.
*Service - the Roxtec cable transit solution provides optimum cable and pipe sealing via the Roxtec Transit Manager software - local installation training is available nationwide.
T&D Working with Roxtec - Bespoke Cable Pipe Transit Solutions
T&D are approved distributors for the Roxtec range of cable and pipe sealing systems providing optimum cable and pipe transit sealing solutions to suit individual project requirements. We provide site surveys, transit solution designs, prototypes based upon design brief and specification, installation services for Roxtec cable transit systems.
Shatterproof Selenite™ Polycarbonate Lenses that Meet ANSI Z87.1-2010 High Velocity and High Mass Impact Standards as well as US Federal OSHA 1910.133(b)(1)(1) Standards
100 percent UVA/UVB Protection with Distortion-Free Clarity
T-Shell™ Lens Coating Resists Scratching in Extreme Environments
Double-Injected Rubber Temples for Non-Slip Comfort
Smoke Grey Lens Provides Max Glare Reduction with No Color Distortion: Light Transmission 15%
Rx Ready
DNOW Netherlands Product Catalog 2015
Your single source for all your equipment like personal protection equipment (PPE), daily industrial consumables and offshore supplies for oil & gas and offshore wind industry, refineries and chemical & manufacturing plants.
Isolation Procedures for Safe Working on Electrical Systems and Equipment by the JIB | solation Procedures for Safe Working on Electrical Systems and Equipment
This chart shows the safe isolation procedure that you should use when working on electrical systems and equipment.
You'll receive a printed copy of this from your Training Provider, but it's also here as a handy reference to keep electronically.
THE RULES OF SAFE ISOLATION ARE:
Obtain permission to start work (a Permit may be required in some situations)
Identify the source(s) of supply using an approved voltage indicator or test lamp
Prove that the approved voltage indicator or test lamp is functioning correctly
Isolate the supply(s)
Secure the isolation
Prove the system/equipment is DEAD using an approved voltage indicator or test lamp
Prove that the approved voltage indicator or test lamp is functioning correctly
Put up warning signs to tell other people that the electrical installation has been isolated
Once the system/equipment is proved DEAD, work can begin
Uploaded by THORNE & DERRICK LV HV Jointing, Earthing, Substation & Electrical Eqpt | Explosive Atmosphere Experts & ATEX IECEx.
THORNE & DERRICK based in the UK are international distributors of LV, MV & HV Cable Installation, Jointing, Substation & Electrical Equipment.
Since 1985, T&D have established an international reputation based on SERVICE | INTEGRITY | TRUST.
Contact us for 3M, ABB, Alroc, AN Wallis, CATU, Cembre, Centriforce, CMP, CSD, Elastimold, Ellis Patents, Emtelle, Euromold, Filoform , Furse, Lucy Electric & Zodion, Nexans, Pfisterer, Polypipe, Prysmian, Roxtec, Sicame, WT Henley.
2137ad - Characters that live in Merindol and are at the center of main storiesluforfor
Kurgan is a russian expatriate that is secretly in love with Sonia Contado. Henry is a british soldier that took refuge in Merindol Colony in 2137ad. He is the lover of Sonia Contado.
Hadj Ounis's most notable work is his sculpture titled "Metamorphosis." This piece showcases Ounis's mastery of form and texture, as he seamlessly combines metal and wood to create a dynamic and visually striking composition. The juxtaposition of the two materials creates a sense of tension and harmony, inviting viewers to contemplate the relationship between nature and industry.
2137ad Merindol Colony Interiors where refugee try to build a seemengly norm...luforfor
This are the interiors of the Merindol Colony in 2137ad after the Climate Change Collapse and the Apocalipse Wars. Merindol is a small Colony in the Italian Alps where there are around 4000 humans. The Colony values mainly around meritocracy and selection by effort.
Explore the multifaceted world of Muntadher Saleh, an Iraqi polymath renowned for his expertise in visual art, writing, design, and pharmacy. This SlideShare delves into his innovative contributions across various disciplines, showcasing his unique ability to blend traditional themes with modern aesthetics. Learn about his impactful artworks, thought-provoking literary pieces, and his vision as a Neo-Pop artist dedicated to raising awareness about Iraq's cultural heritage. Discover why Muntadher Saleh is celebrated as "The Last Polymath" and how his multidisciplinary talents continue to inspire and influence.
Salisbury Face, Head, & Neck Protection - Salisbury Electrical Safety Equipment - Safety Helmets, Face Shields, Replacement Lenses, Replacement Brackets, Protective Nets & Glasses, HRC2 Protection Kits, Lift Front Hood, Air Flow Hood Systems
1. Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk

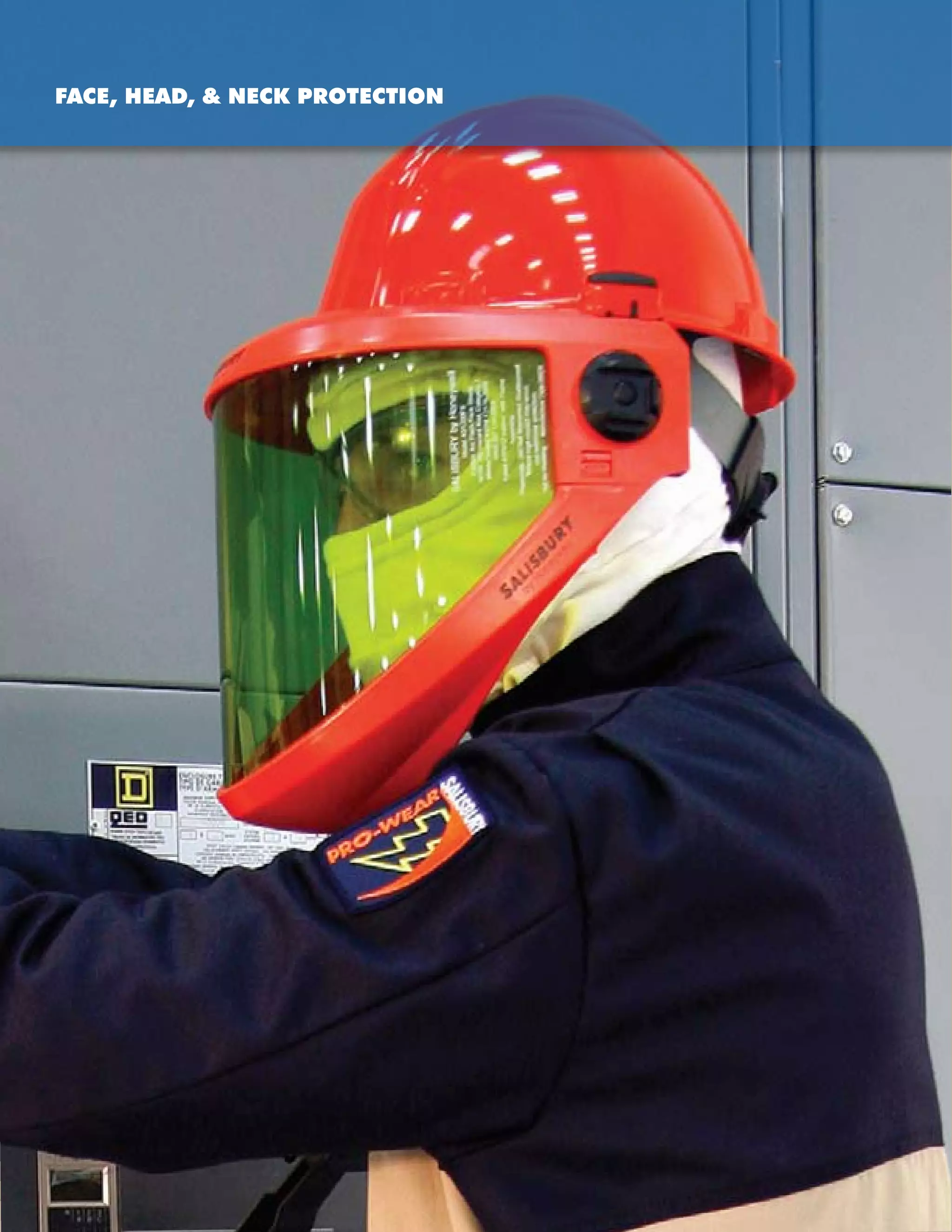

Face, head, & neck protection
8
SALISBURY
101 E. Crossroads Pkwy., Ste. A Bolingbrook, IL 60440 l U.S.A. Toll Free:877.406.4501
l
U.S.A. Toll Free Fax:866.824.4922
2. NEW
AS1200 PROTECTIVE FACESHIELD - HRC 2
12 cal/cm2
NEW
NEW REVOLUTIONARY AS1200HAT u
Salisbury by Honeywell’s NEW revolutionary AS1200HAT is a Weight
Balancing Arc Flash Protection Face Shield, that stows in a balanced,
compact position, centered over the top of the hard hat when not
needed. The AS1200HAT has an ATPV rating of 12cal/cm2 and utilizes
nanotechnology to provide a more transparent window for improved
visibility. The shield/window is designed to be easily replaced without
tools. The faceshield unit includes ventilation ribs that allow a natural
convection air flow through the top of the face shield. This reduces fogging
of the visor, lowers CO2 levels and improves comfort for the user.
AS1200 SERIES u
7.5” x 20” viewing area
Extra light tint
.06” thick
Absorbs >99.9% of harmful UV radiation
Resistant to fogging
Meets current ANSI Z87.1, CSA, and tested to ASTM F2178 specifications
Optional Accessories
AFLENS anti-fog inner lens
- Includes an air spaced design that decreases fogging
- Natural convection air flow design helps minimizes fogging
- Shield meets the ASTM requirements for an Anti-Fog Lens
ASFL Flame Resistant Attachable task lights
The arc tested ASFL FR task light features a high intensity long lasting white
LED lamp with an overall brightness of 7 lumens. From a 24 inch distance,
the beam is approximately 6-7 inch in diameter. The high intensity illumination is very useful when working up close. 2 AAA batteries provide
14-15 hours of high brightness. NOTE: The AS1200HAT can hold 2 ASFL
task lights. The FLKIT only contains 1 task light and 1 clip.
as12clr transparent Chin guard
The AS12CLR Transparent Chin Guard dramatically increases the user’s
peripheral view. The enhanced viewing area increases worker performance
and productivity. The highly transparent chin guard allows improved
awareness and greater safety.
Cat. No.
Description
AS1200HAT
NEW Replacement Clips Set (2) for AS1200HAT Shield
FLCLIP
NEW Attachable Task Light Clip (1)
FLKIT
NEW Attachable Task Light (1) & FLCLIP
AS12CLR
NEW Transparent Chin Guard
anti-fog lens
NEW FR Attachable Task Lights (1)
AS12CLIP
SALISBURY ADVANTAGE
NEW Anti-Fog Inner Lens
ASFL
AFLENS
NEW weight balancing arc flash protection faceshield unit.
AFLENS
AS12CLIP
NEW AS1200HAT w/ transparent chin guard
AS1200
ASFL
NEW weight balancing arc flash protection faceshield unit w/ hard hat
AS1200HATCLR
AS1200HAT
AS12CLR
If You Need it, Request it. Call customer service if you need something not seen here.
www.arcsafety.com
3. AS1200FB full brim PROTECTIVE FACESHIELD - HRC 2
12 cal/cm2
NEW
AS1200FB
AS12CLR-FB
NEW REVOLUTIONARY AS1200FB
7.5” x 20” viewing area
Extra light tint
.06” thick
Absorbs 99.9% of harmful UV radiation
Resistant to fogging
Meets current ANSI Z87.1 and tested to ASTM F2178 specifications
Unique Weight Balancing Design
Optional Task Light Feature
Replaceable Window, no tools required.
Fits all Full Brim Hard Hats
Ventilated Design
Adjustable Pivot Tension
Can Be Easily Removed from the Hard Hat
One Hand Operation
Cat. No.
Description
AS1200FB
NEW 12 cal/cm2, Arc Flash Protection Faceshield Unit for Full Brim Hard Hats
AS12ORG-FB
NEW Orange Chin Guard for AS1200FB
AS12CLR-FB
NEW Transparent Chin Guard for AS1200FB
AS1200FS-FB
NEW Replacement Faceshield/Window 12 cal/cm2 for AS1200FB Full Brim
ASFL
NEW FR Attachable Task Lights (1)
FLCLIP
NEW Attachable Task Light Clip (1)
FLKIT
NEW full brim AS1200FB
Salisbury by Honeywell’s NEW revolutionary AS1200FB is a weight balancing arc flash protection faceshield that fits ALL full brim hard hats regardless of the manufacturer. The shield easily stows in a balanced, compact
position, centered over the top of the full brim hard hat when not needed.
The AS1200FB assembly attaches to the full brim hard hat with an elastomeric band that secures the bracket onto the brim. All parts are dielectric
and specifically designed for arc flash protection.
The AS1200FB has an ATPV rating of 12cal/cm2 (NFPA 70E HRC 2) and
utilizes nanotechnology and an anti-fog coating, to provide a clearer, more
transparent window for improved visibility. The faceshield unit includes an
upper bracket ventilation feature that allows a natural air flow through
the top of the face shield. This reduces fogging of the visor, lowers CO2
levels and improves comfort for the user.
Optional Accessories
ASFL Flame Resistant Attachable task lights
The arc tested ASFL FR task light features a high intensity long lasting white
LED lamp with an overall brightness of 7 lumens. From a 24 inch distance, the
beam is approximately 6-7 inch in diameter. The high intensity illumination
is very useful when working up close. 2 AAA batteries provide 14-15 hours of
high brightness. NOTE: The AS1200HAT can hold 2 ASFL task lights. The FLKIT
only contains 1 task light and 1 clip.
NEW Attachable Task Light (1) FLCLIP
10
SALISBURY
transparent Chin guard
The Transparent Chin Guard dramatically increases the user’s peripheral
view. The enhanced viewing area increases worker performance and
productivity. The highly transparent chin guard allows improved awareness
and greater safety.
101 E. Crossroads Pkwy., Ste. A Bolingbrook, IL 60440 l U.S.A. Toll Free:877.406.4501
l
U.S.A. Toll Free Fax:866.824.4922
4. AS1000/as1500 series PROTECTIVE FACESHIELD UNITs
Accessories - HRC 2
10 cal/cm2
AS1000HAT
AS1000FB
AS1000 SERIES u
10 cal/cm2 ATPV rating when used with the included chin cup
7.5” x 20” viewing area
AS1000
Extra light tint
.06” thick
Absorbs 99.9% of harmful UV radiation
ASBAG
Resistant to fogging
Meets current ANSI Z87.1 and tested to ASTM F2178 specifications
Cat. No.
Description
AS1000
AS1000FS shield w/ ASCP chin cup slotted ASSLB bracket.
Fits most slotted front brim hard hats.
AS1000U
AS1000FS shield w/ ASCP chin cup universal BRACKET.
Fits most front brim hard hats.
AS1000FB
AS1000FS shield w/ ASCP chin cup universal FBBRACKET.
Fits most full brim hard hats.
AS1000R
AS1000FSR shield w/ ASCP chin cup and ASRHG4 pin lock
head band w/ 4” arc guard.
AS1000HAT
AS1000 w/ SA79R front brim hard hat.
ASBAG
Cotton canvas storage bag w/ drawstring closure fleece
interior, for AS1000 series products.
SA79*
Peak front brim hard hat with rain trough, 4-point nylon
suspension, pin-lock adjustment.
ANSI CSA Type I, Class E. Dielectrically rated.
ANSI Z89.1-2003
SA79R*
Peak front brim hard hat with rain trough, 4-point nylon
suspension, ratcheting adjustment.
ANSI CSA Type I, Class E. Dielectrically rated.
ANSI Z89.1-2003
4-point ratcheting
replacement nylon suspension
*IMPORTANT - Please add the color code to the end of hard hat #
(EX:SA7901 - White ANSI Type I, dielectric front brim hard hat w/quick-fit 4-point suspension)
Color Codes
01
02
03
Stock Colors
White
Yellow
Orange
If You Need it, Request it. Call customer service if you need something not seen here.
www.arcsafety.com
11
5. Replacement Arc Flash Protection Lenses
8 - 100 cal/cm2
tAS1000/AS1200/AS1500 PRO-HOOD®
8 cal/cm2 to 100 cal/cm2 ATPV ratings
7.5” x 20” viewing area for replacement AS1000 Protective Shield lenses
10” x 20” viewing area for replacement PRO-HOOD® lenses
4000V and 10000V lenses have two layers of protection
Extra light tint
.06” thick
Absorbs 99.9% of harmful UV radiation
Resistant to fogging
Meets current ANSI Z87.1 and tested to ASTM F2178 specifications
NEW AFLENSU - The universal inner lens is a field installed anti-fog lens
for PRO-HOOD arc flash protective switching hoods. Installs quickly without
tools to the inside of the PRO-HOOD faceshield and can be removed for
cleaning or replacement.
AS1000FSR
NEW
AS1000FS
Cat. No.
AS1000FS
oNlY froM salisBurY by Honeywell
NEW
NEW Lens Reduces Dangerous Lens Fogging when Used with PRO-HOOD®.
10000V
The Universal Inner Lens is a field installed Anti-Fog
Inner Lens that is designed to minimize fogging inside
of Arc Flash Hoods. This unit installs quickly without
tools to the inside surface of the Hood Arc Shield and
can be removed for cleaning or replacement.
Material: Clear Polycarbonate Anti-Fog Coated with
Black Nylon Clips
NEW
2000V
Replacement lens, with hook pile attachment, for
OLDER DESIGN 8cal/cm2 to 20cal/cm2 PRO-HOOD. Single
layer lens. Used with the ASSLB, FBBRACKET, or BRACKET brackets.
4000V
NEW CLEARER LENS
Replacement lens, with hook pile attachment, for
31 cal/cm2 to 55 cal/cm2 PRO-HOOD. Dual layer lens.
Used with the ASSLB, FBBRACKET, or BRACKET brackets.
4000VB
NEW CLEARER LENS
Replacement lens, with hook pile attachment, for
31 cal/cm2 to 55 cal/cm2 PRO-HOOD. Dual layer lens
(clear and tinted). Includes BRACKET for front brim hard hat.
NEW CLEARER LENS
Replacement lens, with hook pile attachment, for
31 cal/cm2 to 55 cal/cm2 PRO-HOOD. Dual layer lens
(clear and tinted). Includes FBBRACKET for full brim hard hat.
10000V
NEW uNivErsal iNNEr aNti-fog lENs
Replacement lens, with hook pile attachment, for
NEW DESIGN 8cal/cm2 to 20cal/cm2 PRO-HOOD. Single
layer lens. Used with the ASSLB, FBBRACKET, or BRACKET brackets.
4000VFB
NEW PRODUCTS
NEW Inner Anti-Fog Lens for PRO-HOOD®.
1000V
4000V
Replacement face shield for AS1000R. Used with the
ASRHG4 bracket and ASCP.
AFLENSU
4000V 10000V
Dual Lens
NEW Replacement window for AS1200HAT, 12cal/cm2.
AS1000FSR
2000V
Replacement face shield for AS1000HAT, AS1000FB, and
AS1000U. Used with the ASSLB, FBBRACKET, or BRACKET
brackets and ASCP.
AS1200FS
1000V
Description
Replacement lens, with hook pile attachment, for
75 cal/cm2 to 100 cal/cm2 PRO-HOOD. Dual layer lens
(clear and tinted). Used with the ASSLB, FBBRACKET,
or BRACKET brackets.
AS1200FS
InstallatIon InstructIons:
AFLENSU
1. Remove the shield/window from the PROHOOD by pulling the hook pile flap away
from the front of the shield/window.
6. Continue to work the black clips into position
UPGRADE YOUR PRO-HOOD LENS: IF YOUR FH31RB, FH40GY,
until all are secured.
OR FH55GY LENS HAS MODEL # IM22-ARCAF6FL-2, YOUthe shield/window assembly into
7. Reassemble SHOULD UPGRADE
the GREATER assure that
hood and
TODAY TO THE NEW 4000V CLEARER LENS FORsecured. VISIBILITY.the hook pile flap
is
2. Place the shield/window in your lap with the
inside of the window facing up.
12
8. The
and
3. Wipe the inside of the shield/window
a
101 E.
Pkwy., Ste. A as needed.
SALISBURY to remove lint or dust. withCrossroads Universal Inner Lens can be removed60440
replaced for cleaningBolingbrook, IL
soft cotton cloth
l
U.S.A. Toll Free:877.406.4501
l
U.S.A. Toll Free Fax:866.824.4922
6. Replacement Brackets, Protective netS SAFETY GLASSES
REPLACEMENT BRACKETS u
Cat. No.
Description
ASCP
Replacement chin cup for AS1000 series shields.
BRACKET
Universal dielectric hard hat bracket.
Used with front brim hard hats.
FBBRACKET
Universal dielectric hard hat bracket.
Used with full brim hard hats.
ASSLB
Dielectric bracket, fits slotted front brim hard hats.
Used with all AS1000 Series lenses.
ASRHG4
Ratcheted head gear with 4” arc guard.
Used with AS1000FSR lens.
ASCP
BRACKET
FBBRACKET
ASSLB
Salisbury’s Fire Resistant Hairnet and Beardnet u give added
protection in any industry that requires the worker to wear a hairnet or
beardnet. The hairnet and beardnet have an ATPV rating of 2.4 cal/cm2
and are available in gray and made of a washable 1.7 oz/yd2 (58 g/m2)
Woven Nomex® fabric. Meets current ASTM F1506 standards.
Cat. No.
Description
HN-1
FR protective hairnet, 2.4 cal/cm2
1.7 oz/yd2 (58 g/m2) woven Nomex®
BN-1
ASRHG4
FR protective beardnet, 2.4 cal/cm2
1.7 oz/yd2 (58 g/m2) woven Nomex®
BN-1
Safety Glasses u are anti-fogging, anti-scratch and anti-static with
99.9% UV protection. These glasses meet current ANSI Z87.1, 2003 and
CSA Z94.3* standards.
HN-1
*The CSA Z94.3 standard applies to eye and face protectors used in all
occupational and educational operations or processes involving hazards
to the eyes or face.
Cat. No.
Description
TS56505GRY
Clear lens, gray frame
TS56505GRYA
Amber lens, gray frame
TS56505GRYS
TS56505GRY
Smoke lens, gray frame
www.arcsafety.com
13
7. Arc Flash Protection Hoods - afhoods
10 - 28 cal/cm2
t Salisbury’s Arc Flash Hoods (balaclava) create 360 degree° head
and neck protection from arc flash dangers, when used with a AS1000
Series Faceshield/Hard Hat/Chin Cup Unit. Each Arc Flash Hood is made
from two layers of rib knit material and has an elastic face opening that
maintains its shape and size.
The AFHOOD10 has an ATPV rating of 10 cal/cm2. The AFHOOD15 has
an ATPV rating of 15 cal/cm2. The AFHOOD20 has an ATPV rating of 20
cal/cm2. Both the AFHOOD28FF and the AFHOOD28EO have an ATPV rating
AFHOOD10
of 28 cal/cm2. All are made from FR materials.
CAUTION: Arc Flash Hoods must be worn in combination with a faceshield
in order to comply with the requirements of NFPA 70E and will protect 360o
AFHOOD15
inside the arc flash boundary.
Cat. No.
AFHOOD10
10 cal/cm2 protection
AFHOOD15
15 cal/cm2 protection
AFHOOD20
20 cal/cm2 protection
AFHOOD28FF
28 cal/cm2 protection
AFHOOD28EO
AFHOOD20
Description
28 cal/cm2 protection, 2-eye hood
AFHOOD28EO
14
SALISBURY
101 E. Crossroads Pkwy., Ste. A Bolingbrook, IL 60440 l U.S.A. Toll Free:877.406.4501
l
U.S.A. Toll Free Fax:866.824.4922
8. NEW
Arc Flash Protection AS1000HAT AFHOOD Kit
u The AS1000HAT AS1200HAT Kits make your Personal Protective Equipment
purchasing even easier. These convenient kits contain an AS1000HAT or AS1200HAT, a 10
cal/cm2, 15 cal/cm2 , or 20 cal/cm2 ATPV rated AFHOOD, safety glasses and an ASBAG.
The AS1000HAT has an ATPV rating of 10 cal/cm2. The lens provides a 7.5” x 20” viewing
area with an extra light tint. The AS1200HAT has an ATPV rating of 12 cal/cm2.
The SKA kits are an ideal kit to use with PPE programs that exceed 8 cal/cm2 or with
8 cal/cm2 to 12 cal/cm2 ATPV rated coveralls and jackets.
NOTE: Due to AS1000HAT ATPV rating of 10 cal/cm2, protection greater than 10 cal/cm2
cannot be achieved. Due to AS1200HAT ATPV rating of 12 cal/cm2, protection greater
than 12 cal/cm2 cannot be achieved.
Cat. No.
Description
SKA10
ATPV 10 cal/cm2 Kit
10 cal/cm2 AFHOOD with 10 cal/cm2 AS1000HAT, ANSI rated safety glasses
and ASBAG.
SKA10-1200
ATPV 10 cal/cm2 Kit
10 cal/cm2 AFHOOD with 12 cal/cm2 AS1200HAT, ANSI rated safety
glasses and ASBAG.
SKA15
ATPV 10 cal/cm2 Kit
15 cal/cm2 AFHOOD with 10 cal/cm2 AS1000HAT, ANSI rated safety glasses
and ASBAG.
SKA15-1200
ATPV 12 cal/cm2 Kit
15 cal/cm2 AFHOOD with 12 cal/cm2 AS1200HAT, ANSI rated safety glasses
and ASBAG.
SKA20
ATPV 10 cal/cm2 Kit
20 cal/cm2 AFHOOD with 10 cal/cm2 AS1000HAT, ANSI rated safety glasses
and ASBAG.
SKA20-1200
ATPV 12 cal/cm2 Kit
20 cal/cm2 AFHOOD with 12 cal/cm2 AS1200HAT, ANSI rated safety glasses
and ASBAG.
NEW
ADD THE NEW
AS1200HAT!
By adding suffix “-1200” to select kits
you can include a new AS1200HAT
instead of the AS1000HAT.
NEW
SKA10-1200
SKA10
Important: The maximum Arc Flash Protection of a kit is equal to the lowest cal/cm2 rating of any component in the selected safety kit.
www.arcsafety.com
15
9. Compact PRO-AIR™ ACAIR2000®
arc flASh Protection HOOD compact powered air system
IMPROVED
IMPROVED
t Salisbury’s PRO-AIR ACAIR2000 - NEW Upgraded Circuit Board
and Battery Salisbury’s PRO-AIR ACAIR2000 system is designed to blow
forced ambient air through a single intake hose, providing fresh oxygen
to the worker and reducing the hazardous effects of shield fogging. The
unit is microprocessor controlled and operates automatically by blowing
air continuously for over three hours on one charge. On the back of
the unit is a button that pauses the continuous flow, if needed. Use this
unit with Salisbury’s PRO-HOOD® and PRO-WEAR® arc flash protection
clothing.
The PRO-AIR ACAIR2000 compact powered air system easily mounts
to most standard hardhats and functions in one lightweight (less than
10 oz.) easy to use unit. The unit cools the worker and reduces fatigue
while wearing a Salisbury Arc Flash PRO-HOOD.
The PRO-AIR ACAIR2000 includes a lightweight blower assembly, universal
band, bendable intake hose, Ni-MH rechargeable batteries, and an AC
wall charger.
Intake hose attaches to the blower unit with a bendable
joint to allow easy movement.
Cat. No.
Description
ACAIR2000
IMPROVED PRO-AIR Lightweight air system for PRO-HOODs
Use this unit with Salisbury Arc
Flash Protective PRO-HOODs.
16
SALISBURY
101 E. Crossroads Pkwy., Ste. A Bolingbrook, IL 60440 l U.S.A. Toll Free:877.406.4501
l
U.S.A. Toll Free Fax:866.824.4922
10. NEW
air flow hood system Compact PRO-AIR™ acair102
arc flASh Protection HOOD compact powered air systems
p R o -A I R
tm
SALISBURY
ARc fLASh
pRotectIon
u new Salisbury PRO-AIR™ air flow hood system Salisbury’s
NEW PRO-AIR, Air Flow Hood System is integrated with Salisbury’s PROHOOD® Arc Flash Protection Hood. Now, all Salisbury PRO-HOOD Arc
Flash Protection Hoods are available with an optional integrated cooling
system. This newest addition to the PRO-AIR line of products provides
additional air flow and cools the worker. This unit is excellent in warm
conditions or confined spaces. The easy to wear system is lightweight,
compact, and easy to use. The system is designed to provide the worker
with approximately 80cfm of air flow throughout the breathing zone. The
unit is powered by 8 AA batteries and is designed to maintain a useful
continuous life of up to 35hrs at 80cfm. The unit is non-filtered and is not
considered a respirator.
Cat. No.
Description
FH8BL-C
NEW 8 cal/cm2² arc flash hood w/ air system
FH11BL-C
NEW 12 cal/cm2 arc flash hood w/ air system
FH20BL-C
NEW 20 cal/cm2 arc flash hood w/ air system
FH31RB-C
NEW 31 cal/cm2 arc flash hood w/ air system
FH40GY-C
NEW 40 cal/cm2 arc flash hood w/ air system
FH40GYLT-C
NEW 40 cal/cm2 arc flash hood w/ air system
FH55GY-C
NEW 55 cal/cm2 arc flash hood w/ air system
FH75GY-C
NEW 75 cal/cm2 arc flash hood w/ air system
FH100TW-C
NEW 100 cal/cm2 arc flash hood w/ air system
FH31RB-C
u The Salisbury PRO-AIR™ is a belt mounted COMPACT POWERED AIR
SYSTEM that provides a continuous flow of filtered air to reduce worker
fatigue and provide additional comfort when working in hot and humid
conditions. The PRO-AIR integrates with the full ATPV range of Salisbury’s
PRO-HOOD® line and easily attaches inside the hood using the exclusive
Salisbury hook and pile looped fastener system.
ACAIR102
The PRO-AIR kit consists of a blower unit, belt and comfort pad, rechargeable
battery pack, breathing hose and battery charger. Blower unit and hose are
covered with a fire resistant material to meet NFPA 70E requirements. The
PRO-AIR kit is shipped in a durable carrying case.
Not NIOSH approved.
Cat. No.
Description
ACAIR102
PRO-AIR Compact Powered Air System, Complete Kit
AC102
Blower unit, battery, belt, back support, and fire resistant mesh bag
AC103
PRO-AIR battery
A168091
Replacement air filter cartridges
AC124
O-Rings for air filters
AC129
Y- shaped breathing hose
AC129FR
Fire retardent tube covers for AC129 (3)
AC131
Single unit battery charger
AC135
Compact Powered Air System carrying case
Back View
Back View - open mesh bag
NOTE: Units provided with standard U.S. two prong blade electrical plugs. The plugs are for use in North and Central America and Japan. ForTel: +44 (0)191 490 Salisbury International Customer Service.
all other requirements, please contact 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.cablejoints.co.uk
www.thorneanderrick.co.uk
www.arcsafety.com
17
