- 1. Introducing the all-newSavage A40 welding helmet. SAVAGE MODE. ENTER
- 2. WITH RADICAL DESIGNCUES INSPIRED BY OUR BEST-SELLING SENTINEL™ A50 HELMET, A BRIGHTER VIEW, AND ENHANCED COLOR DEFINITION, THE SAVAGE A40 AUTOMATIC WELDING HELMET LETS OCCASIONAL AND PROFESSIONAL FABRICATORS ALIKE UNLEASH A NEW WORLD OF WELDING AND CUTTING PERFORMANCE.

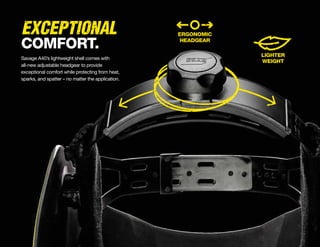

- 3. Savage A40’s lightweightshell comes with all-new adjustable headgear to provide exceptional comfort while protecting from heat, sparks, and spatter – no matter the application. ERGONOMIC HEADGEAR LIGHTER WEIGHT COMFORT. EXCEPTIONAL

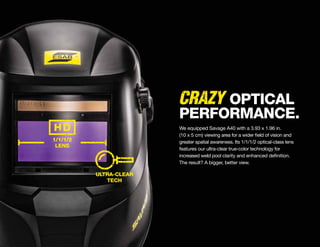

- 4. ULTRA-CLEAR TECH 1/1/1/2 LENS CRAZY We equipped SavageA40 with a 3.93 x 1.96 in. (10 x 5 cm) viewing area for a wider field of vision and greater spatial awareness. Its 1/1/1/2 optical-class lens features our ultra-clear true-color technology for increased weld pool clarity and enhanced definition. The result? A bigger, better view. OPTICAL PERFORMANCE.

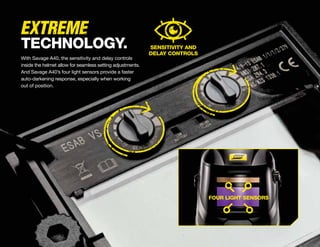

- 5. TECHNOLOGY. With Savage A40,the sensitivity and delay controls inside the helmet allow for seamless setting adjustments. And Savage A40’s four light sensors provide a faster auto-darkening response, especially when working out of position. SENSITIVITY AND DELAY CONTROLS EXTREME FOUR LIGHT SENSORS

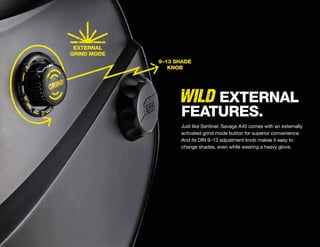

- 6. WILD EXTERNAL GRIND MODE 9–13 SHADE KNOB Justlike Sentinel, Savage A40 comes with an externally activated grind mode button for superior convenience. And its DIN 9–13 adjustment knob makes it easy to change shades, even while wearing a heavy glove. EXTERNAL FEATURES.

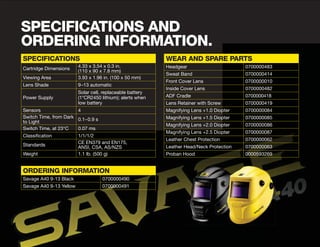

- 7. SPECIFICATIONS AND ORDERING INFORMATION. SPECIFICATIONS CartridgeDimensions 4.33 x 3.54 x 0.3 in. (110 x 90 x 7.8 mm) Viewing Area 3.93 x 1.96 in. (100 x 50 mm) Lens Shade 9–13 automatic Power Supply Solar cell, replaceable battery (1*CR2450 lithium); alerts when low battery Sensors 4 Switch Time, from Dark to Light 0.1–0.9 s Switch Time, at 23°C 0.07 ms Classification 1/1/1/2 Standards CE EN379 and EN175, ANSI, CSA, AS/NZS Weight 1.1 lb. (500 g) WEAR AND SPARE PARTS Headgear 0700000483 Sweat Band 0700000414 Front Cover Lens 0700000010 Inside Cover Lens 0700000482 ADF Cradle 0700000418 Lens Retainer with Screw 0700000419 Magnifying Lens +1.0 Diopter 0700000084 Magnifying Lens +1.5 Diopter 0700000085 Magnifying Lens +2.0 Diopter 0700000086 Magnifying Lens +2.5 Diopter 0700000087 Leather Chest Protection 0700000062 Leather Head/Neck Protection 0700000063 Proban Hood 0000593269 ORDERING INFORMATION Savage A40 9-13 Black 0700000490 Savage A40 9-13 Yellow 0700000491
- 8. PICK THE HOOD THAT’SBEST FOR YOU. SAVAGE A40 SENTINEL A50 1/1/1/2 Optical Class 1/1/1/2 3.93 x 1.96 in. (100 x 50 mm) Viewing Area 3.93 x 2.36 in. (100 x 60 mm) Yes True Color Technology Yes No Touchscreen Interface Yes, color DIN 9–13 automatic Lens Shade DIN 5–13 automatic External Shade Control Internal Yes External Grind Mode Button Yes 4 Sensors 4 Solar cell plus one replaceable battery (CR2450 lithium); alerts when low battery Power Supply Solar cell plus two replaceable batteries (CR2450 lithium); alerts when low battery 0.1–0.9 s Switch Time, from Dark to Light 0.1–1.0 s 3-point, adjustable Headgear HALO™ 5-point comfort harness, infinitely adjustable Yes Hard Hat Adapter Enabled Yes None Memory Settings 8 separate memory settings 1.1 lb. (500 g) Weight 1.4 lb. (640 g) Whether you choose the new Savage A40 or our best-selling Sentinel A50 professional welding helmet, you’ll gain a killer combination of technology and performance for your money. ble
- 9. YOUR INNER WELDING SAVAGE. Elevateyour performance by ordering the new Savage A40 welding helmet today. UNLEASH For more information, visit esab.com/savage. XA00211221 / NA / English / 03-12-2020 ESAB / esab.com
