- 1. Metamorphic Security Testing forWeb Systems TORACLE @FSE (23/8/2021) based on paper presented at ICST’20 (+ additional results) Phu X. Mai*, Fabrizio Pastore*, Arda Goknil*, Lionel Briand*# * SnT Centre, University of Luxembourg #School of EECS, University of Ottawa
- 2. The Oracle Problem inWeb Systems Security Testing 2 Security vulnerabilities are subtle Discovered when testing with many inputs Specifying expected results is infeasible
- 3.

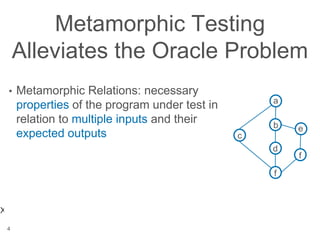

- 4. Metamorphic Testing Alleviates theOracle Problem • Metamorphic Relations: necessary properties of the program under test in relation to multiple inputs and their expected outputs 4 x1=(G,a,f) ∧ x2=(G,f,a) len(shortPath(x1))=len(shortPath(x2)) a b c d e f f Source input Follow-up input
- 5. Combined with an automatedstrategy to select source inputs, metamorphic relations enable automated testing 5

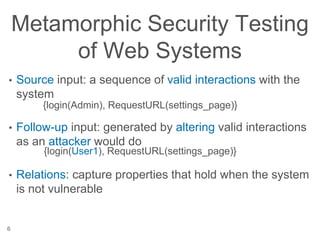

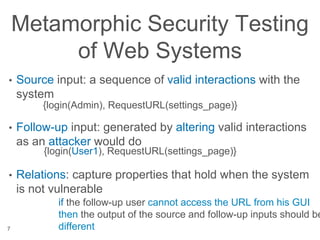

- 6. Metamorphic Security Testing ofWeb Systems • Source input: a sequence of valid interactions with the system • Follow-up input: generated by altering valid interactions as an attacker would do • Relations: capture properties that hold when the system is not vulnerable 6 {login(Admin), RequestURL(settings_page)} {login(User1), RequestURL(settings_page)}
- 7. Metamorphic Security Testing ofWeb Systems • Source input: a sequence of valid interactions with the system • Follow-up input: generated by altering valid interactions as an attacker would do • Relations: capture properties that hold when the system is not vulnerable 7 {login(Admin), RequestURL(settings_page)} {login(User1), RequestURL(settings_page)} if the follow-up user cannot access the URL from his GUI then the output of the source and follow-up inputs should be different

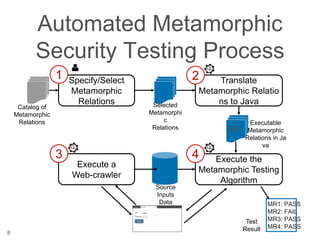

- 8. Automated Metamorphic Security TestingProcess 8 Catalog of Metamorphic Relations Selected Metamorphi c Relations Translate Metamorphic Relatio ns to Java 2 Execute a Web-crawler 3 Specify/Select Metamorphic Relations 1 Executable Metamorphic Relations in Ja va Source Inputs Data Execute the Metamorphic Testing Algorithm 4 MR1: PASS MR2: FAIL MR3: PASS MR4: PASS Test Result
- 9.

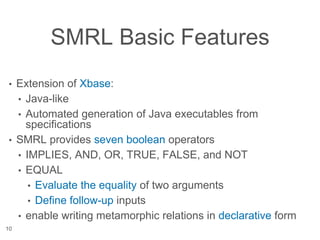

- 10. SMRL Basic Features •Extension of Xbase: • Java-like • Automated generation of Java executables from specifications • SMRL provides seven boolean operators • IMPLIES, AND, OR, TRUE, FALSE, and NOT • EQUAL • Evaluate the equality of two arguments • Define follow-up inputs • enable writing metamorphic relations in declarative form 10

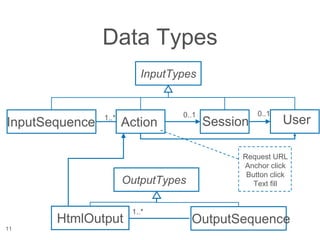

- 11. Data Types 11 InputSequence InputTypes OutputSequence OutputTypes Action 1..* 0..1 SessionUser 0..1 HtmlOutput 1..* Request URL Anchor click Button click Text fill
- 12. 12 Data Representation Functions Data functionDescription Input(int n) Identifies the nth input sequence referred to in a MR. User(int n) Identifies the nth user referred in a MR. User() Identifies the 1st user referred in a MR. Action(int n) Identifies the nth input action referred in a MR. Session(int n) Identifies the nth Web session referred in a MR. Output(Input n) Identifies the sequence of outputs generated by the nth input. Output(Input n, int i) Identifies the output generated by the ith action of the nth input. …

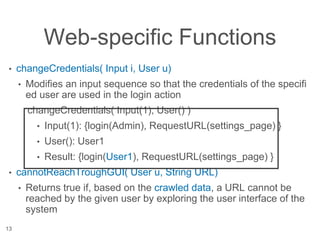

- 13. Web-specific Functions • changeCredentials(Input i, User u) • Modifies an input sequence so that the credentials of the specifi ed user are used in the login action changeCredentials( Input(1), User() ) • Input(1): {login(Admin), RequestURL(settings_page) } • User(): User1 • Result: {login(User1), RequestURL(settings_page) } • cannotReachTroughGUI( User u, String URL) • Returns true if, based on the crawled data, a URL cannot be reached by the given user by exploring the user interface of the system 13
- 14.

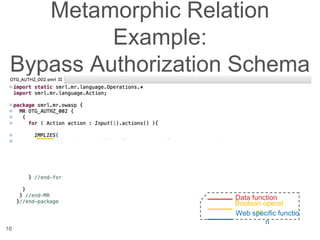

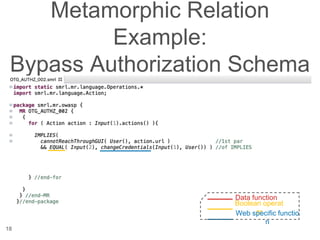

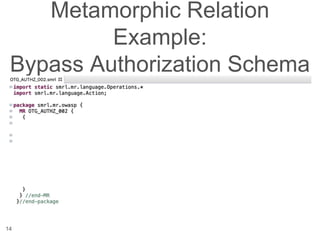

- 15. Metamorphic Relation Example: Bypass AuthorizationSchema 15 Data function Boolean operat or Web specific functio n

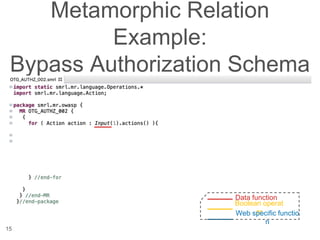

- 16. Metamorphic Relation Example: Bypass AuthorizationSchema 16 Data function Boolean operat or Web specific functio n
- 17. Metamorphic Relation Example: Bypass AuthorizationSchema 17 Data function Boolean operat or Web specific functio n

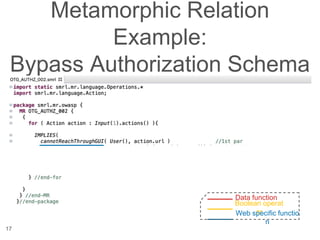

- 18. Metamorphic Relation Example: Bypass AuthorizationSchema 18 Data function Boolean operat or Web specific functio n

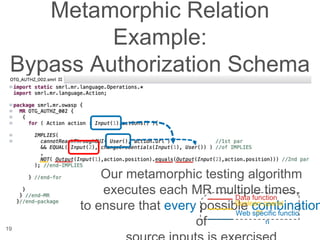

- 19. Metamorphic Relation Example: Bypass AuthorizationSchema 19 Our metamorphic testing algorithm executes each MR multiple times, to ensure that every possible combination of Data function Boolean operat or Web specific functio n

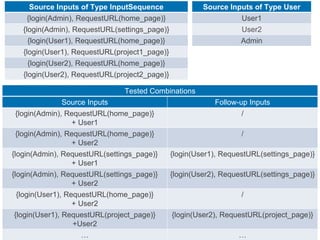

- 20. Source Inputs ofType InputSequence {login(Admin), RequestURL(home_page)} {login(Admin), RequestURL(settings_page)} {login(User1), RequestURL(home_page)} {login(User1), RequestURL(project1_page)} {login(User2), RequestURL(home_page)} {login(User2), RequestURL(project2_page)} Source Inputs of Type User User1 User2 Admin Tested Combinations Source Inputs Follow-up Inputs {login(Admin), RequestURL(home_page)} + User1 / {login(Admin), RequestURL(home_page)} + User2 / {login(Admin), RequestURL(settings_page)} + User1 {login(User1), RequestURL(settings_page)} {login(Admin), RequestURL(settings_page)} + User2 {login(User2), RequestURL(settings_page)} {login(User1), RequestURL(home_page)} + User2 / {login(User1), RequestURL(project_page)} +User2 {login(User2), RequestURL(project_page)} … …

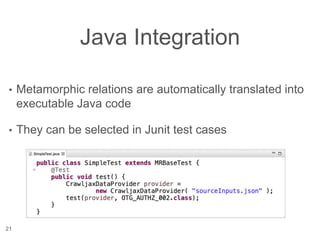

- 21. Java Integration • Metamorphicrelations are automatically translated into executable Java code • They can be selected in Junit test cases 21

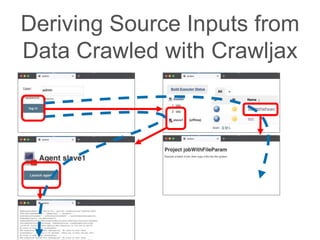

- 22. Deriving Source Inputsfrom Data Crawled with Crawljax

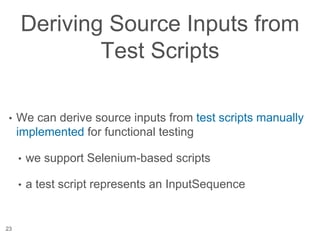

- 23. Deriving Source Inputsfrom Test Scripts • We can derive source inputs from test scripts manually implemented for functional testing • we support Selenium-based scripts • a test script represents an InputSequence 23

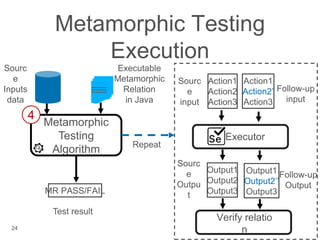

- 24. 24 Executable Metamorphic Relation in Java Sourc e Inputs data Metamorphic Testing Algorithm 4 Follow-up input Test result Executor Verifyrelatio n Metamorphic Testing Execution Sourc e input Action1 Action2 Action3 Action1 Action2’ Action3 Follow-up Output Sourc e Outpu t Output1 Output2 Output3 Output1 Output2’’ Output3 MR PASS/FAIL Repeat

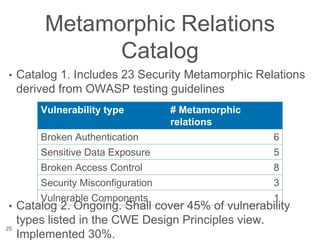

- 25. Metamorphic Relations Catalog • Catalog1. Includes 23 Security Metamorphic Relations derived from OWASP testing guidelines 25 Vulnerability type # Metamorphic relations Broken Authentication 6 Sensitive Data Exposure 5 Broken Access Control 8 Security Misconfiguration 3 Vulnerable Components 1 • Catalog 2. Ongoing. Shall cover 45% of vulnerability types listed in the CWE Design Principles view. Implemented 30%.

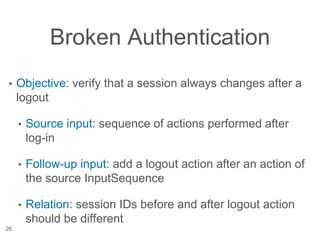

- 26. Broken Authentication • Objective:verify that a session always changes after a logout • Source input: sequence of actions performed after log-in • Follow-up input: add a logout action after an action of the source InputSequence • Relation: session IDs before and after logout action should be different 26

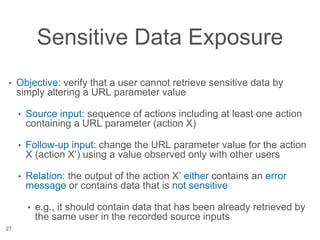

- 27. Sensitive Data Exposure •Objective: verify that a user cannot retrieve sensitive data by simply altering a URL parameter value • Source input: sequence of actions including at least one action containing a URL parameter (action X) • Follow-up input: change the URL parameter value for the action X (action X’) using a value observed only with other users • Relation: the output of the action X’ either contains an error message or contains data that is not sensitive • e.g., it should contain data that has been already retrieved by the same user in the recorded source inputs 27

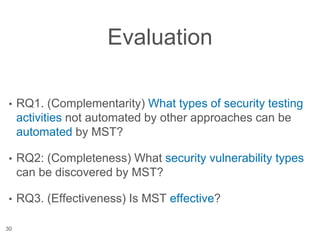

- 28. Evaluation • RQ1. (Complementarity)What types of security testing activities not automated by other approaches can be automated by MST? • RQ2: (Completeness) What security vulnerability types can be discovered by MST? • RQ3. (Effectiveness) Is MST effective? 30

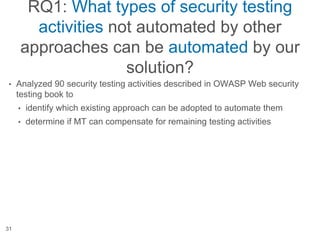

- 29. RQ1: What typesof security testing activities not automated by other approaches can be automated by our solution? • Analyzed 90 security testing activities described in OWASP Web security testing book to • identify which existing approach can be adopted to automate them • determine if MT can compensate for remaining testing activities 31

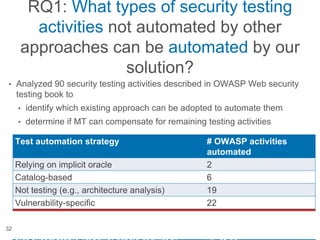

- 30. RQ1: What typesof security testing activities not automated by other approaches can be automated by our solution? • Analyzed 90 security testing activities described in OWASP Web security testing book to • identify which existing approach can be adopted to automate them • determine if MT can compensate for remaining testing activities 32 Test automation strategy # OWASP activities automated Relying on implicit oracle 2 Catalog-based 6 Not testing (e.g., architecture analysis) 19 Vulnerability-specific 22 Not addressed yet 41 Metamorphic testing 16 of 41
- 31. RQ1: What typesof security testing activities not automated by other approaches can be automated by our solution? • Analyzed 90 security testing activities described in OWASP Web security testing book to • identify which existing approach can be adopted to automate them • determine if MT can compensate for remaining testing activities 33 Test automation strategy # OWASP activities automated Relying on implicit oracle 2 Catalog-based 6 Not testing (e.g., architecture analysis) 19 Vulnerability-specific 22 Not addressed yet 41 Metamorphic testing 16 of 41

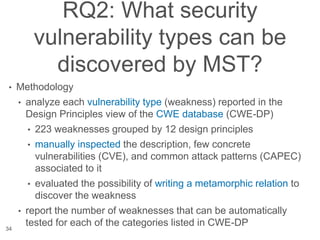

- 32. RQ2: What security vulnerabilitytypes can be discovered by MST? • Methodology • analyze each vulnerability type (weakness) reported in the Design Principles view of the CWE database (CWE-DP) • 223 weaknesses grouped by 12 design principles • manually inspected the description, few concrete vulnerabilities (CVE), and common attack patterns (CAPEC) associated to it • evaluated the possibility of writing a metamorphic relation to discover the weakness • report the number of weaknesses that can be automatically tested for each of the categories listed in CWE-DP 34

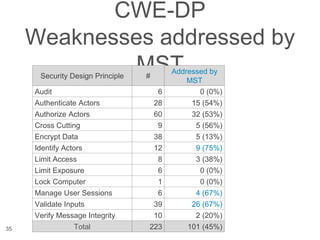

- 33. CWE-DP Weaknesses addressed by MST 35 SecurityDesign Principle # Addressed by MST Audit 6 0 (0%) Authenticate Actors 28 15 (54%) Authorize Actors 60 32 (53%) Cross Cutting 9 5 (56%) Encrypt Data 38 5 (13%) Identify Actors 12 9 (75%) Limit Access 8 3 (38%) Limit Exposure 6 0 (0%) Lock Computer 1 0 (0%) Manage User Sessions 6 4 (67%) Validate Inputs 39 26 (67%) Verify Message Integrity 10 2 (20%) Total 223 101 (45%)

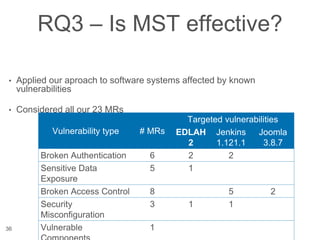

- 34. RQ3 – IsMST effective? • Applied our aproach to software systems affected by known vulnerabilities • Considered all our 23 MRs 36 Vulnerability type # MRs Targeted vulnerabilities EDLAH 2 Jenkins 1.121.1 Joomla 3.8.7 Broken Authentication 6 2 2 Sensitive Data Exposure 5 1 Broken Access Control 8 5 2 Security Misconfiguration 3 1 1 Vulnerable 1

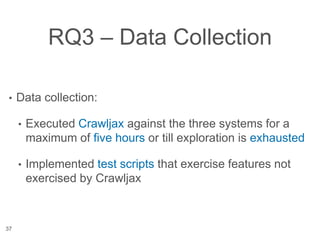

- 35. RQ3 – DataCollection • Data collection: • Executed Crawljax against the three systems for a maximum of five hours or till exploration is exhausted • Implemented test scripts that exercise features not exercised by Crawljax 37

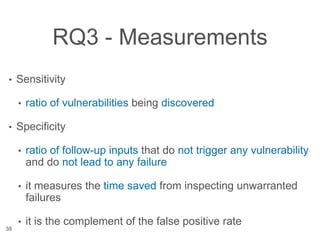

- 36. RQ3 - Measurements •Sensitivity • ratio of vulnerabilities being discovered • Specificity • ratio of follow-up inputs that do not trigger any vulnerability and do not lead to any failure • it measures the time saved from inspecting unwarranted failures • it is the complement of the false positive rate 38
- 37. RQ3 - Sensitivity •We do not discover vulnerabilities that require specific environment settings • Jenkins configuration modified during test execution • Jenkins overloaded Case study Total Vulnerabiliti es Discovered vulnerabilities Sensitivity Crawljax Crawljax & Manual Crawljax Crawljax & Manual EDLAH2 4 3 4 75% 100% Jenkins 8 4 6 50% 75% Total 12 7 10 58.33% 83.33% 39 (ratio of vulnerabilities being discovered)

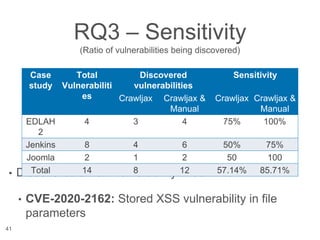

- 38. RQ3 – Sensitivity (Ratioof vulnerabilities being discovered) 40 Case study Total Vulnerabiliti es Discovered vulnerabilities Sensitivity Crawljax Crawljax & Manual Crawljax Crawljax & Manual EDLAH 2 4 3 4 75% 100% Jenkins 8 4 6 50% 75% Joomla 2 1 2 50 100 Total 14 8 12 57.14% 85.71% • We do not discover vulnerabilities that require specific environment settings • Jenkins configuration modified during test execution • Jenkins overloaded
- 39. RQ3 – Sensitivity (Ratioof vulnerabilities being discovered) • Discovered a new vulnerability in Jenkins • CVE-2020-2162: Stored XSS vulnerability in file parameters 41 Case study Total Vulnerabiliti es Discovered vulnerabilities Sensitivity Crawljax Crawljax & Manual Crawljax Crawljax & Manual EDLAH 2 4 3 4 75% 100% Jenkins 8 4 6 50% 75% Joomla 2 1 2 50 100 Total 14 8 12 57.14% 85.71%

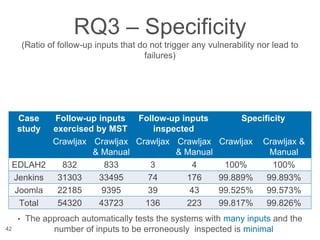

- 40. RQ3 – Specificity (Ratioof follow-up inputs that do not trigger any vulnerability nor lead to failures) 42 Case study Follow-up inputs exercised by MST Follow-up inputs inspected Specificity Crawljax Crawljax & Manual Crawljax Crawljax & Manual Crawljax Crawljax & Manual EDLAH2 832 833 3 4 100% 100% Jenkins 31303 33495 74 176 99.889% 99.893% Joomla 22185 9395 39 43 99.525% 99.573% Total 54320 43723 136 223 99.817% 99.826% • The approach automatically tests the systems with many inputs and the number of inputs to be erroneously inspected is minimal

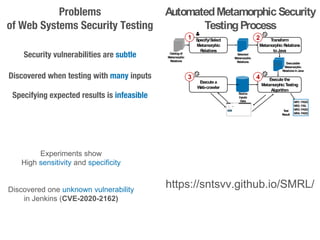

- 41. AutomatedMetamorphicSecurity TestingProcess 8 Catalogof Metamorphic Relations Selected Metamorphic Relations T ransform MetamorphicRelations toJava 2 Execute a W eb-crawler 3 Specify/Select Metamorphic Relations 1 Executable Metamorphic RelationsinJava Source Inputs Data Execute the MetamorphicT esting Algorithm 4 MR1:PASS MR2:FAIL MR3:PASS MR4:PASS T est Result Experimentsshow High sensitivity and specificity Discovered one unknown vulnerability in Jenkins (CVE-2020-2162) https://sntsvv.github.io/SMRL/
Editor's Notes

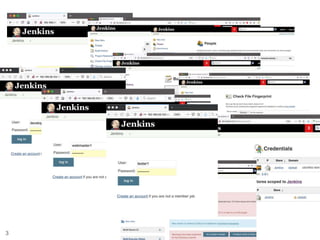

- #3 We address the oracle problem in the conext of security testing of web systems. Security testing is affected by the oracle problem because security vulnerabilities are often subtle and They can be discovered only by exercising a Web system with many inputs and despite there are means to automatically generate inputs we lack methods to automatically derive expected results and of course manually specifying expected results for a large number inputs tend to be infeasible For example, to test if authorization priviledges had ben configured properly
