Extending Sysdig with Chisel
- 1. Extending Sysdig Gianluca Borello, Engineering Manager

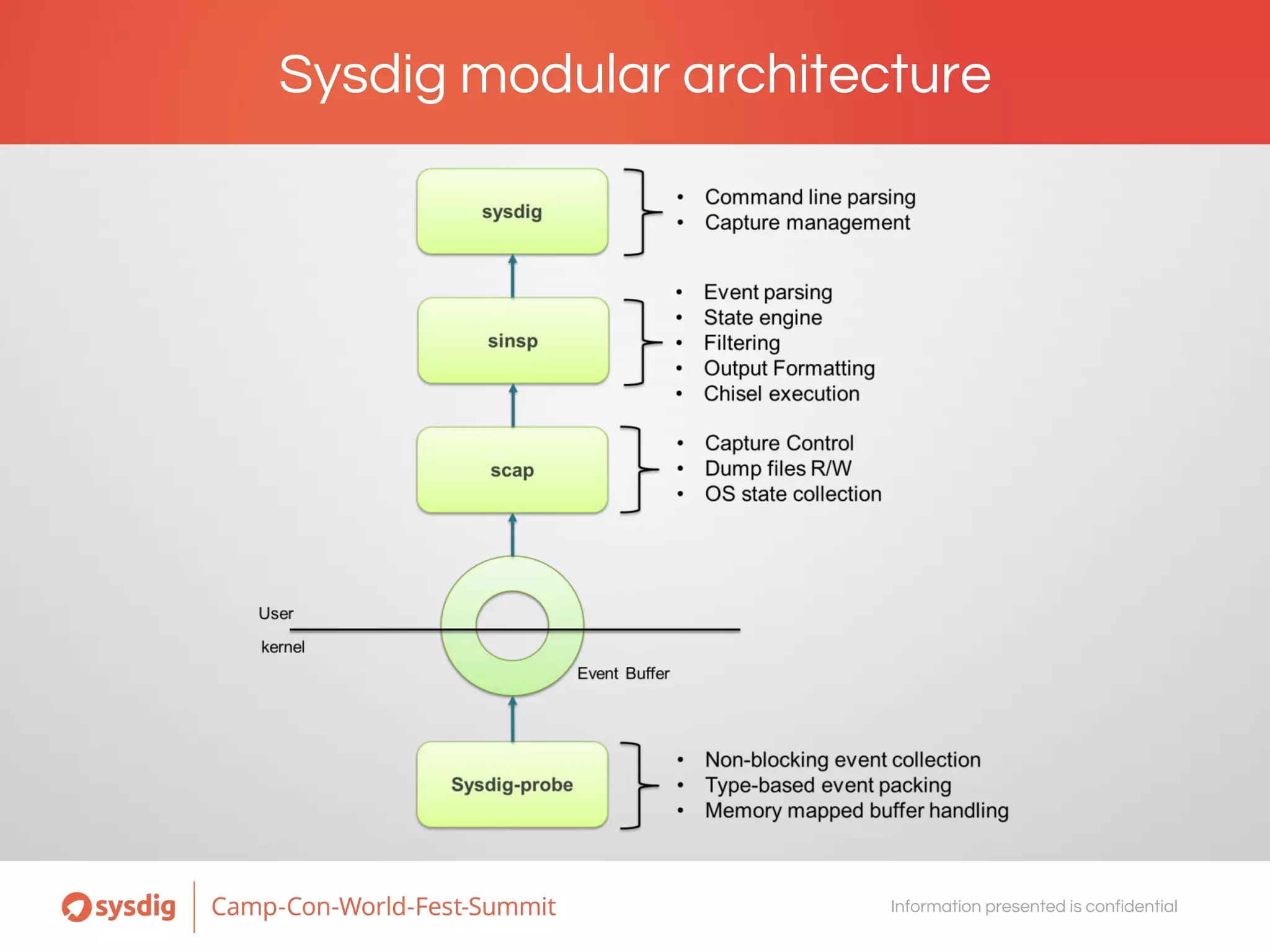

- 2. Information presented is confidential Sysdig modular architecture
- 3. Information presented is confidential Command line
- 4. Information presented is confidential Command line Sysdig embraces the UNIX philosophy, with a very powerful textual output that can be piped into other tools for further processing: • Standard command line output • • Custom output format
- 5. Information presented is confidential Command line • json output • Various data buffer encodings
- 6. Information presented is confidential Chisels
- 7. Information presented is confidential Chisels • A chisel is a Lua script that is automatically called from sysdig, and receives all the system events with all their precious state attached • Rich bidirectional API with the sysdig engine (documented at github.com/draios/sysdig/wiki/Sysdig-Chisel-API-Reference-Manual) • Very good performance thanks to embedded LuaJIT engine • Trivial to extend sysdig: creating a chisel is as simple as dropping a script under ~/.chisels • Endless possibilities via third-party Lua libraries
- 8. Information presented is confidential Chisels
- 9. Information presented is confidential Chisels Initialization boilerplate.
- 10. Information presented is confidential Chisels Callbacks called automatically by the engine.
- 11. Information presented is confidential Chisels The chisel contacts the engine requesting specific fields for the events.
- 12. Information presented is confidential Chisels Called at every system event. This is where the magic happens.
- 13. Information presented is confidential Advanced extensions
- 14. Information presented is confidential libsinsp
- 15. Information presented is confidential libsinsp • Event-based C++ API • Supports state • Supports filters • Understands files/network connections/threads/processes • Understands containers and their metadata • Understands cluster orchestrators (Kubernetes, Mesos…) • Fully independent shared library that can be used stand-alone • Ideal for building advanced stateful applications (but you should look into chisels first)
- 16. Information presented is confidential libsinsp
- 17. Information presented is confidential libscap
- 18. Information presented is confidential libscap • Lower level event-based C API (simil libpcap) • Mostly stateless • Extracts system events from the kernel as fast as possible • Helpers for gathering information from /proc • Fully independent shared library that can be used stand-alone • Building block for high-performance system event analyzers • Use case: high speed correlation between network packets and processes: ntop.org/pf_ring/using-sysdig-from-pf_ring-and-soon-from-all-ntop-apps
- 19. Information presented is confidential libscap
- 21. Information presented is confidential Use case https://groups.google.com/forum/#!topic/sysdig/Vl_pbNR749I
- 22. Information presented is confidential The scavenger chisel
- 23. Thank You!
