The document describes several 15-inch panel PCs with different mainboard options from Exor. The EPC-1592-Q features an ES-1750 mainboard with Intel Celeron/Core Duo/Core 2 Duo CPU and dual Gigabit Ethernet. The EPC-1592-C uses an ES-1752 mainboard with Intel Pentium M/Celeron M CPU and dual Ethernet. The EPC-1592-D has an ES-1753 mainboard with Intel Core 2 Duo Mobile CPU and provides TV-out and SPDIF output. All models include a 15-inch touchscreen, 180W power supply, and I/O like USB, COM

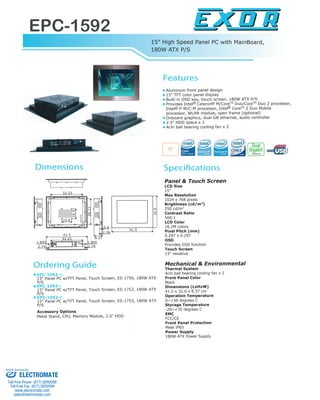

1. EPC-1592
www.exor-rd.com
www.exor-rd.com
EPC-1592-Q
15" Panel PC w/TFT Panel, Touch Screen, ES-1750, 180W ATX
P/S
EPC-1592-C
15" Panel PC w/TFT Panel, Touch Screen, ES-1752, 180W ATX
P/S
EPC-1592-D
15" Panel PC w/TFT Panel, Touch Screen, ES-1753, 180W ATX
P/S
Accessory Options
Metal Stand, CPU, Memory Module, 2.5" HDD
Panel & Touch Screen
LCD Size
15"
Max Resolution
1024 x 768 pixels
Brightness (cd/m2
)
250 cd/m2
Contrast Ratio
500:1
LCD Color
16.2M colors
Pixel Pitch (mm)
0.297 x 0.297
OSD
Provides OSD function
Touch Screen
15" resistive
Mechanical & Environmental
Thermal System
4cm ball bearing cooling fan x 2
Front Panel Color
Black
Dimensions (LxHxW)
41.5 x 32.0 x 8.37 cm
Operation Temperature
0~+50 degrees C
Storage Temperature
-20~+70 degrees C
EMC
FCC/CE
Front Panel Protection
Meet IP65
Power Supply
180W ATX Power Supply
Gigabit
Ethernet
Dual
15"
10.0
10.0
32.0
41.5
32.23
26.11
32.23
41.5
2.742.74
1.895 1.895
0.6
2.36
8.37
Aluminum front panel design
15" TFT color panel display
Built-in OSD key, touch screen, 180W ATX P/S
Provides Intel Celeron M/CoreTM
Duo/CoreTM
Duo 2 processor,
Intel P-M/C-M processor, Intel CoreTM
2 Duo Mobile
processor, WLAN module, open frame (optional)
Onboard graphics, dual GB ethernet, audio controller
2.5" HDD space x 1
4cm ball bearing cooling fan x 2
R R
RR
15" High Speed Panel PC with MainBoard,
180W ATX P/S
Features
SpecificationsDimensions
Ordering Guide
ELECTROMATE
Toll Free Phone (877) SERVO98
Toll Free Fax (877) SERV099
www.electromate.com
sales@electromate.com
Sold & Serviced By:

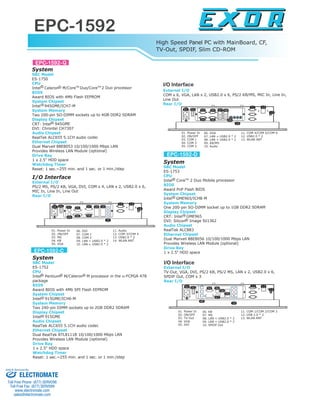

2. EPC-1592
High Speed Panel PC with MainBoard, CF,
TV-Out, SPDIF, Slim CD-ROM
www.exor-rd.com
I/O Interface
External I/O
COM x 6, VGA, LAN x 2, USB2.0 x 6, PS/2 KB/MS, MIC In, Line In,
Line Out
Rear I/O
System
SBC Model
ES-1750
CPU
Intel Celeron M/CoreTM
Duo/CoreTM
2 Duo processor
BIOS
Award BIOS with 4Mb Flash EEPROM
System Chipset
Intel 945GME/ICH7-M
System Memory
Two 200-pin SO-DIMM sockets up to 4GB DDR2 SDRAM
Display Chipset
CRT: Intel 945GME
DVI: Chrontel CH7307
Audio Chipset
RealTek ALC655 5.1CH audio codec
Ethernet Chipset
Dual Marvell 88E8053 10/100/1000 Mbps LAN
Provides Wireless LAN Module (optional)
Drive Bay
1 x 2.5" HDD space
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
I/O Interface
External I/O
PS/2 MS, PS/2 KB, VGA, DVI, COM x 4, LAN x 2, USB2.0 x 6,
MIC In, Line In, Line Out
Rear I/O
EPC-1592-
System
SBC Model
ES-1752
CPU
Intel Pentium M/Celeron M processor in the u-FCPGA 478
package
BIOS
Award BIOS with 4Mb SPI Flash EEPROM
System Chipset
Intel 915GME/ICH6-M
System Memory
Two 240-pin DIMM sockets up to 2GB DDR2 SDRAM
Display Chipset
Intel 915GME
Audio Chipset
RealTek ALC655 5.1CH audio codec
Ethernet Chipset
Dual RealTek RTL8111B 10/100/1000 Mbps LAN
Provides Wireless LAN Module (optional)
Drive Bay
1 x 2.5" HDD space
Watchdog Timer
Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
R R
R
R
RR
R
R
R
System
SBC Model
ES-1753
CPU
Intel CoreTM
2 Duo Mobile processor
BIOS
Award PnP Flash BIOS
System Chipset
Intel GME965/ICH8-M
System Memory
One 200-pin SO-DIMM socket up to 1GB DDR2 SDRAM
Display Chipset
CRT: Intel GME965
DVI: Silicon Image Sil1362
Audio Chipset
RealTek ALC883
Ethernet Chipset
Dual Marvell 88E8056 10/100/1000 Mbps LAN
Provides Wireless LAN Module (optional)
Drive Bay
1 x 2.5" HDD space
I/O Interface
External I/O
TV-Out, VGA, DVI, PS/2 KB, PS/2 MS, LAN x 2, USB2.0 x 6,
SPDIF Out, COM x 3
Rear I/O
R
R
R
R
01. Power In
02. ON/OFF
03. COM 1
04. COM 2
05. COM 3
06. VGA
07. LAN + USB2.0 * 2
08. LAN + USB2.0 * 2
09. KB/MS
10. Audio
11. COM 4/COM 5/COM 6
12. USB2.0 * 2
13. WLAN ANT
01 02 03
04
05
06
07 08
09
10
12
13
11
01. Power In
02. ON/OFF
03. MS
04. KB
05. VGA
06. DVI
07. COM 1
08. COM 2
09. LAN + USB2.0 * 2
10. LAN + USB2.0 * 2
11. Audio
12. COM 3/COM 4
13. USB2.0 * 2
14. WLAN ANT
01 02 03
04
05
06
07
08
09
11
10
12 13
14
01. Power In
02. ON/OFF
03. TV-Out
04. VGA
05. DVI
06. KB
07. MS
08. LAN + USB2.0 * 2
09. LAN + USB2.0 * 2
10. SPDIF Out
11. COM 1/COM 2/COM 3
12. USB 2.0 * 2
13. WLAN ANT
01 02
03
04
05
06
07
08
09
11
10
12
13
