This document summarizes the specifications of the EB-10PCN 10 inch industrial touch screen panel PC. It has an Intel Atom N2600 1.6GHz CPU, 2GB RAM, 16GB SSD, Intel GMA3650 graphics, and runs Linux Ubuntu 9.04. It has ports including HDMI, USB, LAN, audio in/out and COM ports. The touch screen has 4-wire resistive touch capability with a 20-150g input force and <10ms response time.

1. Aspect Ratio 4:3
Native Resolution 1024*768

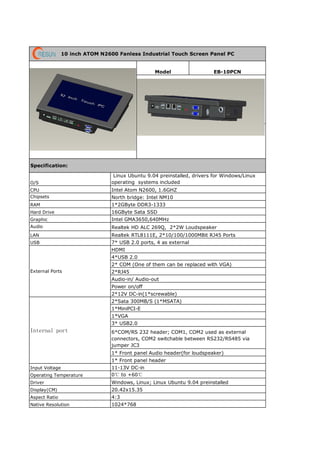

10 inch ATOM N2600 Fanless Industrial Touch Screen Panel PC
EB-10PCN
Specification:
Model
O/S
Linux Ubuntu 9.04 preinstalled, drivers for Windows/Linux
operating systems included
CPU Intel Atom N2600, 1.6GHZ
RAM
Hard Drive
Chipsets
External Ports
Graphic
Audio
LAN
USB
Realtek HD ALC 269Q, 2*2W Loudspeaker
Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports
7* USB 2.0 ports, 4 as external
HDMI
North bridge: Intel NM10
1*2GByte DDR3-1333
16GByte Sata SSD
Intel GMA3650,640MHz
4*USB 2.0
2*RJ45
Audio-in/ Audio-out
Internal port
1*MiniPCI-E
1*VGA
Power on/off
2*12V DC-in(1*screwable)
2*Sata 300MB/S (1*MSATA)
2* COM (One of them can be replaced with VGA)
3* USB2.0
6*COM/RS 232 header; COM1, COM2 used as external
connectors, COM2 switchable between RS232/RS485 via
jumper JC3
1* Front panel Audio header(for loudspeaker)
1* Front panel header
11-13V DC-inInput Voltage
Operating Temperature 0℃ to +60℃
Driver Windows, Linux; Linux Ubuntu 9.04 preinstalled
Display(CM) 20.42x15.35

2. 1* Power Adapter
1* Touch Pen
Dimensions
Packing list:
1* CD Driver
1* PC User Menu
Input Force(g) 20-150
Bluetooth 2.0
Saw touch panel
IP65 class
Optional
W-lan optional
ITPS
React time touch panel <10 ms
Surface Hardness 3H
Touch Panel 4 wire resistive touch
Touch Panel Driver Windows, Linux, Marc
React time 2ms/6ms
Visual angle h:v(°) 150;130
Power Supply 230V,12V
Brightness 250
Contrast Ratio 500:1
6-36V power supply
Advanced RAM and SSD
