This document provides specifications for a PC/104+ module with an Intel Atom processor. It features an Intel Atom Z530 or Z510 CPU, integrated VGA and LVDS display outputs, 2 Ethernet ports, SATA, COM ports, USB, and a CompactFlash socket. The module requires 5V DC power input and measures 96mm x 116mm. It is available in standard and pin-down versions to interface with other PC/104+ modules for embedded applications.

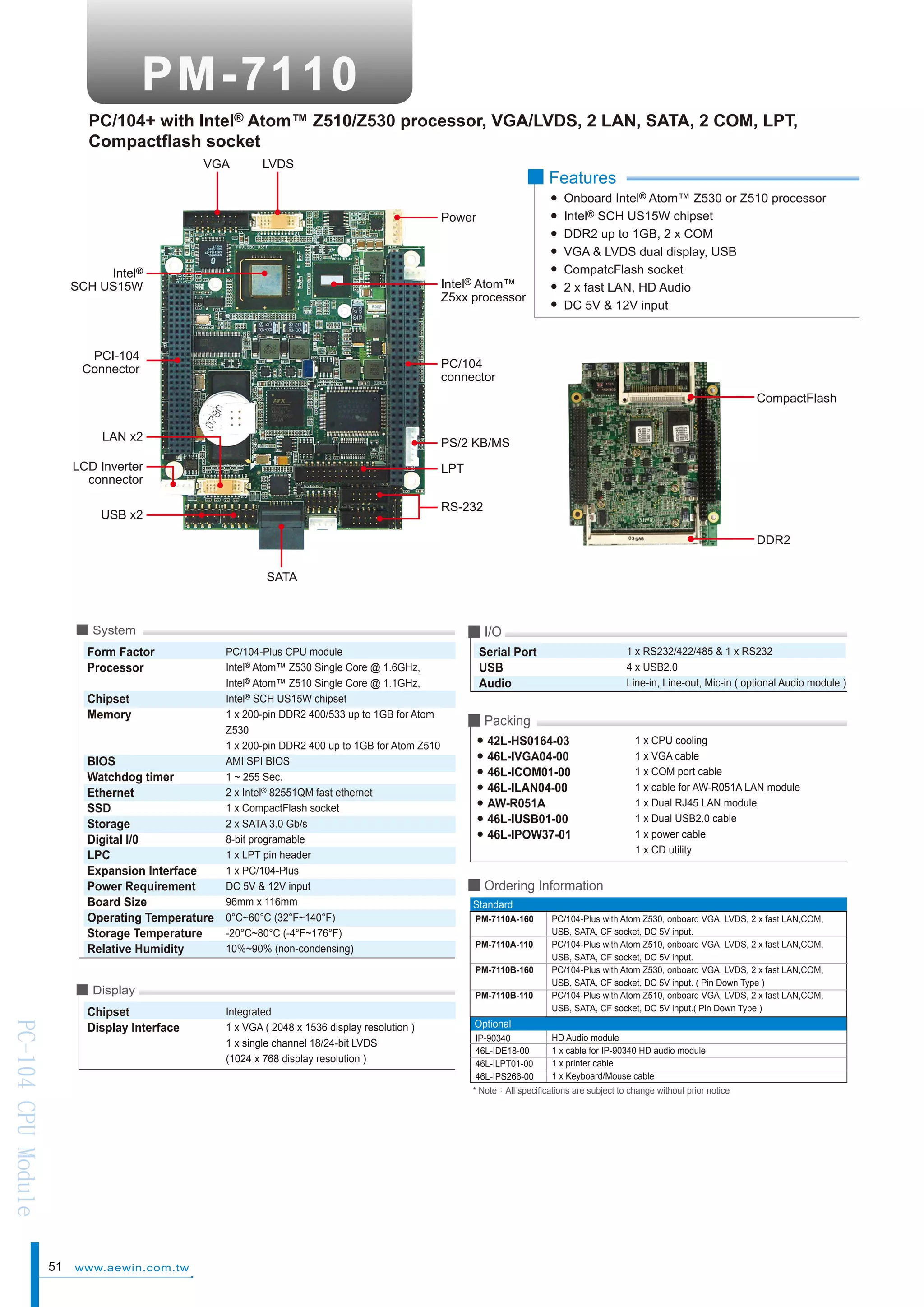

1. PC/104+ with Intel® Atom™ Z510/Z530 processor, VGA/LVDS, 2 LAN, SATA, 2 COM, LPT,
Compactflash socket
VGA
LVDS
■ Features
Power
Intel®
SCH US15W
Intel® Atom™
Z5xx processor
PCI-104
Connector
Onboard Intel® Atom™ Z530 or Z510 processor
Intel® SCH US15W chipset
DDR2 up to 1GB, 2 x COM
VGA & LVDS dual display, USB
CompatcFlash socket
2 x fast LAN, HD Audio
DC 5V & 12V input
PC/104
connector
CompactFlash
LAN x2
PS/2 KB/MS
LCD Inverter
connector
LPT
RS-232
USB x2
DDR2
SATA
■ System
Form Factor
Processor
Chipset
Memory
BIOS
Watchdog timer
Ethernet
SSD
Storage
Digital I/0
LPC
Expansion Interface
Power Requirement
Board Size
Operating Temperature
Storage Temperature
Relative Humidity
■ I/O
PC/104-Plus CPU module
Intel® Atom™ Z530 Single Core @ 1.6GHz,
Intel® Atom™ Z510 Single Core @ 1.1GHz,
Intel® SCH US15W chipset
1 x 200-pin DDR2 400/533 up to 1GB for Atom
Z530
1 x 200-pin DDR2 400 up to 1GB for Atom Z510
AMI SPI BIOS
1 ~ 255 Sec.
2 x Intel® 82551QM fast ethernet
1 x CompactFlash socket
2 x SATA 3.0 Gb/s
8-bit programable
1 x LPT pin header
1 x PC/104-Plus
DC 5V & 12V input
96mm x 116mm
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Serial Port
USB
Audio
■ Packing
42L-HS0164-03
46L-IVGA04-00
46L-ICOM01-00
46L-ILAN04-00
AW-R051A
46L-IUSB01-00
46L-IPOW37-01
PC-104 CPU Module
Chipset
Display Interface
Standard
PM-7110A-160
PM-7110A-110
51
www.aewin.com.tw
PM-7110B-110
Integrated
1 x VGA ( 2048 x 1536 display resolution )
1 x single channel 18/24-bit LVDS
(1024 x 768 display resolution )
1 x CPU cooling
1 x VGA cable
1 x COM port cable
1 x cable for AW-R051A LAN module
1 x Dual RJ45 LAN module
1 x Dual USB2.0 cable
1 x power cable
1 x CD utility
■ Ordering Information
PM-7110B-160
■ Display
1 x RS232/422/485 & 1 x RS232
4 x USB2.0
Line-in, Line-out, Mic-in ( optional Audio module )
PC/104-Plus with Atom Z530, onboard VGA, LVDS, 2 x fast LAN,COM,
USB, SATA, CF socket, DC 5V input.
PC/104-Plus with Atom Z510, onboard VGA, LVDS, 2 x fast LAN,COM,
USB, SATA, CF socket, DC 5V input.
PC/104-Plus with Atom Z530, onboard VGA, LVDS, 2 x fast LAN,COM,
USB, SATA, CF socket, DC 5V input. ( Pin Down Type )
PC/104-Plus with Atom Z510, onboard VGA, LVDS, 2 x fast LAN,COM,
USB, SATA, CF socket, DC 5V input.( Pin Down Type )
Optional
HD Audio module
IP-90340
1 x cable for IP-90340 HD audio module
46L-IDE18-00
1 x printer cable
46L-ILPT01-00
1 x Keyboard/Mouse cable
46L-IPS266-00
* Note：All specifications are subject to change without prior notice
