This exam covers topics in CCNA 1 Chapter 1 including: - Internet connection types like cable, DSL, satellite, and dial-up - Functions of intermediary devices like directing data along alternate paths and filtering data flow - Definitions of converged networks, cloud computing, and circuit-switched networks - Network security goals like ensuring confidentiality, integrity, and availability - Factors for selecting network media like distance and environment - Network tools that provide minimum security like antivirus and firewall software

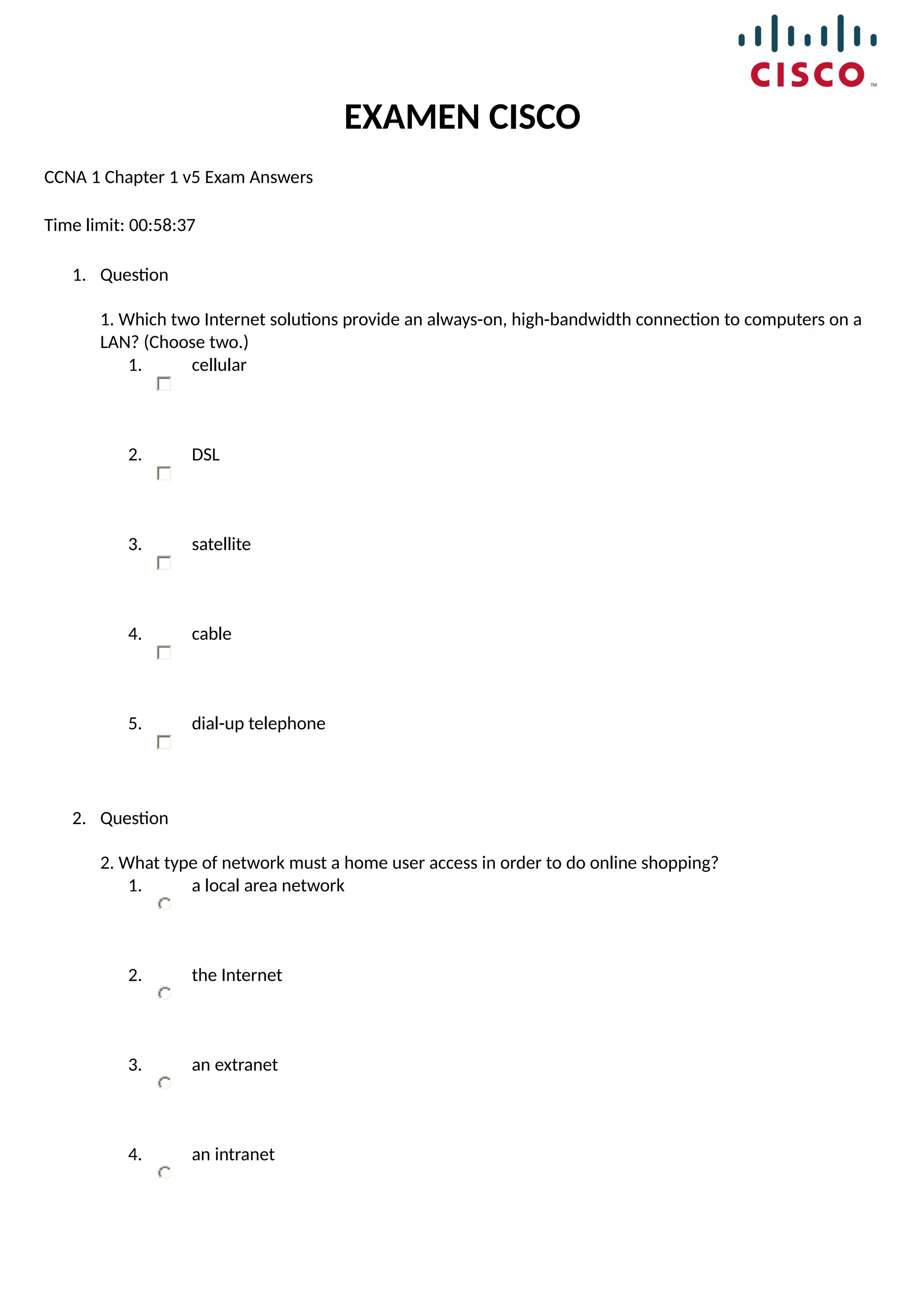

1. EXAMEN CISCO
CCNA 1 Chapter 1 v5 Exam Answers
Time limit: 00:58:37
1. Question
1. Which two Internet solutions provide an always-on, high-bandwidth connection to computers on a
LAN? (Choose two.)
1. cellular
2. DSL
3. satellite
4. cable
5. dial-up telephone
2. Question
2. What type of network must a home user access in order to do online shopping?
1. a local area network
2. the Internet
3. an extranet
4. an intranet

2. 3. Question
3. What are two functions of intermediary devices on a network? (Choose two.)
1. They are the primary source and providers of information and services to end devices.
2. They form the interface between the human network and the underlying communication
network.
3. They direct data along alternate pathways when there is a link failure.
4. They run applications that support collaboration for business.
5. They filter the flow of data, based on security settings.
4. Question
4. Fill in the blank.
1. The acronym refers to the trend of end users being able to use their personal
devices to access the business network and resources.
5. Question
5. Which description correctly defines a converged network?
1. a network that allows users to interact directly with each other over multiple channels
2. a network that is limited to exchanging character-based information
3. a dedicated network with separate channels for video and voice services

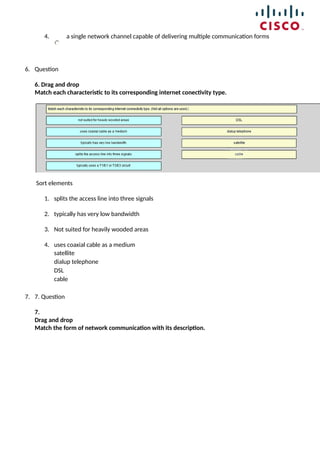

3. 4. a single network channel capable of delivering multiple communication forms
6. Question
6. Drag and drop
Match each characteristic to its corresponding internet conectivity type.
Sort elements
1. splits the access line into three signals
2. typically has very low bandwidth
3. Not suited for heavily wooded areas
4. uses coaxial cable as a medium
satellite
dialup telephone
DSL
cable
7. 7. Question
7.
Drag and drop
Match the form of network communication with its description.

4. Sort elements
1. wiki
2. Social media
3. instant messaging
4. podcast
Web pages that
groups of people can
edit and view
together
Interactive websites
where people created
and share user-
generated content
with friends and
family
real-time
communication of
between two or more
people
an audio-based
medium that allows
people to deliver their
recordings to a wide

5. audience
8. Question
8. Drag and drop
Match each definition to the corresponding security goal:
Sort elements
1. the assurance that the information has not been altered during transmission
2. the assurance of timely and reliable access to data
3. only the intended recipients can access and read the data
maintaining integrity
ensuring
confidentiality
ensuring availability
9. Question
9. Which statement describes a characteristic of cloud computing?
1. A business can connect directly to the Internet without the use of an ISP.
2. Devices can connect to the Internet through existing electrical wiring.

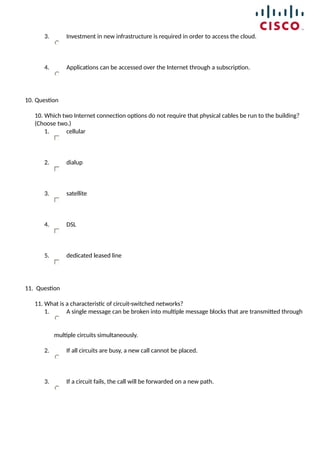

6. 3. Investment in new infrastructure is required in order to access the cloud.
4. Applications can be accessed over the Internet through a subscription.
10. Question
10. Which two Internet connection options do not require that physical cables be run to the building?
(Choose two.)
1. cellular
2. dialup
3. satellite
4. DSL
5. dedicated leased line
11. Question
11. What is a characteristic of circuit-switched networks?
1. A single message can be broken into multiple message blocks that are transmitted through
multiple circuits simultaneously.
2. If all circuits are busy, a new call cannot be placed.
3. If a circuit fails, the call will be forwarded on a new path.

7. 4. Circuit-switched networks can dynamically learn and use redundant circuits.
12. Question
12. Requiring strong, complex passwords is a practice that supports which network security goal?
1. maintaining communication integrity
2. ensuring redundancy
3. ensuring data confidentiality
4. ensuring reliability of access
13. Question
13. What two criteria are used to help select network media? (Choose two.)
1. the distance the media can successfully carry a signal
2. the environment where the media is to be installed
3. the cost of the end devices utilized in the network
4. the number of intermediary devices installed in the network
5. the types of data that need to be prioritized
14. Question
14. Which statement describes a network that supports QoS?

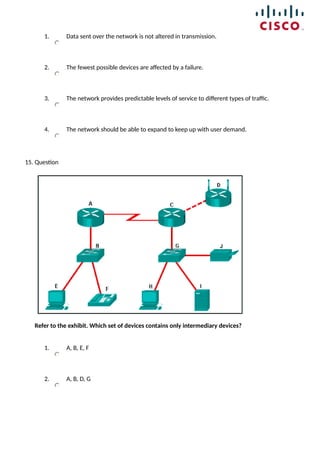

8. 1. Data sent over the network is not altered in transmission.
2. The fewest possible devices are affected by a failure.
3. The network provides predictable levels of service to different types of traffic.
4. The network should be able to expand to keep up with user demand.
15. Question
Refer to the exhibit. Which set of devices contains only intermediary devices?
1. A, B, E, F
2. A, B, D, G

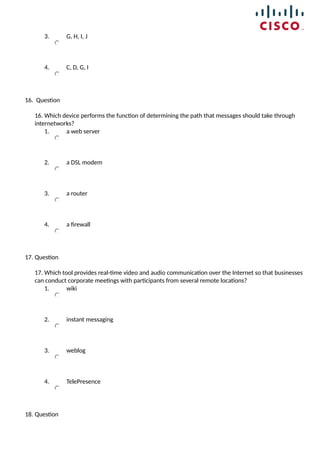

9. 3. G, H, I, J
4. C, D, G, I
16. Question
16. Which device performs the function of determining the path that messages should take through
internetworks?
1. a web server
2. a DSL modem
3. a router
4. a firewall
17. Question
17. Which tool provides real-time video and audio communication over the Internet so that businesses
can conduct corporate meetings with participants from several remote locations?
1. wiki
2. instant messaging
3. weblog
4. TelePresence
18. Question

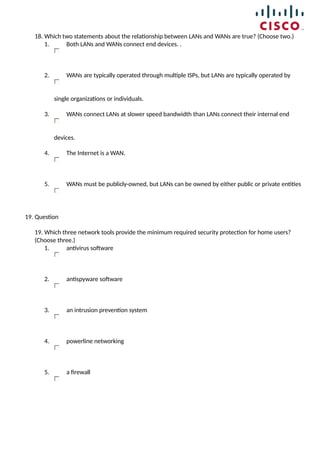

10. 18. Which two statements about the relationship between LANs and WANs are true? (Choose two.)
1. Both LANs and WANs connect end devices. .
2. WANs are typically operated through multiple ISPs, but LANs are typically operated by
single organizations or individuals.
3. WANs connect LANs at slower speed bandwidth than LANs connect their internal end
devices.
4. The Internet is a WAN.
5. WANs must be publicly-owned, but LANs can be owned by either public or private entities
19. Question
19. Which three network tools provide the minimum required security protection for home users?
(Choose three.)
1. antivirus software
2. antispyware software
3. an intrusion prevention system
4. powerline networking
5. a firewall

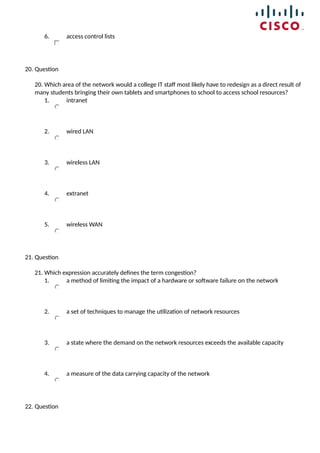

11. 6. access control lists
20. Question
20. Which area of the network would a college IT staff most likely have to redesign as a direct result of
many students bringing their own tablets and smartphones to school to access school resources?
1. intranet
2. wired LAN
3. wireless LAN
4. extranet
5. wireless WAN
21. Question
21. Which expression accurately defines the term congestion?
1. a method of limiting the impact of a hardware or software failure on the network
2. a set of techniques to manage the utilization of network resources
3. a state where the demand on the network resources exceeds the available capacity
4. a measure of the data carrying capacity of the network
22. Question

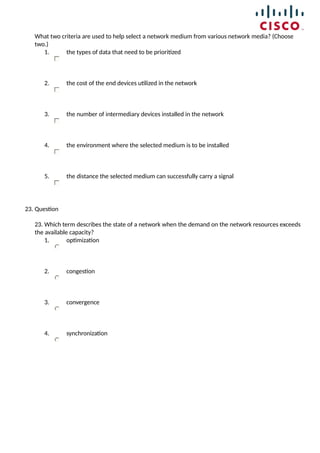

12. What two criteria are used to help select a network medium from various network media? (Choose
two.)
1. the types of data that need to be prioritized
2. the cost of the end devices utilized in the network
3. the number of intermediary devices installed in the network
4. the environment where the selected medium is to be installed
5. the distance the selected medium can successfully carry a signal
23. Question
23. Which term describes the state of a network when the demand on the network resources exceeds
the available capacity?
1. optimization
2. congestion
3. convergence
4. synchronization
