This presentation is Part 21 of the EWD 3 Training Course. It explains how Document Node objects and its $() function allow the abstraction of Persistent JavaScript Objects from Global Storage

1. Copyright © 2016 M/Gateway Developments Ltd
EWD 3 Training Course
Part 21
JavaScript Abstraction of Global Storage:
(b) Persistent JavaScript Objects
Rob Tweed
Director, M/Gateway Developments Ltd
Twitter: @rtweed

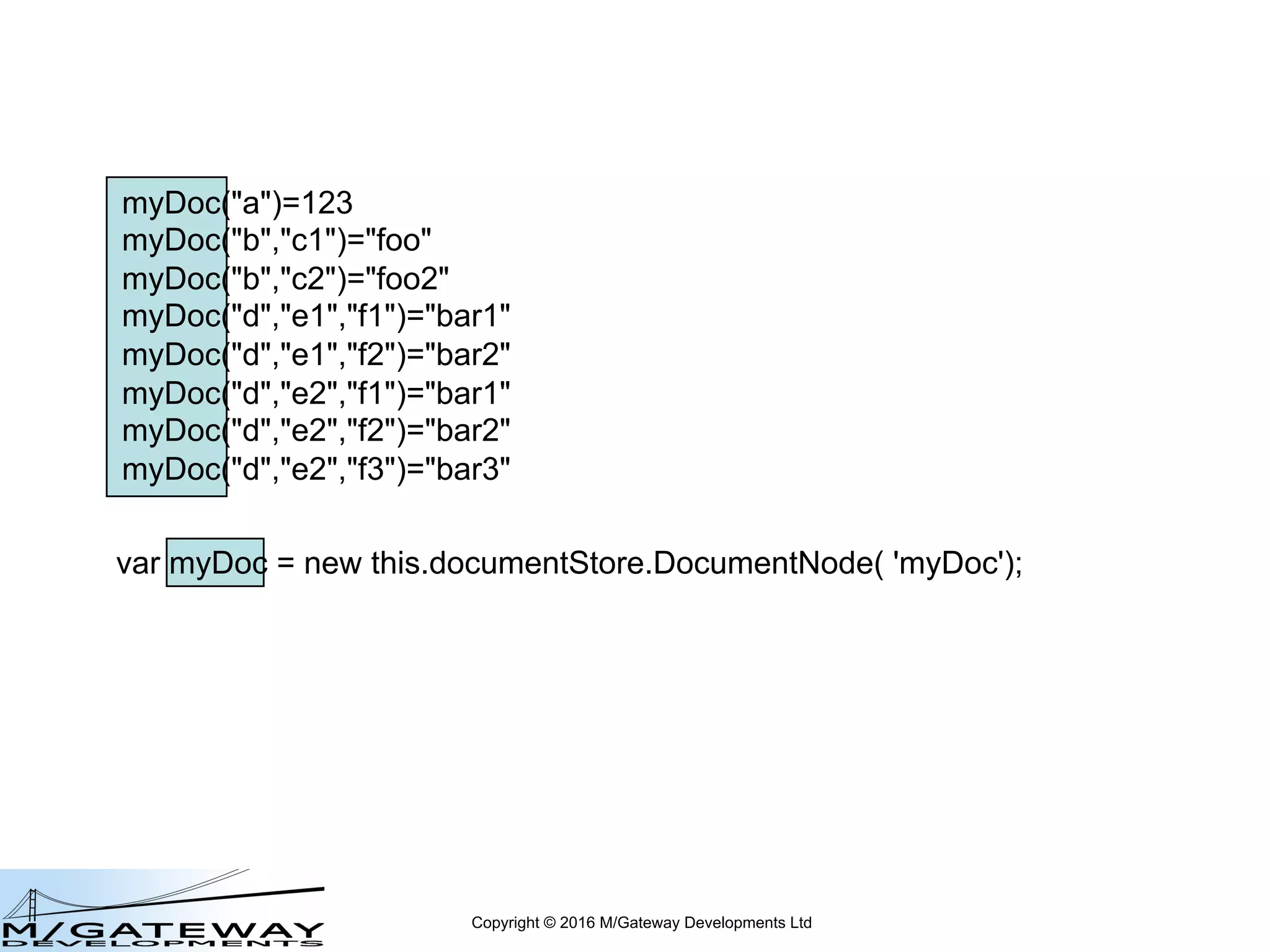

2. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

3. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');

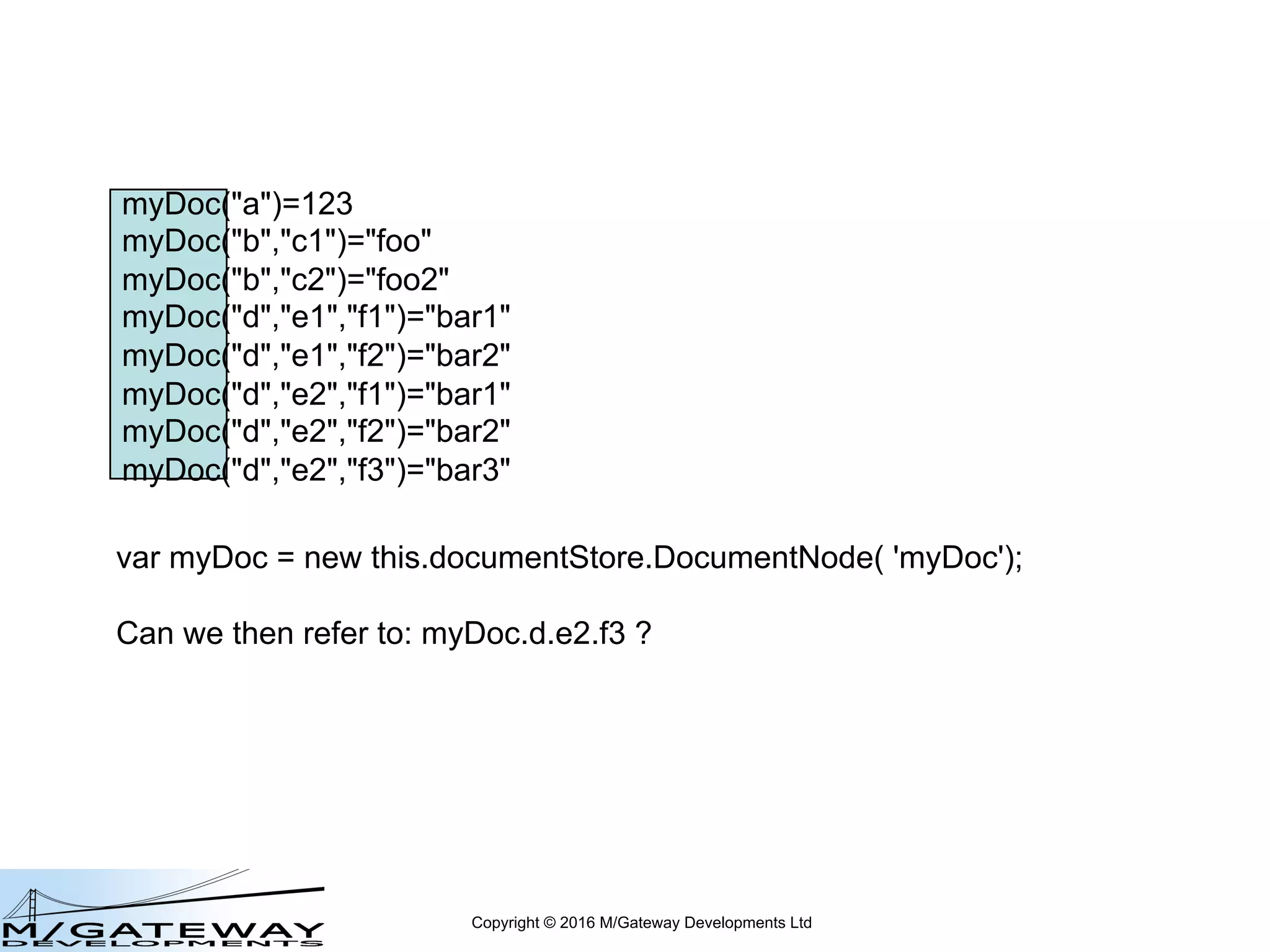

Can we then refer to: myDoc.d.e2.f3 ?
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

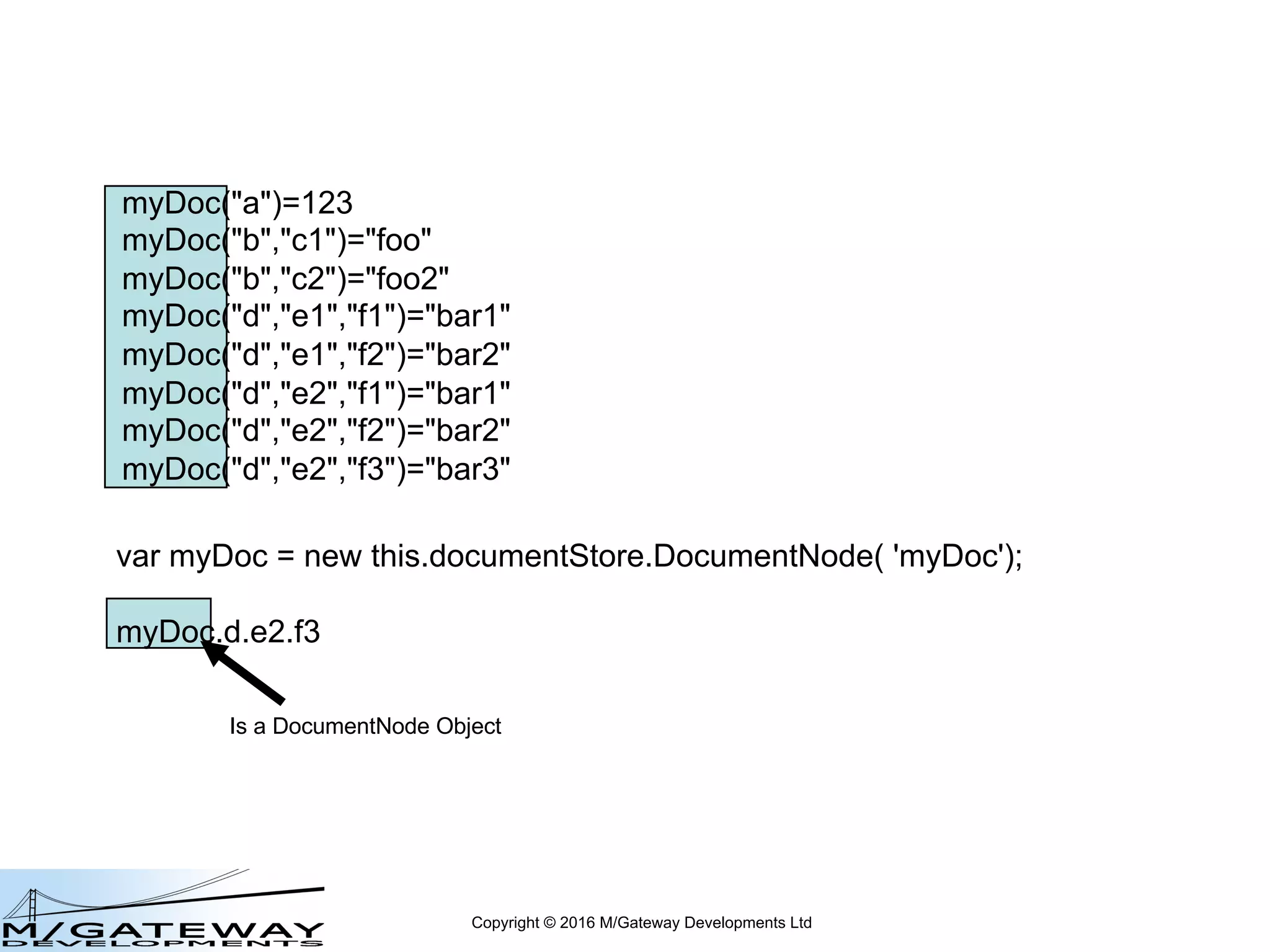

4. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
Is a DocumentNode Object
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

5. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

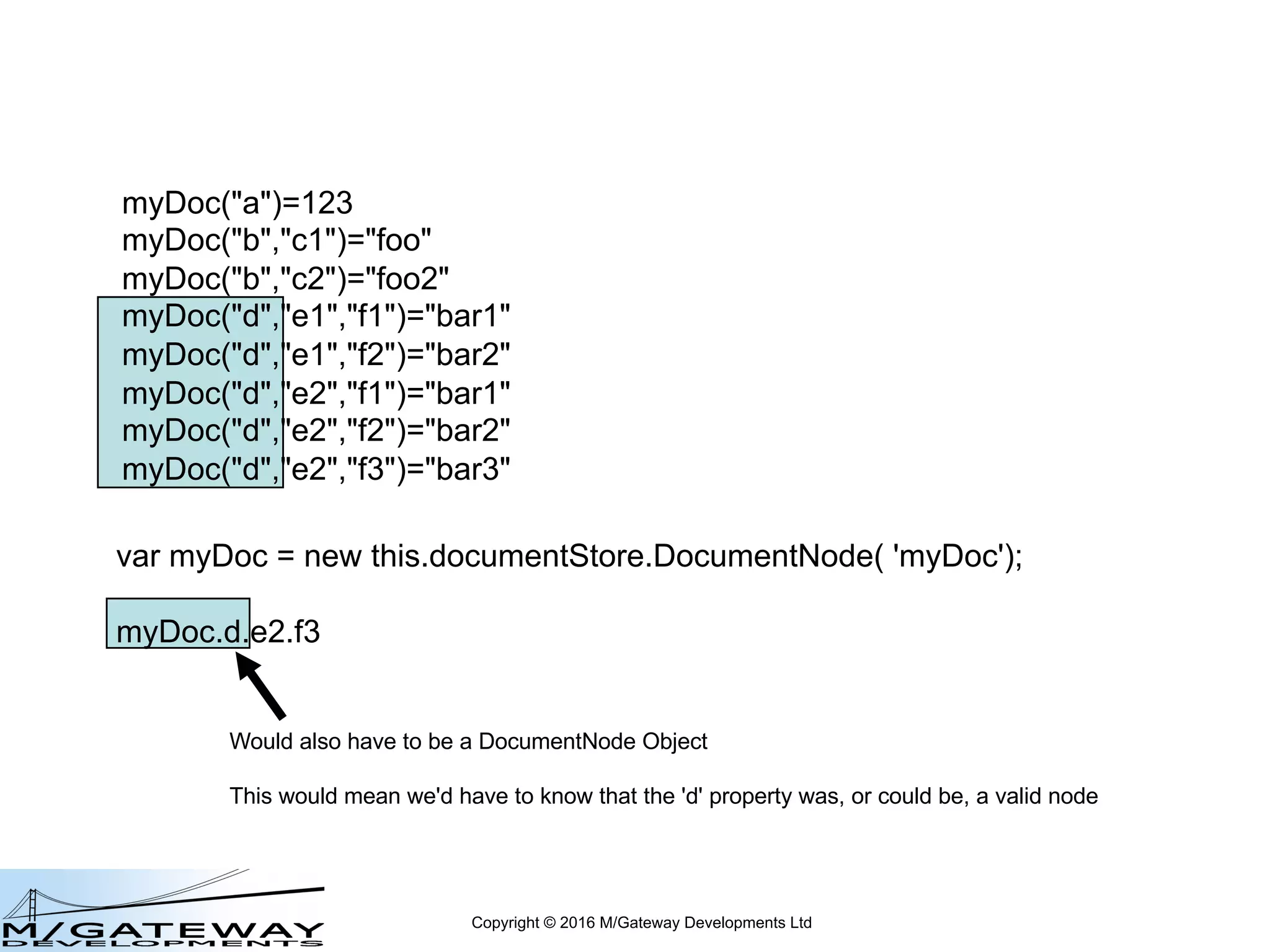

Would also have to be a DocumentNode Object
This would mean we'd have to know that the 'd' property was, or could be, a valid node

6. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

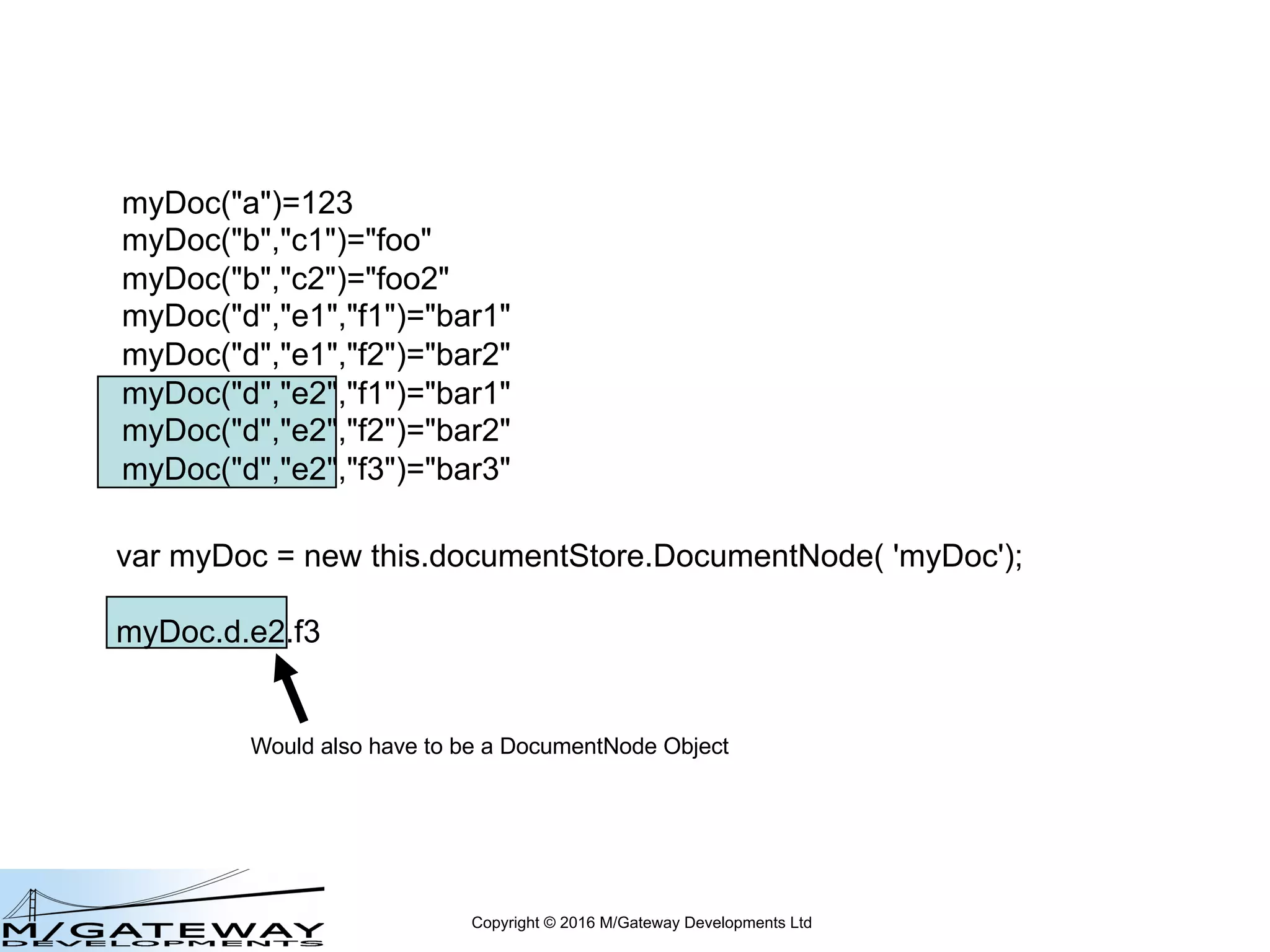

Would also have to be a DocumentNode Object

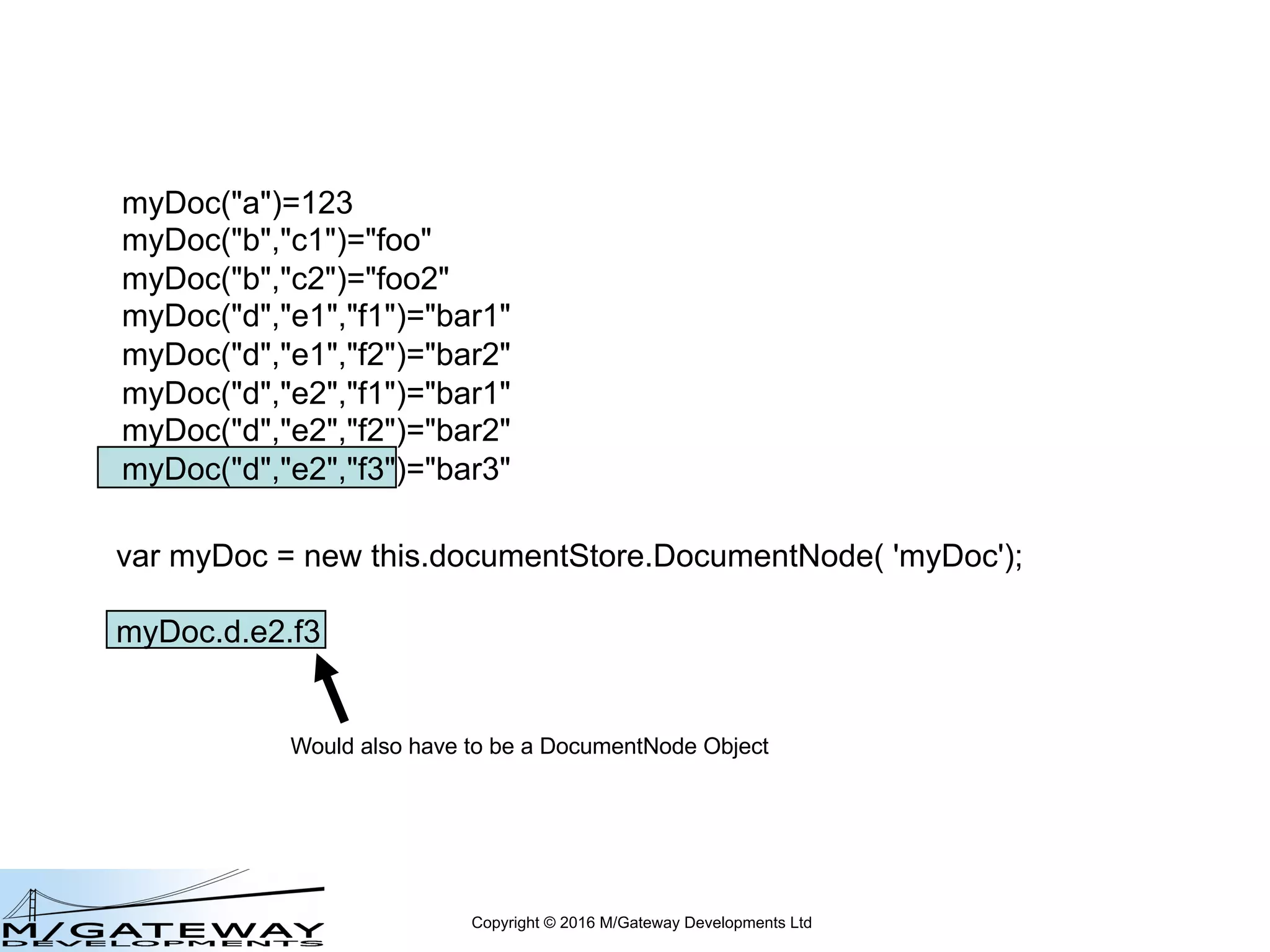

7. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
Would also have to be a DocumentNode Object

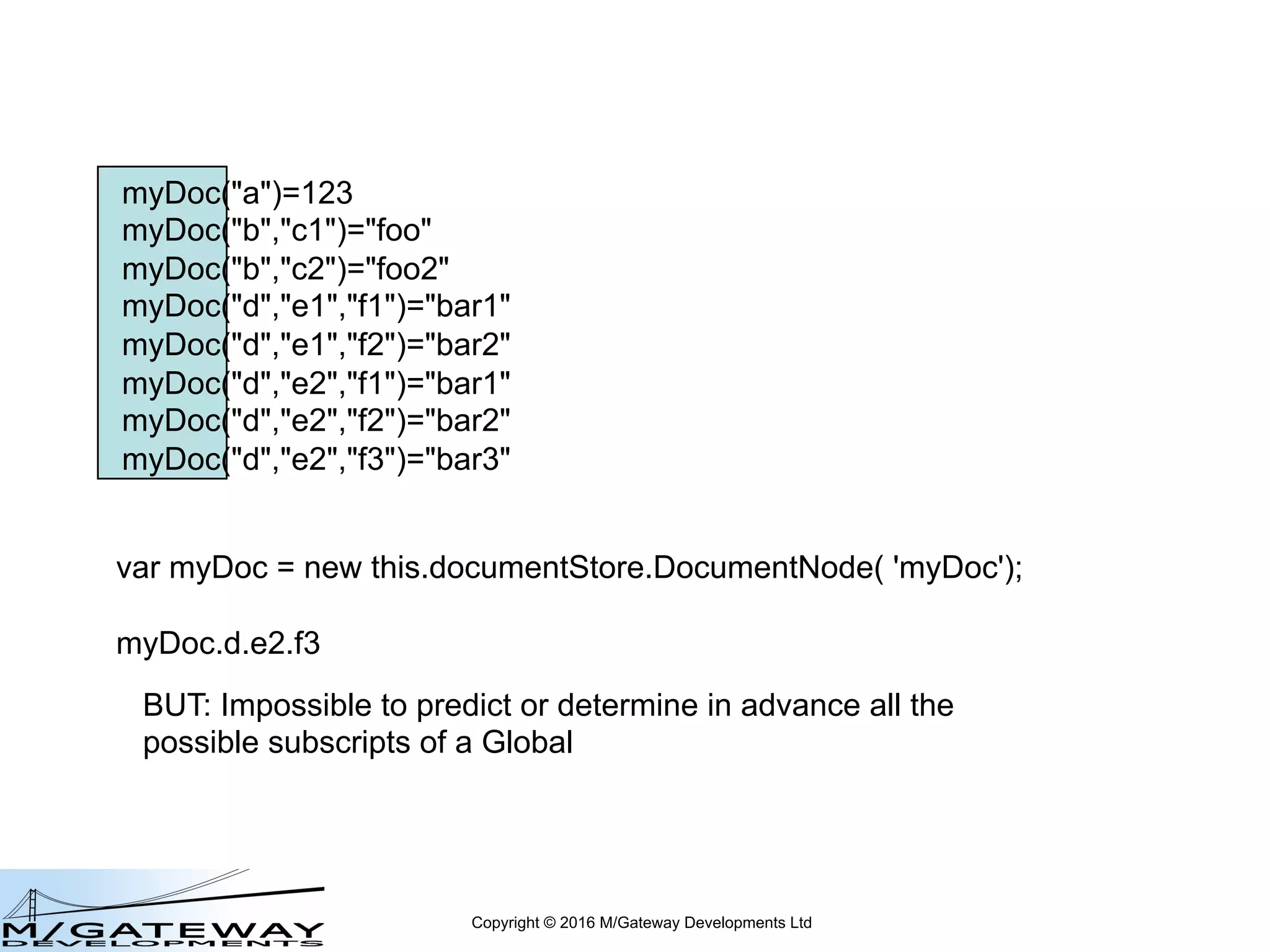

8. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
BUT: Impossible to predict or determine in advance all the
possible subscripts of a Global
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

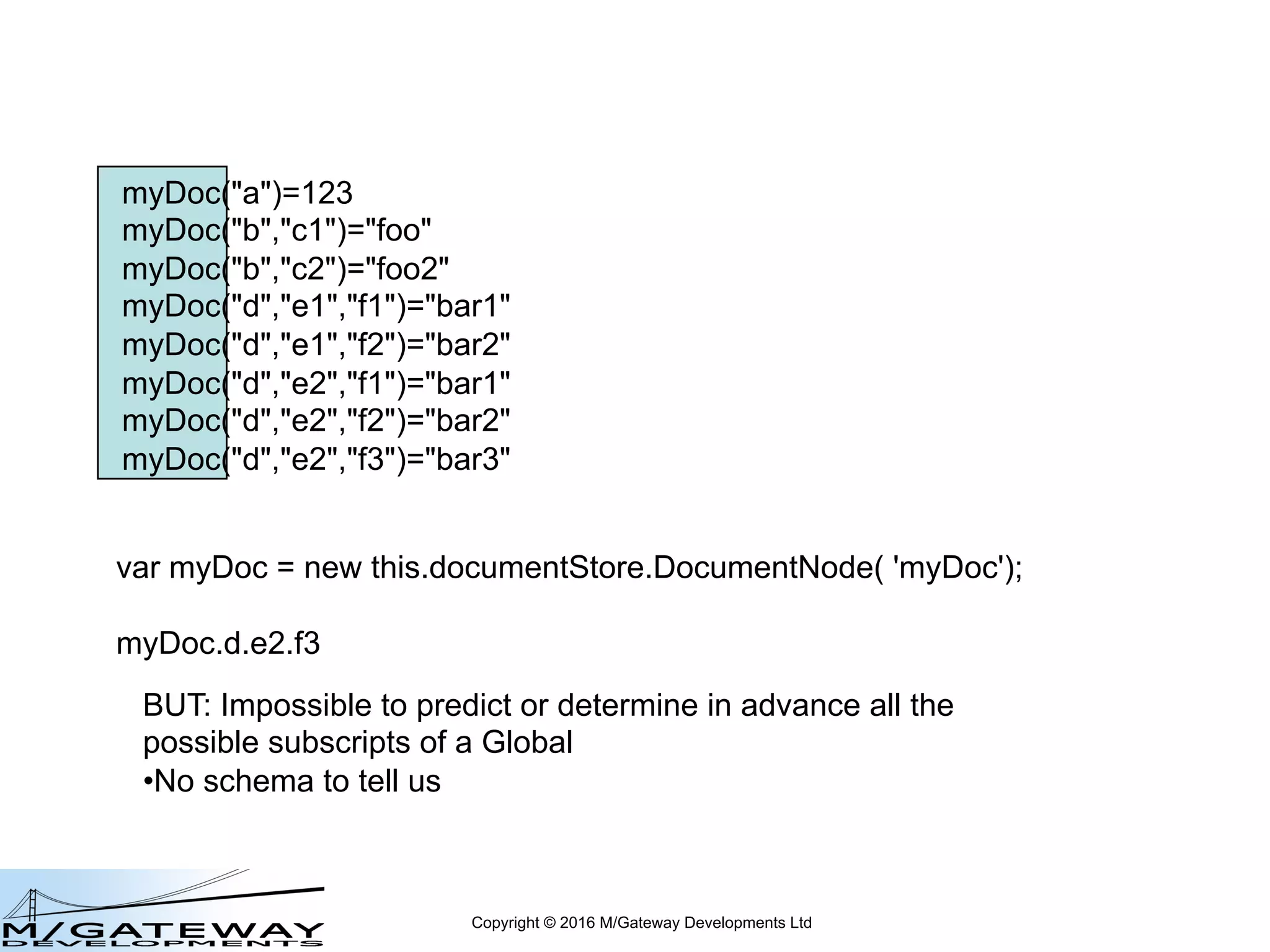

9. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
BUT: Impossible to predict or determine in advance all the
possible subscripts of a Global
•No schema to tell us
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

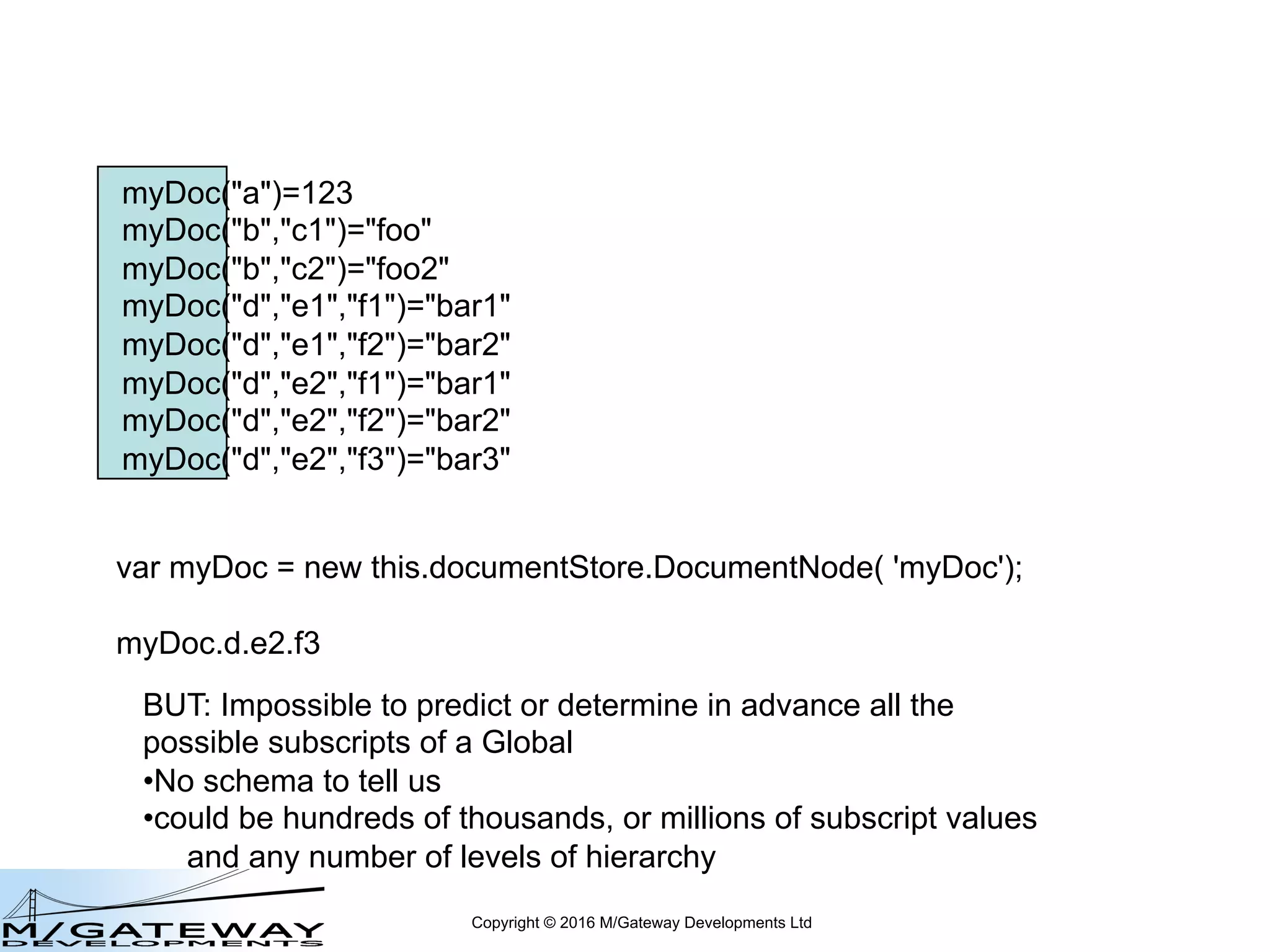

10. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.d.e2.f3
BUT: Impossible to predict or determine in advance all the
possible subscripts of a Global
•No schema to tell us
•could be hundreds of thousands, or millions of subscript values
and any number of levels of hierarchy
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

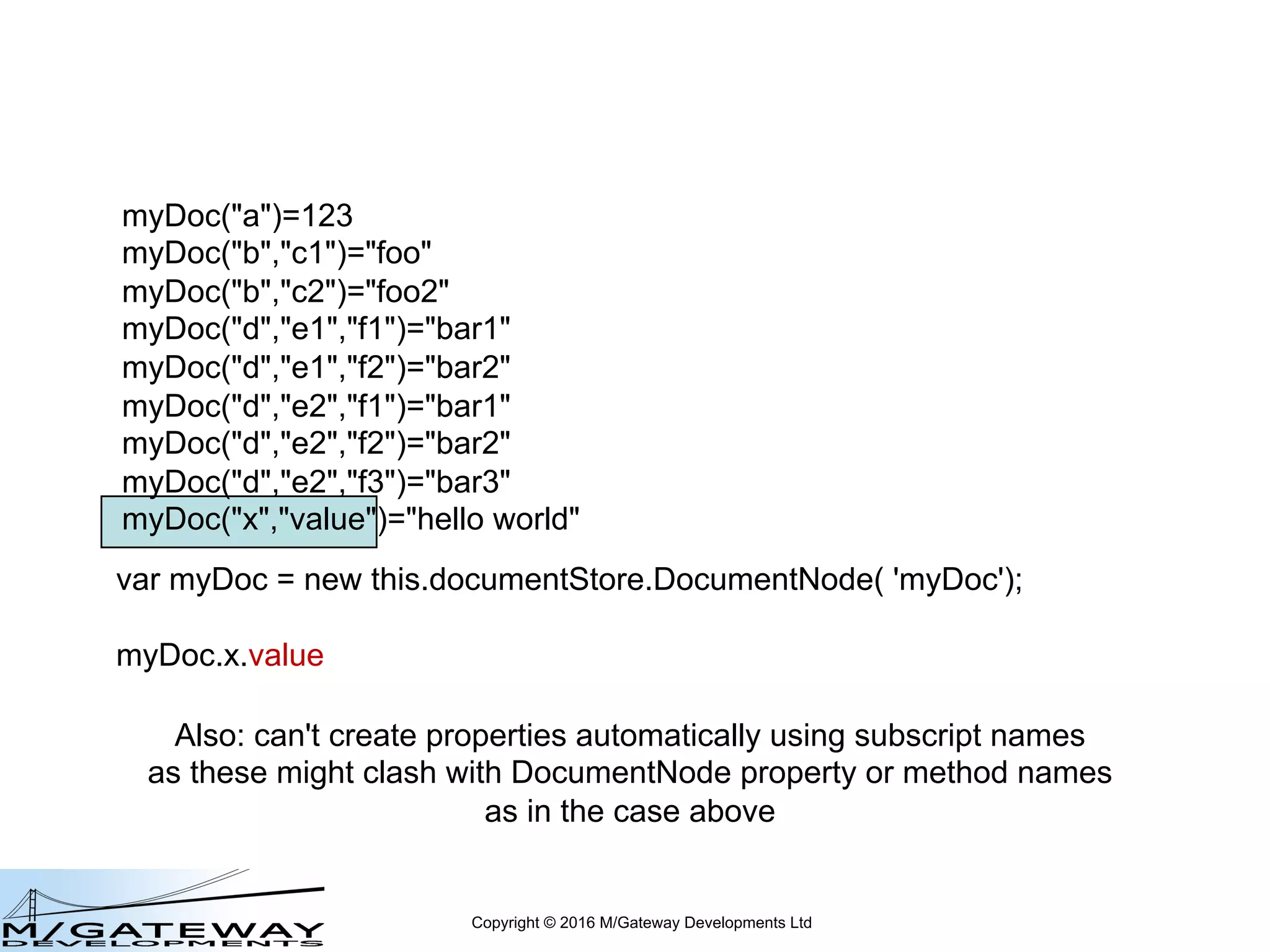

11. Copyright © 2016 M/Gateway Developments Ltd
var myDoc = new this.documentStore.DocumentNode( 'myDoc');
myDoc.x.value
Also: can't create properties automatically using subscript names
as these might clash with DocumentNode property or method names
as in the case above
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
myDoc("x","value")="hello world"

12. Copyright © 2016 M/Gateway Developments Ltd

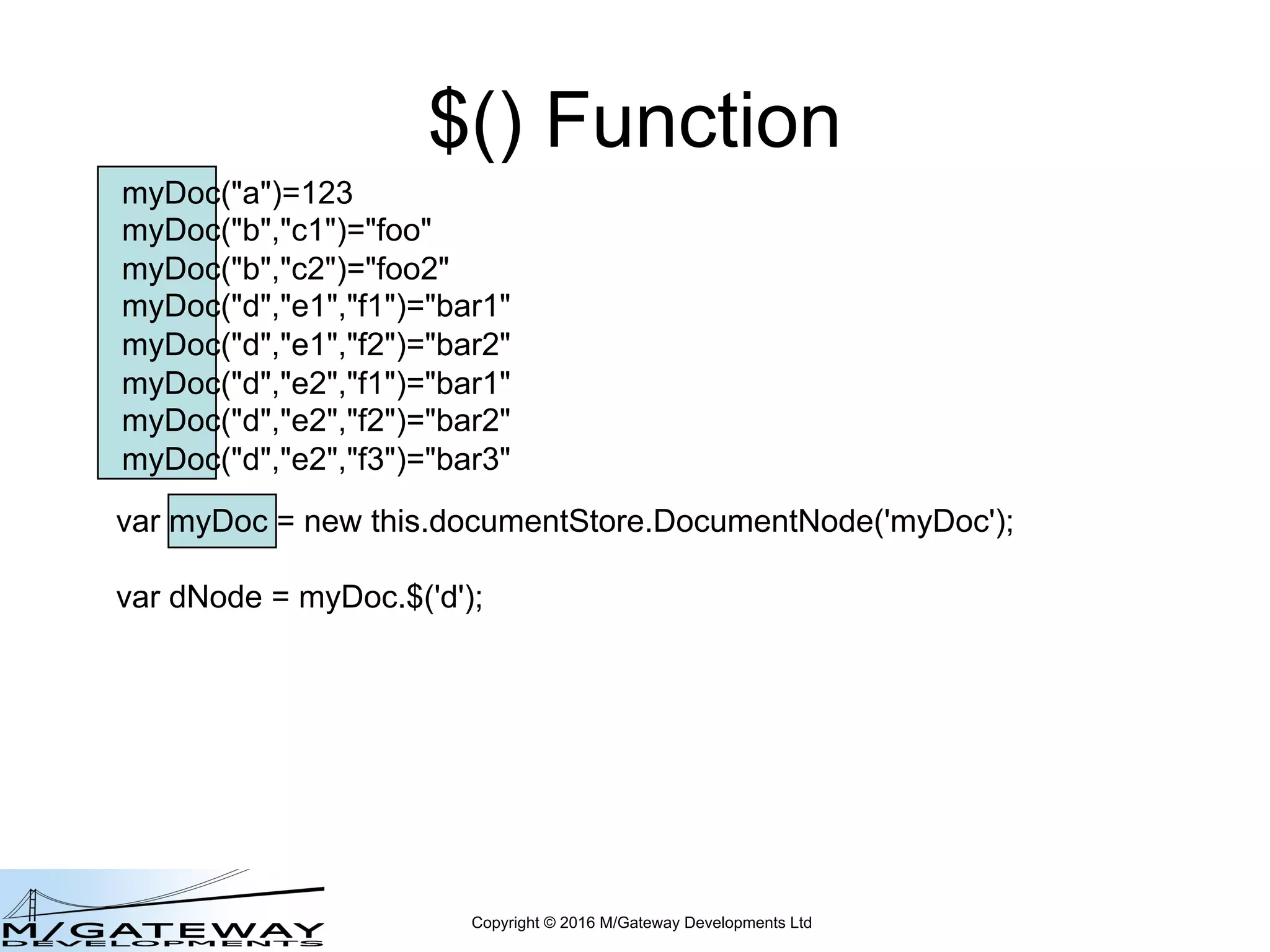

$() Function
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

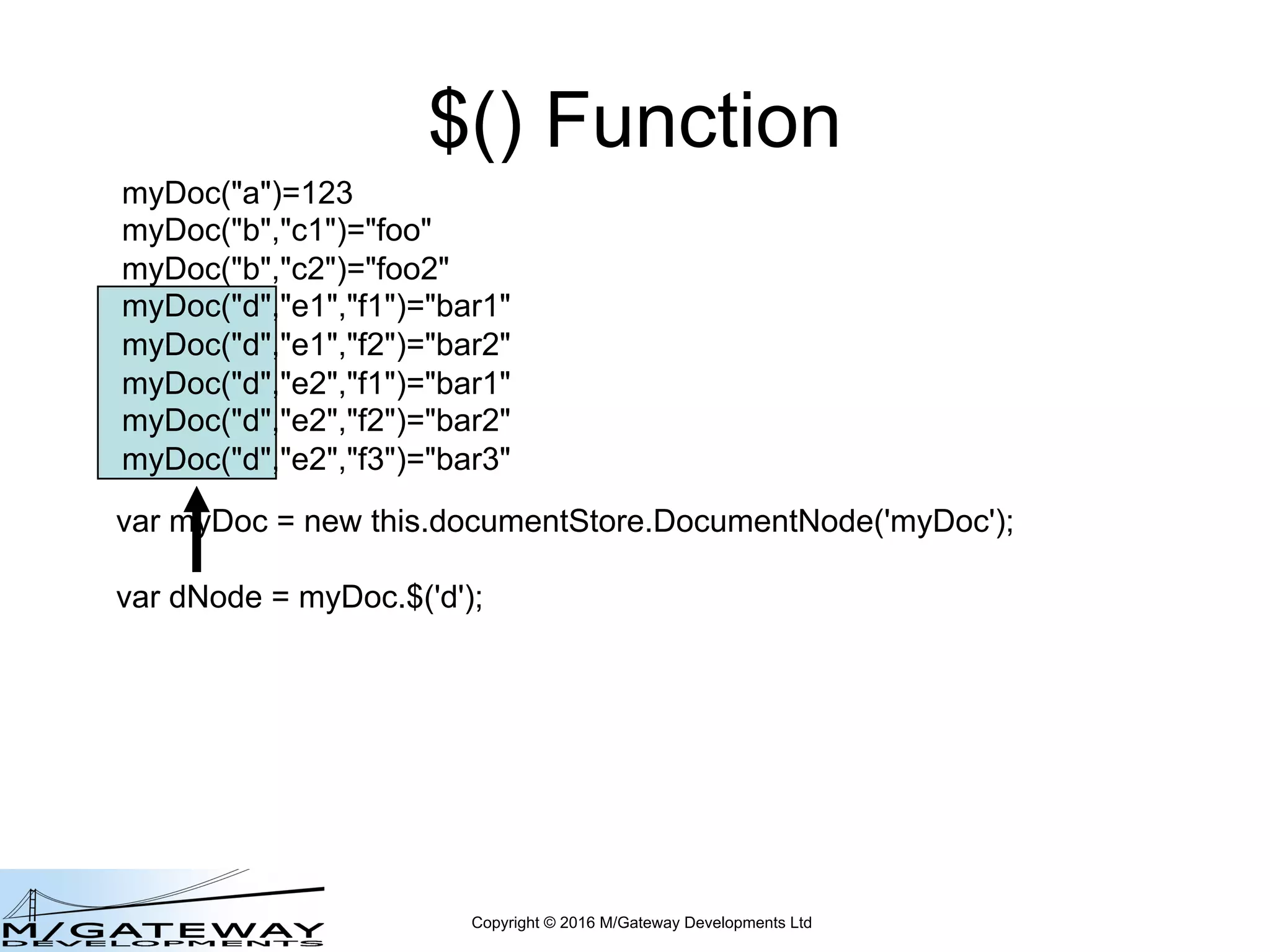

13. Copyright © 2016 M/Gateway Developments Ltd
$() Function
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

14. Copyright © 2016 M/Gateway Developments Ltd

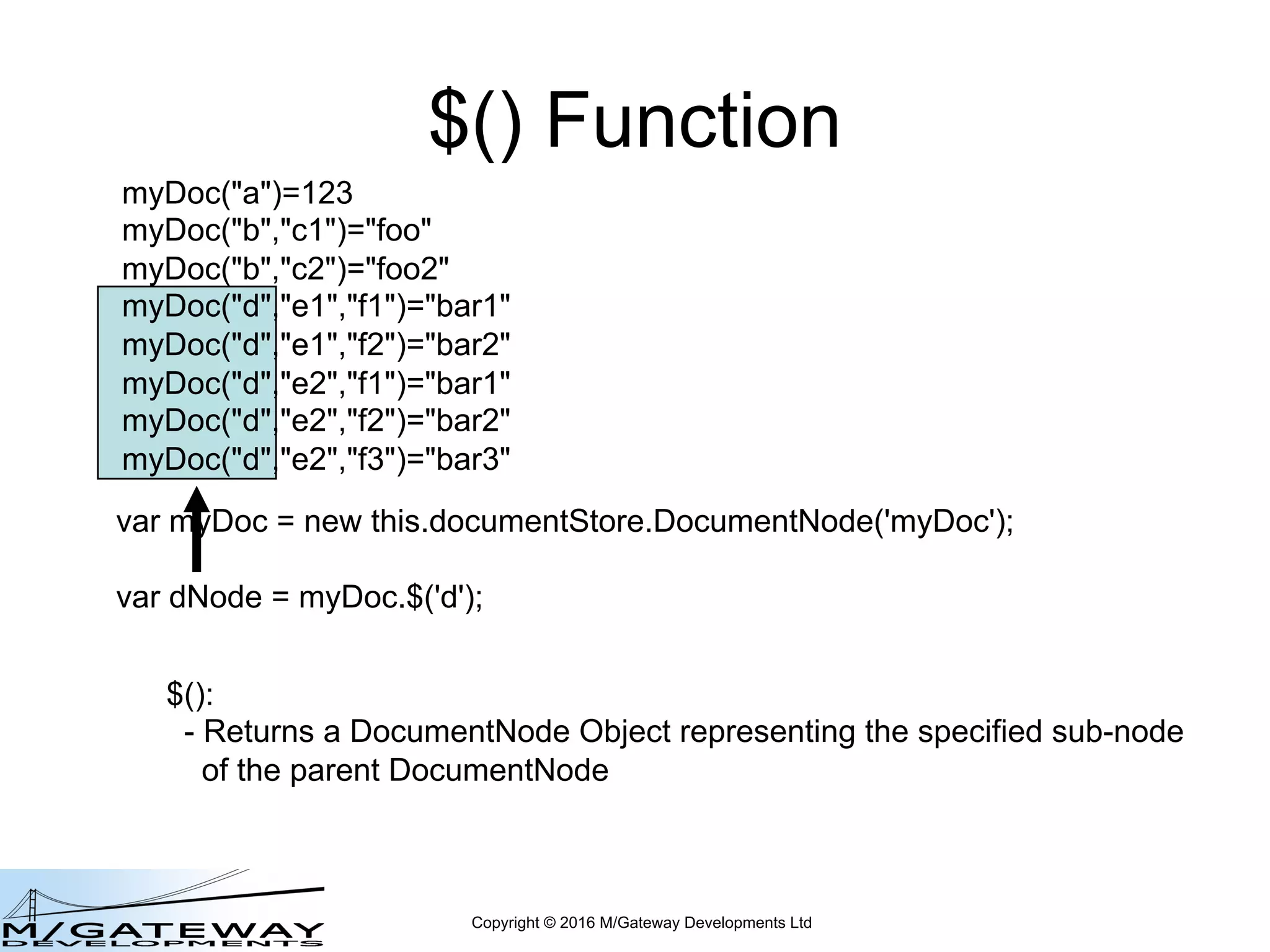

$() Function
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
$():
- Returns a DocumentNode Object representing the specified sub-node
of the parent DocumentNode

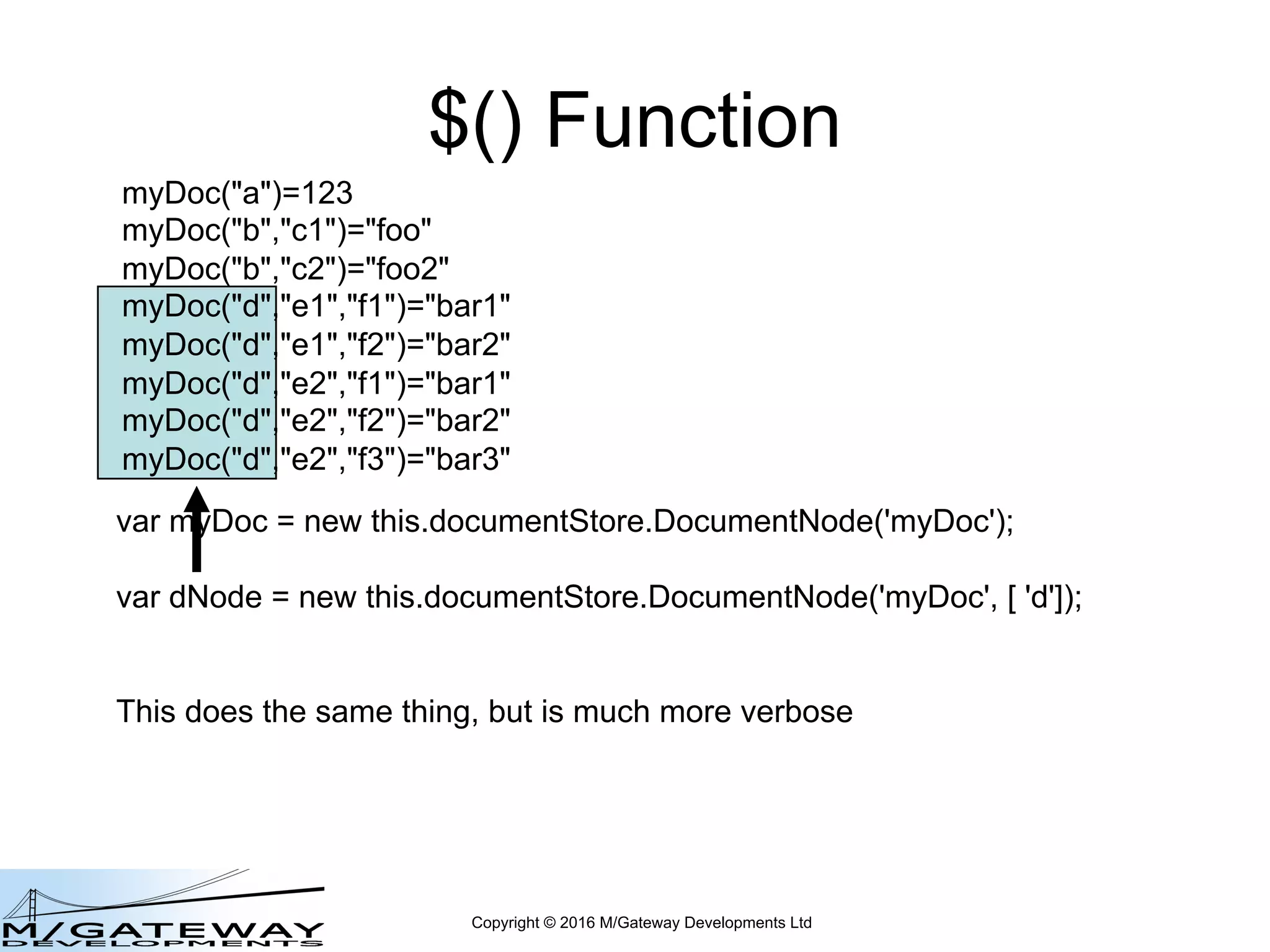

15. Copyright © 2016 M/Gateway Developments Ltd
$() Function
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = new this.documentStore.DocumentNode('myDoc', [ 'd']);
This does the same thing, but is much more verbose
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

16. Copyright © 2016 M/Gateway Developments Ltd

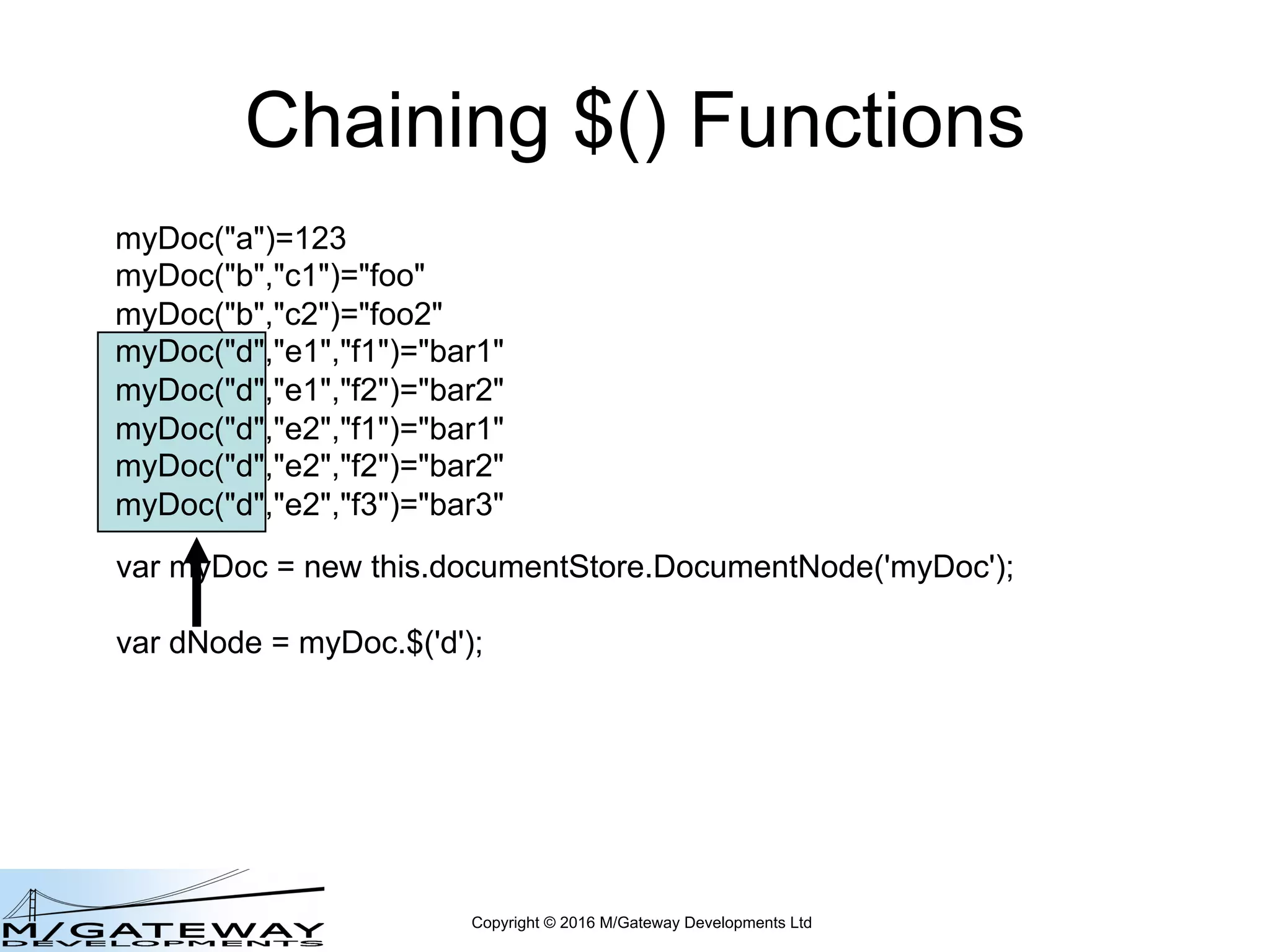

Chaining $() Functions
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

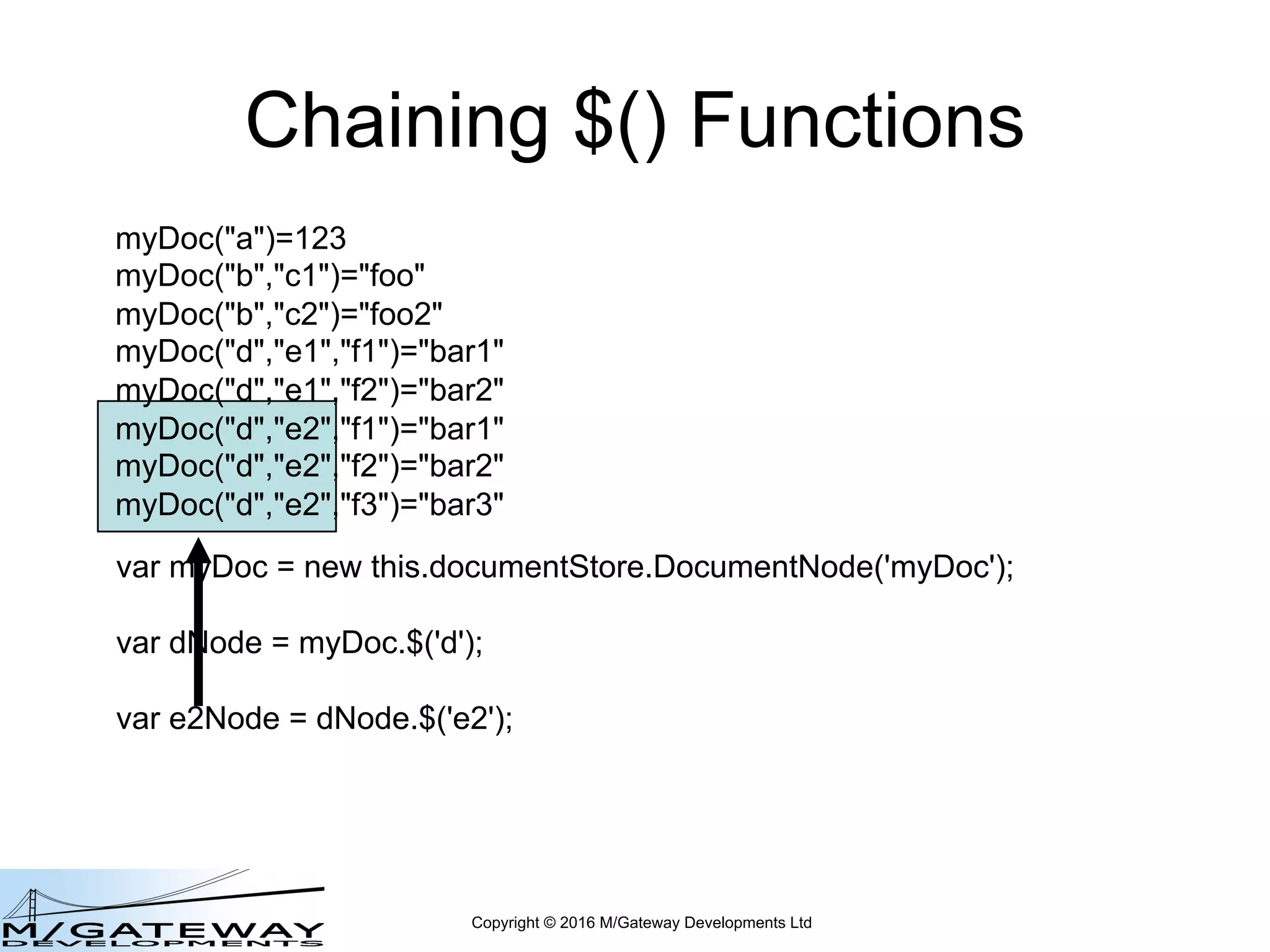

17. Copyright © 2016 M/Gateway Developments Ltd
Chaining $() Functions
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
var e2Node = dNode.$('e2');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

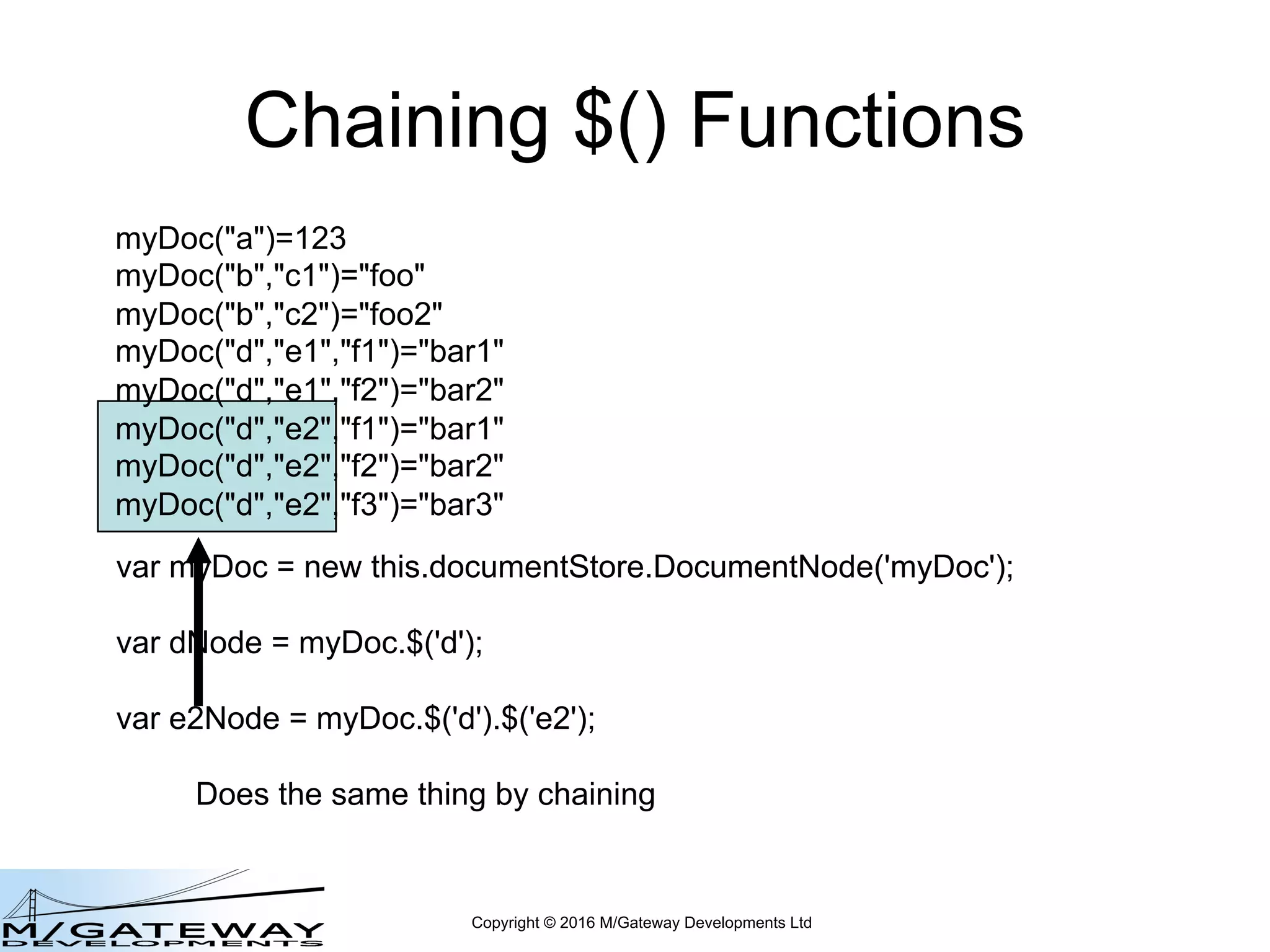

18. Copyright © 2016 M/Gateway Developments Ltd
Chaining $() Functions
var myDoc = new this.documentStore.DocumentNode('myDoc');
var dNode = myDoc.$('d');
var e2Node = myDoc.$('d').$('e2');
Does the same thing by chaining
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

19. Copyright © 2016 M/Gateway Developments Ltd

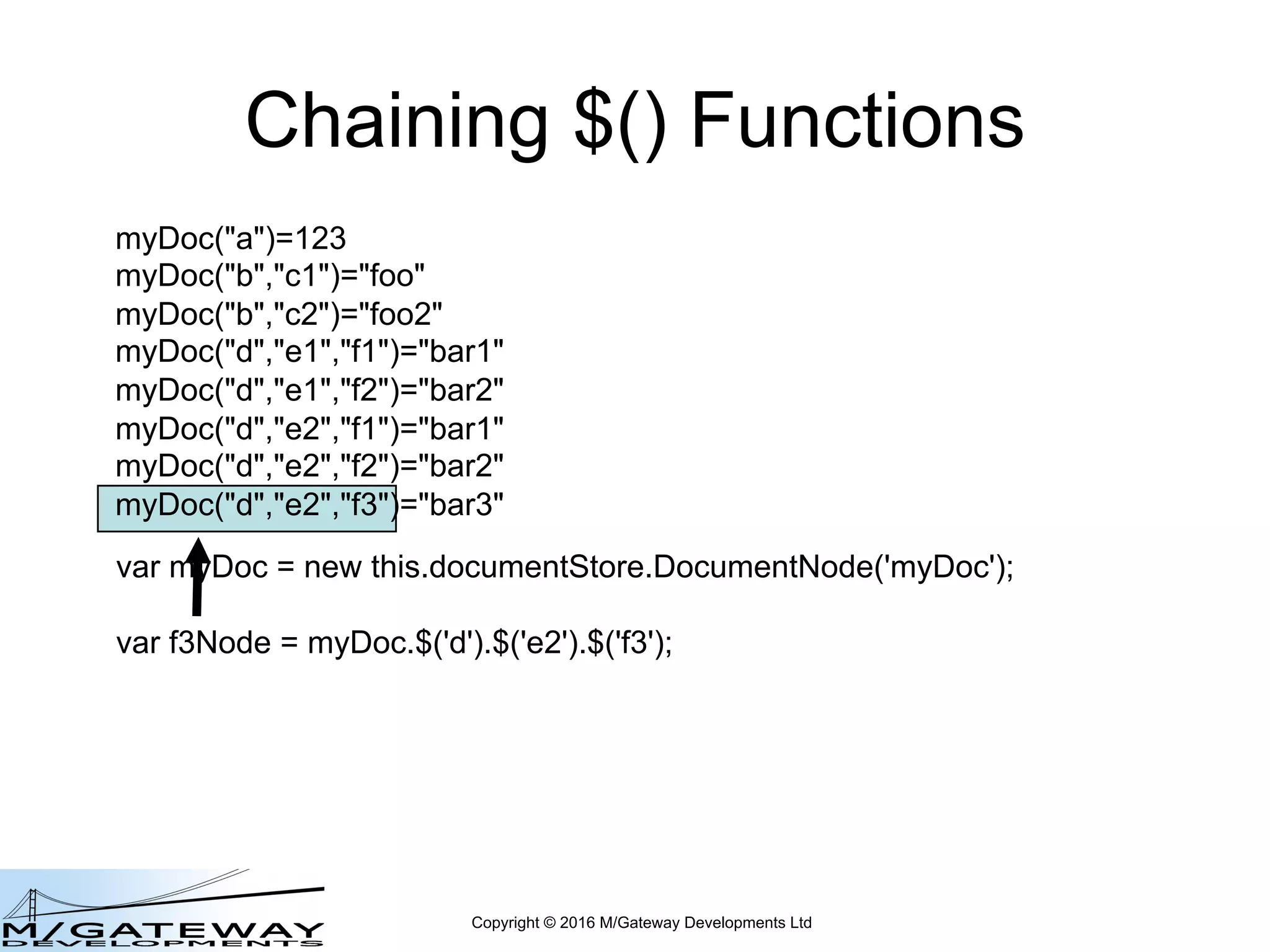

Chaining $() Functions
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

20. Copyright © 2016 M/Gateway Developments Ltd
$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

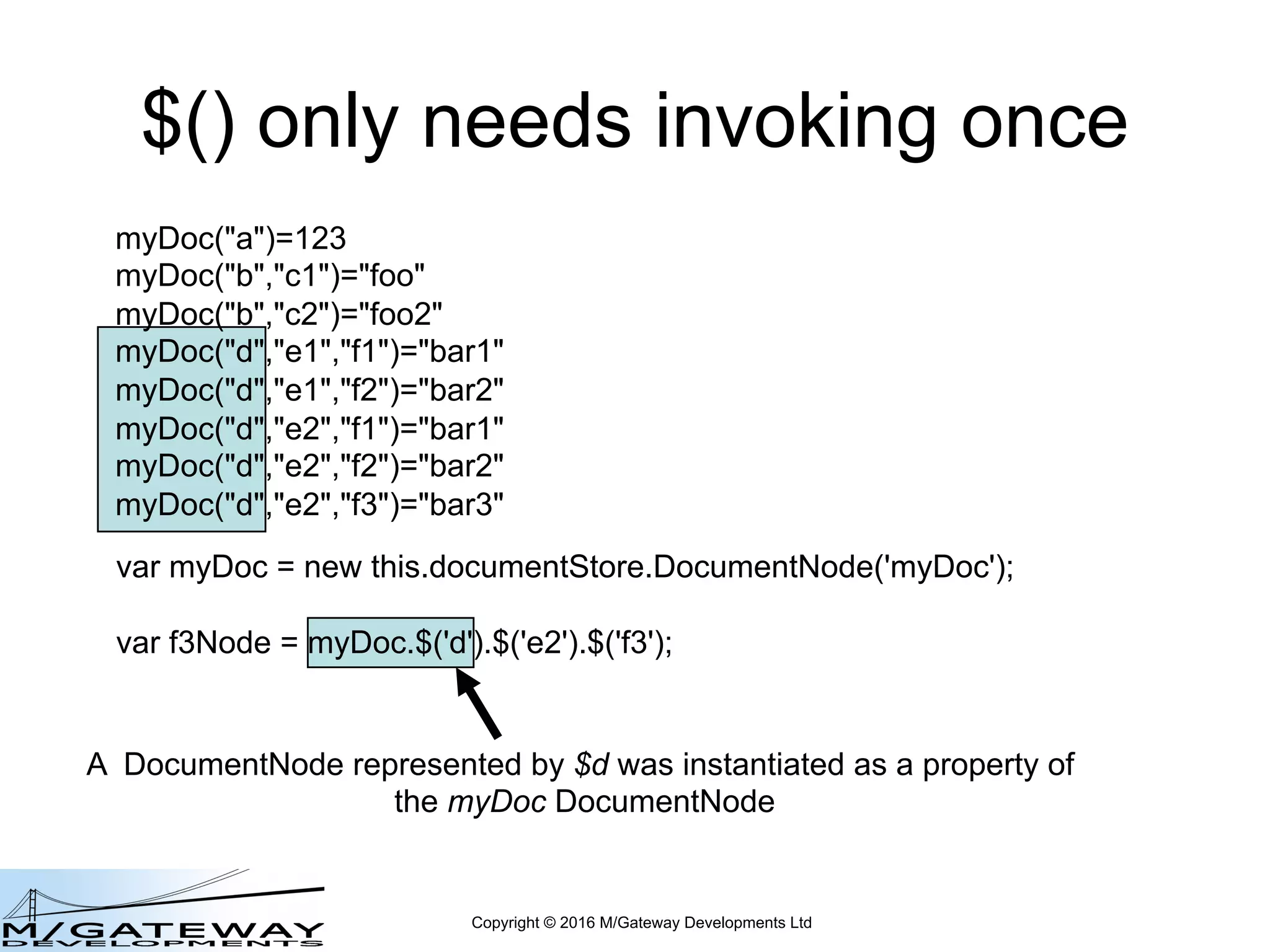

A DocumentNode represented by $d was instantiated as a property of
the myDoc DocumentNode

21. Copyright © 2016 M/Gateway Developments Ltd
$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

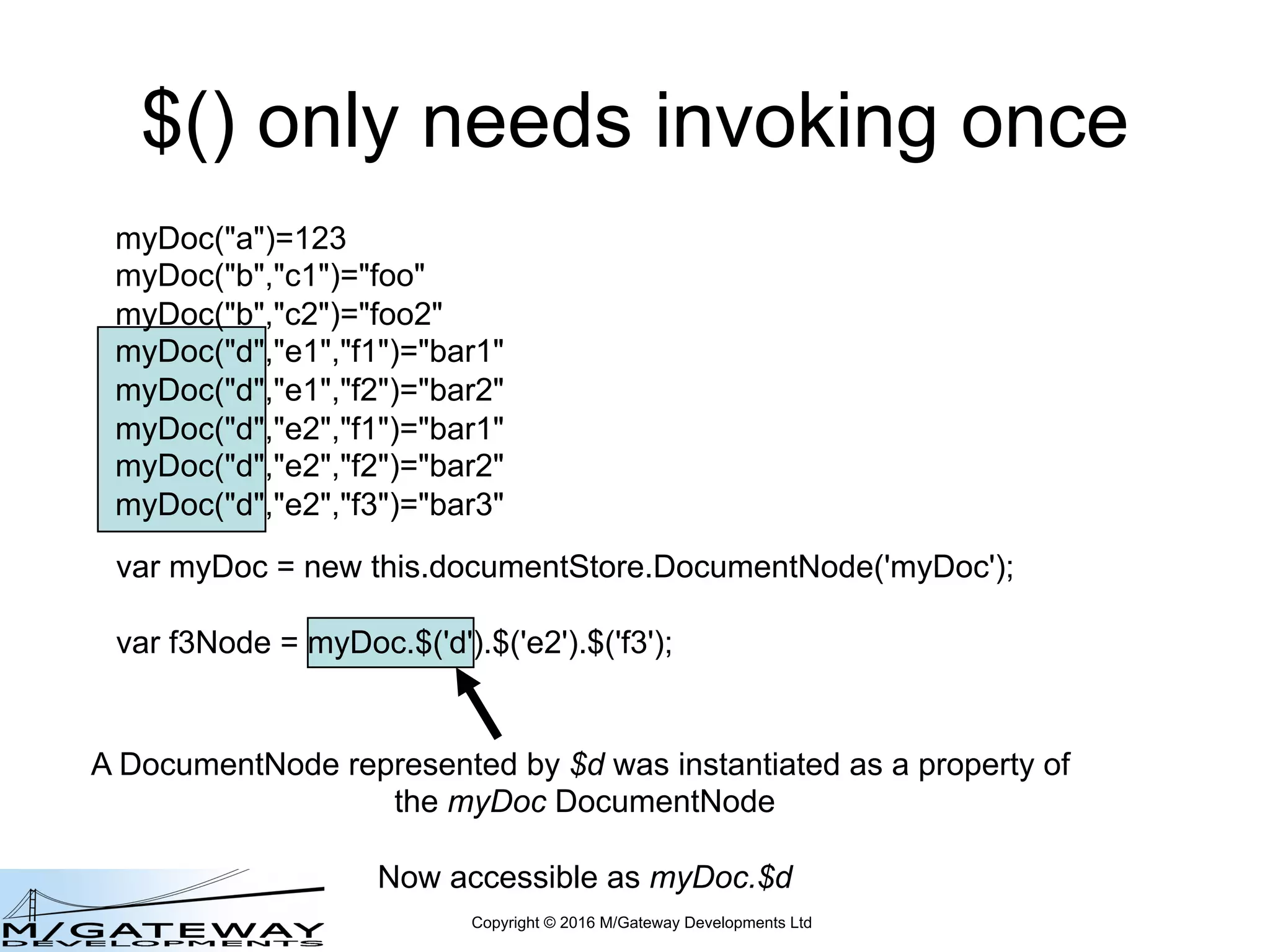

A DocumentNode represented by $d was instantiated as a property of
the myDoc DocumentNode
Now accessible as myDoc.$d

22. Copyright © 2016 M/Gateway Developments Ltd

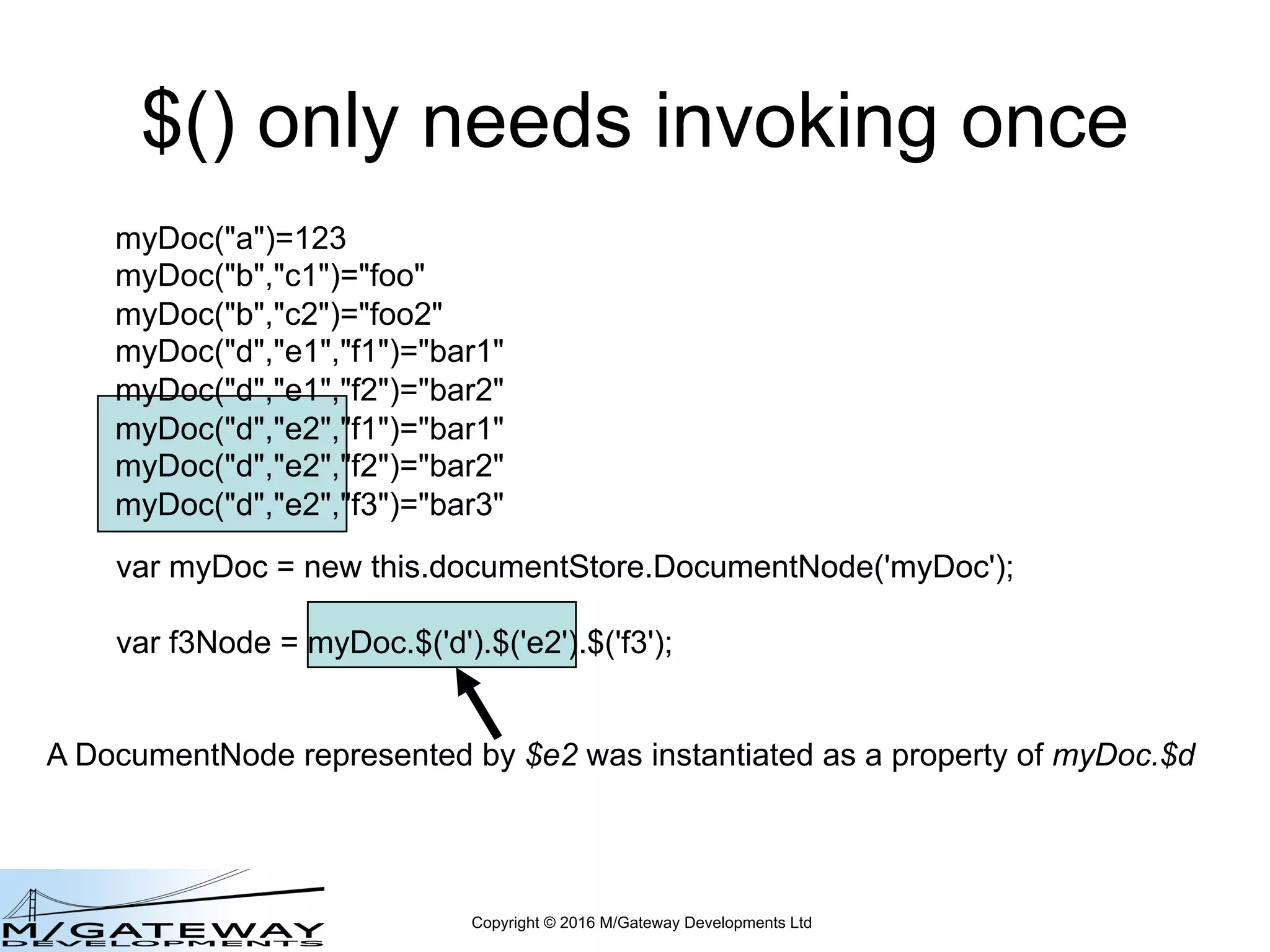

$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
A DocumentNode represented by $e2 was instantiated as a property of myDoc.$d

23. Copyright © 2016 M/Gateway Developments Ltd

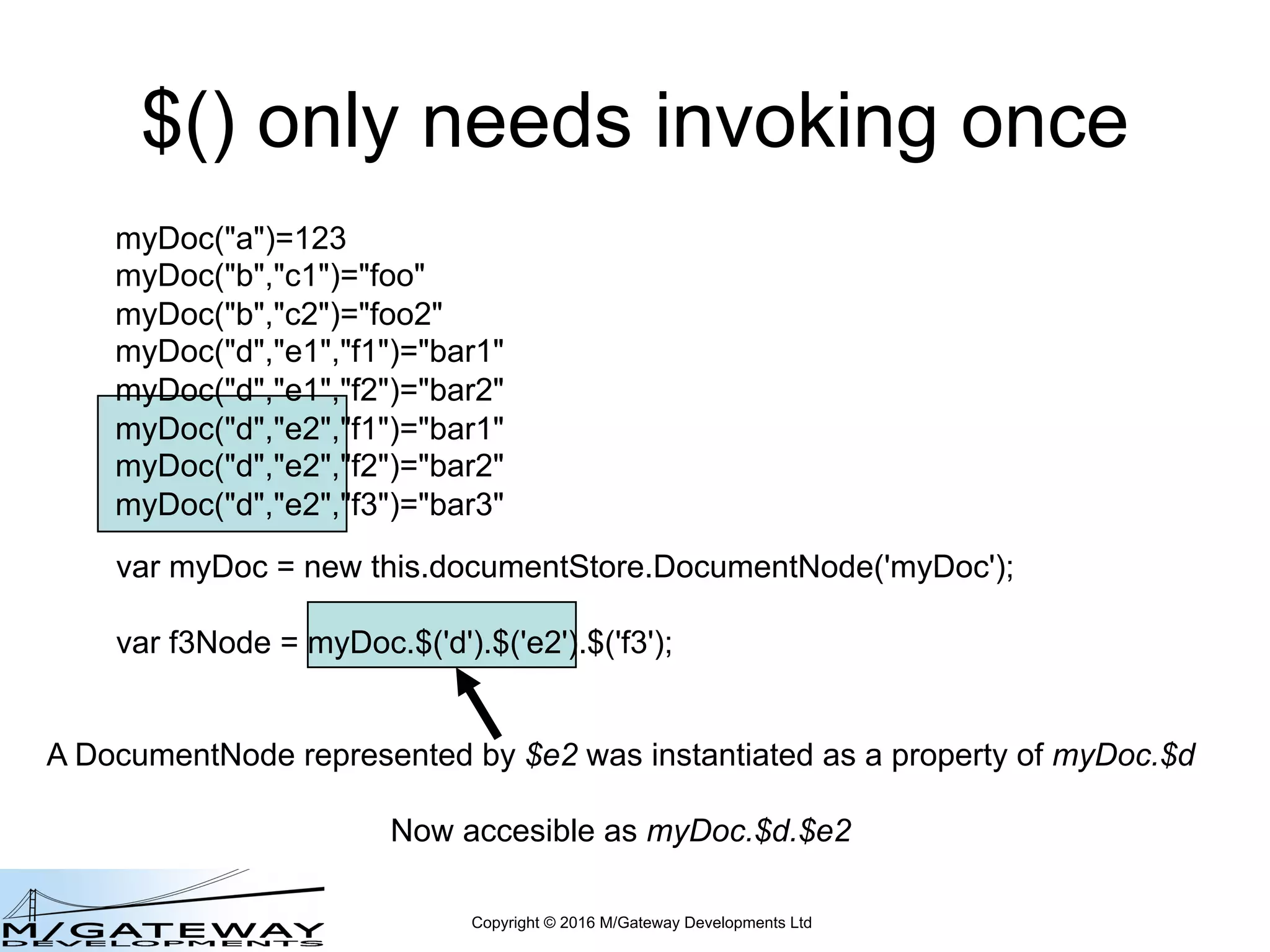

$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
A DocumentNode represented by $e2 was instantiated as a property of myDoc.$d
Now accesible as myDoc.$d.$e2

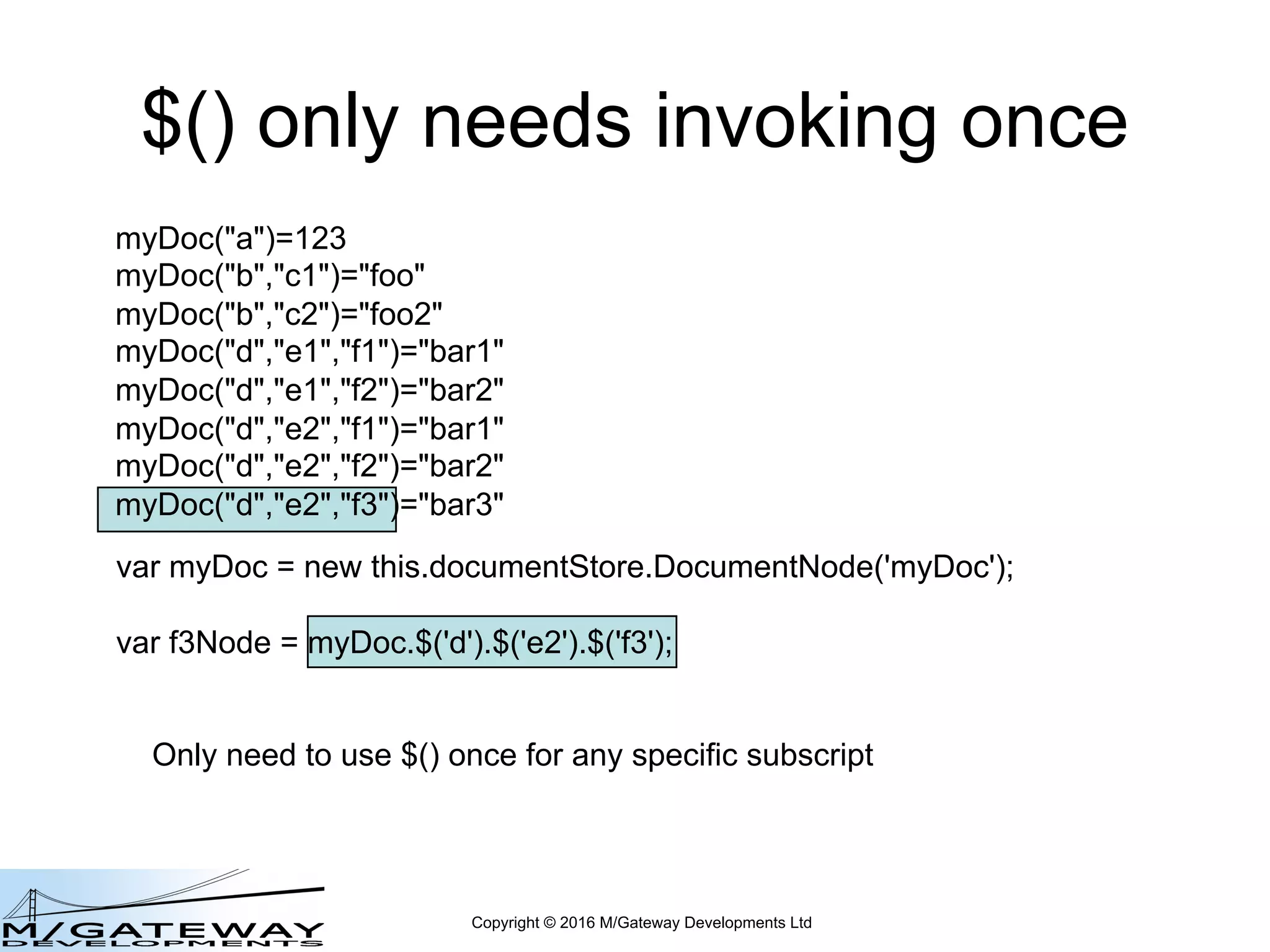

24. Copyright © 2016 M/Gateway Developments Ltd
$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
Only need to use $() once for any specific subscript

25. Copyright © 2016 M/Gateway Developments Ltd

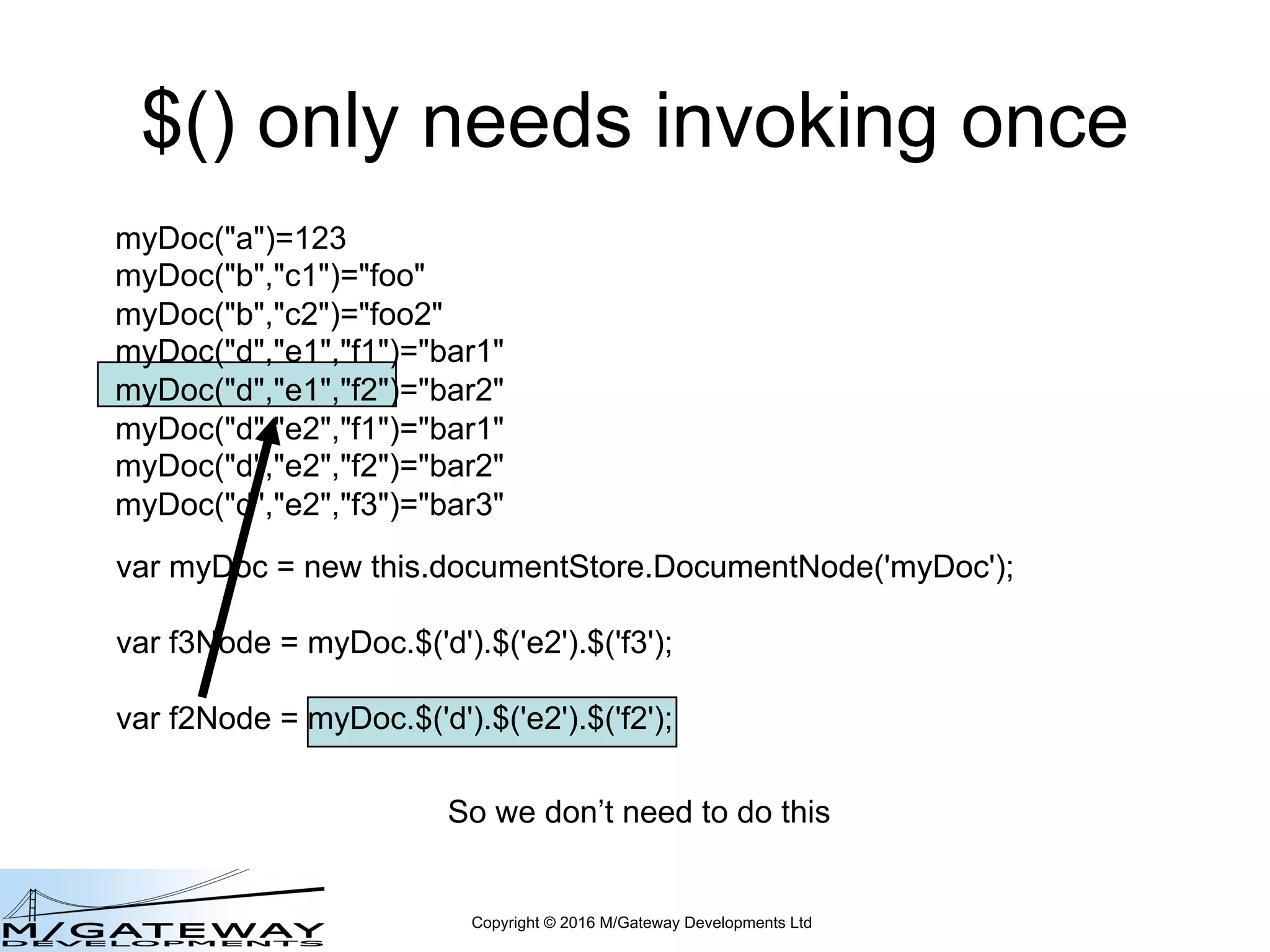

$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
var f2Node = myDoc.$('d').$('e2').$('f2');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
So we don’t need to do this

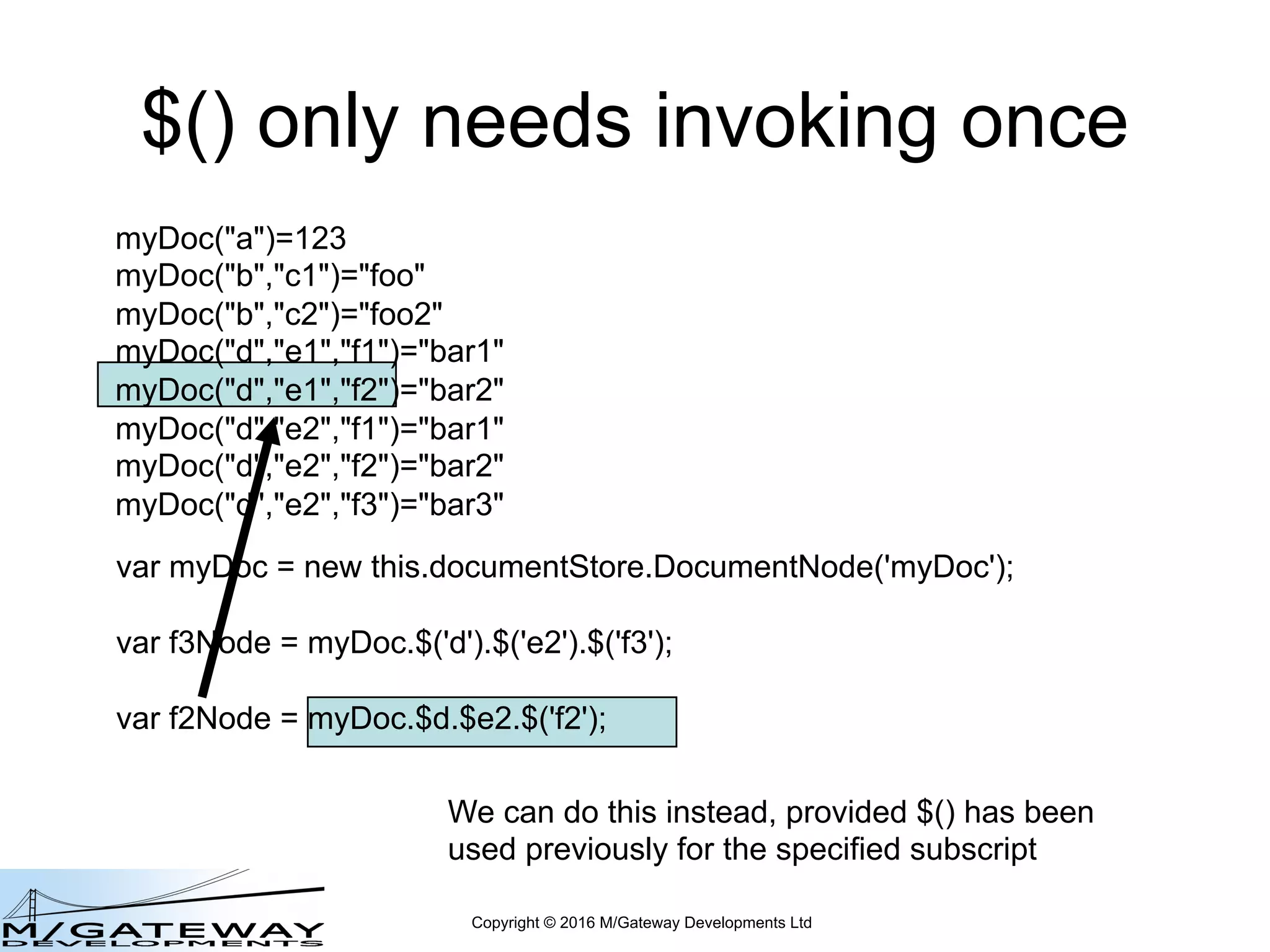

26. Copyright © 2016 M/Gateway Developments Ltd
$() only needs invoking once
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
var f2Node = myDoc.$d.$e2.$('f2');
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"
We can do this instead, provided $() has been
used previously for the specified subscript

27. Copyright © 2016 M/Gateway Developments Ltd

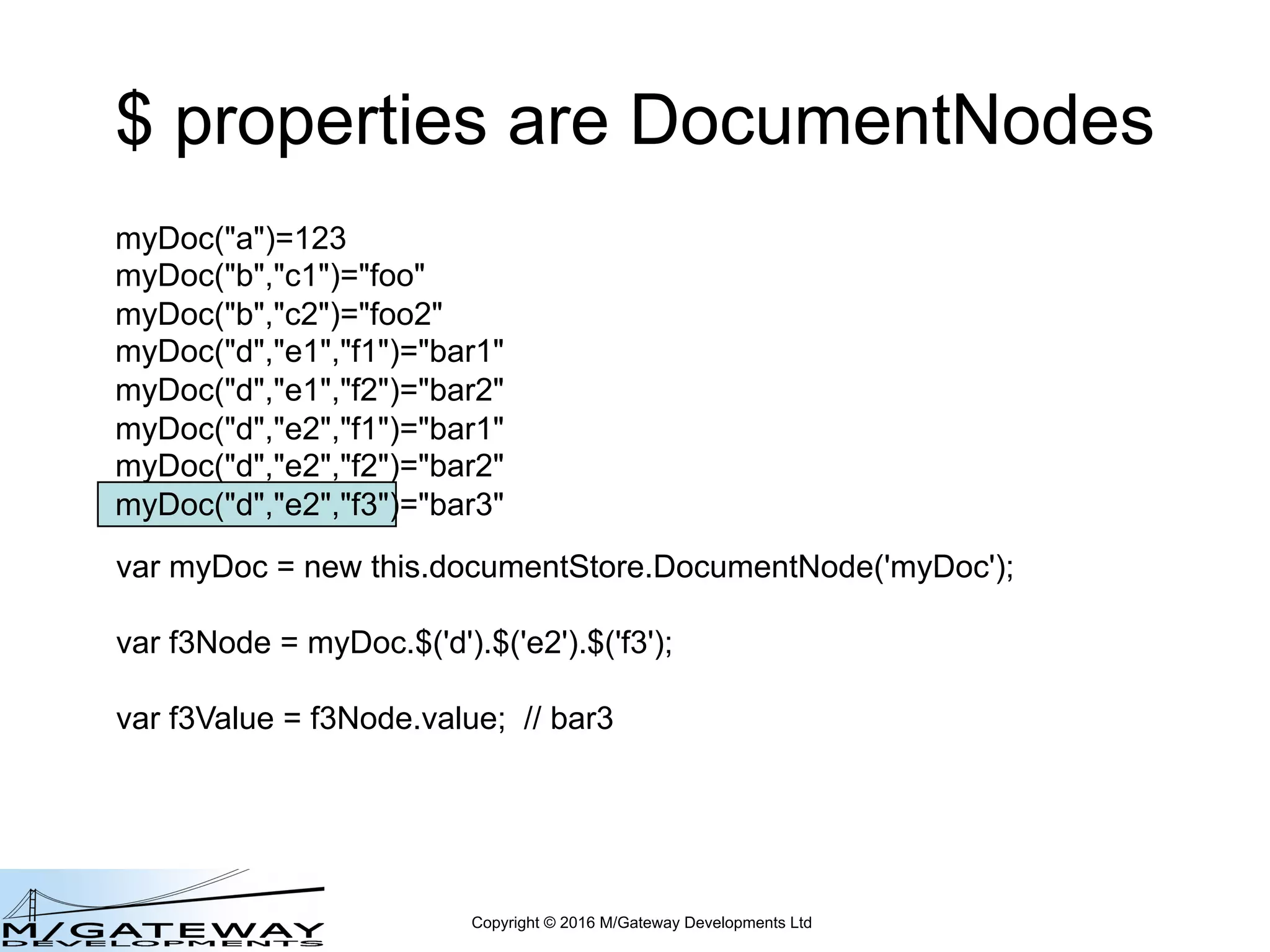

$ properties are DocumentNodes
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
var f3Value = f3Node.value; // bar3
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

28. Copyright © 2016 M/Gateway Developments Ltd
$ properties are DocumentNodes
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
var f3Value = myDoc.$d.$e2.$f3.value; // bar3
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

29. Copyright © 2016 M/Gateway Developments Ltd
$ properties are DocumentNodes
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc.$d.$e2.$f3.value = 'New value';
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")="bar3"

30. Copyright © 2016 M/Gateway Developments Ltd

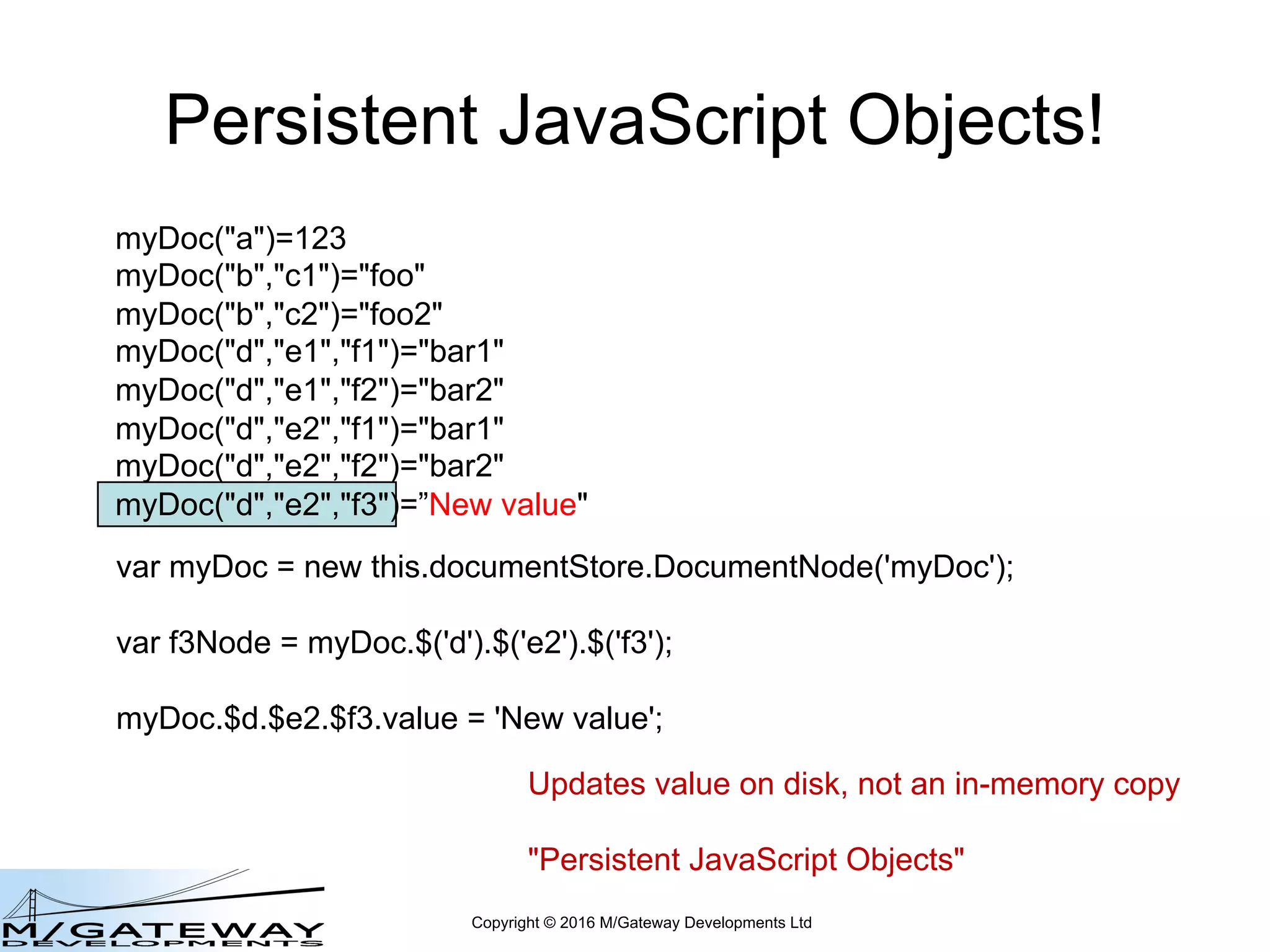

Persistent JavaScript Objects!
var myDoc = new this.documentStore.DocumentNode('myDoc');
var f3Node = myDoc.$('d').$('e2').$('f3');
myDoc.$d.$e2.$f3.value = 'New value';
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")=”New value"
Updates value on disk, not an in-memory copy
"Persistent JavaScript Objects"

31. Copyright © 2016 M/Gateway Developments Ltd

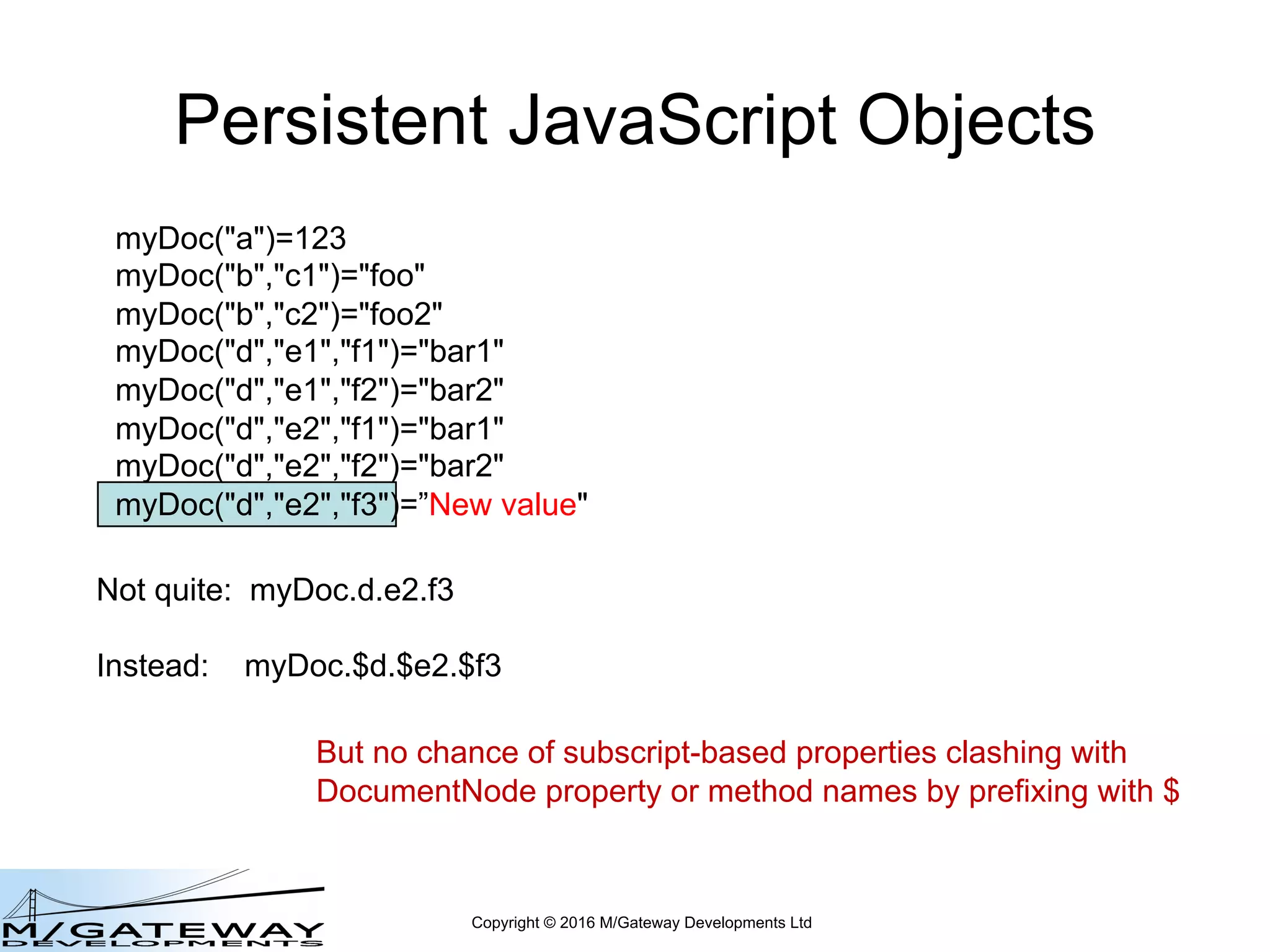

Persistent JavaScript Objects
myDoc("a")=123
myDoc("b","c1")="foo"
myDoc("b","c2")="foo2"
myDoc("d","e1","f1")="bar1"
myDoc("d","e1","f2")="bar2"
myDoc("d","e2","f1")="bar1"
myDoc("d","e2","f2")="bar2"
myDoc("d","e2","f3")=”New value"
Not quite: myDoc.d.e2.f3
Instead: myDoc.$d.$e2.$f3
But no chance of subscript-based properties clashing with
DocumentNode property or method names by prefixing with $
