A.SMT Off-line AOI ETA-415
Introduction:
ETA-415 is multi-function SMT AOI machine,imported Screw guide,high precision,the color change color 3CCD camera to accurately identify
the various components of the total 0201 detection ability,CE standard of mechanical design and humanized, large pull type operation
pallet, can be placed with PCB operator and other items, automatic induction eecure screen and turn plate automatically open to the use
of more security equipment.
Features:
1.Fast programming design,Multi program running,Multi application design,High precision,High NG output.
2.Automatic barcode reading,Intellectralized coaxial light design,Multi mark(Bad Mark included).
3.Seamless connection between SPC and AOI,take measures to avoid problem according to the feedbacks,control the quality in time.
4.Using coaxial four-level illumination to make the part in the best status of brightness and softness,
5.High precision intellectualized camera read the barcode auto matically,with high speed and clearer images.
6.Good stability(GR&R＜10% ＠6 Sigma,CPK＞1.33(Test deviation accuracy less than ±0.25mm.
7.Read 2D Barcode(laser&print).
Specification:
Model ETA-415
Test Board After Reflow Soldering
Camera 2M pixel intelligent digital industrial camera
Resolution/Range/Speed 15um/Pixel FOV:38*31mm, Test speed＜0.25sec/FOV
Light RGB ring tower LED light(Color light)
Program Mode Auto CAD input,manual programming,component library
Remote Control Offline programming,check and control remotely through network
Inspection Item Component test,soldering test
Special Function Read barcode,two sides of program test,multi board and multi progrma test
Mini Component 15um:0201chip&0.4pitch IC

2. 2 ETA SMT AOI Products introduction | ETA
www.smt11.com
Full SMT solution provider
SPC and Program Control Statistic and analysis of all test data,can output excel,word,txt file
Operation System Windows 7
Display Output 22inch LCD,OK/NG signal,send data file to Repair station(option)
PCB Size 50*50~430*330mm
PCB Thickness 0.5 ~ 5mm
PCB Weight Max:3Kg
PCB Height Top:30mm,Bottom:60mm
X/Y Driver AC servo driver,repeat accuracy 0.01mm
Power AC220 50/60Hz,＜0.5Kw
Weight 480Kg
Dimension 890*960*1310mm
B.SMT On-line AOI ETA-600
Introduction
ETA-600 is on-line multi-function SMT AOI machine,imported Screw guide,high precision,the color change color 3CCD camera to accurately
identify the various components of the total 0201 detection ability,CE standard of mechanical design and humanized, large pull type
operation pallet, can be placed with PCB operator and other items, automatic induction eecure screen and turn plate automatically open to
the use of more security equipment.
Repair Station
Auto send OK and NG signal to different Tray
Full-auto programming process control

3. 3 ETA SMT AOI Products introduction | ETA
www.smt11.com
Full SMT solution provider

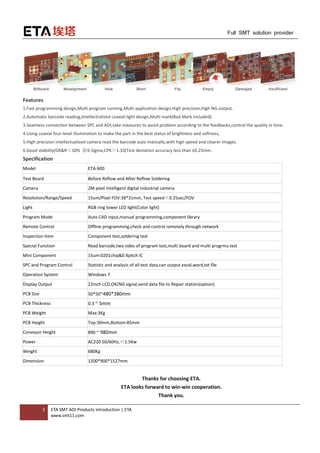

Features
1.Fast programming design,Multi program running,Multi application design,High precision,High NG output.
2.Automatic barcode reading,Intellectralized coaxial light design,Multi mark(Bad Mark included).
3.Seamless connection between SPC and AOI,take measures to avoid problem according to the feedbacks,control the quality in time.
4.Using coaxial four-level illumination to make the part in the best status of brightness and softness,
5.High precision intellectualized camera read the barcode auto matically,with high speed and clearer images.
6.Good stability(GR&R＜10% ＠6 Sigma,CPK＞1.33(Test deviation accuracy less than ±0.25mm.
Specification
Model ETA-600
Test Board Before Reflow and After Reflow Soldering
Camera 2M pixel intelligent digital industrial camera
Resolution/Range/Speed 15um/Pixel FOV:38*31mm, Test speed＜0.25sec/FOV
Light RGB ring tower LED light(Color light)
Program Mode Auto CAD input,manual programming,component library
Remote Control Offline programming,check and control remotely through network
Inspection Item Component test,soldering test
Special Function Read barcode,two sides of program test,multi board and multi progrma test
Mini Component 15um:0201chip&0.4pitch IC
SPC and Program Control Statistic and analysis of all test data,can output excel,word,txt file
Operation System Windows 7
Display Output 22inch LCD,OK/NG signal,send data file to Repair station(option)
PCB Size 50*50~480*380mm
PCB Thickness 0.3 ~ 5mm
PCB Weight Max:3Kg
PCB Height Top:30mm,Bottom:85mm
Conveyor Height 890 ~ 980mm
Power AC220 50/60Hz,＜1.5Kw
Weight 680Kg
Dimension 1200*900*1527mm
