Mx400 introduction
The document provides specifications for the MX-400 chip mounter, detailing its capabilities including a minimum PCB size of 410x460mm and a maximum of 680x460mm with a thickness range of 0.8-2.3mm. It has a tact time of 42000 cph, an accuracy of ±0.1mm per chip and ±0.05mm per IC, operates on AC230V 3-phase power, and weighs 230kg. The dimensions are listed as 1200x1900x1500mm, and it features 80 stations with a conveyor flow option.
Mx400 introduction

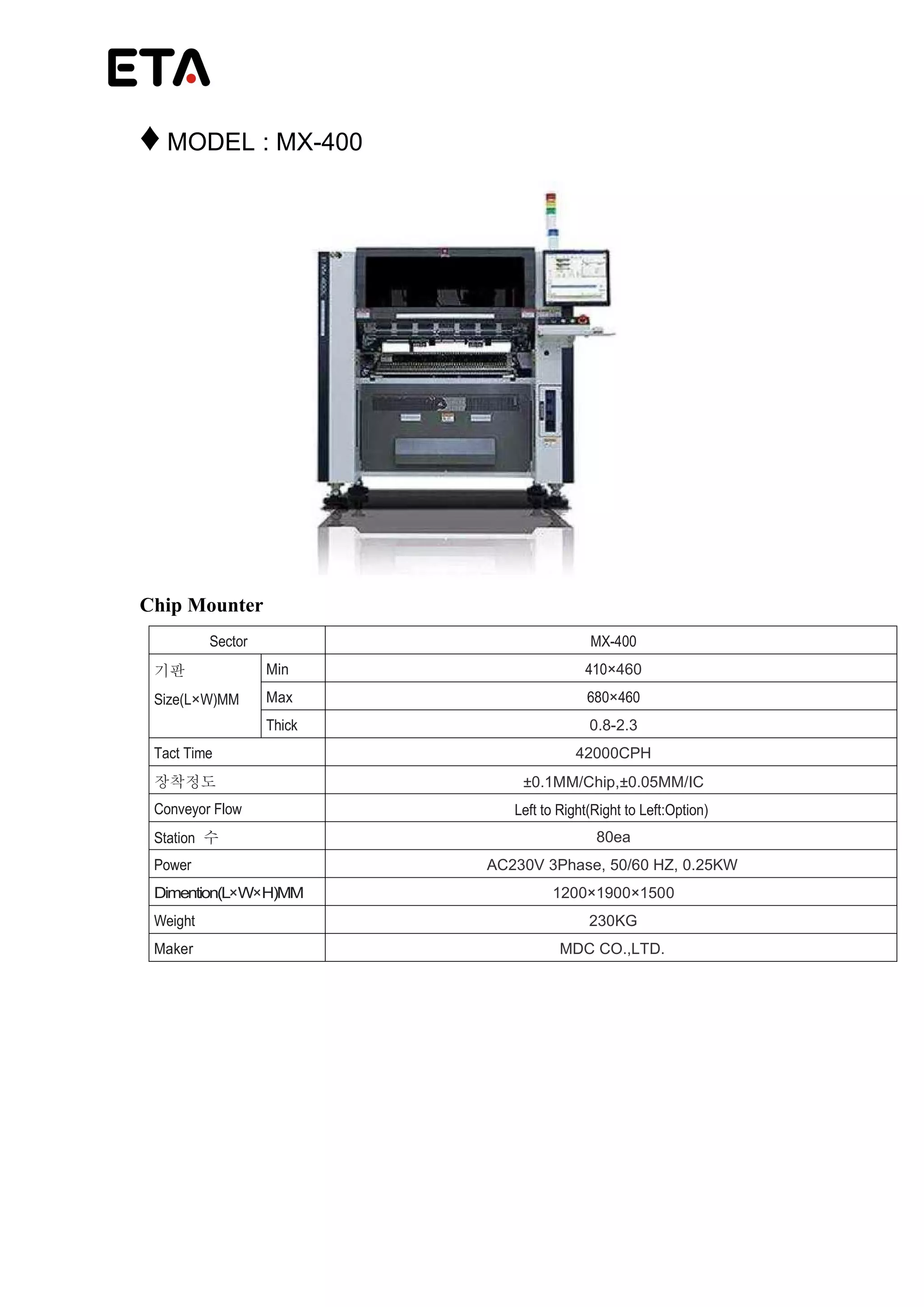

- 1. ♦ MODEL :MX-400 Chip Mounter Sector MX-400 기판 Size(L×W)MM Min 410×460 Max 680×460 Thick 0.8-2.3 Tact Time 42000CPH 장착정도 ±0.1MM/Chip,±0.05MM/IC Conveyor Flow Left to Right(Right to Left:Option) Station 수 80ea Power AC230V 3Phase, 50/60 HZ, 0.25KW Dimention(L×W×H)MM 1200×1900×1500 Weight 230KG Maker MDC CO.,LTD.
