![Multiple FOV ~ 20 mm (0.79")
Componenttype Chip,Flip Chip
Min
Lead
pitch
CSP 0.30mm (0.012")
QFP 0.38mm (0.015")
LSC 0.30mm (0.012")
Filp-chip 0.20mm (0.007")
Max.ComponentHeight 25 mm (0.98")
대응부품 0603~□32mm,
기판 Size
(LxWxt)mm
Max. 530 x 460 x 5
Min. 50 x 50 x 0.4
Weight 2.5Kg (5.5 lbs)
Board
Clearanc
e
Top side 31.0 mm (1.22")
Bo om side 20.0 mm (0.79")
Edge 3mm(0.12")Top Side /3mm(0.12")Bo om Side
Board
Transfe
r
TransportType Bu ered 3 Stage
Speed(Maximum) 500mm/sec (20”/sec),Programmable
Fixed
ConveyorEdge
Front(stabdard)
TransportHeight 37.5"±0.5"SMEMA(Standard)/900mm+30mm,-
10mm(Option)
TransportDirection Leftto Right(Standard),Rightto Left(Option)
Board Clamping Edge Clamps
Board Support Push up pins,Vacuum Puldown
TransportFeature
s
Auto Board Width Adjust& SoftStop
Feeder장착수량 90 EA(8mm기준)
Feeder종류 8~72mm Tape,Latching ManualTray,40 Tray Shu le
Unit,
20 Tray FeederUnit,Vibration Stick Feeder
PowerSupply AC200∼240V 3PH,50/60Hz,4.1KVA
Option :3phase 380/400/415/430[V]
Air 0.54 MPa,400Nℓ/min
Dimension(LxWxH)mm 1525x 2230x1380
Weight(kg) 2500
Maker Mirae Co.,LTD.
Shenzhen ETA Technology CO.,LTD
Website:www.smt11.com
Email:etasmt@foxmail.com
LinkedIn:https://www.linkedin.com/company/13647672
YouTube:https://www.youtube.com/channel/UCrjQtG86plRI3ipGMSJwF5w
Address:No.3,Road 3,Yangyong Industrial Zone,Shapu Village,Songgang
www.smt11.com](https://image.slidesharecdn.com/mx240introduction-200418022858/85/Mx240-introduction-2-320.jpg)
Uploaded byMark Tung
Mx240 introduction
The document provides detailed specifications for the mx240 multifunction chip mounter by Mirae, including its capabilities for various component types, dimensions, and performance metrics. It outlines the machine's operating parameters, such as speed, feeder capacity, and power supply requirements. Additionally, it includes contact information for the manufacturer and links to their online presence.
Mx240 introduction

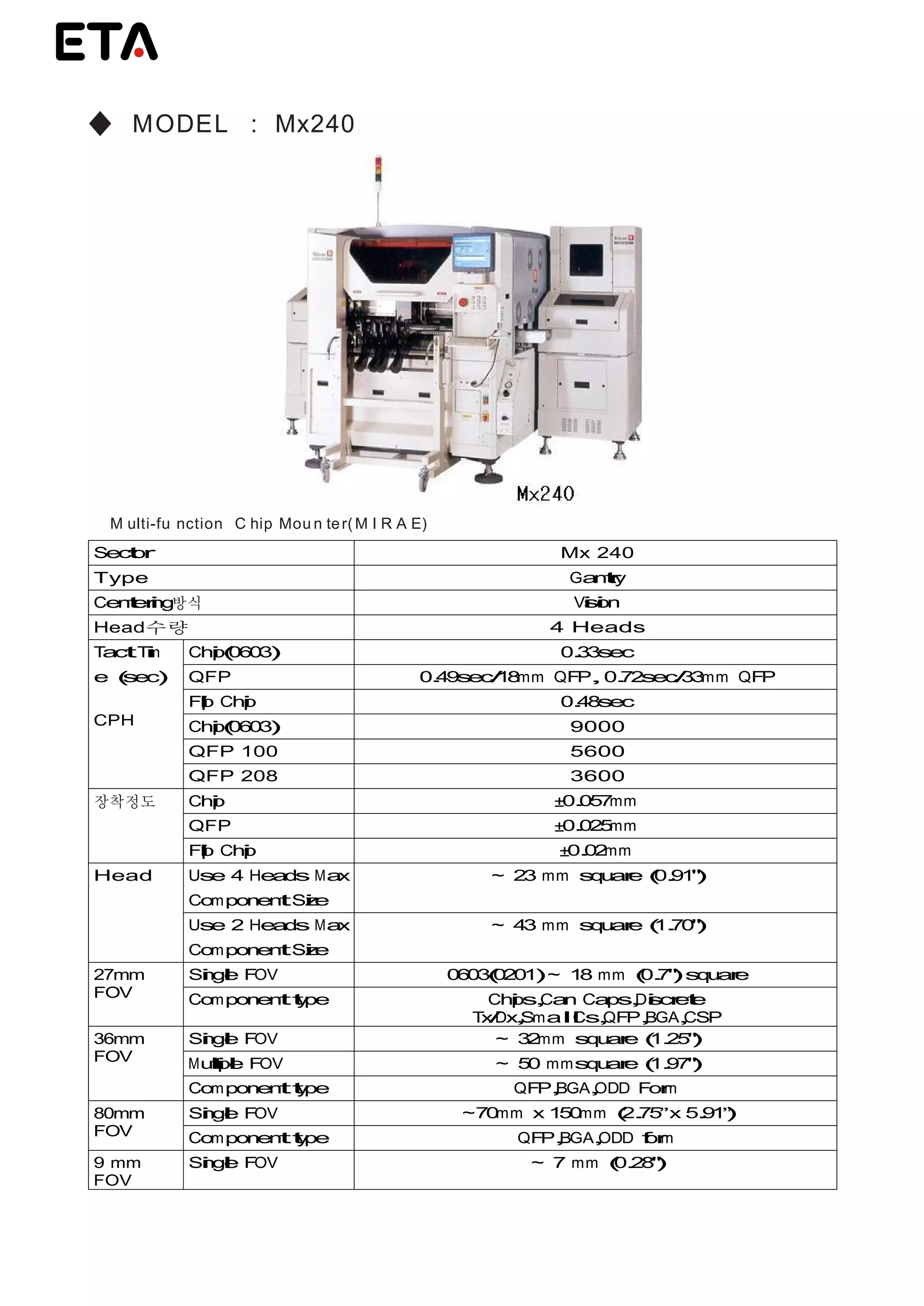

- 1. ◆ MODEL :Mx240 M ulti-fu nction C hip Mou n ter(M I R A E) Sector Mx 240 Type Gantry Centering방식 Vision Head수량 4 Heads TactTim e (sec) CPH Chip(0603) 0.33sec QFP 0.49sec/18mm QFP,0.72sec/33mm QFP Flip Chip 0.48sec Chip(0603) 9000 QFP 100 5600 QFP 208 3600 장착정도 Chip ±0.057mm QFP ±0.025mm Flip Chip ±0.02mm Head Use 4 Heads Max ComponentSize ~ 23 mm square (0.91") Use 2 Heads Max ComponentSize ~ 43 mm square (1.70") 27mm FOV Single FOV 0603(0201)~ 18 mm (0.7")square Componenttype Chips,Can Caps,Discrete Tx/Dx,SmalICs,QFP,BGA,CSP 36mm FOV Single FOV ~ 32mm square (1.25") Multiple FOV ~ 50 mmsquare (1.97") Componenttype QFP,BGA,ODD Form 80mm FOV Single FOV ~70mm x 150mm (2.75”x 5.91”) Componenttype QFP,BGA,ODD form 9 mm FOV Single FOV ~ 7 mm (0.28")
- 2. Multiple FOV ~20 mm (0.79") Componenttype Chip,Flip Chip Min Lead pitch CSP 0.30mm (0.012") QFP 0.38mm (0.015") LSC 0.30mm (0.012") Filp-chip 0.20mm (0.007") Max.ComponentHeight 25 mm (0.98") 대응부품 0603~□32mm, 기판 Size (LxWxt)mm Max. 530 x 460 x 5 Min. 50 x 50 x 0.4 Weight 2.5Kg (5.5 lbs) Board Clearanc e Top side 31.0 mm (1.22") Bo om side 20.0 mm (0.79") Edge 3mm(0.12")Top Side /3mm(0.12")Bo om Side Board Transfe r TransportType Bu ered 3 Stage Speed(Maximum) 500mm/sec (20”/sec),Programmable Fixed ConveyorEdge Front(stabdard) TransportHeight 37.5"±0.5"SMEMA(Standard)/900mm+30mm,- 10mm(Option) TransportDirection Leftto Right(Standard),Rightto Left(Option) Board Clamping Edge Clamps Board Support Push up pins,Vacuum Puldown TransportFeature s Auto Board Width Adjust& SoftStop Feeder장착수량 90 EA(8mm기준) Feeder종류 8~72mm Tape,Latching ManualTray,40 Tray Shu le Unit, 20 Tray FeederUnit,Vibration Stick Feeder PowerSupply AC200∼240V 3PH,50/60Hz,4.1KVA Option :3phase 380/400/415/430[V] Air 0.54 MPa,400Nℓ/min Dimension(LxWxH)mm 1525x 2230x1380 Weight(kg) 2500 Maker Mirae Co.,LTD. Shenzhen ETA Technology CO.,LTD Website:www.smt11.com Email:etasmt@foxmail.com LinkedIn:https://www.linkedin.com/company/13647672 YouTube:https://www.youtube.com/channel/UCrjQtG86plRI3ipGMSJwF5w Address:No.3,Road 3,Yangyong Industrial Zone,Shapu Village,Songgang www.smt11.com
