This document provides specifications for several series of electronic speed controllers (ESCs) including Mystery Blue, Mystery Red, and Mystery Yellow series. It lists the model name, current rating, burst current rating, battery cell compatibility, weight, BEC output, and dimensions for each ESC. It also provides notes about pricing and validity at the bottom.

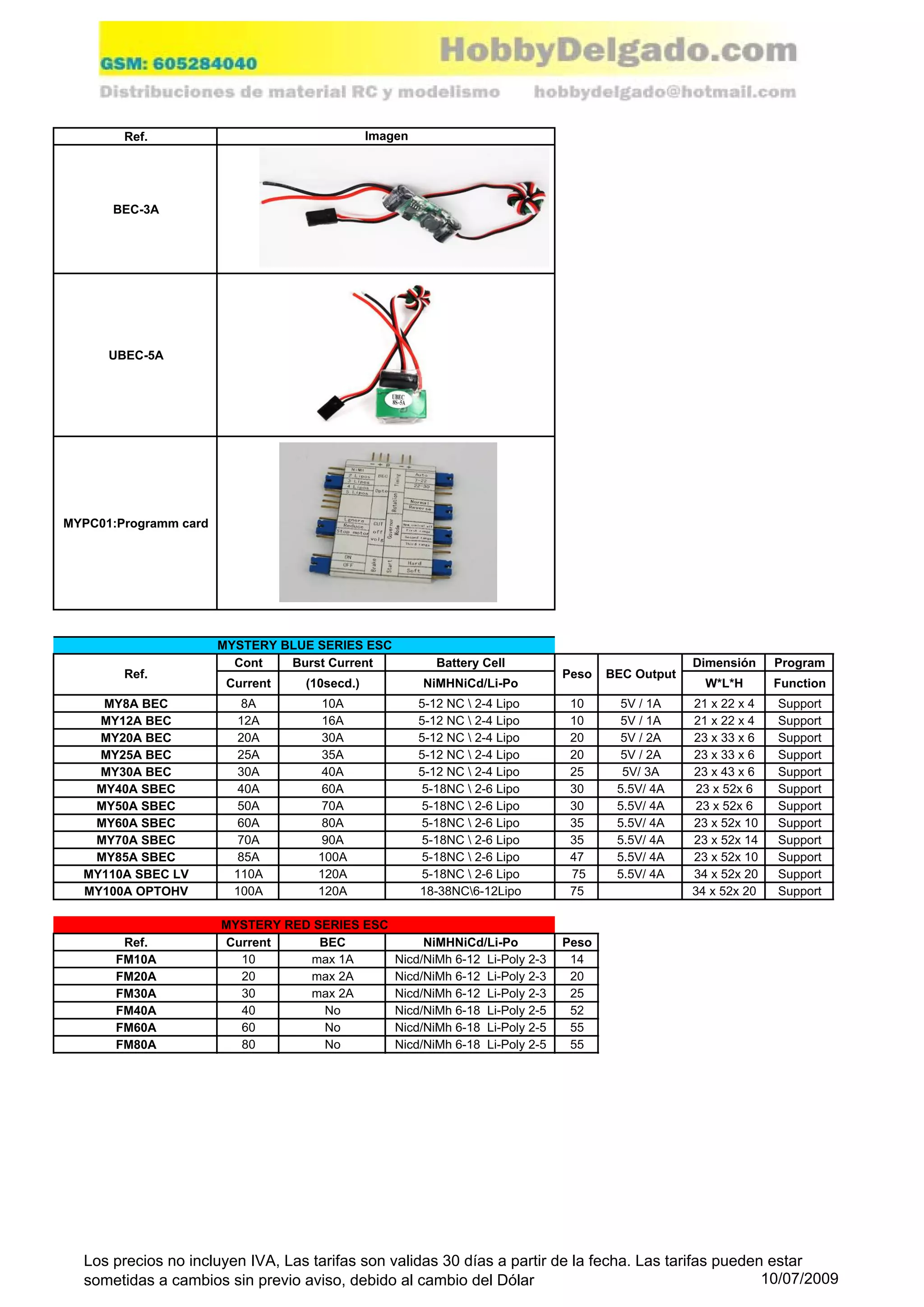

1. Ref. Imagen
BEC-3A
UBEC-5A
MYPC01:Programm card
MYSTERY BLUE SERIES ESC
Cont Burst Current Battery Cell Dimensión Program
Ref. Peso BEC Output
Current (10secd.) NiMHNiCd/Li-Po W*L*H Function
MY8A BEC 8A 10A 5-12 NC 2-4 Lipo 10 5V / 1A 21 x 22 x 4 Support
MY12A BEC 12A 16A 5-12 NC 2-4 Lipo 10 5V / 1A 21 x 22 x 4 Support
MY20A BEC 20A 30A 5-12 NC 2-4 Lipo 20 5V / 2A 23 x 33 x 6 Support
MY25A BEC 25A 35A 5-12 NC 2-4 Lipo 20 5V / 2A 23 x 33 x 6 Support
MY30A BEC 30A 40A 5-12 NC 2-4 Lipo 25 5V/ 3A 23 x 43 x 6 Support
MY40A SBEC 40A 60A 5-18NC 2-6 Lipo 30 5.5V/ 4A 23 x 52x 6 Support
MY50A SBEC 50A 70A 5-18NC 2-6 Lipo 30 5.5V/ 4A 23 x 52x 6 Support
MY60A SBEC 60A 80A 5-18NC 2-6 Lipo 35 5.5V/ 4A 23 x 52x 10 Support
MY70A SBEC 70A 90A 5-18NC 2-6 Lipo 35 5.5V/ 4A 23 x 52x 14 Support
MY85A SBEC 85A 100A 5-18NC 2-6 Lipo 47 5.5V/ 4A 23 x 52x 10 Support
MY110A SBEC LV 110A 120A 5-18NC 2-6 Lipo 75 5.5V/ 4A 34 x 52x 20 Support
MY100A OPTOHV 100A 120A 18-38NC6-12Lipo 75 34 x 52x 20 Support
MYSTERY RED SERIES ESC
Ref. Current BEC NiMHNiCd/Li-Po Peso
FM10A 10 max 1A Nicd/NiMh 6-12 Li-Poly 2-3 14
FM20A 20 max 2A Nicd/NiMh 6-12 Li-Poly 2-3 20
FM30A 30 max 2A Nicd/NiMh 6-12 Li-Poly 2-3 25
FM40A 40 No Nicd/NiMh 6-18 Li-Poly 2-5 52
FM60A 60 No Nicd/NiMh 6-18 Li-Poly 2-5 55
FM80A 80 No Nicd/NiMh 6-18 Li-Poly 2-5 55
Los precios no incluyen IVA, Las tarifas son validas 30 días a partir de la fecha. Las tarifas pueden estar
sometidas a cambios sin previo aviso, debido al cambio del Dólar 10/07/2009

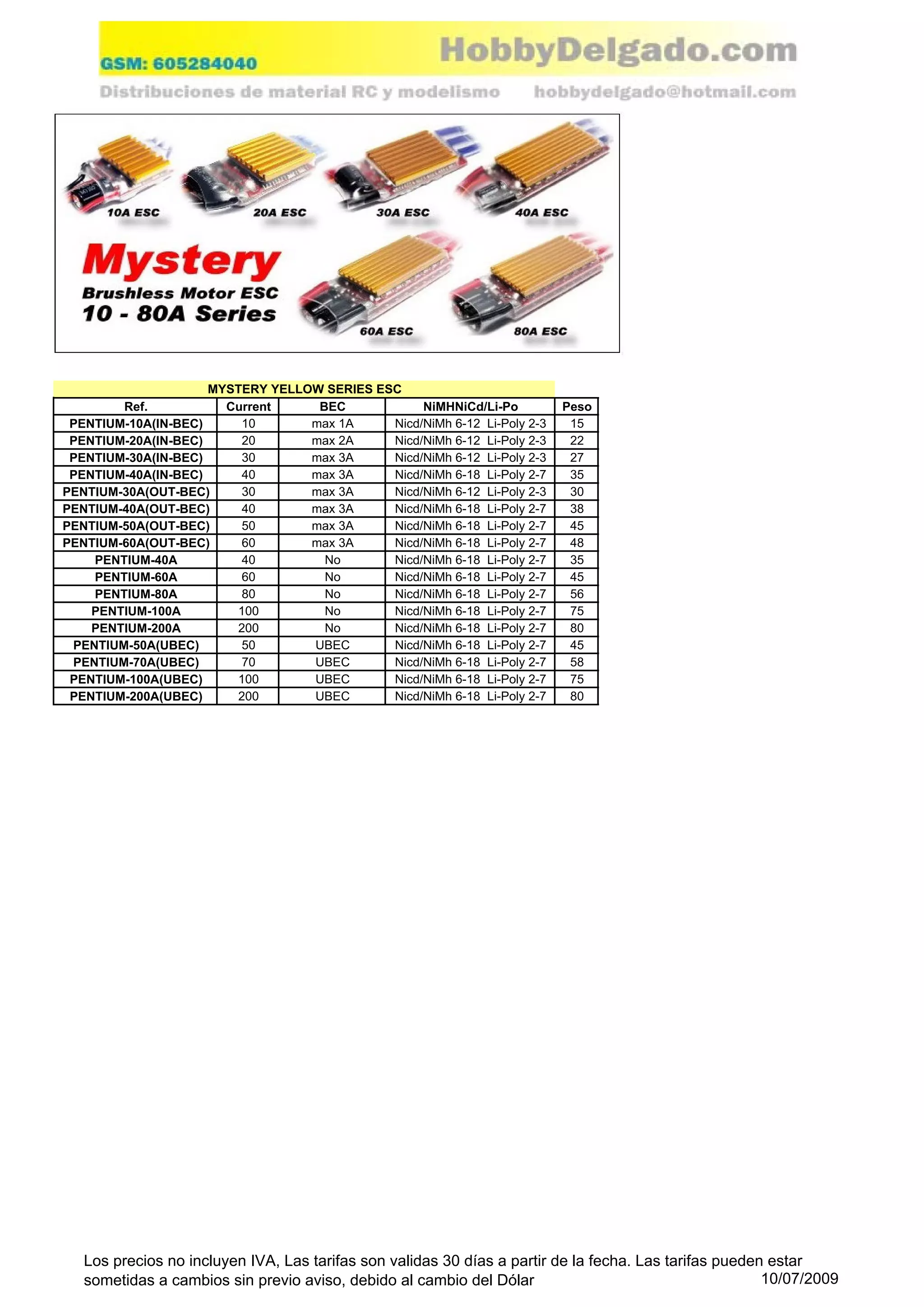

2. MYSTERY YELLOW SERIES ESC
Ref. Current BEC NiMHNiCd/Li-Po Peso
PENTIUM-10A(IN-BEC) 10 max 1A Nicd/NiMh 6-12 Li-Poly 2-3 15
PENTIUM-20A(IN-BEC) 20 max 2A Nicd/NiMh 6-12 Li-Poly 2-3 22
PENTIUM-30A(IN-BEC) 30 max 3A Nicd/NiMh 6-12 Li-Poly 2-3 27
PENTIUM-40A(IN-BEC) 40 max 3A Nicd/NiMh 6-18 Li-Poly 2-7 35
PENTIUM-30A(OUT-BEC) 30 max 3A Nicd/NiMh 6-12 Li-Poly 2-3 30
PENTIUM-40A(OUT-BEC) 40 max 3A Nicd/NiMh 6-18 Li-Poly 2-7 38
PENTIUM-50A(OUT-BEC) 50 max 3A Nicd/NiMh 6-18 Li-Poly 2-7 45
PENTIUM-60A(OUT-BEC) 60 max 3A Nicd/NiMh 6-18 Li-Poly 2-7 48
PENTIUM-40A 40 No Nicd/NiMh 6-18 Li-Poly 2-7 35
PENTIUM-60A 60 No Nicd/NiMh 6-18 Li-Poly 2-7 45
PENTIUM-80A 80 No Nicd/NiMh 6-18 Li-Poly 2-7 56
PENTIUM-100A 100 No Nicd/NiMh 6-18 Li-Poly 2-7 75
PENTIUM-200A 200 No Nicd/NiMh 6-18 Li-Poly 2-7 80
PENTIUM-50A(UBEC) 50 UBEC Nicd/NiMh 6-18 Li-Poly 2-7 45
PENTIUM-70A(UBEC) 70 UBEC Nicd/NiMh 6-18 Li-Poly 2-7 58
PENTIUM-100A(UBEC) 100 UBEC Nicd/NiMh 6-18 Li-Poly 2-7 75
PENTIUM-200A(UBEC) 200 UBEC Nicd/NiMh 6-18 Li-Poly 2-7 80
Los precios no incluyen IVA, Las tarifas son validas 30 días a partir de la fecha. Las tarifas pueden estar
sometidas a cambios sin previo aviso, debido al cambio del Dólar 10/07/2009
