This document provides specifications for high frequency battery chargers suitable for charging lead-acid and gel batteries. The chargers have features like waterproofing, compact size, IP-66 protection, and protections against polarity reversal and short circuits. They are available in models for 12V, 24V, 36V and 48V batteries with various current ratings from 6A to 25A. Dimensions and performance characteristics like charging capacity are listed for each model. The chargers conform to relevant European directives and standards and include input cables and polarized battery cables.

1. Rev.:2-2016
Los datos de este catálogo deben entenderse como simplemente orientativos y pueden ser modificados sin aviso previo.
The company reserves the right to change the specifications of its products without prior notice and such change would render the pubblications inaccurate.
• Switching battery charger with high frequency
technology.
• Feeding 110/240V single-phase ± 10%.
• Waterproof
• Space saving
• IP-66 degree
• Protection from wrong polarity
• Short circuit proof
• Tecnología de alta frecuencia.
• Entrada 110/240V monofásico ± 10%.
• Impermeable
• Compacto
• Grado de protección IP-66
• Protección contra la inversión de polaridad
• Protección contra el cortocircuit
Conformità alle direttive 89/336/CEE e 72/23/CEE e marcatura .
Conformity to the directives 89/336/CEE and 72/23/CEE marking.
ISO 9001
(Global warming, CO2 reduction)
Security and an environmental close-up

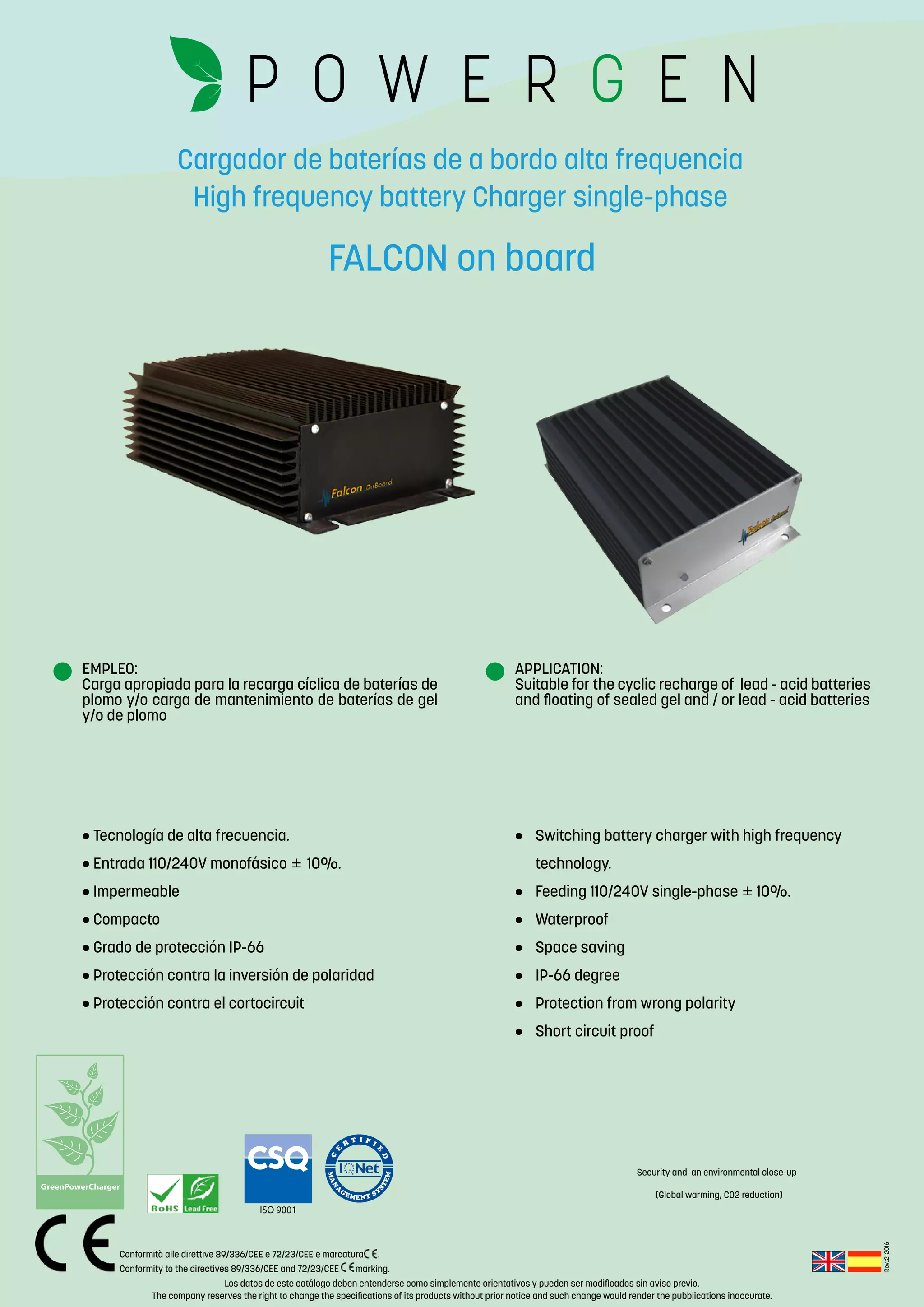

Cargador de baterías de a bordo alta frequencia
High frequency battery Charger single-phase
FALCON on board
EMPLEO:
Carga apropiada para la recarga cíclica de baterías de
plomo y/o carga de mantenimiento de baterías de gel
y/o de plomo
APPLICATION:
Suitable for the cyclic recharge of lead - acid batteries
and floating of sealed gel and / or lead - acid batteries

2. Rev.:2-2016
Los datos de este catálogo deben entenderse como simplemente orientativos y pueden ser modificados sin aviso previo.
The company reserves the right to change the specifications of its products without prior notice and such change would render the pubblications inaccurate.
recomienda a bordo
recommended on board

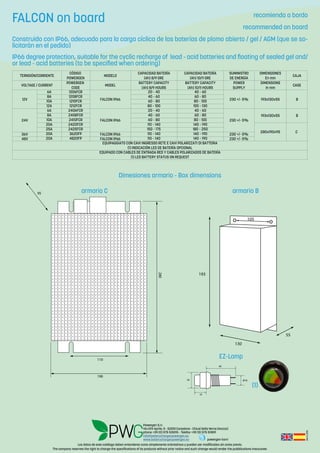

Dimesiones armario - Box dimensions
Construido con IP66, adecuado para la carga cíclica de las baterías de plomo abierto / gel / AGM (que se so-
licitarán en el pedido)
IP66 degree protection, suitable for the cyclic recharge of lead - acid batteries and floating of sealed gel and/
or lead - acid batteries (to be specified when ordering)
armario B
EZ-Lamp
(1)
40
26
16
Ø18
MODELO CAJA
VOLTAGE/CURRENT MODEL CASE
12V
6A 1206FCR
FALCONIP66
20–40 40–60
230+/-5% 193x130x55 B
8A 1208FCR 40–60 60–80
10A 1210FCR 60–80 80–100
12A 1212FCR 80–100 100–130
24V
6A 2406FCR
FALCONIP66
20–40 40–60
230+/-5%
193x130x55 B8A 2408FCR 40–60 60–80
10A 2410FCR 60–80 80–100
20A 2420FCR 110–140 140–190
280x190x95 C
25A 2425FCR 150–175 180–250
36V 20A 3620FP FALCONIP66 110–140 140–190 230+/-5%
48V 20A 4820FP FALCONIP66 110–140 140–190 230+/-5%
EQUIPAGGIATOCONCAVIINGRESSORETEECAVIPOLARIZZATIDIBATTERIA
(1)INDICACIÓNLEDDEBATERÍAOPCIONAL
EQUIPADOCONCABLESDEENTRADAREDYCABLESPOLARIZADOSDEBATERÍA
(1)LEDBATTERYSTATUSONREQUEST
TERNSIÓN/CORRIENTE
CÓDIGO
POWERGEN
CAPACIDADBATERÍA
(Ah)8/9ORE
CAPACIDADBATERÍA
(Ah)10/11ORE
SUMINISTRO
DEENERGÍA
DIMENSIONES
Enmm
POWERGEN
CODE
BATTERYCAPACITY
(Ah)8/9HOURS
BATTERYCAPACITY
(Ah)10/11HOURS
POWER
SUPPLY
DIMENSIONS
Inmm
130
55
193
105o o
280
190
110
95
FALCON on board
armario C
