ENIB 2015 2016 - CAI Web S02E03- Forge JS 1/4 - La forge JavaScript

1. Conception d'Applications
Interactives :
Applications Web et JEE
Séance #3
Une forge JavaScript
1/4 - Forge JavaScript

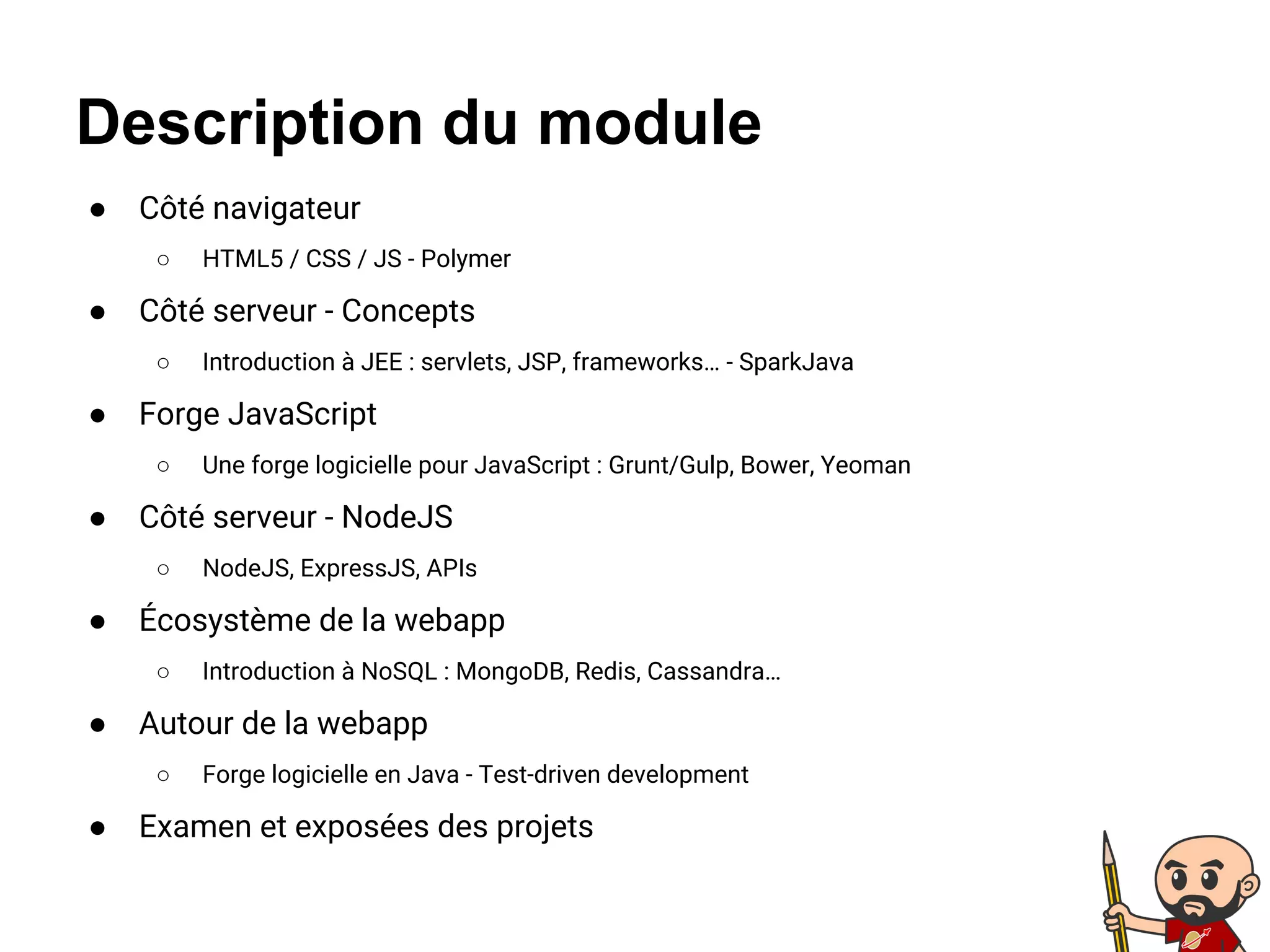

2. Description du module
● Côté navigateur
○ HTML5 / CSS / JS - Polymer
● Côté serveur - Concepts
○ Introduction à JEE : servlets, JSP, frameworks… - SparkJava
● Forge JavaScript
○ Une forge logicielle pour JavaScript : Grunt/Gulp, Bower, Yeoman
● Côté serveur - NodeJS
○ NodeJS, ExpressJS, APIs
● Écosystème de la webapp
○ Introduction à NoSQL : MongoDB, Redis, Cassandra…
● Autour de la webapp
○ Forge logicielle en Java - Test-driven development
● Examen et exposées des projets

3. By @LostInBrittany
A JavaScript forge

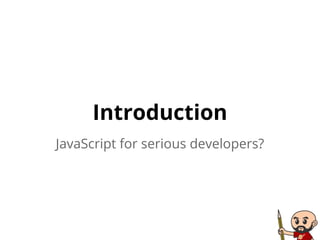

4. Introduction
JavaScript for serious developers?

5. Java developers love their forges
Industrialisation

6. But they need JavaScript
Java tools alone aren't fit for today's web

7. But doing JavaScript is daunting
Because it means two things:
● Learning the language
● Losing the forge
Image : Ken Schultz comedy juggler

8. It isn't true anymore!
You can have a forge in JavaScript

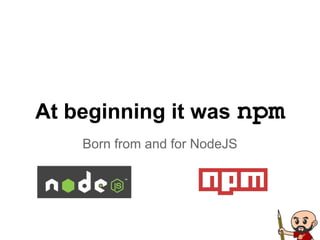

9. At beginning it was npm
Born from and for NodeJS

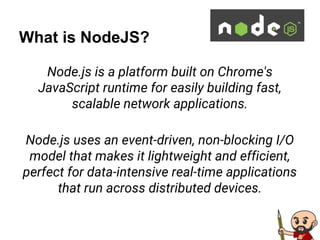

10. What is NodeJS?
Node.js is a platform built on Chrome's
JavaScript runtime for easily building fast,
scalable network applications.
Node.js uses an event-driven, non-blocking I/O
model that makes it lightweight and efficient,
perfect for data-intensive real-time applications
that run across distributed devices.

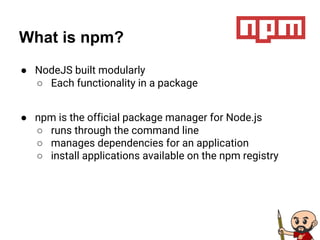

11. What is npm?
● NodeJS built modularly
○ Each functionality in a package
● npm is the official package manager for Node.js
○ runs through the command line
○ manages dependencies for an application
○ install applications available on the npm registry

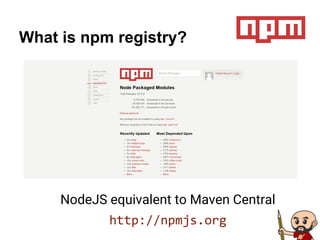

12. What is npm registry?
NodeJS equivalent to Maven Central
http://npmjs.org

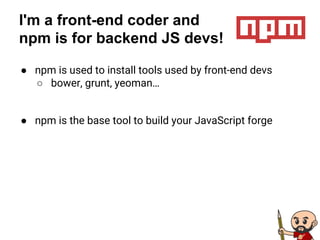

13. I'm a front-end coder and
npm is for backend JS devs!
● npm is used to install tools used by front-end devs
○ bower, grunt, yeoman…
● npm is the base tool to build your JavaScript forge

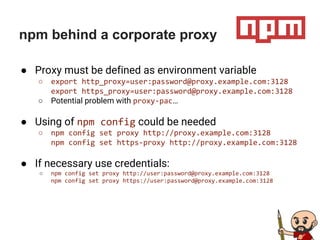

14. npm behind a corporate proxy
● Proxy must be defined as environment variable
○ export http_proxy=user:password@proxy.example.com:3128
export https_proxy=user:password@proxy.example.com:3128
○ Potential problem with proxy-pac…
● Using of npm config could be needed
○ npm config set proxy http://proxy.example.com:3128
npm config set https-proxy http://proxy.example.com:3128
● If necessary use credentials:
○ npm config set proxy http://user:password@proxy.example.com:3128
npm config set proxy https://user:password@proxy.example.com:3128

15. Bower
Dependencies management for the web

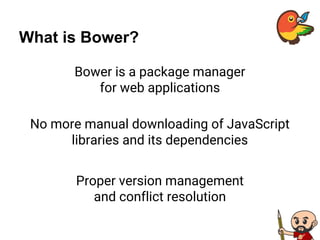

16. What is Bower?
Bower is a package manager
for web applications
No more manual downloading of JavaScript
libraries and its dependencies
Proper version management
and conflict resolution

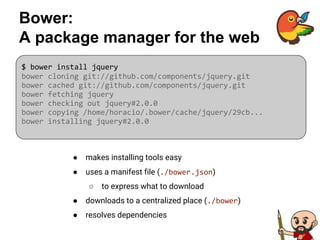

17. Bower:
A package manager for the web
● makes installing tools easy
● uses a manifest file (./bower.json)
○ to express what to download
● downloads to a centralized place (./bower)
● resolves dependencies
$ bower install jquery
bower cloning git://github.com/components/jquery.git
bower cached git://github.com/components/jquery.git
bower fetching jquery
bower checking out jquery#2.0.0
bower copying /home/horacio/.bower/cache/jquery/29cb...
bower installing jquery#2.0.0

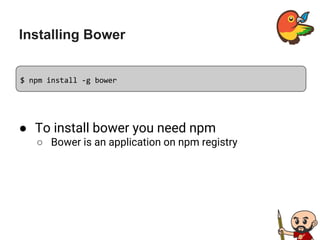

18. Installing Bower
● To install bower you need npm
○ Bower is an application on npm registry
$ npm install -g bower

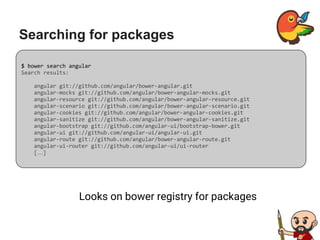

19. Searching for packages
Looks on bower registry for packages
$ bower search angular
Search results:
angular git://github.com/angular/bower-angular.git
angular-mocks git://github.com/angular/bower-angular-mocks.git
angular-resource git://github.com/angular/bower-angular-resource.git
angular-scenario git://github.com/angular/bower-angular-scenario.git
angular-cookies git://github.com/angular/bower-angular-cookies.git
angular-sanitize git://github.com/angular/bower-angular-sanitize.git
angular-bootstrap git://github.com/angular-ui/bootstrap-bower.git
angular-ui git://github.com/angular-ui/angular-ui.git
angular-route git://github.com/angular/bower-angular-route.git
angular-ui-router git://github.com/angular-ui/ui-router
[…]

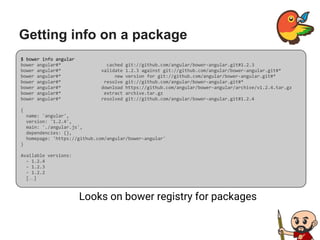

20. Getting info on a package
Looks on bower registry for packages
$ bower info angular
bower angular#* cached git://github.com/angular/bower-angular.git#1.2.3
bower angular#* validate 1.2.3 against git://github.com/angular/bower-angular.git#*
bower angular#* new version for git://github.com/angular/bower-angular.git#*
bower angular#* resolve git://github.com/angular/bower-angular.git#*
bower angular#* download https://github.com/angular/bower-angular/archive/v1.2.4.tar.gz
bower angular#* extract archive.tar.gz
bower angular#* resolved git://github.com/angular/bower-angular.git#1.2.4
{
name: 'angular',
version: '1.2.4',
main: './angular.js',
dependencies: {},
homepage: 'https://github.com/angular/bower-angular'
}
Available versions:
- 1.2.4
- 1.2.3
- 1.2.2
[…]

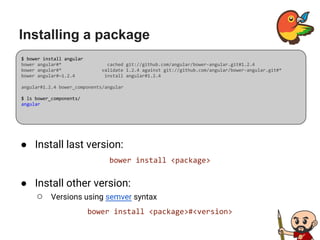

21. Installing a package
● Install last version:
bower install <package>
● Install other version:
○ Versions using semver syntax
bower install <package>#<version>
$ bower install angular
bower angular#* cached git://github.com/angular/bower-angular.git#1.2.4
bower angular#* validate 1.2.4 against git://github.com/angular/bower-angular.git#*
bower angular#~1.2.4 install angular#1.2.4
angular#1.2.4 bower_components/angular
$ ls bower_components/
angular

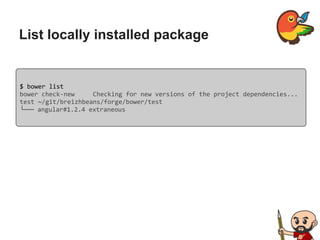

22. List locally installed package
$ bower list
bower check-new Checking for new versions of the project dependencies...
test ~/git/breizhbeans/forge/bower/test
└── angular#1.2.4 extraneous

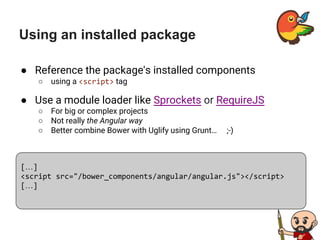

23. Using an installed package
● Reference the package's installed components
○ using a <script> tag
● Use a module loader like Sprockets or RequireJS
○ For big or complex projects
○ Not really the Angular way
○ Better combine Bower with Uglify using Grunt… ;-)
[…]
<script src="/bower_components/angular/angular.js"></script>
[…]

24. Using local package cache
● Useful when offline
$ bower cache list
ace=git://github.com/ajaxorg/ace.git#1.1.1
ace-builds=git://github.com/ajaxorg/ace-builds.git#1.1.1
angular=git://github.com/angular/bower-angular.git#1.0.8
angular=git://github.com/angular/bower-angular.git#1.2.0-rc.3
angular=git://github.com/angular/bower-angular.git#1.2.0
angular=git://github.com/angular/bower-angular.git#1.2.3
angular=git://github.com/angular/bower-angular.git#1.2.4
[…]
$ bower install <package-name> --offline

25. Where are the packages?
● Registered with Bower
○ jquery, angular…
● Remote Git endpoints
○ public or private
○ git://github.com/angular/bower-angular.git
● A local endpoint
○ a folder that's a Git repository
● A shorthand endpoint
○ defaults to GitHub
○ angular/bower-angular
● A URL to a file
○ including zip and tar files
○ Its contents will be extracted.

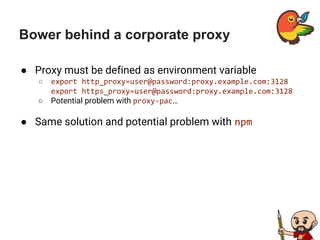

26. Bower behind a corporate proxy
● Proxy must be defined as environment variable
○ export http_proxy=user@password:proxy.example.com:3128
export https_proxy=user@password:proxy.example.com:3128
○ Potential problem with proxy-pac…
● Same solution and potential problem with npm

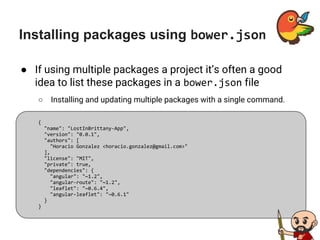

27. Installing packages using bower.json
● If using multiple packages a project it’s often a good
idea to list these packages in a bower.json file
○ Installing and updating multiple packages with a single command.
{
"name": "LostInBrittany-App",
"version": "0.0.1",
"authors": [
"Horacio Gonzalez <horacio.gonzalez@gmail.com>"
],
"license": "MIT",
"private": true,
"dependencies": {
"angular": "~1.2",
"angular-route": "~1.2",
"leaflet": "~0.6.4",
"angular-leaflet": "~0.6.1"
}
}

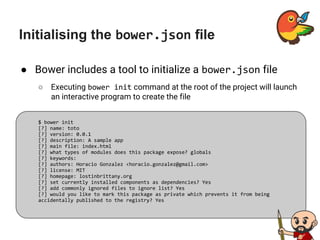

28. Initialising the bower.json file
● Bower includes a tool to initialize a bower.json file
○ Executing bower init command at the root of the project will launch
an interactive program to create the file
$ bower init
[?] name: toto
[?] version: 0.0.1
[?] description: A sample app
[?] main file: index.html
[?] what types of modules does this package expose? globals
[?] keywords:
[?] authors: Horacio Gonzalez <horacio.gonzalez@gmail.com>
[?] license: MIT
[?] homepage: lostinbrittany.org
[?] set currently installed components as dependencies? Yes
[?] add commonly ignored files to ignore list? Yes
[?] would you like to mark this package as private which prevents it from being
accidentally published to the registry? Yes

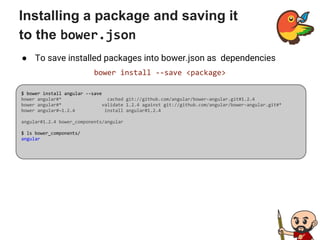

29. Installing a package and saving it
to the bower.json
● To save installed packages into bower.json as dependencies
bower install --save <package>
$ bower install angular --save
bower angular#* cached git://github.com/angular/bower-angular.git#1.2.4
bower angular#* validate 1.2.4 against git://github.com/angular/bower-angular.git#*
bower angular#~1.2.4 install angular#1.2.4
angular#1.2.4 bower_components/angular
$ ls bower_components/
angular

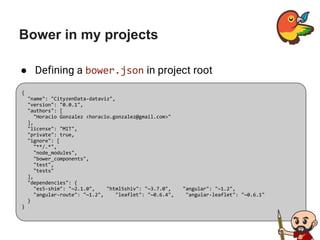

30. Bower in my projects
● Defining a bower.json in project root
{
"name": "CityzenData-dataviz",
"version": "0.0.1",
"authors": [
"Horacio Gonzalez <horacio.gonzalez@gmail.com>"
],
"license": "MIT",
"private": true,
"ignore": [
"**/.*",
"node_modules",
"bower_components",
"test",
"tests"
],
"dependencies": {
"es5-shim": "~2.1.0", "html5shiv": "~3.7.0", "angular": "~1.2",
"angular-route": "~1.2", "leaflet": "~0.6.4", "angular-leaflet": "~0.6.1"
}
}

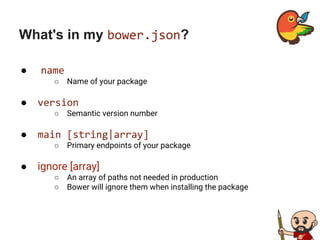

31. What's in my bower.json?
● name
○ Name of your package
● version
○ Semantic version number
● main [string|array]
○ Primary endpoints of your package
● ignore [array]
○ An array of paths not needed in production
○ Bower will ignore them when installing the package

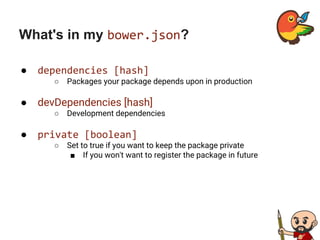

32. What's in my bower.json?
● dependencies [hash]
○ Packages your package depends upon in production
● devDependencies [hash]
○ Development dependencies
● private [boolean]
○ Set to true if you want to keep the package private
■ If you won't want to register the package in future

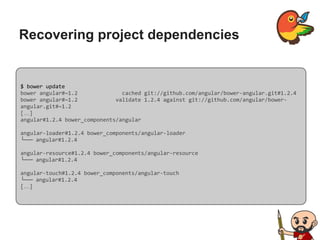

33. Recovering project dependencies
$ bower update
bower angular#~1.2 cached git://github.com/angular/bower-angular.git#1.2.4
bower angular#~1.2 validate 1.2.4 against git://github.com/angular/bower-
angular.git#~1.2
[…]
angular#1.2.4 bower_components/angular
angular-loader#1.2.4 bower_components/angular-loader
└── angular#1.2.4
angular-resource#1.2.4 bower_components/angular-resource
└── angular#1.2.4
angular-touch#1.2.4 bower_components/angular-touch
└── angular#1.2.4
[…]

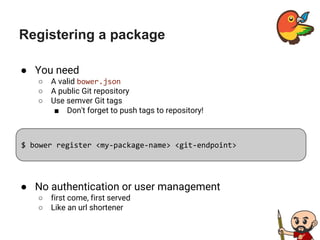

34. Registering a package
● You need
○ A valid bower.json
○ A public Git repository
○ Use semver Git tags
■ Don't forget to push tags to repository!
$ bower register <my-package-name> <git-endpoint>
● No authentication or user management
○ first come, first served
○ Like an url shortener

35. Other useful Bower commands
$ bower
Usage:
bower <command> [<args>] [<options>]
Commands:
cache Manage bower cache
help Display help information about Bower
home Opens a package homepage into your favorite browser
info Info of a particular package
init Interactively create a bower.json file
install Install a package locally
link Symlink a package folder
list List local packages
lookup Look up a package URL by name
prune Removes local extraneous packages
register Register a package
search Search for a package by name
update Update a local package
uninstall Remove a local package

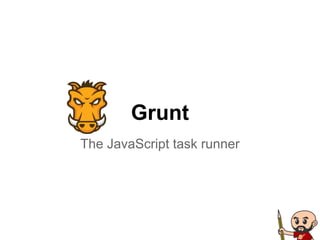

36. Grunt
The JavaScript task runner

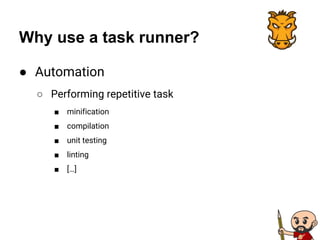

37. Why use a task runner?
● Automation
○ Performing repetitive task
■ minification
■ compilation
■ unit testing
■ linting
■ […]

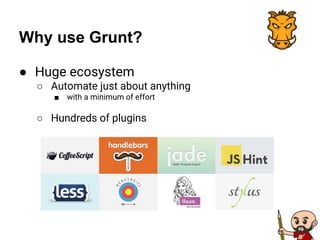

38. Why use Grunt?
● Huge ecosystem
○ Automate just about anything
■ with a minimum of effort
○ Hundreds of plugins

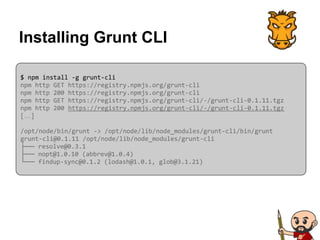

39. Installing Grunt CLI
$ npm install -g grunt-cli
npm http GET https://registry.npmjs.org/grunt-cli
npm http 200 https://registry.npmjs.org/grunt-cli
npm http GET https://registry.npmjs.org/grunt-cli/-/grunt-cli-0.1.11.tgz
npm http 200 https://registry.npmjs.org/grunt-cli/-/grunt-cli-0.1.11.tgz
[…]
/opt/node/bin/grunt -> /opt/node/lib/node_modules/grunt-cli/bin/grunt
grunt-cli@0.1.11 /opt/node/lib/node_modules/grunt-cli
├── resolve@0.3.1
├── nopt@1.0.10 (abbrev@1.0.4)
└── findup-sync@0.1.2 (lodash@1.0.1, glob@3.1.21)

40. Using Grunt on a project
● A Gruntfile.js file
○ To configure and define tasks and load Grunt plugins
○ We will see it latter
● A package.json file
○ list Grunt and the Grunt plugins your project needs
○ as devDependencies
{
"name": "my-project-name",
"version": "0.1.0",
"devDependencies": {
"grunt": "~0.4.2",
"grunt-contrib-jshint": "~0.6.3",
"grunt-contrib-nodeunit": "~0.2.0",
"grunt-contrib-uglify": "~0.2.2"
}
}

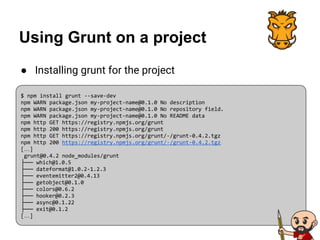

41. Using Grunt on a project
● Installing grunt for the project
$ npm install grunt --save-dev
npm WARN package.json my-project-name@0.1.0 No description
npm WARN package.json my-project-name@0.1.0 No repository field.
npm WARN package.json my-project-name@0.1.0 No README data
npm http GET https://registry.npmjs.org/grunt
npm http 200 https://registry.npmjs.org/grunt
npm http GET https://registry.npmjs.org/grunt/-/grunt-0.4.2.tgz
npm http 200 https://registry.npmjs.org/grunt/-/grunt-0.4.2.tgz
[…]
grunt@0.4.2 node_modules/grunt
├── which@1.0.5
├── dateformat@1.0.2-1.2.3
├── eventemitter2@0.4.13
├── getobject@0.1.0
├── colors@0.6.2
├── hooker@0.2.3
├── async@0.1.22
├── exit@0.1.2
[…]

42. The Gruntfile
● Containing
○ The "wrapper" function
○ Project and task configuration
○ Loading Grunt plugins and tasks
○ Custom tasks
● Valid JS (or CoffeeScript) file

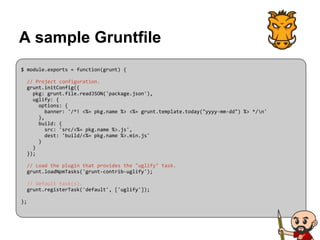

43. A sample Gruntfile
$ module.exports = function(grunt) {
// Project configuration.
grunt.initConfig({
pkg: grunt.file.readJSON('package.json'),
uglify: {
options: {
banner: '/*! <%= pkg.name %> <%= grunt.template.today("yyyy-mm-dd") %> */n'
},
build: {
src: 'src/<%= pkg.name %>.js',
dest: 'build/<%= pkg.name %>.min.js'
}
}
});
// Load the plugin that provides the "uglify" task.
grunt.loadNpmTasks('grunt-contrib-uglify');
// Default task(s).
grunt.registerTask('default', ['uglify']);
};

44. The wrapper function
● All of your Grunt code must be specified inside
module.exports = function(grunt) {
// Do grunt-related things in here
};

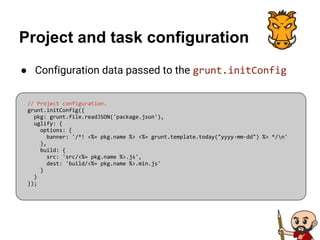

45. Project and task configuration
● Configuration data passed to the grunt.initConfig
// Project configuration.
grunt.initConfig({
pkg: grunt.file.readJSON('package.json'),
uglify: {
options: {
banner: '/*! <%= pkg.name %> <%= grunt.template.today("yyyy-mm-dd") %> */n'
},
build: {
src: 'src/<%= pkg.name %>.js',
dest: 'build/<%= pkg.name %>.min.js'
}
}
});

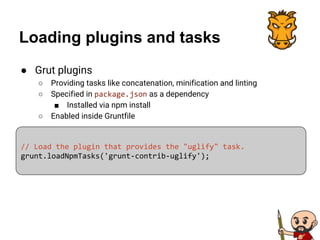

46. Loading plugins and tasks
● Grut plugins
○ Providing tasks like concatenation, minification and linting
○ Specified in package.json as a dependency
■ Installed via npm install
○ Enabled inside Gruntfile
// Load the plugin that provides the "uglify" task.
grunt.loadNpmTasks('grunt-contrib-uglify');

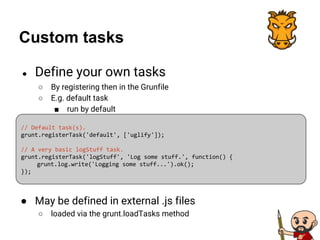

47. Custom tasks
● Define your own tasks
○ By registering then in the Grunfile
○ E.g. default task
■ run by default
// Default task(s).
grunt.registerTask('default', ['uglify']);
// A very basic logStuff task.
grunt.registerTask('logStuff', 'Log some stuff.', function() {
grunt.log.write('Logging some stuff...').ok();
});
● May be defined in external .js files
○ loaded via the grunt.loadTasks method

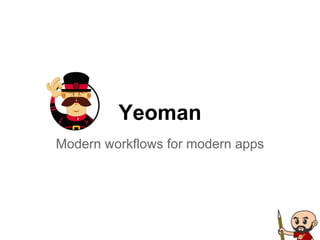

48. Yeoman
Modern workflows for modern apps

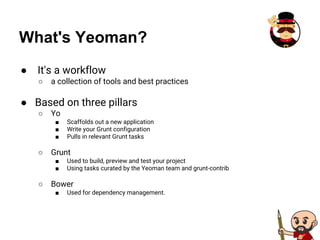

49. What's Yeoman?
● It's a workflow
○ a collection of tools and best practices
● Based on three pillars
○ Yo
■ Scaffolds out a new application
■ Write your Grunt configuration
■ Pulls in relevant Grunt tasks
○ Grunt
■ Used to build, preview and test your project
■ Using tasks curated by the Yeoman team and grunt-contrib
○ Bower
■ Used for dependency management.

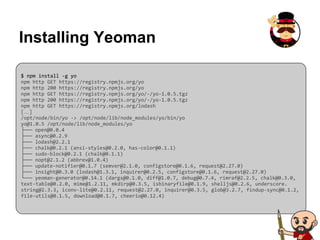

50. Installing Yeoman
$ npm install -g yo
npm http GET https://registry.npmjs.org/yo
npm http 200 https://registry.npmjs.org/yo
npm http GET https://registry.npmjs.org/yo/-/yo-1.0.5.tgz
npm http 200 https://registry.npmjs.org/yo/-/yo-1.0.5.tgz
npm http GET https://registry.npmjs.org/lodash
[…]
/opt/node/bin/yo -> /opt/node/lib/node_modules/yo/bin/yo
yo@1.0.5 /opt/node/lib/node_modules/yo
├── open@0.0.4
├── async@0.2.9
├── lodash@2.2.1
├── chalk@0.2.1 (ansi-styles@0.2.0, has-color@0.1.1)
├── sudo-block@0.2.1 (chalk@0.1.1)
├── nopt@2.1.2 (abbrev@1.0.4)
├── update-notifier@0.1.7 (semver@2.1.0, configstore@0.1.6, request@2.27.0)
├── insight@0.3.0 (lodash@1.3.1, inquirer@0.2.5, configstore@0.1.6, request@2.27.0)
└── yeoman-generator@0.14.1 (dargs@0.1.0, diff@1.0.7, debug@0.7.4, rimraf@2.2.5, chalk@0.3.0,
text-table@0.2.0, mime@1.2.11, mkdirp@0.3.5, isbinaryfile@0.1.9, shelljs@0.2.6, underscore.
string@2.3.3, iconv-lite@0.2.11, request@2.27.0, inquirer@0.3.5, glob@3.2.7, findup-sync@0.1.2,
file-utils@0.1.5, download@0.1.7, cheerio@0.12.4)

51. Installing yo generators
$ npm install -g generator-webapp
npm http GET https://registry.npmjs.org/generator-webapp
npm http 200 https://registry.npmjs.org/generator-webapp
npm http GET https://registry.npmjs.org/generator-webapp/-/generator-webapp-0.4.4.tgz
npm http 200 https://registry.npmjs.org/generator-webapp/-/generator-webapp-0.4.4.tgz
[…]
generator-webapp@0.4.4 /opt/node/lib/node_modules/generator-webapp
├── cheerio@0.12.4 (entities@0.3.0, underscore@1.4.4, htmlparser2@3.1.4, cheerio-select@0.0.3)
└── yeoman-generator@0.13.4 (dargs@0.1.0, diff@1.0.7, debug@0.7.4, rimraf@2.2.5, text-table@0.
1.1, mime@1.2.11, async@0.2.9, mkdirp@0.3.5, isbinaryfile@0.1.9, shelljs@0.1.4, underscore.
string@2.3.3, iconv-lite@0.2.11, lodash@1.3.1, chalk@0.2.1, tar@0.1.19, findup-sync@0.1.2,
glob@3.2.7, inquirer@0.3.5, request@2.25.0)
● Generators are used to scaffold your apps
○ A generator by kind of app
■ e.g. generator-webapp, generator-angular

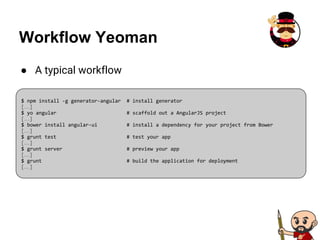

52. ● A typical workflow
Workflow Yeoman
$ npm install -g generator-angular # install generator
[…]
$ yo angular # scaffold out a AngularJS project
[…]
$ bower install angular-ui # install a dependency for your project from Bower
[…]
$ grunt test # test your app
[…]
$ grunt server # preview your app
[…]
$ grunt # build the application for deployment
[…]

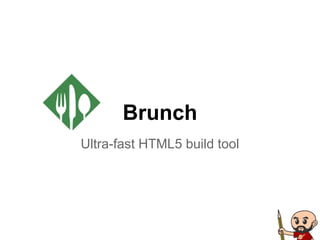

53. Brunch
Ultra-fast HTML5 build tool

54. Why Brunch?
● Grunt & Gulp are powerful… but complex
○ Brunch is order-of-magnitude simpler
● Config files are easy and short
exports.config =
# See http://brunch.io/#documentation for docs.
files:
javascripts:
joinTo:
'javascripts/app.js': /^app/
'javascripts/vendor.js': /^(?!app)/
stylesheets:
joinTo: 'stylesheets/app.css'
templates:
joinTo: 'javascripts/app.js'
[…]

55. Why Brunch?
● Command line options are minimal
○ Three commands: new, build and watch
● Lots of plugins
○ With plugins it do anything Grunt tasks do
(and beyond…)
● Gulp adapter
○ To use Gulp tasks inside Brunch

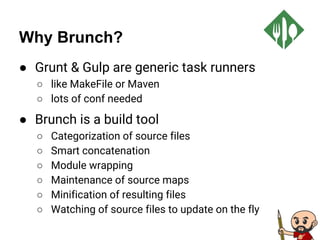

56. Why Brunch?
● Grunt & Gulp are generic task runners
○ like MakeFile or Maven
○ lots of conf needed
● Brunch is a build tool
○ Categorization of source files
○ Smart concatenation
○ Module wrapping
○ Maintenance of source maps
○ Minification of resulting files
○ Watching of source files to update on the fly

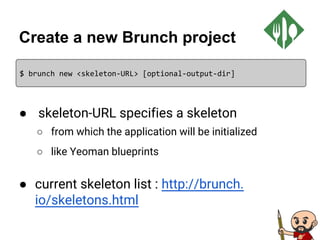

57. Create a new Brunch project
● skeleton-URL specifies a skeleton
○ from which the application will be initialized
○ like Yeoman blueprints
● current skeleton list : http://brunch.
io/skeletons.html
$ brunch new <skeleton-URL> [optional-output-dir]

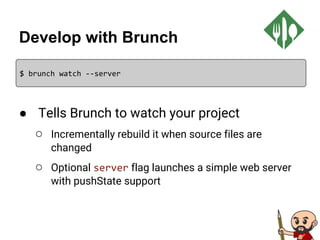

58. Develop with Brunch
● Tells Brunch to watch your project
○ Incrementally rebuild it when source files are
changed
○ Optional server flag launches a simple web server
with pushState support
$ brunch watch --server

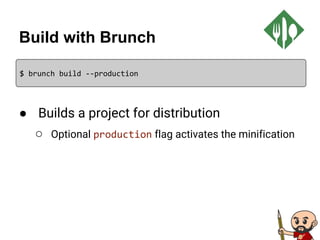

59. Build with Brunch
● Builds a project for distribution
○ Optional production flag activates the minification
$ brunch build --production

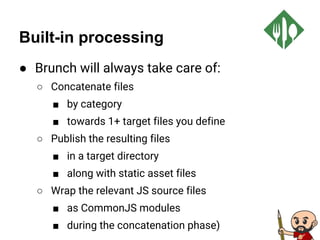

60. Built-in processing
● Brunch will always take care of:
○ Concatenate files
■ by category
■ towards 1+ target files you define
○ Publish the resulting files
■ in a target directory
■ along with static asset files
○ Wrap the relevant JS source files
■ as CommonJS modules
■ during the concatenation phase)

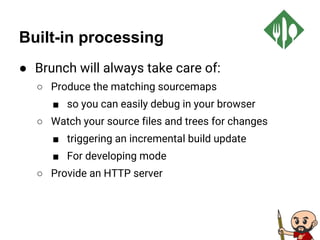

61. Built-in processing
● Brunch will always take care of:
○ Produce the matching sourcemaps
■ so you can easily debug in your browser
○ Watch your source files and trees for changes
■ triggering an incremental build update
■ For developing mode
○ Provide an HTTP server

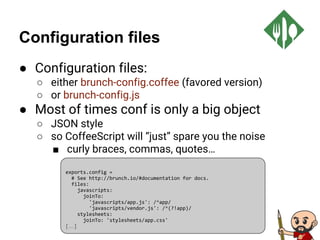

62. Configuration files
● Configuration files:
○ either brunch-config.coffee (favored version)
○ or brunch-config.js
● Most of times conf is only a big object
○ JSON style
○ so CoffeeScript will “just” spare you the noise
■ curly braces, commas, quotes…
exports.config =
# See http://brunch.io/#documentation for docs.
files:
javascripts:
joinTo:
'javascripts/app.js': /^app/
'javascripts/vendor.js': /^(?!app)/
stylesheets:
joinTo: 'stylesheets/app.css'
[…]

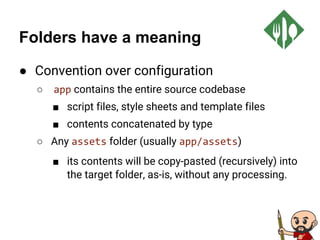

63. Folders have a meaning
● Convention over configuration
○ app contains the entire source codebase
■ script files, style sheets and template files
■ contents concatenated by type
○ Any assets folder (usually app/assets)
■ its contents will be copy-pasted (recursively) into
the target folder, as-is, without any processing.

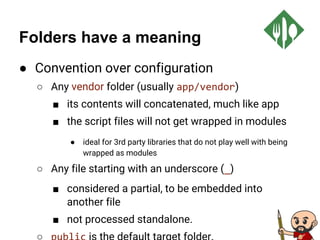

64. Folders have a meaning
● Convention over configuration
○ Any vendor folder (usually app/vendor)
■ its contents will concatenated, much like app
■ the script files will not get wrapped in modules
● ideal for 3rd party libraries that do not play well with being
wrapped as modules
○ Any file starting with an underscore (_)
■ considered a partial, to be embedded into
another file
■ not processed standalone.

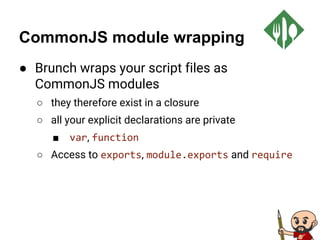

65. CommonJS module wrapping
● Brunch wraps your script files as
CommonJS modules
○ they therefore exist in a closure
○ all your explicit declarations are private
■ var, function
○ Access to exports, module.exports and require

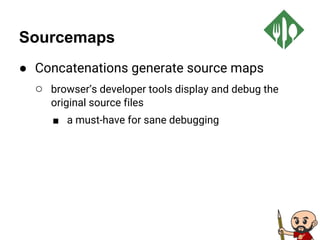

66. Sourcemaps
● Concatenations generate source maps
○ browser’s developer tools display and debug the
original source files
■ a must-have for sane debugging

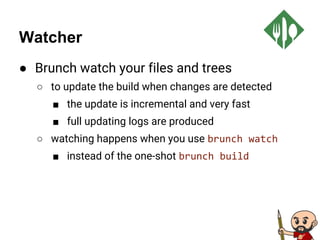

67. Watcher
● Brunch watch your files and trees
○ to update the build when changes are detected
■ the update is incremental and very fast
■ full updating logs are produced
○ watching happens when you use brunch watch
■ instead of the one-shot brunch build

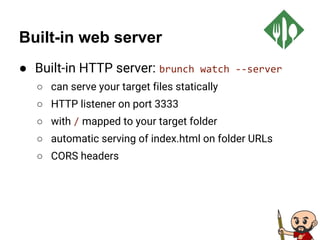

68. Built-in web server
● Built-in HTTP server: brunch watch --server
○ can serve your target files statically
○ HTTP listener on port 3333
○ with / mapped to your target folder
○ automatic serving of index.html on folder URLs
○ CORS headers

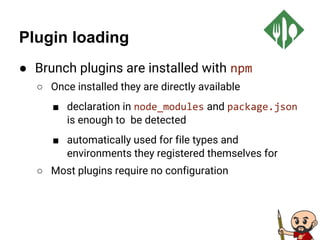

69. Plugin loading
● Brunch plugins are installed with npm
○ Once installed they are directly available
■ declaration in node_modules and package.json
is enough to be detected
■ automatically used for file types and
environments they registered themselves for
○ Most plugins require no configuration

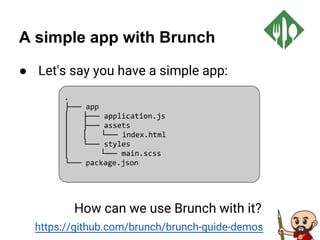

70. A simple app with Brunch
● Let's say you have a simple app:
How can we use Brunch with it?
https://github.com/brunch/brunch-guide-demos
.
├── app
│ ├── application.js
│ ├── assets
│ │ └── index.html
│ └── styles
│ └── main.scss
└── package.json

71. A simple app with Brunch
● First: installing a starting set of Brunch modules
● Then: writing a minimal Brunch configuration
○ a Node module that exports a config property
■ with at least a files property
● describing concatenations
$ npm install --save-dev brunch javascript-brunch sass-brunch
module.exports = config:
files:
javascripts: joinTo: 'app.js'
stylesheets: joinTo: 'app.css'

72. A simple app with Brunch
● Our first build
● Here’s what Brunch will have put in public:
$ brunch build
25 Feb 17:07:20 - info: compiled 2 files into 2 files, copied
index.html in 94ms
public/
├── app.css
├── app.css.map
├── app.js
├── app.js.map
└── index.html

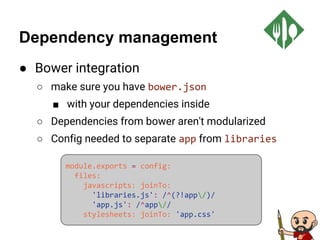

73. Dependency management
● Bower integration
○ make sure you have bower.json
■ with your dependencies inside
○ Dependencies from bower aren't modularized
○ Config needed to separate app from libraries
module.exports = config:
files:
javascripts: joinTo:
'libraries.js': /^(?!app/)/
'app.js': /^app//
stylesheets: joinTo: 'app.css'

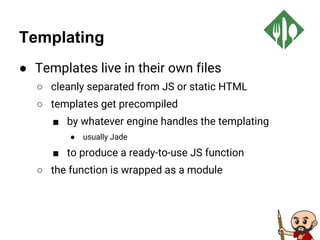

74. Templating
● Templates live in their own files
○ cleanly separated from JS or static HTML
○ templates get precompiled
■ by whatever engine handles the templating
● usually Jade
■ to produce a ready-to-use JS function
○ the function is wrapped as a module
