The NXT is a programmable robotics kit produced by Lego Mindstorms. It features a 32-bit main microprocessor and 8-bit microcontroller, input and output ports, an LCD screen, Bluetooth, speaker, and is powered by batteries. It can be programmed in many languages and uses sensors to read input and motors or servos for output. The NXT exposes concepts from an electronics class like flip-flops, AD/DA conversion, and microcontrollers. It aims to introduce children to programming, inspire creativity, and allow them to make simple helpful robots.

1. Hima Tammineedi Ian Lawson

2. What is an NXT?
 Produced by Lego Mindstorms
 Robotics
 System
 32-bit AT91SAM7S256 main microprocessor (256
kB flash memory, 64 kB RAM)
 8-bit ATmega48 microcontroller @ 4 MHz (4 kB
flash memory, 512 Bytes RAM)

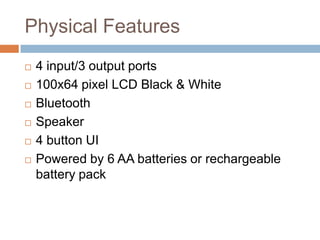

3. Physical Features
 4 input/3 output ports
 100x64 pixel LCD Black & White
 Bluetooth
 Speaker
 4 button UI
 Powered by 6 AA batteries or rechargeable
battery pack

4. Programming
 Programmable in many languages
 NXT-G
 LabVIEW
 RobotC
 NXTGCC
 MATLAB
 Many more….
 Read input from sensors/Output values to
motors or servos

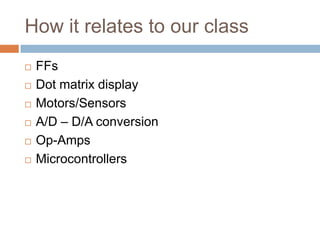

5. How it relates to our class
 FFs
 Dot matrix display
 Motors/Sensors
 A/D – D/A conversion
 Op-Amps
 Microcontrollers

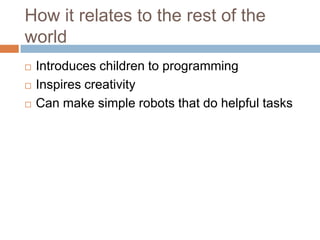

6. How it relates to the rest of the
world
 Introduces children to programming
 Inspires creativity
 Can make simple robots that do helpful tasks

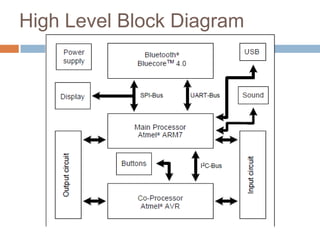

7. High Level Block Diagram

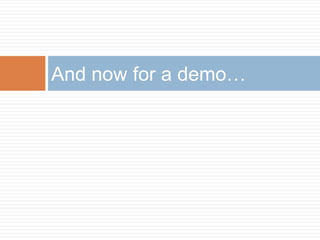

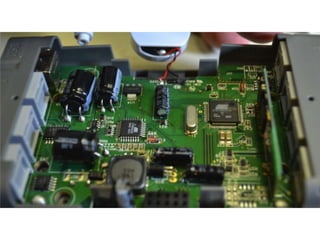

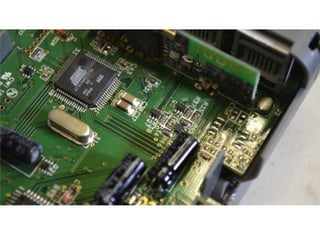

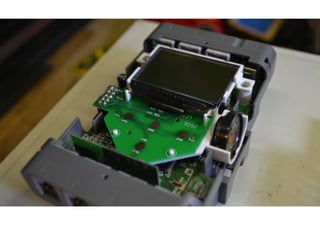

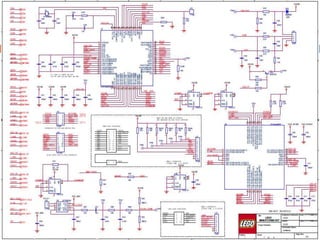

13. And now for a demo…
