Engineering Mechanics Resolution of Forces
- 1. 1 A Presentation on Department ofMechanical Engineering, SSPM’s College of Engineering, Harkul, Kankavli, 416602 2021-2022 Resolution of Forces By Prof. A S Pendse

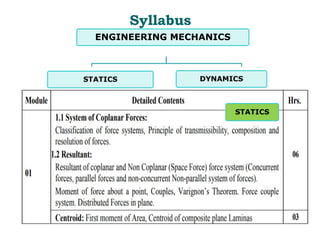

- 2. Content 2 1. What isEngineering Mechanics? 2. Classification of Mechanics 3. Syllabus 4. Force 5. Newton’s Laws of Motion 6. System of Forces 7. Resolution of Forces 8. Numericals
- 3. What is EngineeringMechanics It is the branch of physics which deals with the study of forces and the effect of forces on the bodies ,which are at rest or in motion. Mechanics term was first introduced by Sir Isaac Newton in the 15th century Engineering Mechanics subject is totally based on Newtonian Mechanics
- 4. Engineering Mechanics Solid mechanics Rigid body mechanics Statics Dynamics Mechanicsof deformable bodies Theory of elasticity Theory of plasticity Fluid mechanics Fluid static Fluid dynamics Fluid kinematics Fluid dynamics Classification of Mechanics
- 5. Branch ofengineering Mechanics which deals with effect of forces on the bodies which are at rest( not moving) e.g. Forces calculation in cable supporting electricity pole, Calculation of forces in truss member, calculation of friction etc. Branch of Engineering Mechanics which deals with effect of forces on bodies which are in motion e.g. Projectile motion analysis, equation of motions, NSL for moving objects Classification of Mechanics
- 6.
- 7.

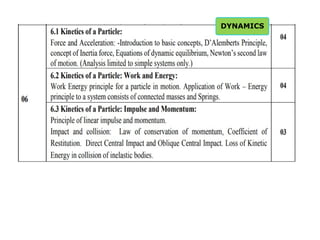

- 8.

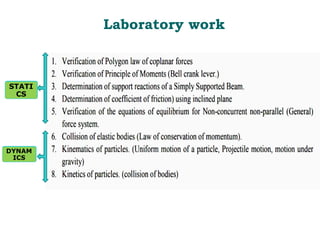

- 9.

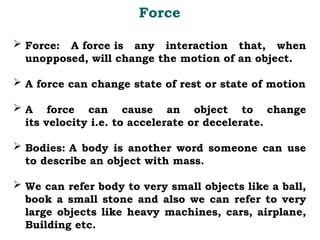

- 10. Force: Aforce is any interaction that, when unopposed, will change the motion of an object. A force can change state of rest or state of motion A force can cause an object to change its velocity i.e. to accelerate or decelerate. Bodies: A body is another word someone can use to describe an object with mass. We can refer body to very small objects like a ball, book a small stone and also we can refer to very large objects like heavy machines, cars, airplane, Building etc. Force

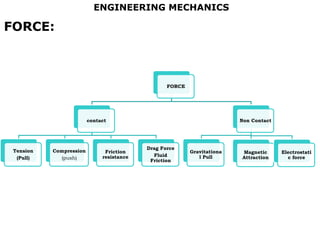

- 11. ENGINEERING MECHANICS FORCE: FORCE contact Tension (Pull) Compression (push) Friction resistance Drag Force Fluid Friction NonContact Gravitationa l Pull Magnetic Attraction Electrostati c force

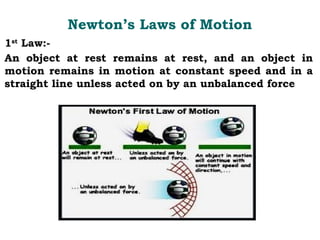

- 12. Newton’s Laws ofMotion 1st Law:- An object at rest remains at rest, and an object in motion remains in motion at constant speed and in a straight line unless acted on by an unbalanced force

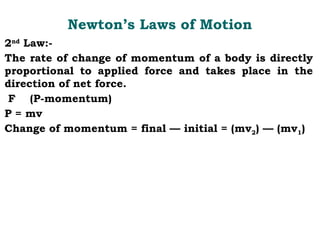

- 13. Newton’s Laws ofMotion 2nd Law:- The rate of change of momentum of a body is directly proportional to applied force and takes place in the direction of net force. F (P-momentum) P = mv Change of momentum = final — initial = (mv2) — (mv1)

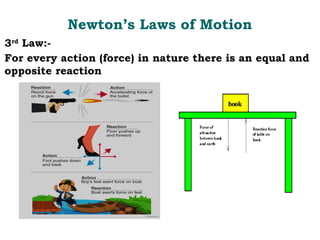

- 14. Newton’s Laws ofMotion 3rd Law:- For every action (force) in nature there is an equal and opposite reaction

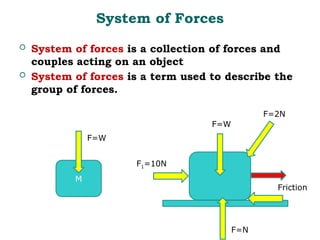

- 15. System of Forces System of forces is a collection of forces and couples acting on an object System of forces is a term used to describe the group of forces. M F=W Friction F=N F=2N F1=10N F=W
- 16. System of Forces Coplanar system Concurrent forces Parallel Generalforce system Non Coplanar system (Space Forces) Concurrent Parallel General Classification of Force Syatems

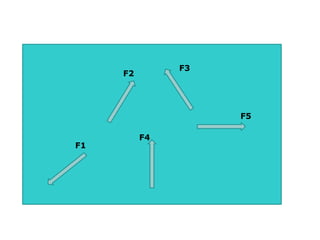

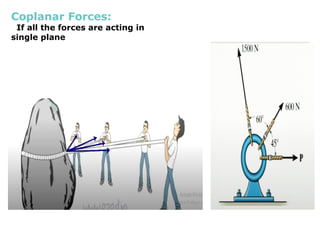

- 17. Coplanar Forces: If allthe forces are acting in single plane
- 18.

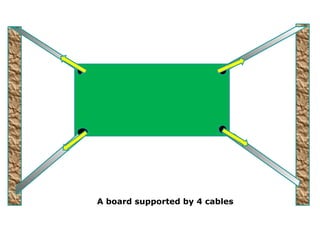

- 19. A board supportedby 4 cables

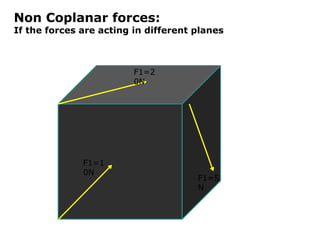

- 20. Non Coplanar forces: Ifthe forces are acting in different planes F1=1 0N F1=5 N F1=2 0N

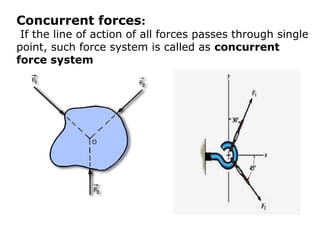

- 21. Concurrent forces: If theline of action of all forces passes through single point, such force system is called as concurrent force system

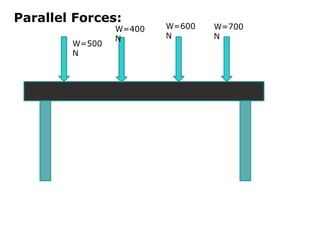

- 22.

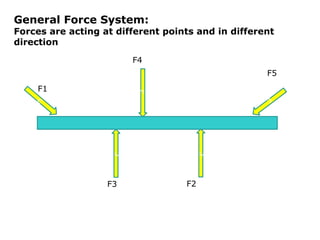

- 23. General Force System: Forcesare acting at different points and in different direction c c c c c F1 F3 F5 F4 F2

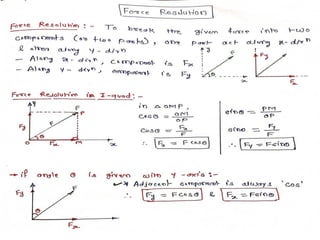

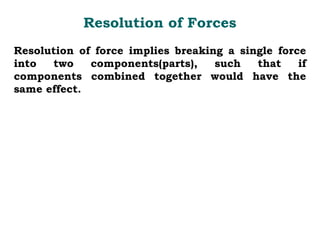

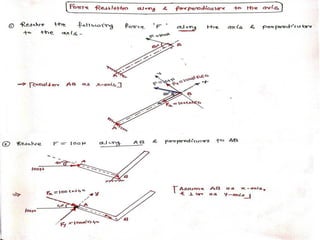

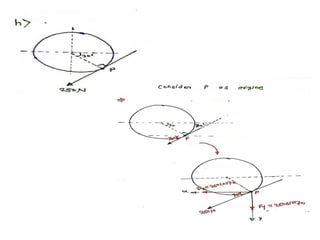

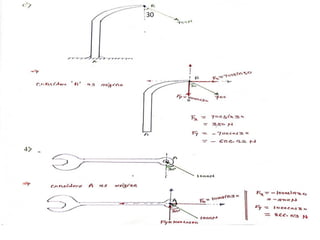

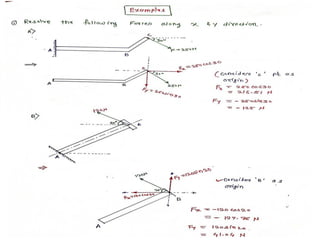

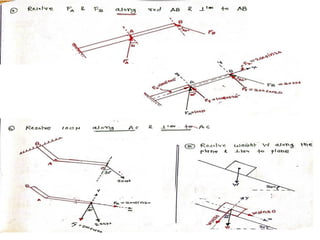

- 24. Resolution of forceimplies breaking a single force into two components(parts), such that if components combined together would have the same effect. Resolution of Forces

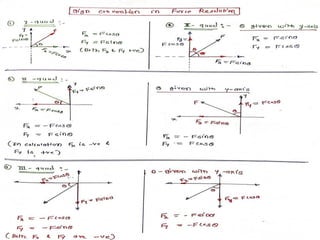

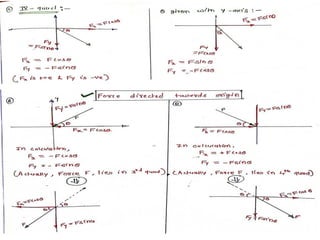

- 28. Principle of Transmissibility: Aforce being a sliding vector continues to act along its line of action and therefore makes no change, if it acts from different point on its line of action on a rigid body.
