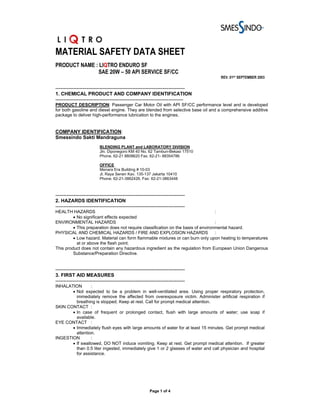

MATERIAL SAFETY DATA SHEET
PRODUCT NAME : LIQTRO ENDURO SF
              SAE 20W – 50 API SERVICE SF/CC
                                                                                   REV. 01ST SEPTEMBER 2003

-------------------------------------------------------------------------------
1. CHEMICAL PRODUCT AND COMPANY IDENTIFICATION
------------------------------------------------------------------------------
PRODUCT DESCRIPTION: Passenger Car Motor Oil with API SF/CC performance level and is developed
for both gasoline and diesel engine. They are blended from selective base oil and a comprehensive additive
package to deliver high-performance lubrication to the engines.


COMPANY IDENTIFICATION:
Smessindo Sakti Mandraguna
                           BLENDING PLANT and LABORATORY DIVISION
                           Jln. Diponegoro KM 40 No. 62 Tambun-Bekasi 17510
                           Phone. 62-21 8808620 Fax. 62-21- 88354786

                           OFFICE
                           Menara Era Building # 10-03
                           Jl. Raya Senen Kav. 135-137 Jakarta 10410
                           Phone. 62-21-3862426, Fax: 62-21-3863448



-------------------------------------------------------------------------------
2. HAZARDS IDENTIFICATION
-------------------------------------------------------------------------------
HEALTH HAZARDS                                                                     :
         • No significant effects expected
ENVIRONMENTAL HAZARDS                                                              :
         • This preparation does not require classification on the basis of environmental hazard.
PHYSICAL AND CHEMICAL HAZARDS / FIRE AND EXPLOSION HAZARDS                         :
         • Low hazard. Material can form flammable mixtures or can burn only upon heating to temperatures
           at or above the flash point.
This product does not contain any hazardous ingredient as the regulation from European Union Dangerous
         Substance/Preparation Directive.


-------------------------------------------------------------------------------
3. FIRST AID MEASURES
-------------------------------------------------------------------------------
INHALATION       :
       • Not expected to be a problem in well-ventilated area. Using proper respiratory protection,
         immediately remove the affected from overexposure victim. Administer artificial respiration if
         breathing is stopped. Keep at rest. Call for prompt medical attention.
SKIN CONTACT :
       • In case of frequent or prolonged contact, flush with large amounts of water; use soap if
         available.
EYE CONTACT :
       • Immediately flush eyes with large amounts of water for at least 15 minutes. Get prompt medical
         attention.
INGESTION        :
       • If swallowed, DO NOT induce vomiting. Keep at rest. Get prompt medical attention. If greater
         than 0.5 liter ingested, immediately give 1 or 2 glasses of water and call physician and hospital
         for assistance.




                                                         Page 1 of 4
MATERIAL SAFETY DATA SHEET
PRODUCT NAME : LIQTRO ENDURO SF
              SAE 20W – 50 API SERVICE SF/CC
                                                                                             REV. 01ST SEPTEMBER 2003
-------------------------------------------------------------------------------

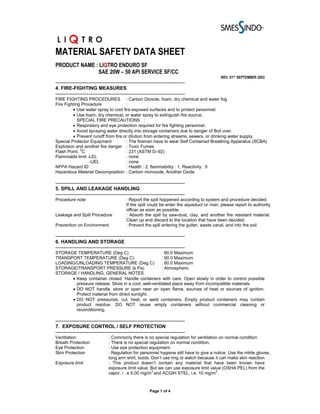

4. FIRE-FIGHTING MEASURES
-------------------------------------------------------------------------------
FIRE FIGHTING PROCEDURES : Carbon Dioxide, foam, dry chemical and water fog
Fire Fighting Procedure              :
         • Use water spray to cool fire exposed surfaces and to protect personnel.
         • Use foam, dry chemical, or water spray to extinguish fire source.
            SPECIAL FIRE PRECAUTIONS :
         • Respiratory and eye protection required for fire fighting personnel.
         • Avoid spraying water directly into storage containers due to danger of Boil over.
         • Prevent runoff from fire or dilution from entering streams, sewers, or drinking water supply.
Special Protector Equipment          : The fireman have to wear Self Contained Breathing Apparatus (SCBA)
Explosion and another fire danger : Toxic Fumes
Flash Point, 0C                      : 231 (ASTM D–92)
Flammable limit -LEL                 : none
                 -UEL                : none
NFPA Hazard ID                       : Health : 2, flammability : 1, Reactivity : 0
Hazardous Material Decomposition : Carbon monoxide, Another Oxide

-------------------------------------------------------------------------------
5. SPILL AND LEAKAGE HANDLING
-------------------------------------------------------------------------------
Procedure note                             : Report the spill happened according to system and procedure decided.
                                           If the spill could be enter the aqueduct or river, please report to authority
                                           officer as soon as possible.
Leakage and Spill Procedure                : Absorb the spill by saw-dust, clay, and another fire resistant material.
                                           Clean up and discard to the location that have been decided.
Prevention on Environment                  : Prevent the spill entering the gutter, waste canal, and into the soil

-------------------------------------------------------------------------------
6. HANDLING AND STORAGE
-------------------------------------------------------------------------------
STORAGE TEMPERATURE (Deg C)                          : 60.0 Maximum
TRANSPORT TEMPERATURE (Deg C)                        : 60.0 Maximum
LOADING/UNLOADING TEMPERATURE (Deg C)                : 60.0 Maximum
STORAGE/TRANSPORT PRESSURE (k Pa)                    : Atmospheric
STORAGE / HANDLING, GENERAL NOTES                    :
      • Keep container closed. Handle containers with care. Open slowly in order to control possible
        pressure release. Store in a cool, well-ventilated place away from incompatible materials.
      • DO NOT handle, store or open near an open flame, sources of heat or sources of ignition.
        Protect material from direct sunlight.
      • DO NOT pressurize, cut, heat, or weld containers. Empty product containers may contain
        product residue. DO NOT reuse empty containers without commercial cleaning or
        reconditioning.

-------------------------------------------------------------------------------
7. EXPOSURE CONTROL / SELF PROTECTION
-------------------------------------------------------------------------------
Ventilation                     : Commonly there is no special regulation for ventilation on normal condition
Breath Protection               : There is no special regulation on normal condition.
Eye Protection                  : Use eye protection equipment.
Skin Protection                 : Regulation for personnel hygiene still have to give a notice. Use the nitrile gloves,
                                long arm shirt, boots. Don’t use ring or watch because it can make skin reaction.
Exposure limit                  : This product doesn’t contain any material that have been known have
                                exposure limit value. But we can use exposure limit value (OSHA PEL) from the
                                vapor, i . e 5.00 mg/m3 and ACGIH STEL, i.e. 10 mg/m3.



                                                         Page 1 of 4
MATERIAL SAFETY DATA SHEET
PRODUCT NAME : LIQTRO ENDURO SF
              SAE 20W – 50 API SERVICE SF/CC
                                                                                                    REV. 01ST SEPTEMBER 2003
-------------------------------------------------------------------------------

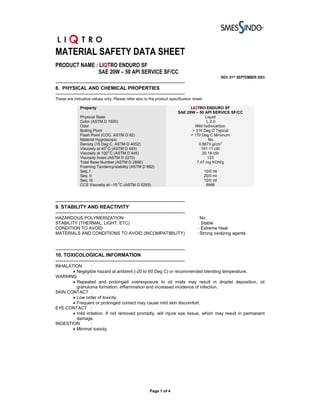

8. PHYSICAL AND CHEMICAL PROPERTIES
-------------------------------------------------------------------------------
These are indicative values only. Please refer also to the product specification sheet.

               Property                                                         LIQTRO ENDURO SF
                                                                          SAE 20W – 50 API SERVICE SF/CC
               Physical State                                                            Liquid
               Color (ASTM D 1500)                                                        L 2.0
               Odor                                                                Mild hydrocarbon
               Boiling Point                                                     > 316 Deg C Typical
               Flash Point (COC, ASTM D 92)                                     > 170 Deg C Minimum
               Material Hygroscopic                                                        No
               Density (15 Deg C, ASTM D 4052)                                      0.8873 g/cm3
               Viscosity at 400 C (ASTM D 445)                                        191.11 cSt
               Viscosity at 1000 C (ASTM D 445)                                        20.18 cSt
               Viscosity Index (ASTM D 2270)                                              123
               Total Base Number (ASTM D 2896)                                     7.47 mg KOH/g
               Foaming Tendency/stability (ASTM D 892)
               Seq. I                                                                     10/0 ml
               Seq. II                                                                    20/0 ml
               Seq. III                                                                   10/0 ml
                                     0
               CCS Viscosity at –15 C (ASTM D 5293)                                        8986



-------------------------------------------------------------------------------
9. STABILITY AND REACTIVITY
-------------------------------------------------------------------------------
HAZARDOUS POLYMERIZATION                                                           : No
STABILITY (THERMAL, LIGHT, ETC)                                                     : Stable
CONDITION TO AVOID                                                                  : Extreme Heat
MATERIALS AND CONDITIONS TO AVOID (INCOMPATIBILITY)                                : Strong oxidizing agents.


-------------------------------------------------------------------------------
10. TOXICOLOGICAL INFORMATION
-------------------------------------------------------------------------------
INHALATION       :
       • Negligible hazard at ambient (-20 to 60 Deg C) or recommended blending temperature.
WARNING          :
       • Repeated and prolonged overexposure to oil mists may result in droplet deposition, oil
         granuloma formation, inflammation and increased incidence of infection.
SKIN CONTACT :
       • Low order of toxicity.
       • Frequent or prolonged contact may cause mild skin discomfort.
EYE CONTACT :
       • mild irritation. If not removed promptly, will injure eye tissue, which may result in permanent
         damage.
INGESTION        :
       • Minimal toxicity.




                                                         Page 1 of 4
MATERIAL SAFETY DATA SHEET
PRODUCT NAME : LIQTRO ENDURO SF
              SAE 20W – 50 API SERVICE SF/CC
                                                                                    REV. 01ST SEPTEMBER 2003
------------------------------------------------------------------------------

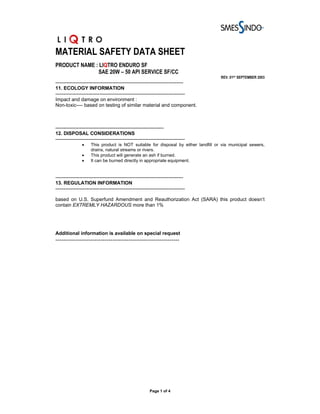

11. ECOLOGY INFORMATION
-------------------------------------------------------------------------------
Impact and damage on environment :
Non-toxic---- based on testing of similar material and component.



------------------------------------------------------------------
12. DISPOSAL CONSIDERATIONS
-------------------------------------------------------------------------------
                •    This product is NOT suitable for disposal by either landfill or via municipal sewers,
                     drains, natural streams or rivers.
                •    This product will generate an ash if burned.
                •    It can be burned directly in appropriate equipment.


------------------------------------------------------------------------------
13. REGULATION INFORMATION
-------------------------------------------------------------------------------

based on U.S. Superfund Amendment and Reauthorization Act (SARA) this product doesn’t
contain EXTREMLY HAZARDOUS more than 1%




Additional information is available on special request
---------------------------------------------------------------




                                                         Page 1 of 4
