By Ramakrishna Narkedamilli

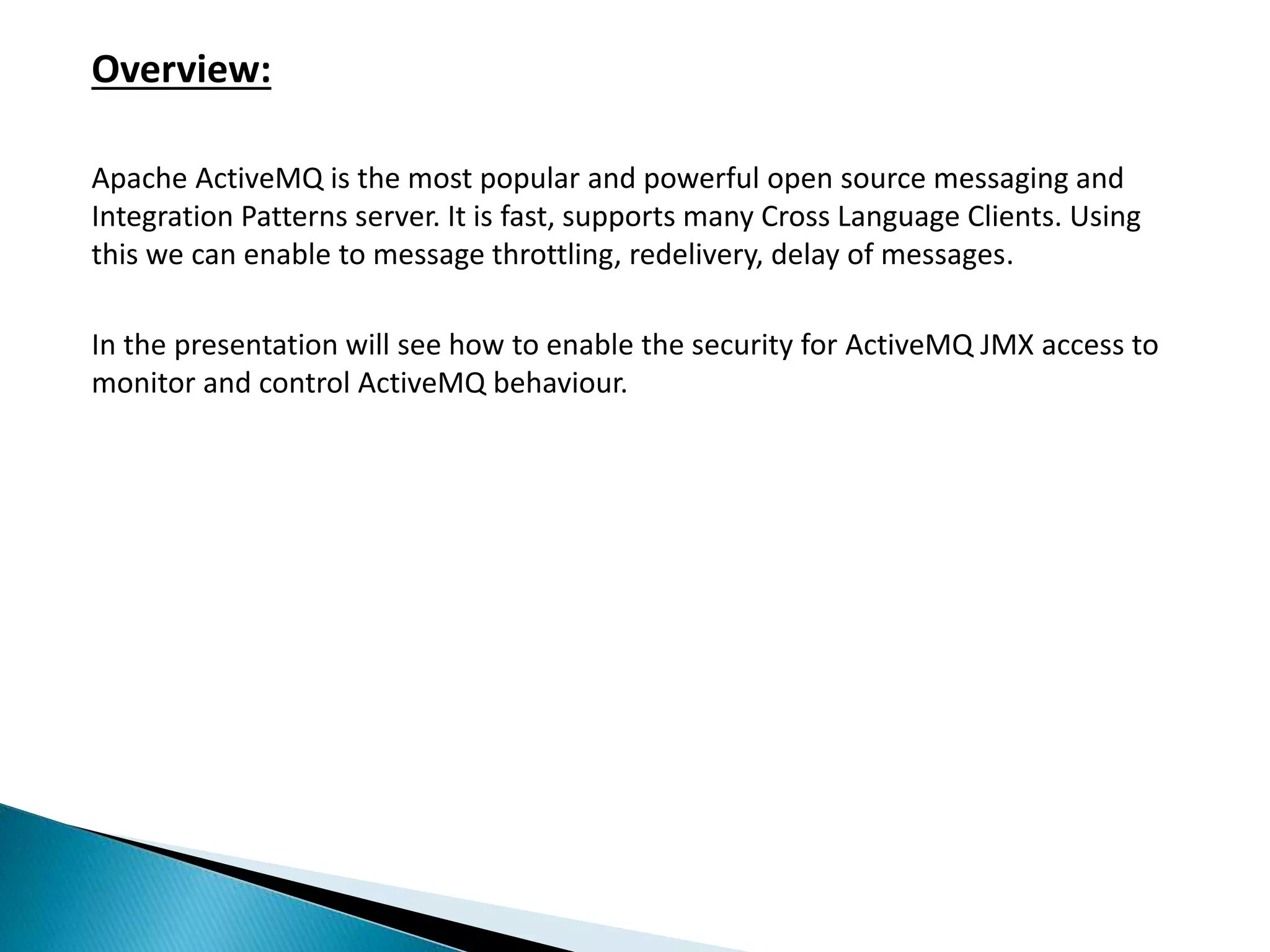

Overview:
Apache ActiveMQ is the most popular and powerful open source messaging and
Integration Patterns server. It is fast, supports many Cross Language Clients. Using
this we can enable to message throttling, redelivery, delay of messages.
In the presentation will see how to enable the security for ActiveMQ JMX access to
monitor and control ActiveMQ behaviour.
Accessing ActiveMQ through JMX in unsecured way:
First I will run the ActiveMQ instance with default configuration to show how we can
access ActiveMQ JMX without entering any credentials (kind of unsecured access).
Note: Add useJmx="true" attribute in the broker tag for a file “activemq.xml”
available under ActiveMQ root folder/conf (as highlighted below). Otherwise you
can’t access the ActiveMQ JMX.
1) First, run the activemq.bat available under ActiveMQ root
folder/bin
2) Now, open the jconsole using command prompt
3) Select the option “Remote Process” and enter “localhost:1099”
and click on connect.
4) It will take you to the JMX console to monitor and control
activemq.
Here we can observe that, we are able to access ActiveMQ through JMX without
entering any security credentials.
This will be a one of security problem and we can see now how to solve by enabling
the security for ActiveMQ JMX issue.
Accessing ActiveMQ through JMX in secured way:
To enable security, below are the lists of files needs changes
a) jmx.access & jmx.password available under ActiveMQ root folder/conf.
b) activemq.xml available under ActiveMQ root folder/conf.
c) activemq.bat available ActiveMQ root folder/bin.
The procedure follows
1) The jmx.access & jmx.password files contain access privileges and credentials
respectively. Update these files to add the new user or to update the existing user
credentials accordingly.
2) Now, it’s time to protect the jmx.password file. Make sure that file jmx.password
has got only read permission to the user who’s going to run activemq.
Right click on jmx.password file  properties  Security  Advanced  Change
permissions  Edit  update permissions accordingly  ok
Note: The above step required when the file got access (read/write) to other users
on system apart from user who’s going to run activemq. Otherwise you can skip this
step.
In case if you forget to change file permissions and tried to start activmq, you will get
the below error
3) Add managementContext configuration under broker tag in activemq.xml file to
disable the ActiveMQ own connector creation so that it will use the default JVM JMX
connector
4) Finally modify the activemq.bat to add extra parameters to specify the location of
JMX files and other configuration.(as highlighted)
We are done with the required changes and now time to start activemq and open
jconsole again.
If you try to login now without entering credentials, activemq won’t allow to login.
Enter valid credentials that we specified in a file “jmx.password” to login.
THANKS YOU
By Ramakrishna Narkedamilli
