RES SLT
Quality Batteries
for Renewable Energy Storage
WINDSOLAR PV GENSETBATTERIES
Manufactured at European production facilities, certified with ISO 9001 & ISO 14001
RES SLT OVERVIEW
Quality Batteries for Renewable Energy Applications
2 www.systems-sunlight.com
APPLICATIONS
RES SLT is a quality range of batteries designed for daily cycling operation offering significant
benefits in terms of cost per cycle. Their long life and remarkably high performance suits ideally to
the demanding Renewable Energy Storage applications.
Indicative Battery-Based Power Supply Systems
BATTERIES GENSETBATTERIES SOLAR PV WINDBATTERIES
SOLAR PV
GENSET
WIND
Residential Installations
Off-grid or smart grid connected power systems electrifying homes
Traffic Systems
Signaling and lighting roads, railways, airports and marines
Remote Monitoring & Controlling
Flow and pressure metering, instrumentation and measurements, process automation,
Supervisory Control & Data Acquisition (SCADA), security monitoring devices
RES SLT
Vented Tubular Plate Batteries
RES SLT GEL
Sealed GEL Batteries
ADDED VALUE SERVICES
Long cycle life
Batteries engineered to sustain their capacity for a high number of cycles offering exceptional
efficiency for daily deep cycling applications.
Outstanding performance
Tubular plate design, exclusive use of high quality raw materials and sophisticated production
processes in European manufacturing facilities ensure efficiency, durability and reliability under
demanding conditions such as remote locations and the intermittent nature of solar and wind power
generation.
Ease of handling
Designed for optimal space utilization, quick installation and easy maintenance.
Availability
Fast delivery for catalogue models. On request a wider range of special batteries for customer’s
special requirements can be supplied.
Peace-of-mind
24x7 experienced pre-sales and after sales support through SUNLIGHT Global Partners Network.
Optimum Total Cost of Ownership (TCO)
Low cost per cycle. Lifetime value is maximized especially at hybrid systems where using batteries
can greatly reduce the Genset daily run time resulting on fuel savings and less CO2 emission.
www.systems-sunlight.com 3
The ideal energy solution for Renewable Energy Storage applications
QUALITY FEATURES & PRODUCT BENEFITS
Design and implementation of turnkey solutions
Installation & maintenance services according to EN50272-2 safety requirements (CE compliance)
360o Technical Support 24x7 through SUNLIGHT Global Partners Network
Training and consulting
Battery Collection and Recycling Services
Why SUNLIGHT?
• 30 years of Experience in Battery Business	 • “One Stop Solution”
• Extensive Global Know-how   			 • Exceptional Customer Service
4 www.systems-sunlight.com
RES SLT
Vented Tubular Plate Batteries
	 Voltage (V):	 12	 12	 12	 12
	 Length (mm): 	 205	 265	 308	 345
	 Width (mm):	 175	 175	 175	 170
	 Height* (mm):	 190	 210	 225	 285
	 Weight (kg):	 13.9	 19.9	 27.2	 38.4
Number Of Batteries
	 Per Europallet:
72	 48	 56	 36
	 Type	 RES SLT 12-50	 RES SLT 12-80	 RES SLT 12-120	 RES SLT 12-170
	RES SLT 12-50	 61	 53	 52	 53	 45	 41	 39	 36	 28
RES SLT 12-80	 95	 82	 81	 83	 70	 63	 60	 56	 44
RES SLT 12-120	 144	 125	 123	 126	 106	 96	 92	 85	 66
RES SLT 12-170	 201	 173	 170	 175	 147	 134	 127	 118	 92
RES SLT 12-220	 255	 220	 216	 222	 186	 170	 162	 150	 117
RES SLT 6-270	 314	 271	 267	 274	 230	 210	 200	 185	 144
RES SLT 6-290	 340	 293	 289	 297	 249	 227	 216	 200	 156
RES SLT 6-380	 450	 388	 382	 393	 329	 300	 286	 265	 207
RES SLT 6-460	 544	 469	 462	 474	 398	 363	 345	 320	 250

Type
	 C240	 C120	 C72	 C48	 C24	 C12	 C10	 C5	 C2
		 1.85 Vpc	 1.85 Vpc	 1.85 Vpc	 1.80 Vpc	 1.80 Vpc	 1.80 Vpc	 1.80 Vpc	 1.75 Vpc	 1.70 Vpc
Capacity (Ah at 20°C)
Key Benefits
A remarkably high number of cycles that
offers exceptional efficiency for daily cycling
applications. The cycle life rating allows the
determination of the true value of the battery
over its life by understanding the total cost
of ownership.
Vented tubular plate design is superior because of the following technical features
Features
• Higher active mass surface area than plain flat plates
• No active material shedding
• Reduced grid corrosion
• Reduced self-discharge rate
• Quality and homogeneity
	 Benefits
	 3 Long cycle life
	 3 Excellent cycling properties
	 3 High capacity performance
	 3 Increased endurance even in cases
		 of poor charging conditions
*includes poles
Number of Cycles
DoD%
250	 500	 1000	 1500	 2000	 2500	 3000	 3500	 4000
80%
70%
60%
50%
40%
30%
20%
10%
0%
Number of Cycles vs. DoD
www.systems-sunlight.com 5
12	 6	 6	 6	 6
510	 260	 260	 305	 305
222	 180	 180	 188	 188
225	 275	 275	 365	 365
47.3	 29.9	 32.5	 47.9	 50.5
28	 48	 48	 28

28
RES SLT 12-220	 RES SLT 6-270	 RES SLT 6-290	 RES SLT 6-380	 RES SLT 6-460
Operation
Design
Positive plates: Tubular plates with optimized anticorrosion characteristics due to the use of special low
antimony lead alloy. Tubes filled by injection with active material (mixture of lead oxide and red lead).
Negative plates: Plates composed of reinforced grids design pasted with optimized lead alloy.
Separators: High-porosity separators with minimal internal resistance.
Secured insulation between positive and negative plates.
Electrolyte: Optimized electrolyte density (acid-water), for proper ionic exchange.
Container, lid material: Corrosion-resistant polypropylene material. Lids completely heat sealed.
Terminals: Automotive Post type. On the same side for 12V blocks and diagonally for 6V blocks.
Valves: Filler caps with vent valves for proper battery ventilation.
Number of cycles: 1200 cycles (@60% DoD, 20oC)
Maintenance: Low topping up requirements.
Operating temperature: Min: -20ºC / Max: 45ºC. Recommended 15ºC to 35ºC.
Self discharge rate: Approx. 2% per month at 20ºC.
Storage Time: Maximum shelf life up to 5 months at 20ºC, 4 months at 30ºC or 2 months at 40ºC.
Recommended Charging Voltage: 2.25 to 2.30 V/cell (stand-by use at 20ºC), 2.35 to 2.45 V/cell
(cycle use at 20ºC).
6 www.systems-sunlight.com
RES SLT GEL
Sealed GEL Batteries
	 Voltage (V):	 12	 12	 12	 12
	 Length (mm): 	 240	 308	 345	 345
	 Width (mm):	 175	 175	 170	 170
	 Height* (mm):	 190	 225	 235	 285
	 Weight (kg):	 19.9	 29.0	 35.1	 42.7
Number Of Batteries
	 Per Europallet:
57	 30	 24	 24
	*includes poles
	 Type	 RES SLT GEL 12-60	 RES SLT GEL 12-90	 RES SLT GEL 12-120	 RES SLT GEL 12-150
RES SLT GEL 12-60	 71	 62	 61	 62	 52	 48	 45	 42	 33
RES SLT GEL 12-90	 110	 95	 94	 96	 81	 74	 70	 65	 51
RES SLT GEL 12-120	 144	 125	 123	 126	 106	 96	 92	 85	 67
RES SLT GEL 12-150	 178	 154	 151	 156	 131	 119	 113	 105	 82
RES SLT GEL 12-200	 233	 201	 198	 203	 170	 155	 148	 137	 107
RES SLT GEL 12-240	 280	 242	 238	 245	 205	 187	 178	 165	 129
RES SLT GEL 6-260	 306	 264	 260	 267	 224	 204	 194	 180	 140
RES SLT GEL 6-360	 425	 366	 361	 371	 311	 284	 270	 250	 195

Type
	 C240	 C120	 C72	 C48	 C24	 C12	 C10	 C5	 C2
		 1.85 Vpc	 1.85 Vpc	 1.85 Vpc	 1.80 Vpc	 1.80 Vpc	 1.80 Vpc	 1.80 Vpc	 1.75 Vpc	 1.70 Vpc
Capacity (Ah at 20°C)
• 	Maintenance free VRLA technology
	 eliminates periodic water refilling
	 associated with vented lead acid batteries.
• 	No electrolyte stratification due to its
	 electrolyte GEL form. The electrolyte
	 formulation produces a homogenous GEL
	 that delivers consistent performance and long
	 cycle life. The gelled electrolyte gives better
	 protection to the battery plates, and is better suited for deep cycle discharge applications.
• 	Leak proof due to GEL technology. The use of gelled electrolyte means there is no free acid inside
	 the cell. So the batteries are completely spillproof and are suitable for many available options
	 of vertical or horizontal installation.
• 	Premium grade separators allow maximum charge flow between the plates for optimum
	 performance even in harsh conditions.
Key Features & Benefits
Number of Cycles
DoD%
250	 500	 1000	 1500	 2000	 2500	 3000	 3500	 4000
80%
70%
60%
50%
40%
30%
20%
10%
0%
Number of Cycles vs. DoD

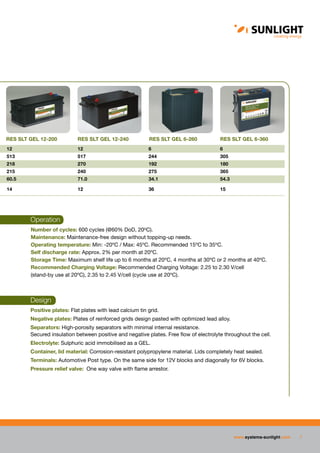

www.systems-sunlight.com 7
12	 12	 6	 6
513	 517	 244	 305
218	 270	 192	 180
215	 240	 275	 365
60.5	 71.0	 34.1	 54.3
14	 12	 36	 15
RES SLT GEL 12-200	 RES SLT GEL 12-240	 RES SLT GEL 6-260	 RES SLT GEL 6-360
Design
Positive plates: Flat plates with lead calcium tin grid.
Negative plates: Plates of reinforced grids design pasted with optimized lead alloy.
Separators: High-porosity separators with minimal internal resistance.
Secured insulation between positive and negative plates. Free flow of electrolyte throughout the cell.
Electrolyte: Sulphuric acid immobilised as a GEL.
Container, lid material: Corrosion-resistant polypropylene material. Lids completely heat sealed.
Terminals: Automotive Post type. On the same side for 12V blocks and diagonally for 6V blocks.
Pressure relief valve: One way valve with flame arrestor.
Operation
Number of cycles: 600 cycles (@60% DoD, 20oC).
Maintenance: Maintenance-free design without topping-up needs.
Operating temperature: Min: -20ºC / Max: 45ºC. Recommended 15ºC to 35ºC.
Self discharge rate: Approx. 2% per month at 20ºC.
Storage Time: Maximum shelf life up to 6 months at 20ºC, 4 months at 30ºC or 2 months at 40ºC.
Recommended Charging Voltage: Recommended Charging Voltage: 2.25 to 2.30 V/cell
(stand-by use at 20ºC), 2.35 to 2.45 V/cell (cycle use at 20ºC).
Data in this document are subject to change without notice and become contractual only after written confirmation.
SYSTEMS SUNLIGHT S.A.
Headquarters
2 Ermou & Nikis Str., Syntagma Sq.
105 63 Athens, Attica, Greece
T +30 210 6245400
F +30 210 6245409
European Manufacturing Plant
Neo Olvio
672 00 Xanthi, Greece
T +30 25410 48100
F +30 25410 95446
Global Service Department
366 Tatoiou Str.
136 73 Acharnes, Attica, Greece
T +30 210 6245600
F +30 210 6245619
www.systems-sunlight.com
Member of SUNLIGHT Global Partners Network
ET-MS_130718-EN

More Related Content

What's hot

Door to Door collection of MSW in Catalonia
Door to Door collection of MSW in CataloniaDoor to Door collection of MSW in Catalonia
Door to Door collection of MSW in Catalonia
Agència de Residus. Generalitat de Catalunya

Solid waste management current risk and future remedies.
Solid waste management current risk and future remedies.Solid waste management current risk and future remedies.
Solid waste management current risk and future remedies.
towfique12345

Bis list of codes
Bis list of codesBis list of codes
Bis list of codes
Rai Malhi

Solid waste management by Muhammad Fahad Ansari 12IEEM14
Solid waste management by Muhammad Fahad Ansari 12IEEM14Solid waste management by Muhammad Fahad Ansari 12IEEM14
Solid waste management by Muhammad Fahad Ansari 12IEEM14
fahadansari131

solid waste management by abrar saleem
solid waste management by abrar saleemsolid waste management by abrar saleem
solid waste management by abrar saleem
junaid bashir

Hydrogen Purge and Fill
Hydrogen Purge and FillHydrogen Purge and Fill
Hydrogen Purge and Fill
Shad Edwards

4.4.heat exchanger
4.4.heat exchanger4.4.heat exchanger
4.4.heat exchanger
cmyan

Electric guitar and effect pedals matt ede
Electric guitar and effect pedals   matt edeElectric guitar and effect pedals   matt ede
Electric guitar and effect pedals matt ede
music_hayes

boiler blow down.pdf
boiler blow down.pdfboiler blow down.pdf
boiler blow down.pdf
Abhilash Krishnan

49673890 thermal-fluid-heaters
49673890 thermal-fluid-heaters49673890 thermal-fluid-heaters
49673890 thermal-fluid-heatersbhanu prakash

Chemical Dosing in Water Treatment.pptx
Chemical Dosing in Water Treatment.pptxChemical Dosing in Water Treatment.pptx
Chemical Dosing in Water Treatment.pptx
MKSGP01Multan

Soot Blowing Optimization- Field Experience
Soot Blowing Optimization- Field ExperienceSoot Blowing Optimization- Field Experience
Soot Blowing Optimization- Field Experience
Pooja Agarwal

Chlorine gas alternative
Chlorine gas alternativeChlorine gas alternative
Chlorine gas alternative
matthewprado

Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...
Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...
Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...
OECD Environment

Waste Burning Inceneration
Waste Burning IncenerationWaste Burning Inceneration
Waste Burning Inceneration
MUSATTI

ROLE OF C & I IN FERTILIZER PRODUCTION PLANT
ROLE OF C & I IN FERTILIZER PRODUCTION PLANTROLE OF C & I IN FERTILIZER PRODUCTION PLANT
ROLE OF C & I IN FERTILIZER PRODUCTION PLANT
Gaurav Rai

Acetylene hydrogenation
Acetylene hydrogenationAcetylene hydrogenation
Acetylene hydrogenation
Gia Sư BK

Properties Uses and Complications of Plastic .pdf
Properties Uses and Complications of Plastic .pdfProperties Uses and Complications of Plastic .pdf
Properties Uses and Complications of Plastic .pdf
Chloe Cheney

Boiler Efficiency.pptx
Boiler Efficiency.pptxBoiler Efficiency.pptx
Boiler Efficiency.pptx
Sourav Bhunia

Sonic Soot Blower System
Sonic Soot Blower SystemSonic Soot Blower System
Sonic Soot Blower System
Musa Sabri


What's hot (20)

Door to Door collection of MSW in Catalonia
Door to Door collection of MSW in CataloniaDoor to Door collection of MSW in Catalonia
Door to Door collection of MSW in Catalonia

Solid waste management current risk and future remedies.
Solid waste management current risk and future remedies.Solid waste management current risk and future remedies.
Solid waste management current risk and future remedies.

Bis list of codes
Bis list of codesBis list of codes
Bis list of codes

Solid waste management by Muhammad Fahad Ansari 12IEEM14
Solid waste management by Muhammad Fahad Ansari 12IEEM14Solid waste management by Muhammad Fahad Ansari 12IEEM14
Solid waste management by Muhammad Fahad Ansari 12IEEM14

solid waste management by abrar saleem
solid waste management by abrar saleemsolid waste management by abrar saleem
solid waste management by abrar saleem

Hydrogen Purge and Fill
Hydrogen Purge and FillHydrogen Purge and Fill
Hydrogen Purge and Fill

4.4.heat exchanger
4.4.heat exchanger4.4.heat exchanger
4.4.heat exchanger

Electric guitar and effect pedals matt ede
Electric guitar and effect pedals   matt edeElectric guitar and effect pedals   matt ede
Electric guitar and effect pedals matt ede

boiler blow down.pdf
boiler blow down.pdfboiler blow down.pdf
boiler blow down.pdf

49673890 thermal-fluid-heaters
49673890 thermal-fluid-heaters49673890 thermal-fluid-heaters
49673890 thermal-fluid-heaters

Chemical Dosing in Water Treatment.pptx
Chemical Dosing in Water Treatment.pptxChemical Dosing in Water Treatment.pptx
Chemical Dosing in Water Treatment.pptx

Soot Blowing Optimization- Field Experience
Soot Blowing Optimization- Field ExperienceSoot Blowing Optimization- Field Experience
Soot Blowing Optimization- Field Experience

Chlorine gas alternative
Chlorine gas alternativeChlorine gas alternative
Chlorine gas alternative

Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...
Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...
Status on the Implementation of Article 6 of the Paris Agreement, Phillip Eyr...

Waste Burning Inceneration
Waste Burning IncenerationWaste Burning Inceneration
Waste Burning Inceneration

ROLE OF C & I IN FERTILIZER PRODUCTION PLANT
ROLE OF C & I IN FERTILIZER PRODUCTION PLANTROLE OF C & I IN FERTILIZER PRODUCTION PLANT
ROLE OF C & I IN FERTILIZER PRODUCTION PLANT

Acetylene hydrogenation
Acetylene hydrogenationAcetylene hydrogenation
Acetylene hydrogenation

Properties Uses and Complications of Plastic .pdf
Properties Uses and Complications of Plastic .pdfProperties Uses and Complications of Plastic .pdf
Properties Uses and Complications of Plastic .pdf

Boiler Efficiency.pptx
Boiler Efficiency.pptxBoiler Efficiency.pptx
Boiler Efficiency.pptx

Sonic Soot Blower System
Sonic Soot Blower SystemSonic Soot Blower System
Sonic Soot Blower System


Similar to SYSTEMS SUNLIGHT S.A. | RES SLT (Quality Batteries for Renewable Energy Storage Applications)

SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales LeafletSYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet
SYSTEMS SUNLIGHT S.A.

SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A.

SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales LeafletSYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet
SYSTEMS SUNLIGHT S.A.

SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage
SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy StorageSYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage
SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage
SYSTEMS SUNLIGHT S.A.

SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications
SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary ApplicationsSYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications
SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications
SYSTEMS SUNLIGHT S.A.

Sunlight Traction Battery
Sunlight Traction BatterySunlight Traction Battery
Sunlight Traction Battery
Angelina Villafuerte

Sunlight Traction Battery
Sunlight Traction BatterySunlight Traction Battery
Sunlight Traction Battery
Bernadette Polintan

72 cells polycrystalline 320 340 wp - saatvik green energy
72 cells polycrystalline 320 340 wp - saatvik green energy72 cells polycrystalline 320 340 wp - saatvik green energy
72 cells polycrystalline 320 340 wp - saatvik green energy
Saatvik Green Energy

Narada 200 ah Data sheet
Narada 200 ah Data sheetNarada 200 ah Data sheet
Narada 200 ah Data sheet
Naveed Ahmed

DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...
DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...
DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...
Thorne & Derrick International

IRJET- Battery Management System by using PWM Charge Controller
IRJET- Battery Management System by using PWM Charge ControllerIRJET- Battery Management System by using PWM Charge Controller
IRJET- Battery Management System by using PWM Charge Controller
IRJET Journal

smg-opzv-asia-131115_english-1-
smg-opzv-asia-131115_english-1-smg-opzv-asia-131115_english-1-
smg-opzv-asia-131115_english-1-
Bernadette Polintan

Solar Training 20100208
Solar Training 20100208Solar Training 20100208
Solar Training 20100208
Syed Khurram Iqbal

Catalog máy biến áp Lerand ( Cast Resin Transformers )
Catalog máy biến áp Lerand ( Cast Resin Transformers )Catalog máy biến áp Lerand ( Cast Resin Transformers )
Catalog máy biến áp Lerand ( Cast Resin Transformers )
CTY TNHH HẠO PHƯƠNG

VRLA-AOKLY POWER-2015VER
VRLA-AOKLY POWER-2015VERVRLA-AOKLY POWER-2015VER
VRLA-AOKLY POWER-2015VER
??(Chard) ?

Cp12170 e x
Cp12170 e xCp12170 e x
Cp12170 e x
apollo -vn

IRJET- Water Desalination using Renewable Energy Source
IRJET- Water Desalination using Renewable Energy SourceIRJET- Water Desalination using Renewable Energy Source
IRJET- Water Desalination using Renewable Energy Source
IRJET Journal

SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A.

Data sheet of 80W vertical solar street light for 10 meters pole
Data sheet of 80W vertical solar street light for 10 meters poleData sheet of 80W vertical solar street light for 10 meters pole
Data sheet of 80W vertical solar street light for 10 meters pole
Echo Kuang

HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT
HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENTHIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT
HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT
iQHub


Similar to SYSTEMS SUNLIGHT S.A. | RES SLT (Quality Batteries for Renewable Energy Storage Applications) (20)

SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales LeafletSYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzV Sales Leaflet

SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzV (Premium Quality Batteries for Renewable Ene...

SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales LeafletSYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet
SYSTEMS SUNLIGHT S.A. | RES SOPzS Sales Leaflet

SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage
SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy StorageSYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage
SYSTEMS SUNLIGHT S.A. | Global Solutions for Renewable Energy Storage

SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications
SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary ApplicationsSYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications
SYSTEMS SUNLIGHT S.A. | OPzS Batteries for Stationary Applications

Sunlight Traction Battery
Sunlight Traction BatterySunlight Traction Battery
Sunlight Traction Battery

Sunlight Traction Battery
Sunlight Traction BatterySunlight Traction Battery
Sunlight Traction Battery

72 cells polycrystalline 320 340 wp - saatvik green energy
72 cells polycrystalline 320 340 wp - saatvik green energy72 cells polycrystalline 320 340 wp - saatvik green energy
72 cells polycrystalline 320 340 wp - saatvik green energy

Narada 200 ah Data sheet
Narada 200 ah Data sheetNarada 200 ah Data sheet
Narada 200 ah Data sheet

DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...
DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...
DMS Technologies Red Flash Rail Battery Solutions - Level Crossing, Point End...

IRJET- Battery Management System by using PWM Charge Controller
IRJET- Battery Management System by using PWM Charge ControllerIRJET- Battery Management System by using PWM Charge Controller
IRJET- Battery Management System by using PWM Charge Controller

smg-opzv-asia-131115_english-1-
smg-opzv-asia-131115_english-1-smg-opzv-asia-131115_english-1-
smg-opzv-asia-131115_english-1-

Solar Training 20100208
Solar Training 20100208Solar Training 20100208
Solar Training 20100208

Catalog máy biến áp Lerand ( Cast Resin Transformers )
Catalog máy biến áp Lerand ( Cast Resin Transformers )Catalog máy biến áp Lerand ( Cast Resin Transformers )
Catalog máy biến áp Lerand ( Cast Resin Transformers )

VRLA-AOKLY POWER-2015VER
VRLA-AOKLY POWER-2015VERVRLA-AOKLY POWER-2015VER
VRLA-AOKLY POWER-2015VER

Cp12170 e x
Cp12170 e xCp12170 e x
Cp12170 e x

IRJET- Water Desalination using Renewable Energy Source
IRJET- Water Desalination using Renewable Energy SourceIRJET- Water Desalination using Renewable Energy Source
IRJET- Water Desalination using Renewable Energy Source

SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...
SYSTEMS SUNLIGHT S.A. | RES OPzS (Premium Quality Batteries for Renewable Ene...

Data sheet of 80W vertical solar street light for 10 meters pole
Data sheet of 80W vertical solar street light for 10 meters poleData sheet of 80W vertical solar street light for 10 meters pole
Data sheet of 80W vertical solar street light for 10 meters pole

HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT
HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENTHIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT
HIGH-PERFORMANCE THERMAL INTERFACE MATERIALS FOR EV BATTERY THERMAL MANAGEMENT


Recently uploaded

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Speck&Tech

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024
Matthew Sinclair

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation
tolgahangng

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX
Mariano Tinti

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Malak Abu Hammad

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf
Uni Systems S.M.S.A.

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”
Claudio Di Ciccio

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter
Daiki Mogmet Ito

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
SitimaJohn

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future
Alpen-Adria-Universität

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey
TrustArc

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
akankshawande

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024
Matthew Sinclair

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
名前 です男

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024
Matthew Sinclair

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days
Kari Kakkonen

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation
Wouter Lemaire

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU
panagenda

CAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on BlockchainCAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on Blockchain
Claudio Di Ciccio

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf
ssuserfac0301


Recently uploaded (20)

Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?Cosa hanno in comune un mattoncino Lego e la backdoor XZ?
Cosa hanno in comune un mattoncino Lego e la backdoor XZ?

20240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 202420240607 QFM018 Elixir Reading List May 2024
20240607 QFM018 Elixir Reading List May 2024

Serial Arm Control in Real Time Presentation
Serial Arm Control in Real Time PresentationSerial Arm Control in Real Time Presentation
Serial Arm Control in Real Time Presentation

Mariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceXMariano G Tinti - Decoding SpaceX
Mariano G Tinti - Decoding SpaceX

Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfUnlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdf

Microsoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdfMicrosoft - Power Platform_G.Aspiotis.pdf
Microsoft - Power Platform_G.Aspiotis.pdf

“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”“I’m still / I’m still / Chaining from the Block”
“I’m still / I’m still / Chaining from the Block”

How to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For FlutterHow to use Firebase Data Connect For Flutter
How to use Firebase Data Connect For Flutter

Ocean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxOcean lotus Threat actors project by John Sitima 2024 (1).pptx
Ocean lotus Threat actors project by John Sitima 2024 (1).pptx

Video Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the FutureVideo Streaming: Then, Now, and in the Future
Video Streaming: Then, Now, and in the Future

TrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc Webinar - 2024 Global Privacy Survey
TrustArc Webinar - 2024 Global Privacy Survey

Your One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development ProvidersYour One-Stop Shop for Python Success: Top 10 US Python Development Providers
Your One-Stop Shop for Python Success: Top 10 US Python Development Providers

20240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 202420240605 QFM017 Machine Intelligence Reading List May 2024
20240605 QFM017 Machine Intelligence Reading List May 2024

みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...
みなさんこんにちはこれ何文字まで入るの?40文字以下不可とか本当に意味わからないけどこれ限界文字数書いてないからマジでやばい文字数いけるんじゃないの?えこ...

20240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 202420240609 QFM020 Irresponsible AI Reading List May 2024
20240609 QFM020 Irresponsible AI Reading List May 2024

Climate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing DaysClimate Impact of Software Testing at Nordic Testing Days
Climate Impact of Software Testing at Nordic Testing Days

UI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentationUI5 Controls simplified - UI5con2024 presentation
UI5 Controls simplified - UI5con2024 presentation

HCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAUHCL Notes and Domino License Cost Reduction in the World of DLAU
HCL Notes and Domino License Cost Reduction in the World of DLAU

CAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on BlockchainCAKE: Sharing Slices of Confidential Data on Blockchain
CAKE: Sharing Slices of Confidential Data on Blockchain

Taking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdfTaking AI to the Next Level in Manufacturing.pdf
Taking AI to the Next Level in Manufacturing.pdf


SYSTEMS SUNLIGHT S.A. | RES SLT (Quality Batteries for Renewable Energy Storage Applications)

  • 1. RES SLT Quality Batteries for Renewable Energy Storage WINDSOLAR PV GENSETBATTERIES
  • 2. Manufactured at European production facilities, certified with ISO 9001 & ISO 14001 RES SLT OVERVIEW  Quality Batteries for Renewable Energy Applications 2 www.systems-sunlight.com APPLICATIONS RES SLT is a quality range of batteries designed for daily cycling operation offering significant benefits in terms of cost per cycle. Their long life and remarkably high performance suits ideally to the demanding Renewable Energy Storage applications. Indicative Battery-Based Power Supply Systems BATTERIES GENSETBATTERIES SOLAR PV WINDBATTERIES SOLAR PV GENSET WIND Residential Installations Off-grid or smart grid connected power systems electrifying homes Traffic Systems Signaling and lighting roads, railways, airports and marines Remote Monitoring & Controlling Flow and pressure metering, instrumentation and measurements, process automation, Supervisory Control & Data Acquisition (SCADA), security monitoring devices RES SLT Vented Tubular Plate Batteries RES SLT GEL Sealed GEL Batteries
  • 3. ADDED VALUE SERVICES Long cycle life Batteries engineered to sustain their capacity for a high number of cycles offering exceptional efficiency for daily deep cycling applications. Outstanding performance Tubular plate design, exclusive use of high quality raw materials and sophisticated production processes in European manufacturing facilities ensure efficiency, durability and reliability under demanding conditions such as remote locations and the intermittent nature of solar and wind power generation. Ease of handling Designed for optimal space utilization, quick installation and easy maintenance. Availability Fast delivery for catalogue models. On request a wider range of special batteries for customer’s special requirements can be supplied. Peace-of-mind 24x7 experienced pre-sales and after sales support through SUNLIGHT Global Partners Network. Optimum Total Cost of Ownership (TCO) Low cost per cycle. Lifetime value is maximized especially at hybrid systems where using batteries can greatly reduce the Genset daily run time resulting on fuel savings and less CO2 emission. www.systems-sunlight.com 3 The ideal energy solution for Renewable Energy Storage applications QUALITY FEATURES & PRODUCT BENEFITS Design and implementation of turnkey solutions Installation & maintenance services according to EN50272-2 safety requirements (CE compliance) 360o Technical Support 24x7 through SUNLIGHT Global Partners Network Training and consulting  Battery Collection and Recycling Services Why SUNLIGHT? • 30 years of Experience in Battery Business • “One Stop Solution” • Extensive Global Know-how   • Exceptional Customer Service
  • 4. 4 www.systems-sunlight.com RES SLT  Vented Tubular Plate Batteries Voltage (V): 12 12 12 12 Length (mm): 205 265 308 345 Width (mm): 175 175 175 170 Height* (mm): 190 210 225 285 Weight (kg): 13.9 19.9 27.2 38.4 Number Of Batteries Per Europallet: 72 48 56 36 Type RES SLT 12-50 RES SLT 12-80 RES SLT 12-120 RES SLT 12-170 RES SLT 12-50 61 53 52 53 45 41 39 36 28 RES SLT 12-80 95 82 81 83 70 63 60 56 44 RES SLT 12-120 144 125 123 126 106 96 92 85 66 RES SLT 12-170 201 173 170 175 147 134 127 118 92 RES SLT 12-220 255 220 216 222 186 170 162 150 117 RES SLT 6-270 314 271 267 274 230 210 200 185 144 RES SLT 6-290 340 293 289 297 249 227 216 200 156 RES SLT 6-380 450 388 382 393 329 300 286 265 207 RES SLT 6-460 544 469 462 474 398 363 345 320 250 Type C240 C120 C72 C48 C24 C12 C10 C5 C2 1.85 Vpc 1.85 Vpc 1.85 Vpc 1.80 Vpc 1.80 Vpc 1.80 Vpc 1.80 Vpc 1.75 Vpc 1.70 Vpc Capacity (Ah at 20°C) Key Benefits A remarkably high number of cycles that offers exceptional efficiency for daily cycling applications. The cycle life rating allows the determination of the true value of the battery over its life by understanding the total cost of ownership. Vented tubular plate design is superior because of the following technical features Features • Higher active mass surface area than plain flat plates • No active material shedding • Reduced grid corrosion • Reduced self-discharge rate • Quality and homogeneity Benefits 3 Long cycle life 3 Excellent cycling properties 3 High capacity performance 3 Increased endurance even in cases of poor charging conditions *includes poles Number of Cycles DoD% 250 500 1000 1500 2000 2500 3000 3500 4000 80% 70% 60% 50% 40% 30% 20% 10% 0% Number of Cycles vs. DoD
  • 5. www.systems-sunlight.com 5 12 6 6 6 6 510 260 260 305 305 222 180 180 188 188 225 275 275 365 365 47.3 29.9 32.5 47.9 50.5 28 48 48 28 28 RES SLT 12-220 RES SLT 6-270 RES SLT 6-290 RES SLT 6-380 RES SLT 6-460 Operation Design Positive plates: Tubular plates with optimized anticorrosion characteristics due to the use of special low antimony lead alloy. Tubes filled by injection with active material (mixture of lead oxide and red lead). Negative plates: Plates composed of reinforced grids design pasted with optimized lead alloy. Separators: High-porosity separators with minimal internal resistance. Secured insulation between positive and negative plates. Electrolyte: Optimized electrolyte density (acid-water), for proper ionic exchange. Container, lid material: Corrosion-resistant polypropylene material. Lids completely heat sealed. Terminals: Automotive Post type. On the same side for 12V blocks and diagonally for 6V blocks. Valves: Filler caps with vent valves for proper battery ventilation. Number of cycles: 1200 cycles (@60% DoD, 20oC) Maintenance: Low topping up requirements. Operating temperature: Min: -20ºC / Max: 45ºC. Recommended 15ºC to 35ºC. Self discharge rate: Approx. 2% per month at 20ºC. Storage Time: Maximum shelf life up to 5 months at 20ºC, 4 months at 30ºC or 2 months at 40ºC. Recommended Charging Voltage: 2.25 to 2.30 V/cell (stand-by use at 20ºC), 2.35 to 2.45 V/cell (cycle use at 20ºC).
  • 6. 6 www.systems-sunlight.com RES SLT GEL  Sealed GEL Batteries Voltage (V): 12 12 12 12 Length (mm): 240 308 345 345 Width (mm): 175 175 170 170 Height* (mm): 190 225 235 285 Weight (kg): 19.9 29.0 35.1 42.7 Number Of Batteries Per Europallet: 57 30 24 24 *includes poles Type RES SLT GEL 12-60 RES SLT GEL 12-90 RES SLT GEL 12-120 RES SLT GEL 12-150 RES SLT GEL 12-60 71 62 61 62 52 48 45 42 33 RES SLT GEL 12-90 110 95 94 96 81 74 70 65 51 RES SLT GEL 12-120 144 125 123 126 106 96 92 85 67 RES SLT GEL 12-150 178 154 151 156 131 119 113 105 82 RES SLT GEL 12-200 233 201 198 203 170 155 148 137 107 RES SLT GEL 12-240 280 242 238 245 205 187 178 165 129 RES SLT GEL 6-260 306 264 260 267 224 204 194 180 140 RES SLT GEL 6-360 425 366 361 371 311 284 270 250 195 Type C240 C120 C72 C48 C24 C12 C10 C5 C2 1.85 Vpc 1.85 Vpc 1.85 Vpc 1.80 Vpc 1.80 Vpc 1.80 Vpc 1.80 Vpc 1.75 Vpc 1.70 Vpc Capacity (Ah at 20°C) • Maintenance free VRLA technology eliminates periodic water refilling associated with vented lead acid batteries. • No electrolyte stratification due to its electrolyte GEL form. The electrolyte formulation produces a homogenous GEL that delivers consistent performance and long cycle life. The gelled electrolyte gives better protection to the battery plates, and is better suited for deep cycle discharge applications. • Leak proof due to GEL technology. The use of gelled electrolyte means there is no free acid inside the cell. So the batteries are completely spillproof and are suitable for many available options of vertical or horizontal installation. • Premium grade separators allow maximum charge flow between the plates for optimum performance even in harsh conditions. Key Features & Benefits Number of Cycles DoD% 250 500 1000 1500 2000 2500 3000 3500 4000 80% 70% 60% 50% 40% 30% 20% 10% 0% Number of Cycles vs. DoD
  • 7. www.systems-sunlight.com 7 12 12 6 6 513 517 244 305 218 270 192 180 215 240 275 365 60.5 71.0 34.1 54.3 14 12 36 15 RES SLT GEL 12-200 RES SLT GEL 12-240 RES SLT GEL 6-260 RES SLT GEL 6-360 Design Positive plates: Flat plates with lead calcium tin grid. Negative plates: Plates of reinforced grids design pasted with optimized lead alloy. Separators: High-porosity separators with minimal internal resistance. Secured insulation between positive and negative plates. Free flow of electrolyte throughout the cell. Electrolyte: Sulphuric acid immobilised as a GEL. Container, lid material: Corrosion-resistant polypropylene material. Lids completely heat sealed. Terminals: Automotive Post type. On the same side for 12V blocks and diagonally for 6V blocks. Pressure relief valve: One way valve with flame arrestor. Operation Number of cycles: 600 cycles (@60% DoD, 20oC). Maintenance: Maintenance-free design without topping-up needs. Operating temperature: Min: -20ºC / Max: 45ºC. Recommended 15ºC to 35ºC. Self discharge rate: Approx. 2% per month at 20ºC. Storage Time: Maximum shelf life up to 6 months at 20ºC, 4 months at 30ºC or 2 months at 40ºC. Recommended Charging Voltage: Recommended Charging Voltage: 2.25 to 2.30 V/cell (stand-by use at 20ºC), 2.35 to 2.45 V/cell (cycle use at 20ºC).
  • 8. Data in this document are subject to change without notice and become contractual only after written confirmation. SYSTEMS SUNLIGHT S.A. Headquarters 2 Ermou & Nikis Str., Syntagma Sq. 105 63 Athens, Attica, Greece T +30 210 6245400 F +30 210 6245409 European Manufacturing Plant Neo Olvio 672 00 Xanthi, Greece T +30 25410 48100 F +30 25410 95446 Global Service Department 366 Tatoiou Str. 136 73 Acharnes, Attica, Greece T +30 210 6245600 F +30 210 6245619 www.systems-sunlight.com Member of SUNLIGHT Global Partners Network ET-MS_130718-EN
