Developed network interface to control energy harvesting devices

1. Java API forEnOceanequipmentwith BSC-BAP-TX gateway Performedby: Istochnikov Vladimir Puyish Chand

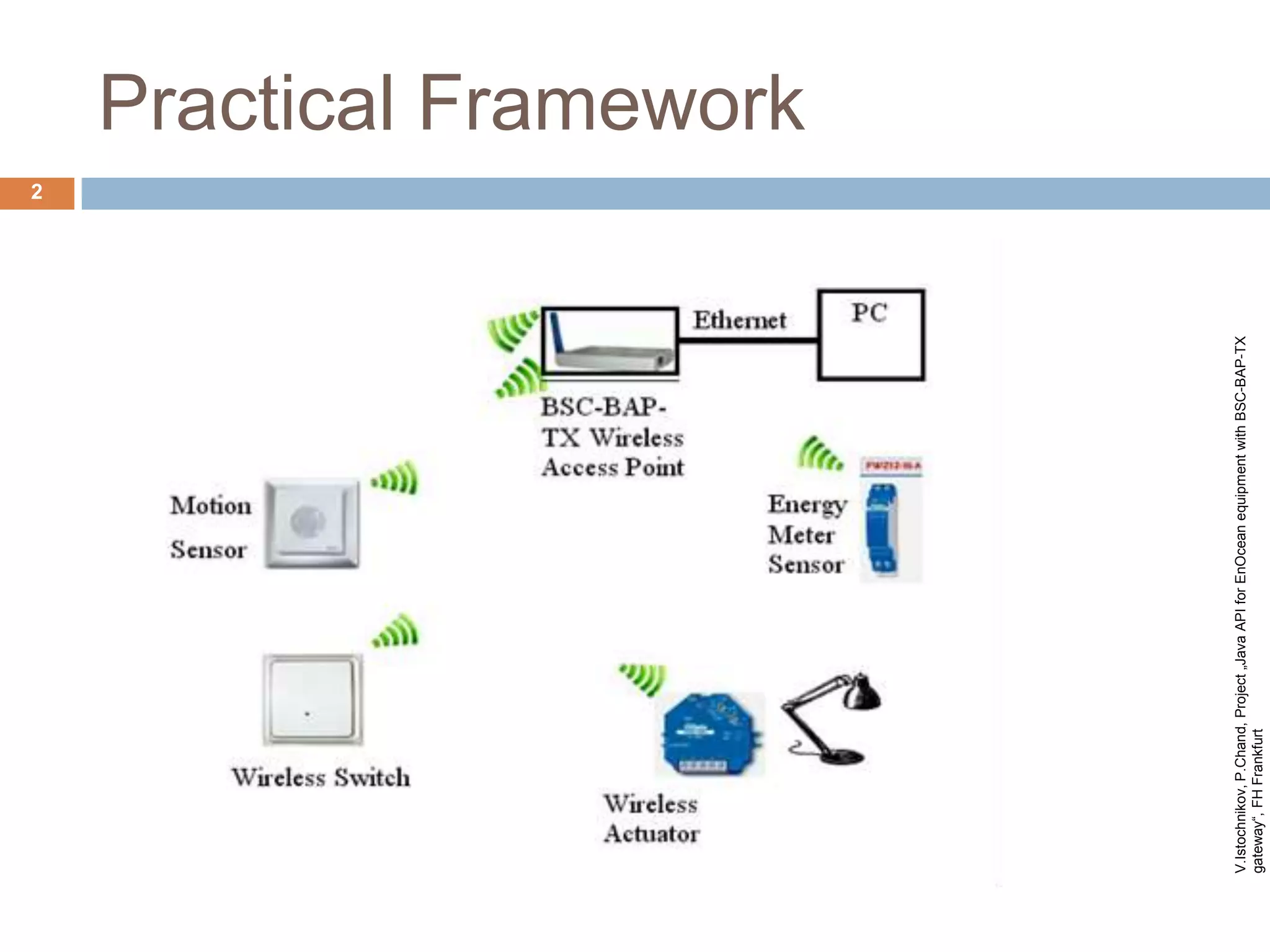

2. Practical Framework 2 V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt

4. Visualization with SoftwareBSC- BoSe Pro is possible.

5. Connection with Power over Ethernet (PoE) is possible.

6. BSC - BAP is a low consumption device with max. < 0, 5 Watt only.Source: [1]

7. Usedequipment 4 Wireless Actuator (FSR61NP) This wireless actuator is an impulse switch with integrated relay function and features state-of-the-art hybrid technology. It combines the wear-free receiver and evaluation electronics and a bistable relay with zero passage switching. By using a bistable relay coil power loss and heating is avoided even in the on mode. V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt Wireless Actuator (FSR61NP) wireless switch/push-button is used in the practical framework. The Wireless push-buttons with one rocker can transmit two evaluable signals: press rocker up and press rocker down. Source: [2,4]

8. Developed Java API Example 5 V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt

9. Java API detailed: Ports 6 Port 2005 Port 2001/2100 and 2003 V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt Port 2002

12. Java API detailed: Telegrams 9 V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt Source: [6,7]

13. Future Application 10 The Resource Adapter for EnOceancan provide us the opportunity to extend the support for EnOcean devices to the JSLEE (JAIN Service Logic Execution Environment), which is one of the known telecommunication developing environment. Some examples for Value Added Services, with respect to EnOcean Resource Adapter and SIP Resource Adapter can be as follows: 1. Developing a Service, where a SIP based end user can control the EnOcean devices, like the wireless actuator. 2. Developing a Service, where a SIP based end user can monitor the energy consumption of the electrical devices, by using the wireless energy meter. V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt Source: [8]

14. Conclusion 11 Implementing more and more energy harvesting devices and developing ways to control these devices can not only make our life much more convenient but, most importantly it can make an impact to the energy consumption which is one of the challenges that the world is facing. V.Istochnikov, P.Chand, Project „Java API forEnOceanequipmentwith BSC-BAP-TX gateway“, FH Frankfurt Source: [8]

15. References 12 [1] BSC-BAP-TX Wireless Access point: BSC-BAP Datasheet, issue date 21.08.07, available at http://www.enoceanalliance.org/uploads/tx_f03enocean/bsc_Produktdatenblatt-BAP.pdf [2]Wireless Actuator (FSR61NP): The Eltako Wireless System, 2011, available at http://www.eltako.com/fileadmin/downloads/en/_catalogue/wireless_system_high_res.pdf [3]Wireless single-phase energy Meter (FWZ12-16A): The Eltako Wireless System, 2011, available at http://www.eltako.com/fileadmin/downloads/en/_catalogue/wireless_system_high_res.pdf [4] Wireless switch/ Push-button (FT4F): The Eltako Wireless System, 2011, available at http://www.eltako.com/fileadmin/downloads/en/_catalogue/wireless_system_high_res.pdf [5] Motion/Brightness sensor (FBH55): The Eltako Wireless System, 2011, available at http://www.eltako.com/fileadmin/downloads/en/_catalogue/wireless_system_high_res.pdf [6]EnOcean Equipment Profiles (EEP) V2.0, July 2009, available at http://www.enoceanalliance.org/fileadmin/redaktion/enocean_alliance/pdf/EnOcean_Equipment_Profiles_2.0.pdf [7] TCM 120 Transceiver Module User Manual V1.53, August 2008, available at http://www.enocean.com/en/enocean_modules/TCM_120_User_Manual_V1.53_02.pdf [8] Implementing a JSLEE Resource Adaptor, A quick-starter’s guide, available at http://www.maretzke.de/pub/howtos/mobicents_ra/HowTo_Mobicents_RA_MiMa_v1.1_20051007.pdf

16. “Any sufficiently advanced technology is indistinguishable from magic.” Arthur C. Clarke, "Profiles of The Future", 1961 (Clarke's third law)English physicist & science fiction author (1917 - ) Thankyouforattention
