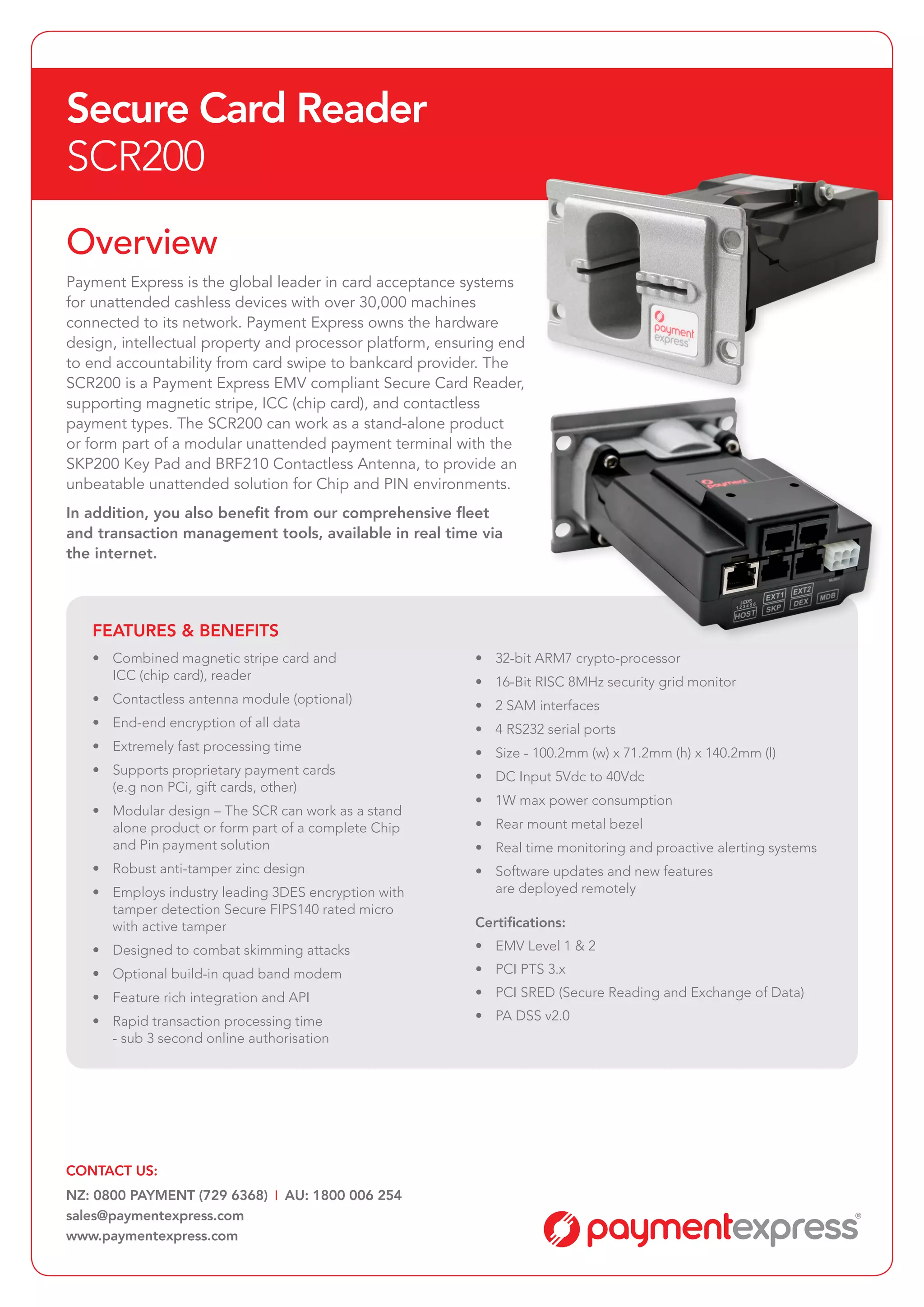

1. Secure Card Reader
SCR200
Overview
Payment Express is the global leader in card acceptance systems
for unattended cashless devices with over 30,000 machines
connected to its network. Payment Express owns the hardware
design, intellectual property and processor platform, ensuring end
to end accountability from card swipe to bankcard provider. The
SCR200 is a Payment Express EMV compliant Secure Card Reader,
supporting magnetic stripe, ICC (chip card), and contactless
payment types. The SCR200 can work as a stand-alone product
or form part of a modular unattended payment terminal with the
SKP200 Key Pad and BRF210 Contactless Antenna, to provide an
unbeatable unattended solution for Chip and PIN environments.
In addition, you also benefit from our comprehensive fleet
and transaction management tools, available in real time via
the internet.
• Combined magnetic stripe card and
ICC (chip card), reader
• Contactless antenna module (optional)
• End-end encryption of all data
• Extremely fast processing time
• Supports proprietary payment cards
(e.g non PCi, gift cards, other)
• Modular design – The SCR can work as a stand
alone product or form part of a complete Chip
and Pin payment solution
• Robust anti-tamper zinc design
• Employs industry leading 3DES encryption with
tamper detection Secure FIPS140 rated micro
with active tamper
• Designed to combat skimming attacks
• Optional build-in quad band modem
• Feature rich integration and API
• Rapid transaction processing time
- sub 3 second online authorisation
• 32-bit ARM7 crypto-processor
• 16-Bit RISC 8MHz security grid monitor
• 2 SAM interfaces
• 4 RS232 serial ports
• Size - 100.2mm (w) x 71.2mm (h) x 140.2mm (l)
• DC Input 5Vdc to 40Vdc
• 1W max power consumption
• Rear mount metal bezel
• Real time monitoring and proactive alerting systems
• Software updates and new features
are deployed remotely
Certifications:
• EMV Level 1 & 2
• PCI PTS 3.x
• PCI SRED (Secure Reading and Exchange of Data)
• PA DSS v2.0
FEATURES & BENEFITS
CONTACT US:
NZ: 0800 PAYMENT (729 6368) AU: 1800 006 254
sales@paymentexpress.com
www.paymentexpress.com
