1. Introduction:
Fingerprint and RFID Handheld Terminal, This product is upgrading. The new version will be
launched with TCP/IP, 3G/GPRS, WIFI, Camera, 2D Barcode, in June, 2012.
Features:
．Integrated latest ZK patented small-size optical fingerprint sensor with high identification performance
．Supporting contact-less IC card according with ISO14443-A
．Capable to store the cardholder’s fingerprint into intelligence card to realize fingerprint verification in the card
．Low power consumption and long time for standby, special energy-saving design promised longer time use.
．Adopted lithium-ion battery. The charger recognition system has big storage capacity which can be expanded as
per requirement
．IP54 available
Handheld Device P101
Time Attendance Device
dSSStandalone
www.bluetechwireless.net

2. Specifications:
O/S Windows CE 5.0
CPU 32bit ZK6001 Microprocessor /400Mhz
Memory 256M Flash/64M SDRAM
Display 3.2’’TFT touch screen
Camera 1.3 Mega pixel (optional)
Keypad 25-key keypad with 10 numeric and 4 function keys
FAR <=0.0001%
FRR <=1%
Temperature 0℃-50℃
Humidity 20%-80%
Audio format Mp3,WAV, Video
Communication RS232, Ethernet, and USB HOST /Client 1.1
Battery 4000 mAh Lithium-ion battery
Power/Current AC110-230V / DC5V 2A,
Continuous time of battery Continuous Working 4 hours Standby 3 days
Extendable devices ID card, Mifare card，ZK optical sensor，
USB printer (customization)
Dimension 245*81*46 mm( H*W*T)
www.bluetechwireless.net

3. Introduction
iClock-S900 is a Time & Attendance and access control terminal with incorporated ZK
fingerprint sensor and a 3’5 TFT display.
Easy to install, and with a modern design, it is the perfect solution for all kinds of installations.
The color TFT display offers users easy menu management. Iclock-S900 is based on ZEM600
platform which allows more memory capacity and professional firmware functions and is
also available as standard with Windows CE OS.
It can connect to Time & Attendance management software by Ethernet or USB port (optionally
it can work by Wifi and GPRS), and also operate on standalone mode, downloading data by
USB pendrive. For access control, it allows time zones and groups and the relay can be
connected to lock or external siren
iClock-S900 RFID & FP
Time Attendance Device
dSSStandalone
www.bluetechwireless.net

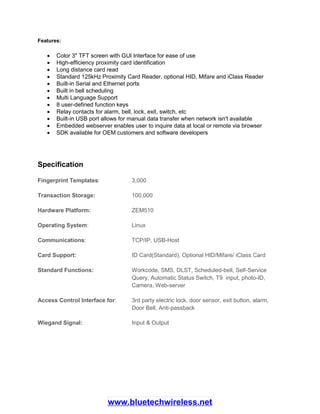

4. Features:
．Color TFT screen with GUI Interface for ease of use
．High-efficiency proximity card identification
．Long distance card read
．Standard 125kHz Proximity Card Reader, optional HID, Mifare and iClass Reader
．Built-in Serial and Ethernet ports
．Built in bell scheduling
．Multi Language Support
．8 user-defined function keys
．Relay contacts for alarm, bell, lock, exit, switch, etc
．Built-in USB port allows for manual data transfer when network isn't available
．Embedded webserver enables user to inquire data at local or remote via browser
．SDK available for OEM customers and software developers
Specifications:
Card Capacity 50,000
Transaction Storage 150,000
Hardware Platform ZEM510
Operating System Linux
Communications RS232485, TCP/IP, USB-Host
Card Support ID Card(Standard), Optional HID/Mifare/ iClass Card
Standard Functions Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic
Status Switch, T9 input, photo-ID, Camera, Web-server
Access Control Interface for 3
rd
party electric lock, door sensor, exit button, alarm, Door Bell, Anti-
passback
Wiegand Signal Input & Output
www.bluetechwireless.net

5. Introduction
ZK8000 is an fingerprint and card issuer product developed by ZKSoftware Inc. It is able to
collect fingerprint image and convey the digital fingerprint template to PC, supporting ZK Finger
SDK development kit.
The collected fingerprint image is 500 dpi. The surface of ZK8000 fingerprint sensor adopts hard
optical material and patented protective membrane, ZK8000 is an ideal fingerprint enrollment
device with good verification performance. Built-in Mifare card read-write module enables
fingerprint template and digital data deriving from PC be written into Mifare card, which
eliminates the trouble of issuing card from single time attendance device or access control
device.
ZK8000 fingerprint and card issuer will lead the application revolution of consumption product
and will be used in many traditional membership consumption places such as large shopping
stores and department store, exclusive club, and canteens of school or government. This
product will be also widely used social insurance, public security, time attendance, fingerprint
encryption, embedded system and other many fields of application.
Fingerprint Sensor ZK8000
Time Attendance Device
dSSStandalone
www.bluetechwireless.net

6. Features:
 Integration of fingerprint collection and Mifare card store function
 Excellent image quality: 500 dpi
 Support fingerprint 360 degree rotation
 Good performance for dry or rough finger
 Support ZK Finger SDK Kit
 Driver is available in Windows 2000/2003/XP/Vista
 8 bit gray scale
 Compatible with USB1.0 / 1.1/ 2.0
Specifications:
 Built-in Mifare one(13.56 MHz) read-write module
 Fingerprint sensor: ZK Optical Sensor with strengthen film
 Resolution: 500DPI
 Image size: 15.4mm*18.0mm
 Interface: USB1.1, compatible with USB1.0,1.1,2.0 full speed
 Registration speed: <0.5 sec
 Operating Temperature: 0° - 40° C
 Operating Humidity: 20%-80%
 Operating System: Windows2000，2003,XP,Vista
 USB cable length: 150 CM
 Dimension (L*W*H)：124.5mm*102mm*34mm
 Power Supply: 5.0V +/- 0.25V ( USB interface power)
 Current : Capture fingerprint: max 100 mA
 Idle mode : max 30 mA
 Suspend mode : <0.5 mA
www.bluetechwireless.net

7. Introduction
IClock700 time attendance and access control terminal adopts ZKSoftware latest ZEM600
platform with ZKFinger 10.0 fingerprint algorithm to improve identification speed. It can manage
10000 templates within 1.5 second (I: N identification). IClock700 features ZK’s high
performance, high image quality optical fingerprint sensor. The patented optical sensor is
resistant to scratches, impact, vibration and electrostatic Shock.
Because of the common development platform, existing customer will be able to use iClock700
and co-exist with any existing ZK readers without re-enrolling the users. The iClock700 can be
used in multi factor authentication that supports fingerprint, password, Proximity and Smart
card. It also has an option for Wi-Fi and GPRS connectivity.
The iClock700 has camera and 3.5” color TFT-LCD display, so it can display the individual
graphical interfaces and personnel color photos. It comes standard with TCP/IP, RS-232/485,
USB-host, USB-client, 8 functions keys, T9 input method, backup battery and has access
control connectivity for Wigand-in, Wigand-out, Door lock connection, Alarm, Bell, Remote to
Exit switch.
iClock 700
Time Attendance Device >> Fingerprint Standalone
dSSStandalone
www.bluetechwireless.net

8. Features:
 Multimedia
 3.5'' TFT screen support different Multimedia formats.
 Internal Camera and Photo-ID support the user's photo display and make T&A application more visible and
reliable.
 Time & Attendance
 Built-in backup battery protects data.
 Storage Capacity: Store up to 8,000 templates (1: N) and 200,000 records.
 More practical functions such as SMS, T9 input, Work-code enable user-friendly.
 Offer a wide selection in authentication mode and easy security system upgrade with combination of
fingerprint, password and ID/MIFARE/HID card.
 Access Control
 Monitor employee's movement at any time. Provide extra security with 50 time zone, user grouping, and
professional unlocking combination function, easy integration with door lock system.
 Communications
 Versatile interface options including RS232/485, TCP/IP, USB Host, USB Client, Optional WIFI and GPRS;
Specification
Fingerprint Capacity 8000 templates
Transaction Capacity 200,000
Sensor ZK Optical Sensor
Algorithm Version ZK Finger v10.0
Communication RS232/485, TCP/IP, USB-host
Standard Functions Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic
Status Switch, T9 input, photo-ID, Web server, Camera, built-in battery
Access Control Interface for Lock, door sensor, exit button, alarm, Door Bell, Anti-pass back
Wiegand Signal Input & Output
Optional Functions ID/Mifare/HID, printer, soap, WIFI,GPRS,RIS
Display 3.5 inches TFT Screen
Power Supply 12V DC 3A
Operating Temperature 0 ℃- 45 ℃
Operating Humidity 20%-80%
Dimension 225x165.5x50 mm H*W*D
Gross Weight 2.05 kg
www.bluetechwireless.net

9. Connection Diagram:
www.bluetechwireless.net

10. Introduction
iClock880 time attendance and access control terminal adopts ZKSoftware latest ZEM600
platform with ZKFinger 10.0 fingerprint algorithm to improve identification speed. It can manage
10000 templates within 1.5 second (I: N identification). iClock880 features ZK’s high
performance, high image quality optical fingerprint sensor. The patented optical sensor is
resistant to scratches, impact, vibration and electrostatic Shock
Because of the common development platform, existing customer will be able to use iClock880
and co-exist with any existing ZK readers without re-enrolling the users. The iClock880 can be
used in multi factor authentication that supports fingerprint, password, Proximity and Smart
card. It also has an option for Wi-Fi and GPRS connectivity.
iClock880 has camera and 3.5” color TFT-LCD display, so it can display the individual graphical
interfaces and personnel color photos. It comes standard with TCP/IP, RS-232/485, USB-host,
USB-client, 8 functions keys, T9 input method, backup battery and has access control
connectivity for Wigand-in, Wigand-out, Door lock connection, Alarm, Bell, Remote to Exit
switch
Time Attendance Device
iClock 880
www.bluetechwireless.net

11. Features:
 Multimedia
 3.5'' TFT screen support different Multimedia formats.
 Internal Camera and Photo-ID support the user's photo display and make T&A application more visible and
reliable.
 Time & Attendance
 Built-in backup battery protects data.
 Storage Capacity: Store up to 8,000 templates (1: N) and 200,000 records.
 More practical functions such as SMS, T9 input, Work-code enable user-friendly.
 Offer a wide selection in authentication mode and easy security system upgrade with combination of
fingerprint, password and ID/MIFARE/HID card.
 Access Control
 Monitor employee's movement at any time. Provide extra security with 50 time zone, user grouping, and
professional unlocking combination function, easy integration with door lock system.
 Communications
 Versatile interface options including RS232/485, TCP/IP, USB Host, USB Client, Optional WIFI and GPRS;
Specification
Fingerprint Capacity 8000 templates
Transaction Capacity 200,000
Sensor ZK Optical Sensor
Algorithm Version ZK Finger v10.0
Communication RS232/485, TCP/IP, USB-host
Standard Functions Workcode, SMS, DLST, Scheduled-bell, Self-Service Query, Automatic Status
Switch, T9 input, photo-ID, Web server, Camera, built-in battery
Access Control Interface for Lock, door sensor, exit button, alarm, Door Bell, Anti-pass back
Wiegand Signal Input & Output
Optional Functions ID/ Mifare /HID, printer, soap, WIFI,GPRS,RIS
Display 3.5 inches TFT Screen
Power Supply 12V DC 3A
Operating Temperature 0 ℃- 45 ℃
Operating Humidity 20%-80%
Dimension 213X178.2X47.5 mm
Gross Weight 2.05 kg
www.bluetechwireless.net

12. Connection Diagram:
www.bluetechwireless.net

13. Introduction
iFace402 multi-biometric identification time attendance and access control terminal
adopts ZKSoftware's latest ZEM600 platform with ZK Face 7.0 algorithm and large
capacity memory.
iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition
infrared camera enables user identification in the dark environment. Face and
fingerprint multi-biometric identification method will be applicable more widely.
All operations of iFace are designed to be performed on the 4.3 inches TFT touch
screen. Multi-model communications includes RS232/485, TCP/IP, optional WiFi or
GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
iFace 402
Time Attendance Device
www.bluetechwireless.net

14. Features:
 Identification methods include Face, Fingerprint/RFID and/or Password Elegant ergonomic design
 4.3’’ TFT touch screen is user-friendly and very intuitive
 6 user-defined function keys
 Contact relays for door access control (wires to door strike or 3rd party panel)
 Web server management software via IE browser.
 Optional extendable scheduled-bell
 Infra-red optical system enables user-identification in poorly lit environments
 Optional built-in battery backup provides approx 4 hours continuous operation.
 Optional built-in wireless Wi-Fi or GPRS for wireless communication.
 Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
 Wiegand Output for connections to 3rd party access control panels
Specification
functions
ID Card(402 Optional), Automatic Status Switch, Self-Service Query, Work
Code, T9 input, 9 digit user ID, DLST
Access control interfaces
for
3
rd
party electric lock, door sensor, exit button
Wiegand Signal Output
Optional functions
serial printer, Mifare card, Extendable Scheduled-bell, Short Massage,
Web-server, GPRS
Power supply 12V3A
Verification Speed ≤2 sec
Operating temp 0℃- 45 ℃
CPU ZK Multi-Bio CPU 630 MHz
Memory 256M Flash, 64M SDRAM
Hardware Platform ZEM600 Multi-Medium Development Platform
Fingerprint Sensor ZK Optical Fingerprint Sensor without film
Camera High Resolution Infrared Camera
Display 4.3’’ TFT touch screen
Face capacity 400 (1:N)
Fingerprint capacity 2000
ID Card capacity 10,000
Logs capacity 100,000
Algorithm Version ZK Face 7.0 & ZK Finger 10.0
2000mAh backup battery Optional
Communication TCP/IP,RS232/485
USB-HOST Two USB-Host
Wireless Wi-Fi Optional
Time attendance Standard
www.bluetechwireless.net

15. Operating Humidity 20%-80%
Dimension 193.6*165*111 mm (Length*Width*Thickness)
Net Weight 1.75 kg
Connection Diagram:
www.bluetechwireless.net

16. Introduction
INO1-A is a multimedia proximity time attendance and access control terminal developed by
ZKSoftware. it is based on self-research and developed multimedia ZEM510 platform -the
leading figure in Proximity field. The 3.5” TFT can display more information vividly, including
user photo and verification result etc. It supports T9 input method, which could input English
letters by keyboard, edit user name, short message, and intelligent operation.
The world famous Linux system ensures stable and reliable network transmission. S880 has the
only legally authorized MAC address and it can be used in complicated internet environment.
TCP/IP communication is standard and make sure the data transmission between terminal and
PC can be easily done within several seconds.
The S880 has access control connectivity for Wiegand-in, Wiegand-out, Door lock connection,
Alarm, Bell, Remote to Exit switch.
ZK INO1-A
Time Attendance Device >> Fingerprint Standalone
dSSStandalone
www.bluetechwireless.net

17. Features:
 Color 3" TFT screen with GUI Interface for ease of use
 High-efficiency proximity card identification
 Long distance card read
 Standard 125kHz Proximity Card Reader, optional HID, Mifare and iClass Reader
 Built-in Serial and Ethernet ports
 Built in bell scheduling
 Multi Language Support
 8 user-defined function keys
 Relay contacts for alarm, bell, lock, exit, switch, etc
 Built-in USB port allows for manual data transfer when network isn't available
 Embedded webserver enables user to inquire data at local or remote via browser
 SDK available for OEM customers and software developers
Specification
Fingerprint Templates: 3,000
Transaction Storage: 100,000
Hardware Platform: ZEM510
Operating System: Linux
Communications: TCP/IP, USB-Host
Card Support: ID Card(Standard), Optional HID/Mifare/ iClass Card
Standard Functions: Workcode, SMS, DLST, Scheduled-bell, Self-Service
Query, Automatic Status Switch, T9 input, photo-ID,
Camera, Web-server
Access Control Interface for: 3rd party electric lock, door sensor, exit button, alarm,
Door Bell, Anti-passback
Wiegand Signal: Input & Output
www.bluetechwireless.net

18. Introduction:
MA300 is an innovative biometric fingerprint reader for access control applications, offering
unparalleled performance using an advanced algorithm for reliability, precision and excellent
matching speed.
The MA300 features the fastest commercial-based fingerprint matching algorithm and ZK high-
performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be
installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be
enrolled by administrator card when the device works as a standalone access control. TCP/IP
and RS485 are available that the device can be used in different network. TCP/IP
communication makes sure the data transition between the device and the PC can be easily
done within several seconds.
MA300 can be used in tough environment because of the IP54 protection index and the wide
range of operating temperature.
MA300
Access Control Device
dSSStandalone
www.bluetechwireless.net

19. Features:
．Fingerprint reader with durable and highly accurate ZK optical sensor
．1 touch a-second user recognition
．Stores 1,500 templates, 10,000 cards and 30,000 transactions
．Reads Fingerprint and/or Card
．Optional integrated smart card reader
．Built-in Serial and Ethernet ports
．Tamper-proofs switch and alarm outputs
．Request-to-exit and alarm contacts
．Real-time 1-touch data export 3rd party hosted & non-hosted applications
．Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specifications:
Fingerprint Capacity 1500 templates
ID card Capacity 10,000
Transaction Capacity 100,000
Hardware Platform ZEM710
Sensor ZK Optical Sensor
Algorithm Version ZK Finger v10.0
Communication RS485, TCP/IP, USB-host
Access Control Interface for 3rd
party electric lock, door sensor, exit button, alarm
Wiegand Signal Input & Output
Stardard Access Control
Function
Time Zone, Group, Multi-identification, Duress mode, Anti-
passback
Optional Functions Mifare, external USB keypad
Display N/A
Power Supply 12V DC
Operating Temperature -10 ℃- 60 ℃
Operating Humidity 10%-90%
Index of Protection IP54
www.bluetechwireless.net
