This document discusses log management and analysis. It begins by explaining why logs are important for troubleshooting, security, and understanding infrastructure issues. It then discusses how tools like Logstash and Elasticsearch can be used to efficiently process, search, and visualize logs. The document provides examples of how these tools work together in a log management pipeline to ingest logs, parse and filter them, and store them in Elasticsearch for analysis and visualization. It concludes by discussing how these tools can be used to detect patterns and anomalies in logs.

1. - Logs, Logs and More Logs!
Cameron Evans Lead Infrastructure Developer cameron@toplog.io

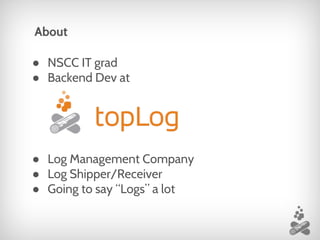

2. ● NSCC IT grad
● Backend Dev at
● Log Management Company
● Log Shipper/Receiver
● Going to say “Logs” a lot
About

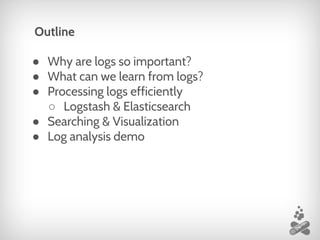

3. ● Why are logs so important?
● What can we learn from logs?
● Processing logs efficiently
○ Logstash & Elasticsearch
● Searching & Visualization
● Log analysis demo
Outline

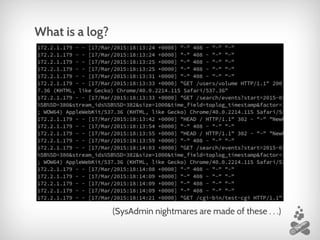

4. What is a log?
(SysAdmin nightmares are made of these . . .)

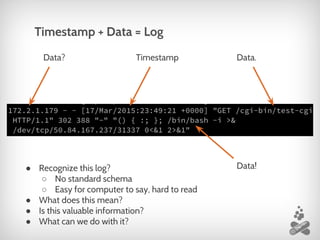

5. Timestamp + Data = Log
Data? Data.
Data!
Timestamp
● Recognize this log?
○ No standard schema
○ Easy for computer to say, hard to read
● What does this mean?
● Is this valuable information?
● What can we do with it?

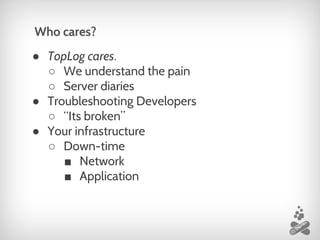

6. ● TopLog cares.
○ We understand the pain
○ Server diaries
● Troubleshooting Developers
○ “Its broken”
● Your infrastructure
○ Down-time
■ Network
■ Application
Who cares?

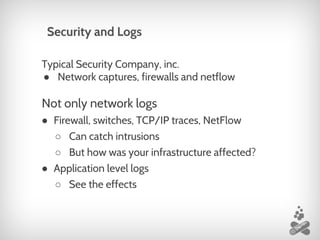

7. Typical Security Company, inc.
● Network captures, firewalls and netflow
Not only network logs
● Firewall, switches, TCP/IP traces, NetFlow
○ Can catch intrusions
○ But how was your infrastructure affected?
● Application level logs
○ See the effects
Security and Logs

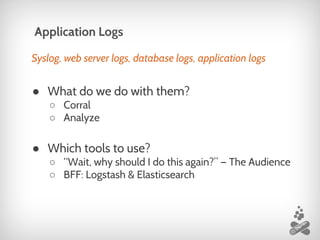

8. Syslog, web server logs, database logs, application logs
● What do we do with them?
○ Corral
○ Analyze
● Which tools to use?
○ “Wait, why should I do this again?” — The Audience
○ BFF: Logstash & Elasticsearch
Application Logs

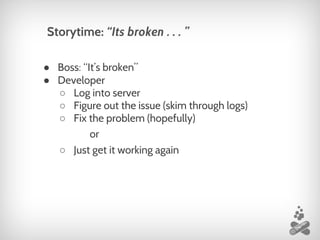

9. ● Boss: “It’s broken”
● Developer
○ Log into server
○ Figure out the issue (skim through logs)
○ Fix the problem (hopefully)
or
○ Just get it working again
Storytime: “Its broken . . . ”

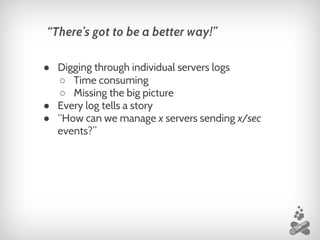

10. ● Digging through individual servers logs
○ Time consuming
○ Missing the big picture
● Every log tells a story
● “How can we manage x servers sending x/sec
events?”
“There’s got to be a better way!”

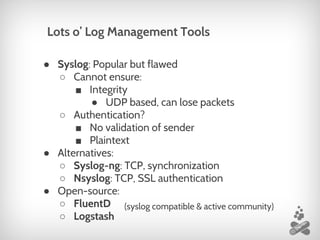

11. ● Syslog: Popular but flawed
○ Cannot ensure:
■ Integrity
● UDP based, can lose packets
○ Authentication?
■ No validation of sender
■ Plaintext
● Alternatives:
○ Syslog-ng: TCP, synchronization
○ Nsyslog: TCP, SSL authentication
● Open-source:
○ FluentD
○ Logstash
Lots o’ Log Management Tools
(syslog compatible & active community)

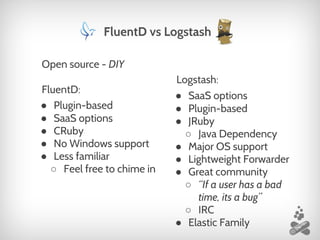

12. Open source - DIY
FluentD:
● Plugin-based
● SaaS options
● CRuby
● No Windows support
● Less familiar
○ Feel free to chime in
FluentD vs Logstash
Logstash:
● SaaS options
● Plugin-based
● JRuby
○ Java Dependency
● Major OS support
● Lightweight Forwarder
● Great community
○ “If a user has a bad
time, its a bug”
○ IRC
● Elastic Family

13. ● Log-Management tool
● Event-Processing Pipeline
● Queue-based
● Plugins
○ Input (receive logs: file, lumberjack, syslog, redis)
○ Filter (parse, modify, concatenate, conditionals)
○ Output (store logs: elasticsearch, nagios, syslog)
○ Tailor to your system
● Scalable
● Parse log types into filterable/searchable fields
● Open-Source Community
Logstash Server

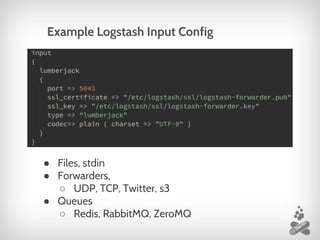

14. Example Logstash Input Config
● Files, stdin
● Forwarders,
○ UDP, TCP, Twitter, s3
● Queues
○ Redis, RabbitMQ, ZeroMQ

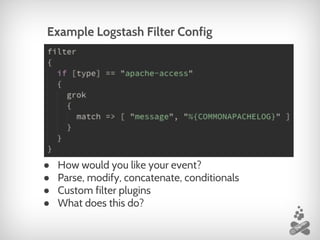

15. Example Logstash Filter Config
● How would you like your event?
● Parse, modify, concatenate, conditionals
● Custom filter plugins
● What does this do?

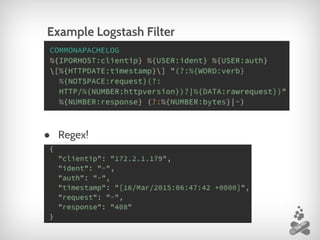

16. Example Logstash Filter
● Regex!

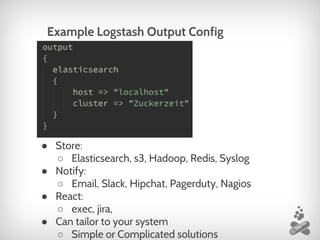

17. ● Store:
○ Elasticsearch, s3, Hadoop, Redis, Syslog
● Notify:
○ Email, Slack, Hipchat, Pagerduty, Nagios
● React:
○ exec, jira,
● Can tailor to your system
○ Simple or Complicated solutions
Example Logstash Output Config

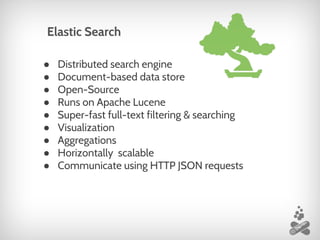

18. ● Distributed search engine
● Document-based data store
● Open-Source
● Runs on Apache Lucene
● Super-fast full-text filtering & searching
● Visualization
● Aggregations
● Horizontally scalable
● Communicate using HTTP JSON requests
Elastic Search

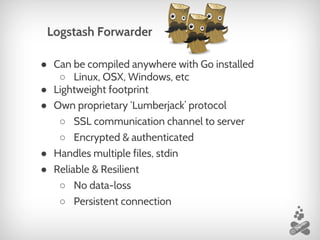

19. ● Can be compiled anywhere with Go installed
○ Linux, OSX, Windows, etc
● Lightweight footprint
● Own proprietary ‘Lumberjack’ protocol
○ SSL communication channel to server
○ Encrypted & authenticated
● Handles multiple files, stdin
● Reliable & Resilient
○ No data-loss
○ Persistent connection
Logstash Forwarder

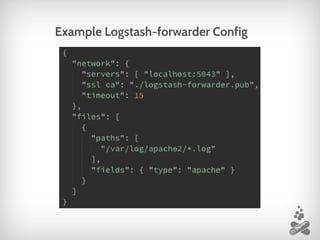

20. Example Logstash-forwarder Config

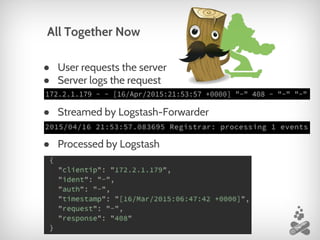

21. ● User requests the server
● Server logs the request
● Streamed by Logstash-Forwarder
● Processed by Logstash
All Together Now

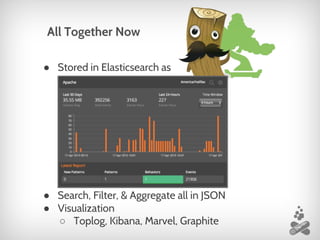

22. ● Stored in Elasticsearch as
● Search, Filter, & Aggregate all in JSON
● Visualization
○ Toplog, Kibana, Marvel, Graphite
All Together Now

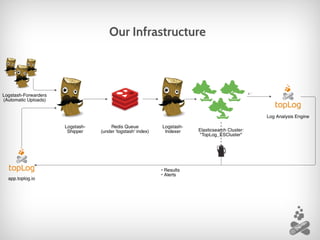

23. Our Infrastructure

24. We aren’t the only ones:

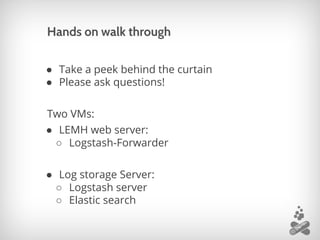

25. Hands on walk through
● Take a peek behind the curtain
● Please ask questions!
Two VMs:
● LEMH web server:
○ Logstash-Forwarder
● Log storage Server:
○ Logstash server
○ Elastic search

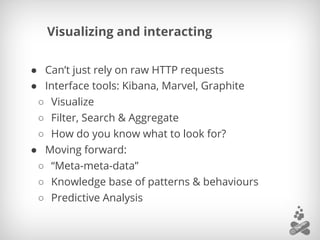

26. Visualizing and interacting
● Can’t just rely on raw HTTP requests
● Interface tools: Kibana, Marvel, Graphite
○ Visualize
○ Filter, Search & Aggregate
○ How do you know what to look for?
● Moving forward:
○ “Meta-meta-data”
○ Knowledge base of patterns & behaviours
○ Predictive Analysis

27. Let’s talk about us ba-by
● Automated pattern-extraction
● Pattern correlation
● Behaviour detection
● Anomaly detection

28. More info
● Presentation slides @ https://blog.toplog.io
● FFFound: https://www.found.
no/foundation/elasticsearch-from-the-bottom-
up/
● Logstash IRC
● Think of a question later?
cameron@toplog.io
● More on what we do?
https://toplog.io team@toplog.io
