ELEMER produces high accuracy temperature calibrators with a range of -50 to 650°C and stability of 0.01°C. Their calibrators can calibrate up to 4 thermometers simultaneously and feature a capacious dry well, universal inputs, automatic temperature control, and a color touch screen. They also produce digital manometers and intelligent pressure transmitters for measuring and transmitting pressure data with various output signals and accuracy down to ±0.075% for pressures from 0.04kPa to 100MPa.

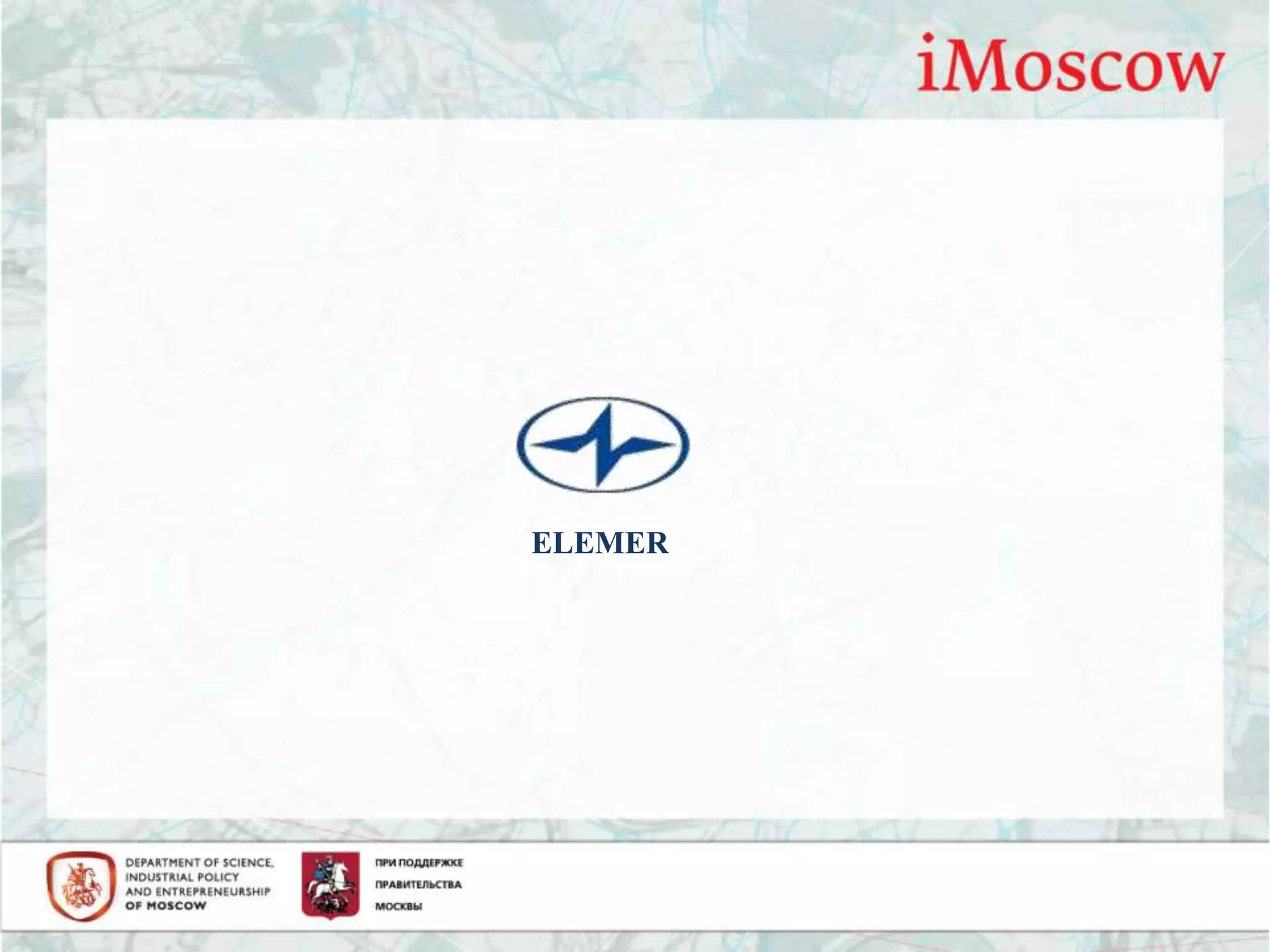

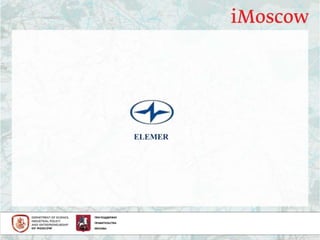

1. ELEMER

2. Temperature calibrators ELEMER
High accuracy
Down to ±0.02 °C using built-in high accuracy RTD sensor
Wide temperature range
KT-150K …………..-50 to 150 °C
KT-200K …………..-10 to 200 °C
KT-500K ………….. 28 to 500 °C
KT-650K ………….. 28 to 650 °C
Superior stability 0.01 °C
30 min measuring time
All-in-one calibration system
Capacious dry well loading up to 4 thermometers
4 universal analog inputs (RTD, TC, transmitters)
• Automatic control of temperature plateau for slim metal freeze point cells
• Mains noise immunity
• Enhanced temperature homogeneity
• Colour touch screen
• Autostepping mode
• Up to 4 thermometers calibration at the same time
• HART protocol compatibility
• Angular design external reference sensor
• Unique dry well capacity

3. EKM 1005 EKM 2005
Area of use options
Ех (0ExiallCT6 X), Ехd (1ExdllCT6 X) Ехd (1ExdllCT6 X)
Operating temperature
-40 to +70 ⁰С -50 to +80 ⁰С
Control outputs (alarms)
2 opto relays
300мА, 250 VDC/AC,
2 electromagnetic relays
5А х 250 VAC
Vibration proof
150 Hz/2g/0,35mm 2000Hz/10g/0,75mm
Digital manometers with control functions EKM 1005, EKM 2005
•data readout
•measuring and transmitting
•control and alarm functions
All types of pressure
•lower pressure range limit – 0,25 kPа
•upper pressure range limit – 60 MPа
Accuracy – 0,25%
•long term stability - 0,075%/3 years
•temperature error – 0,2%/10⁰С
•range scaling – 1:4

4. Intelligent pressure transmitters ELEMER 100
Power supply — 15…42 V DC ƒ
Output signal — 0…5 mA; 4…20 mA + НАRT ƒ
Configuration — front panel keypad, HART-protocol
Factory setup mode
Accuracy: down to ±0,075 %
Operating temperature: -55 to +70 °C
Indication — 5-digit LCD indicator with backlight and graphic bar scale
(330° rotation)
All types of pressure
Lower pressure range limit : 0,04 kPa
Upper pressure range limit: 100 MPa
Range scaling: 1:60
Areas of use options — industry, «Intrinsic safety» (ЕхiaIIСТ5 Х,
ЕхibIIСТ5 Х), «explosion-proof» (1ExdsIIBT4/H2Х, 1ExdIIСT6 X),
oxygen compatible ƒ
Warranty period — 5 years

5. Eight-band intelligent compact pressure transmitter for
robust field conditions AIR-10SH
Power supply — 9…42 V DC ƒ
Output signal — 4…20 mA + HART ƒ
Configuration — HART-protocol ƒ
Accuracy — down to ±0.1 % ƒ
Temperature ratings — (–60…+80 °С)
Indication — LED indicator (red, only for АГ-15 housing) ƒ
All types of pressure
Lower pressure range limit : 0.4 kPa
Upper pressure range limit: 60 MPa
Range scaling — 1:40 ƒ
Areas of use options — industry, «Intrinsic safety»
(ExiaIICT6 X), «explosion-proof» (1ExiaIICT6), marine,
nuclear industry (increased reliability) ƒ
Warranty period — 5 years (7 years — for nuclear industry
option)
