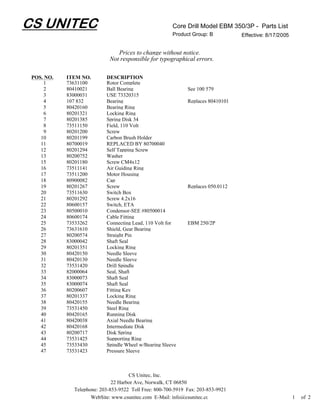

2. CS UNITEC Core Drill Model EBM 350/3P - Parts List
Product Group: B Effective: 8/17/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
1 73631100 Rotor Complete
2 80410021 Ball Bearing See 100 579
3 83000031 USE 73320315
4 107 832 Bearing Replaces 80410101
5 80420160 Bearing Ring
6 80201321 Locking Ring
7 80201385 Spring Disk 34
8 73511150 Field, 110 Volt
9 80201200 Screw
10 80201199 Carbon Brush Holder
11 80700019 REPLACED BY 80700040
12 80201294 Self Tapping Screw
13 80200752 Washer
15 80201180 Screw CM4x12
16 73511141 Air Guiding Ring
17 73511200 Motor Housing
18 80900082 Cap
19 80201267 Screw Replaces 050.0112
20 73511630 Switch Box
21 80201292 Screw 4.2x16
22 80600157 Switch, ETA
23 80500010 Condensor-SEE #80500014
24 80600174 Cable Fitting
25 73533262 Connecting Lead, 110 Volt for EBM 250/2P
26 73631610 Shield, Gear Bearing
27 80200574 Straight Pin
28 83000042 Shaft Seal
29 80201351 Locking Ring
30 80420150 Needle Sleeve
31 80420130 Needle Sleeve
32 73531420 Drill Spindle
33 82000064 Seal, Shaft
34 83000073 Shaft Seal
35 83000074 Shaft Seal
36 80200607 Fitting Key
37 80201337 Locking Ring
38 80420155 Needle Bearing
39 73531450 Steel Ring
40 80420165 Running Disk
41 80420038 Axial Needle Bearing
42 80420168 Intermediate Disk
43 80200717 Disk Spring
44 73531425 Supporting Ring
45 73533430 Spindle Wheel w/Bearing Sleeve
47 73531423 Pressure Sleeve
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 2

3. CS UNITEC Core Drill Model EBM 350/3P - Parts List
Product Group: B Effective: 8/17/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
48 73531428 Brake Disk
49 80201010 Hexagonal Nut
50 73631400 Gear Case
51 73531410 Connecting Ring
52 80201125 Allen Screw
53 80201362 Locking Disk
54 80201211 Hexagon Screw
55 83000080 Ball 3.5
57 80201406 Screw
58 83000106 Seal
60 73531545 Gear Change, Complete
61 73531540 Button
62 80200578 Cylindrical Pin
63 83000081 O-Ring
64 73631542 Gear Lever
65 80200619 Straight Pin
67 80201330 Cylinder Head Screw
69 73533490 Pinion Shaft
70 80410081 BALL
71 80200694 Pressure Disk
72 80200610 Fitting Key
73 73631460 Loose Wheel 1 w/bearing sleeve
75 73531494 Fitting Disk
76 80200749 Retaining Ring
77 73631550 Switch-Actuating Wheel
78 73631470 Loose Wheel 2 w/bearing sleeve
80 80200514 Fitting Disk
81 80201316 Locking Ring
83 73631425 Oil Tube
84 73631500 Countershaft
85 80200600 Fitting Key
86 73631440 Intermediate Wheel
88 80410031 Bearing Replaces 032.0171
89 80410160 Grooved Ball Bearing
91 83000109 Hose Complete
92 251 648 Valve Ring-#52662&65205 #9 2126 0140 & 9 2126 0120
93 83000117 Min Ball Valve
94 83000124 Gardena Connector
97 80201303 Spring Ring
98 80201122 Allen Screw
100 80200074 Bow-Shaped Handle
101 80201375 Disc
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 2 of 2
